USER MANUAL
electriQ PORTABLE AIR CONDITIONER
WITH WIFI
ECOSILENT8W
8,000 BTU
ECOSILENT8WE
ECOSILENT10W
10,000 BTU
ECOSILENT10WE
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

2
CONTENTS
SAFETY
3
FEATURES AND PARTS LIST
5
INSTALLATION
6
OPERATION
8
REMOTE CONTROL
9
WIFI APP CONTROL
10
SETTING UP THE APP
10
CONNECTING THE AIR CONDITIONER
12
CONTROLLING YOUR DEVICE
14
SMART SCENES
17
CLEANING AND MAINTENANCE
20
EMPTYING THE INTERNAL WATER TANK
21
TROUBLESHOOTING
22
ERROR CODES
22
SUPPORT
23
TECHNICAL SPECIFICATION
24

3
SAFETY INSTRUCTIONS
Important!
•Carefully read the instructions before operating the unit
•This appliance is for indoor use only.
•Rating: This unit must be only connected to a 220-240 V / 50 Hz
earthed outlet.
•Installation must be in accordance with regulations of the country where the unit is
used.
•If you are in any doubt about the suitability of your electrical supply have it checked
and, if necessary, modified by a qualified electrician.
•This air conditioner has been tested and is safe to use. However, as with any electrical
appliance - use it with care.
•Disconnect the power from the appliance before dismantling, assembling or cleaning.
•Avoid touching any moving parts of the appliance.
•Never insert fingers, pencils or any other objects though the guard
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those with a
lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their
safety.
•Do not leave children unsupervised with this appliance.
•Do not clean the unit by spraying it or immersing it in water.
•Never connect the unit to an electrical outlet using an extension cord. If an outlet is
not available, one should be installed by a qualified electrician.
•Never operate this appliance if the cord or plug is damaged. Ensure the power cord is
not stretched or exposed to sharp objects/edges.
•A damaged supply cord should be replaced by the manufacturer or a qualified
electrician in order to avoid a hazard.
•Any service other than regular cleaning or filter replacement should be performed by
an authorised service representative. Failure to comply could result in a voided
warranty.
•Do not use the appliance for any purpose other than its intended use.
•The air conditioner unit must always be stored and transported upright, otherwise
irreparable damage may be caused to the compressor; if in doubt we suggest waiting
at least 24 hours before starting the unit.
•Avoid restarting the air conditioning unit unless 3 minutes have passed since being
turned off. This prevents damage to the compressor.
•Never use the mains plug as a switch to start and turn off the air conditioning unit. Use
the provided ON/OFF button located on the control panel.
•Always place the unit on a dry and stable surface.
•The appliance should not be installed in laundry or wet rooms.

4
•The appliance must be placed in a room without sources of ignition (for example: open
flames, an operating gas appliance or an operating electric heater).
•R290 refrigerant gas complies with European environmental directives.
•R290 has a low GWP (Global Warming Potential) of 3.
•The ECOSILENT8W / 8WE contains about 220 g of R290 refrigerant gas.
•The ECOSILENT10W / 10WE contains about 280 g of R290 refrigerant gas.
•Do not use or store in an unventilated space with an area smaller than 10.6 m2per unit
(ECOSILENT8W / 8WE) or 13.4 m2per unit (ECOSILENT10W / 10WE).
•The room must be such as to prevent stagnation of possible leaks of refrigerant gas as
there could be a danger of fire or explosion should the refrigerant come into contact
with electric heaters, stoves or other sources of ignition.
•Refrigerant gas may be odourless.
•Do not use the product and contact the retailer for advice, if damage has occurred to
the unit which may have compromised the refrigerant system.
•Any repairs or maintenance must only be carried out on the unit by a suitably qualified
engineer. Before opening and servicing the unit the authorised engineer must be in
possession of a copy of the manufacturer’s service manual and must follow the safety
information contained within it to ensure all hazards are minimized.
•The refrigerant system should not be perforated or punctured.
Energy Saving and Unit Safety Protection Tips
•Do not cover or restrict the airflow from the outlet or inlet grills.
•For maximum performance the minimum distance from a wall or objects should be
50cm.
•Keep the filters clean. Under normal conditions, filters should only need cleaning once
every three weeks (approximately). Since the filters remove airborne particles, more
frequent cleaning maybe necessary, depending on the air quality.
•For the initial start-up set the fan speed to maximum and the thermostat to 5 degrees
lower than the current room temperature. After, set appliance to your desired
settings.
•To protect the unit, we recommend not using the cooling function when the ambient
temperature is higher than 35oC.

5
FEATURES AND PARTS LIST
FEATURES
•3 in 1 Cooling, Fan, Dehumidifier great for Rooms up to 20 sqm.
•5 speed DC fan: balancing quiet operation with performance.
•SmartCool Logic for Improved Energy Efficiency.
•24 Hours Start / Stop Timer
•Digital Thermostat.
•Smart WIFI App control
•Castors and Handles for Enhanced Portability.
•Auto-Restart to retain the settings in the event of power failure.
PART LIST

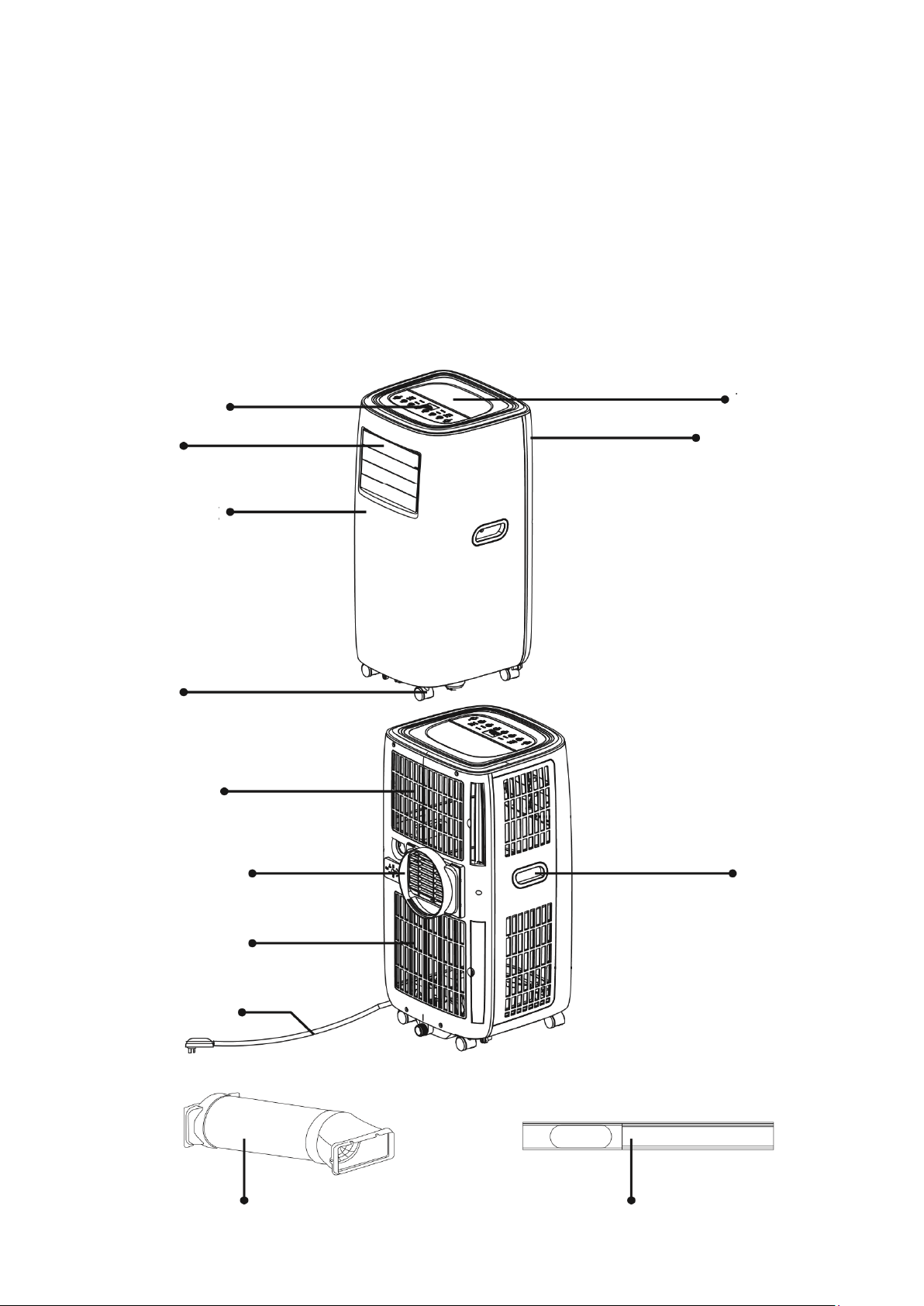

Top Cover
Control Panel
Louvres
Rear Housing
Front Cover
Castors
Upper Air Inlet
Lower Air Inlet
Exhaust Outlet
Carry Handle
Power Cable
Exhaust Hose
Window Slide Bar

6
INSTALLATION
WARNING: Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit please note that it must always be kept upright and then placed on an even surface.
1. Attach the fishtail connector to the end of the hose, by
extending the end and twisting until firmly attached (At least
3 full rotations).
2. Attach the connector on the opposite end of the pipe to the exhaust
outlet on the rear of the appliance by putting into position and twisting to
lock in place.
3. Make sure the unit is upright and there are no obstructions to
the air inlets and outlet grills.

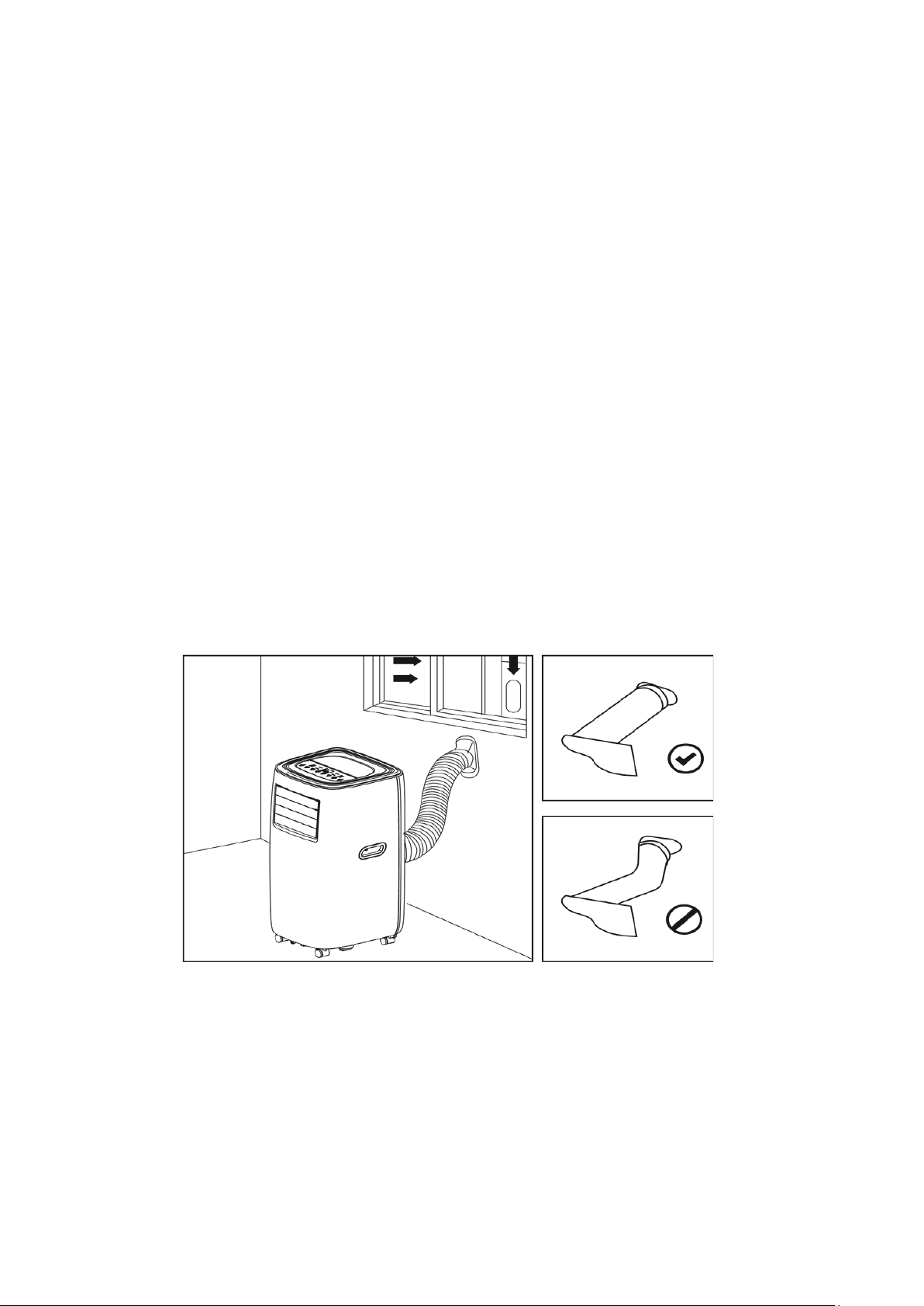

INSTALLATION OF WINDOW KIT
The window kit (slide bar and fishtail) can be used
with sliding windows and doors. For other types of
window, the fishtail should be used on its own.
1. Partially open the window and place
the extended slide bar in position
before closing the window onto it.
2. Fix the fishtail adaptor into the
opening on the slide bar
3. Fix the exhaust connector on the
opposite end of the exhaust hose to
the exhaust outlet on the rear of the
air conditioner.

7
NOTES:
•The window kit is only designed to be installed with sliding or sash windows or doors. The window
kit is not designed to be used with any other style of windows.
•The fish tail adaptor can be used without the slide bar with most windows / doors.
•When using the air conditioner ensure that the opening around the fishtail adaptor is as small as
possible to ensure the efficiency of the unit is not reduced.
•The best form of installation is through a wall duct. By properly venting you expel hot air from your
room while efficiently cooling it.
•Your air conditioner should be used without the vent pipe in dry mode. When using dry mode
ensure that an external water tank is used, monitored and regularly emptied before overflowing.
Permanent plumbing can be also installed or an external uplift water pump can be set up to allow
for uninterrupted use.
IMPORTANT SAFEGUARDS
The length of the soft hose extends from approximately 30 cm to 180 cm. If hose is extended above this
length, the unit may malfunction which can invalidate the warranty. The outlet vent must be well
ventilated and not obstructed as this will cause the unit to overheat. Keep the hose as straight and short
as possible and avoid bending the air hose by more than 30 degrees in order not to reduce the
performance of the unit.

8
OPERATION
Press the POWER button to turn the unit ON or OFF.
Press the MODE button to cycle between the 4 modes, the indicator for the selected mode will
be illuminated.
COOL: The room is cooled with the cold air expelled through the front air outlet while hot air is
expelled through the vent pipe. The desired room temperature can be set between 17 and 30
degrees using the + and –buttons, and the fan speed can be changed using the SPEED button.
FAN: The fan speed can be changed pressing the SPEED button.
DRY (DEHUMIDIFY): Should be operated without the vent hose, but with continuous drainage
to remove moisture from the air. The display will show dH while in dry mode. The unit will
operate at low fan speed in DRY mode.
SMART COOL: An intelligent cooling mode where the fan speed is automatically adjusted based
on the amount of cooling required. Attempts to change the fan speed will move the unit into
COOL mode.
Repeatedly press the SPEED button to cycle through the five fan speeds. Each time the SPEED
button is pressed, the fan speed will be displayed. The fan speed can be changed between F1
(Low) to F5 (High). The LED indicators will also illuminate to show the fan speed as below:
F1 –Low, F2 –Low and Mid, F3 –Mid, F4 –Mid and High, F5 –High.
The fan speed cannot be changed in SMARTCOOL and DRY modes.
Press to enter sleep mode. The sleep indicator will be illumined and all other indicators will be
turned off. In sleep mode, the appliance works at low fan speed. Press SLEEP again to exit sleep
mode.
The SLEEP button is also used to set up the WIFI function. See the WIFI SMART CONTROL
section for further information.
The timer functions cannot be combined or repeated.
POWER ON TIMER
With the appliance in standby, press the TIMER button to set the power-on timer. Use the + and
- buttons to adjust the duration of the timer (1 to 24 hours). The Timer indicator will turn on
and the unit will start after the selected number of hours.
POWER OFF TIMER
With the appliance running with the desired settings, press the TIMER button to set the power-
off timer. Use the + and - buttons to adjust the duration of the timer (1 to 24 hours). The timer
indicator will illuminate and the unit will stop after selected number of hours.
Used to adjust the temperature in COOL/SMART COOL mode and to set the duration of the
TIMER. The buttons are not used in FAN or DRY modes. Press both buttons together to change
between displaying the temperature in Celsius and Fahrenheit.
Press this button to enable the swing function. The louvres will slowly move from side to side. If
swing is pressed again the louvres will stop in their current position.
Press and hold the swing button to turn off the status indicators on the control panel.

9
REMOTE CONTROL
NOTE: The design of the remote may vary from the diagram, due to
continuous product improvement.
MULTI PROTECTIVE FUNCTIONS
FROST PROTECTION
In COOL, DRY or SMART COOL modes, if the temperature of the exhaust is too low, the machine will
automatically stop operating until the temperature has risen.
OVERFLOW PROTECTION
When the water in the internal water tank exceeds the warning level, the machine will stop operating and
sound an alarm with the LCD display showing “E7”. To resume operation empty the internal water tank. After
the water is emptied, the machine will automatically return to the original state.
AUTO-DEFROST
The machine has automatic defrosting function. If during operation the temperature of the internal coils
drops too low, the unit will enter auto defrost and the heating symbol will flash on the control panel.
AUTOMATIC THERMAL PROTECTION
To protect the service life of the machine, the machine has automatic thermal protection. If the temperature
within the unit is outside of the specified range, the compressor and the lower motor will stop operation.
The appliance will automatically return to normal operation after the temperature of the machine recovers.
COMPRESSOR PROTECTION
To prevent damage to the compressor there is a 3 minute delay start protection function.
POWER
Press to turn the unit on or off.
TIMER
Press to set the timer.
DOWN
Press to decrease the desired temperature or
timer duration.
UP
Press to increase the desired temperature or
timer duration.
SLEEP
Press the sleep button to enter sleep mode.
FAN
Press to enter fan / air purify mode.
COOL
Press to enter cool mode.
DRY
Press to enter dry (dehumidify) mode.
HIGH
Press to enter high (F5) speed fan.
LOW
Press to enter low (F1) speed fan.

10
WIFI SMART CONTROL
BEFORE YOU START
•Ensure your router provides a standard 2.4ghz connection.
•If your router is dual band ensure that both networks have different network names (SSID). The
provider of your router / Internet service provider will be able to provide advice specific to your
router.
•Place the air conditioner as close as possible to the router during setup.
•Once the app has been installed on your phone, turn off the data connection, and ensure your
phone is connected to your router via WIFI.
DOWNLOAD THE APP TO YOUR PHONE
Download the ”TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching
for the app in your chosen store.
Android IOS
CONNECTION METHODS AVAILABLE FOR SETUP
The air conditioner has two different setup modes, EZ (Quick Connection) and AP (Access Point). The quick
connection is a quick and simple way to set the unit up. The AP connection uses a direct local wifi
connection between your phone and the air conditioner to upload the network details.
Before starting the setup, with the air conditioner plugged in, but turned off, press and hold the SLEEP
button for 5 seconds (until you hear a bleep) to enter the WIFI connection mode.
Please ensure your device is in the correct WIFI connection mode for the connection type you are
attempting, the flashing of the WIFI light on your air conditioner will indicate this.
Connection Type
Frequency of Flashes
EZ (Quick Connection)
Flashes twice per second
AP (Access Point)
Flashes once per second
CHANGING BETWEEN CONNECTION TYPES
To change the unit between the two WIFI connection modes, hold the SLEEP button for 5 seconds.

11

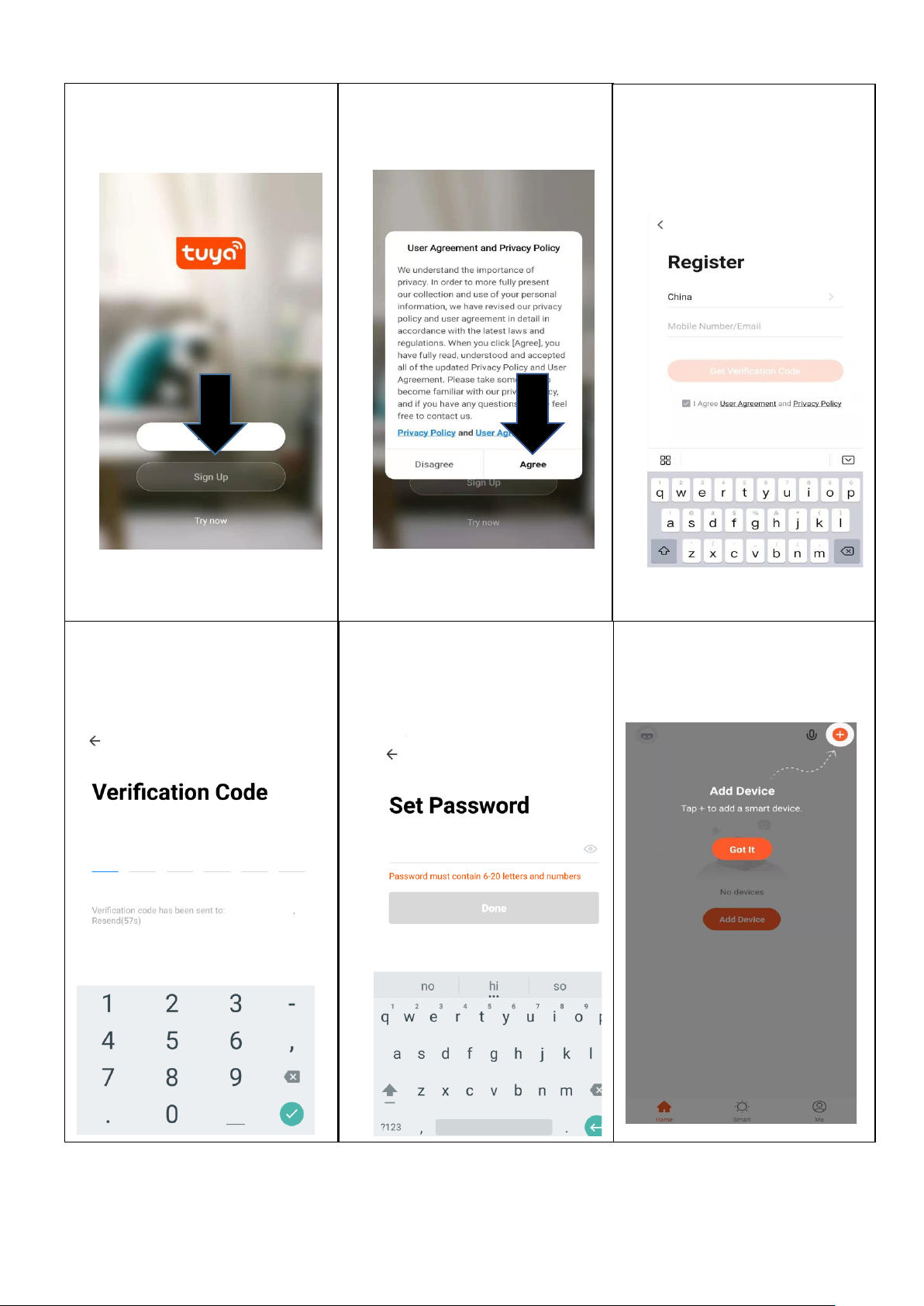

REGISTER THE APP
1. Press on the Sign Up button
at the bottom of the screen.
2. Read the Privacy policy and
press the Agree Button.
3. Enter your email address or
phone number and press
continue to register.
4. A verification code will be
sent by the method selected
in step 3. Enter the code into
the app.
6. The app is now registered.
It will automatically log you
in following registration.
5. Type in the password you
would like to create. This
needs to be 6-20 characters,
with letters and numbers.

12

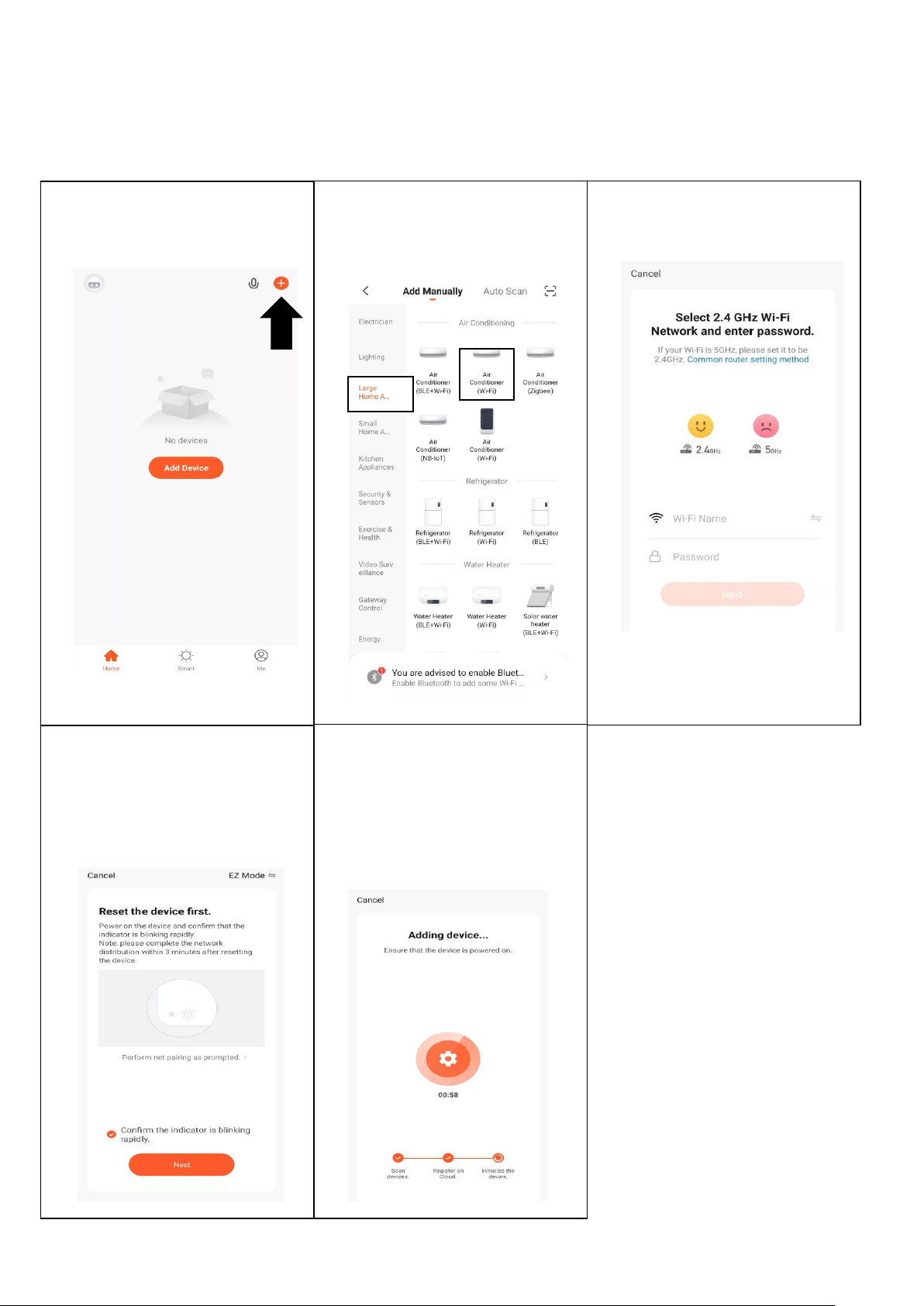

CONNECTING USING EZ (QUICK CONNECTION) MODE
Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing twice
per second. If not follow the instructions for changing the connection mode. Also ensure your phone is
connected to the WIFI network. (We advise turning mobile data off during setup)
2. Select the type of device
as “Air Conditioner (WIFI)”
within the Large Home
Appliance tab.
3. Select your network, enter
your WIFI password and press
Next.
4. Ensure the WIFI light on the
air conditioner is flashing
twice per second then press
on the orange button at the
bottom of the screen to
confirm
5. This will then transfer the
settings to the air conditioner.
Wait for this to complete. If
this fails, retry. If still
unsuccessful please review
the troubleshooting section
for further help.
1. Open the app and press “+”
to add device

13
CONNECTING USING AP MODE (ALTERNATIVE METHOD)
Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing once
per second. If not follow the instructions for changing the WIFI connection mode. Also ensure your
phone is connected to the WIFI network. (We advise turning mobile data off during setup)
1. Open the app and press “+”
to add device
2. Select the type of device
as “Air Conditioner (WIFI)”
within the Large Home
Appliance tab.
3. Select your network, enter
your WIFI password and
press Next.
4. Ensure the WIFI light on the
air conditioner is slowly
flashing (once per three
seconds), then select AP
Mode in the top right corner
before pressing on the orange
button at the bottom of the
screen to confirm
5. Go to network settings in
your phone and connect
to the “SmartLife xxx”
connection. then press on
the orange button at the
bottom of the screen to
confirm
6. Go to network settings in
your phone and connect to
the “SmartLife xxx”
connection. There is no
password to enter. Then
return back to the app to
complete setup.
This will then transfer the settings to the air conditioner.
Once the connection process has completed, go back to the network settings on your phone to
ensure your phone has reconnected to your WIFI router.

14
CONTROLLING YOUR DEVICE THROUGH THE APP
THE HOME SCREEN
Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off,
or to enter the device screen to make other changes.
Smart Scene: Allows you
to program intelligent
behaviour based on the
internal and external
environment
Add Device: Add a
device to the app, and
go through the setup
process.
Profile: Provides the
option for changing
settings, and adding
devices using a QR
code provided by a
friend.
Your Device:
Press to enter
the device
screen.
Voice Control: Use to
give verbal instructions
to the app.
Home: Return
to this screen
when within
the Smart or
profile tabs.

15

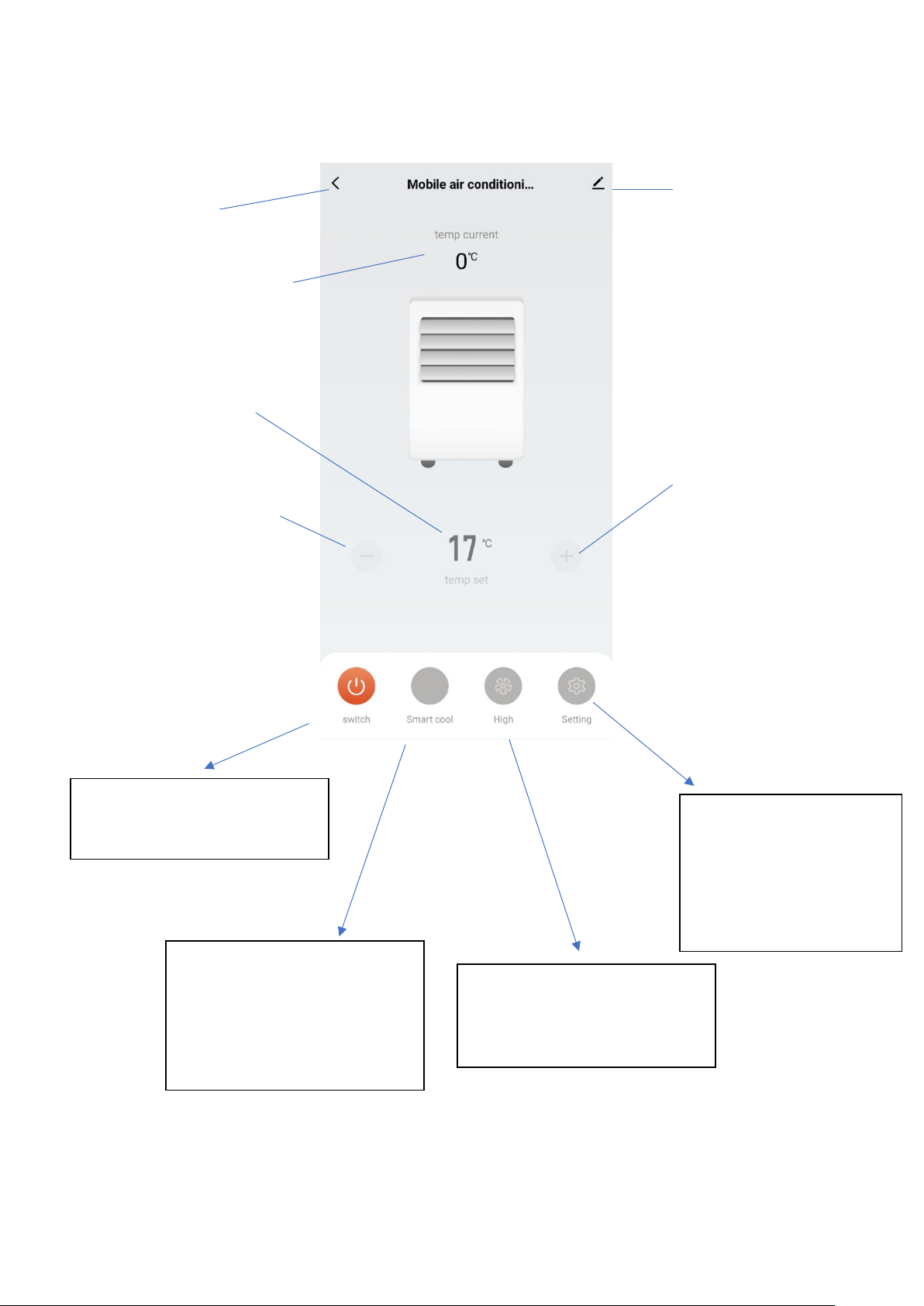

DEVICE SCREEN
The device screen is the main control screen for the air conditioner, providing access to the controls to
amend the functions and settings
Due to continuous development of the app, the layout and available features may be subject to change.
Edit Name: Use to
change the name of
the air conditioner.
Desired Temperature
UP Button: Use to
increase the desired
temperature.
Current Room
Temperature: Displays
the current room
temperature
Back: Returns to the
Home Screen
Desired Temperature:
Shows what
temperature the unit
is currently set to
MODE:
Change the operating
mode of the air
conditioner between
Cool, Smart Cool, Dry
and Fan
SPEED:
Use to change the Fan
speed between F1(Low)
and F5 (High)
POWER:
Use to turn the air
conditioner on and off.
SETTINGS:
Use to add an off
timer while the unit
is running, or an on
timer while the unit
is turned off
Desired Temperature
DOWN Button: Use to
increase the desired
temperature.

16
CREATING ROOMS
1. ON THE HOME SCREEN
Press on Home Management
2. Type in a name for your home,
3. Press on the location
button to select the
location of your home.
(See SETTING YOUR
LOCATION below)
4. New rooms can be
added by pressing the
ADD ANOTHER ROOM
option at the bottom.
(See ADD ANOTHER
ROOM below)
5. Untick any rooms that
are not required on
the app.
6. Press DONE in the top
right corner
SETTING YOUR LOCATION
ADD ANOTHER ROOM
Use your finger to
move the orange
HOME symbol.
When the symbol is in
the
approximate location
of your home, press
the confirm button
in the top right
corner.
Type in the name of the
room, and press Done in
the top right corner
button

17

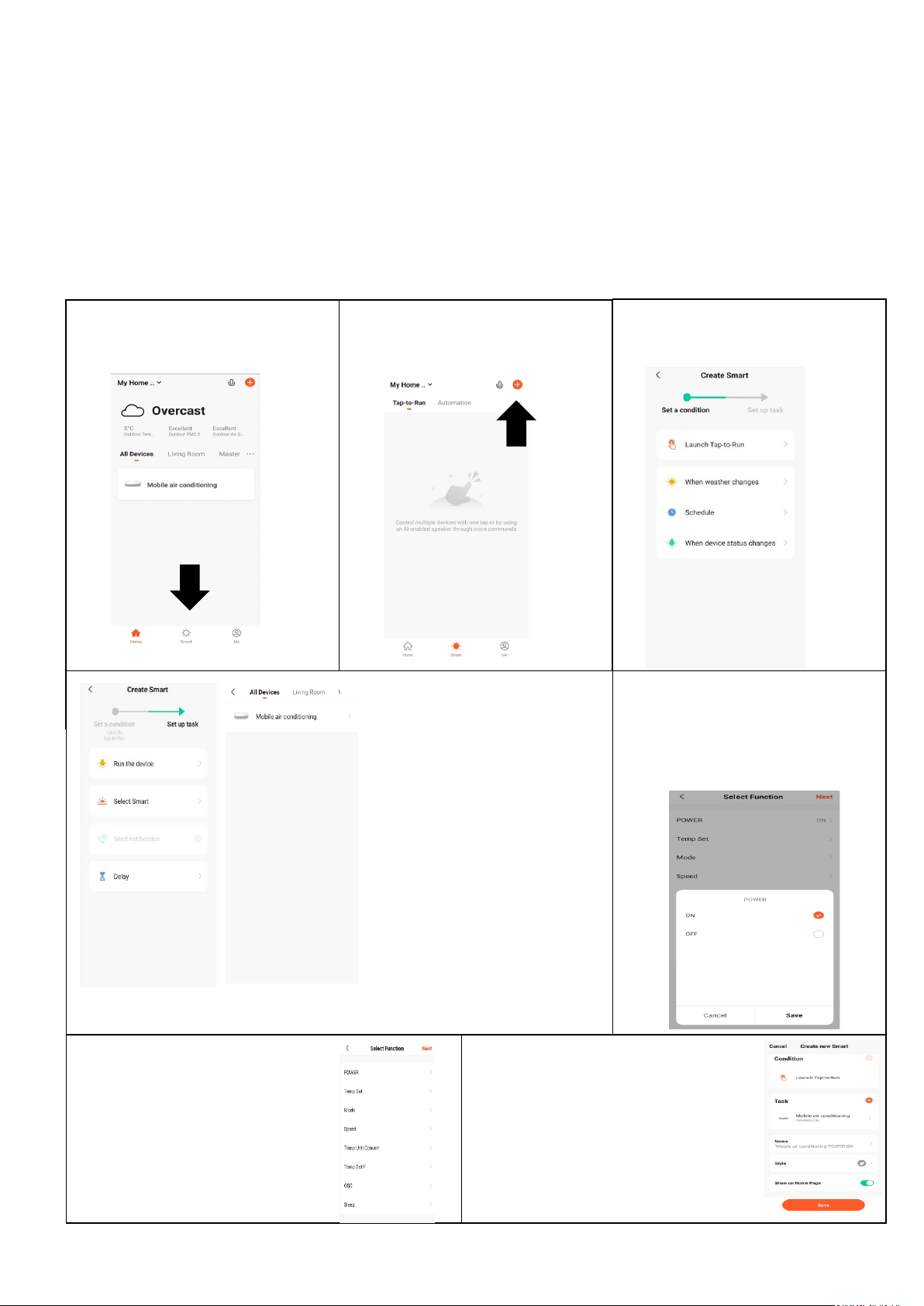

SMART SCENES
Smart Scenes is a powerful tool providing the option to customise the operation of the air conditioner
based both on conditions within the room and outside influences. This gives the user the option of
specifying much more intelligent actions. These are split into two categories Scene and Automation.
SCENE
Scene allows for a one touch button to be added to the Home screen. The button can be used to change
a number of settings in one go, and can change all the settings within the unit. A number of scenes can
easily be setup, allowing the user to easily change between a number of preset configurations.
Below is an example of how to set up a scene:
1. Press on the Smart Scene
tab at the bottom of the
Home screen
3. Select the type of Scene to
create.
2. Press on the Plus in the top
right corner to add a smart
scene.
4. Select Tap To Run,
followed by the device
you want to control.
5. Choose the function, set the
value for the function, and
then press the back button in
the top right corner, to return
to the previous screen.
6. Once all the functions
required have been added,
press the Next button in the
top right corner to finalise and
save your new Scene
7. Once you have named your
scene, save it, and the button will
be available to activate the scene
with one touch within the app.

18
AUTOMATION
Automation allows an automatic action to be set up for the device. This can be triggered by the Time,
indoor temperature, humidity of the room, weather conditions, and a range of other influences.
1. Press on the Smart Scene
tab at the bottom of the
Home screen
2. Press on the Plus in the top
right corner to add a smart
scene.
3. Select the type of automation
required, such as on schedule
for setting up a timed
operation.
5. Chose the function, set the value for the
function, and then press the back button in the
top right corner, to return to the previous
screen.
4. Select the condition when the automation
should start. A number of triggers can be
combined.
6. Once all the functions required have been added, press the Save button to finalise and save your
automated action. The automation can be turned on and off as required.

19

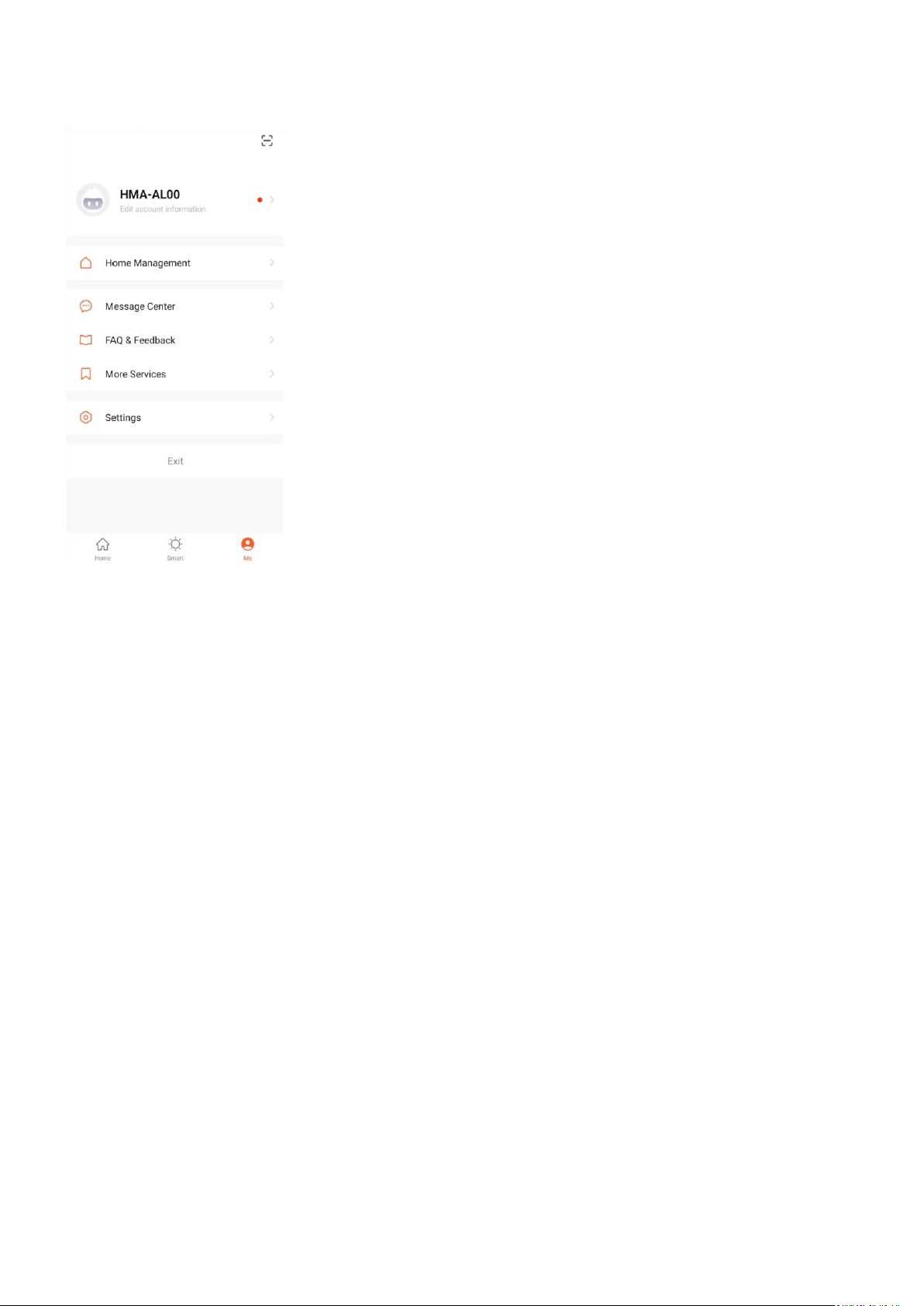

PROFILE TAB
The profile tab gives you the option to edit both your detail, and use the
added features of the unit.
CHANGING THE NAME OF YOUR DEVICE
When in any of the device screens further settings for the device can be
accessed, by pressing on the three dots in the top right hand corner. The top
option within this allows you to change the name of the device to something
relevant to the use of the product, such as “Living Room Air Conditioner”.
Within the menu, you also have the option of setting up a pattern lock or
change your password.
MESSAGE CENTRE
Shows alerts generated by the App.
MORE SERVICES
This allows the unit to be integrated with your favourite home automation
hardware such as Google Home and the Amazon Echo.
CONNECTION TROUBLESHOOTING
1. Check whether the device is powered on and is in the correct WIFI connection mode, if not please refer
to the CHANGING BETWEEN CONNECTION MODES section on page 12.
2. Ensure the WIFI password has been entered into the app correctly (Case sensitive)
3. Check that the phone is connected to the WIFI you are connecting the device to.
4. Ensure the network you are connecting it to is 2.4Ghz (5Ghz WIFI networks are not supported), and
that there is a strong WIFI signal to the item.
5. If your router is dual band, ensure that the 2.4ghz network has a different network name (SSID).
Further advice on changing router settings will be available from your Internet service provider /
Router manufacturer.
6. Check the settings on the router. Encryption should be WPA2-PSK and authorisation type should be set
to AES
7. Try using the alternative connection method. i.e. If connection is failing when attempting to connect
through EZ mode, try AP mode.

20
MAINTENANCE AND CLEANING
PLEASE SHUT OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY
MAINTENANCE
CLEAN THE SURFACE
Clean the surface of the machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol,
gasoline, etc; otherwise, as this may cause damage to the surface and or the internal workings of the
machine
AIR FILTER CLEANING
If the filter screen is clogged with dust, the effectiveness of the air conditioner is reduced. The filter screen
should be cleaned once every two weeks or as often as necessarily in your environment.
CLEAN THE UPPER FILTER SCREEN FRAME
Grip the edge of the evaporator filter screen frame with both hands. Pull out to remove the filter screen
from its frame. If present, unscrew the screws fixing the filter before removing it (as shown in the above
figure).
Put the evaporator filter screen into warm water with neutral detergent (about 40℃/104℉) and dry it in
the shade after rinsing clean.
CLEAN THE LOWER FILTER SCREEN FRAME
Hold the handle of the air inlet filter screen frame, and pull it outward gently to remove it.
Put the filter screen into warm water with neutral detergent (about 40℃/ 104 ℉) and dry it in the shade
after rinsing clean.
