ElectrIQ Compact V2 User manual

USER MANUAL
Compact-V2
9,000 BTU PORTABLE AIR CONDITIONER
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and
keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

Page 2 of 16
CONTENTS
SAFETY INSTRUCTIONS
3
FEATURES
5
PARTS LIST
6
INSTALLATION
7
OPERATION AND SETTINGS
9
REMOTE CONTROL
11
WATER-DRAINAGE
12
MAINTENANCE
13
TROUBLESHOOTING
14
TECHNICAL DATA
15
ELECTRIQ UK SUPPORT
16

200

9.6

Page 5 of 16
FEATURES
⚫Self-evaporative system - no external water tank needed
⚫Compact design – half the size of a normal unit
⚫Louvres outlet closes automatically when shutting down the unit, this prevents dust and
dirt entering the machine.
⚫Bright LCD screen, indicates temperature and operation mode
⚫Advanced LCD Remote control
⚫Compressor protection technology
⚫1-24 hrs start / stop timer
⚫3 speed fan allows user to achieve the best balance between maximum cooling and
lowest noise level

Page 6 of 16
PARTS LIST
1. Castors 7. Remote control
2. Handle 8. Air outlet hose connector
3. Control panel 9. Handle
4. Air outlet Louver 10. Exhaust pipe assembly
5. Air inlet grill 11. Window sealing plate assembly
6. Air inlet

Page 7 of 16
INSTALLATION
Warning：Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit please note that it must always be kept upright and then placed on
an even surface.
1. Assemble the fishtail connector on to the hose, by extending the end of the hose and
twisting the fishtail into position (At least 3 full rotations)
2. Twist the connector on the
opposite end of the hose into the
Air outlet hose connector on the
rear of the appliance.
INSTALLATION OF WINDOW KIT
3. Partially open the window and then fix the window kit to the window.

Page 8 of 16
4. Make sure the unit is upright and there are no
obstructions to the air inlets and outlet grill. The
unit should be positioned at least 50cm away from
walls or other objects within the room.
5. Fix the other end of the hose
to the air-outlet window kit
Note: The window kit is only designed to be installed with sliding or sash windows or
doors. The window kit is not designed or to be used with any other style of windows.
However the fish tail adaptor can be used with most windows / doors. When using the
cooling mode ensure that the opening left is as small as possible. The best form of
installation is through a wall duct. Please note that the unit will need to be vented outside.
IMPORTANT SAFEGUARDS
The length of the soft hose extends from 28 cm to 150 cm. If hose is extended above this
length the unit may malfunction and this can invalidate the warranty.
The outlet vent must be well ventilated and not
obstructed as this will cause the unit to overheat.
Avoid bending the air hose more than 30
degrees.
If the unit does not reach the desired venting point it may be installed on a flat surface
such as a table, although precautions should be taken to ensure the unit is not at risk of
falling.

Page 9 of 16
OPERATION AND SETTINGS
POWER BUTTON
Press to turn unit “ON” or “OFF”
MODE BUTTON
Press this button to select between the Cooling, Fan and Dehumidify(Dry) modes
COOLING MODE: Cold air will be expelled through the front of the unit and hot air will
be expelled through the vent hose.
DEHUMIDIFY MODE (DRY): The dehumidify function can only be used when the room
temperature is above 17C. The unit should be set up without a vent hose, moisture is
extracted from the air that passes through the unit. Continuous drainage should be set
up for the moisture collected (Drainage pipe not included). If continuous drainage is
not set up, the internal water tank will fill and FL will display when full.
FAN MODE: No cooling effect, circulates air within the room, vent pipe not required.
UP & DOWN BUTTONS
During the cooling function – These buttons raise or lower the temperature by 1oC for each
press. The minimum temperature is 16oC and maximum is 30oC.
FAN SPEED
Press the SPEED button to select either LOW, MEDIUM or HIGH fan speed.
NOTE: In dehumidifying function, this button is invalid as the unit is designed to run at low
speed in dehumidifying mode.

Page 10 of 16
TIMER BUTTON
The in-built timer will allow you to set the unit to turn on or turn off after a set period of
time, Please note only one timer can be used at any time.
ON TIMER – The timer will turn on the unit automatically after the time set has elapsed.
1. With the unit turned off, press the TIMER button, then set the number of hours’ time
you desire the unit to start by pressing the UP and DOWN buttons.
2. Once the set time has elapsed, the unit will turn on automatically.
3. Press the POWER button before the time has elapsed and the unit will turn on as
normal and the timer will be cancelled
4. The function and fan speed can be set whilst setting the timer.
OFF TIMER – The timer will turn off the unit automatically after the time set has elapsed.
1. While the unit is operating, press the TIMER button then set the number of hours’
time you desire the unit to stop by pressing TEMP+ or TEMP- button.
2. Once the set time has elapsed, the unit will turn off automatically.
3. Press the POWER button before the time has elapsed, the setting time will be
cancelled and the unit will turn off.
TANK FULL INDICATOR
When the water tank is full and requires emptying, FL will flash on the LCD screen. Drain
the tank following the information provided in the water drainage section.
LED DISPLAY
The display indicates the current target temperature or the remaining timer settings. When
the set temperature or the timer is adjusted, the new setting is shown.
The display is also used to show error codes.
COMPRESSOR DELAY PROTECTION
The unit will operate for 3 minutes before the compressor starts, apart from the first power-
on.
ANTI FREEZE PROTECTION
The compressor and water motor will stop working if the copper coil temperature falls
below 0℃ for over 20 seconds. The appliance will remain in defrost mode until the
temperature of the copper coils exceed 8C.

Page 11 of 16

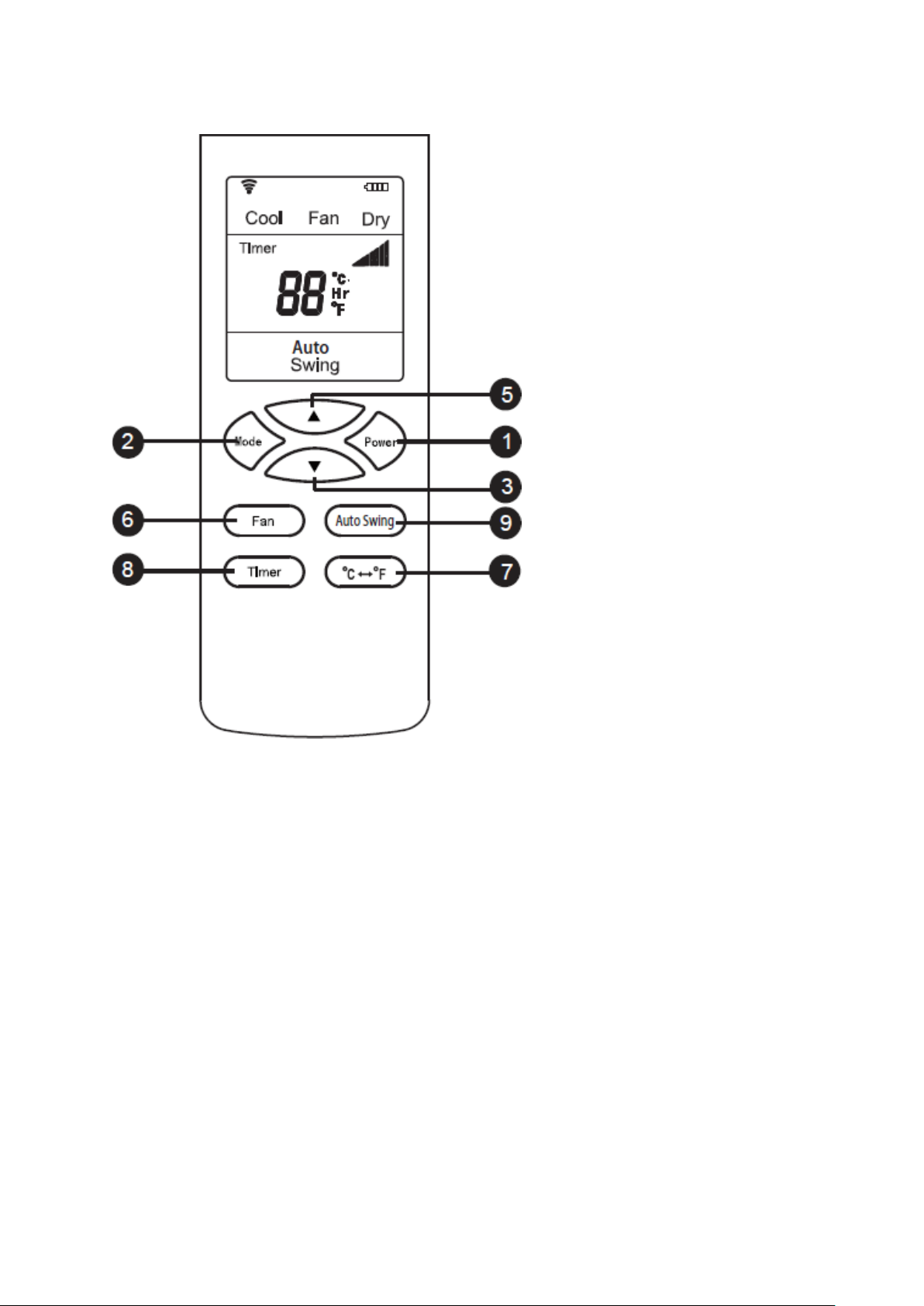

REMOTE CONTROL
The majority of functions on the
remote are the same as those on the
main control panel
AUTO-SWING BUTTON
After machine is on and mode selected, press this button and the louver will swing
continuously up and down; by pressing this button again the movement will stop and the
louver remain fixed in position.
CHANGE BETWEEN FARENHEIT AND CELCIUS
To change the unit of measurement shown on the display, press the C<->F button.

Page 12 of 16

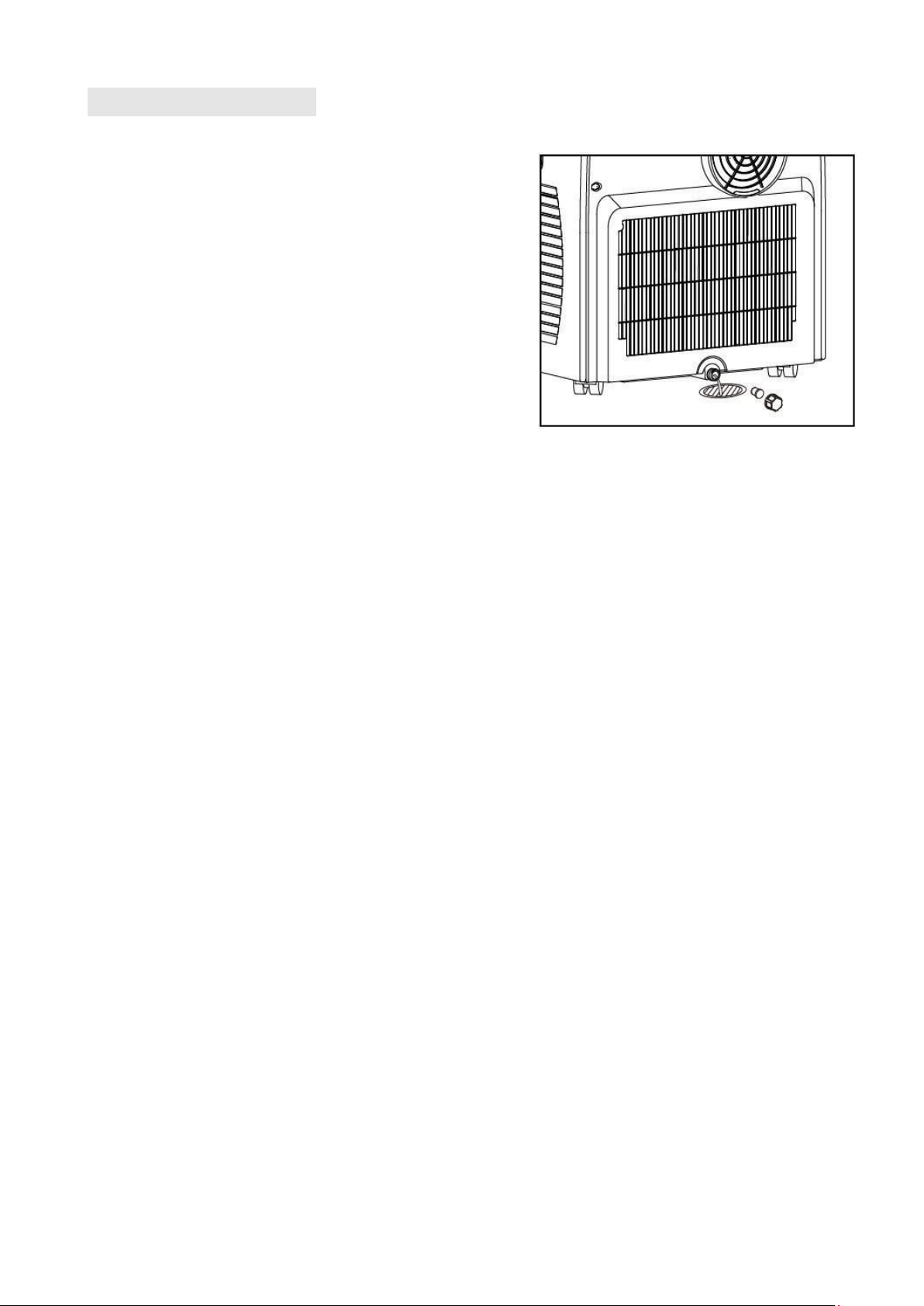

WATER-DRAINAGE
MANUAL DRAINAGE:
1. When the internal water tank is full the unit
will stop working and display the message
“FL” on the display.
2. Shut off the unit and unplug. Try not to move
the model abruptly as this may cause water
to spill out from internal water tank.
3. Place a tray under the water plug.
4. Unscrew the water plug and unplug the
water blocker - water will drain from the
internal tank.
5. Place the water blocker back in position and
screw the water plug back into place
CONTINUOUS DRAINAGE:
1. Unscrew off the water plug and unplug the water blocker.
2. Use a water pipe to connect to the water outlet.
3. You can plumb this pipe into your current plumbing system, lead it outside or use a
water pump.
Note: This model has a self-evaporative function, which reduces the need to empty the
water tank. If the unit is vented correctly most of the water is reused to cool the condenser
coils and any excess is evaporated. Please do not use continuous drainage if you intend to
use the self-evaporating facility. In heating or dehumidifier mode you may need to use the
permanent drainage.

Page 13 of 16
MAINTENANCE
CLEANING
Please shut off the unit and unplug from the mains before cleaning or performing any
maintenance
CLEAN THE SURFACE
Clean the plastic housing with a duster or a soft wet cloth.
Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause
irreversible damage.
AIR FILTER CLEANING
a) Clean the air filters every 2 weeks. If the air filter is blocked with dust, the unit’s performance
will be significantly affected.
b) Disconnect the power plug from the socket before dismantling, assembling or cleaning
c) Pull out the filters as shown in the pictures below.
d) Wash the mesh air filters by immersing them in warm (about 40℃) water with a neutral
detergent.
e) Rinse it and then dry it thoroughly.
f) Carefully re-install air filters back into the unit.
END OF SEASON MAINTENANCE
1. Pull out the plug from the drainage hole and empty the internal tank. You can also drain the
water by leaning the unit.
2. Then switch the unit to low fan mode.
3. Keep the unit in this mode for half day - until the conduit is dried. Doing this helps to keep
the inside of the unit dry and prevents mould developing
4. Turn off the unit and pull out the plug.
5. Coil the wire and bind it together, then put it into the accessories space.
6. Separate the air-exhausted pipe and store it safely.
7. Cover the unit and keep it in a dry place.
8. Take the batteries out of remote control and store, or dispose, them safely
9. Keep all accessories with the unit ready for next season.

Page 14 of 16
TROUBLESHOOTING
Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate
the warranty and may cause bodily harm.
Problem
Reason
Solution
The unit does
not work
No power supply
Power-on and turn on the unit.
Water-full indicator illuminated
Drain the internal water tank
Timer function is active
Cancel Timer function
Room temperature too low or too
high
Use only in ambient temperatures
between 7-35℃
The unit does
not seem to
perform.
In direct sunlight
Draw the curtains, UV affects RC
Windows or doors open.
Large amount of people or a
heat source in the room.
Close windows and turn on another air
conditioner
Filter is very dirty
Clean or change the air filter
Air inlet or air outlet is blocked
Clear out debris
Room temperature is lower than
setting temperature
Change the setting temperature
The unit is loud
The unit is not put on flat surface
Put the unit on flat and hard surface
Compressor
does not work
Overheating protection is active
Check venting.
Restart the unit after 5 minutes when
compressor has cooled
Remote control
doesn’t work
Operating distance is too far.
Move remote control closer to the unit
and make sure it aims at the air-
outlet grille
Control panel has not received
the signal from remote control.
The batteries are flat
Replace the batteries
E1 on LCD
Coil temperature is abnormal
Refer to Service Centre
(check coil temperature sensor or
relevant
circuit)
E2 on LCD
Room temperature is abnormal
Temperature not within 17-35℃
operating range. If temperature within
operating range refer to
Service Centre (check room
temperature sensor or relevant circuit)
E4 on LCD
Anti-freeze protection
Waiting for defrosting.
Function will recover automatically. No
user input needed.
FL on LCD
Water tank is full inside the
machine
Drain out water from drain port at
bottom rear of the unit.
If the above solutions do not resolve the problem please contact the service centre.

4.8
360
3.81.3
2.80.8
0.96
65
Cooling Power
53-57
200

Page 16 of 16
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please, for your own convenience, make these simple checks before calling the service line.
If the unit still fails to operate call: 0871 620 1057 or complete the online form
1. Has the unit been standing upright for at least 2 hours?
2. Is the unit plugged into the mains?
3. Is the fuse OK?
4. Switch the unit off and wait three minutes to see if the issue is resolved. Restart the
unit.
5. Check if the water tank is full.
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Way
Elland, West Yorkshire
HX5 9DA
V 20191024
