ElectrIQ CMAC20M User manual

USER MANUAL
electriQ 18,000 BTU PORTABLE INDUSTRIAL
AIR CONDITIONER
CMAC20M
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

2
CONTENTS
SAFETY INFORMATION
3
FEATURES
5
APPLIANCE DIAGRAM
5
INSTALLATION
6
OPERATION
7
EMPTYING THE INTERNAL WATER TANK
9
CLEANING AND MAINTENANCE
9
TROUBLESHOOTING
10
SUPPORT
11
TECHNICAL SPECIFICATION
11

3
SAFETY INSTRUCTIONS
Important!
•Carefully read the instructions before operating the unit
•This appliance is for indoor use only.
•Rating: This unit must be only connected to a 220-240 V / 50 Hz
earthed outlet.
•Installation must be in accordance with regulations of the country where the unit is used.
•If you are in any doubt about the suitability of your electrical supply have it checked and,
if necessary, modified by a qualified electrician.
•This air conditioner has been tested and is safe to use. However, as with any electrical
appliance - use it with care.
•Disconnect the power from the appliance before dismantling, assembling or cleaning.
•Avoid touching any moving parts of the appliance.
•Never insert fingers, pencils or any other objects though the guard.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those with a
lack of experience and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety.
•Do not leave children unsupervised with this appliance.
•Do not clean the unit by spraying it or immersing it in water.
•Never connect the unit to an electrical outlet using an extension cord. If an outlet is not
available, one should be installed by a qualified electrician.
•Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not
stretched or exposed to sharp objects/edges.
•A damaged supply cord should be replaced by the manufacturer or a qualified electrician
in order to avoid a hazard.
•Any service other than regular cleaning or filter replacement should be performed by an
authorised service representative. Failure to comply could result in a voided warranty.
•Do not use the appliance for any purpose other than its intended use.
•The air conditioner unit must always be stored and transported upright, otherwise
irreparable damage may be caused to the compressor; if in doubt we suggest waiting at
least 24 hours before starting the unit.
•Do not move the air conditioner while it is operating. When operating the castors should
be locked in position.
•Ensure the unit is positioned so that it is on a flat level surface, and does not cause an
obstruction to walkways.
•This air conditioner is not designed to be used on boats, or any other type of
transportation.
•Avoid restarting the air conditioning unit unless 3 minutes have passed since being
turned off. This prevents damage to the compressor.

4
•Never use the mains plug as a switch to start and turn off the air conditioning unit. Use
the provided ON/OFF button located on the control panel.
•Always place the unit on a dry and stable surface.
•The appliance should not be installed in laundry or wet rooms.
•The appliance must be placed in a room without sources of ignition (for example: open
flames, an operating gas appliance or an operating electric heater).
•R1234yf refrigerant gas complies with European environmental directives.
•R1234yf has a low GWP (Global Warming Potential) of 4.
•The air conditioners contain around 950 g of R1234yf refrigerant gas.
•Do not use or store in an unventilated space with an area smaller than 6 m2per unit.
•The room must be such as to prevent stagnation of possible leaks of refrigerant gas as
there could be a danger of fire or explosion should the refrigerant come into contact with
electric heaters, stoves or other sources of ignition.
•Refrigerant gas may be odourless.
•Do not use the product and contact the retailer for advice, if damage has occurred to the
unit which may have compromised the refrigerant system.
•Any repairs or maintenance must only be carried out on the unit by a suitably qualified
engineer. Before opening and servicing the unit the authorised engineer must be in
possession of a copy of the manufacturer’s service manual and must follow the safety
information contained within it to ensure all hazards are minimized.
•The refrigerant system should not be perforated or punctured.
Energy Saving and Unit Safety Protection Tips
•Do not cover or restrict the airflow from the air outlet or inlet.
•For maximum performance the minimum distance from a wall or objects should be
50cm.
•Keep the filters clean. Under normal conditions, filters should only need cleaning once
every three weeks (approximately). Since the filters remove airborne particles, more
frequent cleaning maybe necessary, depending on the air quality.
•For the initial start-up set the fan speed to maximum and the thermostat to 5 degrees
lower than the current temperature. After, set the fan switch to low and set the
thermostat to your desired setting.
•To protect the unit, we recommend not using the cooling function when the ambient
temperature is higher than 45oC or lower than 18oC.

5
FEATURES
•3 in 1 Cooling, Fan, Dehumidifier.
•2 speed fan: Balancing quiet operation with performance.
•24 Hours Start / Stop Timer.
•Digital Thermostat.
•Auto-Restart to retain the settings in the event of power failure.
•Castors for Enhanced Portability.
•Durable metal casing.
•Triple cold air ducts allowing distribution of the cold air.
HOSE SPECIFICATIONS
Hose
Hose External
Diameter (mm)
Supplied Hose Length
Max Permitted
Hose Length (cm)
Cold Air
120
37
200
Hot Air
200
37
300

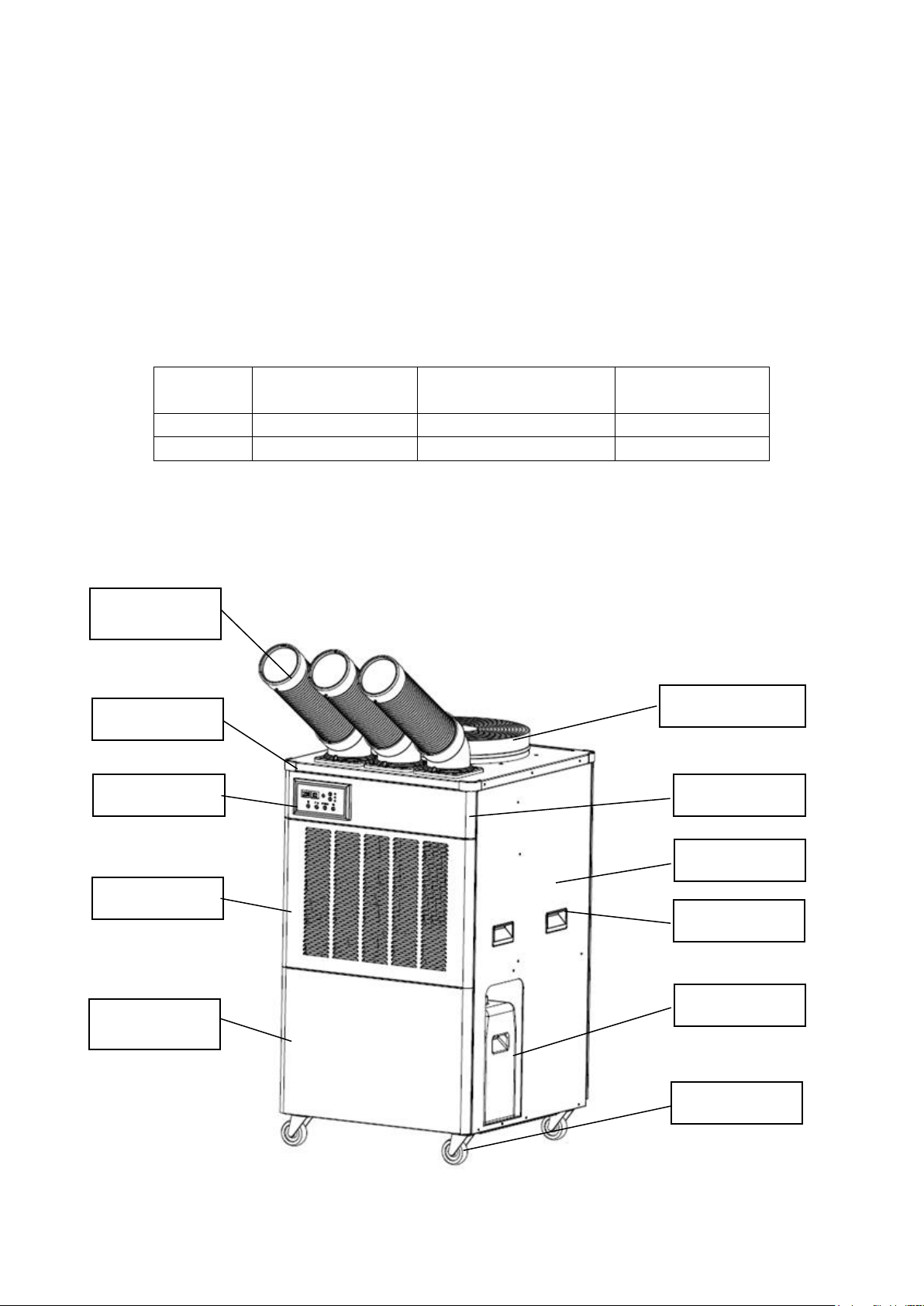

APPLIANCE DIAGRAM
Cold exhaust
pipe
Castor
Water tank
Control panel
Right-side plate
Hot air outlet
Front housing
Display window
Head cover
Handle
Bottom cover of
front housing

6
INSTALLATION
COLD AIR OUTLETS
1. Line up the dimple on the Elbow with the
notch on the Hose connector on the top of
the air conditioner.
2. Rotate anticlockwise until a click can be
heard, indicating the elbow has locked into
place.
3. Insert the Cold Air Hose into the Elbow,
again lining up the dimple with the notch in
the Elbow.
4. Rotate the pipe anticlockwise to fix it in
place.
5. The pipe can then be extended and pointed
in the desired direction.
6. Repeat for the second air outlet.
HOT AIR OUTLET
1. Push the Hot Air Hose onto the Hot air outlet on the top of
the appliance.
2. Extend the pipe and route it outside.
NOTES:
•The best form of installation is through a wall duct. By properly venting you expel hot air from your room
while efficiently cooling it.
•Your air conditioner should be used without the vent pipe in dry mode. When using dry mode ensure
that the water tank is monitored and regularly emptied. Permanent plumbing can be also installed for
dry mode or an external uplift water pump can be set up for unattended use.
IMPORTANT SAFEGUARDS
If hoses are extended above the permitted length, the unit may
malfunction which can invalidate the warranty. The outlet vent must be
well ventilated and not obstructed as this will cause the unit to
overheat. Keep the all the hoses as straight and short as possible and
avoid bending the air hose by more than 45 degrees in order to
maintain the performance of the unit. Excessive bends in the hose may
prevent the unit from expelling the hot air, which can lead to internal
damage which would invalidate the warranty. Ensure that sufficient
space is left in from the end of the vent pipes (30cm –Cold air, 90cm
Hot air)

7
OPERATION
POWER
Press the POWER button to turn the unit ON or OFF.
MODE
Press the MODE button to cycle between the 3 modes, the indicator for the selected mode
will be illuminated.
COOL
The room is cooled with the cold air expelled through the cold air outlets while hot
air is expelled through the Hot Air Pipe. The desired room temperature can be set
between 15 and 35 degrees using the Up and Down buttons, and the fan speed can
be changed using the SPEED button.
FAN
The fan speed can be changed pressing the SPEED button.
DRY
The unit removes moisture from the air. When using as a dehumidifier the Hot air
Pipe should not be used. We advise that continuous drainage is set up when using
the Dry mode.
FAN
SPEED
Press the SPEED button to cycle through the two fan speeds. Each time the SPEED button is
pressed, the indicator will change to show the currently selected speed. The fan speed can be
changed between Low and High.
TIMER
The timer functions cannot be combined or repeated.
POWER ON TIMER
With the appliance in standby, press the TIMER button to set the power-on timer. Use the Up
and Down buttons to adjust the duration of the timer (1 to 24 hours). The Timer indicator will
turn on and the unit will start after the selected number of hours.
POWER OFF TIMER
With the appliance running with the desired settings, press the TIMER button to set the
power-off timer. Use the Up and Down buttons to adjust the duration of the timer (1 to 24
hours). The timer indicator will illuminate and the unit will stop after selected number of
hours.
Used to adjust temperature in COOL mode and to set the duration of the TIMER. The
buttons are not used in FAN or DRY modes.

8

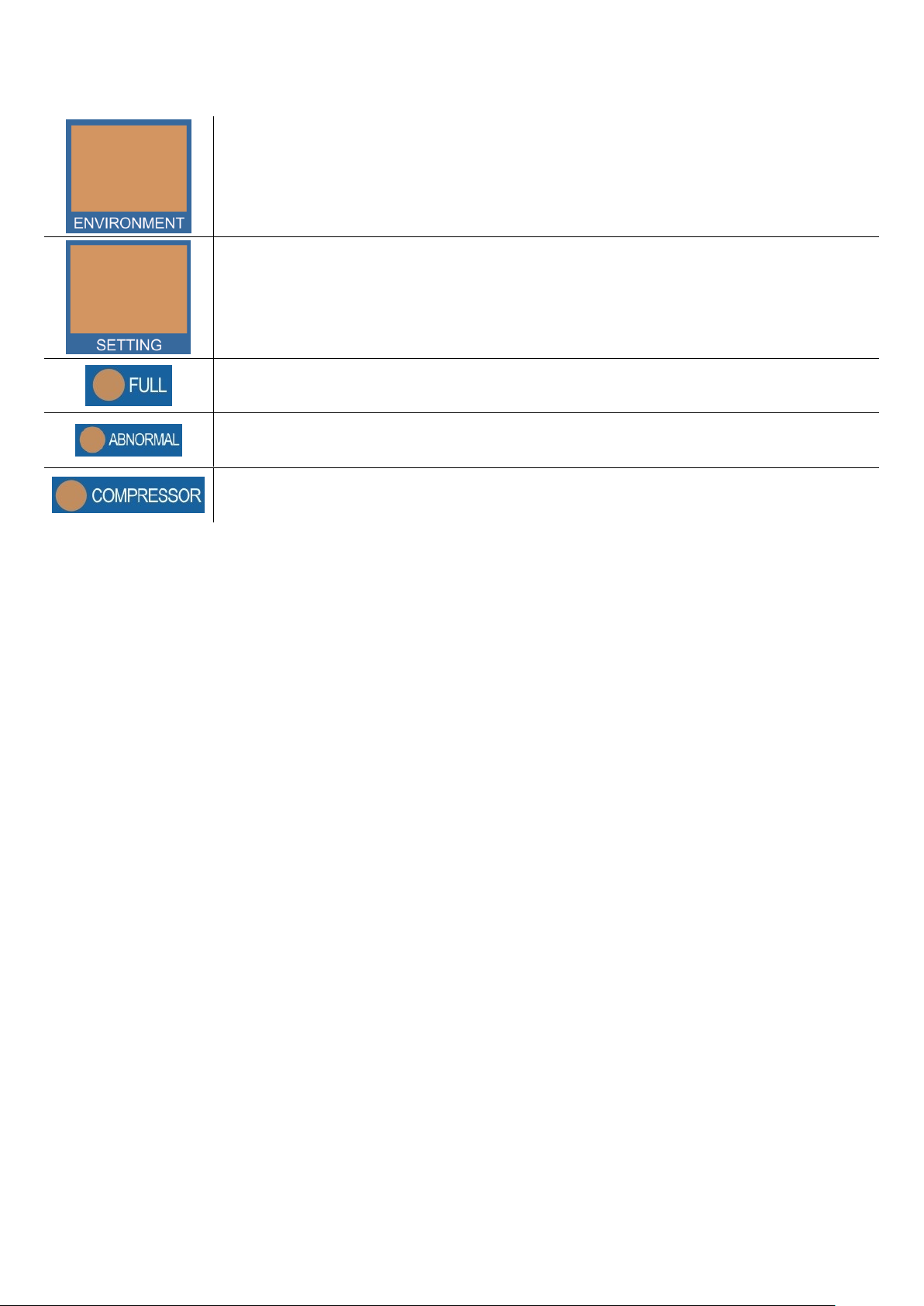

INDICATORS
MULTI PROTECTIVE FUNCTIONS
FROST PROTECTION
In COOL, DRY or AUTO modes, if the temperature of the exhaust is too low, the machine will automatically stop
operating until the temperature has risen.
OVERFLOW PROTECTION
When the water in the internal water tank exceeds the warning level, the machine will stop operating and sound
an alarm with the LCD display showing “E4”. To resume operation empty the internal water tank. After the
water is emptied, the machine will automatically return to the original state.
AUTO-DEFROST
The machine has automatic defrosting function. If during operation the temperature of the internal coils drops
too low, the unit will enter auto defrost and the heating symbol will flash on the control panel.
AUTOMATIC THERMAL PROTECTION
To protect the service life of the machine, the machine has automatic thermal protection. If the temperature
within the unit is outside of the specified range, the compressor and the lower motor will stop operation. The
appliance will automatically return to normal operation after the temperature of the machine recovers.
COMPRESSOR PROTECTION
To prevent damage to the compressor there is a 3 minute delay start protection function.
Shows the current room temperature.
Shows the desired room temperature during cooling Mode. While setting the timer it
will display the duration of the timer.
Will illuminate when the water tank is full, and the unit will stop operating. Remove
the water tank, empty it and replace to extinguish the light and re start operation.
Will illuminate when a fault is detected, such as the room temperature out of the
operating range. Unplug the unit and resolve the issue before restarting the unit.
Will Illuminate to show that the compressor is operating to cool the air in Cool and
Dry modes.

9
EMPTYING THE INTERNAL WATER TANK
MANUAL DRAINAGE:
When the internal water tank is full the unit will stop working.
Shut off the unit and unplug. Try not to move the appliance as this may cause the water in the internal tank to
spill out. Remove the water tank from the base of the unit and empty into a sink or drain. Replace the water
tank in the unit before plugging back in and restarting operation.
CONTINUOUS DRAINAGE:

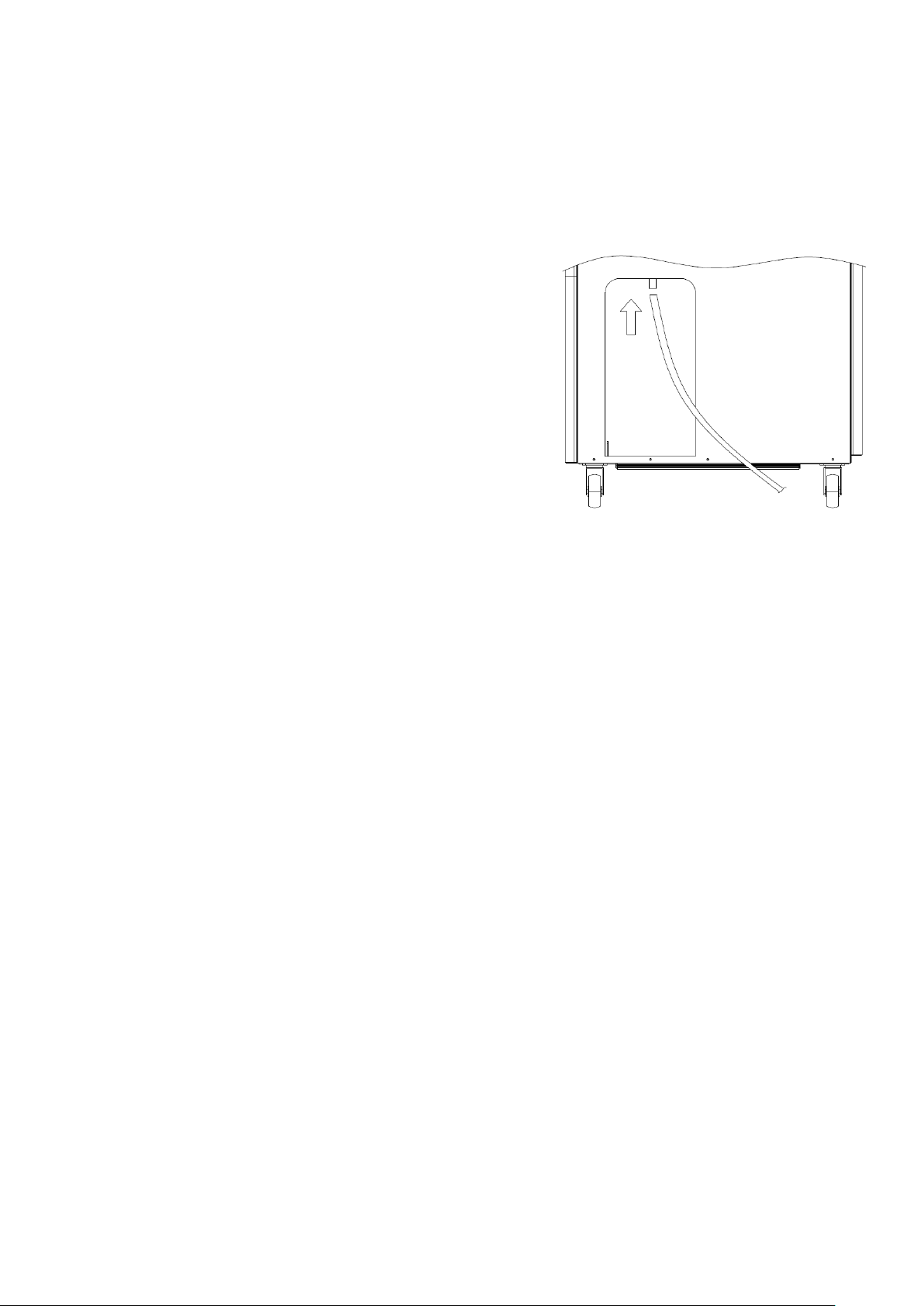

Remove the water tank from the unit, and connect the drainage
pipe to the spout.. The drain is gravity fed, so can be routed
downwards to a suitable drain. Alternatively the pipe can be
attached to an external uplift pump (not supplied) to pump the
water uphill to a suitable drainage point.
NOTE: This model has a self-evaporative function, which reduces
the need to empty the water tank. If the unit is vented correctly
most of the water is reused to cool the condenser coils and any
excess is evaporated. Please do not use continuous drainage if you
intend to use the self-evaporating facility.
CLEANING AND MAINTENANCE
PLEASE TURN OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY
MAINTENANCE
CLEAN THE SURFACE
Clean the surface of the machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc;
otherwise, as this may cause damage to the surface and or the internal workings of the machine
AIR FILTER CLEANING
If the filter screen is clogged with dust, the effectiveness of the air conditioner is reduced. The filter screen should be
cleaned once every two weeks or as often as necessarily in your environment.
END OF SEASON MAINTENANCE
1. Empty the internal water tank.
2. Then switch the unit to low fan mode.
3. Keep the unit in this mode for half day - until the conduit is dried. Doing this helps to keep the inside of
the unit dry and prevents mould from developing
4. Turn off the unit and pull out the plug.
5. Empty the water tank again.
6. Coil the wire and bind it together, then put it into the accessories space.
7. Separate the vent pipes and store the, safely.
8. Cover the unit and keep it in a dry place.

10
TROUBLESHOOTING
Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing
injuries and property damage. Only use it as directed in this user manual and only perform operations advised here.
Problems
Reasons
Solutions
The air
conditioner does
not work.
There is no electricity.
Turn it on after connecting it to a socket with
electricity.
FULL indicator is illuminated
Discharge the water inside.
The ambient temperature is too low or
too high
Only use to use the machine within temperature
range of 18-45⁰C
In cooling mode, the room temperature is
lower than the desired temperature
Change the desired temperature.
In dry mode, the ambient temperature is
low.
The ambient temperature must be above 18 ⁰C.
(60 ⁰F).
The cooling
effect is not good
There is direct sunlight.
Use curtains to reduce the direct sun heat
Doors or windows are open; there are a
lot of people; or in cooling mode, there
are other sources of heat (e.g. fridges)
Close doors and windows; increase air
conditioning power
The filter screen is dirty.
Clean or replace the filter screen.
The air inlet or outlet is blocked.
Clear obstructions; make sure venting is correct as
described in this user manual and hose is not bent
Loud Noise
The air conditioning is not placed on a flat
surface.
Put the air conditioning on a flat and hard place
(to reduce noise).
Compressor does
not work.
Overheat protection starts.
Wait for 3 minutes until the temperature is
lowered, and then restart the machine.
Others
No refrigerant or there is very little
refrigerant
Refer to Service Centre (check leakage, wielding,
vacuum pump, charge refrigerant according to
name plate)
Anti-freezing protection
Waiting for defrosting.
Function will recover automatically. No user input
needed.
High pressure protection
After inside gas pressure comes down, it will
function normally. No user input needed
TC
Coil heat exchanger fault
Ensure nothing is restricting the airflow before
restarting
CO
Compressor overloading, over current or
system high-pressure protection
Cancel the system fault function, recoverable
If problems not listed in the table occur or recommended solutions do not work, please contact the service
centre.
APPENDIX
Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste
must be handled separately as special treatment is necessary. Recycling facilities are now
available for all customers at which you can deposit your old electrical products. Customers
will be able to take any old electrical equipment to participating civic amenity sites run by
their local councils. Please remember that this equipment will be further handled during
the recycling process, so please be considerate when depositing your equipment. Please
contact the local council for details of your local household waste recycling centres.

11
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails
to operate call the number below, or complete the online form.
0330 390 3061
1. Has the unit been standing upright for at least 2 hours?
2. Is the unit plugged into the mains?
3. Is the fuse OK?
4. Switch the unit off and wait three minutes to see if the issue is resolved. Restart the unit.
5. Check if the water tank is full.
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
TECHNICAL DATA
Model
CMAC20M
Cooling capacity:
18,000 BTU
Input power:
2200 W
Fan
AC motor with 2 fan speeds.
Maximum Air flow volume:
740m3/h
Input current:
10 A
Refrigerant:
R1234yf/950g
Thermostat:
15 - 35oC
Maximum working pressure of
suction/exhaust side:
1.0/2.5 MPa
Maximum Allowable Pressure
2.5 Mpa
Power Supply:
AC 220-240V/50 Hz
Net Weight:
95 kg
Dimension(L*D*H):
625 x 560 x 1135 mm
Unit must be vented outside when in Air Cooling mode. For the purposes of EU regulation
EN12102 this is a local air conditioner and produces less than 65dB(A) sound energy.
V20210607
