Electrix RC Ruckus ECX2000 User manual

INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION
MANUALE
1/10 ELECTRIC MONSTERTRUCK
RUCKUSTM
Congratulations on your purchase of the Electrix
RCTM RuckusTM Monster Truck.
This 1/10 scale model introduces you to the sport
of RC driving.
Herzlichen Glückwunsch zum Kauf des Electrix
RCTM RuckusTM Monster Truck. Dieses 1/10 Scale
Model öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l’achat du Electrix RCTM
RuckusTM Monster Truck. Ce modèle 1/10 vous
introduit au sport de la conduite RC.
Congratulazioni per l’acquisto di questo RC
Ruckus Monster Truck Electrix. Questa vettura in
scala 1/10 vi introdurrà nel mondo dei modelli RC.
ECX2000 | ECX2000AU | ECX2000EU | ECX2000UK
ECX2100 | ECX2100AU | ECX2100EU | ECX2100UK

2RUCKUS
EN
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date
product literature, visit http://www.horizonhobby.com and click on the support tab for this product.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in
a manner that does not endanger yourself and others or result in
damage to the product or the property of others.
This model is controlled by a radio signal subject to interference
from many sources outside your control. This interference can cause
momentary loss of control so it is advisable to always keep a safe
distance in all directions around your model, as this margin will help
avoid collisions or injury.
Age Recommendation: Not for children under 14 years. This is
not a toy.
• Never operate your model with low transmitter batteries.
• Always operate your model in an open area away from cars, traffic
or people.
• Never operate the model in the street or in populated areas for
any reason.
• Carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery packs,
etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the
reach of children.
• Moisture causes damage to electronics. Avoid water exposure to
all equipment not specifically designed and protected for
this purpose.
• Never lick or place any portion of your model in your mouth as it
could cause serious injury or even death.
• First-time builders should seek advice from people with building
experience to operate the model correctly and meet its
performance potential.
• Exercise caution when using tools and sharp instruments.
• Take care when building, as some parts may have sharp edges.
• Immediately after using your model, do NOT touch equipment on
the model such as the motor, electronic speed control and battery,
because they generate high temperatures. You may burn yourself
seriously touching them.
• Do not put fingers or any objects inside rotating and moving parts,
as this may cause damage or serious injury.
• Be sure that your operating frequency is clear before turning on or
running your model, and never share the same frequency with
somebody else at the same time.
• Ensure that others are aware of the operating frequency you are
using and when you are using it.
• Always turn on your transmitter before you turn on the receiver
in the car. Always turn off the receiver before turning your
transmitter off.
• Keep the wheels of the model off the ground when checking the
operation of the radio equipment.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before
operating. Failure to operate the product correctly can result in damage to the product, personal property and cause
serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and
requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result
in injury or damage to the product or other property. Do not attempt disassembly, use with incompatible components
or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for
safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR
create a high probability of superficial injury.
Safety Precautions and Warnings .......................................................2
Specifications.......................................................................................3
Components .........................................................................................3
Vehicle Preparations
Installing Antenna Tube and Body.......................................................3
Installing Transmitter Battery .............................................................4
Installing Transmitter Antenna ............................................................4
Charging the Battery............................................................................4
Installing Vehicle Battery.....................................................................5
Operation
Transmitter controls.............................................................................6
Getting Started.....................................................................................7
Finishing...............................................................................................7
Setting the Gear Mesh.........................................................................8
Electronic Speed Control (ESC)............................................................8
Electrical Layout...................................................................................8
Wheel Assembly..................................................................................8
Maintenance........................................................................................9
Shock Cleaning.....................................................................................9
Fasteners..............................................................................................9
Troubleshooting Guide........................................................................10
Warranty Information..........................................................................10
Contact Information ............................................................................11
FCC and Compliance Information for the European Union.................11
TABLE OF CONTENTS

3
RUCKUS
EN
Transmitter
Frequency 27MHz
Modulation Pulse Proportional Modulation (PPM)
Battery AA x 8
Current Consumption 200mAh
Size 17 x 23.5 x 7.5mm
Weight 382 g
Servo
Power Supply 4.8V~6V (shared with receiver)
Output Torque 41.66 oz (3 kg-cm)
Operating Speed 0.23sec/60 degrees of travel
Size 40.5 x 20 x 36.8mm
Receiver
Frequency 27MHz
Intermediate Frequency 445kHz
Current Consumption 18mAh
Weight 15 g
Electronic Speed Control (ESC)
Input Voltage 7.2–8.4V
Electric Capacity (FET) Forward 80 A/240 A
Electric Capacity (FET) Reverse 60 A/160 A
PWM Frequency 1kHz
BEC Voltage 5 V/1 A
Size 27 x 35 x 17.3mm
Weight 34 g - 36 g
1. Electrix RCTM RuckusTM 1/10 Monster Truck
2. Transmitter
3. Antenna Tube (ECX1066)
Included Items
4. AA (8)
5. ECX1075 Battery Charger
ECX1075AU Battery Charger (AU)
ECX1075EU Battery Charger (EU)
ECX1075UK Battery Charger (UK)
Note: Charger power outlet terminals
not shown.
6. 7.2V NiMH battery (DYN1050)
7. Alternate Crystal Set (not shown)
21 3
546
SPECIFICATIONS
COMPONENTS
VEHICLE PREPARATIONS
1
2
INSTALLING ANTENNA TUBE AND BODY
1. Body Clips (ECX1048)
2. Antenna Tube (ECX1087)
1

4RUCKUS
EN
CHARGING THE BATTERY
A. Attach battery connector to the
charger correctly.
B. 7.2V NiMH battery
C. Compatible Battery Charger
Note: Charger power outlet terminals
not shown.
Note: The vehicle battery charger produces 300 milliAmps per
hour. Divide the mAh capacity on the label of a battery by 300
to know how long battery charging will require. For example, an
1800mAh battery requires 6 hours to charge.
• Read all safety precautions and literature prior to use of
this product.
• Never allow minors to charge battery packs without adult
supervision.
• Never attempt to charge dead or damaged batteries.
• Never charge a battery if the cable has been pinched or shorted.
213
Always charge
Batteries away from
flammable materials.
Never leave
charging Batteries
unattended.
Never charge
Batteries outside
recommended levels.
Never charge
damaged Batteries.
• Never allow batteries or charger to come into contact with
moisture at any time.
• Never charge batteries in extremely hot or cold places
(recommended between 50–80 degrees Fahrenheit) or place in
direct sunlight.
• Always use only NiMH rechargeable batteries. This charger cannot
charge batteries such as “heavy duty,” “alkaline battery,” or
“mercury battery.”
• Always connect the positive red lead (+) and negative black lead
(-) terminals of the battery to the charger terminals correctly.
• Always disconnect the battery and charger after charging, and let
them cool between charges.
• Always inspect the battery before charging.
• Always terminate all processes and contact Horizon Hobby if the
product malfunctions.
• Always make sure you know the specifications of the battery to
be charged or discharged to ensure it meets the requirements of
this charger.
• Never connect more than one battery pack to this charger at a time.
• Always constantly monitor the temperature of the battery pack
while charging.
• Always end the charging process if the charger or battery becomes
hot to the touch or starts to change form during the charge process.
INSTALLING TRANSMITTER BATTERIES
1. Slide panel open on bottom of transmitter.
2. Obey battery plus (+) and minus (-) diagram in transmitter to install
8 AA batteries.
3. Slide panel closed on transmitter.
WARNING: ALWAYS use fully charged batteries in the
transmitter. Low battery power can result in loss of control of
the RC vehicle.
NEVER install damaged batteries, batteries of mixed types or batteries
of different ages in the transmitter. Remove exhausted batteries.
NEVER store transmitter with batteries installed.
Note: Alkaline AA size batteries are recommended.
Note: Optional AA NiMH battery charger DYN1970 is available. Use
only batteries approved for use with that charger. DYN1970 2300mAh
Tx NiMH Conversion Kit: FUT, ECX
A
B
C
INSTALLING TRANSMITTER
ANTENNA
1. Put antenna in hole in top of the transmitter.
2. The collapsed antenna will be 2-1/4 inches
long when fully inserted.
3. Turn the antenna clockwise until it is tight. 12-1/4 in
(57mm) 23

5
RUCKUS
EN
Always keep
vehicle in sight
and under control.
WARNING
OPERATION

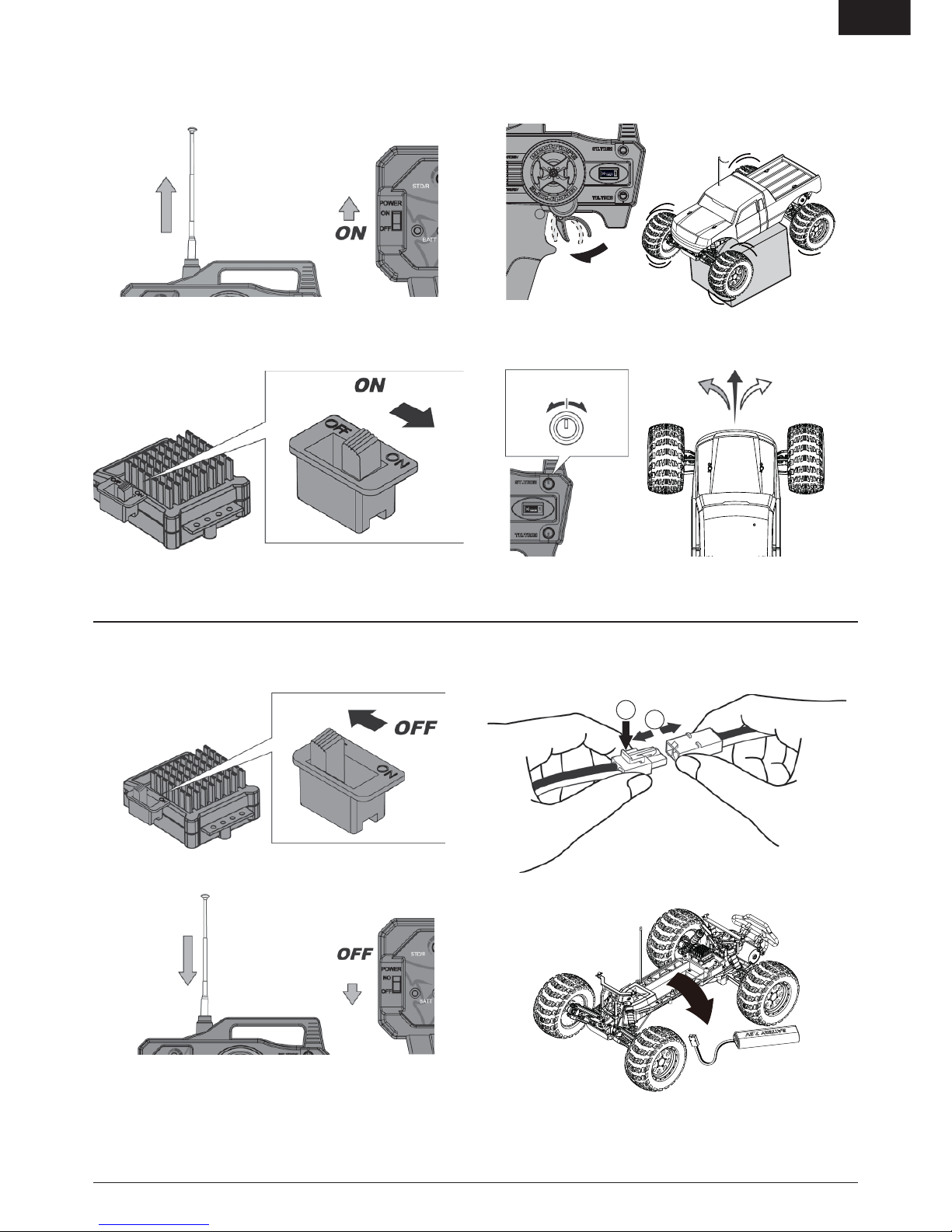

ALWAYS turn on your transmitter before you turn on the receiver in the
car. Always turn off the receiver before turning your transmitter off.
ALWAYS operate vehicle in a wide open area. Operating the vehicle
in a small space or indoors can cause overheating at low speeds.
Operating at low speed makes heat in the electronic speed control
(ESC). Overheating can damage the vehicle and failure may result.
MOTOR CARE
• Seat motor brushes by driving smoothly on a flat surface during
use of the first battery charge.
• Prolong motor life by preventing overheat conditions. Undue
motor wear results from frequent turns, stops and starts,
pushing objects, driving in deep sand and tall grass and driving
continuously up hill.
• Over-temperature protection is installed on the ESC to prevent
circuit damage, but cannot protect the motor from driving
against heavy resistance.
INSTALLING VEHICLE BATTERY
• Turn the thumb nuts on the chassis to remove the battery strap
holding the battery. Remove or install a battery and replace the
battery strap, locking the strap in place by turning the thumb nuts.

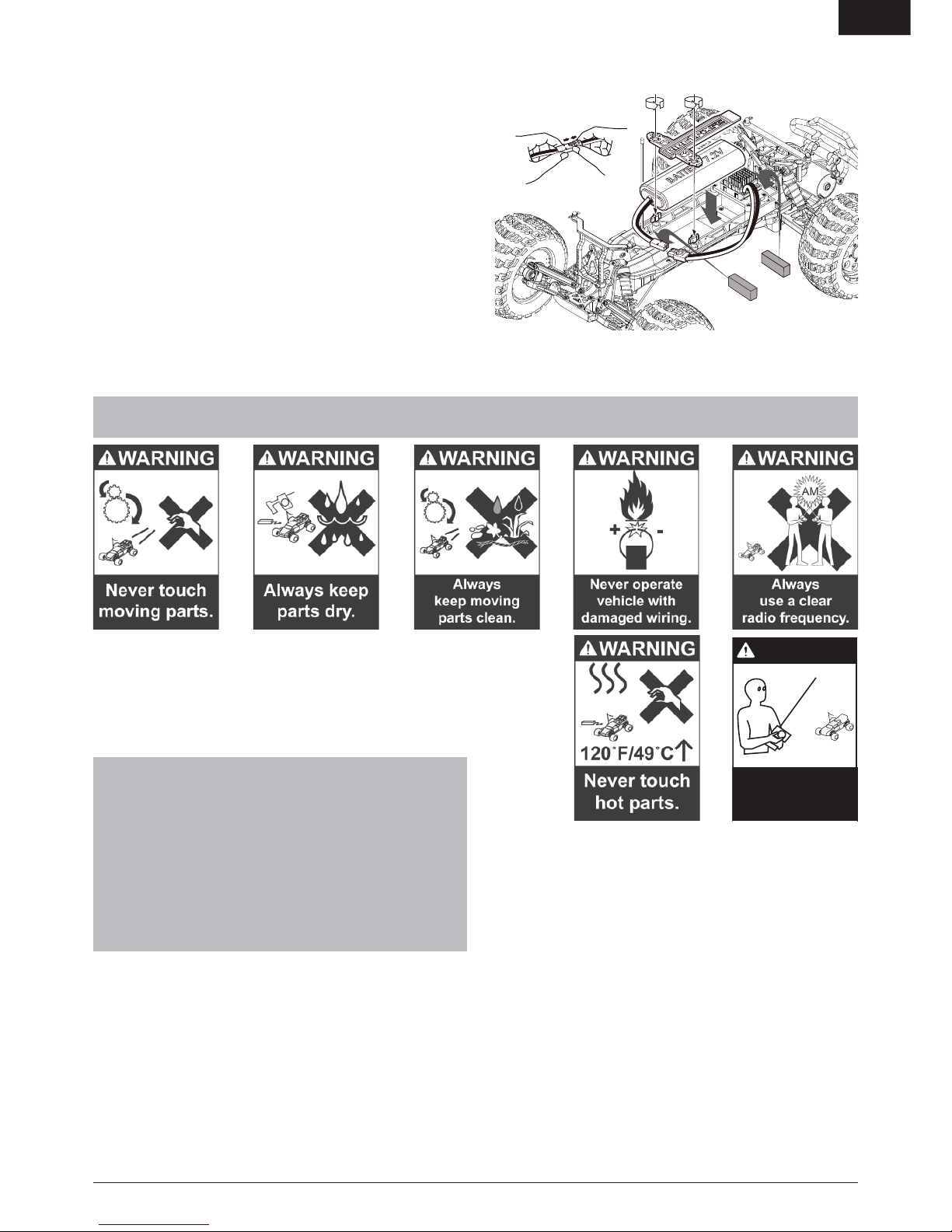

• You can put the foam blocks (ECX2015) in front of the battery so
the weight of the battery increases rear traction or in back of the
battery to increase steering response.

6RUCKUS
EN
POWER SWITCH
REVERSE SWITCH
THROTTLETRIM
STEERINGTRIM
STEERING WHEEL
ANTENNA
Pull antenna out to its
full length
(ECX1067 Antenna Only)
Adjusts the neutral point of
the electronic speed control
Adjust to make the vehicle
drive straight with no input
at the steering wheel
Control steering. Right and
Left steering with ST. REV
Switch on N (See ST. REV
switch)
Allows you to change the
direction of steering (ST. REV)
and throttle (TH. REV) controls.
(Default settings are “N”)
Power on
or off the
transmitter
BATTERY LEVEL INDICATOR
Note: Red light will flash with an
audible signal (beep) when batteries
are low
Good battery power
Low battery power
THROTTLETRIGGER
Controls power to motor for forward
or reverse (See TH. REV switch)
Stop
Reverse
(when TH.
REV switch
on N)
Forward (when
TH. REV switch
on N)
AM 27MHZTRANSMITTER CRYSTAL
AM Transmitter Crystal
(Tx) AM Receiver Crystal
(Rx)
Note: Paired AM crystals must
be replaced to change control
frequencies. Do NOT use FM Crystals.
ST. D/R
Adjusts the amount the front wheels
move when turned left or right
(Steering Dual Rate)
CHARGER PORT
Read instructions before charging.
Charge only rechargeable batter-
ies. Non-rechargeable batteries
may burst causing injury to persons
and/or damage to property.
Note: The center pin on the charge jack is positive.
Part # Description
ECX1081 Crystal Set 1 26.995
ECX1082 Crystal Set 2 27.045
ECX1083 Crystal Set 3 27.095
ECX1084 Crystal Set 4 27.145
ECX1085 Crystal Set 5 27.195
ECX1086 Crystal Set 6 27.255
TRANSMITTER CONTROLS
AM Tx AM Rx

7
RUCKUS
EN
WHEN YOU ARE FINISHED
1. Power off Electronic Speed Control (ESC)
2. Power off the Transmitter and Lower Antenna
Note: To prevent damage to antenna, collapse the antenna by pulling
the lower sections in first.
3. Disconnect Battery
4. Remove Battery from vehicle
12
GETTING STARTED
1. Fully extend Antenna and Power on Transmitter.
2. Connect battery (page 3) to Electronic Speed Control (ESC) and
power on the ESC.
3. Do a Test of Transmitter’s control of vehicle with vehicle wheels
off ground.
4. Start driving slowly and if the vehicle does not go straight, adjust
steering trim dial on Transmitter.
Note: Seat motor brushes by driving smoothly on a flat surface
during use of the first battery charge.

8RUCKUS
EN
LED LED Status Description LED Indication
Solid Green Forward
Solid Red Reverse
beep beep beep
Red LEDs flashing with beep Transmitter is not being
received.
beep beep beep beep beep beep
Red LEDs flashing twice with beeps Signal that Vehicle
battery is low.
beep beepbeep beep beepbeep beep beepbeep
Red LEDs flashing three times with
beeps Motor is overloaded or temperature of ESC
is high.
ELECTRONIC SPEED CONTROL (ESC)
Note: When motor disconnected or damaged, beep may not
be heard.
Note: Low voltage cutoff (LVC) will stop the vehicle when the battery
gets low. The ESC will reset after approximately 10 seconds. The
vehicle can then be driven slowly back to the driver for
battery recharge.
ELECTRICAL LAYOUT
Note: For correct operation, Channels
1 and 2 must be used as shown in
wiring diagram.
The motor can be disconnected from
the ESC at the connectors in the wiring.
Part # Description
A ECX1071 Motor
B DYN1050 Battery 7.2V
C ECX1069 Steering Servo
D ECX1068 Receiver
E ECX1070 Electronic Speed Control
(ESC)
F Channel 1
G Channel 2
H AM Receiver Crystal (Rx)
Receiver
Motor
Steering Servo
B
attery 7.2V
AM Rx
A
B
CD
E
F
HG
SETTING THE GEAR MESH
Gear mesh has already been set at the factory, and setting it is only
necessary when changing motors or gears.
Note: You must remove the vehicle’s gear cover (A) to do this
adjustment.
Proper gear mesh (how gear teeth meet) is important to the
performance of the vehicle. When gear mesh is too loose, the spur
gear could be damaged by the pinion gear of the motor. If the mesh is
too tight, speed could be limited and the motor and ESC will overheat.
1. Loosen the two (2) motor screws.
2. Put a small piece of paper between the pinion and spur gears.
3. Push the gears together while tightening the motor screws.
4. Remove the paper and the gears should move a small amount.
5. Reinstall gear cover.
A

9
RUCKUS
EN
SHOCK CLEANING
• Oil-filled shocks will require regular maintenance due to the oil
breaking down or getting dirty. This maintenance should be
performed after about every 3 to 5 hours of use depending on
conditions that the vehicle is used in.
• Remove the shock from the vehicle.
• Remove the cap from the shock body and dispose of fluid.
• Disassemble the shock. Clean thoroughly with DYN5505. Dry parts
before assembly.
• Assemble the shock and refill the shock body with silicone fluid (30
weight recommended).
• Slowly move the shaft and piston up and down to remove
air bubbles.
• Move the piston to the midway point of the body and install
the cap.
• Wipe off any overflowing fluid.
• When properly filled, the piston should rebound about 3/8 in
(9.5mm) after being pushed in fully.
• Install shock on vehicle.
Ride Height Adjustment
Ride height is an adjustment that affects the way the vehicle jumps,
turns and goes over bumps. Drop one end of the vehicle from
approximately 6 inches (152 mm) in height onto a flat surface. When
dropping the front of the vehicle, after the vehicle settles make sure
the front arms are equal and parallel to the flat surface. Do the same
with the rear and look at the rear to make sure both arms are
parallel with the flat surface.
Lower the front ride height to increase steering. Lower the rear ride
height to increase traction but decrease steering.
ECX1043
ECX1037
ECX1037
ECX1041
ECX1037
ECX1043
ECX1036
ECX1038
ECX1038
ECX1043
ECX1037
ECX1037
ECX1038
ECX1042
ECX1040
ECX1057
ECX1037
ECX1043
ECX1038
ECX1039
ECX1036
ECX1038
ECX1038
ECX1037
ECX1057
REAR SHOCK FRONT SHOCK
Part # Description
ECX1036 Shock Body Set
ECX1037 Shock Caps, Pistons
ECX1038 Shock Parts Set
ECX1039 Front Shock Shaft (2)
ECX1040 Rear Shock Shaft (2)
ECX1041 Front Shock Springs (2)
ECX1042 Rear Shock Springs (2)
ECX1043 Shock O-Ring Set
MAINTENANCE
No. Description
TAPPING BINDER HEAD M3x10mm
TAPPING BINDER HEAD M3x12mm
TAPPING FLAT HEAD M3x15mm
TAPPING FLAT HEAD M3x12mm
TAPPING FLAT HEAD M3x10mm
TAPPING BINDER HEAD M3x18mm
TAPPING FLAT HEAD M2x16mm
TAPPING BINDER HEAD M3x16mm
No. Description
WASHER 5x7x0.5mm
E-CLIP E2.5
LOCK WASHER
FLANGED LOCK NUT M4
WASHER 3x8x0.5mm
LOCK NUT M3
WASHER 2x7x0.5mm
SET SHAFT SCREW M3x13mm
No. Description
BUTTON HEX M2.5x4mm
SET SCREW M3x3mm
SET SCREW M3x12mm
STEP SCREW M3x0.5x13.4mm
STEP SCREW M3x0.5x10.5mm
BUTTON HEX M2.5x8mm
STEP SCREW M3x0.5x7.4mm
No. Description
BINDER HEAD M3x8mm
BINDER HEAD M3x12mm
BINDER HEAD M3x20mm
BINDER HEAD M3x25mm
BUTTON HEAD M3x30mm
BUTTON HEAD M2x6mm
TAPPING BUTTON HEAD M3x10mm
FASTENERS

10 RUCKUS
EN
Problem Possible Cause Solution
Short Run Time • Battery damaged/not charged
• Motor dirty or brushes worn • Check/change battery • Check/clean/replace
Sluggish Action •Motor dirty or brushes worn • Bind in drivetrain
• Vehicle battery is not charged
• Check/clean/replace
• Clean/adjust
• Replace/recharge
Controls Reversed • ST. REV or TH. REV • Change switch position
Motor/ESC overheat • Over-geared • Install smaller pinion
Doesn’t Operate
• Transmitter batteries low
• Transmitter powered off
• ESC powered off
• Vehicle battery is not charged
• Replace/recharge
• Power On
• Power On
• Replace/recharge
Poor Range
• Transmitter batteries low
• Transmitter antenna is damaged or loose
• Receiver antenna damaged
• Motor dirty or brushes worn
• Replace/recharge
• Check/tighten
• Check/repair/replace
• Check/clean/replace
TROUBLESHOOTING GUIDE
WARRANTY AND REPAIR POLICY
Warranty Period
Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties that
the Products purchased (the “Product”) will be free from defects in
materials and workmanship at the date of purchase by the Purchaser.
Limited Warranty
Horizon reserves the right to change or modify this warranty
without notice and disclaims all other warranties, express
or implied.
(a) This warranty is limited to the original Purchaser (“Purchaser”) and
is not transferable. REPAIR OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER.
This warranty covers only those Products purchased from an
authorized Horizon dealer. Third party transactions are not covered by
this warranty. Proof of purchase is required for all warranty claims.
(b) Limitations- HORIZON MAKES NO WARRANTY OR
REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OF THE PRODUCT. THE PURCHASER ACKNOWLEDGES THAT
THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY
MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon’s sole obligation hereunder shall be
that Horizon will, at its option, (i) repair or (ii) replace, any Product
determined by Horizon to be defective. In the event of a defect, these
are the Purchaser’s exclusive remedies. Horizon reserves the right to
inspect any and all equipment involved in a warranty claim. Repair
or replacement decisions are at the sole discretion of Horizon. This
warranty does not cover cosmetic damage or damage due to acts
of God, accident, misuse, abuse, negligence, commercial use, or
modification of or to any part of the Product. This warranty does not
cover damage due to improper installation, operation, maintenance, or
attempted repair by anyone other than Horizon. Return of any Product
by Purchaser must be approved in writing by Horizon before shipment.
Damage Limits
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR
COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCT,
WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY,
NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the
liability of Horizon exceed the individual price of the Product on which
liability is asserted. As Horizon has no control over use, setup, final
assembly, modification or misuse, no liability shall be assumed nor
accepted for any resulting damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared to accept the liability
associated with the use of this Product, you are advised to return this
Product immediately in new and unused condition to the place
of purchase.
Law: These Terms are governed by Illinois law (without regard to
conflict of law principals).
WARRANTY SERVICES
Questions, Assistance, and Repairs
Your local hobby store and/or place of purchase cannot provide
warranty support or repair. Once assembly, setup or use of the Product
has been started, you must contact Horizon directly. This will enable
Horizon to better answer your questions and service you in the event
that you may need any assistance. For questions or assistance,
please direct your email to [e-mail], or call
877.504.0233 toll free to speak to a Product Support representative.
You may also find information on our website at
www.horizonhobby.com.
Inspection or Repairs
If this Product needs to be inspected or repaired, please use the
Horizon Online Repair Request submission process found on our
website or call Horizon to obtain a Return Merchandise Authorization
(RMA) number. Pack the Product securely using a shipping carton.
Please note that original boxes may be included, but are not designed
to withstand the rigors of shipping without additional protection. Ship
via a carrier that provides tracking and insurance for lost or damaged
parcels, as Horizon is not responsible for merchandise until it arrives
and is accepted at our facility. An Online Repair Request is available
at www.horizonhobby.com http://www.horizonhobby.com under the
Repairs tab. If you do not have internet access, please contact Horizon
Product Support to obtain a RMA number along with instructions for
submitting your product for repair. When calling Horizon, you will be
asked to provide your complete name, street address, email address
and phone number where you can be reached during business hours.
When sending product into Horizon, please include your RMA number,
a list of the included items, and a brief summary of the problem. A
copy of your original sales receipt must be included for warranty
consideration. Be sure your name, address, and RMA number are
clearly written on the outside of the shipping carton.
Notice: Do not ship batteries to Horizon. If you have any issue
with a battery, please contact the appropriate Horizon Product
Support office.
Warranty Inspection and Repairs
To receive warranty service, you must include your original

11
RUCKUS
EN
sales receipt verifying the proof-of-purchase date. Provided warranty
conditions have been met, your Product will be repaired or replaced
free of charge. Repair or replacement decisions are at the sole
discretion of Horizon.
Non-Warranty Repairs
Should your repair not be covered by warranty the repair
will be completed and payment will be required without
notification or estimate of the expense unless the expense
exceeds 50% of the retail purchase cost. By submitting the
item for repair you are agreeing to payment of the repair without
notification. Repair estimates are available upon request. You must
include this request with your repair. Non-warranty repair estimates
will be billed a minimum of ½ hour of labor. In addition you will be
billed for return freight. Horizon accepts money orders and cashiers
checks, as well as Visa, MasterCard, American Express, and Discover
cards. By submitting any item to Horizon for inspection or repair, you
are agreeing to Horizon’s Terms and Conditions found on our website
under the Repairs tab.
CONTACT INFORMATION
Country of
Purchase Horizon Hobby Address Phone Number / Email Address
United States of
America
Horizon Service Center
(Electronics and engines)
Horizon Product Support
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
877-504-0233
[e-mail]
United Kingdom Horizon Hobby Limited
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom
[phone]
[e-mail]
Germany Horizon Technischer
Service
Hamburger Str. 10
25335 Elmshorn
Germany
[phone]
[e-mail]
France Horizon Hobby SAS
14 Rue Gustave Eiffel
Zone d’Activité du Réveil Matin
91230 Montgeron
[phone]
Declaration of Conformity
(in accordance with ISO/IEC 17050-1)
No. HH20100820
Product(s): ECX 1/10th Ruckus
Item Number(s): ECX2000EU; ECX2000UK; ECX2100EU; ECX2100UK
Equipment class: 1
The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of
the European R&TTE directive 1999/5/EC:
EN 300-220 Technical requirements for Radio equipment.
EN 301 489 General EMC requirements for Radio equipment
EN 60950 Safety
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
Aug 20, 2010
Steven A. Hall
Vice President
International Operations and Risk
Management
Horizon Hobby, Inc.
Instructions for disposal ofWEEE by users in the European Union
This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment
by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it
is recycled in a manner that protects human health and the environment. For more information about where you can drop off your
waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased
the product.
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
FCC INFORMATION

42 RUCKUS
M3x12
M3x15
M3x15
M3x25
M3X12
M3X10
M3X10
M3X10
M3X12
M3X25
M3X12
M3X12
M3X10
M3X10
M3X12
M3X15
M3X12
M3X12
M3X10
M3X8
M3X10
M3X12
M3X12
21
23
7
13
14
15
15
31
8
18
8
20
19
16
2
2
2
72
13
20
32
32
7
20
20
1
5
9
12
22
45
46
12
12
17
13
47
19
7
2
8
8
7
2
2
2
19
10
311
46
30
4
50
29

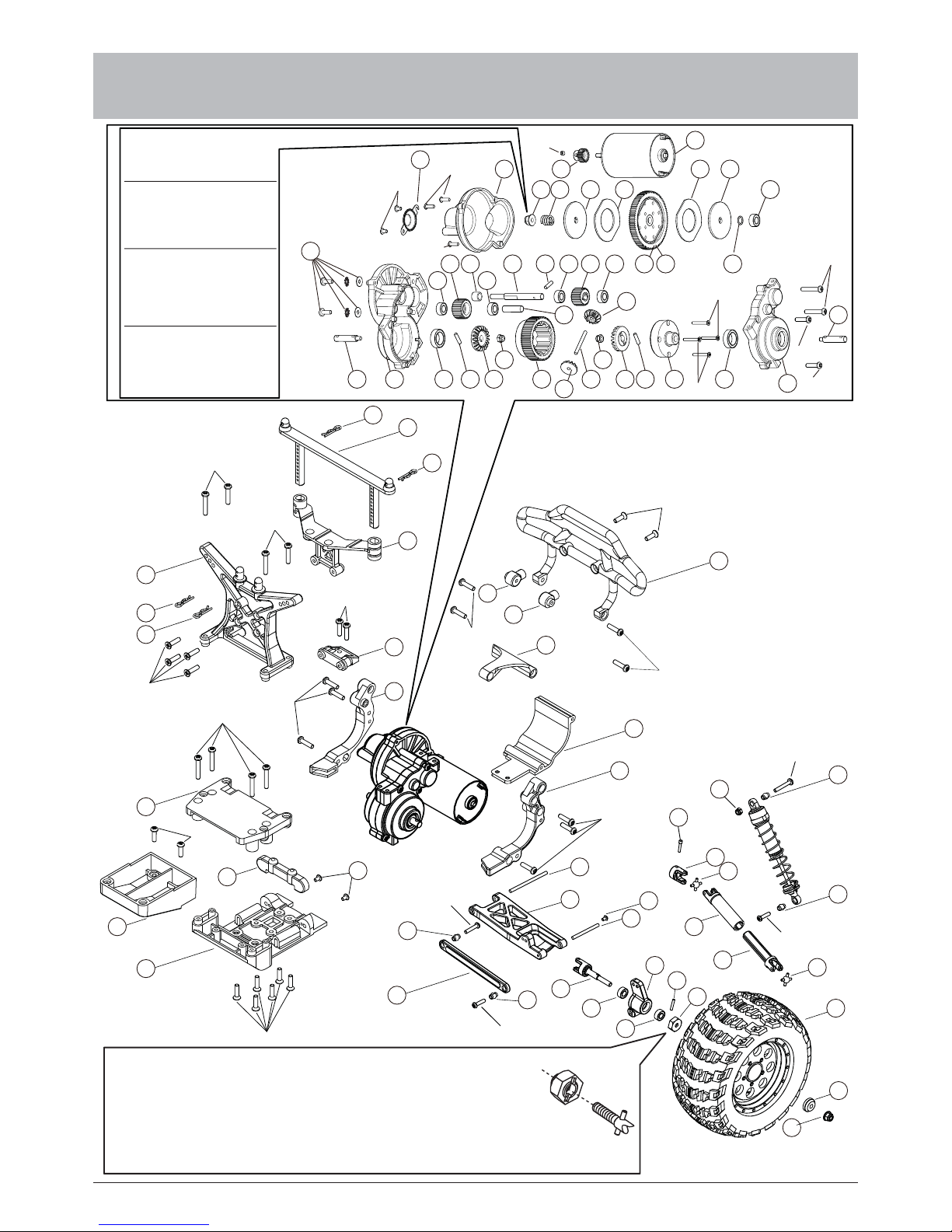

PARTS DIAGRAM | EXPLOSIONSZEICHNUNG |
VUE ÉCLATÉE DES PIÉCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI
Recommended Items
Empfohlene Werkzeuge
Outils Recommandés
Attrezzi raccomandati

43
RUCKUS
M3X20
M3X12
M3x12
M3x15
M3X15
M3X10
M3X12
M3X12
M3X12
M3X12
M3X12
M3X12
M3X18
M3X10
M3X12
M3X15
M3X3
M2.5X8
M2.5X8
M2.5X4
M3X12
M3X12
M3X18
33 33
6
37 25 3639 34
40 40
22 3535 35
35 35
15
37
43
15341549 3649
1515
34
34
42
34 34 36 34 36 34
37
39 25
M2X16
M2X16
36
12
45
46
25
48
44
44
17
44
44
11
13
13
12
47
12
25
48
3
19
19
29
21
31
13
14
27
26
26
27
26
32
32
15
15
28 13
20
22
41 34
29
24
20
20
50
40
Note: When installing wheel, make sure drive hex is aligned with the drive pin. When the drive hex
is removed, the drive pin can fall out of the axle.
Hinweis: Bitte stellen Sie sicher, dass die Kanäle 1 und 2 wie abgebildet eingesteckt sind. Die
Motorkabel können über Steckverbinder vom Regler getrennt werden.
A noter: Lors de l’installation de la roue, assurez-vous que l’écrou hexagonal est aligné avec la
broche de l’axe d’entraînement. En cas de démontage de l’écrou hexagonal, la broche de l’axe
d’entraînement peut sortir de l’axe et tomber.
Nota: Quando montate le ruote, accertatevi che il trascinatore esagonale sia allineato con la spina
del mozzo ruota. Quando togliete il trascinatore esagonale la spina può sfilarsi dal mozzo.
PARTS DIAGRAM | EXPLOSIONSZEICHNUNG |
VUE ÉCLATÉE DES PIÉCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI
Note: The slipper clutch can
be adjusted using this locknut
(ECX1060). Fully tighten the locknut.
Then loosen the nut two full turns.
Die Rutschkupplung kann durch
diese Stopmutter eingestellt
werden (ECX1060). Ziehen Sie die
Mutter an und drehen Sie dann
volle zwei Umdrehungen zurück.
A noter: Il est possible d’ajuster
l’embrayage “patinant” par action
sur cet écrou de blocage (ECX1060).
Veillez à serrer l’écrou de blocage
à fond. Ensuite, devissez l’écrou de
trois tours complets.
Nota: La frizione può essere
regolata con questo dado
autobloccante (ECX1060). Prima
avvitate completamente il dado, poi
svitatelo 2 giri.

44 RUCKUS
Part # | Nummer
Numéro | Codice Description Beschreibung Description Descrizione
1 ECX2008 Main Chassis Chassis Châssis principal Telaio principale
2
ECX1028 Servo Saver Set Servo Saver Set Jeu de sauvegarde de servo Set salvaservo
3
ECX2011 Cover and Rear Mount Set mont de couverture et arrière
4 ECX1050 Setscrew M3x12 (4) Schrauben Set M3x12 (4) Jeu de vis M3x12 (4) Grani M3x12 (4)
5 ECX2015 Foam Block Schaum Block Bloc de mousse Spugna distanziale batteria
6 ECX1052 Motor Screw/Washer Set Motor Screw/Washer Set Vis Moteur/Set Rondelles Viti per il motore/ set di rondelle
7 ECX1058 Ball Stud (6) Kugelkopf (6) Rondelle (6) Sfere Uniball (6)
8 ECX1065 Shoulder Screw Set (8) Passschrauben Set (8) Jeu de vis d’épaulement (8) Set viti a doppio stadio (8)
9 ECX1068 Receiver Empfänger Récepteur Ricevente
10 ECX1069 Servo Servo Servo Servo
11 ECX1088 Battery Hold Down Akkuhalter Fixation pour batterie Piastra fermabatteria
12 ECX2012 Front/Rear Bumper Set Stoßstange vorne hinten Jeu de pare-chocs avant/arrière Set paraurti ant/post
13 ECX2006 Suspension Arm Mount
Set Querlenker Set hinten Jeu de renfort de suspension Supporti braccetti sosp.
14 ECX2014 Mounted Wheel/Tire (2) Mounted Wheel/Tire (2) Roue Montée/Pneu (2) Ruote e gomme montate (2)
15 ECX1015 Wheel Bearing Set Radlagersatz Set Jeu de roulement de roue Set cuscinetti ruote
16 ECX1018 Front Suspension Arm Set Querlenker Set vorne Jeu de bras de suspension avant Braccetti delle sospensioni
anteriori
17 ECX1020 Shock Tower Set Dämpferbrücke Jeu de support d’amortisseur Supporto ammortizzatori
posteriori
18 ECX1035 Front Axle (2) Radachse vorne (2) Axe avant (2) Mozzi ruota anteriori (2)
19 ECX1044 Hinge Pin Set Querlenkerbolzen Set Jeu de broche d’axe Set perni sospensioni
20 ECX1046 Camber, Toe Link Set Spur- Sturzstangenset Jeu de biellette de cambrure, de
pincement Set tiranteria Camber e convergenza
21 ECX1049 Wheel Pins (4) Radmitnehmerstifte (4) Broches de roue (4) Spine trascinatori ruote (4)
22 ECX1060 M4 Locknut (4) M4 Stopmutter (4) Ecrou de blocage M4 (4) Dadi autobloccanti M4 (4)
23 ECX1089 Steering Block Set Lenkhebel Set Jeu de bloc de direction Fuselli sterzo
24 ECX1019 Rear Suspension Arm Set Querlenker Set hinten Jeu de bras de suspension arrière Braccetti delle sospensioni
posteriori
25 ECX1021 Transmission Case Set Getriebegehäuse Ensemble carter de transmission Set scatola trasmissione
26 ECX1031 Driveshaft Set Antriebswellen Set Ensemble arbre de transmission Set semiassi
27 ECX1032 Driveshaft Pivot Ball (4) Antriebswellengelenk (4) Boule pivot d’arbre de
transmission (4) Snodi semiassi (4)
28 ECX1034 Rear Axle (2) Wellenmitnehmer hinten (2) Axe arrière (2) Mozzi ruota anteriori (2)
29 ECX1045 Hinge Pin Screws (8) Querlenkerbolzen Schrauben (8) Vis de broche d’axe (8) Viti per perni sospensioni (8)
30 ECX1070 ESC Regler / ESC CEV Variatore elettronico (ESC)
31 ECX1090 Rear Hub Carrier Set Hinterer Rad Träger Set Jeu de porte-moyeu arrière Portamozzi posteriori
32 ECX1037 Shock Caps, Pistons Stoßdmämpferkappen Kolben Obturateurs d’amortisseur, pistons Set tappi e pistoni ammortizzatori
33 ECX1027 Gear Cover Gear Cover Carter de Réducteur Copertura per ingranaggi
34
ECX1022 Transmission Gear Set
Getriebe Ensemble couronne de
transmission et ingranaggi trasmissione
35
ECX1024 Slipper Clutch Plates, Pads,
Spring
Rutschkupplung Teilesatz Plateaux d’embrayage patinant,
plaquettes, ressort Piattelli frizione, disco, molla
36
ECX1025 Transmission Idler Shaft,
Drive Pins
Hauptgetriebewelle Set Arbre secondaire de transm-
ission, axes d’entraînement Alberino intermedio con spina
37
ECX1026 Transmission Drive Shaft (2) Getreibeausgangswelle (2) Axe d’arbre de transmission (2) Mozzi Differenziale (2)
38
ECX1052 Washer Set Unterlegscheiben Set Jeu de rondelles Set rondelle
39 ECX1055 Bearings 10x15x4 (2) Lager 10x15x4 (2) Roulements 10x15x4 (2) Cuscinetti 10x15x4 (2)
40 ECX1059 M3 Locknut (4) M3 Stopmutter (4) Ecrou de blocage M3 (4) Dadi autobloccanti M3 (4)
41 ECX1076 Spur Gear Hauptzahnrad Couronne Corona
42 ECX1073 19-Tooth Pinion Gear 19-Tooth Pinion Gear Pignon 10 dents Pignone a 19 denti
43 ECX1071 Motor Motor Moteur Motore
44 ECX1048 Body Clip Body Clip Clips Carrosserie Clippe per carrozzeria
45 ECX2010 Body Post Set Body Post Set Set Plots Carrosserie Set di sostegni per la carrozzeria
46 ECX2009 Body Mount Set Body Mount Set Set Montage Carrosserie Set di montaggio per la carrozzeria
47 ECX2007 Skid Plate Set Skid Plate Set Set Plaque Chassis Set pistre di protezione
48 ECX2013 Rear Holder Set Rear Holder Set Set de Maintien Arrière Set supporto posteriore
49 ECX1023 Top Shaft/Spacer Top Shaft/Spacer Set de Goupilles Set di spessori
50 ECX1033 Setscrew M3x10 Sicherungsschrauben (4) Vis (4) Viti (4)

45
RUCKUS
NOTES / HINWEIS / A NOTER / NOTA

46 RUCKUS
NOTES / HINWEIS / A NOTER / NOTA

47
RUCKUS
NOTES / HINWEIS / A NOTER / NOTA

Created 10/10 22425.1 © 2010 Horizon Hobby, Inc.
ECX2000, ECX2000UK, ECX2000EU, ECX2000AU
ECX2100, ECX2100UK, ECX2100EU, ECX2100AU
