Electro Industries/GaugeTech Shark MP200 in Enclosure User manual

This page intentionally left blank.

Doc# E180701 i
Electro Industries/GaugeTech™
Powered by Innovation™

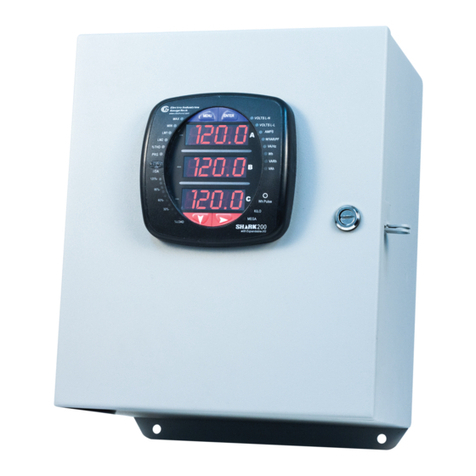

MP200TM in Enclosure Installation and Operation Manual Version 1.09
Published by:
Electro Industries/GaugeTech
1800 Shames Drive
Westbury, NY 11590
Copyright Notice
All rights reserved. No part of this publication may be reproduced or transmitted in
any form or by any means, electronic or mechanical, including photocopying, record-
ing, or information storage or retrieval systems or any future forms of duplication, for
any purpose other than the purchaser's use, without the expressed written permission
of Electro Industries/GaugeTech.
© 2021 Electro Industries/GaugeTech
Shark® is a registered trademark of Electro Industries/GaugeTech. The distinctive
shapes, styles and overall appearances of all Shark® meters are trademarks of
Electro Industries/GaugeTech. MP200TM is a trademark of Electro Industries/Gauge-
Tech.
LonWorks® is a registered trademark of Echelon Corp.
BACnet® is a registered trademark of ASHRAE.
Modbus® is a registered trademark of Schneider Electric, licensed to the Modus
Organization, Inc.

Doc# E180701 ii
Electro Industries/GaugeTech™
Powered by Innovation™
Customer Service and Support
Customer support is available 8:00 am to 8:00 pm, Eastern Standard Time, Monday
through Friday. Please have the model, serial number and a detailed problem descrip-
tion available. If the problem concerns a particular reading, please have all meter
readings available. When returning any merchandise to EIG, a return materials
authorization number is required. For customer or technical assistance, repair or
calibration, phone [phone] or fax [phone].
Product Limited Warranty Certificate
1.Electro Industries/Gauge Tech ("Electro") warrants its metering products ("the
Product") against defects in material and workmanship, subject to the terms and con-
ditions stated herein. This limited warranty extends to and covers only the Customer,
as the purchaser of Electro's Product; the Customer represents and warrants to Elec-
tro that the Customer is subject to and bound by the limited warranty and disclaimer
of warranty contained herein.
2.PRODUCT LIMITED WARRANTY
Electro warrants that commencing from the Product's date of delivery (the date the
Product leaves Electro's manufacturing facility) and continuing immediately following
thereafter for a period of four (4) consecutive years, that the Product will be free from
defects in material and workmanship, and except for the foregoing, the Product is sold
AS IS with all faults. This warranty does not apply to defects resulting from unautho-
rized modification, misuse, or use of the Product for any use other than electrical
power monitoring, which is the intended and normal use of the Product. The Cus-
tomer's sole and exclusive remedy and the entire liability of Electro under this limited
warranty will be, at Electro's option, as follows: (i) the Product's repair; or (ii) ship-
ment of a replacement Product within the above stated warranty period. To exercise
this limited warranty, the Customer must give notice (See Section 5) to Electro's cus-
tomer-support department and give additional notice to Electro's customer-support
department by facsimile or by telephone for Electro's instructions for the Product's
return or repair. If the Product is repaired, Electro will ship the repaired Product to the
Customer. THE FOREGOING WARRANTIES ARE THE SOLE WARRANTIES, EXPRESS OR
IMPLIED, GIVEN BY ELECTRO IN CONNECTION WITH THE PRODUCT, AND ELECTRO
DISCLAIMS ALL OTHER WARRANTIES, INCLUDING BUT NOT LMITED TO WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT
OF THIRD-PARTY RIGHTS AND WARRANTIES AGAINST LATENT DEFECTS. The Cus-

Doc# E180701 iii
Electro Industries/GaugeTech™
Powered by Innovation™
tomer must notify Electro promptly, but in no event more than four (4) year after the
Product's date of delivery of any claimed breach of this warranty, or such claim shall
be time barred.
3.PRODUCT LIMITED WARRANTY RESTRICTIONS
THE LIMITED WARRANTY CONTAINED HEREIN WILL NOT BE GIVEN OR APPLY, AND
NO EXPRESS OR IMPLIED WARRANTY, INCLUDING BUT NOT LIMITED TO WARRAN-
TIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE NON-INFRINGE-
MENT OF THIRD PARTY RIGHTS AND WARRANTIES AGAINST LATENT DEFECTS SHALL
BE DEEMED APPLICABLE, GIVEN OR PROVIDED BY ELECTRO WITH RESPECT TO OR
CONCERNING THE PRODUCT, IF: (a) the Product has been altered, except by Electro
or Electro's authorized representative; (b) the Product has not been installed, oper-
ated, repaired, or maintained in accordance with instructions supplied by Electro; (c)
the Product has been subjected to abnormal physical or electrical stress, abnormal
environmental conditions, misuse, negligence, or accident; (d) the Product is used in
ultrahazardous activities; or (e) the Customer failed to pay Electro the Product's pur-
chase price pursuant the Terms of Sale published by Electro at https://www.elec-
troind.com/pdf/docs/electro-terms-of-sale.pdf.
4.DISCLAIMER OF WARRANTY AND LIMITATIONS OF LIABILTY
EXCEPT AS EXPRESSLY GIVEN IN THIS LIMITED WARRANTY SECTION, ALL EXPRESS
OR IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING,
WITHOUT LIMITATION, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABIL-
ITY, FITNESS FOR A PARTICULAR PURPOSE, NON- INFRINGEMENT, SATISFACTORY
QUALITY, NON-INTERFERENCE, ACCURACY OF INFORMATIONAL CONTENT, OR ARIS-
ING FROM A COURSE OF DEALING, LAW, USAGE, OR TRADE PRACTICE, ARE HEREBY
EXCLUDED IN THEIR ENTIRETY TO THE FULL EXTENT ALLOWED BY APPLICABLE LAW
AND ARE EXPRESSLY DISCLAIMED BY ELECTRO, AND ARE WAIVED BY THE CUS-
TOMER. TO THE EXTENT AN IMPLIED WARRANTY CANNOT BE EXCLUDED, SUCH WAR-
RANTY IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD STATED
HEREIN. THIS DISCLAIMER AND EXCLUSION SHALL APPLY EVEN IF THE EXPRESS
LIMITIED WARRANTY SET FORTH ABOVE FAILS OF ITS ESSENTIAL PURPOSE.
EXCEPT AS EXPRESSLY PROVIDED IN THIS SECTION, ELECTRO HEREBY DISCLAIMS
AND CUSTOMER WAIVES ALL REPRESENTATIONS, CONDITIONS AND WARRANTIES
(WHETHER EXPRESS, IMPLIED, OR STATUTORY), INCLUDING, WITHOUT LIMITATION,

Doc# E180701 iv
Electro Industries/GaugeTech™
Powered by Innovation™
ANY WARRANTY OR CONDITION (A) OF MERCHANTABILITY, FITNESS FOR A PARTICU-
LAR PURPOSE, NONINFRINGEMENT, TITLE, SATISFACTORY QUALITY, QUIET ENJOY-
MENT, ACCURACY, OR SYSTEM INTEGRATION, OR (B) ARISING FROM ANY COURSE
OF DEALING, COURSE OF PERFORMANCE, OR USAGE IN THE INDUSTRY. TO THE
EXTENT AN IMPLIED WARRANTY OR CONDITION CANNOT BE DISCLAIMED, SUCH
WARRANTY OR CONDITION IS LIMITED IN DURATION TO THE APPLICABLE EXPRESS
WARRANTY PERIOD. CUSTOMER SHALL NOT IN ANY EVENT BE ENTITLED TO, AND
ELECTRO SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL, PUNITATIVE
OR CONSEQUENTIAL DAMAGES OF ANY NATURE INCLUDING, BUT NOT LIMITED TO
AND WITHOUT LIMITATION, BUSINESS INTERRUPTION COSTS, REMOVAL OR REIN-
STALLATION COSTS, REPROCUREMENT COSTS, LOSS OF PROFIT OR REVENUE, LOSS
OF DATA, PROMOTIONAL OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO
REPUTATION OR LOSS, EVEN IF ELECTRO HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
ELECTRO'S LIABILITY TO THE CUSTOMER, AND CUSTOMER'S RECOVERY FROM ELEC-
TRO FOR ANY CLAIM, INCLUDING BUT NOT LIMITATED TO A WARRANTY CLAIM,
SHALL NOT EXCEED CUSTOMER'S PURCHASE PRICE FOR THE PRODUCT PAID BY THE
CUSTOMER FOR THE PRODUCT, WHICH GAVE RISE TO SUCH CLAIM IRRESPECTIVE
OF THE NATURE OF THE CLAIM, WHETHER IN CONTRACT, TORT, WARRANTY OR OTH-
ERWISE. ELECTRO SHALL NOT BE LIABLE FOR, AND THE CUSTOMER SHALL INDEM-
NIFY, DEFEND AND HOLD ELECTRO HARMLESS FROM THE FOLLOWING: ANY CLAIMS
BASED ON ELECTRO'S COMPLIANCE WITH END USER'S OR CUSTOMER'S DESIGNS,
SPECIFICATIONS OR INSTRUCTIONS; MODIFICATION OF ANY PRODUCT BY A PARTY
OTHER THAN ELECTRO; MODIFICATION OF ANY SOFTWARE MADE BY A PARTY OTHER
THAN ELECTRO; THE USE OF THE PRODUCT OR SOFTWARE FOR ANY USE OTHER
THAN ELECTRICAL POWER MONITORING; AUTHORIZED OR UNAUTHORIZED USE OF
THE PRODUCT OR SOFTWARE; MISUSE OF THE PRODUCT OR SOFTWARE; THE SOFT-
WARE'S OR PRODUCT'S USE IN COMBINATION WITH OTHER EQUIPMENT, GOODS,
SOFTWARE OR PRODUCT. IF, FOR ANY REASON, THE FOREGOING LIMITATIONS ARE
FOUND BY AN ARBITRATION PANEL OR COURT OF COMPETENT JURISDICTION TO BE
INVALID OR INAPPLICABLE UNDER ANY APPLICABLE LAW, CUSTOMER AGREES THAT
ELECTRO'S TOTAL LIABILITY FOR ALL DAMAGES, LOSSES, OR CAUSES OF ACTION OF
ANY KIND OR NATURE SHALL BE LIMITED TO CUSTOMER'S PURCHASE PRICE FOR
THE PRODUCT LICENSED BY THE CUSTOMER FROM ELECTRO, WHICH GAVE RISE TO
SUCH CLAIM, WITHOUT REGARD TO ANY ACTUAL DAMAGES; INDIRECT, SPECIAL,

Doc# E180701 v
Electro Industries/GaugeTech™
Powered by Innovation™
DIRECT OR CONSEQUENTIAL DAMAGES; PUNITIVE OR EXEMPLARY DAMAGES PRO-
VIDED FOR BY ANY SUCH APPLICABLE LAW.
5.NOTICES
All notices required or permitted under this limited warranty will be in writing and will
be deemed given one (1) day after deposit with a commercial express courier specify-
ing next day delivery (or two (2) days for international courier packages specifying 2-
day delivery), with written verification of receipt. All communications will be sent to
the address set forth below, and notices to Electro shall be further addressed to Attn:
Customer Support.
Electro Industries/Gauge Tech
1800 Shames Drive
Westbury, NY 11590
Attn: Customer Support
Use of Product for Protection
OUR PRODUCTS ARE NOT TO BE USED FOR PRIMARY OVER-CURRENT PROTECTION.
ANY PROTECTION FEATURE IN OUR PRODUCTS IS TO BE USED FOR ALARM OR
SECONDARY PROTECTION ONLY.
Statement of Calibration
Our instruments are inspected and tested in accordance with specifications published
by Electro Industries/GaugeTech. The accuracy and a calibration of our instruments
are traceable to the National Institute of Standards and Technology through equip-
ment that is calibrated at planned intervals by comparison to certified standards. For
optimal performance, EIG recommends that any meter, including those manufactured
by EIG, be verified for accuracy every five years using NIST traceable accuracy stan-
dards. In general, EIG metering devices should not require regular adjustments to
maintain published accuracy. If the meter is to be used for revenue purposes, follow
the verification and calibration guidelines adopted by your local utility.
Disclaimer
The information presented in this publication has been carefully checked for reliabil-
ity; however, no responsibility is assumed for inaccuracies. The information contained
in this document is subject to change without notice.

Doc# E180701 vi
Electro Industries/GaugeTech™
Powered by Innovation™
Symbols Used in This Manual
This warning symbol indicates that the operator must refer to an important
explanation in the operating instructions. The word following the symbol
indicates the type of warning being given.
Ce symbole d'avertissement indique que l'opérateur doit se référer à une
explication importante dans les instructions d'utilisation. Le mot suivant le
symbole indique le type d'avertissement ne soit donné.
CAUTION! The instructions given must be followed to prevent damage to
equipment.
Les instructions doivent être respectées pour éviter
d'endommager l’équipement.
WARNING! The instructions given must be followed to prevent serious
injury to people.
Les instructions doivent être respectées pour d’éviter de graves
blessures aux personnes.
Our Focus at Electro Industries/GaugeTech (EIG)
EIG exclusively delivers integrated energy and power quality monitoring solutions uti-
lizing AI and deep industry expertise to improve reliability, efficiency, and sustainabil-
ity. With over 50 years' experience in the electrical industry, EIG has developed
extensive energy management and power quality expertise to help customers find
ideal solutions to complex challenges. Our corporate culture promotes being cutting
edge and investing in R&D to continually improve our customer experience.
Our solutions are designed to deliver results in days, not years. Known for our reputa-
tion as being a dependable provider and for exemplary service and support, EIG is
committed to customer satisfaction.

Doc# E180701 TOC-1
Table of Contents
Electro Industries/GaugeTech
™
Powered by Innovation™
Table of Contents
Copyright Notice i
Customer Service and Support ii
Product Limited Warranty Certificate ii
Use of Product for Protection v
Statement of Calibration v
Disclaimer v
Symbols Used in This Manual vi
Our Focus at Electro Industries/GaugeTech (EIG) vi
1.1: Product Handling 1-1
1: Introduction 1-1
1.2: Safety Precautions 1-2
1.3: Storage 1-3
1.4: Compliance 1-3
2: Installation 2-1
2.1: Installation Step 1 - Unpack the MP200TM in Enclosure 2-2
2.2: Installation Step 2 - Drill the Wiring Holes 2-3
2.2.1: Removing and Reinstalling the Panel 2-6
2.3: Installation Step 3 - Mount the Enclosure 2-8
2.4: Installation Step 4 - Install the Display 2-13
2.5: Installation Step 5 - Lock the Enclosure 2-17
3. Electrical Wiring 3-1
3.1: Wiring Instructions 3-2

Doc# E180701 TOC-2
Table of Contents
Electro Industries/GaugeTech
™
Powered by Innovation™
4: Operation 4-1
4.1: Overview 4-1
4.2: Troubleshooting 4-1
5. Maintenance 5-1
6. Ordering Information 6-1
A. Removing a Meter from Service A-1
A.1: Removing the Meter A-1
A.2: Reinstalling the Meter A-6

Doc# E180701 1-1
1:Introduction
Electro Industries/GaugeTech
™
Powered by Innovation™
1.1: Product Handling
Every effort is made to insure that the equipment arrives undamaged and ready to be
installed. Packing is designed to protect internal components as well as the enclosure.
Do not remove protective packing until you are ready to install the equipment.
When you receive the equipment, you should inspect the shipping container for any
obvious signs of rough handling and/or external damage that occurred during trans-
portation. Record any external and internal damage for reporting to the transportation
carrier and EIG. All claims should be as specific as possible and include general order
numbers.
You will find a plastic bag of instruction booklets and/or CDs in the shipping container.
Store these documents in a safe place.
1: Introduction
The MP200TM in Enclosure lets you expand your switchgear capability and/or easily
meter circuits without expensive and time-consuming redesign. Simply mount the
enclosure in any convenient location, next to your switchgear or on a wall, and you are
ready to go, with no downtime.
This is an ideal solution for a retrofit when there is no metering compartment avail-
able. The unit comes standard with a NEMA 1 rated enclosure and is factory wired with
the metering system installed. Standard safety equipment includes voltage fuses and
shorting blocks for current transformers.
The enclosure can be ordered with either the MP200-Y three phase circuit configura-
tion or the MP200-S single phase circuit configuration, and comes standard with
either a 3”x5” or 5”x7” touch-screen display. BACnet® or LonWorks® protocol is avail-
able as an add-on to the existing standard Modbus® capability. See Chapter 6 for
ordering instructions.
CAUTION! READ AND UNDERSTAND THE INSTRUCTIONS CONTAINED IN
THIS DOCUMENT BEFORE ATTEMPTING TO UNPACK, INSTALL, OPERATE,
OR MAINTAIN THIS EQUIPMENT.

Doc# E180701 1-2
1:Introduction
Electro Industries/GaugeTech
™
Powered by Innovation™
1.2: Safety Precautions
WARNING! All safety codes, safety standards, and/or regula-
tions must be strictly observed in the installation, operation,
and maintenance of this device.
Hazardous voltages that can cause death or severe personal injury are present inside
enclosure. Follow proper installation, operation, and maintenance procedures to avoid
these voltages.
Avertissement! tous les codes de sécurité, normes de sécurité et règlements
doivent être suivis strictement dans l'installation, le fonctionnement et la
maintenance de cet appareil.
Des tensions dangereuses peuvent provoquer la mort ou des blessures graves. suivre
l'installation adéquate, le fonctionnement et les procédures de maintenance pour
éviter ces tensions.
Completely read and understand the material presented in this document before
attempting installation, operation, or application of the equipment. In addition, only
qualified persons should be permitted to perform any work associated with the
equipment. Any wiring instructions presented in this document must be followed
precisely. Failure to do so could cause permanent equipment damage.
All possible contingencies that may arise during installation, operation, or mainte-
nance, and all details and variations of this equipment do not purport to be covered by
these instructions. If further information is desired by purchaser regarding a particular
installation, operation, or maintenance of particular equipment, contact an Electro
Industries/GaugeTech (EIG) representative.

Doc# E180701 1-3
1:Introduction
Electro Industries/GaugeTech
™
Powered by Innovation™
1.3: Storage
Although it has been well packaged, this equipment should not be stored outdoors. If
the equipment is to be stored indoors for any period of time, it should be stored with
its protective packaging in place. Refer to the MP200TM Metering System Installation
and Operation manual, on the enclosed CD, for the meter’s storage requirements.
The temperature rating for enclosure storage is (-20 to +60) oC/(-4 to +140) oF.
1.4: Compliance
UL / cUL Listed, UL508A, File number: E358101.

Doc# E180701 1-4
1:Introduction
Electro Industries/GaugeTech
™
Powered by Innovation™
This page intentionally left blank.

Doc# E180701 2-1
2: Installation
Electro Industries/GaugeTech
™
Powered by Innovation™
2: Installation
WARNING! All safety codes, safety standards, and/or regulations shall be
strictly observed in the installation, operation, and maintenance of this
device. This device shall be installed in an un-energized condition
and as per the National Electric Code.
AVERTISSEMENT! Tous les codes de sécurité, normes de sécurité et règlement
doivent être suivis strictement pour l'installation, le fonctionnement et la maintenance
de cet appareil. Cet appareil doit être installé hors tension conformément au
code électrique national (National Electric Code).
Choose a mounting location that offers a flat, rigid mounting surface capable of
supporting the weight of the equipment. The unit weighs 48.5 lbs (22 kg) maximum.
Mount the equipment in a suitable environment. This enclosures is designed for NEMA
1 rated environments and is manufactured of painted steel.
Check to make certain that there are no pipes, wires, or other mounting hazards in
the immediate mounting area that could create a problem. Also make sure you have
enough clearance around the enclosure to run wiring to it safely. EIG recommends at
least 2 feet of clearance around the enclosure. See Section 2.1 for enclosure dimen-
sions.
Carefully remove all packing material from the unit. Even though an equipment
inspection was made when the equipment was received, make another careful inspec-
tion of the enclosure and the devices inside as packing material is removed. Be
especially alert for distorted metal, loose wires, or damaged components. This is
important because wiring can come loose in shipping and could cause a short circuit
or voltage to be on the wrong terminal.
WARNING! Extreme care shall be taken when mounting the enclosure, and
making wire entry holes, to prevent metal chips, filings, and other contami-
nants from entering the enclosure which may damage the equipment and
create a hazardous condition.
AVERTISSEMENT! Attention extrême lors de la monture de l'enceinte et lors de la
mise à terre pour prévenir les articules métalliques, remplissage et autre contaminant
de l'entrée de l'enceinte qui peuvent provoquer une condition dangereuse de l'équipe-
ment.

Doc# E180701 2-2
2: Installation
Electro Industries/GaugeTech
™
Powered by Innovation™
2.1: Installation Step 1 - Unpack the MP200TM in Enclosure
The enclosure components are shown in the image below:
• A: MP200 current inputs (24 of them)
• B: CT shorting blocks (eight of them)
• C: CT connections
• D: Voltage inputs and six fuses
• E: Earth ground on inside of enclosure
• F: Ground wire on enclosure door
• G: Cable assembly
• H: Display cables
• I: LCD display
• J: If ordered, optional Add-on Protocol - ProtoCom/ProtoCom-Lon
Figure 2.1: MP200TM in Enclosure as Shipped
J
F
E
H
G
I
D
C
A
B

Doc# E180701 2-3
2: Installation
Electro Industries/GaugeTech
™
Powered by Innovation™
2.2: Installation Step 2 - Drill the Wiring Holes
Cut the holes you need in the bottom of the enclosure for the power, CT, and
communications wiring. See the figure below for the allowable location.
Figure 2.2: Location for Punch Entries
The drawings show the area in the bottom of the enclosure where wiring holes can be
cut: 1” [25.40mm] from the front of the enclosure, 1.5” [38.10mm] from the right
side of the enclosure, 1.5” [38.10mm] from the back of the enclosure, and 3.75”
[95.25mm] from the left side of the enclosure.
3.75in
[95.25mm]
1.00in[25.40mm]
1.50in[38.10mm]
1.50in[38.10mm]
BOTTOM VIEW OF ENCLOSURE
WALL
You can cut holes
inside this area

Doc# E180701 2-4
2: Installation
Electro Industries/GaugeTech
™
Powered by Innovation™
CAUTIONS!
• There are numerous methods for making wire entry holes in the enclosure but it
is imperative that no loose material generated during the process remains in the
enclosure. During installation and cutting the wire holes, all equipment mounted
inside or on the enclosure shall be protected from loose material.
• No matter what procedure is used the installer shall verify that the hole cutting
process will not damage any of the wiring or components installed inside or on
the enclosure.
a. The two recommended procedures for cutting the wire entry holes are as
follows:
• Use a "C" frame punch to cut the wire entry holes. This type of punch
does not require a pilot hole. A typical "C" frame punch is shown below.
Figure 2.3: “C” Frame Punch
• Regular punch:
1. Place a magnet inside the enclosure where the pilot hole is to be cut
and completely cover the area with masking tape (or other very
sticky tape).
2. Drill the pilot hole from the outside and do not let the drill pass more
than ¼" into the enclosure.
3. Remove the tape, magnet, and cuttings and punch the hole.

Doc# E180701 2-5
2: Installation
Electro Industries/GaugeTech
™
Powered by Innovation™
b. After wiring and before energizing, vacuum the inside of the enclosure to
make sure that it is free of foreign material. If a vacuum is not available
use an alternate method to clean the inside of the enclosure. Do not use
compressed air (or pressurized gas) to clean the inside of the enclosure as
this may force cuttings into areas that cannot be seen, creating a hazard-
ous condition.
IMPORTANT! All wire entry into the enclosure shall be accomplished with
the use of recognized fittings or strain reliefs. Bare holes shall not be
used.
NOTE: The panel can be removed to facilitate drilling of wiring holes. See the follow-
ing procedure.

Doc# E180701 2-6
2: Installation
Electro Industries/GaugeTech
™
Powered by Innovation™
2.2.1: Removing and Reinstalling the Panel
If it will make it easier to drill the wiring holes, you may remove the panel.
Figure 2.4: Removing the Panel
1. If the MP200TM in enclosure is equipped with a ProtoCom/ProtoCom-Lon add-on
protocol unit remove all connections from the ProtoCom/ProtoCom-Lon (I).
2. Remove all connections from the LCD display (L).
3. Disconnect the green ground wires from the door (E).
4. Open the cable clamps on the door (J) and remove the cable assembly (F).
5. Remove the green ground wires on the lower left side of the enclosure (D).
6. Remove the four nuts, one in each corner of the panel [K].
7. Carefully remove the panel from the enclosure.
Drill the wiring holes per the instructions in Section 2.2. You can then re-install the
panel.
I
E
D
J
K(x4)
F
L
