Electrohome EAAC200 User manual

1

Electrohome
Digital AM/PM clock Radio with Dual Alarm (EAAC200/EAAC201)
Power Connection
1. Plug the AC power cord into an AC outlet.
2. Clock display will flash 12:00 until set to
correct time.
Battery Backup
This alarm clock is equipped with an optional
battery backup feature. This will restore your
alarm clock settings in the event of a power
outage. Install the batteries (not included):
1. Open the battery compartment on the
bottom of the alarm clock by pushing on the
latch and pulling the door open.
2. Install 2 x AA batteries ensuring that the
battery polarity corresponds to the polarity
in the battery compartment.
3. Close the battery compartment cover.
Note:
• Batteries must be installed by an adult.
• Use only the recommended size and type of
battery specified.
• Please be sure to follow the correct polarity
when installing the battery in the battery
compartment. Reversed battery may cause
damage to the alarm clock.
• DO NOT mix different types of batteries or
mix new and used batteries.
• When not using the unit for a prolonged
period of time, please remove the batteries to
avoid possible damage caused by leaking
batteries.
Setting the Time
1. Press and hold the SET button, the time will
start to flash.
2. Press the HR button to increase the HOUR.
3. Press the MIN button to increase the
MINUTES.
4. Once time is set correctly, press the SET
button.

2

Playing the Radio
1. Press the button once to turn radio ON.
2. Press and hold the AM/FM button to switch
between FM and AM.
3. Press the button to decrease and the
button to increase the volume.
4. Press the button to decrease and the
button to increase the AM /FM
frequency.
5. Press the button once to turn radio OFF.
To Set/Recall the
Radio Presets
You can preset and store the frequency of 20
radio stations in the memory; 10 AM stations
and 10 FM stations.
1. Press the button once to turn radio ON.
2. Press and hold the AM/FM button to toggle
between AM and FM radio.
3. Set radio to desired station.
4. Press and hold the SET button and P01 will
flash on the screen. (Use the and
buttons to select another preset [P01 -
P10]).
5. Press the SET button to confirm setting to
P01 or wait 5 seconds for flashing to stop.
6. Repeat the steps above to preset more
radio stations.
7. To recall a preset station, press the SET
button to toggle through the current preset
radio stations.

3

Setting the Alarm
1. Before you start:
a. Get familiar with the buttons ( -- ) on
the Top View. And the 4 regions ( --- )
of the display on the Front View.
b. Make sure the radio is off. If the radio is
on, press the button ( ) to turn it
off.
2. Enter the setting mode:
a. Long-press the button ( ) until the
alarm time (region ) flashes on the
display (Setting Mode) to start setting
the alarm clock #1.
Note: If the time stops flashing before
you finish the following steps, long-press
the button ( ) again until it flashes.
3. Set the alarm time:
a. Make sure the alarm time (region ) is
flashing during the following steps. If it is
not, follow step 2 above.
b. Press the button ( ) to increase the
hour.
Note: The time is in 12-hour format. If a
green dot displays in the region , it
means the alarm time is in PM.
c. Press the button ( ) to increase the
minute.

4

4. Set the alarm ringtone:
a. Make sure the alarm time (region ) is
flashing during the following steps. If it is
not, follow step 2 above.
b. Press the button ( ) to cycle
through three ringtone options: Off,
Radio , and Buzzer .
Note: pay attention to the green dots in
the region as follows.
c. Press the button ( ) to confirm
the setting.
Note: the clock will stop flashing and
show the current time. For example, the
following figure shows that the current
time is 6:34 PM, and the alarm clock # 1
is set to use Buzzer as the ringtone.
5. (Optional) Set more alarms:
a. You can set up to 2 alarms at the same
time. To set up the alarm clock #2, just
press the button ( ) to enter the
Setting Mode, cycle through the alarm
ringtone options in step 2-4, and look
at the region on the right side for the
indicator of ringtone option described in
step 4.
6. Snooze, Stop or Cancel the alarms:
a. Snooze: when the alarm is ringing,
press the button( ) to
temporarily pause the alarm for 9
minutes.
Note: The alarm will ring again after
9 minutes.
b. Stop: when the alarm is ringing,
press the button ( ) to stop the
alarm without snoozing.
Note: the alarm will still ring in the
set time in the future.
c. Cancel: if you want to cancel the
alarm, follow step 2 to enter the
Setting Mode, and then follow step
4 to set the ringtone option as off.
Sleeper
1. Press the button once to turn radio ON.
2. Press and hold the SNOOZE/SLEEP/DIM
button. The display will show 90 minutes,
your clock radio will turn off in 90 minutes.
3. To change the number of minutes for the
SLEEP timer, press the SNOOZE/
SLEEP/DIM button until you see the
desired number of minutes. The SLEEP
timer decreases in increments of 10.
4. To cancel the SLEEP timer, press and hold
the SNOOZE/SLEEP/DIM button then
press again until you see OFF in the display
or press the button.
Dimmer Function
1. Press the SNOOZE/SLEEP/DIM button to
toggle between the 3 LED brightness
settings.

5

Care & Maintenance
1. Always turn the unit off after use.
2. Keep the unit away from magnetic objects,
water or heat sources.
3. Use a clean soft cloth moistened with
lukewarm water to clean the cabinet. Never
use chemical cleaners that could damage
the finish of the unit.
4. Disconnect the unit from any power sources
before cleaning.

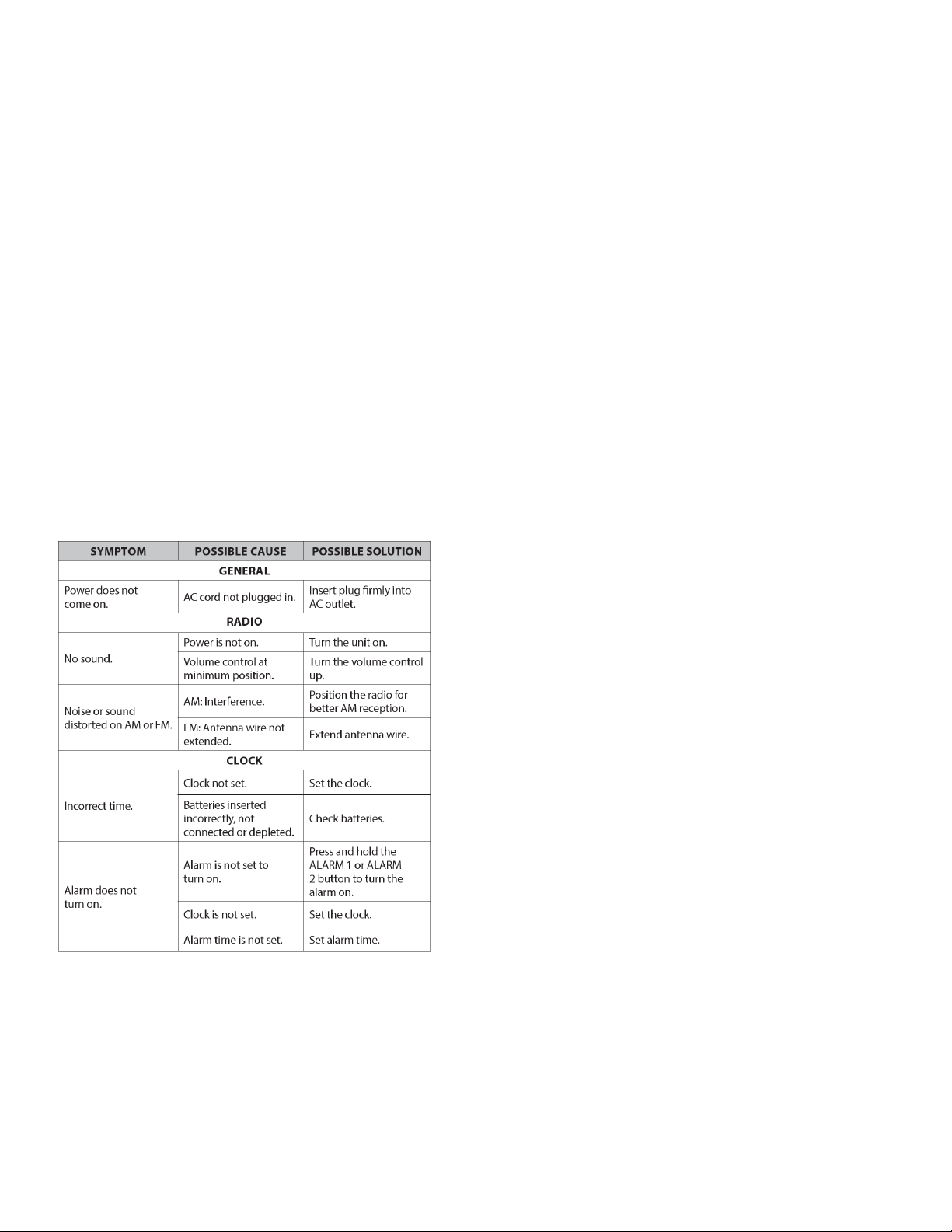

Troubleshooting

Electrohome
Warranty
Thank you for choosing Electrohome. We
guarantee your investment in our products is a
solid one! Extensive thought, research, planning
and design goes into every product we make.
High quality components combined with
precision manufacturing allows us to maintain
the highest possible production standards. All
items are guaranteed against defects in
materials and craftsmanship.
Electrohome products come with a complete
one-year parts and labour warranty. This
warranty is non-transferable and proof of
purchase is required when seeking warranty
assistance. Electrohome has outstanding quality
control, if something should go wrong with any of
our products, we will repair it free of charge! If
the product cannot be repaired, we will replace
the product. If the product has been
discontinued, we will replace the product with
either the newest version of said product or
current equivalent. Replacement parts furnished
in connection with this warranty shall be
warranted to a period equal to the unexpired
portion of the original product warranty.
This warranty shall not apply to:
A. Any defects caused or repairs required as a
result of abusive operation, negligence,
accident, improper installation or inappropriate
use as outlined in the owner’s manual.
B. Any Electrohome product tampered with,
modified, adjusted or repaired by any party
other than Electrohome.
C. Any cosmetic damage to the surface or
exterior that has been defaced or caused by
normal wear and tear.
D. Any damage caused by external or
environmental conditions, including but not
limited to transmission line/power line voltage
or liquid spillage.
E. Any product received without appropriate
model, serial number and CSA /cUL /cULus
/cETL /cETLus markings.
F. Any products used for rental or commercial
purposes.
G. Any installation, setup and/or programming
charges.

6

If in any situation your purchase displays a
manufacturer’s defect during the warranty
period and does not function correctly,
Electrohome will repair your product and cover
all parts, labour, and return costs upon delivery
of the Electrohome product together with proof
of purchase. Products returned to Electrohome
for warranty service must be shipped prepaid
(paid by the customer). Products must be
shipped in the original shipping container or its
equivalent; in any case the risk of loss or
damage in transit is to be borne by you.
We believe in music’s power to bring people
together. We pledge to work with you in
resolving any issue that occurs with your
product. If you are in need of assistance do
not hesitate to contact us via our Contact Us
page on www.electrohome.com/support.
Warnings
