User manual
Tumble dryer
TD6–7 Lagoon
Type N1...
Original instructions
438917870/EN
2022.09.09

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 Gas heated tumble dryer ............................................................................................................7
1.2 General information ...................................................................................................................7
1.3 Commercial use only..................................................................................................................7
1.4 Ergonomics certification .............................................................................................................8
1.5 Symbols....................................................................................................................................8
2 Warranty terms and exclusions.............................................................................................................9
3 Operating panel ................................................................................................................................10
4 Program description .......................................................................................................................... 11
4.1 Lagoon programs..................................................................................................................... 11
4.2 General programs....................................................................................................................12
5 Handling...........................................................................................................................................13
5.1 Load .......................................................................................................................................13
5.2 How to start the machine ..........................................................................................................14
5.3 Additional functions..................................................................................................................14
5.4 When program has ended ........................................................................................................15
6 Error codes.......................................................................................................................................16
7 Maintenance .....................................................................................................................................16
7.1 General...................................................................................................................................16
7.2 Time for maintenance...............................................................................................................16
7.3 Every day................................................................................................................................17
7.4 Machines with heat pump .........................................................................................................18
7.4.1 Second lint filter..............................................................................................................18
8 Disposal information..........................................................................................................................19
8.1 Disposal of appliance at end of life ............................................................................................19
8.2 Disposal of packing..................................................................................................................19
The manufacturer reserves the right to make changes to design and component specifications.

User manual 5
1 Safety Precautions
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be used.
• The machine is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the machine.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, pet-
rol, kerosene, spot removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried in the machine.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be dried
in the machine.
• Fabric softeners or similar products should be used as specified by the fabric softener
instructions.
• The final part of a drying cycle occurs without heat (cool down cycle) to ensure that the
items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches.
• WARNING. Never stop the machine before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room
for appliances burning other fuels, including open fires.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.
• The machine must not be installed behind a lockable door, a sliding door or a door with
a hinge on the opposite side to that of the machine in such a way that a full opening of
the machine is restricted.
• If the machine has a lint trap this has to be cleaned frequently.
• The lint must not be accumulated around the machine.
• DO NOT MODIFY THIS APPLIANCE.
• When performing service or replacing parts, the power must be disconnected.
• When the power is disconnected, the operator must see that the machine is discon-
nected (that the plug is removed and remains removed) from any point to which he has
access. If this is not possible, due to the construction or installation of the machine, a
disconnection with a locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to
facilitate installation and service operations.
• WARNING: The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• If different rated voltages or different rated frequencies (separated by a /) are stated at
the machine data plate, instructions for adjusting the appliance for operation at the re-
quired rated voltage or rated frequency are stated in the installation manual.
• Stationary appliances not fitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection under overvolt-
age category III, the instructions state that means for disconnection must be incorpo-
rated in the fixed wiring in accordance with the wiring rules.
• The openings in the base, shall not be obstructed by a carpet.

6User manual
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as in a tumble dryer. The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from
escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been conta-
minated by hair care products be placed in a tumble dryer they should first be washed
in hot water with extra detergent – this will reduce, but not eliminate, the hazard.
• Maximum mass of dry cloth: 8.0 kg (for gas heated tumble dryers).
• Maximum mass of dry cloth: 9.0 kg (for heat pump and electric heated tumble dryers).
• A-weighted emission sound pressure level at working stations: 70 dB(A).

User manual 7
1.1 Gas heated tumble dryer
• Before installation, check that the local distribution conditions, nature of gas and pres-
sure and the adjustment of the appliance are compatible.
• The machine is not to be installed in rooms containing cleaning machines with per-
chloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING HY-
DROCARBONS as cleaning agents.
• If you can smell gas:
– Do not switch on any equipment
– Do not use electrical switches
– Do not use telephones in the building
– Evacuate the room, building or area
– Contact the person responsible for the machine
• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,
FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, UK:
– The appliance can be used in public areas.
– This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowl-
edge if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the ap-
pliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
1.2 General information
Conditions for storage and transportation of the appliance should fulfil a temperature between -20℃/ + 70℃and
max Humidity of 95% RH.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
Electric power supply should follow:
• Max range for each country rated voltage: -15% / +10%.
• Max range for each country rated frequency: ± 3 Hz.
• Dips/Interruption: 5 Dips/day (100% voltage lost, with 3-4 minutes duration).
A stable power supply is always the best. Fluctuations gives stress and additional load on all electric and electronic
components.
1.3 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.

8User manual
1.4 Ergonomics certification
The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive
movements or unfavorable working postures may occur.
The ergonomic features of your product, the ones which may influence your physical and cognitive interaction with it,
have been assessed and certified.
A product which exhibits ergonomic features, in fact, shall fulfil specific ergonomic requirements, belonging to three
different areas: Polytechnic, Biomedical and Psychosocial (usability and satisfaction).
For each of these areas, specific tests with real users have been performed. The product was therefore compliant
with the ergonomic acceptability criteria requested by the standards.
In case several machines are managed by the same operator the repetitive movements will increase and as a conse-
quence of this the related biomechanical risk will increase exponentially.
The possible postural risks are the interaction with the door handle both in case the machine is placed directly on the
floor without a base and in case the machine is placed on top of a washing machine.
Follow the below recommendations to avoid, as much as possible, operators acquiring bodily injury.
• Place the machine on a base instead of directly on the floor so that the operator does not need to bend his/her
back unnecessarily when loading and unloading.
Minimum suggested height of bases is 300 mm.
• Move the control panel to the lower position in case the machine is placed on top of a washing machine.
• Make sure there are suitable trolleys or baskets for loading, unloading and transportation.
• Organize job rotation in the working place in the case several machines are managed by the same operator.
1.5 Symbols
Caution
Caution, hot surface
Caution, high voltage
Read the instructions before using the machine

User manual 9
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-
ery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

10 User manual
3 Operating panel
AB
fig.X01076
A Display
B Control knob

User manual 11
4 Program description
There are two types of programs, automatic programs and time programs.
Automatic programs has moisture detection and will stop when selected dryness is achieved.
Time programs has no moisture detection and will stop when the preset or selected time has ended.
4.1 Lagoon programs
The following table shows some examples of available programs and a short description of those:
Automatic programs Description
WOOL
HIGH
Wool coat, jumper, heavy suit jacket, trousers.
The program will stop when set dryness is achieved.
WOOL
MEDIUM
Wool suit jacket, wool skirt.
The program will stop when set dryness is achieved.
SILK Silk dress, viscose dress.
The program will stop when set dryness is achieved.
AIO
MILD
Cotton suit, linen suit, rain coat.
Mixed fibre with cotton
The program will stop when set dryness is achieved.
AIO
GENTLE
Synthetic fur.
Mixed fibre with viscose.
Mixed fibre with polyester.
The program will stop when set dryness is achieved.
CURTAINS Curtains, ties in the net.
The program will stop when set dryness is achieved.
Time programs Description
HIGH Cotton and terry.
Different drying times can be selected.
The program will stop when the time is up.
LOW Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
Different drying times can be selected.
The program will stop when the time is up.
NO HEATING Airing bedspreads, duvets and bedclothes.
Different drying times can be selected.
The program will stop when the time is up.

12 User manual
4.2 General programs
The following table shows some examples of available programs and a short description of those:
Automatic programs Description
COTTON
EXTRA DRY
Denim and terry.
The program will stop when set dryness is achieved.
COTTON
CARE
Cotton and terry.
The program will stop when set dryness is achieved.
COTTON
IRON DRY
Cotton.
The program will stop when set dryness is achieved.
POLY COTTON
DRY
Viscose and polycotton.
The program will stop when set dryness is achieved.
SYNTHETICS
DRY
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
The program will stop when set dryness is achieved.
SYNTHETICS
IRON DRY
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
The program will stop when set dryness is achieved.
Hidden programs Description
COTTON Denim.
The program will stop when set dryness is achieved.
COTTON Terry.
The program will stop when set dryness is achieved.
COTTON Sheets.
The program will stop when set dryness is achieved.
MICROFIBRE Microfibre.
The program will stop when set dryness is achieved.

User manual 13
5 Handling
5.1 Load
Note!
Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left.
Metal objects might cause damage to the drum.
Make sure the filter is clean.
fig.X01072A

14 User manual

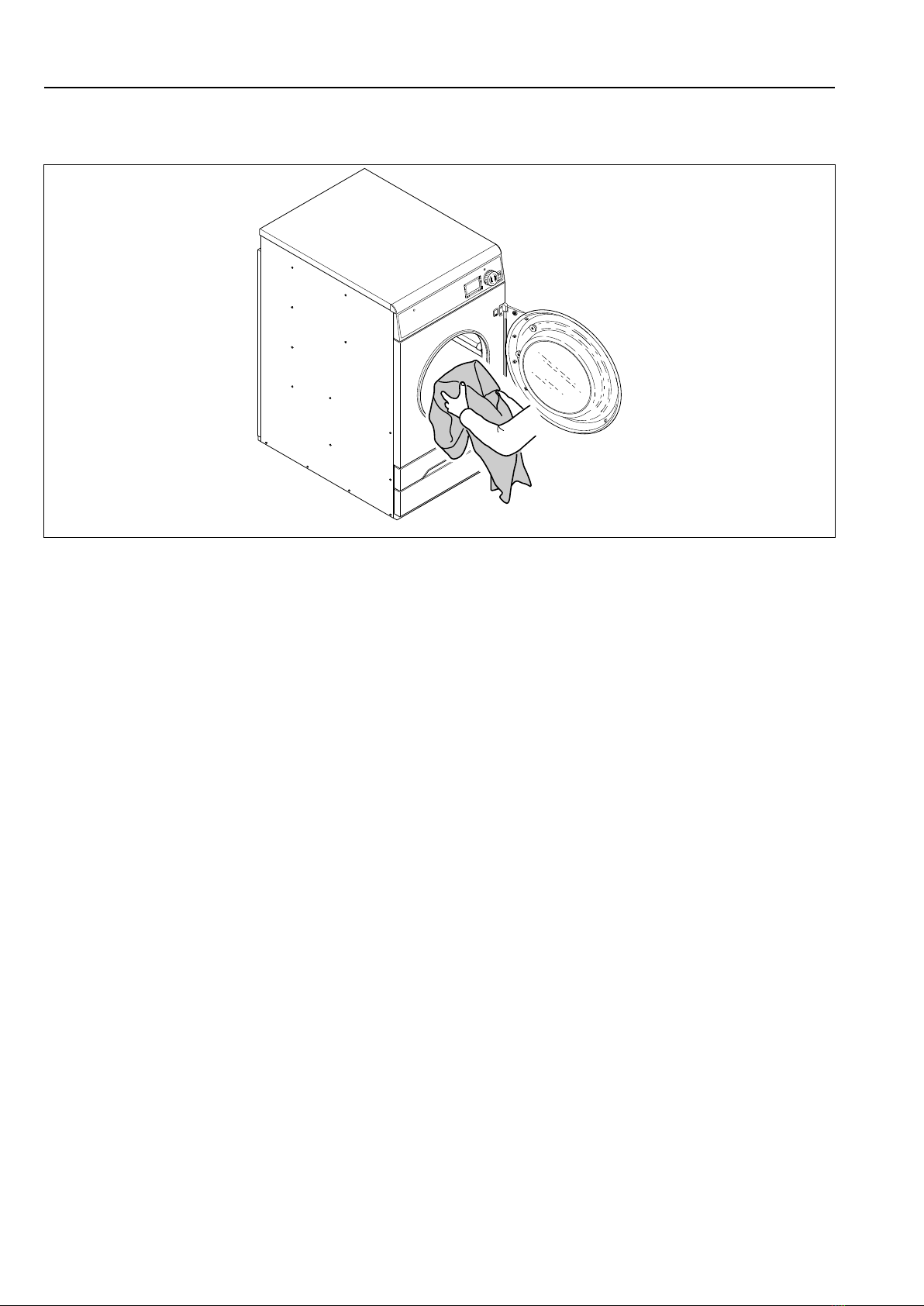

Load the goods into the machine and close the door.
The recommended maximum load is 7.5 kg.
5.2 How to start the machine
Automatic programs
Select program with the control knob.
Start the machine by pressing the control knob.
Time programs
Select program with the control knob.
Start the machine by pressing the control knob.
After start it is possible to change the time for the selected program. Turn the control knob to set the desired time.
Coin operated machines
Select program with the control knob.
Insert correct amount of coins to start the machine and/or press the control knob.
After start it is possible to add time for the selected program. Insert more coins to add time.
5.3 Additional functions
There is a menu with additional functions available for selection after start. When pressing the control knob the menu
will appear on the display.
Select from the menu by turning the control knob and press the control knob to activate.
Note!
Some of the functions may not be available or active on your machine.
Pause
It is possible to pause an ongoing program.
Select PAUSE and activate.
For some machines it is also possible to pause directly when pressing the control knob.
When pressing the control knob again the program will continue.

User manual 15
End a program
It is possible to end a program after start.
Select END PROGRAM and activate.
When pressing the control knob the program will be ended.
Status
Select STATUS MENU and activate.
The status menu shows the status for inlet air temp, outlet air temp, RMC and if the heat is on or off in the machine.
Change drum speed (only on machines with MCU)
Select CHANGE DRUM SPEED and activate.
Change the drum speed with the control knob.
5.4 When program has ended
Note!
For the best possible drying result it is important to empty the machine as soon as the program has ended.
If the machine is not emptied as soon as the program has ended the drum will rotate in short intervals in order to keep
the goods from being wrinkled.
Clean the filter
The filter must be cleaned after each drying cycle.
fig.X01072A

16 User manual
6 Error codes
A fault in the program or in the machine is indicated by an error code on the display.
Some of these error codes can be solved easily without contacting service personnel.
Error
code
Text Cause/Action
12:11 DRYING ERROR WITH RMC
PROGRAM
The RMC system (Residual moisture system) in the machine indicates that the garment is not
dry enough within the maximum drying time.
Check that the machine is not overloaded.
Check the parameter setting for max. drying time.
Check for blown fuses in mains power supply or that steam or gas supply is sufficient and
valve is open.
12:17 AIRFLOW OBSTRUCTED. CON-
TACT RESPONSIBLE.
Machine indicates that internal filters are clogged and must be cleaned.
Contact the responsible/owner of the machine to clean the internal filters according to the
Maintenance manual.
Restart the machine to clear the error message.
12:18 REDISTRIBUTION OF LOAD
NEEDED
Machine indicates that load is blocking the airflow.
Redistribute the load.
Restart the machine to clear error message.
20:1 O.H. DRUM MOTOR Machine indicates that drum motor is overheated.
Wait 30 minutes to allow the motor to cool.
Press the control knob to clear error message.
30:1 O.H. FAN MOTOR Machine indicates that the fan motor is overheated.
Wait 30 minutes to allow the motor to cool.
Press the control knob to clear error message.
For other error codes or repeated error codes, disconnect the power for 30 seconds. If the error code keeps coming
back, contact authorized service personnel.
7 Maintenance
7.1 General
It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically
performed.
Note!
Lack of maintenance may deteriorate the performance of the machine and may cause damage to
components.
7.2 Time for maintenance
When the display is showing the message TIME FOR MAINTENANCE — contact the owner of the machine/the laundry
manager to perform maintenance (if available, a telephone number and/or a tag will also be displayed).
The machine can be used meanwhile. However, the message will keep coming back until the service is performed.
The message will disappear after about 30 seconds or if the control knob or any button is pressed.

User manual 17
7.3 Every day
Check that the machine does not operate with the door or the filter drawer open, if so, the machine must be placed
out of order until repairs are made.
Note!
Contact qualified service personnel to disconnect power from the affected machine.
Clean the door, door glass, door gasket and other external parts.
fig.X01268
Check the filter and filter drawer. Clean if necessary.
fig.X01072A
Remove any lint and dust around the machine.

18 User manual
7.4 Machines with heat pump
7.4.1 Second lint filter
There are two warning messages indicating that the second filter shall be cleaned:
1. “CLEAN FIRST AND SECOND FILTER.”
2. “CLEAN FIRST AND SECOND FILTER. IF NOTICE REMAINS, CONTACT RESPONSIBLE FOR CHANGING THE
SPECIAL FILTER.”
If the first and second filter has been cleaned but the warning message remain on the next drying cycle, the special
filter must be cleaned or replaced. Contact the owner of the machine/the laundry manager to clean or replace the
special filter.
Remove the filter drawer and pull out the second lint filter.
Clean the second lint filter.
fig.X01264A
When the second lint filter has been cleaned, insert the second lint filter and the filter drawer.
fig.X01264B

User manual 19
8 Disposal information
8.1 Disposal of appliance at end of life
Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of
the structure that can give or break during scrapping.
The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. met-
als, oils, greases, plastic, rubber, etc.).
Different regulations are in force in the various countries, therefore comply with the provisions of the laws and com-
petent bodies in the country where scrapping takes place.
In general, the appliance must be taken to a specialised collection/scrapping centre.
Dismantle the appliance, grouping the components according to their chemical characteristics, remembering that the
compressor contains lubricant oil and refrigerant fluid which can be recycled, and that the refrigerator and heat pump
components are special waste assimilable with urban waste.
The symbol on the product indicates that this product should not be treated as domestic waste, but must be correctly disposed
of in order to prevent any negative consequences for the environment and human health. For further information on the recy-
cling of this product, contact the local dealer or agent, the Customer Care service or the local body responsible for waste
disposal.
Note!
When scrapping the machine, any marking, this manual and other documents concerning the appliance
must be destroyed.
8.2 Disposal of packing
The packing must be disposed of in compliance with the current regulations in the country where the appliance is
used. All the packing materials are environmentally friendly.
They can be safely kept, recycled or burned in an appropriate waste incineration plant. Recyclable plastic parts are
marked as following examples.
PE
Polyethylene:
• Outer wrapping
• Instructions bag
PP
Polypropylene:
• Straps
PS
Polystyrene foam:
• Corner protectors

Electrolux Professional AB
341 80 Ljungby, Sweden
www.electroluxprofessional.com
