Electrolux Professional TE1220E User manual

User manual
Tumble dryer
TE1220E, TE1220G
Original instructions
0180500988/EN
2021.09.27

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 Gas heated tumble dryer: ...........................................................................................................7
1.2 General safety information..........................................................................................................7
1.3 Commercial use only..................................................................................................................7
1.4 Copyright ..................................................................................................................................7
1.5 Symbols....................................................................................................................................8
2 Warranty terms and exclusions.............................................................................................................9
3 Program description ..........................................................................................................................10
3.1 General...................................................................................................................................10
3.2 Control panel illustration ...........................................................................................................10
3.3 Program description.................................................................................................................10
3.4 Program running description..................................................................................................... 11
4 Handling...........................................................................................................................................12
4.1 Load .......................................................................................................................................12
4.2 How to start the machine ..........................................................................................................12
4.2.1 Select program...............................................................................................................12
4.2.2 Show program drying time on the display .........................................................................12
4.3 Press Start Button....................................................................................................................12
4.4 When program has ended ........................................................................................................13
5 Error codes.......................................................................................................................................14
6 Maintenance .....................................................................................................................................15
7 Disposal information..........................................................................................................................17
7.1 Disposal of appliance at end of life ............................................................................................17
7.2 Disposal of packing..................................................................................................................17
The manufacturer reserves the right to make changes to design and component specifications.

User manual 5
1 Safety Precautions
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be used.
• The machine is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the machine.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, pet-
rol, kerosene, spot removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried in the machine.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be dried
in the machine.
• Fabric softeners or similar products should be used as specified by the fabric softener
instructions.
• The final part of a drying cycle occurs without heat (cool down cycle) to ensure that the
items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches.
• WARNING. Never stop the machine before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room
for appliances burning other fuels, including open fires.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.
• The machine must not be installed behind a lockable door, a sliding door or a door with
a hinge on the opposite side to that of the machine in such a way that a full opening of
the machine is restricted.
• If the machine has a lint trap this has to be cleaned frequently.
• The lint must not be accumulated around the machine.
• DO NOT MODIFY THIS APPLIANCE.
• When performing service or replacing parts, the power must be disconnected.
• When the power is disconnected, the operator must see that the machine is discon-
nected (that the plug is removed and remains removed) from any point to which he has
access. If this is not possible, due to the construction or installation of the machine, a
disconnection with a locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to
facilitate installation and service operations.
• WARNING: The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• If different rated voltages or different rated frequencies (separated by a /) are stated at
the machine data plate, instructions for adjusting the appliance for operation at the re-
quired rated voltage or rated frequency are stated in the installation manual.
• The openings in the base, shall not be obstructed by a carpet.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as in a tumble dryer. The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from
escaping and so create a fire hazard.

6User manual
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been conta-
minated by hair care products be placed in a tumble dryer they should first be washed
in hot water with extra detergent – this will reduce, but not eliminate, the hazard.
• Maximum mass of dry cloth: 12 kg.
• A-weighted emission sound pressure level at working stations: <68 dB(A).

User manual 7
1.1 Gas heated tumble dryer:
• Before installation, check that the local distribution conditions, nature of gas and pres-
sure and the adjustment of the appliance are compatible.
• The machine is not to be installed in rooms containing cleaning machines with per-
chloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING HY-
DROCARBONS as cleaning agents.
• If you can smell gas:
– Do not switch on any equipment
– Do not use electrical switches
– Do not use telephones in the building
– Evacuate the room, building or area
– Contact the person responsible for the machine
• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,
FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, UK:
– The appliance can be used in public areas.
– This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowl-
edge if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the ap-
pliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
1.2 General safety information
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.3 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.
1.4 Copyright
This manual is intended solely for consultation by the operator and can only be given to third parties with the permis-
sion of Electrolux Professional company.

8User manual

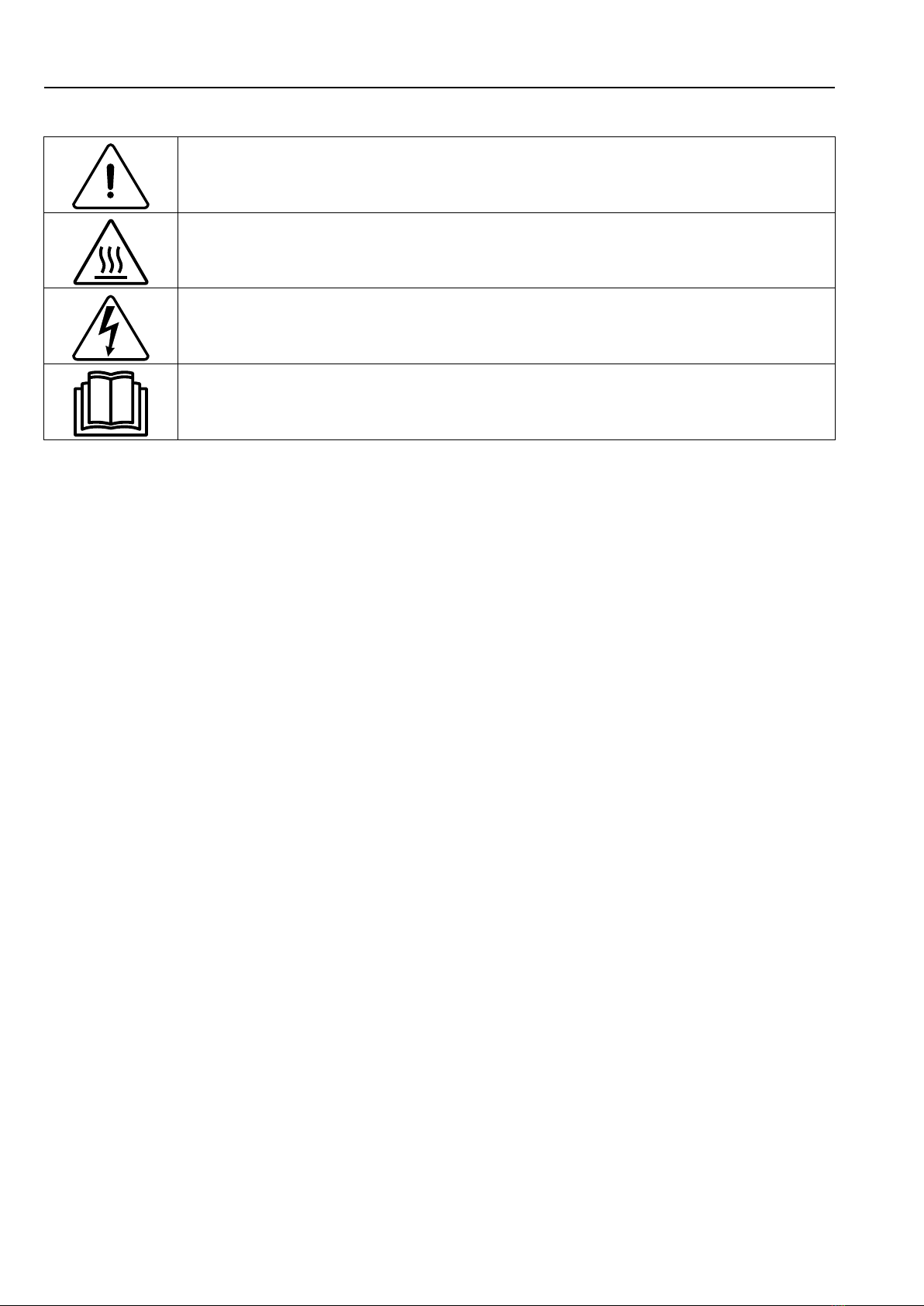

1.5 Symbols
Caution
Caution, hot surface
Caution, high voltage
Read the instructions before using the machine

User manual 9
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each machine);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-
ery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

10 User manual
3 Program description
3.1 General
The machine is equipped with four programs adapted to the range of use to which the machine is intended different
markets use different programs. The following program description is a short description of some examples of pro-
grams that can be used.
It is recommended to follow the care labelling of the garment as far as possible.
For best possible drying result it is advisable to dry garments of the same quality for each drying cycle.
Note!
Do not tumble dry wool or silk.

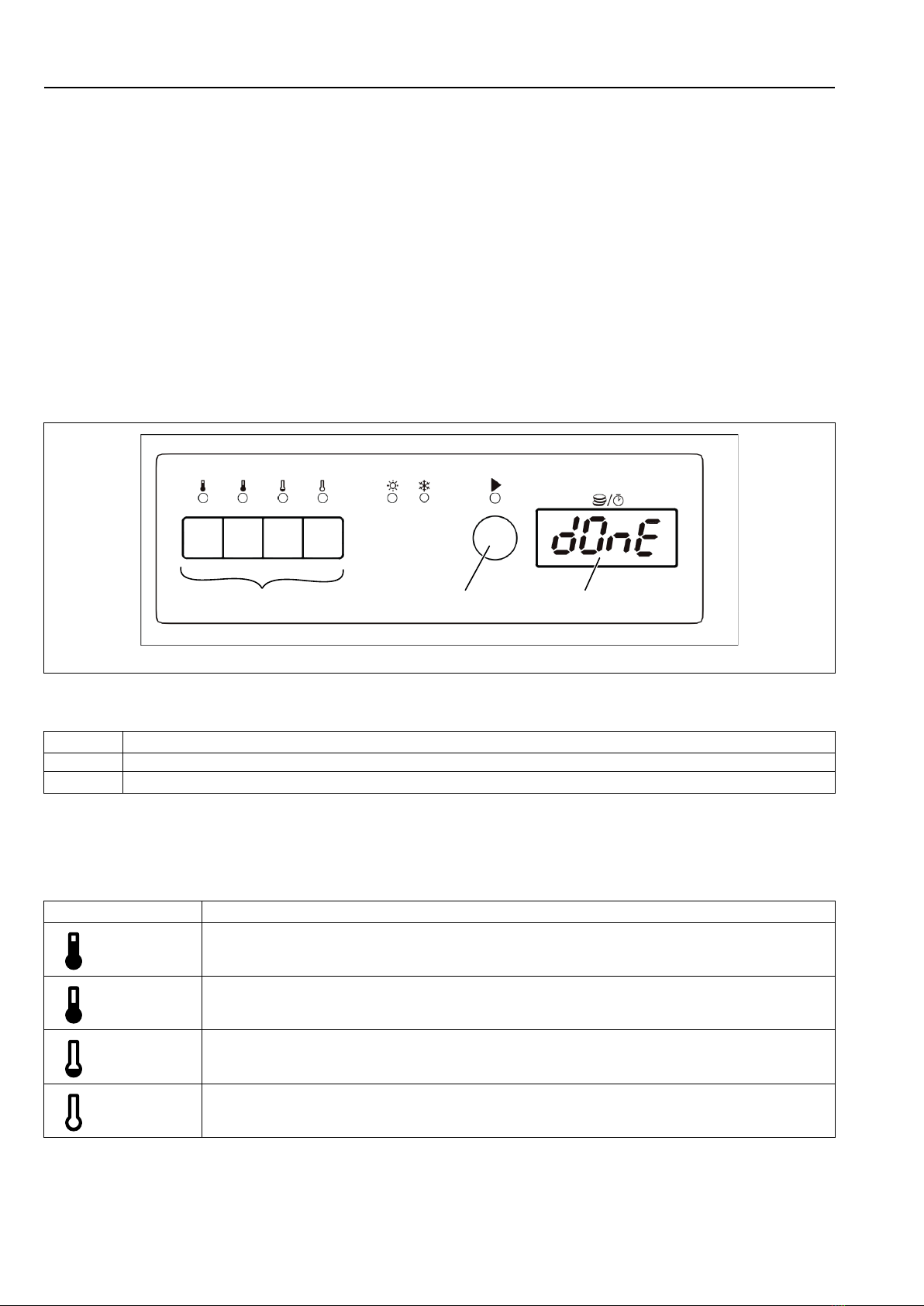

3.2 Control panel illustration
The display control panel allows the selection of the main drying programs.
The panels consist of program selection buttons (A), a start button (B) and a display (C) which shows the price for
each program and the drying time designated for each program.
A B C
fig.W01565
Explanation of the control panel.
A Program selection buttons
B Start Button
C Display indicating program time and price of the programs
3.3 Program description
There are four types of programs: high/medium/low/no heating temperature programs.
The following table shows some examples of available programs and a short description of those:
Programs Description
Cotton and terry. high temperature
The program will stop when the time is up.
Cotton and terry. medium temperature
The program will stop when the time is up.
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics. low temperature
The program will stop when the time is up.
Airing bedspreads, duvets and bedclothes. no heating temperature The program will stop when the time is up.

User manual 11
3.4 Program running description
The machine is equipped with four programs adapted to the range of use to which the machine is intended.
The machine offers four standard drying programs. Detailed descriptions of these procedures are given in Chapter
3.2. For coin operated machines, "Price per program", "Time for each program", and "Time for additional coin(s) or
press" settings can be assigned to each program individually.
High, Medium, and Low drying programs are divided into two segments: a Heating period and a Cool Down period.
Drying time and temperature settings for each program can be adjusted with the service menu registers. Heating and
Cool Down times can also be adjusted using the registers in the service menu. During heating, the display shows "d
xx" where "xx" are the remaining drying time minutes. During cool down the display shows "c xx" where "xx" is the re-
maining cool down time. The program stops at "c 00".

12 User manual
4 Handling
4.1 Load
Load the goods into the machine according to recommendations and close the door.
Make sure the filter compartment is clean and clean if necessary.
fig.W01570
The maximum load is 12 kg.
Warning
The appliance is not to be operated without the filter in place.
4.2 How to start the machine
4.2.1 Select program
Select program by pressing one of the four buttons which are shown by A.
4.2.2 Show program drying time on the display
There are two operation modes for the dryer to show program drying time on the display.
One is the free dry mode (OPL Mode), and the default mode of the dryer is OPL. The program operates in “Time per
push mode” (OPL mode).In this mode, each time a program button is pressed, the remaining time is incremented. In
any case the displayed remaining dryer time shall not be greater than the “Max drying time” for that program.
The other one is coin meter operation mode, for this mode need insert correct amount of coins to start the machine.
After start it is possible to add time for the selected program. Insert more coins to add time.
The maximum accumulated time for one cycle is 90 minutes. For example, If the program is selected for 90 minutes
at the beginning, inserting more coins can not add any time, if the program is selected for 60 minutes at the begin-
ning, the maximum increased time is 30 minutes, the total accumulated time is 90 minutes.
4.3 Press Start Button
Press B button to start one of the program described above in Program Description.
Note!
To confirm whether the gas dryer has been ignited and keep burning, you can use your hand to feel whether
the temperature on the right side of the machine shell is higher than the ambient temperature after the ma-
chine has been running for three minutes. If the temperature does not change, it means that the machine is
not igniting, please pause and restart the machine immediately. If the machine still does not ignite after sev-
eral repeated attempts, please call the local service technician.

User manual 13
4.4 When program has ended
Note!
For the best possible drying result it is important to empty the machine as soon as the program has ended.
Clean the line debris filter compartment after each drying cycle for best performance.
fig.W01571

14 User manual
5 Error codes
Faults/errors in the program or machine are indicated by a numerical error code on the panel display. Some error co-
des (Er01, Er02, Er28) are cleared automatically when the Start button is pressed or when the door is opened. Er14
can be cleared automatically when the power cut off, but if you find the load in the drum is still wet when the PCB dis-
play Er14, you have to contact local service technician. For other error codes, a service technician must be called.
Error Code Cause / Action
Er 00 Machine out of operation.
Er 01 Inlet air temperature limit exceeded.
Er 02 Outlet air temperature limit exceeded.
Er 03 Inlet thermistor short circuit.
Er 04 Outlet thermistor short circuit.
Er 14 Heating not working or the clothes is too dry for a long time.
Er 17 Inlet thermistor open circuit.
Er 18 Outlet thermistor open circuit.
Er 28 Inlet air temperature exceeded during previous cycle.

User manual 15
6 Maintenance
General
It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically
performed.
Note!
Lack of maintenance may deteriorate the performance of the machine and may cause damage to
components.
Cleaning
A program and/or schedule should be established for periodic inspection, cleaning, and removal of lint from various
areas of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be determined
from experience at each location. Maximum operating efficiency is dependent upon proper airflow. The accumulation
of lint can restrict this airflow.
• Clean the lint screen after each load.
Weekly or 50 hours
• Clean lint accumulation from lint chamber, and temperature sensor NTC1 area.
• Clean the door gasket.
• Use a soft wash cloth and mild detergent to clean door.
Every Three Months or 500 hours
• Disconnect Power.
• On removing the lint filter from the lint compartment, clean lint in the lint compartment.

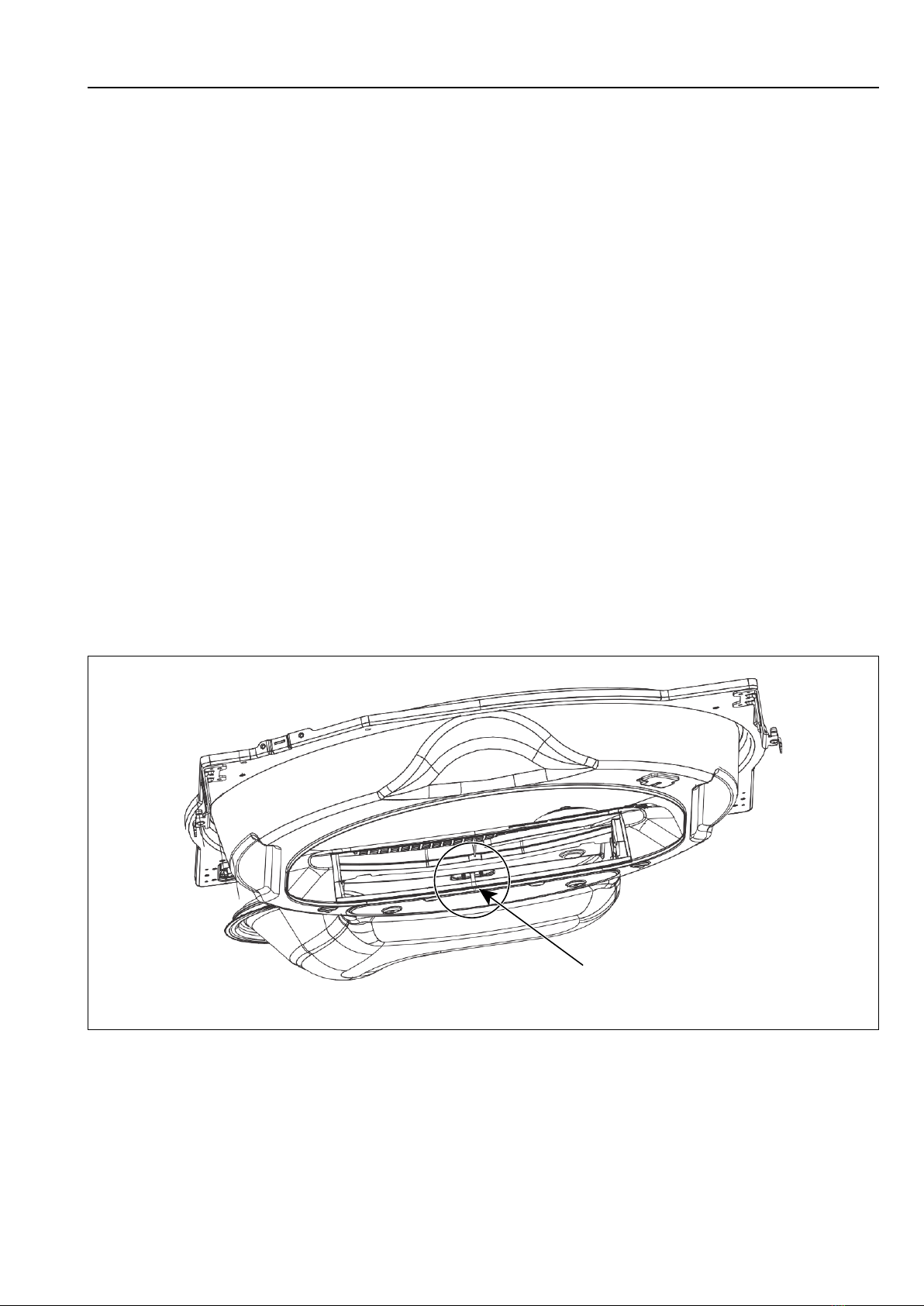

• Check to clear any accumulated lint around NTC1 (See Image below).
• Clean any lint accumulation in and around the motor(s) casing opening.
• Check all the connections of gas dryer to prevent leaking gas and escaping the combustion products.
NTC1
fig.W01572

16 User manual
Every 6 Months or 1000 hours (Refer this service to qualified personnel)
Caution
To be carried out by qualified personnel.
• Inspect and remove lint accumulation external exhaust ductwork and from dryer’s internal exhaust ducting.
• The accumulation of lint in the exhaust ductwork can create a potential fire hazard.
• Do not obstruct the flow of combustion and ventilation air. Check back draft dampers in the exhaust ductwork. In-
spect and remove any lint accumulation, which can cause the damper to bind or stick. Obstructed ducting leads to
longer drying times, higher energy consumption and reduced motor life.
• If ducting is highly obstructed with lint change to a shorter service interval such as every three months.
• A back-draft damper that is sticking partially closed can result in slow drying and the shutdown of heat circuit
safety switches or thermostats.
• When cleaning the dryer cabinet, avoid using cleaners with harsh abrasives. A product intended for appliance
cleaning is recommended.
Every 12 Months or 2000 hours
Caution
To be carried out by qualified personnel.
• A competent service professional should inspect bolts, nuts, screws, setscrews, grounding.
• Belts should be examined. Cracked or seriously frayed belts should be replaced.
• Complete an operational check of controls and valves.
• Complete an operational check of all safety devices (lint switch, door switch).

User manual 17
7 Disposal information
7.1 Disposal of appliance at end of life
Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of
the structure that can give or break during scrapping.
The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. met-
als, oils, greases, plastic, rubber, etc.).
Different regulations are in force in the various countries, therefore comply with the provisions of the laws and com-
petent bodies in the country where scrapping takes place.
In general, the appliance must be taken to a specialised collection/scrapping centre.
Dismantle the appliance, grouping the components according to their chemical characteristics, remembering that the
compressor contains lubricant oil and refrigerant fluid which can be recycled, and that the refrigerator and heat pump
components are special waste assimilable with urban waste.
The symbol on the product indicates that this product should not be treated as domestic waste, but must be correctly disposed
of in order to prevent any negative consequences for the environment and human health. For further information on the recy-
cling of this product, contact the local dealer or agent, the Customer Care service or the local body responsible for waste
disposal.
Note!
When scrapping the machine, any marking, this manual and other documents concerning the appliance
must be destroyed.
7.2 Disposal of packing
The packing must be disposed of in compliance with the current regulations in the country where the appliance is
used. All the packing materials are environmentally friendly.
They can be safely kept, recycled or burned in an appropriate waste incineration plant. Recyclable plastic parts are
marked as following examples.
PE
Polyethylene:
• Outer wrapping
• Instructions bag
PP
Polypropylene:
• Straps
PS
Polystyrene foam:
• Corner protectors

Electrolux Professional AB
341 80 Ljungby, Sweden
www.electroluxprofessional.com
