Electrolux EW30GC55G W User manual

Min-2-Max™Burner
Designed with a dual-flame sealed burner,
this cooktop offers the widest range of BTU
performance in the industry for the utmost
versatility – from a roaring 18,000-BTU boil to
a gentle 450-BTU simmer.
Continuous Grates
Designed for cooking multiple dishes at varying
temperatures on a single cooktop. These grates
allow easy movement of even the heaviest pots
and pans from burner to burner – without lifting.
Flex-2-Fit™System
Premium gas cooktop versatility with sealed
burners. Premium performance accessories
include a grill/griddle, an optional wok ring, and a
simmer plate to use with small cooking utensils.
Easy-to-Clean Design
Deep-well cooktop and sealed burners are
designed for easy cleaning.
Gas Drop-In Cooktops
EW30GC55G S, EW30GC55G W, EW30GC55G B
30" GAS DROP-IN COOKTOPS
Features
Deep-Well Formed Cooktop
Professional-Grade Burner Controls
Continuous Grates
Min-2-Max™Dual-Flame Sealed Burner – 18,000 - 450 BTU
Sealed Power Burner – 14,000 BTU
Sealed Precision Burner – 9,500 BTU
Sealed Precision Burner – 5,000 - 850 BTU
Linear Flow Burner Valves
Electric Pilotless Ignition
Accessories
Grill/Griddle
Wok Ring – 318254307
Simmer Plate – 318254208
LP Conversion Kit
Specifications
Overall Exterior Dimensions –
Height (Extreme Bottom to Underside of Cooktop)
(Extreme Bottom to Topside of Cooktop)
Width
Depth (to Front Corner)
(to Center of Arc)
Gas/Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts‡
Electrical Cable
Approved for Single Oven Combination Installation*
Product Weight
Shipping Weight (Approx.)
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/or national electric and gas codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
Yes
Yes
Yes
1
1
1
1
Yes
Yes
Included
Optional
Optional
Included
4-1/4"
4-7/8"
30"
20-7/8"
21-3/4"
Right Rear
120V/60Hz/15A
.001
Yes
Yes
43 Lbs.
54 Lbs.
*Approved to be used over any Electrolux Single Wall Oven.
electroluxappliances.com
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsDishwashersRefrigerators
FreezersUnder Counter

Gas Drop-In Cooktops
EW30GC55G S, EW30GC55G W, EW30GC55G B
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EW30GC55G 01/08 © 2008 Electrolux Major Appliances, NA Printed in the U.S.A.
5/8"
207/8"
27"
19" C
L

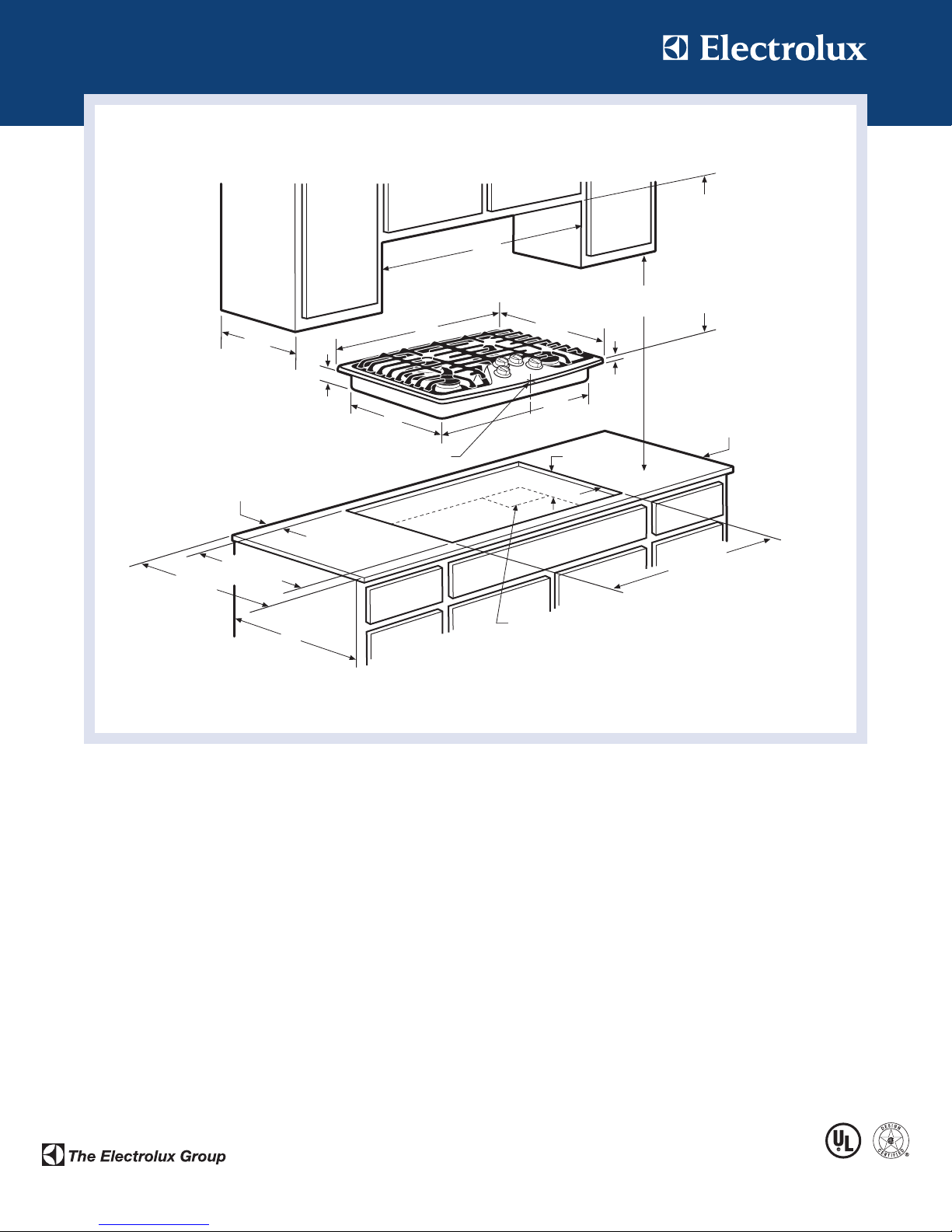

Overall depth at
center of arc – 213/4"
30"
41/4"
30" min.
for
unprotected
cabinet
24" min.
for
protected
surface
18"
min.
30"
13"
max.
cabinet
depth
8" min.*
25"min.
24"
Opening to route 48" power
cable & gas supply
21/2" minimum distance between
rear edge of cutout and nearest
vertical combustible surface
9" min. to nearest
combustible wall
(either side of unit)
191/8" min.
193/4" max.
*Includes a 5"space beneath
cooktop for connection to
gas supply line
271/4" min.
281/2" max.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 2-1/2" minimum distance between rear edge of cutout to nearest
combustible surface above countertop.
•
Allow 9" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
Drawers cannot be installed beneath this cooktop.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Gas Drop-In Cooktop model EW30GC55G is approved to be used
over any Electrolux Single Wall Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Simmer Plate – (318254208).
•
Wok Ring – (318254307).
30" Gas Drop-In Cooktop Specifications
•
Product Weight – 43 Lbs.
•
Voltage Rating –120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = .001kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @120 Volts = 1.0 Amps
•
Always consult local and/or national electric and gas codes.
•
Recommended location for grounded 120V outlet is on rear wall in an
8" wide by 10" high area, positioned 22" above floor surface and 12" to
right side of cooktop centerline. Access to underside of cooktop and
junction box must be provided for inspection and service.
•
Cooktop ships with 3/4" factory regulator.
•
Lp conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
