GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
H
AB
E
30” Min. *
(76.2 cm)
F
D
C
G
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
318205458 (1307) Rev. A
English - pages 1-9
Español - páginas 10-18
Français - pages 19-27
Wiring Diagram 28
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch;donotuseanyphoneinyourbuilding.
• Immediatelycallyourgassupplierfromaneighbor'sphone.
Follow the gas supplier's instructions.
• Ifyoucannotreachyourgassupplier,calltheredepartment.
— Installation and service must be performed by a qualified installer,
service agency orthe gas supplier.
All dimensions are stated in inches and (cm).
Dimension Hincludes a 5" (12,7 cm) space underneath the cooktop for connection to gas supply line.
NOTE: Wiring diagrams for this cooktop are enclosed in this booklet
Figure 1
Printed in China
Gas Cooktop
Cutout Dimensions
Gas Cooktop
Dimensions
PRODUCT DIMENSIONS
MODEL A. WIDTH B. DEPTH C. HEIGHT D. BOX WIDTH E. BOX DEPTH
30" Gas Cooktop 30 (76,2) 21 ¾ (55,2) 4 ¼ (10,8)
27 (68,6) 19 (48,3)
36" Gas Cooktop 36 (91,4) 21 ¾ (55,2) 4 ¼ (10,8) 33 ¼ (84,5) 19 (48,3)
CUTOUT DIMENSIONS
F. WIDTH G. DEPTH H. HEIGHT
MODEL MINIMUM MAXIMUM MINIMUM MAXIMUM BELOW COOKTOP
30" Gas Cooktop 27 ¼ (69,2) 28 ½ (72,4) 19 1/8 (48,6) 19 ¾ (50,2) 8 (20,3)
36" Gas Cooktop 33 7/8 (86,1) 34 ¼ (87) 19 1/8 (48,6) 19 ¾ (50,2) 8 (20,3)

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
2
Important Notes to the Installer
1. Read all instructions contained in these installation
instructions before installing the cooktop.
2. Remove all packing material before connecting the
electrical supply to the cooktop.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
5. Note: For operation at 2000 ft. elevations above see
level, appliance rating shall be reduced by 4 percent
for each additional 1000 ft.
Important Note to the Consumer
Keep these instructions with your Use and Care Guide for
future reference.
IMPORTANT SAFETY
INSTRUCTIONS
Installation of this cooktop must conform with local
codes or, in the absence of local codes, with the National
Fuel Gas Code ANSI Z223.1/NFPA 54 in the United
States, or in Canada, with the Canadian Fuel Gas Code,
CAN/CGA B149 and CAN/CGA B149.2.
•Wheninstalledinamanufactured(mobile)home
installation must conform with the Manufactured
Home Construction and Safety Standard, title 24 CFR,
part 3280 [Formerly the Federal Standard for Mobile
Home Construction and Safety, title 24, HUD (part
280)] or, when such standard is not applicable, the
Standard for Manufactured Home Installation, ANSI/
NCSBCS A225.1 or with local codes where applicable.
This cooktop has been design certified by CSA
International. As with any appliance using gas and
generating heat, there are certain safety precautions you
should follow. You will find them in the Use and Care
Guide, read it carefully.
•Aircurtainorotheroverheadhoods,whichoperate
by blowing a downward air flow on to a range, shall
not be used in conjunction with gas ranges other
than when the hood and range have been designed,
tested and listen by an independent test laboratory
for use in combination with each other.
•Be sure your cooktop is installed and grounded
properly by a qualified installer or service
technician.
•This cooktop must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA
No. 70—latest edition in the United States, or in
Canada, with the Canadian Electrical Code, CSA
C22.1 Part 1.
•The burners can be lit manually during an
electrical power outage. To light a burner, hold a
lit match to the burner head, then slowly turn the
Surface Control knob to LITE. Use caution when
lighting burners manually.
•Do not store items of interest to children in
cabinets above the cooktop. Children could be
seriously burned climbing on the cooktop to reach
items.
•To eliminate the need to reach over the surface
burners, cabinet storage space above the burners
should be avoided.
•Adjust surface burner flame size so it does not
extend beyond the edge of the cooking utensil.
Excessive flame is hazardous.
•Never use your cooktop for warming or heating
the room. Prolonged use of the cooktop without
adequate ventilation can be hazardous.
•Do not store or use gasoline or other flammable
vapors and liquids near this or any other
appliance. Explosions or fires could result.
The electrical power to the cooktop
must be shut off while gas line connections are
being made. Failure to do so could result in serious
injury or death.

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
3
Figure 2 – CABINET DESIGN
To eliminate
the risk of burns or fire from
reaching over heated surfaces,
cabinet storage space located
above the cooktop should be
avoided. If cabinet storage is
provided, risk can be reduced
by installing a range hood
that projects horizontally a
minimum of 5" (12,7 cm)
beyond the bottom of the
cabinets.
A
B Minimum Distance Between
Rear Edge of Cutout and Nearest
Combustible Surface Above
Countertop.
18" Min.
(45,7 cm)
Clearance
30" (76,2 cm)
Min. Clearance
Between
the Top of
the Cooking
Platform and
Unprotected
Wood or Metal
Cabinet
24" (61 cm)
13" (33 cm)
Max. Depth
For Cabinet
Installed Above
Cooktop.
C
C
Allow a minimum of 6½" (16,5 cm) below
the countertop for drawer. Make sure
there will be no interference with gas or
electrical connection.
MODEL A. B. Min. distance between
rear edge and nearest
combustible surface above
C. Min. distance from left
side and min. clearance
from right side
30" Cooktop 30" (76,2 cm) 2 ½" (6,4 cm) 9" (22,9 cm)
36" Cooktop 36" (91,4 cm) 2 ¾" (7 cm) 9" (22,9 cm)

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
4
* If no cooktop is installed
directly over the oven unit,
5 " (12,7 cm) maximum is
allowed.
Typical Under Counter Installation of an Electric Built-in
Oven with a Cooktop Mounted Above
Cut an opening in wood base minimum 4"
(10,2 cm) x 4" (10,2 cm) to route armored
cable to junction box. 4 1/2" (11,4 cm)
Max.*
208/240 Volt
grounded junction
box for built-in oven.
All mounting hardware must be
used to secure the built-in oven to
the cabinets. Refer to the built-in
oven installation instructions.
Side filler panels are necessary to isolate
the unit from adjoining cabinets. Panel
height should allow for installation of
approved cooktop models. See "Typical
Gas Cooktop Installation Over an
Electric Built-in Oven Installed Under the
Counter" on next page.
36"
(91,4 cm)
Min.
Junction box must
be located approx.
3" (7,6 cm) to the
left of the built-in
oven cutout.
This cooktop may be
installed over certain
built-in electric oven
models.
Figure 3
Use 3/4" (1,9 cm)
plywood, installed on
two runners, flush with
toe plate. Base must be
capable of supporting
150 pounds (68 kg) for
27" models and 200
pounds (90 kg) for 30"
models.
Unit will
overlap
cutout
(minimum)
edges by
1" (2.5cm)
CUTOUT DIMENSIONS (INCHES (cm))
OVEN SIZE
E F
G
Min. Max. Min. Max.
30"
(76,2 cm)
27 ¼"
(69,2 cm)
28 ¼"
(71,8 cm)
28 ½"
(72,4 cm)
29"
(73,7 cm)
23 ½"
(59,7 cm)
27"
(68,6 cm)
27 ¼"
(69,2 cm)
28 ¼"
(71,8 cm)
24 7/8"
(63,2 cm)
25 ¼"
(64,1 cm)
23 ½"
(59,7 cm)

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
5
Wall Oven Cabinet
Typical Gas Cooktop Installation Over an Electric Built-in
Oven Installed Under the Counter
GAS COOKTOP
18 " (45,7 cm) Max.
5 "
(12,7 cm)
Flare
Union
4 " (10,2 cm)
120V/60Hz
Grounded
Outlet
Right Side
of Cabinet
Pressure
Regulator
Flare
Union
Flexible Connector
Cabinet sides or
filler panel
6½ "
(16,5 cm)
Min.
Manifold Pipe
Manual Shutoff Valve
(To be accessible
for shut-off valve
operation)
Figure 4
Cooktop
Wall Oven
Side view
Front view

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
6
To clamp down, insert an angle bracket into the slot
on each side of the unit as shown. Run thumb screw
up through the bracket, up against the bottom of the
counter. Tighten until the unit draws down and is secure.
Provide an Adequate Gas Supply
This cooktop is designed to operate on natural gas at 4"
of manifold pressure only.
A pressure regulator is connected in series with the
manifold on the cooktop and must remain in series with
the supply line.
For proper operation, the maximum inlet pressure
to the regulator must be no more than 14" of water
column (W.C.) pressure.
For checking the regulator, the inlet pressure must be at
least 1" (or 2,5 kPa) greater than the regulator manifold
pressure setting. The regulator is set for 4" of manifold
pressure, the inlet pressure must be at least 5".
The gas supply line to the range should be 1/2" or 3/4"
pipe.
LP/Propane Gas Conversion
This appliance can be used with Natural gas or LP/
Propane gas. It is shipped from the factory for use with
natural gas.
A kit for converting to LP gas is supplied with your
cooktop. The kit is marked "FOR LP/PROPANE GAS
CONVERSION".
The conversion must be performed by a qualified service
technician in accordance with the kit instructions and
all local codes and requirements. Failure to follow
instructions could result in serious injury or property
damage. The qualified agency performing this work
assumes responsibility for the conversion.
Failure to make the appropriate
conversion can result in serious personal injury and
property damage.
Important: Remove all packing material and literature
from cooktop before connecting gas and electrical
supply to cooktop.

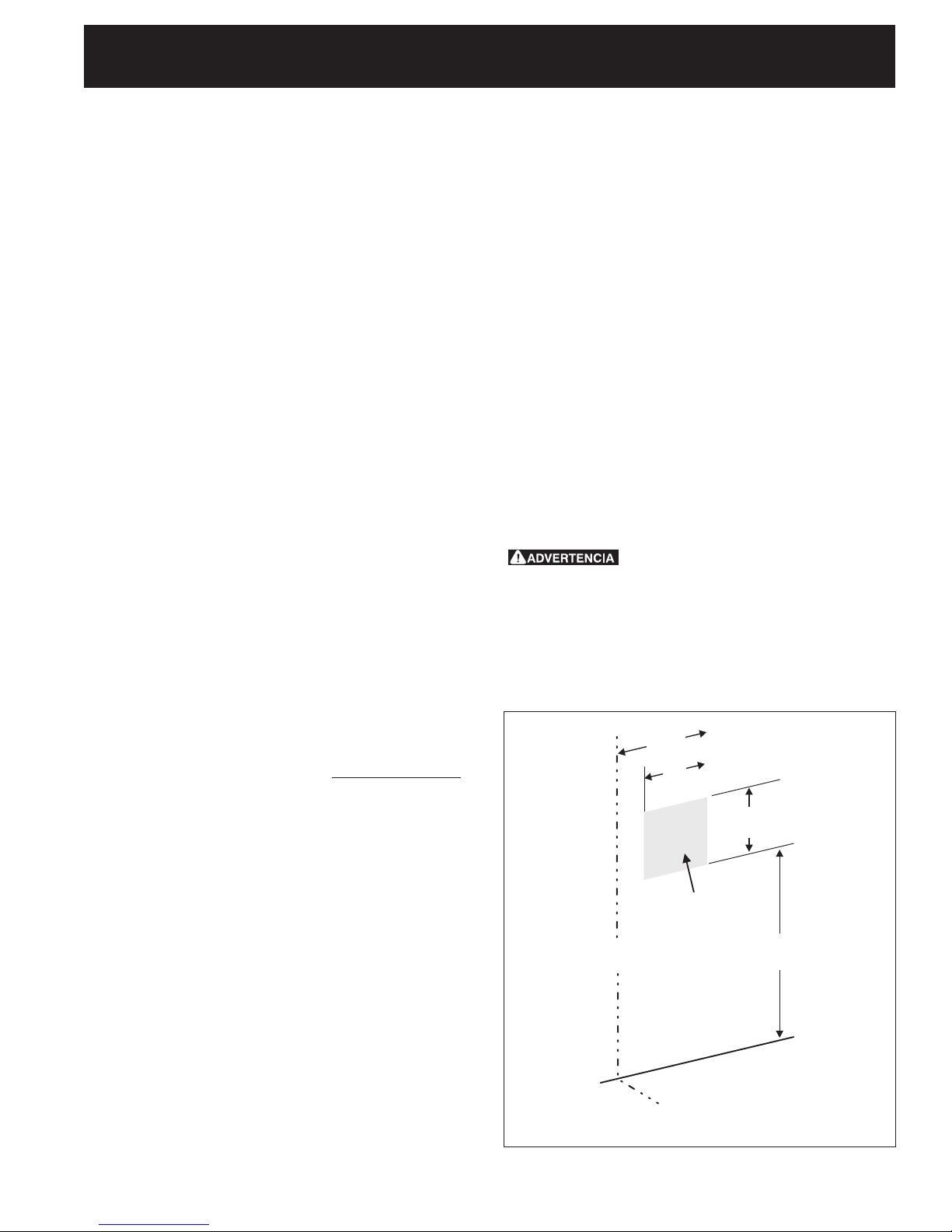

Wall Outlet Location
Figure 5
Cooktop Installation
1. Visually inspect the cooktop for damage.
2. Set the cooktop into the countertop cutout.
NOTE: Do not use caulking compound; cooktop should
be removable for service when needed.
Granite countertop Installation Kit
A Granite Countertop Installation kit # 903103-9010 can
be ordered through a Service Center or by phone at 1-877-
ELECTROLUX (1-877-435-3287).
Clamp Down Information
Once the cooktop is installed in the counter opening,
you must clamp the unit down as shown.
Countertop
Cooktop
Angle
Bracket
Seal
Thumb
Screw
Figure 6

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
7
Once regulator is in place, open the shutoff valve in the
gas supply line. Wait a few minutes for gas to move
through the gas line.
Check for leaks. After connecting the cooktop to the
gas supply, check the system for leaks with a manometer.
If a manometer is not available, turn on the gas supply
and use a liquid leak detector (or soap and water) at all
joints and connections to check for leaks.
Do not use a flame to check for leaks
from gas connections. Checking for leaks with a flame
may result in a fire or explosion.
Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
Check alignment of control knob valves after
connecting the cooktop to the gas supply to be sure the
cooktop manifold pipe has not moved. A misalignment
could cause the valve stems to rub on the control panel,
resulting in a gas leak at the valve.
Disconnect this cooktop and its individual manual
shutoff valve from the gas supply piping system during
any pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa or 14" water column).
Isolate the cooktop from the gas supply piping
system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig
(3.5 kPa or 14" water column).
Electrical Requirements
120 volt, 60 Hertz, properly grounded branch circuit
protected by a 15 amp circuit breaker or time delay fuse.
Do not use an extension cord with this cooktop.
Grounding Instructions
IMPORTANT Please read carefully.
For personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong grounding wall receptacle (see Figure 9) to
minimize the possibility of electric shock hazard from the
appliance.
The wall receptacle and circuit should be checked by
a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard 2-prong wall receptacle is installed,
it is the personal responsibility and obligation of the
consumer to have it replaced by a properly grounded
3-prong wall receptacle.
Install Pressure Regulator
Install the pressure regulator with the arrow on the
regulator pointing up toward the unit in a position
where you can reach the access cap.
Do not make the connection too tight.
The regulator is die cast. Overtightening may crack the
regulator resulting in a gas leak and possible fire or
explosion.
Figure 8
Shutoff Valve -
Open position
to appliance to gas supply line
All connections must be wrench-tightened
Figure 7
Flare
Union
Flare
Union
GAS FLOW
Manual
Shutoff
Valve
Pressure
Regulator
On
Off Flexible
Connector Access
Cap
Nipple Nipple
Assemble the flexible connector from the gas supply pipe
to the pressure regulator in the following order:
1. manual shutoff valve
2. 1/2" (1.3 cm) nipple
3. 1/2" (1.3 cm) flare union adapter
4. flexible connector
5. 1/2" (1.3 cm) flare union adapter
6. 1/2" (1.3 cm) nipple
7. pressure regulator
Use pipe-joint compound made for use with Natural and
LP/Propane gas to seal all gas connections. If flexible
connectors are used, be certain connectors are not
kinked.
The supply line must be equipped with an approved
manual shutoff valve. This valve should be located in the
same room as the cooktop and should be in a location
that allows ease of opening and closing. Do not block
access to the shutoff valve. The valve is for turning on or
shutting off gas to the appliance.

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
8
Check Operation
Refer to the Use and Care Guide packaged with the
appliance for operating instructions and for care and
cleaning of your cooktop.
Do not touch the burners. They may be
hot enough to cause burns.
1. Check Burner Cap Placement
Regular burner
It is very important to be sure that all surface burner
caps and burner grates are properly installed and in the
correct locations before operating the appliance. Please
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Disconnect electrical supply cord from
wall receptacle before servicing cooktop.
Model and Serial Number Location
The serial plate is located on the underside of the
cooktop (see Figure 10).
When ordering parts for or making inquires about your
range, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
of your cooktop.
Your serial plate also tells you the rating of the burners,
the type of fuel and the pressure the cooktop was
adjusted for when it left the factory.
Preferred Method
Grounding type
wall receptacle
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.
Power supply cord with
3-prong grounding plug.
Figure 9
Serial plate is
located under
the burner box.
Figure 10
Burner
Head
Fig. 11
Burner
Cap Lip
Correct
Burner Cap
Placement
Fig. 12
Incorrect
Burner Cap
Placement
Fig. 13
note that the burner heads are secured to the cooktop.
The cooktop is not removable. Do not attempt to remove
or lift the cooktop.
To prevent flare-ups and avoid creation
of harmful by-products, do not use the cooktop without
all burner caps properly installed to insure proper ignition
and gas flame size.
Always keep the burner caps and burner grates in place
whenever the surface burners are in use. DO not allow
spills, food, cleaning agents or any other material to
enter the gas orifice holder openings.
Check and be sure the size of each burner cap matches
the size of the burner head. Check and be sure that all
round style burner caps are correctly in place on round
burner heads.
Check and be sure that all oval style burner caps are
correctly in place on oval burner heads (if equipped).
Check and be sure that all dual or twin style burner caps
are correctly in place on dual or twin heads (if equipped).
On round style burners, the burner cap lip (Figure 11)
should fit snug into the center of burner head and be
level. Refer to figures 12 & 13 for correct and incorrect
burner cap placement.
Once in place, you may check the fit by gently sliding
the burner cap from side to side (Figure 14) to be sure it
is centered and firmly seated. When the burner cap lip
makes contact inside the center of the burner head you
will be able to hear the burner cap click. Please note that
the burner cap should NOT move off the center of the
burner head when sliding from side to side.

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
9
2. Turn on Electrical Power and Open Main Shutoff
Gas Valve
3. Check the Igniters
Operation of electric igniters should be checked after
range and supply line connectors have been carefully
checked for leaks and range has been connected to
electric power.
a. To check for proper lighting, push in and turn a surface
burner knob to the LITE position. You will hear the
igniter sparking.
b. The surface burner should ignite when gas is available to
the burner. Purge air from supply lines by leaving knob
in the LITE position until burner ignites. Each burner
should light within four (4) seconds in normal operation
after air has been purged from supply lines.
c. Visually check that burner has a flame, Once the
burner ignites, the control knob should be turned out
of the LITE position.
d. Try each surface control knob separately until all
burner valves have been checked. Each burner
location is equipped with a separate electrode.
Fig. 14
Figure 15
Burner Cap
Burner Simmer
Precision Flame
Burner
Head
Figure 16
Hollow
Valve
Stem
Dual Flame burner (If equipped)
Remove all tapes from burner cap Be sure that the dual
flame burner caps are correctly placed BEFORE using
your cooktop.
Note: There are no burner adjustments necessary on this
cooktop.
4. Adjust the "LOW" Setting of Surface Burner Valves
(linear flow)
Test to verify if LOW setting should be adjusted:
a. Push in and turn control to LITE until burner ignites.
b. Push in and quickly turn knob to lowest position.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. Insert a thin-bladed screwdriver into the hollow valve
stem and engage the slotted screw inside. Flame size
can be increased or decreased with the turn of screw.
Turn counterclockwise to increase flame size. Turn
clockwise to decrease flame size (Figure 16).
Adjust flame until you can quickly turn knob from
LITE to lowest position without extinguishing the
flame. Flame should be as small as possible without
extinguishing.
When All Hookups are Complete
Make sure all controls are left in the OFF position.
Make sure the flow of combustion and ventilation air to
the cooktop is unobstructed.
Before You Call for Service
Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide.
It may save you time and expense. The list includes
common occurrences that are not the result of defective
workmanship or materials in this appliance.
Refer to the warranty in your Use and Care Guide for
our service phone number and address. Please call or
write if you have inquiries about your product and/or
need to order parts.

INSTRUCCIONES DE INSTALACIÓN PARA PLANCHA DE COCINAR A GAS
(Para modelos de 30 & 36 pulgadas)
LA INSTALACIÓN Y EL SERVICIO DEBEN SER REALIZADOS POR UN INSTALADOR CALIFICADO.
IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA USO DEL INSPECTOR ELÉCTRICO LOCAL.
LEA Y GUARDE ESTAS INSTRUCCIONES PARA FUTURAS REFERENCIAS
Todas las dimensiones se dan en pulgadas (cm).
La dimensión Hincluye un espacio de 5" por debajo de la plancha de cocinar para la conexión
de la línea de suministro de gas.
NOTA: Se adjunta los diagramas de cables de esta plancha de cocinar con el libreta.
Si todas las instrucciones de éste manual no son observadas a la letra, se puede
ocurrir incendios o explosiones que pueden causar daños materiales, lesiones o la muerte.
PARA SU SEGURIDAD:
—No almacene o utilice gasolina u otros vapores y liquidos inflamables cerca
de éste o cualquier otro artefacto.
—QUE HACER SI HAY FUGAS DE GAS :
• Nointentedeencenderningúnartefacto
• Notoqueningúninterruptoreléctrico;noutiliceningúnaparatotelefónicoensuedicio.
• Llameinmediatamenteelabastecedordegasdesdeelteléfonodeunvecino.Siga
las instrucciones del abastecedor de gas.
• Encasoquenopuedecontactarelabastecedordegasllamealdepartamentode
bomberos.
—Lainstalaciónyelserviciotelefónicodebenserrealizadosporuninstalador
calicado,porunserviciotécnicocerticadooporelabastecedordegas.
Imprimido en China
318205458 (1307) Rev. A
English - pages 1-9
Español - páginas 10-18
Français - pages 19-27
Diagrama de la instalación alámbrica - páginas 28
H
AB
E
30” Min. *
(76.2 cm)
F
D
C
G
Figure 1
Dimensiones
del hueco de la
parrilla de cocinar
Dimensiones
de la parrilla
de cocinar
DIMENSIONES DE LA PARRILLA DE COCINAR
MODELO A. ANCHURA B. PROFUNDIDAD C. ALTURA D. ANCHO DE LA CAJA E. PROFUNDIDAD DE LA CAJA
Modelo 30" 30 (76,2) 21 ¾ (55,2) 4 ¼ (10,8) 27 (68,6) 19 (48,3)
Modelo 36" 36 (91,4) 21 ¾ (55,2) 4 ¼ (10,8) 33 ¼ (84,5) 19 (48,3)
DIMENSIONES EL HUECO DE LA PARRILLA DE COCINAR
F. ANCHURA G. PROFUNDIDAD H. ALTURA POR
DEBAJO DE LA ESTUFA
MODELO MÍNIMA MÁXIMA MÍNIMA MÁXIMA
Modelo 30" 27 ¼ (69,2) 28 ½ (72,4) 19 1/8 (48,6) 19 ¾ (50,2) 8 (20,3)
Modelo 36" 33 7/8 (86,1) 34 ¼ (87) 19 1/8 (48,6) 19 ¾ (50,2) 8 (20,3)
