Electrolux EFP 936 G User manual

Gebrauchsanweisung, Libro de Instrucciones, Manuel d'utilisation
EFP 936 G / EFP 636
EFP 936 K / EFP 636 G / EFP 636 X
D E FNL PUK
Gebruiksaanwijzing, Manual de Instruções, User Manual

43
Contents
Safety instructions............................................................................................................... 44
Description of the appliance ............................................................................................... 45
Function ................................................................................................................................45
Special accessories .............................................................................................................46
Installation ............................................................................................................................ 46
Unpacking..............................................................................................................................................................46
Placement ..............................................................................................................................................................46
Electrical connection .............................................................................................................................................46
Mounting under wall cabinet.................................................................................................................................46
Extractable drawer adjustment ..............................................................................................................................46
Exhausting mode ...................................................................................................................................................47
Recirculation mode (with carbon filter) ................................................................................................................47
Using the hood ..................................................................................................................... 47
Speed regulation ....................................................................................................................................................47
Work light ..............................................................................................................................................................47
Correct ventilation .................................................................................................................................................48
Important to know .................................................................................................................................................48
Maintenance ......................................................................................................................... 48
Grease filter ...........................................................................................................................................................48
Carbon filter...........................................................................................................................................................48
Changing the lighting elements .............................................................................................................................48
Attention ................................................................................................................................................................49
If the hood does not function.............................................................................................. 49
Service and spare parts....................................................................................................... 49
Technical data ......................................................................................................................50

44
Thank you for your choice of an Electrolux product. We are convinced that you will have great use
and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user manual
giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it is impor-
tant that the cooker hood is installed correctly and that you read the safety instructions carefully to
avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
CongratulationstoyournewCookerHood
Safety instructions
At installation and service
●The cooker hood is made for normal households
with normal cooking. If it is used for other
purposes there is a risk of damage which is not
covered by the warranty.
●All eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by a
person with enough knowledge. Installation
made otherwise could lead to loss of perform-
ance and even injuries and /or damage on
properties.
●The hood cannot be connected to flues of other
appliances that run on energy sources other than
electricity.
Please, keep to the provisions of official direc-
tives regarding the question of fumes discharge.
●When the hood is used at the same time of other
appliances that run on energy sources other than
electricity, provision must be made for an
adequate supply of air.
●When installed, the hood must be not less than
43 cm. above electric burners or 65 cm. above
gas or mixed-fuel burners. (Fig. 3).
●The power cord should be drawn so that there is
no risk of damage. Hazard!
At use of cooker hood
●No food must be cooked flambé underneath the
hood.
●The use of an unprotected flame is dangerous
for the filters and could cause fires.
●Never leave the deep-frying or frying pan over a
cooker/hob. The oil contained in the pan may
spontaneously ignite through overheating.
●Observe the filter change or cleaning intervals.
Failure to observe these intervals may cause the
risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker hood
and the heating zone; Cover the fire , Never use
water.
At disposal
●Help to avoid damages even when the cooker
hood should be disposed. Disconnect the power
plug and cut the power cord at hood inlet. Check
with the authorities for information of how to
proceed for disposal.

45
0I0
1 Motor speed switch
2 Light switch
3 Extractable drawer
4 Suction grids with grease filter
5 Hob light
Standard accessories included:
●Template for mounting under cupboard
●Screws
●4 Spacers for thinner side panels
●Duct with no return valve
●Baffle
Function
The hood may be used as follows:
- For air exhausting
- For air recycling
Exhausting
The appliance has the exhaust outlet B(Fig. 2) on
top of motor housing.
Connect the hood to the smoke exhaust hose
by using the connecting ring with no return
valve B(Fig. 2)
Attention! In the horizontal runs the duct must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the outside.
The hood cannot be connected to flues
of other appliances that run on energy
sources other than electricity.
Please, keep to the provisions of official directives
regarding the question of fumes discharge.
Recycling
The air is filtered through a carbon filter and
recirculated into the room.
This version is used when there is no exhaust duct
for venting outdoors or when it is impossible to
install one.
The filtered air is discharged by means of a Ø120
mm pipe which goes through the cupboard and
whose outlet is above the cupboard.
The baffle Ewhich can be fastened to outlet hole
using the screw provided (Fig. 3).
Description of the appliance
3
5
Fig. 1
Ø 120mm
E
E
Fig. 3
Ø 120mm
B
Fig. 2
2
1
4

46
Special accessories
Unpacking
Checkthatthecookerhoodhasnodamages.Transporta-
tiondamagesshouldimmediatelybereported to the one
responsibleforthetransport Damages, faults and eventu-
allymissingdetailsshould immediately be reported to
theseller.
Take care of the packing material so that small children
cannotplaywithit.

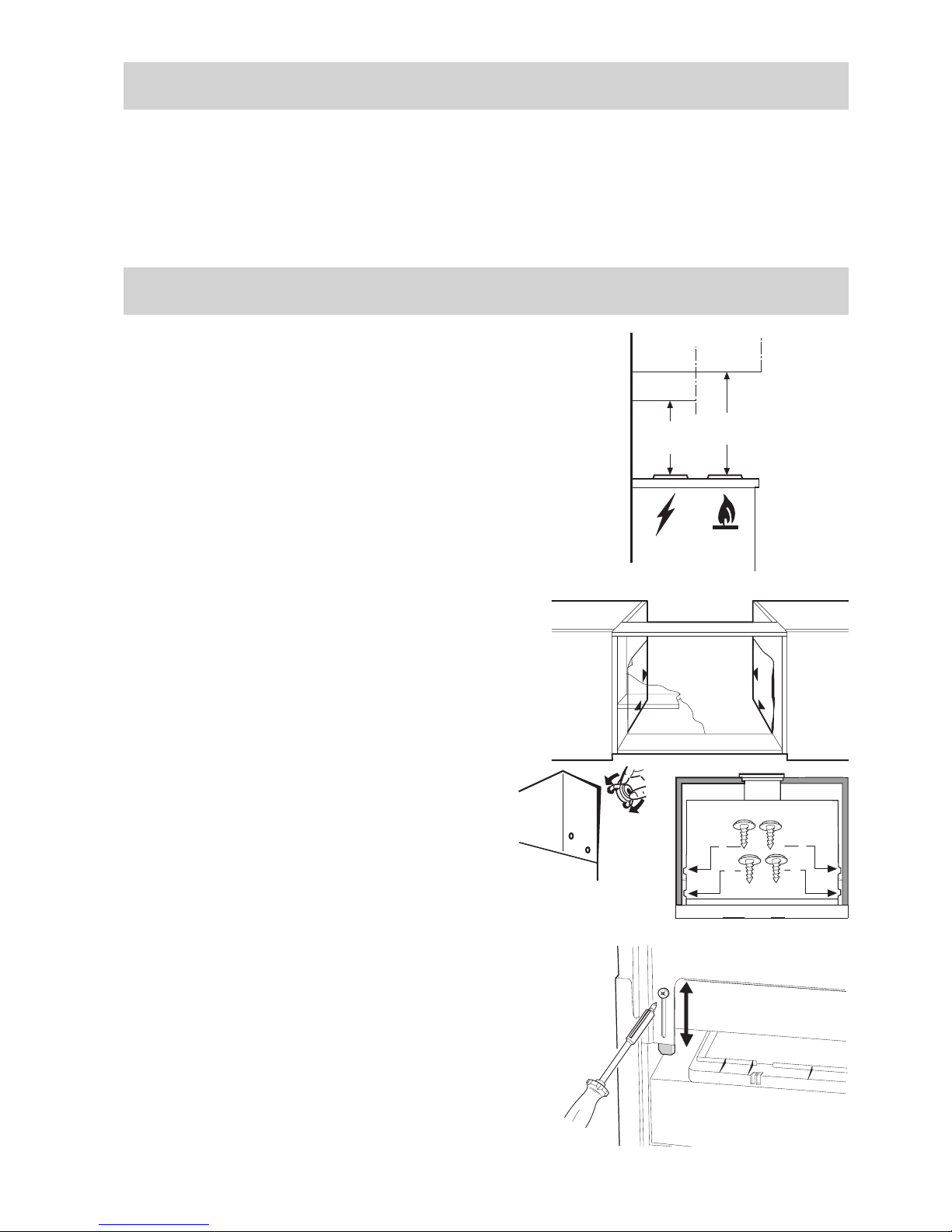

Placement
The hood is to be mounted in a wall cabinet.
When installed, the hood must be not less than 43 cm.
above electric burners or 65 cm. above gas or mixed-
fuel burners. (Fig. 4).
Electrical connection
The hood has a power cord with moulded plug with
earth connection to be connected to a wall outlet of
230 V.
The power cord length is 1,6 m.
Mounting under wall cabinet
●Fit the drilling template which comes with the hood
on the inner right side of the cabinet making sure
printed arrow coincides with back part (Fig. 5).
●Make holes as indicated on template (Fig. 5).
●Perform the same operations on the inner left side.
●In case of side panels with a thickness of 16 mm, fit
4 spacers Gon the slots of the fan housing used for
side fixing.
●Use screws F(4.5x16) to fasten the hood to the
cabinet (Fig. 5).
Extractable drawer adjustment
The hood can be installed in cabinets
with different depths, the front of the box must always
be in line with the cabinet.
For alignment adjust the back stops of the box.
For box adjustment, loosen screws Mand slide square
plates Pas necessary and tighten screws M(Fig. 6).
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Order by the retailer
PNC 955 101 116
Installation
Fig. 6
M
P
1
23
4
Fig. 5
GF
Fig. 4
min
43
cm
min
65
cm

47
Exhausting mode
●Connect the air outlet to the smoke exhaust hose

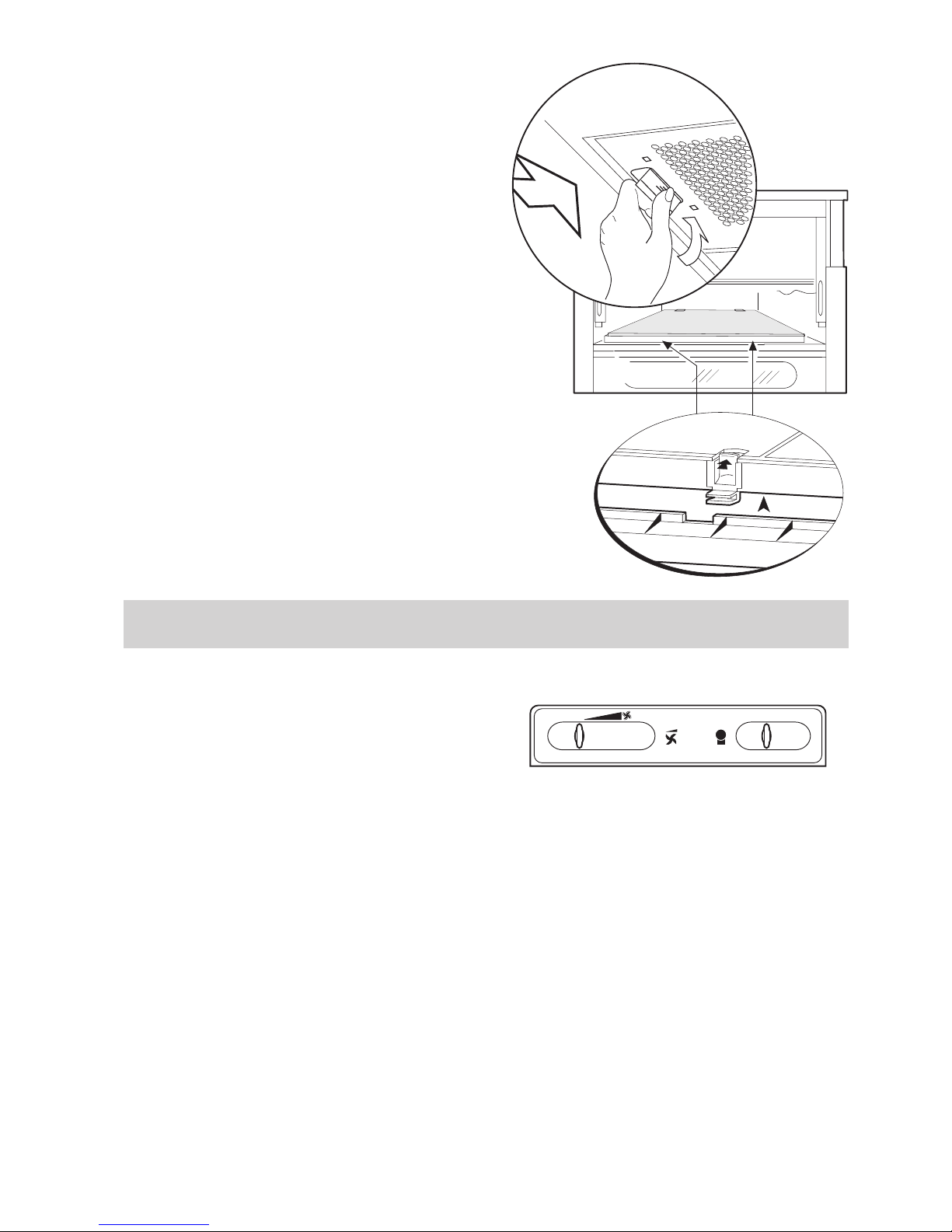

Recirculation mode (with carbon
filter)
●Open the grid (A- fig. 7).
●Insert the filter in the place provided and use the
two hooks Dto fasten it (fig. 7).
●The filtered air is discharged by means of a
Ø120 mm pipe which goes through the cup-
board and whose outlet is above the cupboard.
●The baffle Ewhich can be fastened to outlet
hole using the screw provided (fig. 3).
●Refit the grid.
Using the hood
Speed regulation
The hood is provided with a motor with continues
speed regulation plus a position for intensive
operation. For the best performance, we recom-
mend using the low speeds in normal conditions
and the high speeds or intensive in particular cases
of strong odour and vapour concentration.
We recommend starting up the hood a few minutes
before cooking and keeping it running until all the
odours have been eliminated.
The hood is equipped with a microswitch that
activates the pre-selected fan speed when the
extractable drawer is opened.
Work light
The hood has one low energy lamp 11 W PL.
Switch on and off with the right slide switch.
Also the light will when switched on be automatic
with help of the drawer microswtich.
D
Fig. 7
A
0I0

48
Correct ventilation
To have the cooker hood working correctly the
windows in the kitchen should be closed. In stead a
window in an adjacent room should be open.
Important to know
If the hood is run at the same time as a burner or
fireplace that depend on ambient air (for example
gas, Diesel, coal or wood heaters, water heaters,
etc.) be careful, because the hood, when it exhausts
the air, removes the ambient air required by the
burner or fireplace for combustion.
Not valid if the cooker hood is used in
recirculation mode.
Maintenance
Before performing any maintenance
operation, disconnect the hood from
the electricity.
Grease filter
This serves to hold the grease particles in suspen-
sion. The metal filter should be washed every
month with warm soapy water or, if possible, in the
dishwasher (60°C).
Remove the filter (EFP 636):
●Open completely the extractable drawer
●Use handle Ato remove the filter from its seat
(fig. 7).
●(Only EFP 936): remove central plastic strip Z
to free the two filter panels (Fig. 9).
Clean the panels support as well.
Leave to dry before refitting it.
Carbon filter
This filter dissolves cooking odours.
It should be changed every 6-8 months in normal
use. Ask the technical assistance service or manu-
facturing company for a new one.
The carbon filter must never be washed.
To remove the carbon filter press the two keys D
(Fig. 7) and pull the filter slightly forwards to free
it.
Changing the lighting elements
●Disconnect the hood from the electricity.
●Remove the lamp cover Pby pushing simultane-
ously two unlocking button R(Fig. 10).
●Replace the damaged part with one of equal
rating.
max. 11 Watt
Fig. 8
R
P
Z
Fig. 9
Fig. 10

49
Attention
Failure to observe the rules for cleaning the appli-
ance and changing and cleaning the filters may
cause fires. Therefore, we recommend observing
these instructions.
Cleaning
To clean the outside of the hood use a cloth mois-
tened with denatured alcohol or neutral liquid
detergents. Never use products containing
abrasives.
If the hood does not function
Before you make contact to service
Check that the power plug is connected to the wall
power outlet and that no fuse is blown. Do not do
any operations that can cause hazard or damage to
the product. If the problem remains contact your
dealer or an approved service company
Remember to save the purchase recite and the
Warranty card (only used in some countries)
Service and spare parts
Service and spare parts you will get via your dealer
or service company.
When you order service or spare parts you should
be ready to give the product number and model
denomination. This information you will find on
the rating label.
Take away the grease filter and you will find the
rating label behind.
Model:
Product number:
Date of purchase:

50
Technical data
Model EFP 936 G EFP 636 / G / K EFP 636 X
Capacity Max 522 m3/h x) 295 m3/h 522 m3/h x) 295 m3/h 522 m3/h x) 295 m3/h
Min. 233 m3/h 233 m3/h 233 m3/h

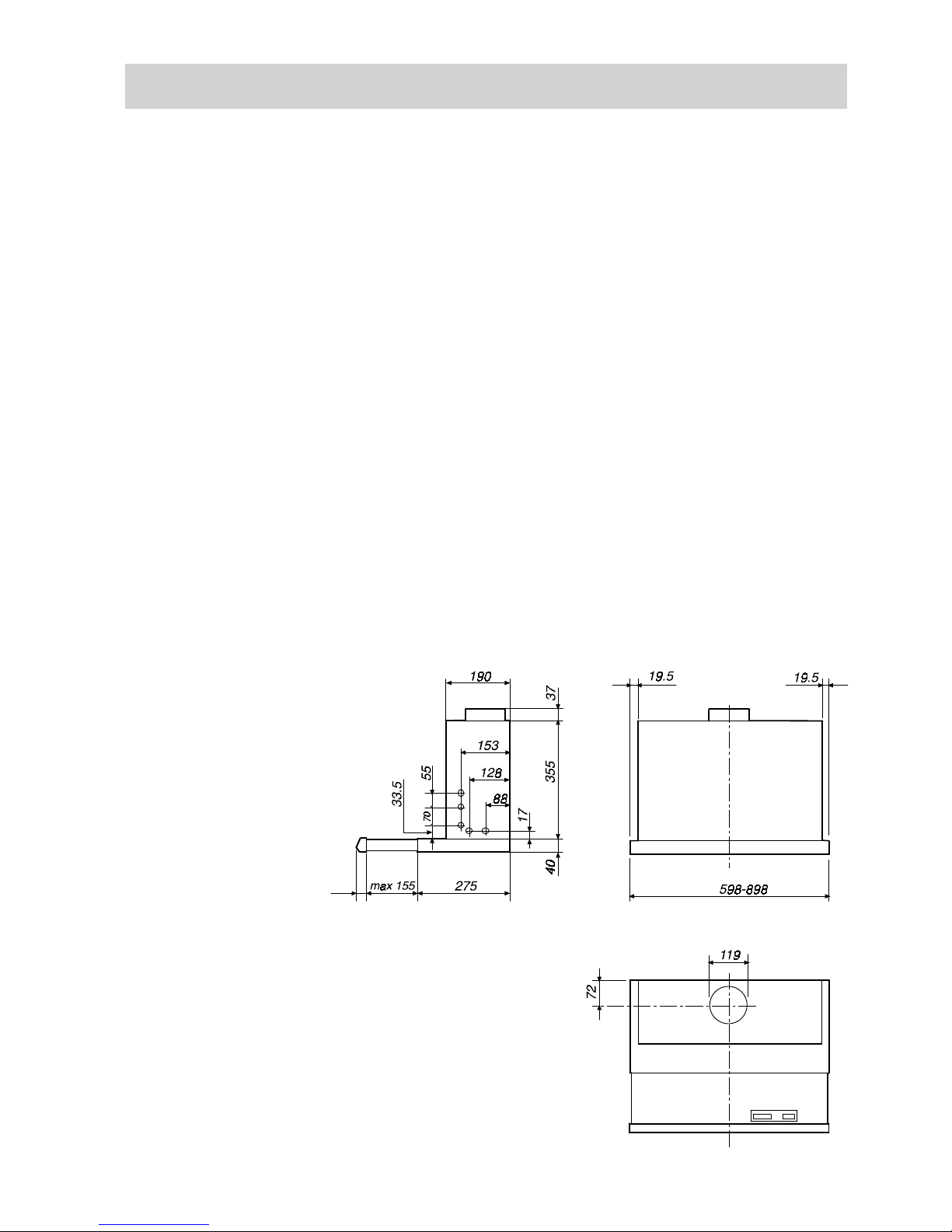

Dimension Height 395 mm 395 mm 395 mm
Width 898 mm 598 mm 598 mm
Depth 303 mm 303 mm 295 mm
Light (low energy lamps) 1 x 11 W PL 1 x 11 W PL 1 x 11 W PL
Grease filter 2 pcs 2 pcs 2 pcs
Mains Voltage 230 V 230V 230V
Electric safety class Class 1 Class 1 Class 1
Power rating total 231 W 231 W 231 W
x) Valid when the hood is used with carbon filter (recirculation)
(EFP 936 G - EFP 636 / G / K) 28
(EFP 636 X) 20

1007AQE L577A Ed. 05/98
