SAFETY INFORMATION
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels, and other residential type
environments;
1.1 Conditions Of Use
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
1.
●
bed and breakfast type environtments;
●
areas for communal use in blocks of flats or in
launderettes.
●
staff kitchen areas in shops, offices and other working
environtment;
●
●
WARNING! The appliance must not be supplied
through an external switching device, such as timer,
or connected to a circuit that is regularly switched on
and off by utility.

ENGLISH 5
●
●
●
●
This Washer-Dryer is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation! Keep them out of children’s reach.
Keep all detergents in a safe place out of children’s
reach.
1.2 Child Safety
1.3 General Safety
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check inside the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
Wash small items such as socks,
laces, washable belts etc in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
Do not use your Washer-Dryer to
wash articles with whalebones,
material without hems or torn
material.
Make sure that children or pets do not climb into the
drum.
This machine is provided with child safety lock option
( ) to prevent children playing with the control panel.
(see page 18)
●
●
●●
●
●
●
●
●
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
●
●

6 www.electrolux.vn
Never use the Washer-Dryer if the
power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the Washer-Dryer is accessible.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
1.4 Installation
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out
by a qualified plumber.
Any electrical work required to install
this appliance should be carried out
by a qualified electrician.
Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to ensure
that the fluid is removed from the
garment before placing in the
machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
1.5 Use
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.
For safety reasons do not use
double adaptors, extension
cords and multi-plug adapters.
●
As some duvets and eiderdowns
should be washed/dried in large
commercial machine because of their
bulk, please check with the manufac-
turer of the item before washing/dry-
ing in a domestic machine.

ENGLISH 7
●
●
●
●
Never tumble dry items which have
had contact with chemicals such as
dry cleaning fluid. These are of
volatile nature and could cause an
explosion. Only tumble dry items
which have been washed in water or
require airring.
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to withstand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
●
●
●
●
●
●
●
●
If it is unavoidable that fabrics contain
vegetable or cooking oil or have been
contaminated by hair care products
be placed in washer-dryer, it should
first be washed in hot water with extra
detergent - this will reduce, but not
eliminate the hazard. The “cool down”
cycle of washer-dryer is used to
reduce the temperature of the items.
It should not be removed from the
washer-dryer or piled or stacked
while hot.
The users should always check that
they have not left their gas lighters
(disposable or otherwise) in their
clothing.
Items that have been spotted or
soaked with vegetable or cooking oil
constitute a fire hazard and should
not placed in a washer-dryer.
Oil-affected items can ignite sponta-
neously, especially when exposed to
heat sources such as in washer-dry-
er. The items become warm, causing
an oxidation creates heat.
If the heat cannot escape, the items
can become hot enough to catch fire.
Piling, stacking or storing oil-affected
items can prevent heat from escaping
and so create a fire hazard.
Items containing foam rubber (also
known as latex foam) or similarly
textured rubber, like materials should
not be dried in a washer-dryer on a
heat setting.
Fabric softeners or similar products
should not be used in a washer-dryer
to eliminate the effects of static
electricity unless this practice is
specifically recommended by the
manufacturer of the fabric softener or
product.
Undergarments that contain metal
reinforcements should not be placed
in a washer-dryer. Damage to the
washer-dryer can result if metal
reinforcements come loose during
drying. When available a drying rack
could be used for such itmes.
Plastic articles such as shower caps
or babies’ waterproof napkin covers
should not be placed in washer-dryer.
Foam rubber materials can produce
fire by spontaneous combustion when
heated.
Items that have been previously
cleaned in, washed in, soaked in or
spotted with petrol/gasoline, dry-
cleaning solvents or other flammable
or explosive substances should not be
placed in washer-dryer.
Highly flammable substances
commonly used in domestic environ-
ments include acetone, denatured
alcohol, petrol/gasoline, kerosine, spot
removers (some brands), turpentine,
waxes and wax removers.
Never stop a washer-dryer before
the end of the drying cycle unless
all items are quickly removed and
spread out so that the heat is
dissipated.
CAUTION!
-
Do not dry cloths in washer-dryer
with dry clean solvents. Also, do not
use laundry enhancement products
during the drying cycle.
To minimize the risk of fire in a
washer-dryer, the following should be
observed:
-

8 www.electrolux.vn
PRODUCT DESCRIPTION2.
Detergent/Softener
Dispenser
(see page 20)
Cabinet
Front Panel
Door
Drain Pump Filter
(see page 31)
Level Adjustment
Feet (Front)

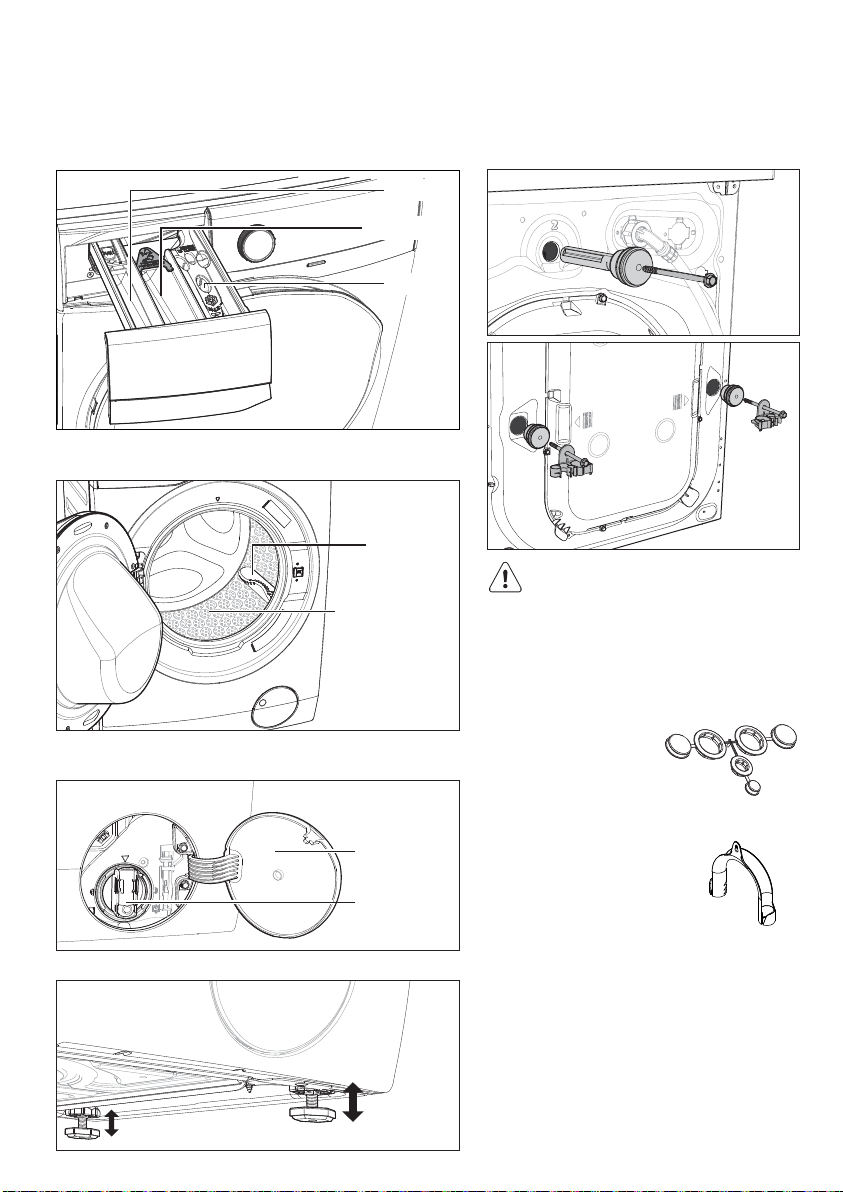

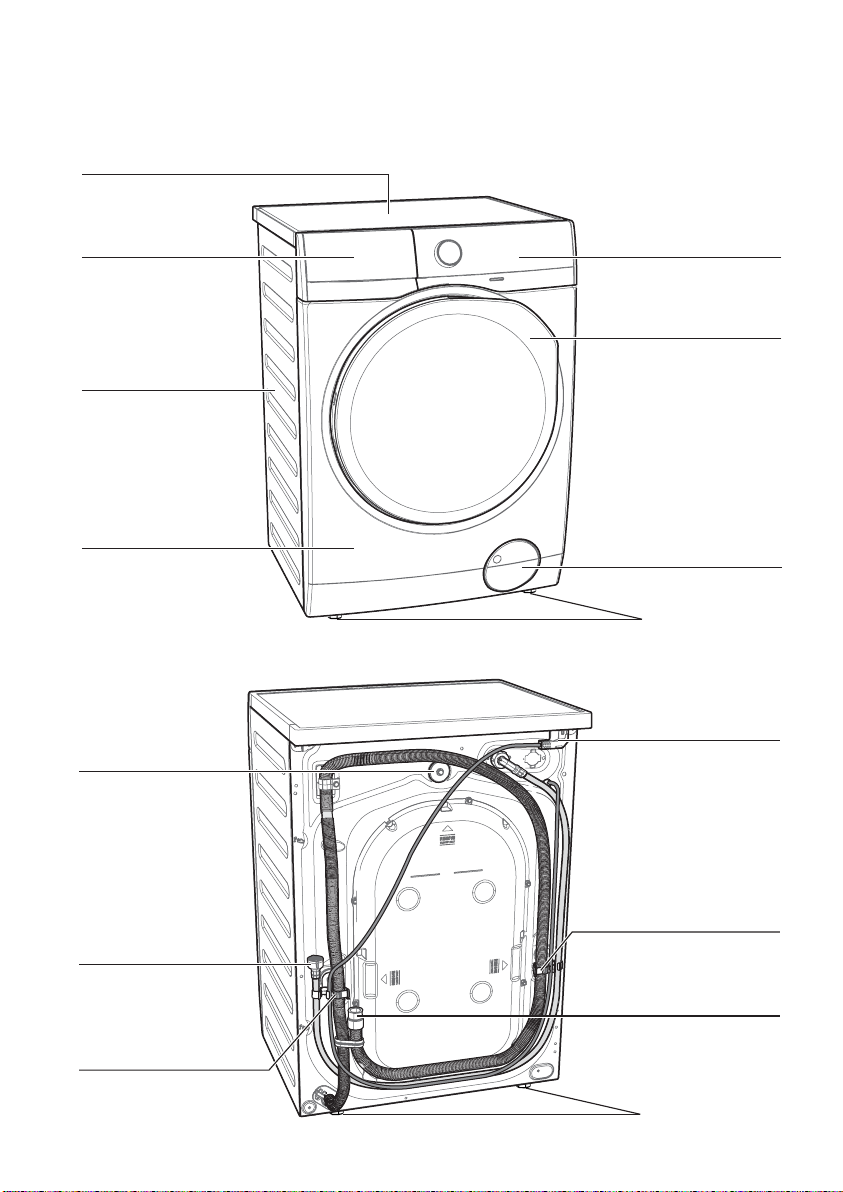

2.1 Parts
Worktop
Control Panel
(see page 11)
Level Adjustment
Feet (Back)
Water Inlet Hose
(see page 43)
Transit Bolts &
Hose Support
Transit Bolts &
Hose Support
Mains Cable
Water Drain Hose
(see page 43)
Transit Bolts

ENGLISH 9
Drum Lifter
Drain Pump
Filter Door
2.2 Accessories
To connect the drain hose
on the edge of a sink.
To close the holes on
the rear side of the
cabinet after the
removal of the transit
bolts.
Plastic Caps
Plastic Hose Guide
Stainless Steel
Washing Drum
Drain Pump
Filter
Detergent/Softener Dispenser
(For more informations, see page 20, 30)
Door (when open)
(for more informations, see page 20)
Transit Bolt (when remove)
Transit bolts must be removed
before using the appliance.
Drain Pump Filter (when open)
Level Adjustment Feet
Softener
Prewash
Main Wash

10 www.electrolux.vn
2.3 Load Sensor
(Only Model EWW1141***)
This machine has “Load Sensing Device”
which shows how much load you put in
the machine and maximum load
recommended for selected wash
program.

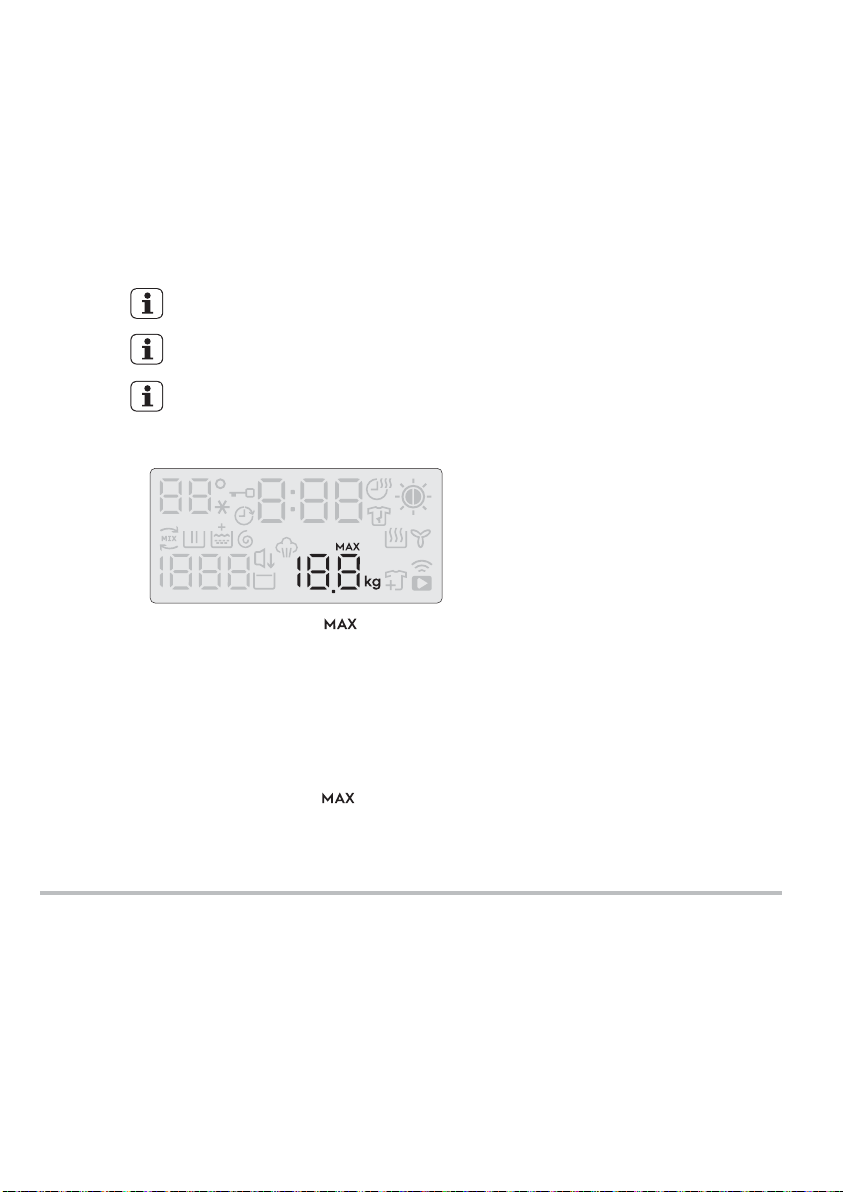

The display will show “ ” when
max limit is reached for selected
program.
On the display, the weight of the
laundry updates by 0.5 kg steps.
The weight is a general indication that
changes with the type of the laundry.
The weight shown on display is
an approximate weight only.
For correct operation of the load
sensor, activate the appliance
and set a wash program BEFORE
loading the laundry in the drum.
The display shows these
indicators when the door is open.
−
−
−
If you exceed the max weight limit of a
program, the symbol “ ” will start
flashing as long as the load in the
drum is more than recommended load,
even after the door is closed.
−

ENGLISH 11
CONTROL PANEL3.
3.1 Control Panel Description
D
E F G
H
I
J
K
L
NOQ
C
B
A
P M
A)
B)
Spin Speed
Program Phase Indication Icon:
C)
D)
Delay Start Icon
Temperature ( corresponds to cold wash)
Ultramix Phase Wash Phase
Rinse Phase Spin Phase
E)
F)
G)
H)
I)
J)
K)
L)
M)
N)
O)
P)
Q)
Door Lock Icon
Program Duration
Time Dry Icon
Dryness Level Icon
Anticrease Phase Icon
Cooling Phase Icon
Drying Phase Icon
Remote Icon
Add Clothes Icon
Maximum Load Capacity Of Selected
Program
Vapour Phase Icon
Extra Silent Icon
(Only model EWW1141***)
Rinse Hold Icon
Extra Dry
Iron Dry
Cupboard Dry
1
2
3
4
5
7
6
8
9
10
11
Program Selector Knob
Display
Temperature Selection Touchpad
Spin Selection Touchpad
Save Favourite Program Option
Time Dry Touchpad
Start/Pause and Add Clothes Touchpad
Remote Touchpad 16
Prewash Touchpad
12
13
14
Vapour Touchpad
SensorWash Touchpad
On/Off Button
15
Wash/Dry Mode Selection Touchpad
Child Lock Option
Delay Start Touchpad
Dryness Level Touchpad
1 2 3 5 76
15 14 13 11 9 812 1016
4
thêm quần áo
Vòng Vắt

12 www.electrolux.vn
3.2 Program Chart
Program;
Temperature
range
Cold to 90°C
1400
rpm
Max.1) 7 kg
Max. 7 kg
Max. 7 kg
Max. 7 kg
2 kg 1 kg
5.5 kg 4 kg
4 kg 3 kg
1200
rpm
800
rpm
3 kg –
4 kg –
1400
rpm
1400
rpm
1400
rpm
800
rpm
1.5 kg
1200
rpm
1400
rpm
–1.5 kg –
–
Type of load and soil levelMax.
Spin
Speed
Max. Load
(Dry Clothes)
30°C
Vapour
Refresh
Lightly soiled synthetics or mixed fabrics.
This cycle removes odours and helps to
dewrinkle the laundry.
Cold to 60°C
Cold to 60°C
30°C to 60°C
Bedding; Special program for one synthetic blanket,
duvet, bedspread and so on.
Rinse + Spin To rinse and spin the laundry.
Spin To spin the laundry and drain the water in
the drum.
Energy
Saver;
40°C and
60°C
2)
White and colourfast cotton. Set this program to
have a good washing results and decrease the
energy consumption. The time of the washing
program is extended.
Coloured cotton e.g. shirts, blouses, towels
and undergarments with normal level of soil.
Cottons;
Mixed;
Daily 60;
Quick 15;
Baby cotton clothes and delicate knitting items
with normal soil.
Do not add detergent.
White and coloured cotton.
Synthetic or mixed fabric items.
Cold to 40°C
Baby Care;
1200
rpm
Cold to 40°C
Specially tested program for woollen garments
bearing the “Pure new woollen, non-shrink,
machine washable” label.
Wool ;
Wash Dry
– – – You can send any additional program from
Mobile Application to store at this program
position and can recall to using it everytime
when you rotate program knob to this position.
This can be done through the App.
App
Program
Program “Outdoor” is the default stored
program from factory.

ENGLISH 13
2) Energy Saver Program with 60degC option selected is recommended for a full load of
normally soiled cotton and is the Energy and Water rating label program
Program;
Temperature
range
– ––
1 kg
Type of load and soil levelMax.
Spin
Speed
Max. Load
(Dry Clothes)
30°C, 40°C
Favourite Recall you favourite program.
1200
rpm
1 kg
WashDry 60; Non-Stop washing and drying program for
3 - 5 shirts with lightly soil.
Woolmark Apparel Care - Blue
The wool wash cycle of this machine has been approved by The
Woolmark Company for the washing of wool garments labelled as
“hand wash” provided that the garments are washed according
to the instructions issued by the manufacturer of this machine.
Follow the garment care label for drying and other laundry
instructions. M1361
The Woolmark symbol is a Certification mark in many countries.
Wash Dry
1) Maximum capacity depended on model:
Model EWW1141AEWA : 11 kg
Model EWW1042AEWA : 10 kg
1200
rpm
4 kg –
Cold to 40°C
Delicates; Delicate fabrics such as acrylics, viscose,
polyester items.

14 www.electrolux.vn
3.4 Options
1) Vapour option can be combined with temperature 40°C to 90°C only.
2) Do not select a spin speed LOWER than that proposed by the appliance to avoid a too long
drying time so saving energy. In any case the reduction of the spin speed is only possible after
selecting drying.
4) This program can select only “Cupboard Dry” option.
3.3 Program Options Compatibility
Program
Option
Cottons
Mixed
Bedding
Energy Saver
Vapour Refresh
Baby Care
App Program
Spin
Rinse + Spin
Quick 15
Daily 60
Wool
Delicates
Favourite




























































WashDry 60    
1)
2)
4)
2)
Dryness
Level
PrewashTime
Dry
Vapour Sensor
Wash
No
Spin
Rinse
Hold
− − −













−













Delay
Start
− −−













−
− −













−
− − − − −− −
Wash/Dry Mode Touchpad
This touchpad is used to select Program Mode
of your machine. Program modes available are:
Wash Only Mode (default)
●
Wash and Dry Mode
●
Dry Only Mode
●
/
Changing a running program mode is
possible only by switching off the
machine.
Temperature Touchpad
Press this touchpad repeatedly to
increase or decrease the wash
temperature if you want your laundry to
be washed at a temperature different
from the one proposed by the
Washer-Dryer.
Spin Selection Touchpad
Press this touchpad repeatedly to increase
or decrease the spin speed or select Rinse
Hold, if you want your laundry to be spun
at a speed different from the one proposed
by the Washer-Dryer.
If a mode is not compatible with program
selected, the symbol “ ” will flash on
display along with buzzer sound.
3)
Extra
Silent
3) “Extra Silent” option, only in model EWW1141***.

ENGLISH 15
The door stays locked with the
water in the drum. To continue
the cycle, you must press
(Start/Pause).
●
●
No spin option eliminates all the spin
phases and increase the number of
rinses.
No Spin ( )
By selecting this option the water of
the last rinse is not emptied out and
the drum turns regularly to prevent the
laundry creases.
The door is still locked to indicate that
the water must be emptied out.
Rinse Hold ( )
( ) Touchpad
Select “ ” option to turn
ON the sensors for the dirt and detergent
residue.
The “SensorWash” is switched ON
by default. If you want to turn OFF
the sensor press this touchpad
once. (Please see the table
“Program Options Compatibility”
for which programs can be used
with this option.)
The initial time displayed on
the control panel indicates the
time needed for the maximum
dirt level.
Please see details of detergent
usage at “Detergents Type and
Quantity of Detergent”
When using this option, machine will
automatically check the dirt level and
detergent residue in your laundry. It will
automatically adjust the washing time
and numbers of rinses according to the
load to make sure that your clothes are
really clean.
The SensorWash technology consist of 2
different sensors for detection:
1) The 1st Turbidity sensor detects the
dirt level at the start of cycle and
automatically calculates the actual
time needed to remove the level of
dirt in the wash; from low dirt levels
all the way to the maximum dirt level.
2) The 2nd Conductivity sensor will check
the amount of detergent residue after
the first rinse and the machine will
calculate the optimum number of
rinses (Maximum of 2 additional
rinses) needed to make sure that the
detergent residue is properly removed.
●
By selecting this option, the machine
will not drain the water of the last rinse
to avoid wrinkling the laundry. All
spinning phases are suppressed. This
washing cycle is very quiet, and can be
selected at night or other appropriate
times.
Extra Silent ( ) (Only Model
EWW1141***)
The door stays locked with the
water in the drum. To continue
the cycle, you must press
(Start/Pause).

16 www.electrolux.vn
Prewash Touchpad
Select this option if you wish your laundry
to be pre-washed before the main wash.
Use this option for heavy soil.
The indicator of this option will be on.
Select this option to add approximately
30 minutes of tumbling in vapour during
the wash cycle. Vapour helps open fabric
fibers up to allow laundry additives to
release tough stains. The indicator of this
option will be on.
Vapour ( ) Touchpad
Vapour may not necessarily be visible
inside the drum during a vapour wash
cycle. Vapour is created below the
drum and allowed to naturally rise into
the clothes.
At the end of the Vapour cycle, the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may notice
vapour exiting from the drain hose of
the Washer-Dryer, this is normal and
there is no cause for alarm.
Vapour may not be present during the
entire vapour wash cycle.
Vapour function is more effective with
half load.
NOTE
When you set this function, put the
detergent into the “ ” compartment.
This function increases the program
duration.
●
●
●
●
Delay Start Touchpad
This option makes it possible to delay the
start of the program by 30 min, 60 min or
90 min and then by every hour from 2 to
20 hours. The delay you have selected is
indicated on the display. The end time will
increase in order to show you the
selected delay.
You must select this option after you have
set the program and before you press the
Start/Pause button.
If you wish to add laundry in the machine
during the delay time, press Start/Pause
touchpad to put the machine in pause
mode. Add laundry, close the door and
press Start/Pause touchpad again.
You can cancel the delay time at any
moment, by pressing “Delay Start”
touchpad repeatedly till the display shows
delay time “ ”, then press the
Start/Pause touchpad.
Remote ( ) Touchpad
This option allows you to connect
washer-dryer to Wi-Fi network and to link
it to your smart phone.
By this functionality you can receive
notifications, control and monitor your
washer-dryer from your mobile devices.
To connect the washer-dryer with your
smart phone you need:
When the door is open, remote
functions are disabled.
Connection setting and other
suggestions please refer to attached
leaflet of this user manual.
WI-FI specification requirements:
Wireless network at home with internet
connection enabled.
●
Smart Phone connected to wireless
network.
●
Frequency
Protocol
Max Power
2.4 GHz according to
local country regulation
IEEE 802.11b/g/n
According to local country
regulation

ENGLISH 17
Time Dry ( ) Touchpad
If you wish to carry out a timed drying
program, keep pressing this touchpad until
the desired time is reached.
Maximum allowable timed drying
changes based on wash program
selected.
The final time value is the total duration of
the washing + detachment + drying cycles.
●
●
At the end of the program the appliance
performs the anti-crease phase for
approximately 10 minutes. During this time,
the display will show time remaining “ ”
and door is locked “ ”.
●
NOTE
At the end of the program the appliance
performs the anti-crease phase for
approximately 10 minutes. During this time,
the display will show time remaining “ ”
and door is locked “ ”.
Type of fabric Load
(kg)
Spin Speed
(rpm)
Suggested
Times (Hrs)
Cotton and linen
(bathrobes, bath towels, etc.).
Dry Time Option Guidelines:
5 - 7
3 - 5
2 - 3
1400
1400
1400
3 - 4
2 - 3
1 - 2
Synthetic or mixed fabric items
( jumpers, blouses, underwear,
household linen, etc.).
Wool and hand washable wool.
3
1
1200
1200
2 - 3
1
11200 2
Dryness Level Touchpad
Press this touchpad to set dryness level
using auto sensing feature. The display
will show the selected option.
Level of dryness Type of fabric Load
Extra Dry
Ideal for towels or similar
Suitable for items to put
away without ironing
Cotton and linen
(bathrobes, bath towels, etc) up to 7 kg
Cupboard Dry
Suitable for ironing
Iron Dry
Cotton and linen
(bathrobes, bath towels, etc)
Synthetics and mixed fabrics (jumpers,
blouses, underwear, household linen)
Cotton and linen
(sheets, tablecloths, shirts, etc.)
up to 7 kg
up to 7 kg
up to 3 kg
Dryness Option Guidelines:
●
●
●
Extra dry
Cupboard dry
Iron dry
Dryness level settings are based on
wash program selected.
●
The final time value is the total duration of the
washing + detachment + drying cycles,
calculated on a default load size.
●
●
NOTE
If you wish to open the door during the
anti-crease phase or interrupt it, press
Start/Pause touchpad.
If you wish to open the door during the
anti-crease phase or interrupt it, press
Start/Pause touchpad.

18 www.electrolux.vn
●
●
●
●
The drying time can vary according to :
the final spin speed;
dryness level (Extra Dry or Cupboard Dry or
Iron Dry);
the type of laundry;
the size of load.
Duration of the drying cycle
After drying fluffy fabrics, such as new towels,
it is advisable to perform a Rinse program to
ensure that any residue that may remain in the
tub is completely removed and does not stick
to garments dried afterwards. After each drying
cycle, clean the drain pump filter. Please refer
to care and cleaning in section 11 “CARE AND
CLEANING”.
Fibre residue
To deactivate the function, press and
hold “Prewash” touchpad about
2 seconds until the display shows the
icon “ ”.
Save Favourite ( ) Program
3.5 Settings
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish
to disable this buzzer when you start a
wash when going to bed, so that when the
wash finished approximately 1 hour later,
it will not disturb you through the night.
Enabling/Disabling End-Of-Wash
Buzzer
Program settings that are frequently used can
be saved (e.g. Cotton, 60°C, 1200 rpm, with
Prewash and Vapour).
To program/re-program Favourite with your
own selections and save them, proceed as
follows:
1. Put machine in Stand-By mode.
2. Select your desired program settings.
●
●
Additional drying
To prevent the formation of creases or
shrinking of fabrics, avoid excessive
drying.
WARNING!
Should the laundry still be too wet at the end of
the program, set another short drying cycle.
The final part of a washer- dryer cycle occurs
without heat (cool down cycle). This ensures
the laundry will be left at a low temperature.
Child Safety Lock ( ) Option
Your appliance is provided with CHILD
SAFETY LOCK which permits you to
leave the appliance unsupervised with
the door closed without having to worry
that children might be injured by or cause
damage to the appliance.
Set this option after pressing the
Start/Pause touchpad.
To activate the function, press and
hold “Prewash” touchpad about
2 seconds until the display shows the
icon “ ”.
To set “Child Lock” option:
This function remains enabled
even after the appliance is
switched off.
The touchpads are locked
(except for the On/Off button).
●
●
If you press any touchpad while
Child Lock is activated, the icon
“ ” will flash on display
3 times along with buzzer sound.
App Program cycle cannot be saved
as a Favourite on the appliance.
To recall the favourite wash program,
turn selector knob to “Favourite ”
program. You will get acknowledgement
on the screen when the Favourite
program is loaded.
3. To save favourite program, press and hold
“Vapour ” touchpad about 2 seconds
and you will hear “Bip, Bip” sound and
“Favourite” LED is flashing.

ENGLISH 19
BEFORE FIRST USE4.
Ensure that the electrical and water
connections comply with the
installation instructions.

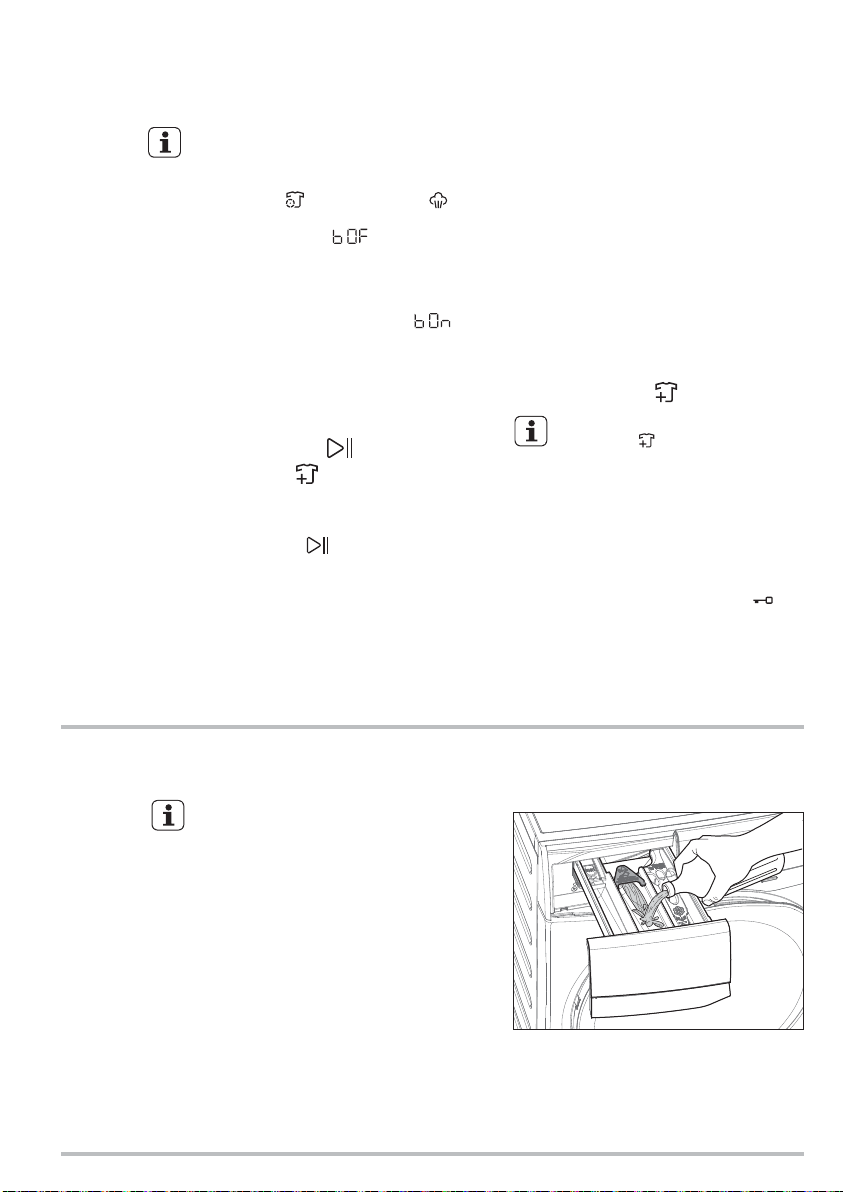

Put 2 litres of water in the detergent
compartment for washing phase. This
activates the drain system.
1.
2.
3. Select a Cottons cycle at 90 °C,
without any laundry in the machine, to
remove any manufacturing residue
from the drum and tub then start the
machine.
During installation or before first use
you may observe some water in the
machine. This is a residual water left in
the machine after a full functional test
in the factory to ensure the machine is
delivered to customers in perfect
working order and is no cause for
concern.
NOTE
3.6 Start/Pause ( ) and
Add Clothes ( ) Touchpad
Error warning beeps such as critical
faults are not disabled.
This touchpad has 2 functions:
To disable the buzzer sound, press
“SensorWash ( )” and “Vapour ( )”
touchpads at the same time about
3 seconds, the icon “ ” will show
on display along with buzzer sound.
To return to default configuration
press these 2 touchpads at the same
time about 3 seconds, the icon “ ”
will show on display along with buzzer
sound.
●
●
Start/Pause ( )1.
To interrupt a program which is running,
press this touchpad to pause the machine,
the Start/Pause pilot light flashes.
If you have selected a “Delay Start”
option, the countdown will begin and
will be shown on the display.
After you have selected the desired
program and options, press this
touchpad to start the machine. The
Start/Pause pilot light will stop flashing
and remain lit until the water level is
above the bottom edge of the door
then pilot light goes OFF.
To restart the program from the point at
which it was interrupted, press this
touchpad again, the Start/Pause pilot
light will stop flashing.
Add Clothes ( )2.
To add clothes:
Pressing the “Start/Pause”
touchpad to pause the program.
You can only add clothes when
the icon “ ” shown on the
display.
1.
Wait for the machine to come
to a complete stop before opening
the door (wait for door lock “ ”
icon to turn off).
2.
Resume the program by pressing
“Start/Pause” touchpad again.
4.
Add clothing and close the door.
3.

20 www.electrolux.vn
●
●
DAILY USE - WASHING (Only)5.
Press the On/Off button to turn on the
Washer-Dryer. Turn the knob to set a
program. The Washer-Dryer will
propose a temperature and automati-
cally select the spin value provided for
the program you have chosen.
Check and remove objects (if there
are any) that could be trapped in the
fold.
1.
2.
5.1 Loading The Laundry
Connect the main plug to the main
socket.
Turn the water tap on.
3.
Place the laundry in the drum, one
item at a time, shaking them out as
much as possible. (Refer to page 26
“WASHING HINTS”)
5.
Close the door.
6.
4.
Make sure that no laundry
remains between the seal and
the door.
Detergent Dispenser Drawer
1.
The detergent dispenser is divided
into three compartments.
Please read “Detergents Type
and Quantity of Detergent”on
page 27 before use.
5.2 Using Detergent And
Additives
Compartment “PREWASH”
This compartment is only used for
detergent when a “Prewash” option
is selected.
Compartment “MAIN WASH”
This compartment is used for
detergent on all programs.
The selector knob can be turned either
clockwise or counter-clockwise.
●Compartment “SOFTENER”
This compartment is used for fabric
conditioner and starching agent.
Detergent flap
Position down:
for liquid
detergent.
Position up:
for powder
detergent.
