1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance can be installed as freestanding or below
the kitchen counter with correct space.
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite side,
where the appliance door can not be fully opened.
ENGLISH 3

•Connect the mains plug to the mains socket only at the
end of the installation. Make sure that there is access to
the mains plug after the installation.
•The ventilation openings in the base (if applicable) must
not be obstructed by a carpet.
•Ensure you have good ventilation in the installation room
to avoid the back flow of gases into the room from
appliances burning other fuels, including open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas
or other fuels (if applicable).
•The operating water pressure (minimum and maximum)
must be between 0,5 bar (0,05 MPa) and 8 bar (0,8
MPa).
•Obey the maximum load volume of 9 kg (refer to the
“Programme chart” chapter).
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Wipe away lint that has accumulated around the
appliance.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the wash dryer.
•Do not use the appliance if industrial chemicals have
been used for cleaning.
•Do not dry unwashed items in the wash dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the wash dryer.
www.electrolux.com4

•Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
•Remove all objects from pockets such as lighters and
matches.
•Never stop the wash dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
•The final part of a wash dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be
damaged.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable, heat
resistant and clean.
• Do not install the appliance where the
appliance door can not be fully
opened.
• Always move the appliance vertically.
• The rear surface of the appliance must
be put against the wall.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• When the appliance is put in its
permanent position, check if it is fully
level with the aid of a spirit level. If it is
not, adjust the feet until it is.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
ENGLISH 5

• Do not touch the mains cable or the
mains plug with wet hands.
• Only for UK and Ireland: The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS
1362) fuse.
• This appliance complies with the E.E.C.
Directives.
2.3 Water Connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
• Do not dry the damaged items which
contain padding or fillings.
• If you have washed your laundry with a
stain remover start an extra rinse cycle
before you start a drying cycle.
• Make sure that you remove all metal
objects from the laundry.
• Only dry fabrics which are applicable to
dry in the washer-dryer. Follow the
instructions on the fabric label.
• Plastic items are not heat resistant.
– If you use a detergent ball, remove
it before you set the drying
programme.
– Do not use a detergent ball when
you set a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
www.electrolux.com6

3. PRODUCT DESCRIPTION
3.1 Appliance overview
1
2
3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for the appliance level
3.2 How to activate the child
safety device
This device prevents children or pets to be
closed in the drum.
Turn the device clockwise, until the groove
is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
3.3 Fixing plate kit (4055171146)
Available from your authorized dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
ENGLISH 7

4. CONTROL PANEL

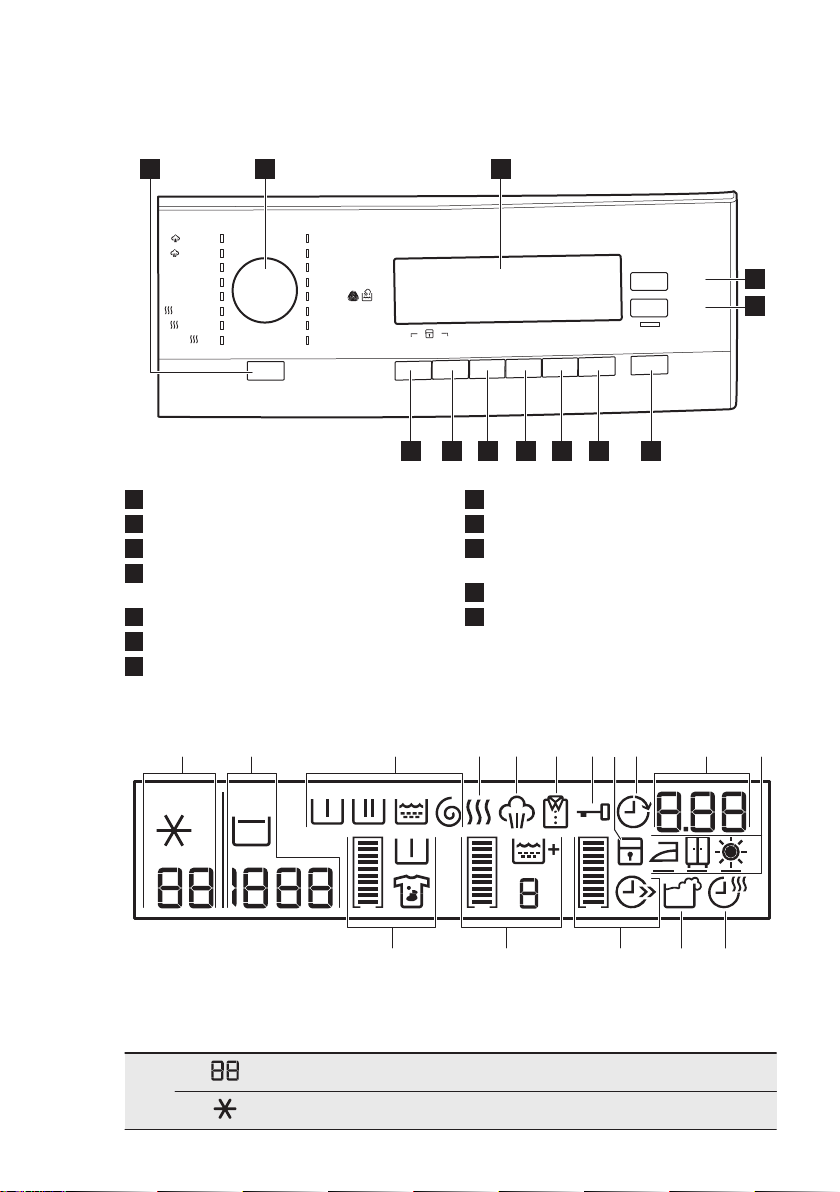

4.1 Control panel description
Trockenzeit
Minuterie
Trockengrad
Niveau de
séchage
Temp.
Flecken
Taches/
Vorw sche
Pr lavage
U./Min.
T/min.
Extra
Spülen
Rinçage + Start/Pause
D part/Pause
Zeit Sparen
Gain de
Temps
Zeitvorwahl
D part
Diff r
Koch/Bunt
Blanc/Couleurs
Koch/Bunt
Blanc/Couleurs
Pflegeleicht
Synth tiques
Pflegeleicht
Synth tiques
Leichtbügeln
Repassage Facile
Feinw sche
D licats
Wolle/Seide
Laine/Soie
Wolle
Laine
20 min - 3 kg
Non Stop 60 min.
Spülen
Rinçage
Schleudern/Pumpen
Essorage/Vidange
Energiesparen
Economique
Super Eco
Auffrischen
Rafraîchir
Gl tten
D froissage
Marche/Arrêt
Ein/Aus
1 2 3
4
5
6789101112
1Ein/Aus - Marche/Arrêt button
2Programme knob
3Display
4Trockengrad - Niveau de séchage
button
5Trockenzeit - Minuterie button
6Start/Pause - Départ/Pause button
7Zeitvorwahl - Départ Différé button
8Zeit Sparen - Gain de Temps button
9Extra Spülen - Rinçage + button
10 Flecken - Taches / Vorwäsche -
Prélavage button
11 U./Min. - T/min. button
12 Temperatur - Température button
4.2 Display
A HC
NOP
D E F G I
LM
KB J
The display shows:
A
Temperature of the set programme
Cold water
www.electrolux.com8

B
Spin speed of the set programme
No Spin symbol1)
Rinse hold symbol
1) Only available for SPIN/DRAIN programme.
C
The phase symbols
When a programme is set, all the symbols of the phases related to the pro-
gramme come on.
When the programme starts, only the symbol of the phase in operation flashes.
When the programme is completed, the symbol of the last phase is on.
Prewash phase
Washing phase
Rinse phase
Spin phase
DThe drying symbol comes on when you set a drying programme.
EThe steam symbol comes on when you set a Steam programme.
FThe anti-crease symbol comes on when you set a drying pro-
gramme.
G
You cannot open the appliance door when the symbol is on. You
can open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• The «Rinse hold» function is on.
• There is water in the drum.
HThe child safety lock symbol comes on when this device is activa-
ted.
IThe delay start symbol comes on when you set the delay start
function.
ENGLISH 9

J
Programme time (washing and/or drying phase)
When the programme starts, the programme time decreases with
steps of 1 minute.
Delay start
When you press the delay start button, the display shows the delay
start time
Alarm codes
If the appliance has a malfunction, the display shows alarm codes.
Refer to «Troubleshooting».
The display shows this message for some seconds when:
• You cannot set a function with the washing programme.
• You try to change the washing programme while it operates.
When the programme is completed.

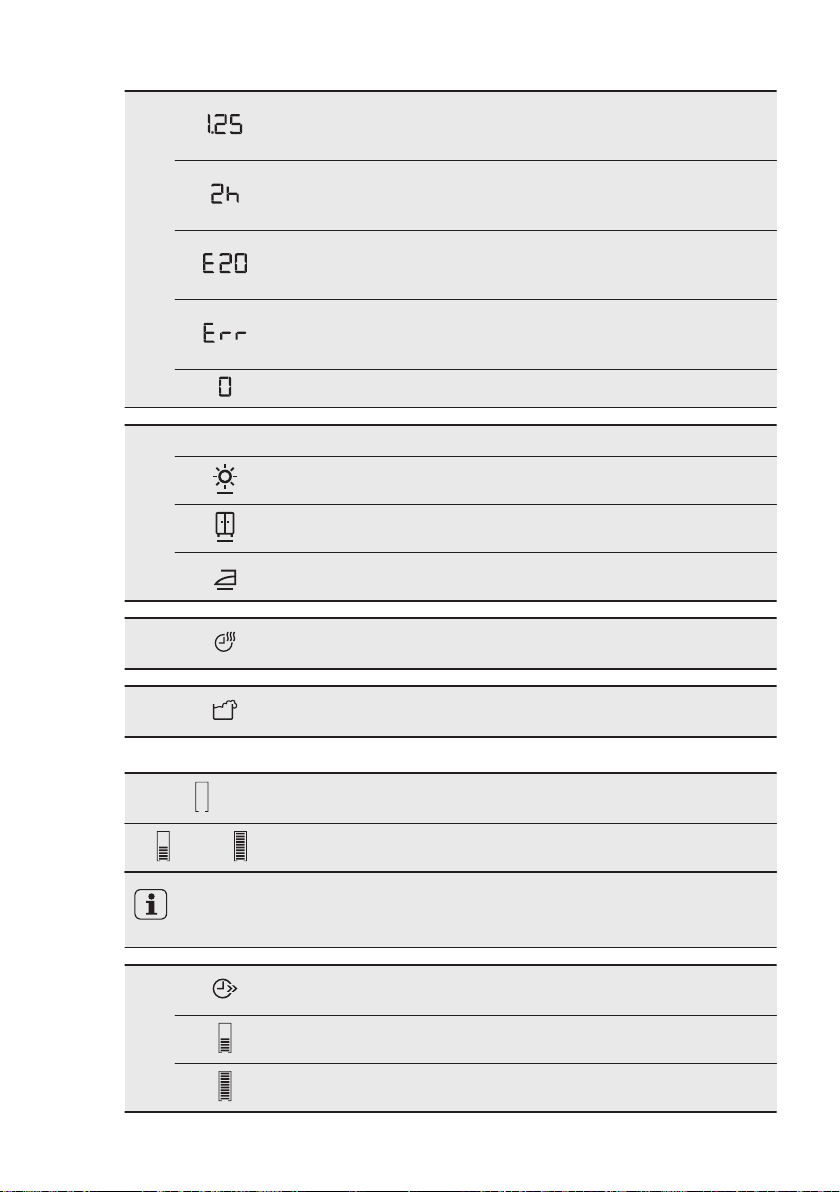

K
Dryness level symbols: they come on when you set an automatic drying.
Extra dry level symbol
Store dry level symbol
Iron dry level symbol
LThe drying time symbol comes on when you set the a drying pro-
gramme.
MThe detergent overdosing symbol comes on at the end of the cycle
when the appliance detects too much detergent.
Graphic bars
The empty indicator bar appears only if the related function is
available for the set programme.
The indicator bar fills accordingly to the set functions.
If you make a wrong selection the message Err indicates that the selection
is not possible.
N
The Zeit Sparen - Gain de Temps symbol comes on when you set
one of the programme duration.
Shortened time
Extra Quick
www.electrolux.com10

O
The Extra Spülen - Rinçage + symbol comes on when this function
is activated.
The value shows the total number of the rinses.
The indicator bar is fully filled when you set the maximum number
of rinses.
P
The Flecken - Taches symbol comes on when you activate the
function.
The Vorwäsche - Prélavage symbol comes on when this function is
activated.
The indicator bar is not fully filled when you set only one of the
functions.
The indicator bar is fully filled when you set the two functions.
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Washing programmes
Koch/Bunt -
Blanc/Couleurs
95°C - Cold
9 kg
1600 rpm White cotton and coloured cotton. Normal soil
and light soil.
Pflegeleicht -
Synthétiques
60°C - Cold
4 kg
1200 rpm Synthetic items or mixed fabric items. Normal
soil.
Leichtbügeln -
Repassage Fac-
ile
60°C - Cold
4 kg
800 rpm Synthetic items to be gentle washed. Normal
and light soil.1)
Feinwäsche -
Délicats
40°C - Cold
4 kg
1200 rpm
Delicate fabrics as acrylics, viscose, polyester
items. Normal soil.
ENGLISH 11

Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Wolle/Seide -
Laine/Soie
40°C - Cold
2 kg
1200 rpm
Machine washable wool, hand washable wool
and delicate fabrics with «hand washing» care
symbol.2)
20 min.-3 kg
40°C - 30°C
3 kg
1200 rpm
Cottons and synthetics items with light soil
level or worn only once.
Spülen - Rin-
çage
Cold
9 kg
1600 rpm
To rinse and spin the laundry. All fabrics.
Schleudern/
Pumpen - Essor-
age/Vidange3)
9 kg
1600 rpm
To spin the laundry and to drain the water in the
drum. All fabrics.
Drying programmes
Wolle - Laine
1 kg Drying programme for woollen.
Pflegeleicht -
Synthétiques
3 kg Drying programme for synthetic items.
Koch/Bunt -
Blanc/Couleurs
7 kg Drying programme for cotton items.
Non Stop 60
min.
30°C
1 kg
1200 rpm
Complete programme composed of washing
phase + drying phase for a small load size of mixed
fabrics (cottons and synthetics items).
Washing programmes
Super Eco
Cold
3 kg
1200 rpm Mixed fabric (cotton and synthetic items).4)
Energiesparen -
Economique5)
60°C - 40°C
9 kg
1600 rpm White cotton and colour-fast cotton. Normal
soil. The energy consumption decreases and the
time of the washing programme is extended.
www.electrolux.com12

Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Steam programmes6)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry more soft.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• items where it is not specified on the care label as being suitable for tumble drying.
• all items with plastic, metal, wooden parts or alike.
Auffrischen - Ra-
fraîchir
40°C
1.5 kg Steam programme for cotton and synthetic
items. This cycle removes odours from the laun-
dry.7)
Glätten - Défrois-
sage
40°C
1.5 kg Steam programme for cotton and synthetic
items. This cycle helps to dewrinkle the laundry.
1) To reduce the creases of the laundry, this cycle regulates the water temperature and per-
forms a soft wash and spin phase. The appliance adds some rinses. This programme is not
compatible with drying.
2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the
drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the ap-
pliance.
3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only
drain phase is available.
4) This programme is for daily use and has lowest energy and water consumption maintaining
a good washing performance.
5) The washing programme Energiesparen - Economique at 60ºC with a load of 9 kg and the
drying programme Koch/Bunt - Blanc/Couleurs are the reference programmes for the data en-
tered in the energy label, in compliance with EEC 92/75 standards.
The water temperature of the washing phase may differ from the temperature de-
clared for the selected programme.
6) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could
be humid. It is better to expose the items to the fresh air for about 10 minutes to let the humid-
ity dry. When the programme is completed, quickly remove the laundry from the drum. After a
steam cycle, items may to be ironed anyway, but with less effort!
7) Steam does not remove animal odours.
ENGLISH 13

Programme options compatibility
Programme
U./
Min. -
T/min.
Fleck-
en -
Ta-
ches /
Vorwä-
sche -
Prélav-
age1)
Extra
Spülen
- Rin-
çage + 2)
Zeit
Spa-
ren -
Gain
de
Temp
s3)
Zeit-
vor-
wahl -
Départ
Différé
Koch/Bunt - Blanc/
Couleurs ■ ■ ■ ■ ■ ■
Pflegeleicht - Synthé-
tiques ■ ■ ■ ■ ■ ■
Leichtbügeln - Repas-
sage Facile ■ ■■4) ■ ■ ■
Feinwäsche - Délicats ■ ■ ■ ■ ■ ■
Wolle/Seide - Laine/
Soie ■ ■ ■
20 min.-3 kg ■ ■
Spülen - Rinçage ■ ■ ■ ■
Schleudern/Pumpen -
Essorage/Vidange ■ ■ ■
Super Eco ■ ■ ■ ■
Energiesparen - Econo-
mique ■ ■ ■ ■ ■ 5) ■
1) If you use liquid detergent, set a programme without Prewash. The Stain option is not avail-
able with a temperature lower then 40°C.
2) If the Permanent Extra Rinse option is activated, the appliance adds some additional rinses.
In the Rinse programme, if you set a low spin speed the appliance performs delicate rinses
and a short spin.
3) If you set a shorter duration, we recommend that you decrease the quantity of the load. It is
possible to load fully the appliance, however the washing results are reduced.
4) Only the Prewash option is available.
5) For this programme you can set only the Extra Quick duration.
5.2 Programmes for automatic drying
Dryness Level Type of fabric Load
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels,
etc)
up to 7 kg
www.electrolux.com14

Dryness Level Type of fabric Load
Cupboard Dry1)
For items to put away
Cottons and Linen
(bathrobes, bath towels,
etc)
up to 7 kg
Synthetics and mixed
fabrics
(jumpers, blouses, under-
wear, household linen)
up to 3 kg
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
up to 7 kg
1) Hints for test institute The test performance, in accordance with EN 50229, must be car-
ried out with a FIRST drying load of 6 kg (load composition : pillowcase and towels) by setting
the AUTOMATIC CUPBOARD DRY programme for Cotton. The SECOND drying load of 3 kg
(load composition: 3 sheets and towels) must be tested by setting the AUTOMATIC CUP-
BOARD DRY programme for Cotton.
5.3 Programmes for timed drying
Dryness Level Type of fabric Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels,
etc)
7 1600 240 - 250
5 1600 140 - 160
2 1600 85 - 95
Cupboard Dry
For items to put away
Cottons and Linen
(bathrobes, bath towels,
etc)
7 1600 230 - 240
5 1600 130 - 150
2 1600 75 - 85
Cupboard Dry
For items to put away
Synthetics and mixed
fabrics
(jumpers, blouses, under-
wear, household linen)
3 1200 135 - 145
1 1200 40 - 50
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
7 1600 210 - 230
5 1600 100 - 120
2 1600 65 - 75
Wool dry Wool
(wool jumpers)
1 1200 110 - 130
ENGLISH 15

5.4 Woolmark Apparel Care -
Blue
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are washed
according to the instructions issued by
the manufacturer of this washing
machine. Follow the garment care label
for drying and other laundry
instructions. M1144
• The wool drying cycle of this machine
has been approved by The Woolmark
Company for the drying of wool
garments labelled as «hand wash»
provided that the garments are dried
according to the instructions issued by
the manufacturer of this machine.
Follow the garment care label for other
laundry instructions. M1224
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient temperature.
At programme start the display shows the duration programme for the
maximum load capacity.
During the washing phase the programme duration is automatically calcu-
lated and can be greatly reduced if the laundry load is lower than the maxi-
mum load capacity (e.g. Cotton 60°C, maximum load capacity 9 kg, the
programme duration exceeds 2 hours; real load 1 kg, the programme du-
ration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot blinks
in the display.
Programmes Load
(kg)
Energy
con-
sumption
(kWh)
Water con-
sumption
(litre)
Approximate pro-
gramme duration
(minutes)
Cottons 60 °C 9 1.6 69 168
Energiesparen - Economi-
que
Cotton Energy Saving Pro-
gramme 60 °C1)
9 1.05 63 230
Cottons 40 °C 9 1.0 69 164
Synthetics 40 °C 4 0.6 48 105
www.electrolux.com16

Programmes Load
(kg)
Energy
con-
sumption
(kWh)
Water con-
sumption
(litre)
Approximate pro-
gramme duration
(minutes)
Delicates 40 °C 4 0.7 58 86
Wool/Handwash 30 °C 2 0.35 57 61
1) «Cotton Energy Saving programme » at 60°C with a load of 9 kg is the reference pro-
gramme for the data entered in the energy label, in compliance with EEC 92/75 standards.
7. OPTIONS
7.1 Ein/Aus - Marche/Arrêt
Press this button to activate or deactivate
the appliance. A tune sounds when the
appliance is activated.
The AUTO Stand-by function automatically
deactivates the appliance to decrease the
energy consumption when:
• You do not use the appliance for 5
minutes before you pressStart/Pause -
Départ/Pause button.
All setting are cancelled.
Press the button Ein/Aus - Marche/
Arrêt to activate the appliance again.
Set again the washing programme and
all possible functions.
• After 5 minutes from the end of the
washing programme
Refer to 'At the end of the programme'
7.2 Programme knob
Turn this knob to set a programme. The
related programme indicator comes on.
7.3 Temperatur - Température
Press this button to change the default
temperature. When the display shows
and , the appliance does not heat the
water.
7.4 U./Min. - T/min.
Press this button to:
• Decrease the maximum speed of the
spin phase of the programme.
The display shows only
the spin speeds available
with the set programme.
• Deactivate the spin phase.
• Activate the Rinse Hold function.
Set this function to prevent fabric
creases. The appliance does not drain
the water when the programme is
completed.
7.5 Flecken - Taches /
Vorwäsche - Prélavage
Press this button to add the stain and/or a
prewash phase to a programme.
Press the button again and again to
activate one or two options. The related
symbol and the indicator bar comes on in
the display.
•Flecken - Taches: Use this option for
laundry with hard stains to remove.
When you set this option, put the stain
remover into compartment . This
function increases the programme
duration.
This option is not available
with a temperature lower
than 40° C.
•Vorwäsche - Prélavage: Use this
option to add a prewash phase before
the washing phase.
We recommend that you use this
option when you have laundry with a
high level of soil.
The set of this option
increases the programme
duration.
ENGLISH 17

7.6 Extra Spülen - Rinçage +
Press button Extra Spülen - Rinçage + to
add rinsing phases to a programme.
Use this function for persons allergic to
detergents and in areas where the water is
soft.
7.7 Zeit Sparen - Gain de Temps
With this option you can decrease the
programme duration.
• Press this button one time to set
'Shortened duration' for items with
daily soil.
• Press this button two times to set
'Extra Quick' for items with almost no
soil.
Some programmes accept
only one of the two options.
7.8 Zeitvorwahl - Départ Différé
With this option you can delay the start of
a programme from 30 minutes to 20
hours.
The display shows the related indicator
and delay time.
7.9 Start/Pause - Départ/Pause
Press button Start/Pause - Départ/Pause
to start or interrupt a programme.
7.10 Trockengrad - Niveau de
séchage
Press this button to set one of 3 automatic
dryness levels proposed by the appliance.
The display shows the symbol of the set
level:
•Iron dry – laundry to be ironed
•Cupboard dry – laundry to be put
in store
•Extra dry – laundry to be fully
dried
You cannot set all
automatic levels for each
type of fabrics.
7.11 Trockenzeit - Minuterie
Press this button to set the time that suits
the fabrics you have to dry. The display
shows the set value.
Each time you press this button the time
value increases by 5 minutes.
You cannot set all time
values for different types of
fabrics.
8. SETTINGS
8.1 Acoustic signals
The acoustic signals operate when:
• You activate the appliance.
• You deactivate the appliance.
• You press the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, press Flecken Taches /Vorwäsche
Prélavage and Extra Spülen - Rinçage + at
the same time for 6 seconds.
If you deactivate the acoustic
signals, they continue operate
when the appliance has a
malfunction.
8.2 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
press Temp. and U./Min. - T/min. at
the same time until the indicator
comes on/goes off.
You can activate this option:
• After you press Start/Pause - Départ/
Pause : the options and the
programme knob are locked.
• Before you press Start/Pause - Départ/
Pause : the appliance cannot start.
www.electrolux.com18

8.3 Permanent Extra Rinse
With this option you can permanently have
an extra rinse when you set a new
programme.
• To activate/deactivate this option
press Zeit Sparen - Gain de Temps
and Zeitvorwahl - Départ Différé at the
same time until the indicator Extra
Spülen - Rinçage + comes on/goes
off.
9. DAILY USE - WASHING ONLY
9.1 Before first use
1. Put a small quantity of detergent in the
compartment for washing phase.
2. Set and start a programme for cotton
at the highest temperature without
laundry.
This removes all possible dirt from the
drum and the tub.
9.2 Loading the laundry
1. Open the appliance door
2. Put the laundry in the drum, one item
at a time.
3. Shake the items before you put them
in the appliance.
Make sure not to put too much laundry in
the drum.
4. Close the door.
CAUTION!
Make sure that no laundry stays between
the seal and the door. There is a risk of
water leakage or damage to the laundry.
9.3 Filling the detergent and
additives
Compartment for prewash phase,
soak programme or stain remover.
Compartment for washing phase.
Compartment for liquid additives
(fabric conditioner, starch).
Maximum level for quantity of liquid
additives.
Flap for powder or liquid detergent.
Always obey the instructions
that you find on the
packaging of the detergent
products.

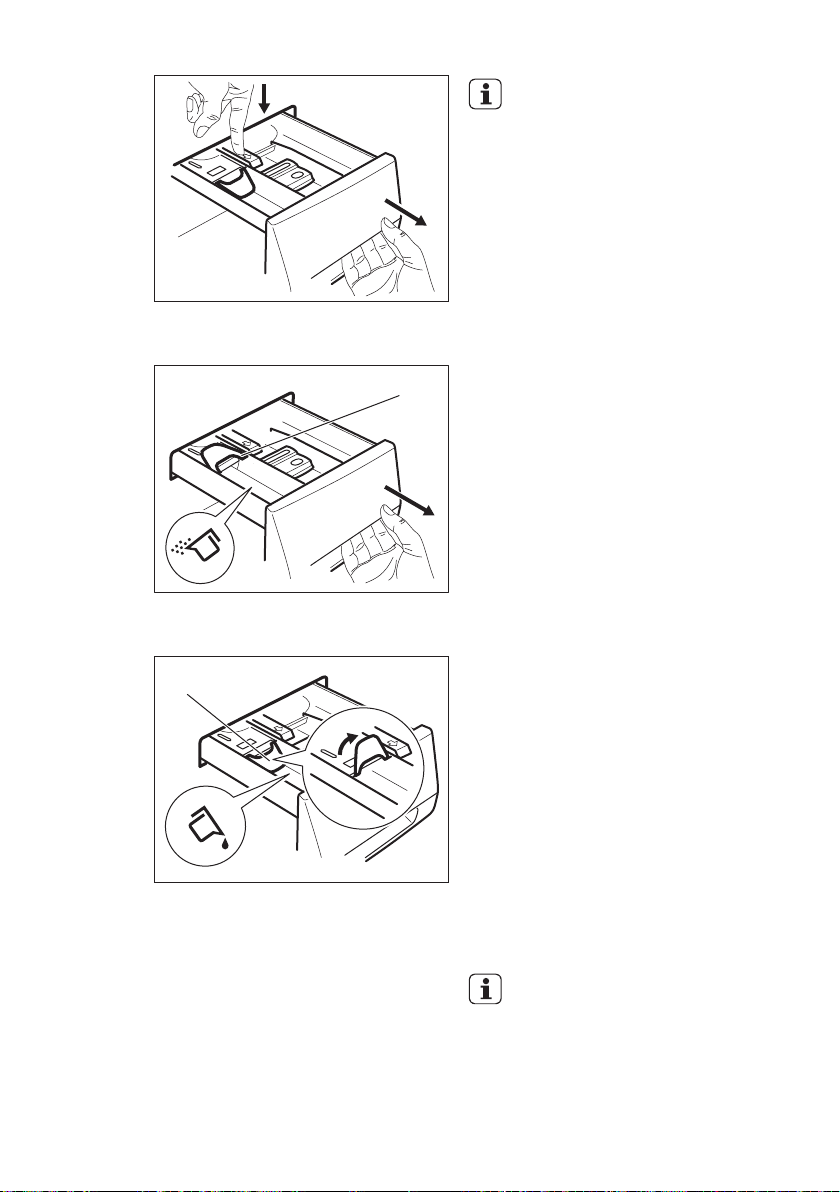

9.4 Check the position of the
flap
1. Pull out the detergent dispenser until it
stops.
2. Press the lever down to remove the
dispenser.
ENGLISH 19

1
2
3. To use powder detergent, turn the flap
up.
A
4. To use liquid detergent, turn the flap
down.
B
With the flap in the
position DOWN:
• Do not use gelatinous
or thick liquid
detergents.
• Do not put more liquid
detergent than the
limit showed in the
flap.
• Do not set the
prewash phase.
• Do not set the delay
start function.
5. Measure out the detergent and the
fabric conditioner.
6. Carefully close the detergent
dispenser.
Make sure that the flap does not cause a
blockage when you close the drawer.
9.5 Activating the appliance
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
3. Press button Ein/Aus - Marche/Arrêt
to activate the appliance.
A short tune sounds.
9.6 Setting a programme
1. Turn the programme knob and set the
programme:
• The related programme indicator
comes on.
• The indicator of Start/Pause -
Départ/Pause flashes.
• The display shows: the default
temperature, the spin speed, the
indicators of the programme
phases and the programme
duration.
2. If necessary, change the temperature,
the spin speed, the cycle duration, or
add available options. When you
activate an option, the indicator of the
set option comes on.
If you set something
incorrect, the display shows
the message Err.
www.electrolux.com20
