Electrolux EYL85016WM User manual

EYL85016WM
EYL95016WM
EYL10516WM
WATER HEATER USER MANUAL

2 www.electrolux.com
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with
it decades of professional experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be safe in the knowledge that
you’ll get great results every time. Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
2. SAFETY INSTRUCTIONS...................................................................................... 6
3. ELECTRICAL REQUIREMENTS............................................................................. 8
1. SAFETY INFORMATION........................................................................................4
4. WATER REQUIREMENTS....................................................................................10
5. INSTALLATION....................................................................................................11
6. OPERATION INSTRUCTION................................................................................18
7. MAINTENANCE ...................................................................................................21
8. HELPFUL HINTS AND TIPS.................................................................................22
9. TROUBLESHOOTING..........................................................................................23
CONTENTS

3ENGLISH
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Electrolux Customer Service, ensure that you have the following data
available. The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
GB IE
GREAT BRITAIN & IRELAND - Customer Care and Service
Standard Guarantee Conditions and Exclusions.To see our guarantee conditions and
exclusions please visit www.electrolux.co.uk or contact our Customer Care Department.
Service & Spare Parts. Please contact your local Service Force Centre on; 08445 616616
(Your call will automatically be routed to your local centre) For the address of your local
centre please visit; www.electrolux.co.uk Please ensure you read the information under
‘What to do if’ in your instruction booklet before contacting us for service.
Servicing and/ or installation of your product, including electrical connections and water
connections should be carried out by a suitably qualied engineer. In the user manual and
on our web site, www.electrolux.co.uk you will nd some useful information on how to
deal with minor faults and how to take care of your product. When contacting us for
Service please ensure that you have your purchase receipt and the following information
available:
Model No............................................... Serial No..................................................
Product No............................................ Purchase Date:.........................................
Republic of Ireland: For Customer Care or Service please contact us at the following
address, Electrolux Group(Ir) Ltd, Long Mile Rd, Dublin 12, Republic of Ireland.
Tel No. [phone], E mail; [email protected]
Electrolux : 08445 613613
Customer Care. Please contact Electrolux Major Appliances, Addington Way, Luton,
Bedfordshire, LU4 9QQ.

Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
Risk of suffocation, injury or permanent disability.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
1. SAFETY INFORMATION
1.1 Children and vulnerable people safety
1.2 General Safety
Keep all packaging away from children.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Before maintenance swich off the appliance.
Do not switch on if there is a possibility that the water in
the heater is frozen.
The spray head must be descaled regularly.
The outlet must not be connected to any tap or tting
other than those specied.
WARNING!
4 www.electrolux.com

The appliance must be earthed.
Do not install the appliance in locations where freezing
can occur.
The means for disconnection must be incorporated in
the xed wiring in accordance with the wiring rules.
The xed wiring insulation must be protected, for
example, by insulating sleeving having an appropriate
temperature rating.
The pressure relief device must be tted during
installation, unless it is incorporated in the appliance.
The appliance must be permanently connected to xed
wiring.
5ENGLISH

Remove all the packaging.
Do not install or use a damaged appliance.
All products manufactured and supplied by
Electrolux are safe provided they are
installed, used correctly and receive regular
maintenance in accordance with these
instructions.
Only a qualied person must install
this appliance.
2.1 Installation
2.2 Use
WARNING!
2. SAFETY INSTRUCTIONS
Risk of re and electrical shock.
WARNING!
Make sure that a shock protection is
installed.
Use the strain relief clamp on cable.
Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact the Service or an electrician
to change a damaged mains cable.
All electrical connections must be made by
a qualied electrician.
The appliance must be earthed.
Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
Use the correct electricity mains cable.
Do not let the electricity mains cable tangle.
Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
Always switch off the power at the
consumer unit and isolate the electrical
supply before making any electrical
connections or if you have to remove the
cover of an installed unit.
Remove all the packaging, labeling and
protective lm (if applicable) before rst use.
Obey the installation instruction supplied
with the appliance.
Keep the minimum distance from the other
appliances and units.
If you are in any doubt about your ability to
install this product safely you must employ
the services of an experienced qualied
plumber/electrically qualied person.
Do not operate the shower unit if you
suspect the water inside is frozen. Do not
site the shower unit where it might be
subjected to freezing conditions.
Do not install this shower unit in a
room/environment without adequate
ventilation or an extractor tted. This is
required to prevent condensation forming
within the unit.
The unit must be mounted on the nished
wall surface (usually tiled). Under no
circumstances must you tile up to or seal
around the unit as this may prevent air
circulating and condensation escaping.
This shower unit must not be modied* in
any way as this will invalidate the guarantee.
* Except for those indicated on this manual
where the product has been designed to
be modied by the installer.
You must not t a “water saving” handset
(whereby the ow of water can be
restricted or turned off) to the shower,
otherwise this can result in scalding and/or
unit failure.
Electrical connection
Risk of re and electrical shock.
WARNING!
6 www.electrolux.com

Do not change the specication of this
appliance.
Do not operate the shower unit if the
showerhead or spray hose has been
damaged or is blocked.
2.3 Disposal
Do not block the ow of water from the
showerhead, by placing it (smothering it)
on your hand or any other part of your
body or foreign object.
Do not operate the shower if the water
stops owing during use or if the water is
leaking from the shower unit itself.
Turn off at the mains electrical supply and
refer to the Troubleshooting section (see
page 23) or contact Electrolux Customer
Services (see page 3).
Do not crush or kink the shower hose, this
could damage the hose, cause leaks and
activate the pressure relief device.
Contact your municipal authority for
information on how to discard the
appliance correctly.
Disconnect the appliance from the mains
supply.
Cut off the mains cable and discard it.
2. SAFETY INSTRUCTIONS
Risk of injury or suffocation.
WARNING!
7ENGLISH

8 www.electrolux.com
3. Electrical Requirements
Mains electrical
supply
Shower unit
30mA RCD for
ampage of
MCB/Fuse see
circuit protection
table on page 5
For cable capacity see
cable current carrying
capacity table on page 5
This appliance MUST be earthed!
Unit power table
The installation, supply cable and circuit
protection must conform with BS 7671 (IEE
wiring regulations) and be sufcient for the
amperage required.
Important: Before making any sort of
electrical connection within the installation
make sure that no terminal is live. If in any
doubt, switch off the whole installation at the
mains supply and remove the correct fuse.
The shower must only be connected to a
230-240V ac supply. If you are installing a
shower with a kilowatt rating above 9kW, it is
advisable to contact the local electricity
supply company.
The shower must be connected to its own
independent electrical supply. It must not be
connected to a ring main, spur, power
socket, or lighting circuit.
The electrical supply must be adequate for
the loading of the unit and existing circuits.
Check your consumer unit (main fuse box)
has a main switch rating of 80A or above and
that it has a spare fuse way which will take
the fuse or Miniature Circuit Breaker (MCB)
necessary for the shower
If your consumer unit has a rating below 80A
or if there is no spare fuse way, then the
installation will not be straightforward and
may require a new consumer unit serving the
house or just the shower. In this case, you
will need to contact the local electricity
company. They will check the supply and
carry out what is necessary.
WARNING!
Rating at 240V Rating at 230V
8.5kW 7.8kW
9.5kW 8.7kW
10.5kW 9.5kW
Consumer unit
Double pole switch

9ENGLISH
3. Electrical Requirements
The current rating will be reduced if the
cabling is bunched with others, surrounded
by thermal loft or wall insulation or placed in
areas where the ambient temperature is
above 30°C. Under these conditions, derating
factors apply and it is necessary to select a
larger cable size.
In the majority of installations, the cable will
unavoidably be placed in one or more of the
above conditions. If so, it is strongly
recommended to use a minimum of 10mm
cabling throughout the shower installation.
In any event, it is essential that individual site
conditions are assessed by a competent
electrician in order to determine the correct
cable size and permissible circuit length.
Circuit Protection table.
Where shower cubicles are located in any
rooms other than bathrooms, all socket
outlets in those rooms must be protected by
a 30mA RCD.
The current carrying capacity of the cable
must be at least that of the shower circuit
protection (see Cable current carrying
capacity table).
To obtain full advantage of the power
provided by the shower, use the shortest
cable route possible from the consumer unit
to the shower.
The shower circuit should be separated from
other circuits by at least twice the diameter of
the cable or conduit.
Unit Rating
(240V)
Circuit Protection Device
MCB Cartridge Fuse
8.5kW
9.5kW
10.5kW
40A 45A
40/45A 45A
45A 45A
Cable current carrying capacity table (for twin and earth PVC insulated cable)
Current carrying capacity
In an insulated wall In conduit or trunking Clipped direct or buried
in a non insulated wall
6mm² 32A 6mm² 38A 6mm² 46A
10mm² 43A 10mm² 52A 10mm² 63A
Note: Cable selection is dependant on derating factors
For close circuit protection DO NOT use a
rewireable fuse. Instead use a suitably rated
Miniature Circuit Breaker (MCB) or cartridge
fuse (see Circuit protection table).
A 30mA residual current device (RCD) must
be installed in all UK electric and pumped
shower circuits. This may be part of the
consumer unit or a separate unit.
A 45 amp double pole isolating switch with a
minimum contact gap of 3 mm in both poles
must be incorporated in the circuit.
It must have a mechanical indicator showing
when the switch is in the OFF position, and
the wiring must be connected to the switch
without the use of a plug or socket outlet.
The switch must be accessible and clearly
identiable, but out of reach of a person
using a xed bath or shower, except for the
cord of a cord operated switch, and should
be placed so that it is not possible to touch
the switch body while standing in a bath or
shower cubicle. It should be readily
accessible to switch off after using the
shower.

10 www.electrolux.com
Isolating stop valve
Mains water
supply Shower unit
Bath spillover
level
Hose retainer
Minimum 25mm
between showerhead
and spillover
1m minimum
height from
shower unit to
floor
4. Water Requirements
This shower needs to be installed in
accordance with the following Installation
Requirements and Notes (IRN) to ensure
they meet the requirements of the Water
Supply (Water Fittings) Regulations 1999
and the Scottish Byelaws 2004.
If the riser kit is supplied with a ‘soapdish
hose retainer’ or bespoke ‘hose retainer’, it
will in most cases meet this requirement. If
the showerhead can still be placed within a
bath, basin or shower tray within the 25mm
limit, then a double check valve, or similar,
MUST be tted in the supply pipework to
prevent back-ow.
It is required that the showerhead be
constrained by a xed or sliding attachment
so that it can only discharge water at a point
not less than 25mm above the spill-over level
of the relevant bath, shower tray or other
xed appliance
If the shower is to be installed in a hard water
area, we recommend that an in-line scale
inhibitor is tted which will prolong the life of
the shower. Please refer to your supplier for
advice.
The shower must be connected to a mains
water supply only with a minimum working
inlet pressure of 0.07MPa (0.7bar) at a
minimum ow rate of 8 litres per minute. The
maximum static inlet pressure must not
exceed 1.0MPa (10bar).
If it is intended to operate the shower at
pressures above the maximum stated, a
suitable pressure reducing device (PRD)
should be used.
Do not operate the shower unit if
you suspect the water inside is
frozen. The shower must not be
installed in an area subject to
freezing conditions.
WARNING!

11ENGLISH
5. INSTALLATION
5.1 Select the location and hang
up the shower
While planning your shower installation,
make sure you allow sufcient clearance
between the ceiling and walls to allow any
future maintenance (cleaning the lter etc.)
to be performed.
Water entry position:
Remain a proper distance between the top
of the unit and the ceiling to access cover
screws.
Position the unit where it will NOT be in
direct contact with water from the
showerhead. Position the shower unit
vertically. The shower should be 1m
minimum height from oor.

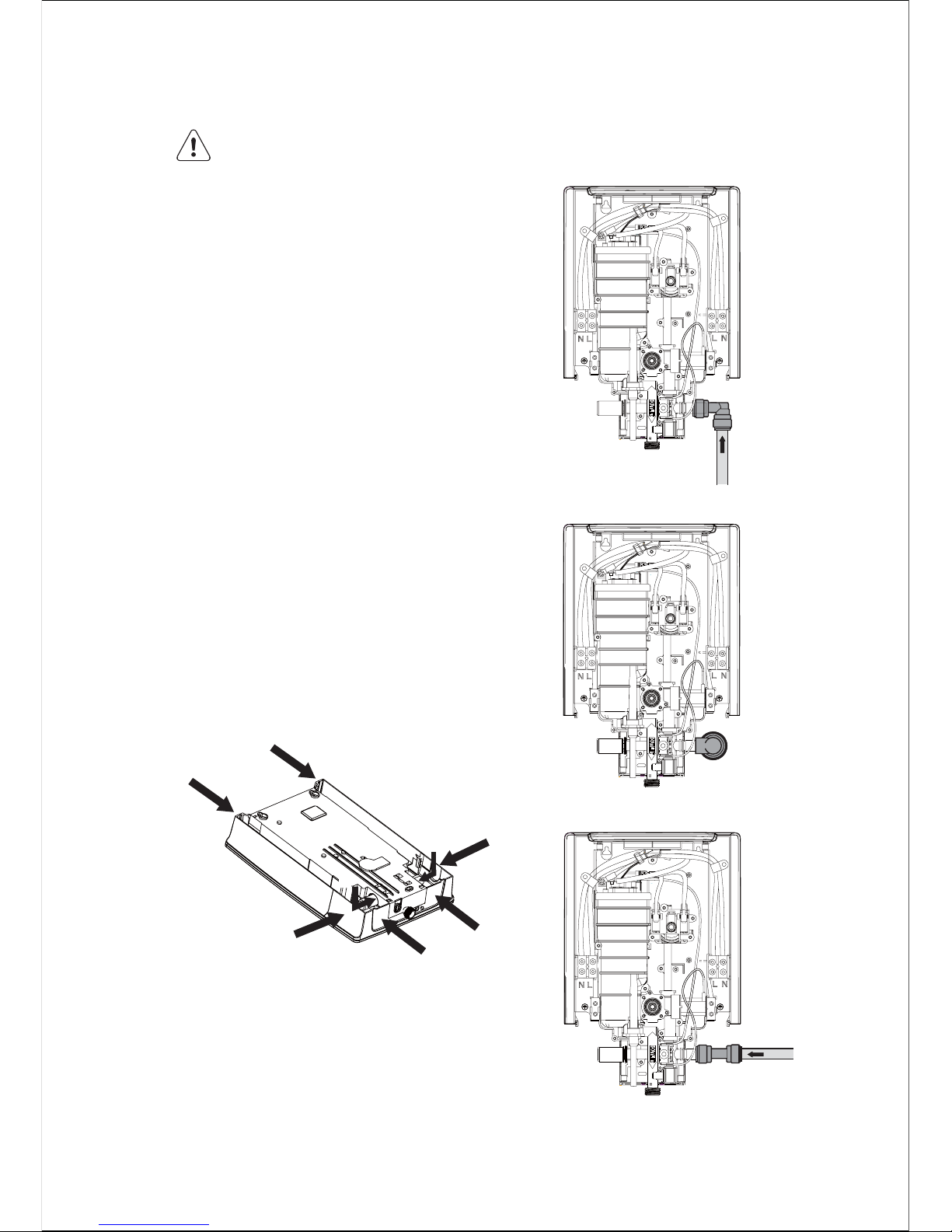

Take the proper water and cable entry
position into consider while selecting the
installation position. See Fig. 1 for the water
and cable entry position options.
Fig. 1
Before installation, make sure
you read through the electrical
requirements and water
requirements section.
WARNING!
1
2
3
4
5
6
7
8
Bottom right inlet entry
Rear right inlet entry
Right inlet entry

12 www.electrolux.com
5. INSTALLATION
Bottom left inlet entry Top left inlet entry
Rear left inlet entry
Top right inlet entry Left inlet entry
Screw the top xing screws into position
leaving the base of the screw head
protruding 6mm out from the wall.
Using the installation template supplied,
mark the positions of the three xing holes.
To mark the drilling position
Check if there is any buried pipes or
cables before drilling.
CAUTION!
NOTE: Ensure that there are sufcient
lengths of supply pipe and electrical cable
to reach the connection points as shown
on the template.
Remove the installation template and drill
the xing holes (dimension). Insert the wall
plugs (supplied).

13ENGLISH
Connect the mains water supply to the
water inlet by using a 15MM pusht (not
supplied). DO NOT use excessive force
when making the connection.
NOTE: Make sure the o-ring is clean and
on the correct position when putting the
terminal block on.
To connect the mains water supply
The xing holes are elongated to allow for
out of square adjustment after the plumbing
connection has been completed.
To remove the water inlet cover
Unscrew the water inlet cover xing screws
and pull the water inlet cover out Fig. 4.
To change the water inlet position
The factory default setting of the water inlet
position is on the right side. To change the
water inlet position just remove the terminal
block from the left side and put it on the
right side. When you remove the terminal
block, you need to pull out the steel
fastening strip rst and x it on the terminal
block again when you put the terminal block
on the right side. After that try to pull the
terminal block out to check if it is fixed.
Fig. 4a
Fig. 4b
Terminal block
Fig. 4.
5.2 Plumbing connection

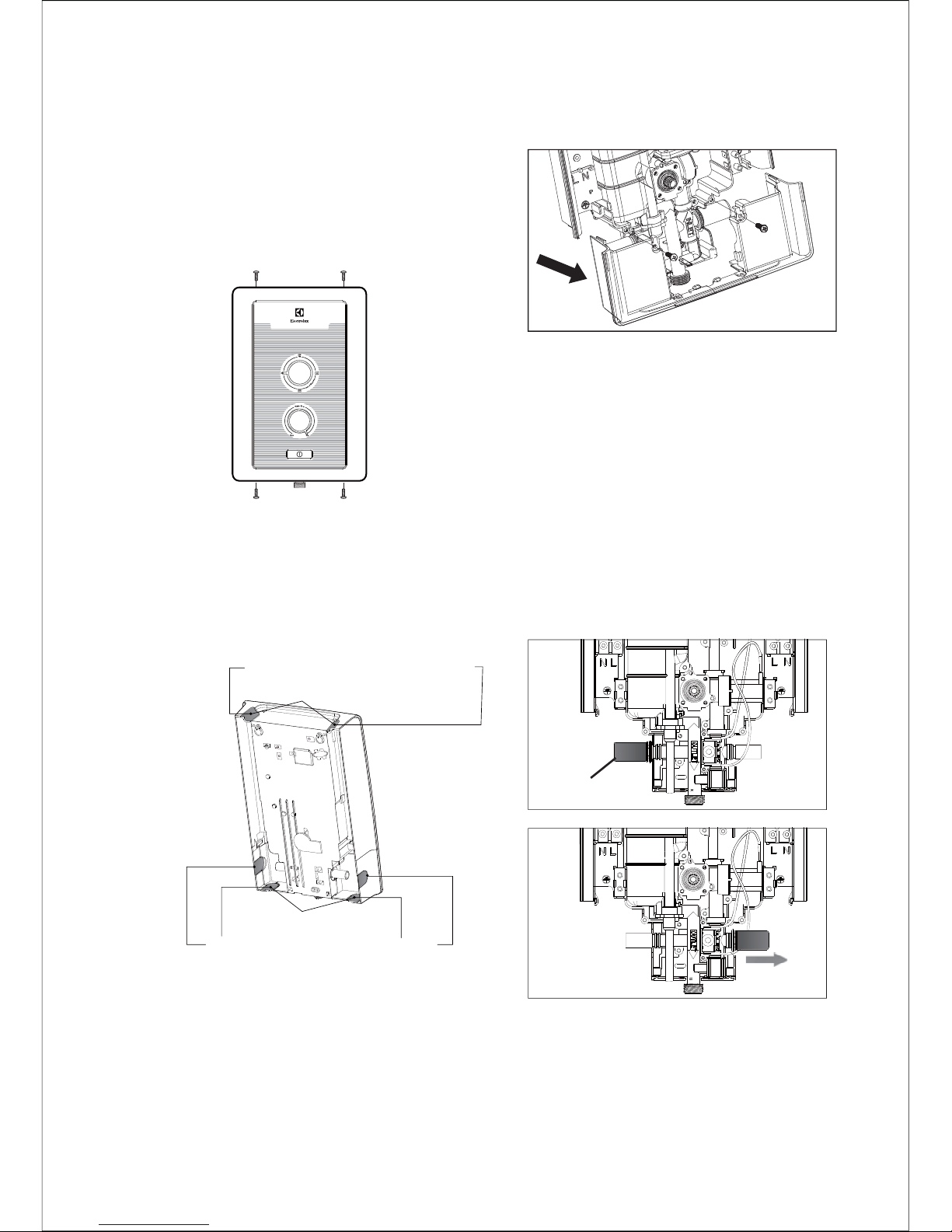

To remove the front cover
Hook the backplate over the top screw and
t the bottom xing screws into position, but
DO NOT fully tighten the screws at this stage.
Unscrew the screws that fixing the front
cover (Fig. 2), then remove the front cover.
Fig. 2
NOTE: The knobs and On/off button are
fixed on the front cover. Do not try to
remove them.
According to the water and cable entry point
you selected, cut out the trim plate on the
chassis. To do that you may need a pair of
pincers. See Fig. 3 for the location of the
trim plate.
To remove the entry point trim plate
Fig. 3 Water Pipe entry points trimplate
Water Pipe entry points trimplate
Cable entry points
Cable entry points
5. INSTALLATION

5. INSTALLATION
This Electrolux shower heater has 2 wiring
terminals and 2 earthing terminals shown
as Fig. 6. You can choose the proper
terminals when connecting the wiring.
Fig. 6
To select the wiring terminal position
5.3 Electrical wiring connection
t
A proper sealant should always be used
to seal around the incoming pipework to
prevent water entering the wall.
t
If entry is from the back, the nut of the
the surface of the wall. This area MUST
be left clear when plastering and tiling
around the pipework in order to make the
nut accessible for future adjustments(Fig. 5).
Turn on the mains water supply and check
for leaks in the pipework connection to the
shower.
NOTE:
through the unit.
To check the water supply leak
NOTE:
t
through to remove debris and swarf that
could otherwise damage the unit.
21mm
Fig. 5
14 www.electrolux.com
Wiring terminal.
Earthing terminal.

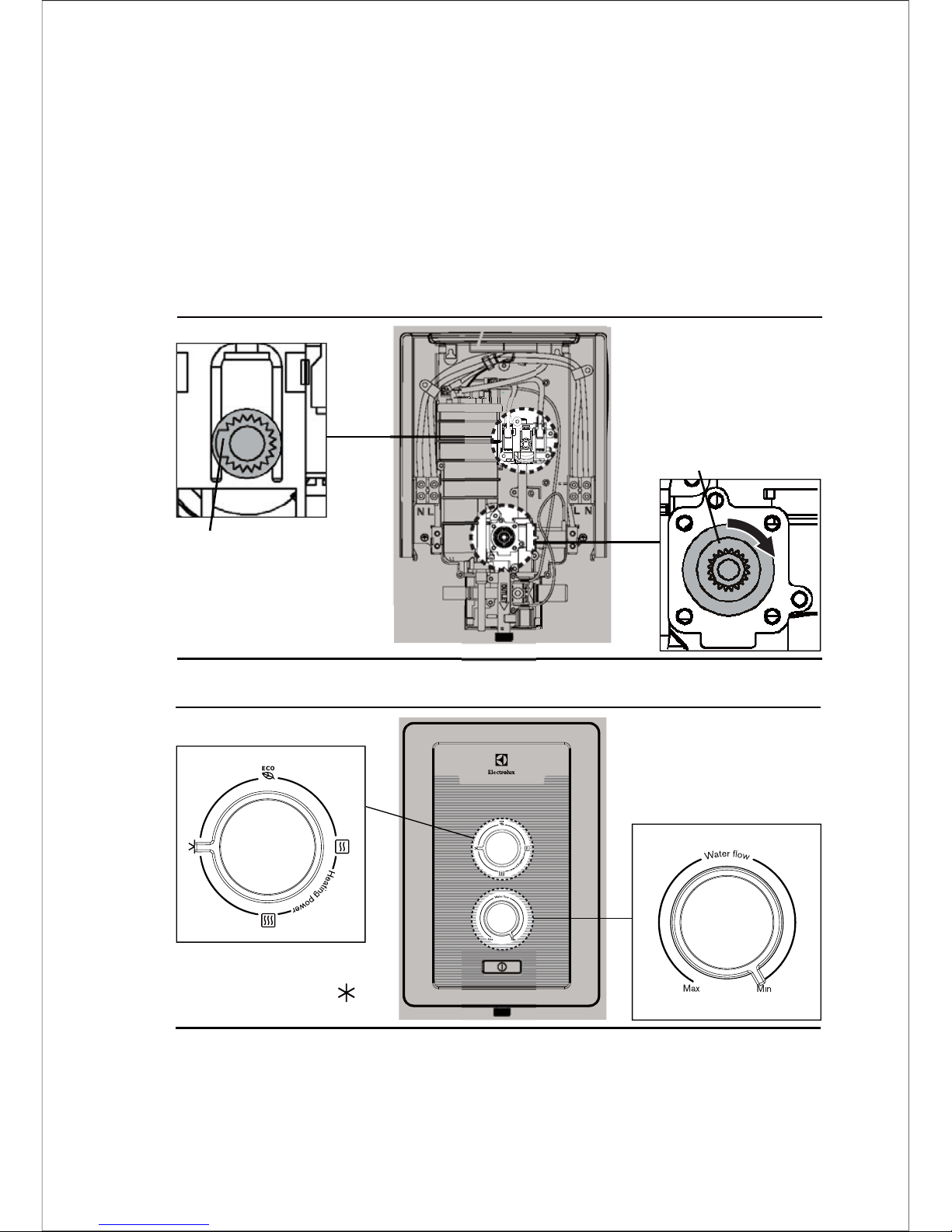

2. Adjust the spline spindle and the control
knob to the correct position before replacing
the cover Fig. 7, 8 show the correct pline
spindle and the control knob position.
1. Before xing the front cover to the shower,
tighten the 3 screws to x the shower on the
wall rmly.
5.4 Fixing the front cover
Route the cable into the shower unit for
connection to the terminal block as follows:
To do the wiring connection
Earth:
cable to terminal marked
Live:
cable to terminal marked
L
N
Neutral:
cable to terminal marked
Important!
When connecting the cable fully tighten the
terminal block screws and make sure that
no cable insulation is trapped under the
screws. Loose connections can result in
cable overheating.
Warning
only one of the terminal blocks is to used
for the supply cable connection, the other
terminal block is not to be used.

5. INSTALLATION
Fig. 8
Turn the heating power
knob to the COLD “ ”
position.
3.
Turn the temperature
control knob fully
clockwise to the Minimum
Water flow position.
4.
Fig. 7
Turn the heating power
selector spindle clockwise
until the at section is on
the left hand side.
1.
Turn the stabiliser valve
spindle fully clockwise
until resistance is felt.
2.
Flat section to
left hand side
Stabiliser valve
3. Reassemble the water inlet cover.
4. Check to ensure that the wiring is not
trapped and replace the cover squarely to
the backplate and guide into position so that
the knobs locate correctly into the splined
spindles. Should any difculty arise, recheck
the points above.
5. While applying slight pressure to the cover,
secure in position with the retaining screws.
6. Once you place the front cover on the
back cover properly x the front cover with
the 4 screws.
15ENGLISH

Sliding rail
(without a hold)
Fig 11
Sliding rail bottom
(with a hold)
To install the assembly of the sliding rail.4.
a. Assemble the sliding seat into the sliding
rail from the top of the sliding rail. The
release button should be pointing upward,
when installing the sliding seat(see Fig 11).
5. INSTALLATION
Fig. 10
5.5 Install the bracket
Find a proper place to drill two holes
(5.5mm diameter) in the vertical direction
with 425±1mm distance (Fig 9).
1.
NOTE: Use the exible hose to locate the
proper position for the bracket if necessary.
Put the wall plugs on the holes, then
remove the sliding rail holder covers from
the sliding rail holders and x one of the
sliding rail holders on the upper position,
then replace the sliding rail holder cover.
3.
Check if there is any buried pipes or
cables before drilling.
WARNING!
NOTE: When xing the sliding rail holder,
point the opening downward (see Fig. 10).
Sliding Seat
Sliding rail
Soap tray
Screw
Wall plug
Soap tray holder
Sliding seat
release button
Sliding rail
holder cover
Sliding rail holder
Bracket parts
425±1mm
Fig. 9
16 www.electrolux.com

5. INSTALLATION
c. Assemble the soap tay on the soap tray
holder.
d. Place the sliding rail between the holders
and x the sliding rail by xing the lower
holder as Fig. 13 shown.
b. Assemble the soap tray holder from the
bottom of the sliding rail as Fig. 12 shown.
Point the open
gap upward
The larger hole should
be pointed outside
Fig. 13
Fig. 12
17ENGLISH

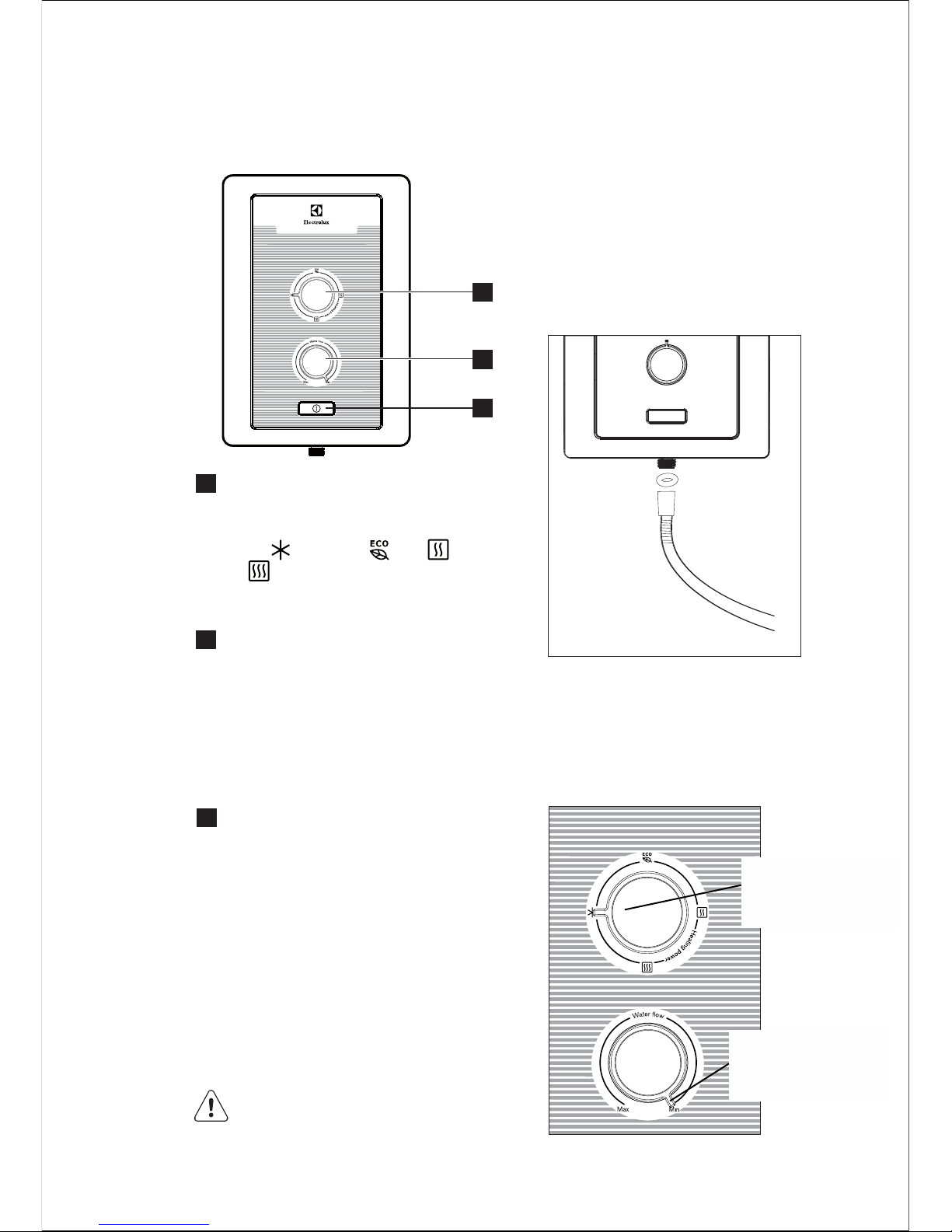

6. OPERATION INSTRUCTION
Temperature controler
The temperature knob adjusts water
temperature by increase/decrease the
water ow:
- Clockwise rotate, decrease water
ow, water temperature increases
- Anti-clockwise rotate, increase water
ow, water temperature decreases.
On/off button
Control the shower unit's electricity
and working start/stop, when push on,
water ows out, when push off, water
stops.
NOTE: When you press the On/off button
to start the unit water start to ow out from
the showerhead. To avoid too hot or too
cold water ow, do not let showerhead
point directly to human body.
6.2 Before rst use
6.1 Product features
Before normal operation of the shower, it is
essential that the following commissioning
procedure is completed correctly.
The following operation is intended to ush
out any remaining debris, and to make sure
the heater unit contains water before the
heating elements are switched on.
1. Make sure the exible hose is screwed
to the water outlet but WITHOUT THE
SHOWERHEAD ATTACHED and the outlet
of the exible hose is directed to waste.
2. Before turning on the electric and mains
water supplies to the shower, make sure that
the Heating power knob is at the “COLD”
position and the temperature knob is turned
fully clockwise to ‘MINIMUM’ flow (Fig.15).
CAUTION!
Heating power selector
This knob is used to adjust heating
power. There are 4 positions
cold “ ”, I(ECO) “ ”, II “ ” and
III “ ”, each adjustment is 90°. The
higher the power, the higher the outlet
temperature.
Fig. 15
18 www.electrolux.com
1
2
3
Turn the Heating
power knob
to COLD.
Turn the temperature
knob fully clockwise
to “MINIMUM” flow.
2
3
1
Fig. 14

6. When a smooth flow of water is obtained,
rotate the temperature control from MINIMUM
to MAXIMUM several times to release any
trapped air within the unit.
7. Once flushing out has been completed,
stop the water flow by pressing the On/off
button.
8. Fit the showerhead to the flexible hose and
place in the showerhead holder.
The shower is now ready for normal operation.
Make sure the commissioning procedure
has been carried out.
Press the On/off button and water will ow.
Press the On/off button again and water
will cease to ow.
When not using the shower unit, insolate
the unit from main circuit via the double
pole switch.
Cold: the cold setting does not provide
any heat from the heater to the incoming
water.
I(ECO): Uses only the low power heating
element within the shower unit.
II: Uses the high power heating element
within the shower unit.
III: Uses both of the low/high heating
elements within the shower unit to provide
the highest heating efciency.
NOTE: It will take a few seconds for the
temperature to stabilise after changing the
Heating power knob position.
The water temperature is altered by
increasing or decreasing the ow rate of
the water through the shower via the
temperature control.
After obtaining your showering temperature,
the knob can be left as the normal setting
and should only need altering to
compensate for seasonal changes in
ambient water temperature.
Turn the temperature control anti-clockwise
- this will increase the ow of water through
the shower and make the water colder.
NOTE: The preferred knob position on
ECONOMY will give a different temperature
to the same position on HIGH.
To decrease the shower temperature
To adjust the shower temperature
(ECO and “II” or “III” settings only)
The power selector has four positions -
Cold “ ”, I(ECO) “ ”, II “ ” and
III “ ”.
To start the shower
To stop the shower
To use the power selector
6.3 Daily use
If restarting immediately after stopping,
be aware that a slug of hot water will
be expelled for the rst few seconds.
WARNING!
Fig. 16
Temperature control -
Turn fully anti-clockwise
to MAXIMUM flow
19ENGLISH
3. Turn on the mains water supply to the
shower at the isolating stopvalve and then
turn on the electric supply to the shower at
the isolating switch.
4. Press the On/off button and wait until
water starts to flow from the flexible hose.
5. Slowly rotate the temperature control fully
anti-clockwise to the MAXIMUM flow position
(Fig.16). It will take about thirty seconds for a
smooth flow of water to be obtained while air
and any debris is flushed from the shower.
Failure to turn the control to the
minimum ow position MAY cause
the PRD(Pressure Relief Device) to
operate.
CAUTION!
6. OPERATION INSTRUCTION

Spray + Massage
Massage
Setting Water ow Description
Setting Water ow Description
Spray
Setting
Broader, suitable for large area
shower.
Widest, suitable for large area
shower.
Concentrated spray impact area,
suitable for focus shower of one
certain area.
Water ow Description

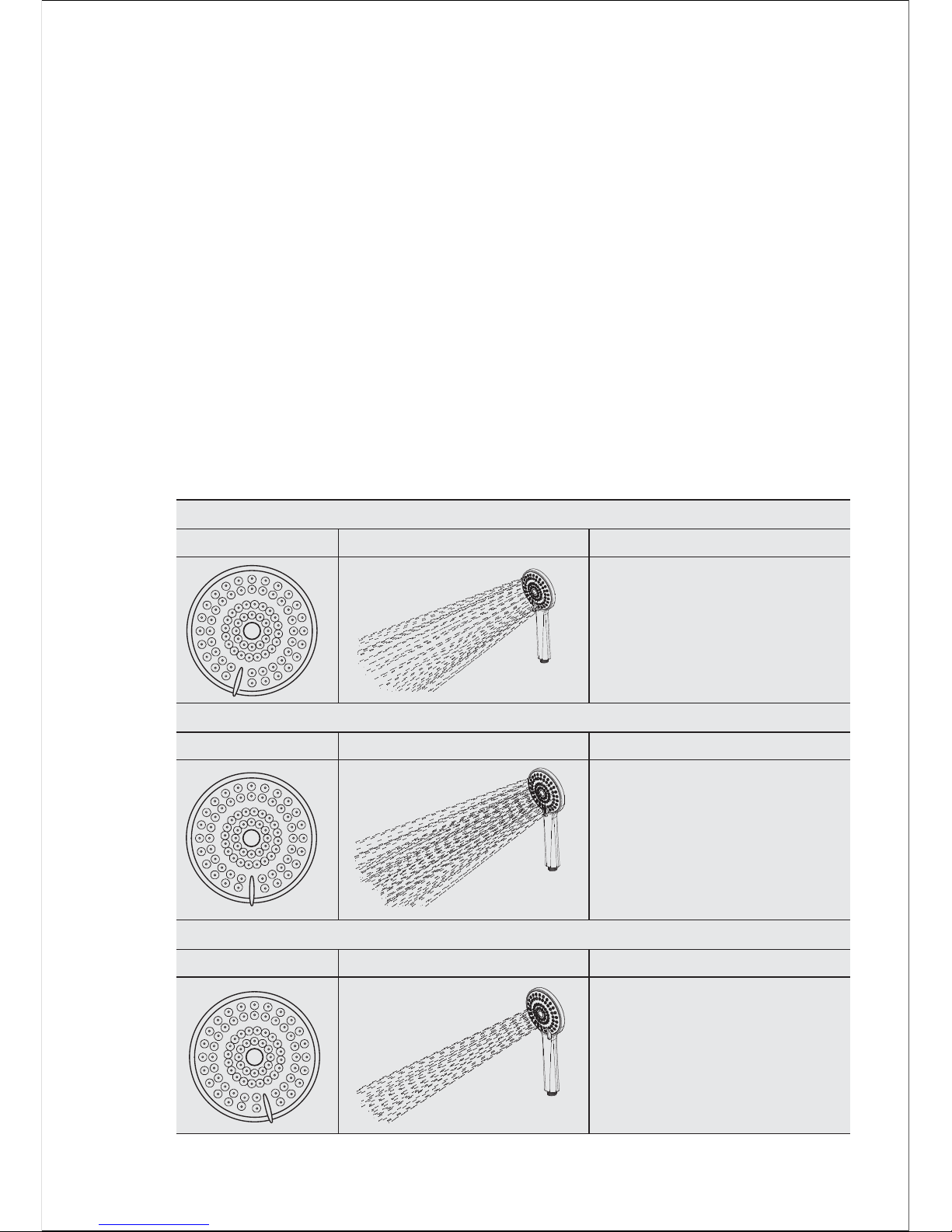

6.4 Shower head setting
6. OPERATION INSTRUCTION
Turn the temperature control clockwise -
this will decrease the ow of water through
the shower and make the water hotter.
NOTE:
tTotal rotation distance of the temperature
knob is 300°.
tIt is advisable that the showering
temperature is satisfactory by testing with
your hand before stepping under the
showerhead. There will always be a time
delay of a few seconds between selecting
a ow rate and the water reaching the
stable temperature for that ow rate.
To increase the shower temperature
20 www.electrolux.com
