Electrolux GWH 11 NanoPlus EU User manual

GWH 11 NanoPlus EU
GWH 14 NanoPlus EU
Fill your life with
comfort
Get quick access to instructions, additional
product information and support
at our website
home-comfort.com
User’s manualGB
LT
LV
ET
GAS Water heater
Gāzes ūdens sildītājs
Dujinis vandens šildytuvas
Gaasi veesoojendi

2www.home-comfort.com
Designation
Caution / Important safety information
Common information and recommenda-
tions
Warranty service is performed according to
the terms specified in the “Warranty” section.
Note:
In the text of this manual, the electric
convector may have such technical names
as appliance, device, vehicle etc.
CONTENT
1. TABLE OF CONTENTS NOTICES ..............................................................................................................................3
2. IMPORTANT NOTICES .................................................................................................................................................... 3
3. INFORMATION ABOUT MANUFACTURER............................................................................................................. 3
4. SUPPLYING DETAIL.......................................................................................................................................................... 3
5. CONDITIONS ON QUALITY GUARANTEE............................................................................................................. 3
6. TRANSPORTATION AND STORAGE.......................................................................................................................... 3
7. NOTICES FOR PROFESSIONAL INSTALLERS .......................................................................................................4
8. NOTICES FOR THE USER...............................................................................................................................................4
9. PRECAUTIONS FOR THE HEATER.............................................................................................................................. 5
10. REPAIR AND MAINTENANCE...................................................................................................................................... 5
11. PRECAUTIONS FOR FIRE .............................................................................................................................................. 5
12. MODIFICATION AND RENEWAL................................................................................................................................ 5
13. SERVICE INSTRUCTION................................................................................................................................................. 5

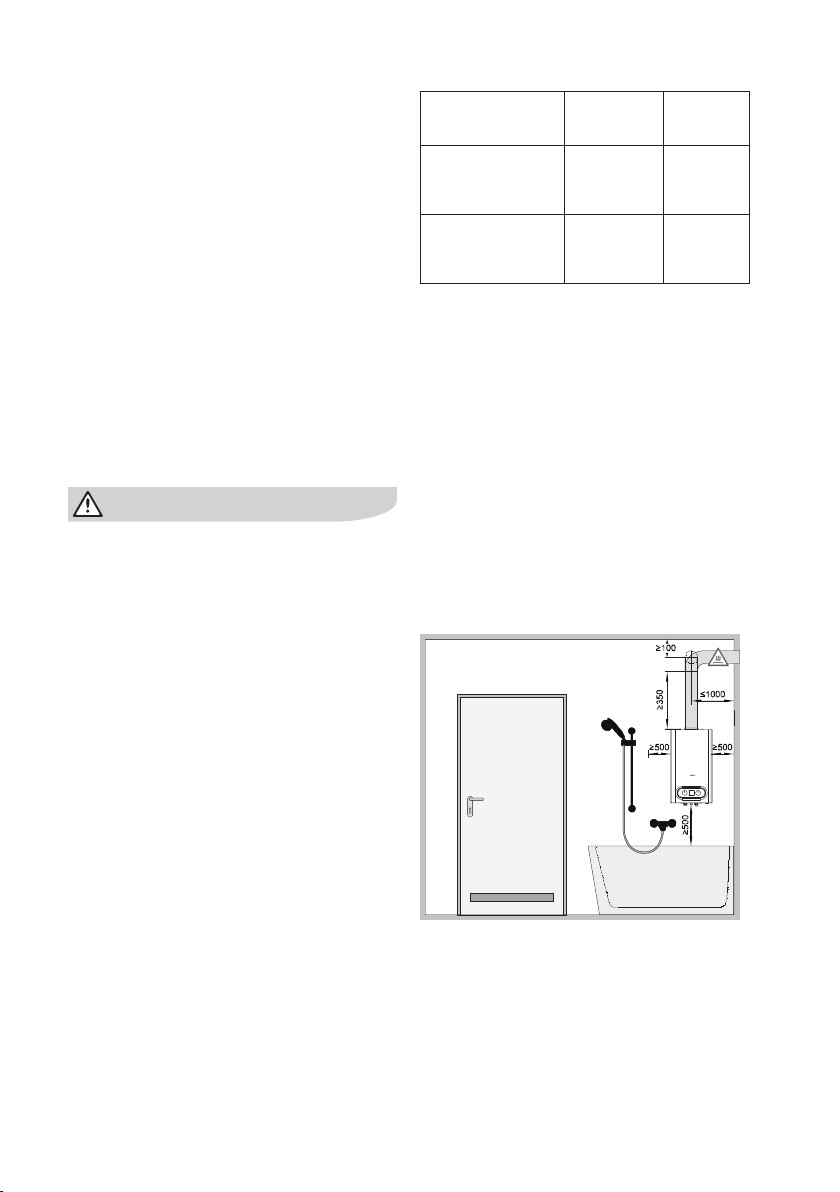

14. INSTALLATION ................................................................................................................................................................... 7
15. TRIAL RUNNING................................................................................................................................................................ 9
16. TROUBLESHOOTING .....................................................................................................................................................10
17. SPECIFICATIONS ..............................................................................................................................................................11

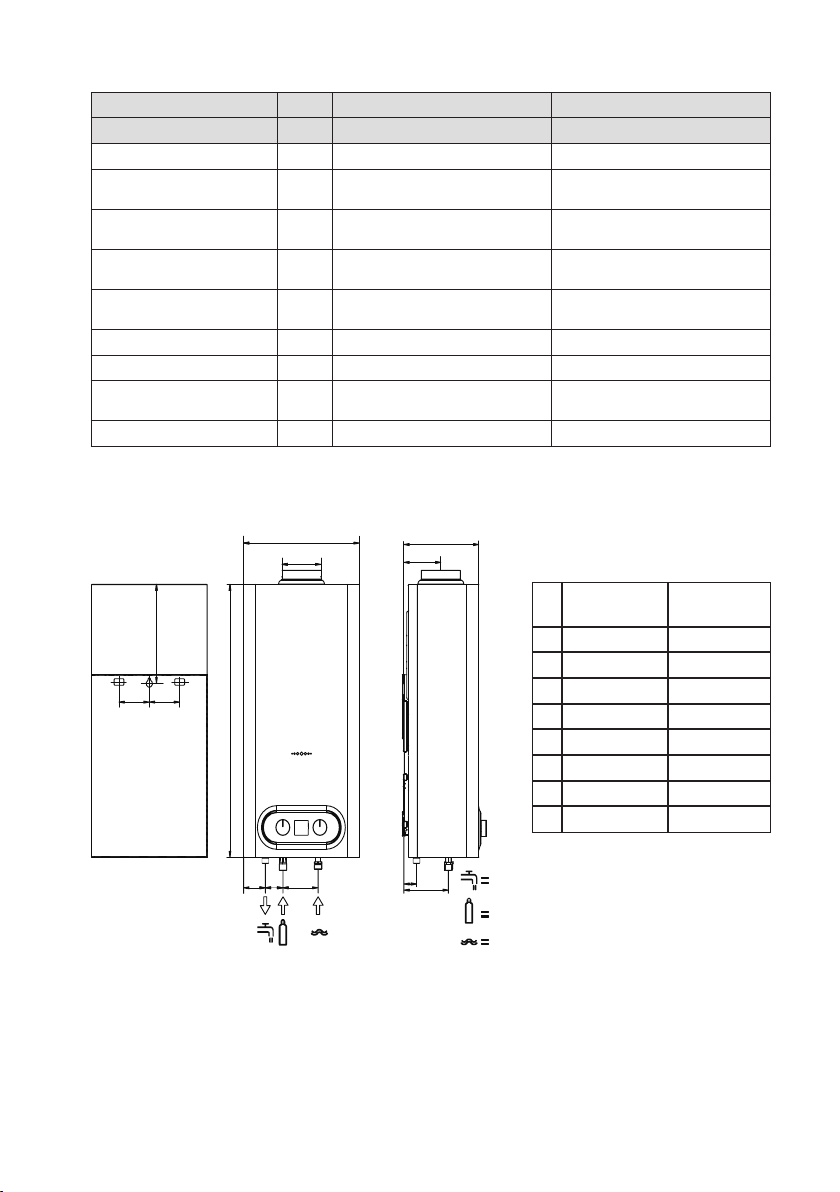

18. DIMENSIONS AND SPECIFICATIONS ....................................................................................................................12
19. MAINTENANCE REGISTRATION TABLE .................................................................................................................13
WE THINK ABOUT YOU
Thank you for purchasing an Electrolux appliance. You have chosen a product, backed by
decades of professional experience and innovations. Unique and stylish, it was created with
care for you. Therefore, whenever you use it, you can be sure that the results will always be
excellent. Welcome to Electrolux!
On our website you can:
Find product recommendations, user manuals, maintenance informa-
tion: http://www.home-comfort.com/support/
Buy a product in your city:
http://www.home-comfort.com/search/find-a-store/
While selling this device, dealer must fill “Product details” section located on
the inside of the back cover of this manual.

ENGLISH 3
Instruction Manual
Model: GWH 11 NanoPlus EU;
GWH 14 NanoPlus EU
Important notices
Please pay attention to the precautions and-
notices as well as contents of installation
instruction. Before installation, please read the
installation instruction carefully. Installation
and trial running must be carried out by pro-
fessional installers. Illegal installation and
improper repair may cause human injury and
even death. Before the trial running, please
read the service instruction. The heater can be
only installed in a room with good ventilation.
Quality guarantee can be applied for only
after trial running operated by professionals.
Information about manufacturer
The heater corresponds torequirements of
CE standard, and accord with the following
directives:
• (EU)2016/426 ; legal Facilities directives
of the Member States for Natural Gas
Installation.
• EN 26; water heaters in the sanitary
equipped with atm ospheric gas
burner with natural gas as fuel.
useandothersimilaruses
Supplying details
• 1 x gas water heater
• 1 x Installation instructions
• 4 x bolts and tube expander
• 2 x coupling hose and linker
Conditions on quality guarantee
• All rights for quality guarantee can only
be exercised in the country where the
purchase of the heater occurs.
• For more information about the quality
guarantee, please contact the designated
agent or importer.
Transportation and storage
Toassure heaters without any possible
damages, the heaters must be transported
in well packing.The allowable temperatures
for transportation and storage are between
-20°C and +70°C.

4www.home-comfort.com
Notices for professional installers
• The instruction for operation and
installation is absolutely necessary part
of the heater and is provided along with
the heater. Please read the documents to
guarantee that you have comprehended
all the data for an installation, operation
and safe service.
• All specific adjustments and inspection
for the heater must be provided with the
documents which entail the company seal
and signature of the installer.
• The heater can be only installed onto the
wall of a room without frosts.
• The installation can only be operated
by qualified personnel with reference to
the instruction and additional documents
provided by the manufacturer. Attention
should be paid to the relevant prescriptions
and norms as well as additional local
regulations.
• Professional refers to a person who is
familiar with technical knowledge relevant
to heating technology and drinking water
supply.
• The heater can only be put into use under
the appropriate environmental condition.
• Debugging and the inspection for the
quality of gas along with energy efficiency
of the heater should be under the charge
of qualified professional installers.
• As for user installation, specified
adjustments should be done only within the
chapter peration Manual?
• During construction, the heater must be
carefully protected from dirt and other
pollution.
• The heater is only apt for the home water
heating, and it should be connected to a
home water system corresponding to the
technical requirements of the heater.
• The heater can only be installed for
the anticipated operation stated by
manufacturer.
• Do not leave the packing materials
(cardboards, nails, bolts, plastic plate
and other similar materials) within reach
of children. All maintenance and repair
can only be operated by authorized
professionals.
• If necessary, please cut off the power
supply before initiating cleaning and
maintenance.
• Neither the seals nor stamps can be
destroyed.
• If it is necessary for definitive rupturing
operation, please cut off all the
connections respectively (electrical
power, hydraulic power, gas feeding,
exhaust pipe) and make sure all of them
are disconnected. The heater and its
components must be treated according to
the locally effective prescriptions.
• The manufacturer would not take
responsibility for any damage caused by
incorrect installation or use, or by violation
of the corresponding prescriptions. Neither
would the quality guarantee be offered.
Notices for the user
• Manual for installation and maintenance
should be well kept. If replacing the heater,
please provide this manual to its successor.
For maintenance service, please give this
manual to professional serviceman for
reference.
• Maintenance, electric installation and
inspection should be operated by
professionals.
• In case of failure, please disconnect the
power supply of the heater immediately
and make contact with its installer. Private
treatment to the failure is not allowed.
• Neither the seals nor stamps can be
destroyed.
• Improper handling or manipulation may
cause accidents.
• No touches on hot parts of the heater such
as all the tubes and exhaust pipe. Any
contact with hot parts can cause burn.
Children and laymen must keep remote
from the heater during its operation.
• For long-term nonuse of the heater, please
close the valve and take out the batteries.
If necessary, please disconnect power
supply of the heater.
• Any leakage from the heater to be found
can be caused by parts failure or deficient
installation. Please make contact with its
installer.
• For regular operation of the heater, don’t
close intakes on the door and wall.
• No exposure of the heater in a steamy and
greasy environment such as place with a
hearth.
• No exposure of the heater in a place with
water splash such as bathroom and other
wet environment.
• No objects on the water heater.
• Operation of the heater by children or
laymen is not allowable, neither is improper

ENGLISH 5
operation.
• No blocking or obstruction at the entrance
of the heater.
Precautions for the heater
A clean and wet cloth can be used for the
cleaning of the heater. Dissolvent products
are not allowed for the cleaning! Please only
clean exhaust pipe in cold state!
Repair and maintenance
• Repair and maintenance for the heater
should be provided once at least every
year. It is recommended to provide repair
and maintenance after a period of heating.
• All repair and maintenance should be
carried out by authorized professionals.
Signs
indicates a danger of possible accident,
possible wrong debugging, or possible
installation.
indicates a special danger, especially
for the danger in state of electrical
connection.
indicates heat gain in the parts on which
any touch will cause injuries.
indicates specific environments.
indicates that there are relevant
documents for reference or information
attached.
indicates an interruption of installation or
operation.
Indicates further information for the
installer or the user.
In case of gas smell
• Disconnect the heater immediately.
• Close the gas valve.
• Open all the windows and doors.
• Any lighting of fire or ignition or start-up
of electric light is not allowed. Neither is
any start-up operation which will generate
sparkle.
• Inform its installer or gas supply company.
Precautions for fire
• During operation, don’t get close to any
flammable and combustible materials or
other similar ones.
Precautions for toxication
• Operation should be carried out according
to the indications of the attached
documents and instructions from the
authorized professional installers to avoid
toxication accidents which may cause
death.
• The heater can only be operated after
being equipped with an exhaust pipe.
The exhaust pipe should be installed by
professionals.
• Only for natural gas: a color change of the
flame form blue to yellow indicates that
other gas and air is mixed into the natural
gas. Please immediately make contact with
its installer.
Disorders elimination
Any nonobservance of the following
indications will pose a danger of death!
Any try on private repair is not allowed
under any conditions.
No operation can be conducted to
the heater with malfunction under any
conditions.
Please use exclusively original spare
parts. Otherwise, manufacturer would not
be responsible for quality guarantee.
Modification and renewal
Consultation should be held with professionals
after any constructive modification.
Constructive modifications refer to
modification of the volume of the room, the
installation of windows or the closure of the
windows and the assembly of mechanical
equipment for ventilation (smoke extractor,
and air extractor in washroom for example).
Constructive modifications of exhaust
equipment refer to changes of environmental
temperature and the humidity caused by
installation of sauna and pool in the room with
gas equipment.

6www.home-comfort.com
Service instruction
Ignition
The heat will be lit automatically as you turn
on the water faucet. If no flame is generated
after ignition, please close the faucet and turn
it on again after 10 minutes.
Note: If the heater is not in operation for a
long period, air may enter the gas system.
In such case, please repeat the ignition
procedures above for several times.

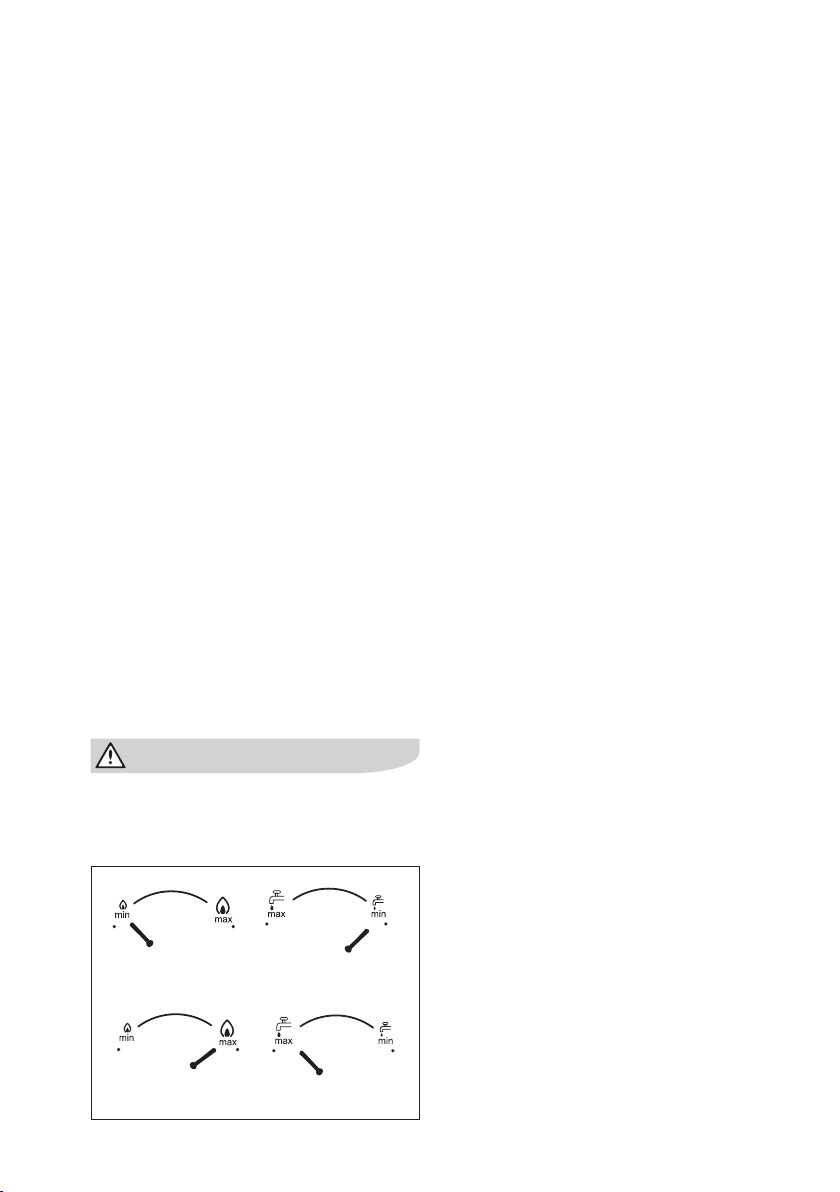

Power adjustment
Ga sregulation knob can be used to adjust
the volume of gas circulation. This operation
can adjust volume of gas circulation and the
temperature of hot water:
When gas supplied at rate pressure, the
output power of maximum gas is the rated
output power. Please refer to the gas
consumption in the specification table.
Adjustment of water temperature
The temperature regulation knob can be used
to adjust the volume of water circulation. This
operation can change temp- erature of hot
water. If you want to increase the temperature
of hot water, please turn the regulator of water
temperature clockwise. If you want to reduce
temperature of hot water, please turn the
regulator of water temperature counterclock-
wise.
Please keep the sealing valve at the cold
water inlet completely open. Don’t reduce
the water circulation by means of closing the
valve.
Low energy Hot water with high temperature
High energy Hot water with low temperature
Anti-freezing measures and
putting out of service
If you don’t use the heater for a long period,
please conserve the heater in the following
ways:
• Close the switch of the gas.
• Extract the batteries from the battery
compartment.
• Close the sealing valve at the cold water
inlet.
• Adjust the temperature regulator to the
lowest temperature.
• Turn on hot water switch.
• Open the empty valve to empty out the
water inside
• Close the empty valve
Failure of the flame during the
operation of the heater
When flame goes out during the operation,
the heater will activate security thermostat.
In this case the gas feeding will be cut off
automatically. Only after the heater has
cooled off can it ignite once again:
• Please remain adequate ventilation of the
exhaust outlet with caution.
• Cool the heater off.
• Turn off the water faucet and turn it on
again.
If the heater fails to start the operation, please
refer to the general table of failures in the
troubleshooting chapter. If there is still the
failure, please make contact with its installer
for solution.
Anti-blockage function
The GWH have the anti-blockage function
inside the exhaust system. In case the exhaust
duct being blocked, the thermostat on the
fume collector would shut off the gas of the
GWH in order to keep safety.
When the GWH accidently shut off, please
check the exhaust duct is blocked or not
and keep it well exhaust. After that, you can
use the GWH again. Provided that you still
could not use it. Please contact the after-sale
service or the professional maintainance.
The thermostat is for safety. Don’t remove it
or make it short circuit. fume collector would
shut off the gas of the GWH in order to keep
safety. Don’t remove it or make it short circuit.

ENGLISH 7
Model of appliance type B11BS
heater
The heater is equipped with an exhaust
security thermostat.
If the exhaust outlet is not completely open,
the thermostat is activated. Once the gas
valve is closed, the heater will have an ignition
once again after it has cooled off.
The activated temperature of anti-block
protection thermostat is 75°C±5°C. When
protection happens, electric circuit is cut and
unit doesn’t work. The recovery temperature of
the anti-block thermostat is 50°C±5°C. When
it is recovered, the electric circuit is on. The
unit works right. If the system stops working
in 2 minute when the flue pipe is blocked, it
means anti-block function is in protection. If
not, please contact professional people to fix
it following the rules of EN 26 standard.
Installation
• The heater can only be installed inside a
room.
• No installation of the heater in frost places.
• Keep the heater with good ventilation.
• No cables or electric appliances can
be placed on the heater. Keep the
heater away from heat sources such as
hearth. Please fulfill the cleaning and the
maintenance for the heater according to
relevant requirements of interval.
• Please maintain a certain distance
between vent-pipe and the ceiling of the
room or other decorative objects.
• Inflammable materials are banned from
being placed less than 500mm away from
the heater. If necessary, please install an
outer insulating layer.
• The heater must be installed onto a vertical
wall in a correct vertical way.
• The maximum pressure for which the
appliance is designed, stating that even
with the effects of water dilation, the water
pressure in the appliance shall not exceed
this value.
• The air flow in the circumstance around the
gas water heater should be according to
the follows
Model Gas category
Air con-
sumption
(m3/h)
GWH 11 NanoPlus EU I2H
I3P(37)
I3B/P(30)
I3+(28-30/37)
21-33
GWH 14 NanoPlus EU I2H
I3P(37)
I3B/P(30)
I3+(28-30/37)
26,8-42
Installation order
• Confirm the drilling position according to
the installation scheme or installation chart
in the Speciation Table.
• Open the close cover of the heater and
pull out the operation button.
• Screw off the fixed bolts in the lower part
of the casing and then take off the casing.
• Fix the heater.
• Take off the plastic hoods used for
connections of the heater.
• Install the connectors.
• Mount the casing and then replace the
operation button.
Minimum distance/ ventilation
The water heater is controlled by water flow
rate to achieve on/off. Minimum starting water
pressure is 0.3bar When there is water going
through the water operated gas valve (water
flow rate sitisfied with minimum water flow
rate refers to specification table), the ignition
will start to work and the gas valve will be
energized.The un it will be ON mode.
When the water flow is cut, the water gas
valve will cut the gas valve as well. the unit will
stop working.

8www.home-comfort.com
Installation of the heater
The operation of the installation can only be
carried out by authorized professionals.
Please pay attention to the special
requirements for installation made by the local
country.
Please pay attention to the related regulations
on the bonding pressure of gas and gas types
on the nameplate of the heater.
Before connecting the gas pipe and water
pipe to the heater, please pay attention to the
cleanout of these pipes to remove impurities
and other pollutants.
Installation of gas pipe
• A sealing valve of G1/2 must be installed
on the gas supply pipe, as shown in the
figure.
• If necessary, please install a reductor on
the gas supply pipe (only for the butane
supply)
Se al ingv al ve
Reductor Input of cold water
Output of hot water
Reductor (optional)
Installation of watr pipe
• A sealing valve shall be installed on
the pipe of cold water, as shown in the
following figure.
• The manufacturer recommends the
installation of a reductor on
• the cold water pipe.
• In case of corrugated pipes, the minimum
bending radius shall be 20mm.
• Connect the sealing valve to the attached
cold water pipe.
• Connect the sealing valve to the cold
water input of the heater.
• Connect the hot water output of the heater
to the hot water pipe
Installation of exhaust pipe
Only after finishing the installation of the
exhaust pipe can the heater be started for
operation. Please pay attention to the require-
ments for the specification.
• The parts of the exhaust pipe should be
equipped with solid gas funnel with water
tightness.
• The exhaust pipe cannot be oriented to
ceiling.
• An air intake should be introduced into the
space of installation in the place near ground.
Exhaust pipe
Warning:
please make neccessary fire resistance insulation
protection to the flue pipe. If the flue pipe is fixed to the
wooden wall or other material with no fire resistance, it
is compulsory to do fire resistance insulation,or the unit
is not allowed to be installed.
~
~
BE CAREFUL OF BURNING!

ENGLISH 9
Trial running
Trial running should be carried out by
authorized professionals. Please check the
following items:
• Is the heater connected and installed
according to the specifications provided
by the manufacturer?
• Do indications of the power panel of the
heater accord with the actual installation
conditions?
• Are the air intake and the exhaust pipe
correctly installed?
• Does the heater accord with the relevant
requirements of ventilation? Is the channel
of the air intake still not sealed?
Trial running
• Open the battery compartment and put
two batteries in (LR20, 1.5V).
• Turn on the hot water faucet and wait for
the water to flow out, and then turn it off.
• Turn on the gas switch.
• Turn the energy rectifier to the maximum
energy.
• Turn on the hot water faucet.
• Check the flame current
• Check the trial running of nozzle according
to the nozzle table.
• Please give instructions to users for the
running and operation of the heater.
Important notices for repair and
maintenance
All the repair and maintenance must be
carried out by authorized technicians.
The maintenance of the water heater
must be fulfilled at least once a year. It is
recommended to carry out the mainten-
ance after a period of heating operation.
The maintenance and repair must be kept in
record. Before cleaning or maintenance and
repair, please take off battery from the water
heater and turn down the gas switch. Only the
original spare parts for maintenance can be
used.
If the spare parts used for maintenance are
not original, the man ufacturer does not
assume any quality guarantee. The connecting
pieces must be new.
Open the casing
Before maintenance and repair, please open
the casing.
• Screw off the two bolts on the casing (at
the lower part/ back of casing).
• Take out the operation button.
• Take off slipcover at the lower part of the
casing gently: press it upwards and then
take it off forwards.
Carrying out the following works of
maintenance and repair:
• Check whether the operation of exhaust
system is in the perfect state?
• Demount the burner and close the gas
output in the case of no operation of the
water heater. Please clean burner and the
gas nozzle with a brush and a vacuum
cleaner.
• Clean heat exchanger with a brush and a
vacuum cleaner.
• Remount the burner.
• Check whether the ignition electrode and
the controller are intact? If damaged,
please replace them with the new ones.
• Check whether the distance between
the ignition electrode and surface of fuel
is reasonable. This distance should be
between 3mm and 5 mm.
• Check whether the ignition , opertion and
disconnection of the heater are in perfect
state.
• Check whether the gas connection and
the nozzle pressure under rated load are
normal.
• Check the tightness of the water and gas.
• Check whether operation of the security
device is normal.
• Check whether all the operation
performance is in normal state.
• Check whether there is any gas leakage
with a soapy solution at gas joint.
• Mount the casing and clean it with a wet
rag and soapy water.
Maintenance and repair of butane
facility
If a hosepipe is used to connect the gas,
please replace it with a new hosepipe once
a year.

10 www.home-comfort.com
Troubleshooting
No flame
Different types of gases as
fuel
Open the gas valve
For connection with use of butane:
Check the gas cylinder, if
necessary, please replace it with a
new one.
Air in the gas feeding Close and open the distributor for
several times
The battery is null or placed
in wrong direction
Please check the polarity of the
batteries, if neces- sary, please
replace them with new ones.
No hot water Open the distributor of hot water
Low water temperature The gas valve is not
completely on
Open the gas valve completely
During the operation of
the water heater, flame
goes out
The exhaust system is
blocked
Check whether the exhaust pipe is
fluent or not
When the water pressure is
too low, the rectifier of water
pressure will be disconnected
from the water heater
Reduce some energy and check
the connecting state of water
If there is any failure, please make contact with the corresponding technical service department
or an installer!

ENGLISH 11
Specifications
Model name GWH 11 NanoPlus EU GWH 14 NanoPlus EU
CE-Pin 0359CU04169 0359CU04169
Appliance Type B11BS B11BS
Ignition Battery Ignited Battery Ignited
Rated Voltage V.dc 3 3
Gas
Gas Category I2H I2H
Gas Type G20 G20
Gas pressure mbar 20 20
Power
Nominal Heat Input(Q) kW 22 28
Nominal Useful Output(Pw) kW 19.4 24.7
Minimum Heat Input(Q) kW 8 9
Minimum Useful Output kW 77.9
Gas consumption kg/h
m3/h Max: 2.32m3/h Min: 0.84m3/h Max: 2.95m3/h Min: 0.94m3/h
Efficiency of energy sources 88% 88%
Water supply pressure
Max.water pressure(Pw) bar 10 10
Min. water pressure(Pw) bar 0.3 0.3
Max. water flow (2bar) L/min 11 12
Min. water flow (2bar) L/min 5.0 5.9
Connections
Gas connection inch 1/2,, 1/2,,
Cold water connection inch 1/2,, 1/2,,
Hot water connection inch 1/2,, 1/2,,
Flue gas pipe diameter mm φ110 φ120
Maximum temperature of
Combustion products °C 230 240
Net dimensions / net weight
Dimensions mm 679x330x213 679x370x213
Weight kg 10.5 10.9
Table of nozzle pressure
nozzle
Diameter of nozzle mm φ0.64 φ0.7
Quantity of nozzle unit 36 45

12 www.home-comfort.com
Model name GWH 11 NanoPlus EU GWH 14 NanoPlus EU
ERP
Declare load profile M XL
Water heating energy
efficiency class
A A
Water heating energy
efficiency ηWH
%79 82
Daily gas consumption
(Corrected)
kWh 7.07 1 21.826
Daily electrical consumption
(Corrected)
kWh 0 0
AEC kWh 0 0
Annual fuel consumption AFC GJ 6 19
NOx mg/
kWh
27 32
Indoor sound power level LWA dB 62 62
Re-equipment or changing into other gas types is not allowed!
Dimensions and Specifications
ABC D
E
F
G218
110
H
247
86 86
Dimensions and Specifications
GWH 11
NanoPlus EU
GWH 14
NanoPlus EU
A70 89
B 42 42
C100 100
D 32 32
E 120 120
F128 128
G 330 370
H110 120
Manufacturer: WUHU MIDEA KITCHEN & BATH APPLIANCES MANUFACTURING CO., LTD
Importer: SIA “Green Trace”, LV-1004, Biekensalas iela, 21, Riga, Latvia. E-mail: [e-mail]
Made in China.
Regulation (EU) 2016/426 Appliances burning gaseous fuels.
Electrolux is a registered trademark used under license from AB Electrolux (publ).

ENGLISH 13
Maintenance registration table
Authenticator for maintenance
Maintenance content:
Maintenance personnel:
“ Company Stamp/ signature:#
Authenticator for maintenance
Maintenance content:
Maintenance personnel:
“ Company Stamp/ signature:#
Authenticator for maintenance
Maintenance content:
Maintenance personnel:
“ Company Stamp/ signature:#
Authenticator for maintenance
Maintenance content:
Maintenance personnel:
“ Company Stamp/ signature:#
Authenticator for maintenance
Maintenance content:
Maintenance personnel:
“ Company Stamp/ signature:#
Authenticator for maintenance
Maintenance content:
Maintenance personnel:
“ Company Stamp/ signature:#
Product Details (populated upon sale)
Model
Serial number
Date of sale
Seller Seal

14 www.home-comfort.com

ENGLISH 15

www.home-comfort.com
This manual may contain technical and typing errors.
Changes to technical characteristics and assortment
are subject to change without notice.
Electrolux is a registered trademark used under
license from AB Electrolux (publ.).
