EN CONDENSING TANKLESS GAS WATER HEATER Installation Manual
SBB800T
Rev. 11/12
*SBB800T*
SP CALENTADOR A GAS TIPO CONDENSADO Manual de Instalación
5995615357 November 2012

Installation Manual
CONDENSING TANKLESS GAS WATER HEATER
EN19WI30LS
EP19WI30LS
Potential dangers from accidents during installation and use are divided into the following three
categories. Closely observe these warnings, they are critical to your safety.
Prohibited Disconnect
Power Ground Be sure to do
WARNING: If the information in this manual is not followed exactly, a re or explosion may result
causing property damage, personal injury or death.
DANGER indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
DANGER
WARNING
CAUTION
Requests to Installers
•Inordertousethewaterheatersafely,readthisinstallationmanualcarefully,andfollowthe
installation instructions.
•Failuresanddamagecausedbyerroneousworkorworknotasinstructedinthismanualarenot
covered by the warranty.
• CheckthattheinstallationwasdoneproperlyinaccordancewiththisInstallationManualuponcompletion.
• Aftercompletinginstallation,pleaseeitherplacethisInstallationManualinaplasticpouchand
attach it to the side of the water heater (or the inside of the pipe cover or recess box if applicable),
or hand it to the customer to retain for future reference. Also, be sure to ll in all of the required
items on the registration/warranty card and to hand the registration/warranty card to the customer
alongwiththeUseandCareManual.
CAUTION
FORUSEINRESIDENTIALAPPLICATIONSINTHEUNITEDSTATESONLY.
NOTINTENDEDFORUSEINCANADAORMEXICO.
Installation must conform with local codes, or in the absence of local codes,
theNationalFuelGasCode,ANSIZ223.1/NFPA54-latesteditionand/or
CSAB149.1,NaturalGasandPropaneInstallationCode(NSCNGPIC).
ElectroluxHomeProducts,Inc.reservestherighttodiscontinue,or
change at any time, the designs and/or specications of its products
without notice.
Low NOx
Approved by
SCAQMD
14ng/Jor20ppm
(Natural Gas Only)

2
1.

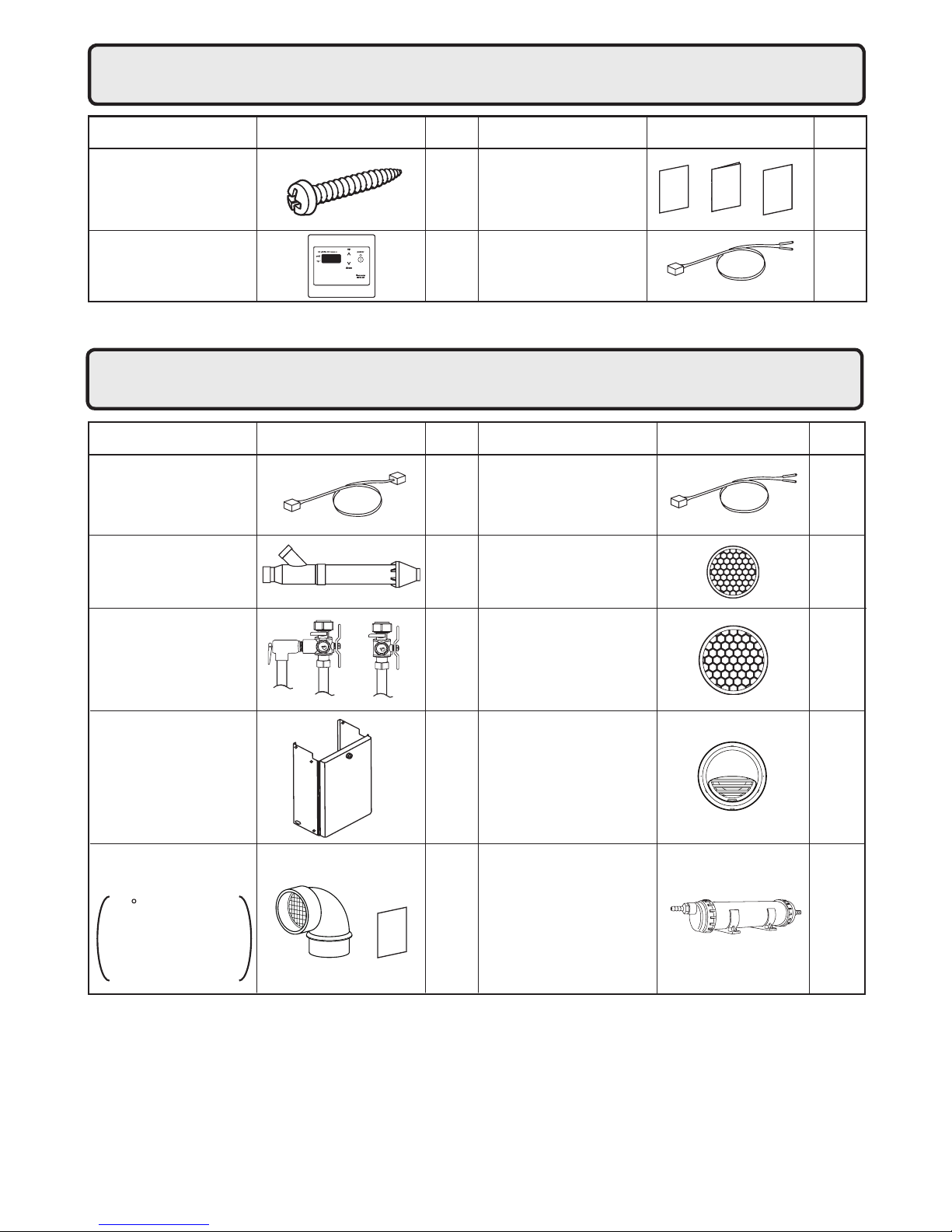

Included Accessories
The following accessories are included with the unit.
Checkforanymissingitemsbeforestartinginstallation.
Q’ty
ShapePart
Tapping Screw 1
each
Part Shape Q’ty
5
1
Remote Controller
(Seep.29)
Remote Controller
Cord(6ft(2m))
(RC-CORD6)
1
2.
Optional Accessories
The accessories listed below are not
included with the units, but may be necessary
for installation.
Q’ty
ShapePartPart Shape Q’ty
Remote Controller
Cord(26ft(8m))
(RC-CORD26)
QuickConnectCord
(QC-2)11
1
each
Isolation Valves
(includes pressure
relief valve)
UseandCareManual,
Warranty,InstallationManual
(this document)
Bird Screen for
4"(100mm)PVC
VT4-PVCS
Bird Screen for
3"(75mm)PVC
VT3-PVCS
2
2
3"(75mm)
PVC Terminal
VK3-H-PVC
1
1
Pipe Cover
(PC-3S-SUS)
3"(75mm)/4"(100mm)
HorizontalHood
TerminationPVT-HL
2
SV Conversion Kit
(#SV-CK-3)
•90Elbow
(With Inlet Screen)
• InstallationManual
(CheckList)
1
each 1
Neutralizer
(NC-1)

3
G
Quick Connect
Cord
Remote Controller Cord Gas Supply Piping
Cold Water Supply
Hot Water
Remote Controller
Terminal Block
Cord
Connector
Cord
Connector
3.
Quick Connect Multi System Installation
•TheQuickConnectMultiSystemallowstheinstallationoftwounitstogetherutilizingonlytheQuick
Connect Cord.
Typical Plumbing
* When connecting two units, use only a
single remote controller.
Note: Connect the remote
controller to only one
of the units.
System Diagram
•Insulate the hot water piping to prevent heat loss. Insulate and apply heating materials to
the cold water supply piping to prevent heat loss and freezing of pipes when exposed to
excessively cold temperatures.
Union
Make this distance as short
as possible.
* The hot water temperature
will become unstable as the
pipe length increases.
Distance at center: 20.3 - 36.3 in. (515 - 922mm)
Quick Connect Cord
Union
Gas Valve
Union
Shutoff Valve
Shutoff Valve
Hot Water
Shutoff Valve
Cold Water
Distance on sides
2 - 18 in. (50 - 457mm)
Leave enough clearance around the plumbing to
apply insulation. It will be necessary to add
bends to the piping to ensure that this clearance
is available.
Size the piping to allow for the
maximum ow rates of the units.
The backow preventer is
put up before it diverges.
Pressure
Relief Valve
TheQuickConnectCordis6ft.(2m)long.Installtheunits2-18"(50-457mm)apartfromeach
other to ensure the cord will be able to reach between the units. (See Typical Plumbing diagram).
(If the distance between the two units is too great, not only will the cord not be able to reach,
but the water temperature may also become unstable because of the difference in pipe length
between the two units).

4
199,900
190,000
2.4
2.8" 2.8"
2.4
192,700
183,200
199,900 BTU 16,000 BTU
228
4.0
1.3 2.8"
10.5"
ANSI Z21.10.3-2011/CSA 4.3-2011
15 150
4
EN19WI30LS1

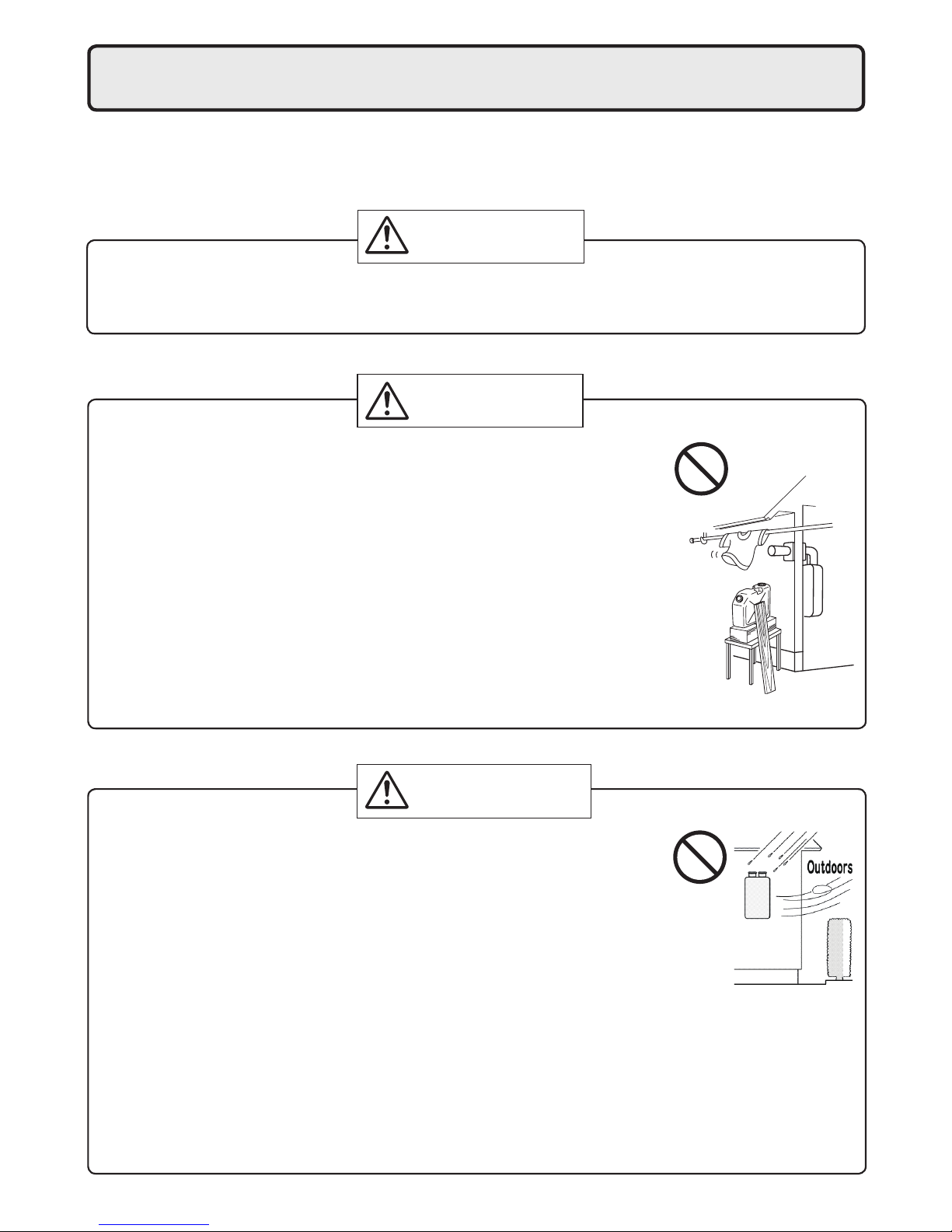

4. Before Installation
Checkup
•Checkthexingbracketsandventpipeyearlyfordamageorwear.Replaceifnecessary.
DANGER
Do Not Use Equipment for Purposes Other Than Those Specified
•Donotuseforotherthanincreasingthetemperatureofthewatersupply,asunexpectedaccidents
may occur as a result.
Check Water Supply Quality
•Ifthewatersupplyisinexcessof12grainspergallon(200mg/L)ofhardness,acidicorotherwise
impure, treat the water with approved methods in order to ensure full warranty coverage.
WARNING
CAUTION
Check the Gas
•Checkthattheratingplateindicatesthe
correct type of gas.
•Checkthatthegassupplylineissizedfor
199,900 Btuh.
Check the Power
•Thepowersupplyrequiredis120VAC,at60Hz.
 Usingtheincorrectvoltagemayresultinreorelectricshock.
Use Extreme Caution if Using With a Solar Pre-Heater
•Usingthisunitwithasolarpre-heatercanleadtounpredictableoutputtemperaturesand
possibly scalding. If absolutely necessary, use mixing valves to ensure output temperatures do
notgettoscaldinglevels.Donotuseasolarpre-heaterwiththequick-connectmulti-system.
Precautions on Vent Pipe Replacement
•Theventsystemwillalmostcertainlyneedtobereplacedwhenthisapplianceisbeinginstalled.
OnlyuseventmaterialsthatarespeciedinthisInstallationManualforuseonthisappliance.Refer
tothe"VentPipeInstallation"sectionfordetails.IfPVC,CPVC,orCategoryIVlistedpipeisalready
installed,checkforpunctures,cracks,orblockagesandconsultwiththeventpipemanufacturer
before reusing.
Improperventingmayresultinres,propertydamageorexposuretoCarbonMonoxide.
Snow Precaution
•Ifthisproductwillbeinstalledinanareawheresnowisknowntoaccumulate,protectthevent
terminationfromblockagebysnowdriftsordamagefromsnowfallingoffofroofs.

5
5. Choosing Installation Site
* Locatetheapplianceinanareawhereleakagefromtheunitorconnectionswillnotresultindamage
to the area adjacent to the appliance or to the lower oors of the structure. When such locations
cannot be avoided, it is recommended that a suitable drain pan, adequately drained, be installed
under the appliance. The pan must not restrict combustion air ow.
•Locate the vent terminal so that there are no obstacles around the termination and so that exhaust
can't accumulate. Do not enclose the termination with corrugated metal or other materials.
•Avoidplaceswhereresarecommon,suchasthosewheregasoline,
benzene and adhesives are handled, or places in which corrosive gases
(ammonia, chlorine, sulfur, ethylene compounds, acids) are present.
 Usingtheincorrectvoltagemayresultinreorcracking.
•Avoidinstallationinplaceswheredustordebriswillaccumulate.
Dustmayblocktheair-supplyopening,causingtheperformanceofthe
device fan to drop and incomplete combustion to occur as a result.
•Avoidinstallationinplaceswherespecialchemicalagents
(e.g., hair spray or spray detergent) are used.
Ignition failures and malfunction may occur as a result.
•CarbonMonoxidePoisoningHazard.Donotinstallthiswaterheaterina
recreational vehicle or on a boat.
•Thewaterheaterisdesignedforindoorinstallationonly.Neverinstallit
outdoors or in a bathroom, it may be damaged or a re may be caused.
•Consultwiththecustomerconcerningthelocationofinstallation.
•Install the water heater in an area that allows for the proper clearances
to combustible and noncombustible construction. Consult the rating
plate on the appliance for proper clearances.
•Donotinstallthewaterheaterinaplacewhereitmaybethreatenedby
falling objects, such as under shelves.
•Thewaterheatermustbeinstalledinaplacewheresupplyandexhaust
pipes can be installed as directed.
•Donotinstallthewaterheaterwheretheexhaustwillblowonouter
walls or material not resistant to heat. Also consider the surrounding
trees and animals.
The heat and moisture from the water heater may cause discoloration
of walls and resinous materials, or corrosion of aluminum materials.
DANGER
WARNING
CAUTION
Prohibited
Prohibited

6
•Avoidinstallationabovegasrangesorstoves.
•Avoidinstallationbetweenthekitchenfanandstove.Ifoily
fumes or a large amount of steam are present in the installation
location,takemeasurestopreventthefumesandsteamfrom
entering in the equipment.
•Installinalocationwheretheexhaustgasowwillnotbe
affected by fans or range hoods.
•Takecarethatnoiseandexhaustgaswillnotaffectneighbors.
Avoidinstallationoncommonwallsastheunitwillmakesome
operational noises while it is running.

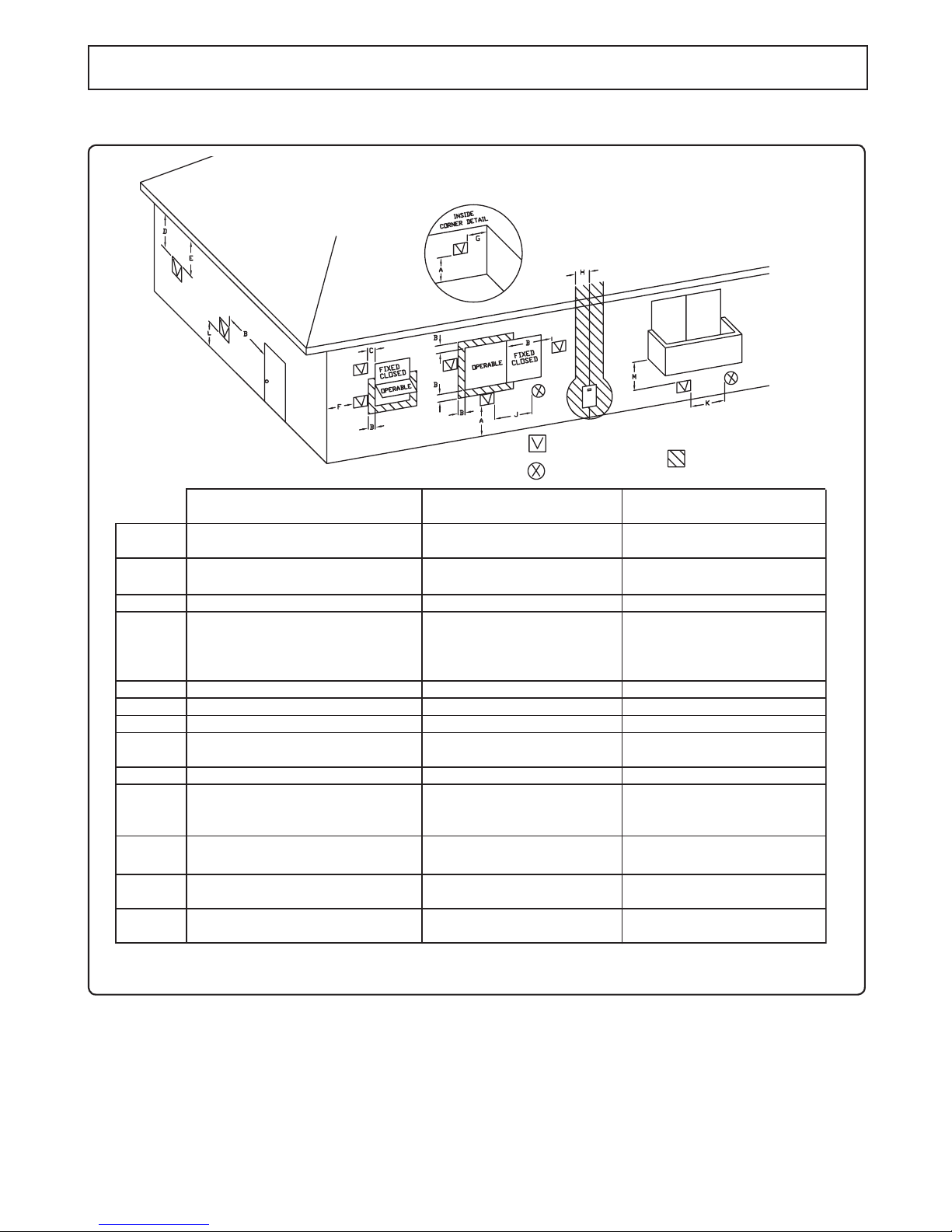

•Beforeinstalling,makesurethattheexhaustueterminationwill
havetheproperclearancesaccordingtotheNationalFuelGas
Code(ANSIZ223.1).
Be sure to do
Prohibited
Prohibited
CAUTION
State of California: The water heater must be braced, anchored or strapped to avoid moving during
anearthquake.Contactlocalutilitiesforcoderequirementsinyourareaorcall:ElectroluxHome
Products,Inc.at1-888-360-8557andrequestinstructions.
TheCommonwealthofMassachusetts:Thewaterheatercanbeusedforhotwateronlyandnotina
combination of domestic and space heating.
ForVentingManufacturersRequirements,callElectroluxHomeProducts,Inc.at1-888-360-8557or
visit us at www. electroluxappliances. com.

7
6. Installation Clearances
Beforeinstalling,checkforthefollowing:
Install in accordance with relevant building and mechanical codes, as well as any local, state or
nationalregulations,orinthe absence of localandstatecodes,totheNationalFuelGasCode
ANSIZ223.1/NFPA54–latestedition.
WARNING
Item
Distance from combustibles
•Maintainthefollowingclearances
from both combustible and
 non-combustiblematerials.
Check Illustration
•Ifpossible,leave8"(200mm)ormoreon
either side of the unit to facilitate inspection.
•Ifpossible,leave24"(600mm)ormorein
front of the unit to facilitate maintenance
and service if necessary.
•Ifpossible,leave3"(75mm)ormore
above and below the vent pipe to facilitate
inspection and repair if necessary.
Securing of space for
repair/inspection
24"(600mm)
or more
Distance from
the side
12"(300mm)
or more
2"(50mm)
or more
4"(100mm)
or more
3"(75mm)ormore
3"(75mm)ormore
8"(200mm)
or more
8"(200mm)
or more
<When using indoor air for combustion>
•Iftheunitwillbeinstalledinthevicinityof
apermanentkitchenrangeorstovethat
has the possibility of generating steam
that contains fats or oils, use a *dividing
plate or other measure to ensure that the
unit is not exposed to air containing such
impurities.
* The dividing plate should be of
noncombustible material of a width
greater than the water heater.
Exhaust hood
Range
Dividing plate Water
heater
CookingEquipment

8
Clearance Requirements from Vent Terminations to Building Openings
<When supplying combustion air from the indoors>
*AllclearancerequirementsareinaccordancewithANSIZ21.10.3andtheNationalFuelGasCode,
ANSIZ223.1.
Item
• Theremustbeaclearanceof24"(600mm)
ormoreinfrontoftheFlueterminal.
•Thisrestrictionwillnotbeappliedtoan
areawhereaneffectiveshieldmakesa
clearanceof24"(600mm)ormorein
front of the exhaust outlet.
Check Illustration
Outdoor Clearances to Opening
into Any Building
12"(300mm)
or more
12"(300mm)
or more
There must be no
building opening
within this area.
Flueterminal
12"(300mm)
or more
12"(300mm)
or more
VentClearancesWhenHeaterisInstalled
Indoors
ForinstallationsintheUSA,
•4' below, 4' horizontally from, or1'above
any door, operable window, or gravity air inlet
into any building.
3' above any forced air inlet within 10'.
Maintainthefollowingclearancestoany
opening in any building: Illustration
4' *
4' *
3' *
1' *

9
Vent Terminal
Clearance
A= Above grade, veranda, porch,deck,
or balcony
B= Window or door that may be opened
C= Permanently closed window
D=
Vertical clearance to ventilated soft
located above the terminal within a
horizontaldistanceof2feetfrom the
center of the terminal
*
E= Unventilated soft *
F= Outside corner *
G= Inside corner *
H= Each side of center line extended
above meter/regulator assembly
3'(0.9m)withinaheight15'(4.5m)
above meter/regulator assembly
I= Service regulator vent outlet 3' (0.9m)
J=
Nonmechanical air supply inlet or
combustion air inlet to any other
appliance
K= Mechanicalairsupplyinlet 3' above if within 10'
L= Abovepavedsidewalkorpaved
driveway located on public property
Under veranda, porch,deck,or
balcony
M=
*Maintainclearancesinaccordance with local installation codes and the requirements of the gas supplier.
*
12"
4’(1.2m)belowortothesideof
opening, or 1’ (0.3m)above opening
Air Supply Inlet
Area Where Terminal
is Not Permitted
Indoor Combustion Air
*
**
**
*
*
*
3'(0.9m)withinaheight15'(4.5m)
above meter/regulator assembly
3' (0.9m)
3' above if within 10'
*
12"
12"
4’belowortothesideof
opening, or 1’ above opening 12"
Outdoor Combustion Air
(Direct Vent)
Clearance Requirements from Vent Terminations to Building Openings
*AllclearancerequirementsareinaccordancewithANSIZ21.10.3andtheNationalFuelGasCode,
ANSIZ223.1.

10
7. Installation
Securing to the wall
IllustrationCheck
4.Drillholesfortheremainingfourscrews.
5.Hangtheunitagainbytherstscrew,andthen
insert and tighten the remaining four screws.
6.Takewaterproongmeasuressothatwaterdoes
not enter the building from screws mounting the
device.
•Makesuretheunitisinstalledsecurelysothatitwill
notfallormoveduetovibrationsorearthquakes.
1.Drillasinglescrewhole,makingsuretohitastud.
2.Insertandtightenthescrewandhangtheunitby
theupperwallmountingbracket.
3. Determine the positions for the remaining four screws
(twoforthetopbracketandtwoforthebottom),and
remove the unit.
•Theweightofthedevicewillbeappliedtothewall.Ifthestrengthofthewallisnot
sufcient, reinforcement must be done to prevent the transfer of vibration.
•Donotdroporapplyunnecessaryforcetothedevicewheninstalling.Internalpartsmay
be damaged and may become highly dangerous.
•Installtheunitonaverticalwallandensurethatitislevel.
LocatingScrewHoles
Mounting
Structure
•Wheninstallingwithbarehands,takecautionto
not inict injury.
•Becarefulnottohitelectricalwiring,gas,orwater
piping while drilling holes.
Item
CAUTION
Be sure to do
MountingBracket
(upper)
LocationofScrewHole
LocatingScrewHoles
Installations at Elevations
Above2,000ft.
•Adjustthe dip switches as illustratedin the table to
the right if this water heater is installed at an altitude
of2000ft.(610m)orhigher.
•Disconnectpowertothewaterheaterbefore
changing the dip switches. Failure to perform this
stepwillresultina"73"codedisplayedonthe
remote controller and a cease in operation. If this
occurs, disconnect, then reconnect power to the
water heater to reset the system.
 Note:Pleaserefertopage29forthelocationofthe
dipswitchbank.
Tapping Screw
* Do not change any other dipswitches.
* High elevation adjustment.
65
2,001 - 4,000 ft (611 - 1,220m)
0 - 2,000 ft (0 - 610m)
ON= OFF=
4,001 - 6,000 ft (1,221 - 1,830m)
6,001 - 8,000 ft (1,831 - 2,440m)

11
Filling the condensate trap with water
The condensate trap can be lled before connecting the vent pipe.
Filling the condensate trap before vent pipe installation.
DANGER
Priortoinitialstartup,makesurethatyoullthecondensatetrapwithwater.
This is to prevent dangerous exhaust gases from entering the building.
Failuretollthecondensatetrapcouldresultinseverepersonalinjuryordeath.
Please follow one of the procedures described below to ensure that the condensate trap is lled with water.
1)Fillthecondensatetrapbypouringapprox.30oz.(850ml)ofwaterintotheexhaustaccessoryonthetop
of the appliance as illustrated below.
Or, if the vent pipe has already been installed:
2)Afterinstallingthedrainpipe,makesurethattheareaaroundtheapplianceiswellventilated;opena
window or a door if necessary.
Then, operate the unit and verify that condensate is coming out of the drain pipe.
(During normal use of the water heater, condensate will begin to discharge from the drain pipe within
15minutesofuse.However,dependingontheseasonand/orinstallationsiteconditions,itmaytakelonger.)
Note:ThecondensatedischargedfromthewaterheaterhasapHlevelofapproximately2-3.
If required by local code, the condensate must be neutralized prior to disposal into the sewer
system. Refertopages25-26foradditionaldetails.
30 oz.
850ml
Intake
Exhaust

12
Maximum Vent Lengths
•This appliance has been designed to be vented
with either3"(75mm)or4" (100mm)PVCor
CPVC pipe.
Do not exceed the following maximum vent lengths:
* Not including the termination
Refertopage17formax.ventlengths
whenusingterminationVK3-H-PVC.
•Maintainthesameventpipediameterfromthe
heater ue to the vent termination. The exhaust
and intake pipes must be the same vent pipe
diameter.

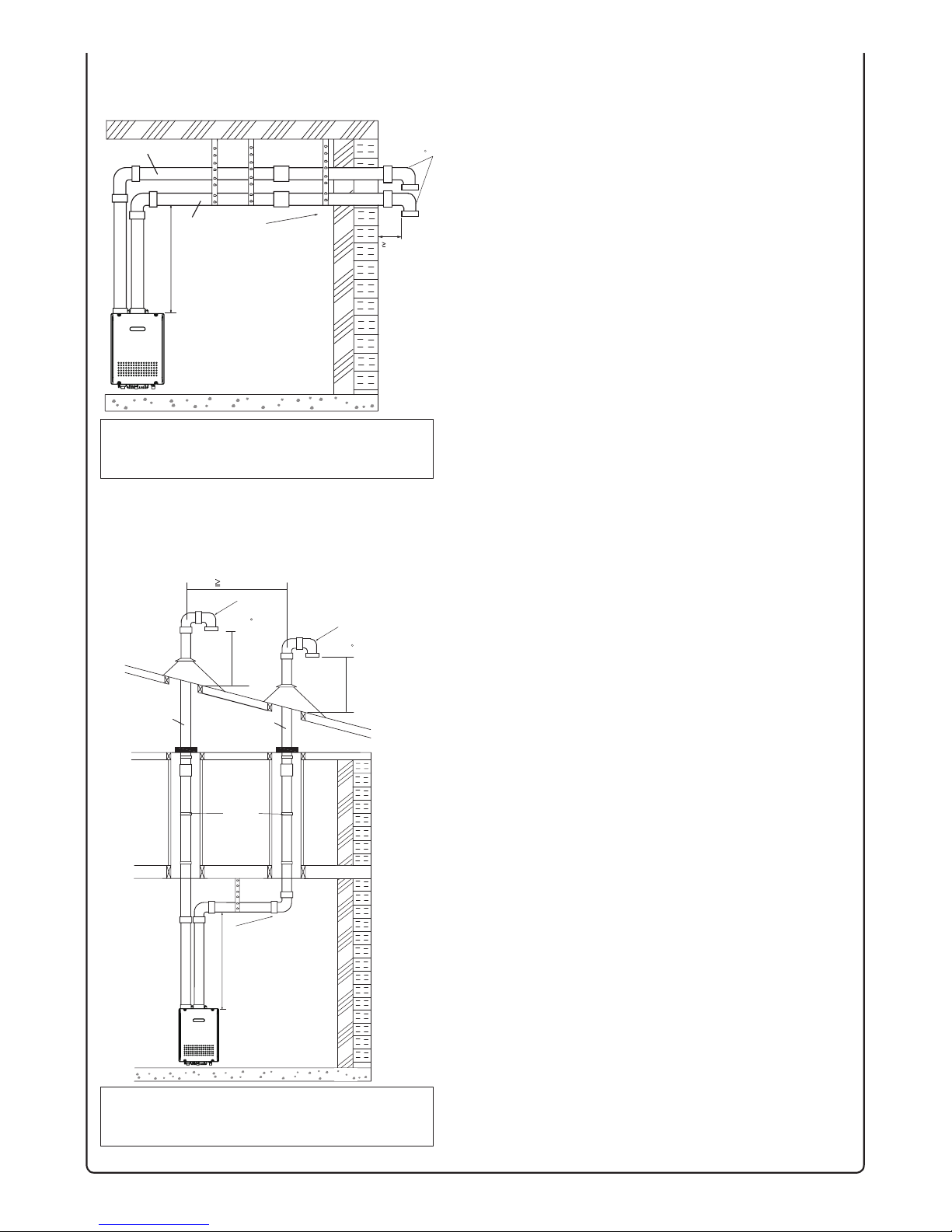

8. Vent Pipe Installation
WARNING
Be sure to do
CARBONMONOXIDEPOISONING
Followallventsystemrequirementsinaccordancewithrelevantlocalorstateregulation,
or,intheabsenceoflocalorstatecode,intheU.S.totheNationalFuelGasCodeANSI
Z233.1/NFPA54–latestedition.
No. of Elbows Max.StraightVentLength*
 4 N/A 39'(11.7m)
 3 16'(4.8m) 45'(13.5m)
 2 22'(6.6m) 51'(15.3m)
 1 28'(8.4m) 57'(17.1m)
Pipe diameter 3"(75mm) 4"(100mm)
•Under normal conditions, this appliance will
not produce an exhaust flue temperature
in excess of 149°F (65°C) and schedule 40
PVC pipe may be used as the vent material.
Ifrequiredby localcode,schedule40or80
CPVC may also be used on this appliance.
 Refertopage14foradditionalrequirements.
•Make sure the vent system is gas tight and
willnotleak.
•Supporttheventpipewithhangersatregular
intervals as specied by these instructions or
the instructions of the vent manufacturer.
•Do not common vent or connect more than
one appliance to this venting system.
•
The total vent length including horizontal & vertical
vent runs should be no less than 3' (0.9m).
•Donotstorehazardousorammablesubstances
nearthe vent termination and check that the
terminationisnotblockedinanyway.
•Steamorcondensedwater maycomeout
from the vent termination. Select the location
for the termination so as to prevent injury or
property damage.
•Ifsnowisexpectedtoaccumulate,takecare
the end of the pipe is not covered with snow
or hit by falling lumps of snow.
General Requirements
Clearances
PVC or CPVC has been approved for use on this
appliance with zero clearance to combustibles.

13
Theunitcanbeadjustedtoaccommodatelongerventruns;refertothebelowtabletondthe
maximum vent length based on the number of elbows. Adjust the dip switches according to the vent
condition noted in the tables below.
Note: Bydefault,theunithasbeensettothe"1shortlengthusing3"(75mm)pipe"condition.Whenadjusting
thedipswitchesforlongerventruns,theBTUHinputoftheappliancewillbereducedbyupto5%.
Maximum Vent Length Adjustment Dipswitches
-Two90° elbows, maximum length = 3 ft. (0.9m)
(withdipswitchessetat"1shortlengthusing3"(75mm)pipe"condition)
-Two90°elbows,maximumlength=51ft.(15.3m)
(withdipswitchessetat"4longlengthusing4"(100mm)pipe"condition)
[MaximumVentLengthExample]
•Disconnectpowertothewaterheaterbeforechangingthedipswitches.Failuretoperform
thisstepwillresultina"73"codedisplayedontheremotecontrollerandaceaseinoperation .
If this occurs, disconnect, then reconnect power to the water heater to reset the system.
 Note:Pleaserefertopage29forthelocationofthedipswitchbank.
0
3
6
9
12
15
18
21
24
27
30
33
36
39
42
45
48
51
54
57
60
63
0.00
0.90
1.80
2.70
3.60
4.50
5.40
6.30
7.20
8.10
9.00
9.90
10.80
11.70
12.60
13.50
14.40
15.30
16.20
17.10
18.00
18.90
m10234ft
Vent length* Elbows
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Number of
pieces**
3
3
0%
-3%
-3%
-5%
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
3
3
0%
-3%
-3%
-5%
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
3
3
0%
-3%
-3%
-5%
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
3
3
0%
-3%
-3%
-5%
3
3
3
4
4
4
4
4
4
4
4
4
4
4
3
3
0%
-3%
-3%
-5%
3
4
4
4
4
4
4
4
4
4
4
4
0
3
6
9
12
15
16
18
21
22
24
27
28
30
33
34
0.00
0.90
1.80
2.70
3.60
4.50
4.80
5.40
6.30
6.60
7.20
8.10
8.40
9.00
9.90
10.20
m1023ft
Vent length*
3” Pipe
Elbows
0
1
2
3
4
5
6
6
7
8
8
9
10
10
11
12
Number of
pieces**
1
1
0%
0%
-5%
-5%
1
1
1
1
2
2
2
2
2
2
2
2
2
2
1
1
0%
0%
-5%
-5%
1
1
2
2
2
2
2
2
2
2
2
1
1
0%
0%
-5%
-5%
2
2
2
2
2
2
2
2
0%
-5%
2
2
2
2
2
2
2
13
24
Short length using 4" (100mm) pipe
Short length using 3" (75mm) pipe
Long length using 3" (75mm) pipe Long length using 4" (100mm) pipe
Short length using 4" (100mm) pipe
Short length using 3" (75mm) pipe
Long length using 3" (75mm) pipe
Long length using 4" (100mm) pipe
**Table assumes straight vent pieces are 3’ (0.9m) each.
Shorter or longer vent pieces may also be used up to the maximum
allowed vent length.
Do not change any other dipswitches.
Vent length condition.
1
78
ON=OFF=
2
3
4
4” Pipe
* Not including the termination.
* Not including the termination.
Refer to page 17 for max. vent lengths
when using termination VK3-H-PVC.
<MaximumVentLengthandReducedInputCongurations>
The power must be unplugged
when adjusting the dip switches
to switch the airow amount.

14
WARNING
CARBON MONOXIDE POISONING
Failure to properly seal the vent system could
cause ue products to enter the living space.
Item Material United States
Exhaust Vent/Air Intake
Schedule 40 PVC ANSI/ASTM D1785
PVC-DWV ANSI/ASTM D2665
Schedule 40 CPVC ANSI/ASTM F441
Pipe Cement/Primer PVC ANSI/ASTM D2564
CPVC ANSI/ASTM F493
Note: Do Not Use Cellular Foam Core Pipe
PVC/CPVC Installation Instructions
• Use only solid PVC or CPVC schedule 40 pipe. Cellular foam core piping is not allowed.
•
• Follow all general venting guidelines as outlined on this page.
• The pipe shall be installed so that the rst 3’ (0.9m) of pipe from the appliance ue outlet is readily
accessible for visual inspection.
• When preparing and assembling the pipe, follow instructions as provided by the pipe
manufacturer. In general, the following practices must be observed:
o Squarely cut all pieces of pipe.
o Remove all burs and debris from joints and ttings.
o All joints must be properly cleaned, primed, and cemented. Use only cement and primer
approved for use with the pipe material as outlined in the above table.
•
• PVC or CPVC pipe has been approved for use on this appliance with zero clearance to combustibles.
All piping must be fully supported. Use pipe hangers at a minimum of 3’ (0.9m) intervals. Do not use
the water heater to support the vent piping.
3" or 4" schedule 80 pipe may also be used on this appliance, however the BTUH input of the
appliance will be reduced by up to 5%.
16' (4.8m)
N /A
No. of Elbows
* Not including the termination
22' (6.6m)
3
4
2
1 28' (8.4m)
45' (13.5m)
39' (11.7m)
51' (15.3m)
57' (17.1m)
• Do not exceed the following maximum vent lengths:
Venting With PVC or CPVC
This appliance can be vented with non cellular core plastic pipe materials as specied in the below table.
•
• A bird screen must be installed on the vent terminations to prevent debris or animals from entering the
piping. These screens are not supplied with the water heater and must be purchased separately
(part #VT4-PVCS, use part #VT3-PVCS when using 3" (75mm) PVC or CPVC).
When attaching the piping to the water heater, use the appropriate primer and cement to ensure a
proper seal.
4" (100mm) Pipe*3" (75mm) Pipe*
Refer to page 17 for max. vent lengths
when using termination VK3-H-PVC.

15
Vent Pipe Installation
Horizontal Vent Termination- PVC/CPVC Materials Only
Intake and exhaust should face the same direction.
Intake and exhaust should keep the same
pressure zone.
2ft. Min
Interior View
Interior View Exterior View
Interior View Exterior View
1ft. Min1ft. Min
•
Insert the bird screen.
90° elbow vertical setting (downward).
•
Ensure at least 3ft (0.9m) or more distance between
the near edge of the air intake pipe or exhaust pipe
to the inside corner of a wall.
•
Ensure at least 2ft (0.6m) or more distance between
intake pipe and exhaust pipe.
The distance is measured at inside of pipe to inner
dimension.
•
Intake and exhaust should face the same direction.
Intake and exhaust should keep the same
pressure zone.
•
Insert the bird screen.
90° elbow vertical setting (downward).
•
Ensure at least 3ft (0.9m) or more distance between
edge of air intake pipe or exhaust pipe and corner wall.
•
Upper side is exhaust, lower side is intake.
The reverse connection is not allowed.
•
Ensure at least 1ft (0.3m) or more distance between
intake pipe and exhaust pipe.
The distance is measured at the outlets of
intake port (terminal) and exhaust port (terminal).
•
Intake and exhaust should face the same direction.
Intake and exhaust should keep the same
pressure zone.
•
Insert the bird screen.
90° elbow vertical setting (downward).
•
Ensure at least 3ft (0.9m) or more distance between
edge of air intake pipe or exhaust pipe and corner wall.
•
The side distant from wall is intake, the side near the
wall is exhaust.
The reverse connection is not allowed.
•
Ensure at least 1ft (0.3m) or more distance between
intake pipe and exhaust pipe.
The distance is measured at inside of pipe to inner
dimension.
•
•
Exhaust
Intake
Exhaust Intake
1ft. Min
Exterior View
Exhaust
Exhaust
Intake
Intake
Exhaust Intake
3” Min
WARNING
If the distance between the air inlet and exhaust vent terminations is too short, the water heater
will draw in the exhaust gases through the intake. There is a risk of inadequate combustion air
for the water heater, increasing Carbon Monoxide (CO) emissions and noise due to vibration.
•Termination elbows must be oriented vertically, pointing directly downward. Attempts to prevent
exhaust air from entering the air inlet by angling termination elbows in directions other than
directly downward will increase the risk of freezing.
•Reversing the air intake and exhaust pipes is not allowed.
Carbon Monoxide (CO) emissions and noise due to vibration will increase.
3” Min
3” Min
5.9”
5.9”
5.9”

16
Vertical Vent Termination- PVC/CPVC Materials Only
•
•
•
•
•
•
•
•
Horizontal Vent Termination- PVC/CPVC Materials Only
•
•
•
•
•
•
•
•
Hanger
Straps
**1' mini
* Not supplied with water heater,
order separately.
mum recommended,
but not required.
3 ft. Min.
FirestopFirestop
Firestop/Support
Roof
Flashing
Roof
Flashing
Hanger
Strap
**1'
Minimum
**1'
Minimum
Support
Slope
Slope vent
Upwards
Intake
Exhaust
vent
Upwards
Intake Exhaust
12" over maximum
snow level
or 24", whichever
is greater.
12" over maximum
snow level
or 24", whichever
is greater.
Insert Bird
Screen* in
End of
90 Elbow
Storm
Collar
Storm
Collar
As illustrated on the left, make sure to keep a distance of 3' (0.9m)
or wider between the intake and exhaust when installing the vent piping.
The PVT-HL termination may be used in place of elbows as the
horizontal vent terminations. It is not necessary touse bird screens
with the PVT-HL termination.
Terminate at least 12" (300mm) above grade or above snow line.
Terminate at least 7' (2.1m) above a public walkway, 6' (1.8m)
from the combustion air intake of any appliance, and 3' (0.9m)
from any other building opening, gas utility meter, service regulator etc.
Terminate at least 3' (0.9m) above any forced air inlet within
10' (3m) , 1' (0.3m) below, 1' (0.3m) horizontally from or 1' (0.3m)
above any door, window, or gravity air inlet into any building per
National Fuel Gas Code ANSI Z223.1/NFPA 54.
Slope the horizontal vent 1/4" upwards for every 12" (300mm)
toward the termination.
Use a condensation drain if necessary.
In the Commonwealth of Massachusetts a carbon monoxide detector
is required for all side wall horizontally vented gas fuel equipment.
Please refer to Technical Bulletin TB 010606 for full installation
instructions.
As illustrated on the left, make sure to keep a distance
of 3' (0.9m) or wider between the intake and exhaust
when installing the vent piping.
Terminate at least 6' (1.8m) from the combustion air
intake of any appliance, and 3' (0.9m) from any other
building opening, gas utility meter, service regulator etc.
Enclose exterior vent systems below the roof line to limit
condensation and protect against mechanical failure.
When the vent penetrates a oor or ceiling and is not
running in a re rated shaft, a restop and support is
required.
When the vent termination is located not less than
8' (2.4m) from a vertical wall or similar obstruction,
terminate above the roof at least 2' (0.6m), but not
more than 6' (1.87m), in accordance with the National
Fuel Gas Code ANSI Z223.1/NFPA 54.
Provide vertical support every 3' (0.9m) or as required
by the vent pipe manufacturer's instructions.
A short horizontal section is recommended to prevent
debris from falling into the water heater.
When using a horizontal section, slope the horizontal
vent 1/4” upwards for every 12” (300mm) toward the
termination to drain condensate.
**1' minimum recommended,
but not required.
*
Not supplied with water heater,
order separately.
When choosing intake and exhaust terminations, you must use the
same type of elbow (i.e. both 45° elbows, or both 90° elbows).
This will help with proper combustion by putting both terminations in
the same pressure zone.
When choosing intake and exhaust terminations, you must use the
same type of elbow (i.e. both 45° elbows, or both 90° elbows).
This will help with proper combustion by putting both terminations in
the same pressure zone.
Insert Bird
Screen* in
End of
90 Elbow
Insert Bird Screen*
in End of 90 Elbow
3” Min.
Vent Pipe Installation

17
No. of
Elbows
3
2
1
4
Max. Straight Vent Length**
3" (75mm) PVC or CPVC
Max. Straight Vent Length**
4" (100mm) PVC or CPVC
** Not including the concentric termination
16' (4.8m)
N / A
22' (6.6m)
28' (8.4m)
30' (9.0m)
N / A
36' (10.8m)
42' (12.6m)
Maximum Vent Length Adjustment Dip switches.
0
3
6
9
12
15
18
21
24
27
30
33
36
39
42
0.00
0.90
1.80
2.70
3.60
4.50
5.40
6.30
7.20
8.10
9.00
9.90
10.80
11.70
12.60
m1023ft
Vent length*** Elbows
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
N /A
Number of
pieces****
-5%
-5%
3
3
0%
3
3
4
4
4
4
4
4
4
4
4
4
4
3
3
0%
4
4
4
4
4
4
4
4
4
4
4
4
4
-3%
-3%
-3%
-3%
-3%
-5%
4
4
4
4
4
4
4
4
4
4” Pipe
<Maximum Vent Length and Reduced Input Congurations>
*** Refer to page 13 for 3" pipe Maximum Vent Length Adjustment Dipswitches table.
3
4
Short length using 4" (100mm) pipe
Long length using 4" (100mm) pipe
****Table assumes straight vent pieces are 3’ (0.9m) each.
Shorter or longer vent pieces may also be used up to the maximum
allowed vent length.
•
•
•
•
•
•
•
Hanger
3" (75mm) or
4" (100mm)
Intake*
Horizontal Vent Termination- 3" (75m) Concentric PVC/CPVC Termination
3" (75m m ) or
4" (100m
m )
Exhaust*
Straps
The concentric termination may be shortened,
but not lengthened from its original factory
supplied length.
The concentric termination may only be used
for horizontal terminations.
Terminate at least 12" (300mm) above grade or
above snow line.
Te rminate at least 7' (2.1m) above a public walkway,
6' (1.8m) from the combustion air intake of any
appliance, and 3' (0.9m) from any other building
opening, gas utility meter, service regulator etc.
Terminate at least 3' (0.9m) above any forced air
inlet within 10' (3m), 1' (0.3m) below, 1' (0.3m)
horizontally from or 1' (0.3m) above any door,
window, or gravity air inlet into any building per
National Fuel Gas Code ANSI Z223.1/NFPA 54.
Slope the horizontal vent 1/4" upwards for every
12" (300mm).
Use a condensation drain if necessary.
In the Commonwealth of Massachusetts a carbon
monoxide detector is required for all side wall
horizontally vented gas fuel equipment.
Please refer to Technical Bulletin TB 010606 for full
installation instructions.
Slope vent
Upwards
* 4" (100mm) pipe requires the use of a reducing coupling
just prior to the termination.
•
•
•
•
3" (75mm) or 4" (100mm) PVC or CPVC pipe
may be used with the concentric termination.
Maintain the same vent pipe diameter from the
water heater ue to the termination.
Do not exceed the maximum vent lengths as
specied in this section.
When using 4" (100mm) pipe, it will be necessary
to use 4" (100mm) x 3" (75mm) reducing couplings
and a short section of 3" (75mm) pipe to connect to
the termination.
Use no more than a 6" (150mm) section of pipe to
make the connection between the reducing
couplings and the termination.
•
Install a securing strap to prevent movement of
the termination.
Strap
There must be a 1" (25mm) to 4" (100mm) clearance
between the outside wall and the air intake section
of the termination as illustrated on the left.
1" (25mm) to
4" (100mm)
Insert Bird Screen ***
in End of Termination
*** Not supplied with
water heater,
order separately.

18
Vertical Vent Termination- PVC/CPVC Materials Only
Firestop
Firestop/Support
Roof
Flashing
Storm
Collar
Hanger
Strap
Horizontal Vent Termination- PVC/CPVC Materials Only
Hanger
Straps
**1' (0.3m) Minimum
Slope vent
Upwards
**1' (0.3m) Minimum
* Not supplied with water
heater, order separately.
recommended, but not required.
Insert Bird
Screen* in
Each End
of Te e
Support
Insert Bird
Screen* in
End of 90
Elbow
Slope vent
Upwards
Pipe Material PVC or CPVC
* Not supplied with water
heater, order separately.
Max. Straight Vent Length
3 41' (12.6m)
No. of Elbows 4" (100mm) Pipe 3" (75mm) Pipe
2 47' (14.4m)
1
*** Not including the termination.
53' (16.2m)
**1' (0.3m)
Minimum
**1' (0.3m) minimum
recommended, but not required.
***
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
A tee, 45 elbow, or the PVT-HL termination may be used
for the vent termination. It is not necessary to use bird
screens with the PVT-HL termination.
Terminate at least 12" (300mm) above grade or above
snow line.
Terminate at least 7' (2.1m) above a public walkway,
6' (1.8m) from the combustion air intake of any appliance,
and 3' (0.9m) from any other building opening, gas utility
meter, service regulator etc.
Terminate at least 3' (0.9m) above any forced air inlet within
10' (3m) , 4' (1.2m) below, 4' (1.2m) horizontally from or
1' (0.3m) above any door, window, or gravity air inlet into any
building per National Fuel Gas Code ANSI Z223.1/NFPA 54.
Slope the horizontal vent 1/4" upwards for every 12" (300mm)
toward the termination.
Use a condensation drain if necessary.
In the Commonwealth of Massachusetts a carbon monoxide
detector is required for all side wall horizontally vented gas
fuel equipment.
Please refer to Technical Bulletin TB 010606 for full installation
instructions.
When installed in a manufactured home, all combustion air
must be supplied from the outdoors as shown on pages 15 - 17.
Terminate at least 6' (1.8m) from the combustion air
intake of any appliance, and 3' (0.9m) from any other
building opening, gas utility meter, service regulator etc.
Enclose exterior vent systems below the roof line to limit
condensation and protect against mechanical failure.
When the vent penetrates a oor or ceiling and is not
running in a re rated shaft, a restop and support is
required.
When the vent termination is located not less than
8' (2.4m) from a vertical wall or similar obstruction,
terminate above the roof at least 2' (0.6m), but not
more than 6' (1.87m), in accordance with the National
Fuel Gas Code ANSI Z223.1/NFPA 54.
Provide vertical support every 3' (0.9m) or as required
by the vent pipe manufacturer's instructions.
A short horizontal section is recommended to prevent
debris from falling into the water heater.
When using a horizontal section, slope the horizontal
vent 1/4” upwards for every 12” (300mm) toward the
termination to drain condensate.
When installed in a manufactured home, all combustion air
must be supplied from the outdoors as shown on pages 15 - 17.
Exhaust
Intake
Exhaust
4 35' (10.8m)
41' (12.6m)
47' (14.4m)
53' (16.2m)
35' (10.8m)
Intake
90 Elbow
SV Conversion Kit
Accessory
(#SV-CK-3)
90 Elbow
SV Conversion Kit
Accessory
(#SV-CK-3)
Inlet screen
Inlet screen
3” Min.
Vent Pipe Installation (When supplying combustion air from the indoors (SV, non-direct vent))
•DisconnectpowerandturnONdipswitch3ifcombustionairwillbe
supplied from the indoors as illustrated to the right. Refer to page 29 for
the location of the dip switch bank.
•SVConversionkit#SV-CK-3isrequiredfortheairintake.
* Dip switch No.3 is turned on.
Failuretoperformtheabove2stepscouldresultinareorexplosioncausing
property damage, personal injury or death.
Refertotheinstructionsprovidedwiththeconversionkitforadditionaldetails.
WARNING
