WATER HEATER USER MANUAL

2 www.electrolux.com
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with
it decades of professional experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be safe in the knowledge that
you’ll get great results every time. Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
2. SAFETY INSTRUCTIONS...................................................................................... 6
3. ELECTRICAL REQUIREMENTS............................................................................. 8
1. SAFETY INFORMATION........................................................................................4
4. WATER REQUIREMENTS....................................................................................10
5. INSTALLATION....................................................................................................11
6. OPERATION INSTRUCTION................................................................................17
7. MAINTENANCE ...................................................................................................21
8. HELPFUL HINTS AND TIPS.................................................................................22
9. TROUBLESHOOTING..........................................................................................23
CONTENTS

3ENGLISH
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Electrolux Customer Service, ensure that you have the following data
available. The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
GB IE
GREAT BRITAIN & IRELAND - Customer Care and Service
Standard Guarantee Conditions and Exclusions.To see our guarantee conditions and
exclusions please visit www.electrolux.co.uk or contact our Customer Care Department.
Service & Spare Parts. Please contact your local Service Force Centre on; 08445 616616
(Your call will automatically be routed to your local centre) For the address of your local
centre please visit; www.electrolux.co.uk Please ensure you read the information under
‘What to do if’ in your instruction booklet before contacting us for service.
Servicing and/ or installation of your product, including electrical connections and water
connections should be carried out by a suitably qualied engineer. In the user manual and
on our web site, www.electrolux.co.uk you will nd some useful information on how to
deal with minor faults and how to take care of your product. When contacting us for
Service please ensure that you have your purchase receipt and the following information
available:
Model No............................................... Serial No..................................................
Product No............................................ Purchase Date:.........................................
Republic of Ireland: For Customer Care or Service please contact us at the following
address, Electrolux Group(Ir) Ltd, Long Mile Rd, Dublin 12, Republic of Ireland.
Tel No. [phone], E mail; [email protected]
Electrolux : 08445 613613
Customer Care. Please contact Electrolux Major Appliances, Addington Way, Luton,
Bedfordshire, LU4 9QQ.

Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
Riskof suffocation, injury or permanent disability.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
1. SAFETY INFORMATION
1.1Children and vulnerablepeople safety
1.2General Safety
Keep all packaging away from children.
Children shall not play with theappliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Before maintenance swich off the appliance.
Do not switch on if there is a possibility that the water in
theheater is frozen.
The spray head must be descaled regularly.
The outlet must not be connected to any tap or tting
other than those specied.
WARNING!
4 www.electrolux.com

The appliancemust be earthed.
The pressure relief device must be tted during
installation, unless it is incorporated in the appliance.
The appliance must be permanently connected to xed
wiring.
Do not install the appliance in locations where freezing
can occur.
The means for disconnection must be incorporated in
the xed wiring in accordance with the wiring rules.
The xed wiring insulation must be protected, for
example, by insulating sleeving having an appropriate
temperature rating.
This appliance is designed to be used for shower only.
Do not try to use for other purpose. It may cause
potential harm to person or the appliance.
This appliance is only designed for household use or
similar environment such as hotel. Do not try to use
on industrial environment.
5ENGLISH

Remove all the packaging.
Do not install or useadamaged appliance.
All products manufactured and supplied by
Electrolux are safe provided they are
installed, used correctly and receive regular
maintenance in accordance with these
instructions.
this appliance.
2.1Installation
2.2 Use
WARNING!
2. SAFETY INSTRUCTIONS
WARNING!
Make sure that a shock protectionis
installed.
Use the strain relief clamp on cable.
Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact the Service or an electrician
to change a damaged mains cable.
All electricalconnections must be made by
a qualied electrician.
Risk of re and electrical shock.
The appliance must be earthed.
Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
Use the correct electricity mains cable.
Do not let the electricity mains cabletangle.
Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
Always switch off the power at the
consumer unit and isolate the electrical
supply before making any electrical
connections or if you have to remove the
cover of an installed unit.
Risk of re and electrical shock.
Remove all the packaging, labeling and
protective lm (if applicable) before rst use.
Obey the installation instruction supplied
with the appliance.
Keep the minimum distance from the other
appliancesand units.
If you are in any doubt about your ability to
install this product safely you must employ
the services of an experienced qualied
plumber/electrically qualied person.
Do not operate the shower unit if you
suspect the water inside is frozen. Do not
site the shower unit where it might be
subjected to freezing conditions.
Do not install this shower unit in a
room/environment without adequate
ventilation or an extractor tted. This is
required to prevent condensation forming
within the unit.
The unit must be mounted on the nished
wall surface (usually tiled). Under no
circumstances must you tile up to or seal
around the unit as this may prevent air
circulating and condensation escaping.
This shower unit must not be modied* in
any way as this will invalidate the guarantee.
* Except for those indicated on this manual
where the product has been designed to
be modied by the installer.
You must not t a “water saving” handset
(whereby the ow of water can be
restricted or turned off) to the shower,
otherwise this can result in scalding and/or
unit failure.
Electrical connection
WARNING!
6 www.electrolux.com

Do not operate the shower unit if the
showerhead or spray hose has been
damaged or is blocked.
2.3Disposal
Do not block the ow of water from the
showerhead, by placing it (smothering it)
on your hand or any other part of your
body or foreign object.
Do not change the specication of this
appliance.
Do not operate the shower if the water
stops owing during use or if the water is
leaking from the shower unit itself.
Turn off at the mains electrical supply and
refer to the Troubleshooting section (see
page 23) or contact Electrolux Customer
Services (see page 3).
Do not crush or kink the shower hose, this
could damage the hose, cause leaks and
activate the pressure relief device.
Contact your municipal authority for
information on how to discard the
appliance correctly.
Disconnect the appliance fromthe mains
supply.
Cut off the mains cable and discard it.
Risk of injury or suffocation.
WARNING!
7ENGLISH

8 www.electrolux.com
3. Electrical Requirements
Mains electrical
supply
Shower unit
30mA RCD for
ampage of
MCB/Fuse see
circuit protection
table on page 9
For cable capacity see
cable current carrying
capacity table on page 9
Thisappliance MUST be earthed!
Unitpowertable
Theinstallation,supplycableandcircuit
protectionmustconform withBS 7671(IEE
wiring regulations) and be sufcicnt for the
amperage required.
Important:Beforemaking any sort of
electrical connection withintheinstallation
makesure that no terminalis live.If inany
doubt, switchoffthe wholeinstallation atthe
mainssupplyand removethe correctfuse.
The showermustonlybeconnected to a
230-240V ac supply. If youare installing a
shower witha kilowatt rating above 9kW, it is
advisabletocontactthelocal electricity
supplycompany.
Theshowermust be connectedto its own
independentelectrical supply. It mustnot be
connected to a ring main, spur, power
socket, or lightingcircuit.
Theelectricalsupplymust beadequatefor
the loadingof theunitand existingcircuits.
Checkyour consumerunit(main fusebox)
hasamain switchrating of 80A or aboveand
that it hasaspare fusewaywhichwill take
thefuseor Miniature CircuitBreaker(MCB)
necessary forthe shower
If yourconsumerunit hasarating below 80A
or if there is no spare fuseway,thenthe
installationwill notbestraightforwardand
mayrequireanewconsumerunit servingthe
house or just theshower.In this case, you
will needtocontact thelocal electricity
company.They willcheck thesupplyand
carryoutwhat isnecessary.
WARNING!
Rating at 240V Rating at 230V
8.5kW 7.8kW
9.5kW 8.7kW
10.5kW 9.5kW
Consumer unit
Double pole switch

9ENGLISH
The current rating will bereduced if the
cablingis bunched with others,surrounded
by thermal loft or wall insulation or placed in
areas wherethe ambient temperature is
above 30°C. Under these conditions, derating
factors apply and it is necessary to select a
larger cable size.
In the majority of installations,the cable will
unavoidably beplaced in oneor more of the
above conditions. If so, it is strongly
recommended touse a minimumof 10mm
cablingthroughout the shower installation.
In any event, it is essential that individual site
conditions are assessed by a competent
electrician in order to determine the correct
cable size and permissible circuit length.
Circuit Protection table.
Where shower cubicles are located in any
rooms other than bathrooms, all socket
outlets in those rooms must beprotected by
a 30mA RCD.
The current carrying capacity of the cable
must be at least that of the shower circuit
protection (see Cablecurrent carrying
capacity table).
To obtain full advantage of the power
provided by the shower, use theshortest
cable routepossiblefrom the consumer unit
to the shower.
The shower circuit should be separated from
other circuits by at least twice the diameter of
the cable or conduit.
Unit Rating
(240V)
Circuit Protection Device
MCB Cartridge Fuse
8.5kW
9.5kW
10.5kW
40A45A
40/45A45A
45A45A
Cable current carrying capacity table (for twin and earth PVC insulated cable)
Current carrying capacity
In an insulated wall In conduit or trunking Clipped direct or buried
in a non insulated wall
A64²mm6A83²mm6A23²mm6
10mm² 43A 10mm² 52A10mm²63A
Note: Cableselectionis dependant on derating factors
For close circuit protection DO NOT use a
rewireable fuse. Instead use a suitably rated
Miniature Circuit Breaker (MCB) or cartridge
fuse (see Circuit protection table).
A 30mA residual current device (RCD) must
be installed in all UK electric and pumped
shower circuits. This may bepart of the
consumer unit or a separate unit.
A 45 amp double pole isolating switch with a
minimum contact gap of 3 mm in both poles
must be incorporated in the circuit.
It must have a mechanical indicator showing
when the switch is in the OFF position, and
the wiring must be connected totheswitch
without theuse of a plug or socket outlet.
The switch must be accessible and clearly
identiable, but out of reach of a person
using a xed bath or shower, except for the
cord of a cord operated switch, and should
be placed so that it is not possible to touch
theswitch body while standing in a bath or
shower cubicle. It should bereadily
accessible to switch off after using the
shower.

10 www.electrolux.com

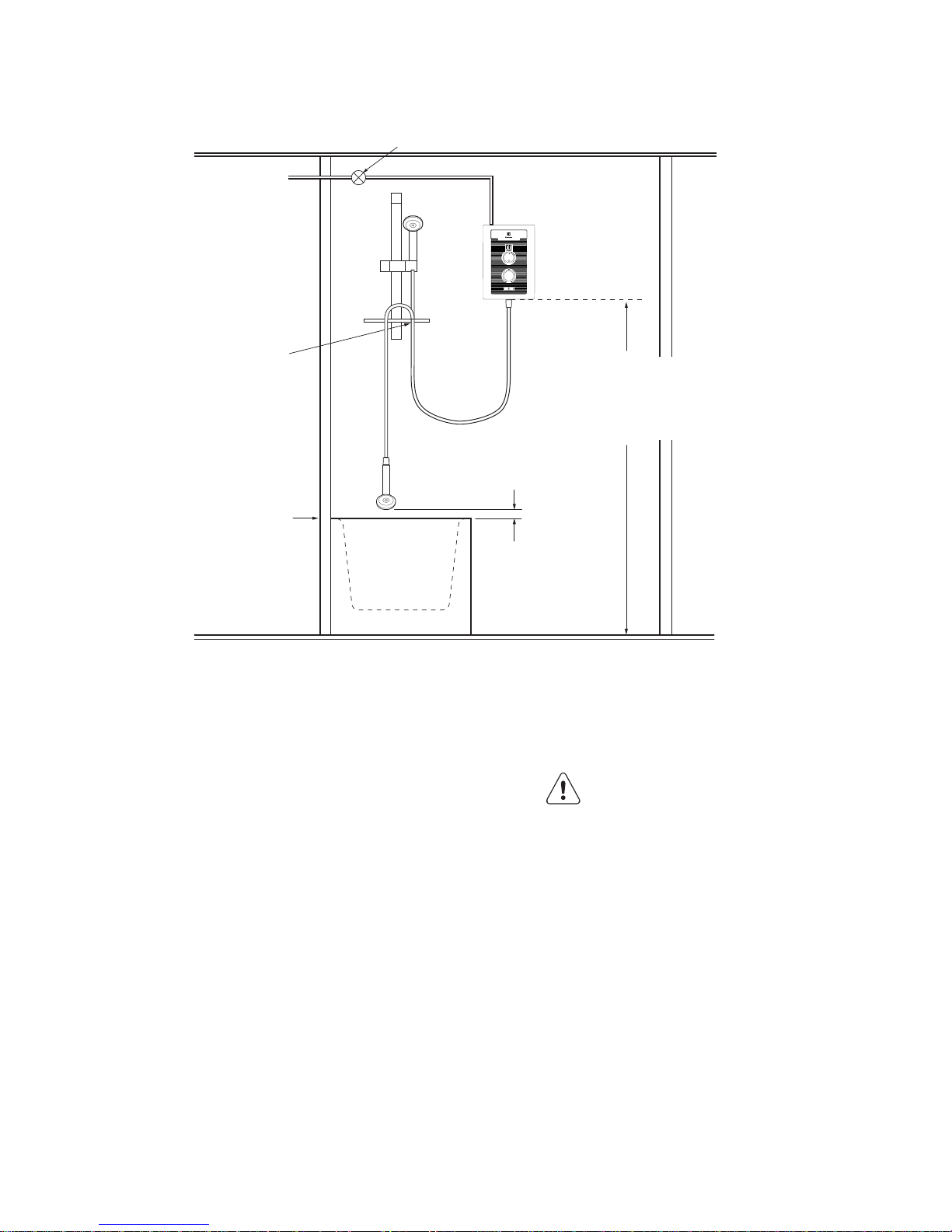

Isolating stop valve
Mains water
supply Shower unit
Bath spillover
level
Hose retainer
Minimum 25mm
between showerhead
and spillover
1m minimum
height from
shower unit to
floor
4. Water Requirements
Thisshower needs tobe installed in
accordance withthefollowing Installation
Requirementsand Notes (IRN)to ensure
theymeet therequirements of the Water
Supply (WaterFittings) Regulations 1999
andtheScottishByelaws 2004.
If theriser kit is supplied witha‘soapdish
hoseretainer’ or bespoke‘hoseretainer’, it
will in mostcases meetthisrequirement. If
the showerhead canstillbe placed within a
bath, basin or showertray within the 25mm
limit,thenadouble check valve,or similar,
MUST betted in the supply pipework to
prevent back-ow.
It is requiredthattheshowerhead be
constrained by a xed or sliding attachment
so thatitcanonlydischarge waterat a point
not lessthan 25mmabove thespill-over level
of therelevantbath,showertray or other
xed appliance.
If the showeris to be installedin ahardwater
area, we recommend thatanin-linescale
inhibitor is tted which will prolong the life of
the shower. Please refer to your supplier for
advice.
Theshower must be connected to a mains
watersupplyonly with a minimum working
inlet pressure of0.07MPa(0.7bar) at a
minimum ow rate of 8 litres per minute. The
maximum static inlet pressure must not
exceed 1.0MPa (10bar).
If it is intended to operate the shower at
pressures above the maximum stated, a
suitable pressure reducing device(PRD)
should be used.
Do not operatethe showerunit if
you suspectthe waterinside is
frozen.Theshower mustnot be
installed inanareasubject to
freezing conditions.
WARNING!

11ENGLISH
5. INSTALLATION
5.1Select the location and hang
up the shower
While planning your shower installation,
make sure you allow sufcient clearance
between the ceiling and walls to allow any
future maintenance (cleaning the lter etc.)
to be performed.
Water entry position:
Remain a proper distance between thetop
of theunit and the ceiling to access cover
screws.
Position the unit whereit willNOT bein
direct contact with water from the
showerhead. Position the shower unit
vertically. Theshower should be 1m
minimum height from oor.
Takethe proper water and cableentry
position into consider while selecting the
installation position. See Fig. 1 for thewater
and cable entryposition options.

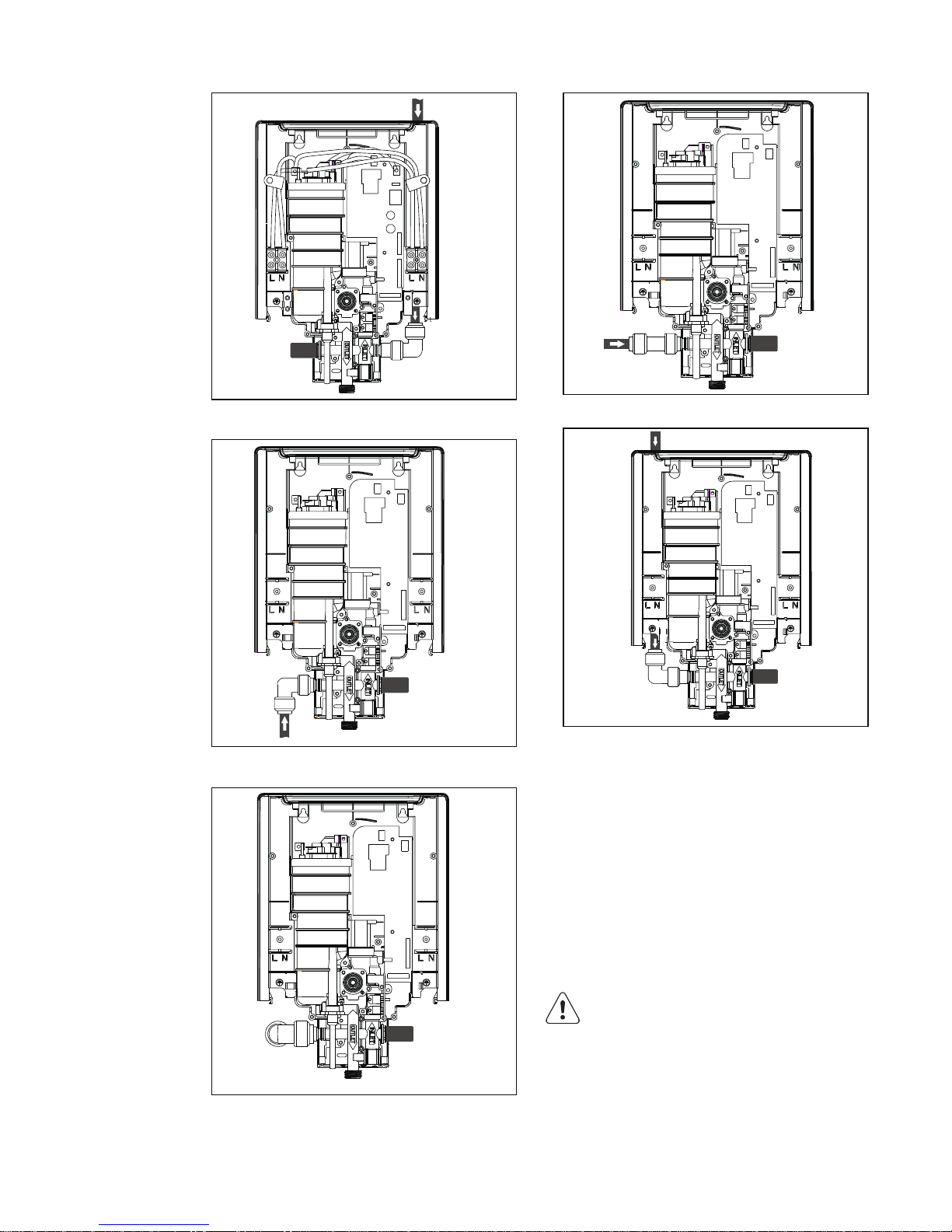

Fig. 1
Before installation, make sure
you readthrough the electrical
requirements and water
requirements section.
WARNING!
1
2
3
4
5
6
7
8
Bottom right inlet entry
Rear right inlet entry
Right inlet entry

12 www.electrolux.com
Bottom left inlet entryTop left inlet entry
Rear left inlet entry
Top right inlet entryLeft inlet entry
Screw the top xing screws into position
leaving the base of the screw head
protruding 6mm out from the wall.
Using the installation template supplied,
mark the positions of the three xing holes.
To mark the drilling position
Check if there is anyburied pipes or
cables before drilling.
CAUTION!
NOTE: Ensure that there are sufcent
lengths of supply pipe and electrical cable
to reach the connection points as shown
on the template.
Remove the installation template and drill
the xing holes (dimension). Insert the wall
plugs (supplied).

13ENGLISH

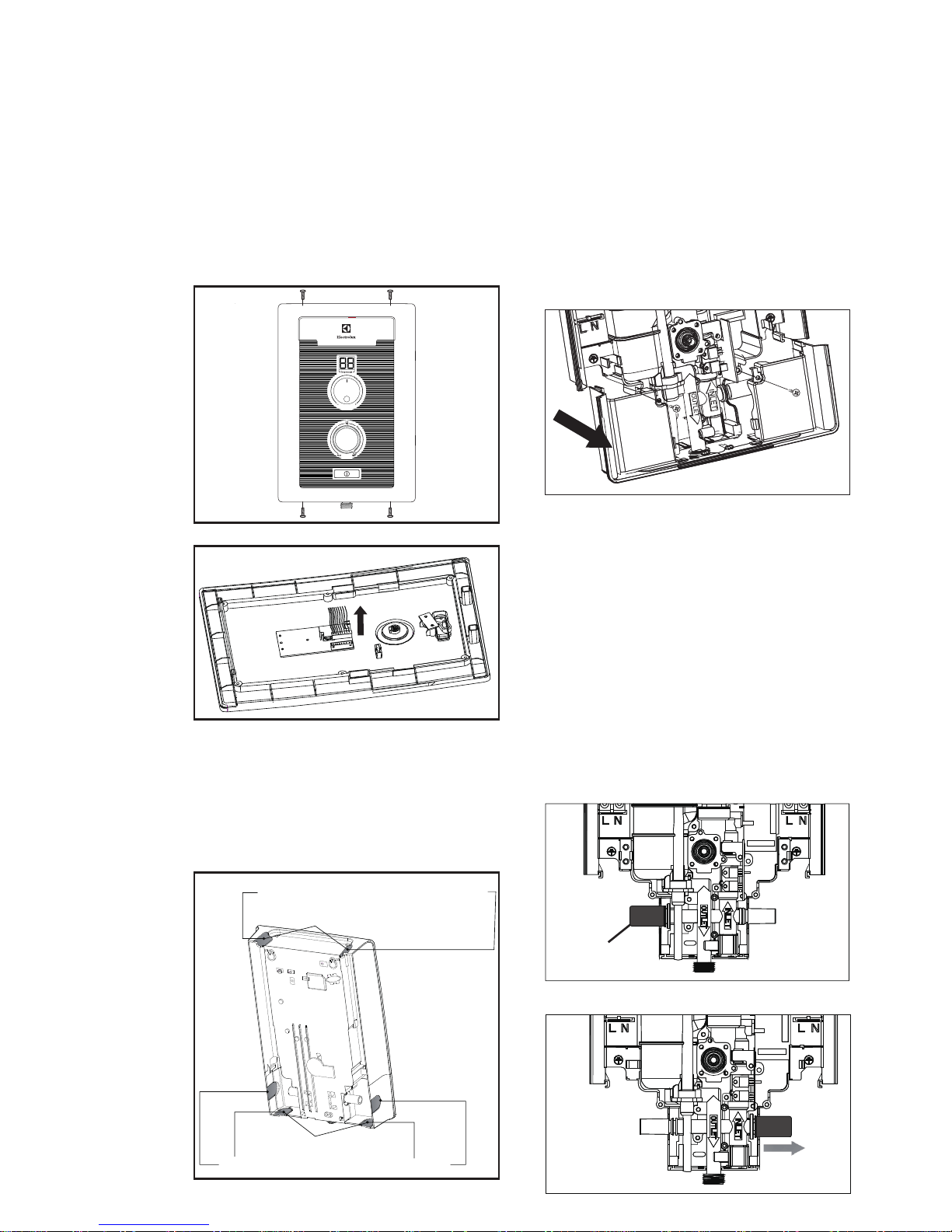

To remove the waterinlet cover
To changethewaterinletposition
The factorydefault settingof thewaterinlet
position is on the right side. To change the
water inlet position just remove the terminal
block from the left side and put it on the
right side. When you remove the terminal
block, you need to pull out the steel
fastening strip rst and x it on the terminal
block again when you put the terminal block
on the right side. After that try to pull the
terminal block out to check if it is xed.
Fig. 4a
Fig. 4.
5.2 Plumbing connection
To removethefront coverHook the backplate over the top screwand
t the bottom screws into position, but
DO NOT fully tighten the screws at this stage.
The xing holes are elongated to allow for
out of square adjustment after the plumbing
connection has been completed.
Unscrew the water inlet cover xing screws
and pull the water inlet cover out Fig. 4.
Unscrew the screws that xing the front
cover (Fig. 2a), and pull out the front cover
lightly, then disconnect the cable between
front cover and the chassis (Fig. 2b), after
that remove the front cover.
Fig. 2a
Fig. 2b
NOTE:The knobs and On/off button are
xed on the front cover. Do not try to
remove them.
According to the water and cable entry point
you selected, cut out the trim plate on the
chassis. To do that you may need a pair of
pincers. See Fig. 3 for the location of the
trim plate.

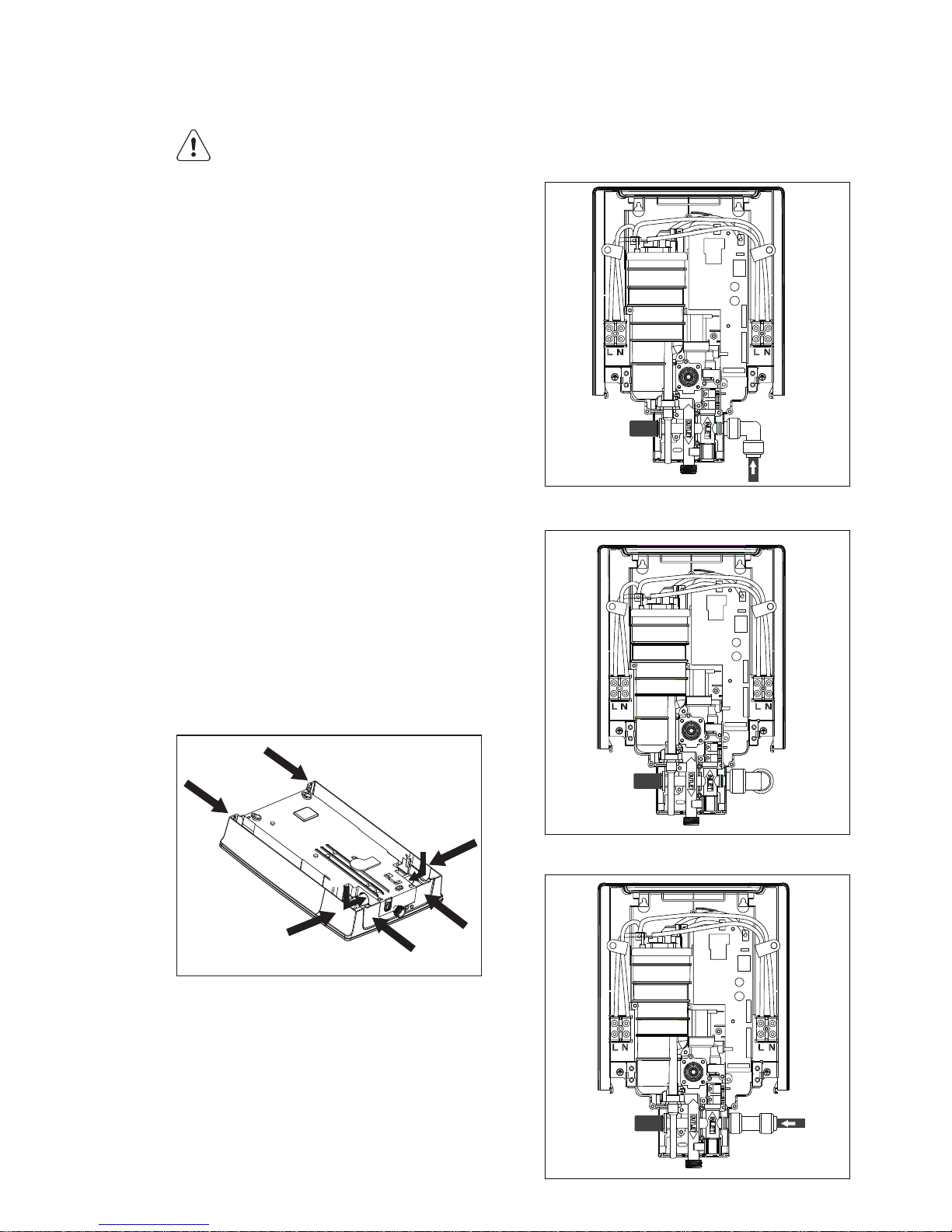

To remove theentrypoint trimplate
Fig. 3 WaterPipeentry pointstrimplate
WaterPipeentrypoints trimplate
Cable entrypoints
Cable entrypoints
Fig. 4b
Terminalblock

To select the wiring terminal position
5.3 Electrical wiring connection
Connect the mains water supply to the
water inlet by using a 15MM pusht(not
supplied). DO NOT use excessive force
when making the connection.
NOTE: Make sure the o-ring is clean and
on the correct position when putting the
terminal block on.
A proper sealant should always be used
to seal around the incoming pipework to
prevent water entering the wall.
It is essential that all pipe work is ushed
through to remove debris and swarf that
could otherwise damage the unit.
If entry is from the back, the nut of the
compression tting will be partially behind
the surface of the wall. This area MUST
be left clear when plastering and tiling
around the pipework in order to make the
nut accessible for future adjustments(Fig. 5).
Turn on the mains water supply and check
for leaks in the pipework connection to the
shower.
NOTE: At this stage no water can ow
through the unit.
To check the water supply leak
NOTE:
21mm
Fig. 5
14 www.electrolux.com
This Electrolux shower heater has 2 wiring
terminals and 2 earthing terminals shown
as Fig. 6. You can choose the proper
terminals when connecting the wiring.
Fig. 6
Wiring
terminal.
Earthing terminal
Route the cable into the shower unit for
connection to the terminal block as follows:
To do the wiring connection
Warning
Earth:
cable to terminal marked
Live:
cable to terminal marked
Neutral:
cable to terminal marked
Important!
When connecting the cable fully tighten the
terminal block screws and make sure that
no cable insulation is trapped under the
screws. Loose connections can result in
cable overheating.
only one of the terminal blocks is to used
for the supply cable connection, the other
terminal block is not to be used.
To connect the mains water supply

Fig. 7a
Turn thestabiliservalve
spindle fully clockwise
until resistance is felt.
1.
Stabiliser valve
Water ow position
2. Adjust the spline spindle and the control
knob to the correct position before replacing
the cover Fig. 7a, 7b show the correct pline
spindle and the control knob position.
1. Before xing the front cover to the shower,
tighten the 3 screws to x the shower on the
wall rmly.
3. Reassemble the water inlet cover Fig. 8a
and reconnect the cable Fig. 8b. 4. Check to ensure that the wiring is not
trapped and replace the cover squarely to
the backplate and guide into position so that
the knobs locate correctly into the splined
spindles. Should any difculty arise, recheck
the points above.
5. While applying slight pressure to the cover,
secure in position with the retaining screws.
6. Onceyouplace the frontcover on the
back cover properly x the front cover with
the 4 screws.
5.4Fixing the front cover
15ENGLISH
Fig. 8a
Fig. 8b
Fig. 7b
Turn thewater ow
controler fully clockwise
to theMinimum
2.

Sliding rail
(without ahold)
Fig 11
Sliding railbottom
(withahold)

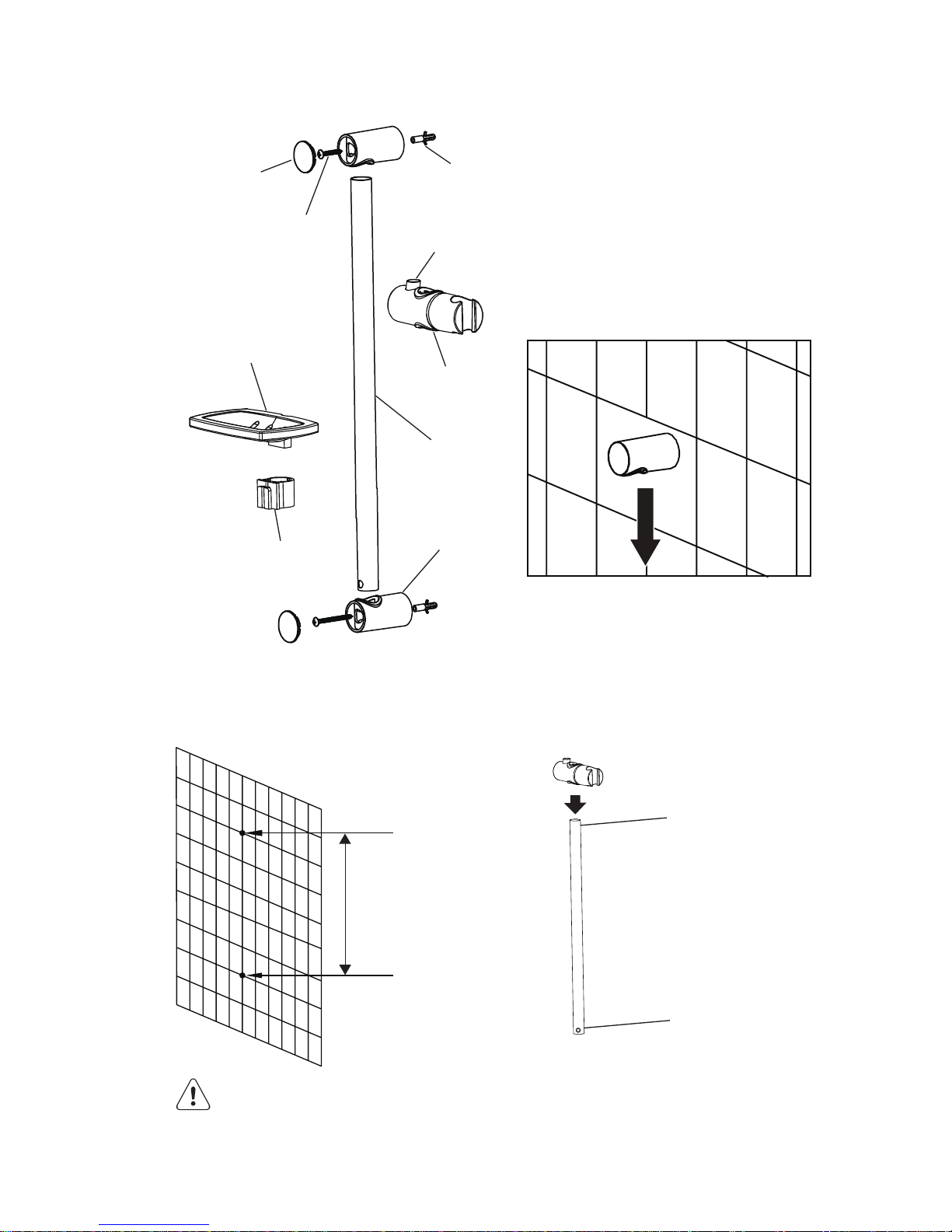

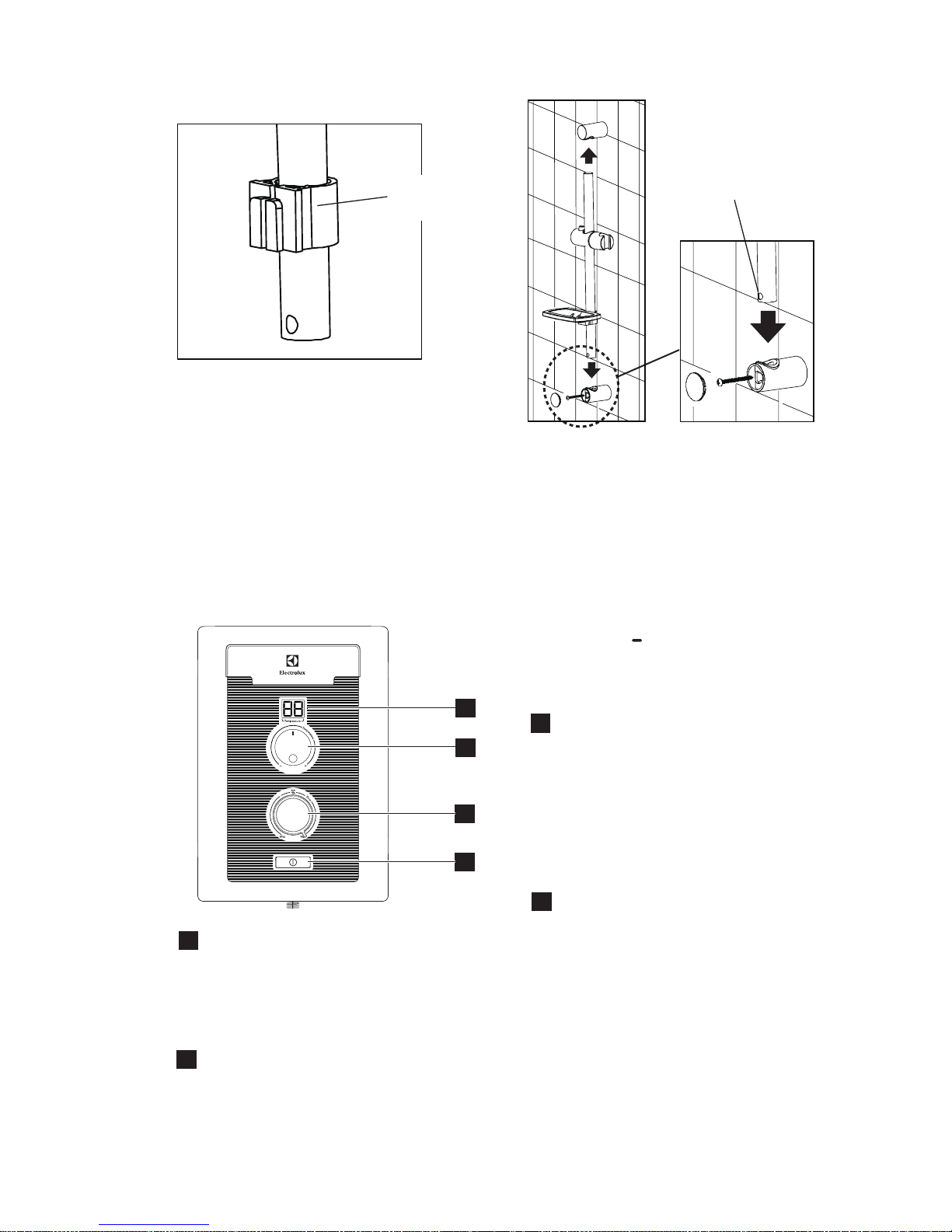

To installtheassemblyof the sliding rail.4.
a. Assemble the sliding seatintothe sliding
rail from thetop of the sliding rail.The
release button should be pointing upward,
when installing theslidingseat(seeFig 11).
Fig. 10
5.5Install the bracket
Find a proper placetodrilltwo holes
(5.5mm diameter) in the verticaldirection
with 425±1mmdistance(Fig 9).
1.
NOTE:Use the exible hose to locate the
proper position for the bracket if necessary.
Putthe wall plugs ontheholes, then
remove the sliding rail holder covers from
the sliding rail holders and x one of the
sliding rail holders on the upper position,
then replace the sliding rail holder cover.
3.
Check ifthere is any buried pipes or
cables beforedrilling.
WARNING!
NOTE:When xing the sliding rail holder,
point the opening downward (see Fig. 10).
SlidingSeat
Slidingrail
Soaptray
Screw
Wallplug
Soaptrayholder
Slidingseat
releasebutton
Sliding rail
holder cover
Slidingrailholder
Bracketparts
425±1mm
Fig. 9
16 www.electrolux.com

c. Assemblethesoaptay on thesoaptray
holder.
d. Placethe slidingrail between theholders
and x the sliding rail by xing the lower
holder as Fig. 13 shown.
b. Assemblethesoaptray holderfrom the
bottom of thesliding railasFig. 12 shown.
Pointthe open
gap upward
The larger hole should
be pointedoutside
Fig. 13
Fig. 12
6. OPERATION INSTRUCTION
Water ow controler
The water ow knob is used to
increase/decreasethe water ow.
- Clockwiserotate,decrease water
ow.
-Anti-clockwiserotate,increasewater
ow.
On/offbutton
Control theshowerunit'selectricity
andworkingstart/stop, whenpush on,
water owe out, when push off, water
stops.
NOTE:WhenyoupresstheOn/offbutton
to start the unit water start to ow out from
the showerhead. To avoid too hot or too
cold water ow, do not let showerhead
point directly to human body.
6.1Product features
3
4
2
3
1
4
2Water temperature adjuster
Thissectionis used to selectthe
desired water temperature. The water
temperature can be adjusted within the
range of 30 C to 46 C.
1Water temperature indicator
This indicatorindicatethe setting water
temperature anderror code. For the
errorcodepleaserefertohelpful hints
andtipssection(page21).
17ENGLISH
When rotate the water temperature
adjuster anti-clockwise to the minimum
position “ ”, the shower will stop heating
and the temperature indicator will indicate
the actual temperature.

6.2
Before normaloperation oftheshower, it is
essential thatthe following commissioning
procedure is completedcorrectly.
The following operation is intended to ush
out any remaining debris, and to make sure
the heater unit containswaterbefore the
heatingelementsareswitched on.
1. Make sure the exible hose screwed to
thewateroutletbut WITHOUT THE
SHOWERHEAD ATTACHED and the outlet
of the exible hose is directed to waste.
2. Beforeturning on theelectricandmains
watersupplies to theshower,makesure
that you rotate the temperature adjuster fully
anti-clockwise to minimum position “ ” and
the water ow controler is rotated fully
clockwise to the “ Mix ” position as shown
on Fig.15.
3. Turn on the mains water supply to the
shower at theisolating stopvalveand then
turn on theelectric supplyto theshower at
theisolatingswitch.
CAUTION!
Failure to turnthewater ow knob to
the minimum ow position MAY cause
the PRD(Pressure Relief Device) to
operate.
CAUTION!
Before rst use Fig. 15
Fig. 14
Fig. 16
4. Press the On/off button and wait until
water starts to ow from the exible hose.
5. Slowly rotate the water ow controler fully
anti-clockwise to the “Max” ow position
(Fig. 16). It will take about thirty seconds for a
smooth ow of water to be obtained while air
and any debris is ushed from the shower.
18 www.electrolux.com
Rotate the temperature
adjuster fully
anti-clockwise to the
“ ” position.
Turn the water ow
knob fully clockwise
to “Min” ow.
Slowly turn the water ow
controler to the “Max” ow
position.

6. When a smooth ow of water is obtained,
rotate the temperature control from Min to
Max several times to release any trapped air
within the unit.
7. Once ushing out has been completed,
stop the water ow by pressing the On/off
button.

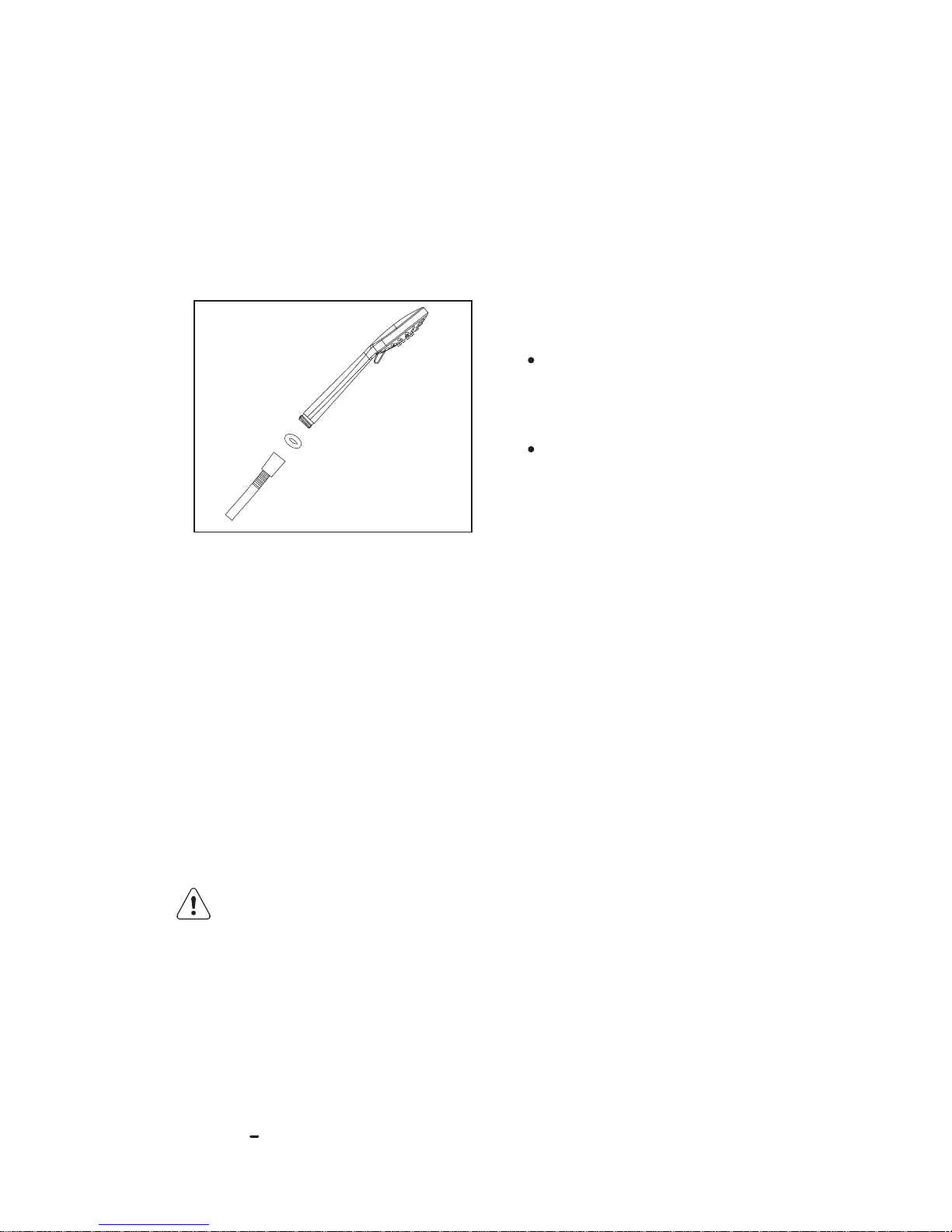

8. Fit the showerhead to the exible hose and
place in the showerhead holder(Fig.17).
Fig. 17
The showeris now readyfornormaloperation.
Makesure the commissioningprocedure
hasbeen carriedout.
Press the On/off button and water will ow.
Pressthe On/off button againandwater
will cease to ow.
When notusing the shower unit,insolate
the unit from maincircuit via the double
poleswitch.
To run in cold water, just rotate the
adjuster fully anti-clockwise to the minimum
position “ ”. The shower will stop heating
and the temperature indicator will show the
actual temperature of the water.
NOTE:It willtakea few secondsfor the
temperatureto stabilise afterchanging the
setting temperature.
NOTE:
Adjusting the water ow will not change
the water temperature setting, but it may
need some time for the water to be stable
again.
The water ow can be adjusted by the water
ow controler. The water ow controler can
be rotated within 300°.
-To increase the water ow turn the water
ow controler clockwisely.
-To decrease the water ow turn the water
ow controler anti-clockwisely.
To adjust thewater ow
The temperature adjuster can be rotated
within 300° and the temperature can be
set from 30°C to 46°C.
To starttheshower
To stoptheshower
To usethetemperature adjuster
6.3Daily use
If restartingimmediatelyafterstopping,
be awarethataslugofhot waterwill
be expelled for the rst few seconds.
WARNING!
19ENGLISH
It is advisable that the showering
temperatureissatisfactory by testingwith
your handbeforestepping under the
showerhead. Therewill always be a time
delay of a few seconds between selecting
a temperature and the water reaching the
stable temperature for that ow rate.

Spray
Spray-bubble
Bubble
Massage
Water ow Description
Setting
Water ow DescriptionSetting
Water ow DescriptionSetting
Water ow DescriptionSetting
Water ow DescriptionSetting
Concentrated spray impact, with
pulse effects, suitable for part
pulse massage on muscle.
Shower spray with massage
feeling.
Have a broader area, suitable
for large area shower.
plus spray water.
6.4Shower head setting
20 www.electrolux.com
