ELECTROSEA CLEARLINE System CL-430-N1.0 User manual

[phone]
[phone]
[email protected]
www.electrosea.com
Operation Manual Model CL-430-N1.0 / Model CL-410-N0.5
CLEARLINE®System

Table of Contents
1
U.S. and Foreign Patents Pending
COPYRIGHT © 2020
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise
without prior written consent by ElectroSea, LLC. Every precaution has been taken in the preparation of this manual to ensure its accuracy. ElectroSea assumes no responsibility for errors and
omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein.
1
Introduction
Table of Contents 1
ElectroSea® and CLEARLINE® 2
Safety Considerations 2
System Features
User Interface 3
Operating Modes and Feature Overview 4-5
Optimal Performance and Flow Alert 6
Cell Indicator 7
ClearCell®

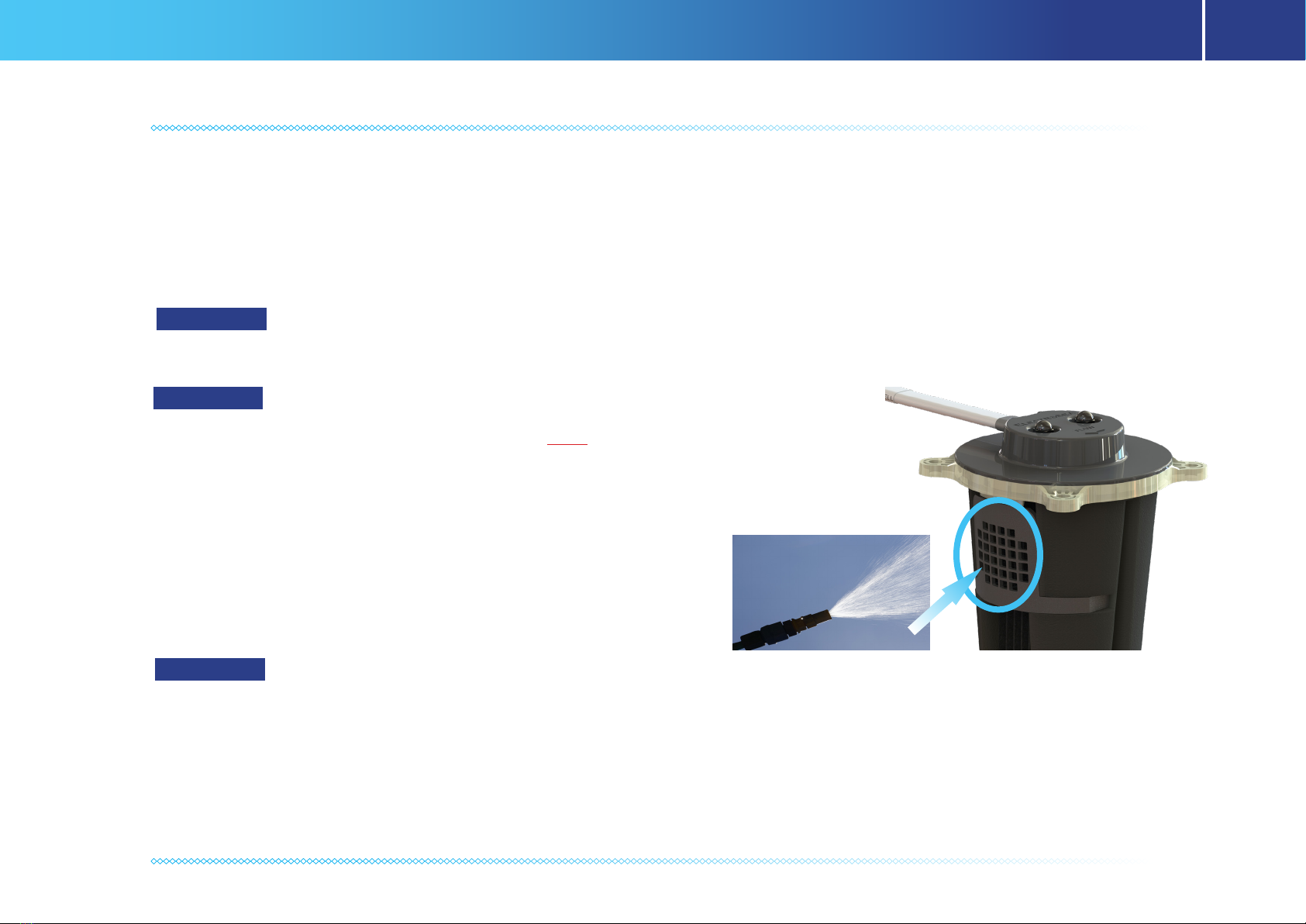

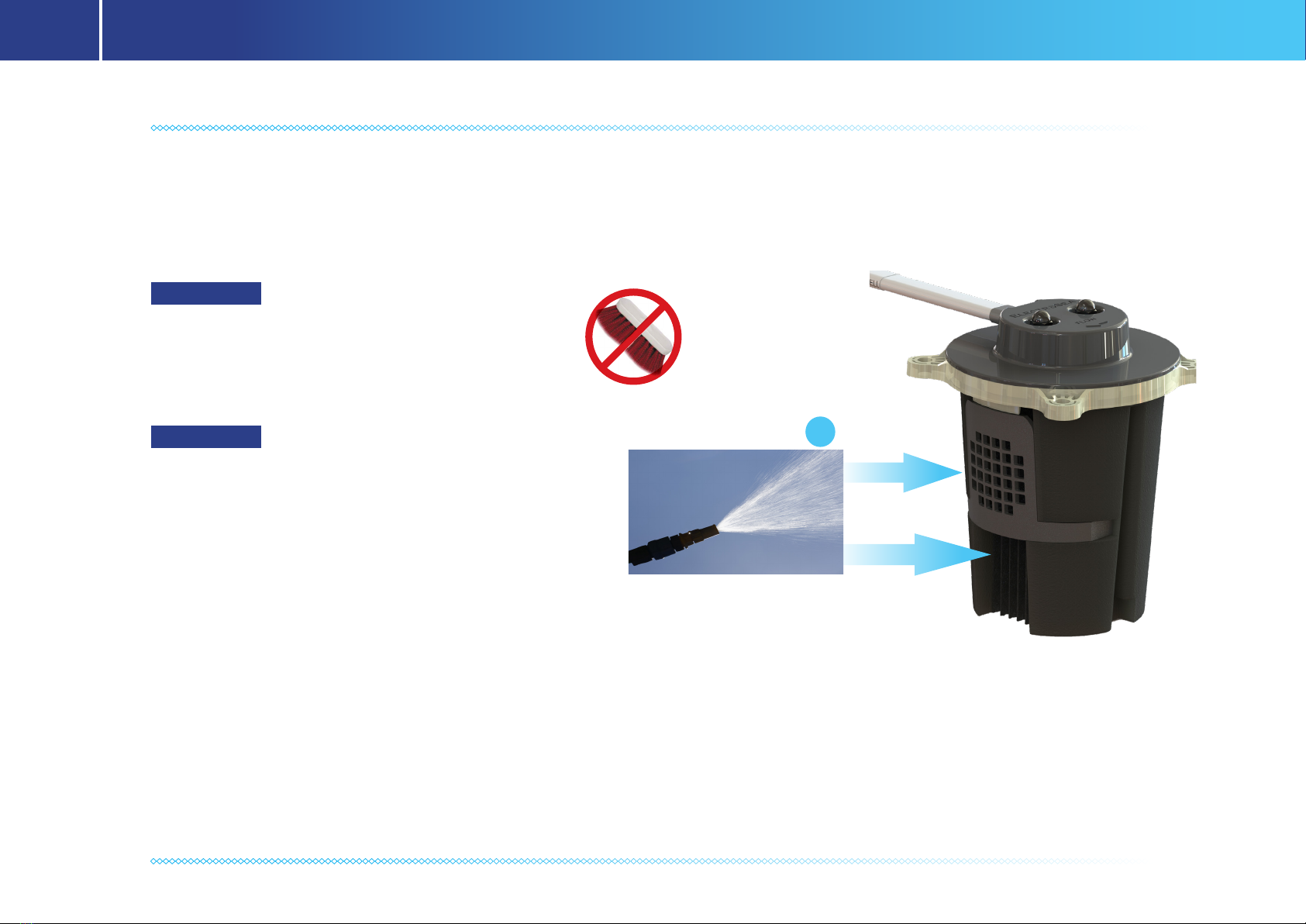

ClearCell Internal Screen Care 8

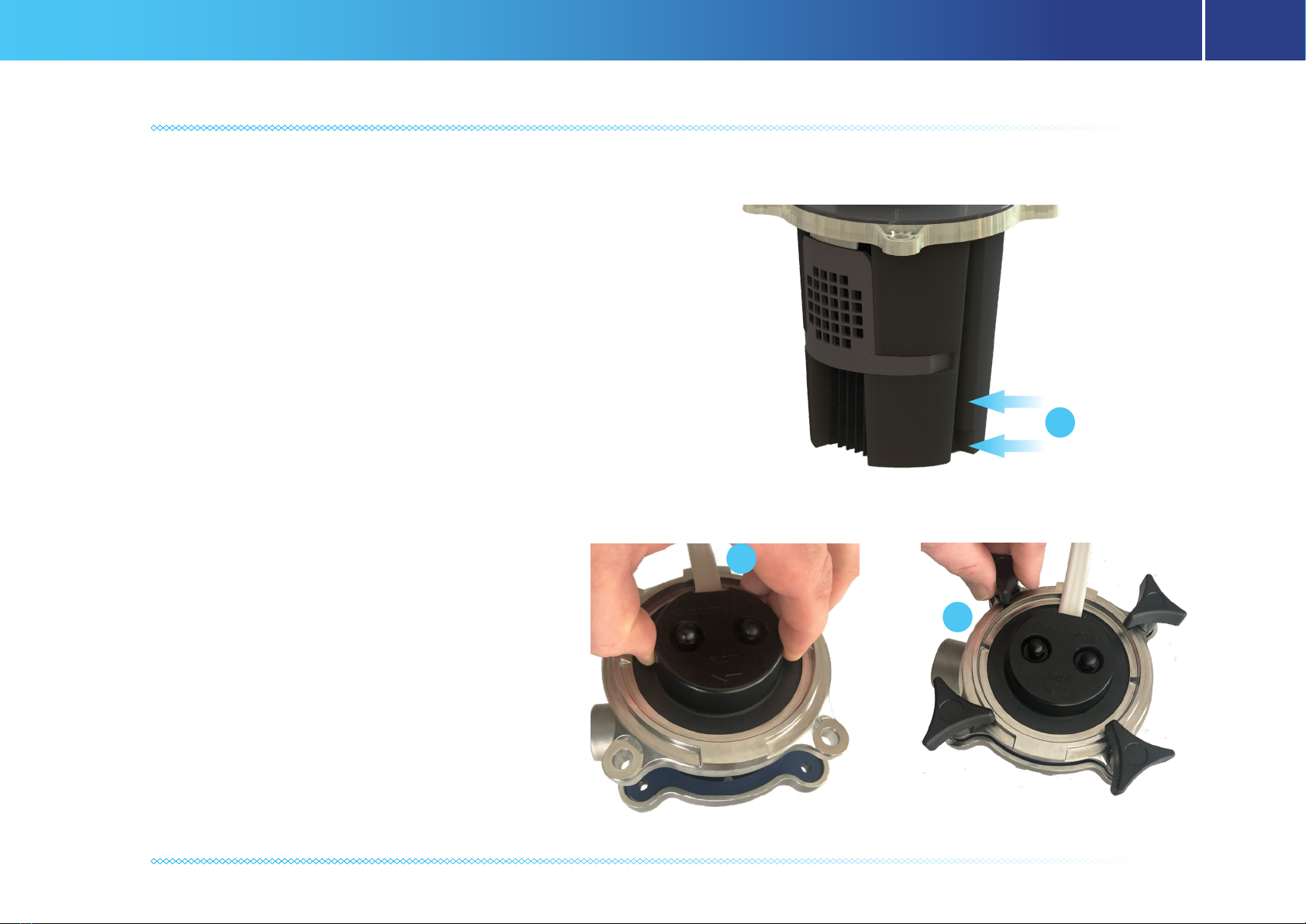

ClearCell Internal Screen Access 9-13
CLEARLINE® System Updates
Factory Default and Firmware Updates 14
Inspection
Periodic Inspection 15
Important Information
Specifications 16
Modes & Troubleshooting
Table of Modes, Descriptions and Actions 17-18
Warranty
Warranty Terms and Conditions 19-20

2
U.S. and Foreign Patents Pending
Introduction 2
ELECTROSEA®
ElectroSea was created when the owners of a sportfishing yacht invented “a better way” to prevent unwanted marine growth in their
seawater lines. Solving complex technical problems is their expertise. With more than 100 issued U.S. patents and 350+ foreign patents
in advanced technologies, our Executive Management Team has been developing innovative solutions for more than 50 years. With an
expert team of ‘old salts’ who eat, sleep, and breathe boating, ElectroSea will improve your time on the water.
CLEARLINE®System
CLEARLINE is an innovative marine electrochlorination system that prevents biofouling and barnacle growth in your vessel’s seawater lines.
CLEARLINE keeps your air conditioners, chillers and refrigerators operating at maximum flow rates, and sea strainers clean longer. The patent
pending CLEARLINE System includes CLEARLINE Control Unit which is the brain, and ClearCell® which is the heart of the system.
CLEARLINE operates automatically 24x7x365 and is built for flawless and reliable performance.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Indicates a hazardous situation which can cause damage to personal property, environment, or equipment.
Safety Considerations
NOTICE

3
U.S. and Foreign Patents Pending
Status Screen
Operating Mode
Circuit Breaker
Features and Functions
1. Power on CLEARLINE. The Control Unit will complete a diagnostic self-test and then the green “POWER” light will be illuminated.
2. The main status screen will be displayed.
User Interface
3
Selection Buttons
ON/OFF
USB Port
Programming Menu
Flow Rate

4
U.S. and Foreign Patents Pending
Operating Modes
Modes and Features 4
The Operating Mode displays the state of the CLEARLINE System. Modes include:
• OFF: CLEARLINE is powered, but is in the OFF mode and not Cleaning.
• START-UP: CLEARLINE is performing a diagnostic self-test. This mode lasts for approximately 30 seconds.
• CLEANING: CLEARLINE is ON and Cleaning. This is the normal operating mode for the CLEARLINE System.
• FLOW ALERT: CLEARLINE is ON and Cleaning, but the flow rate measured is less than or equal to the value set manually in the Flow Alert feature.
• CELL INDICATOR: CLEARLINE will continuously attempt to generate chlorine and automatically resume standard operation when conditions are resolved.
Feature Overview
• Flow Rate (GPM): Monitors the flow rate in gallons per minute (GPM) or liters per minute (LPM) of seawater at the output of the CLEARLINE System. The CLEARLINE
System should be used with flow rates as follows: CL-430-N1.0: up to 26 GPM (98.4 LPM), and CL-410-N0.5: up to 7 GPM (26.5 LPM).
• Flow Alert: An alert that indicates the flow rate is at or below a threshold level for a period of time. Flow Alert is manually set by the user.
• Display Contrast, Backlight, Imperial and Metric Units: Adjustment of LCD display contrast and backlight levels from Lo to Hi. Selection of Imperial and Metric units
for flow in GPM or LPM.
• Default Update: Process to restore CLEARLINE to original factory default settings. Allows the user to update CLEARLINE Control Unit firmware from a USB memory drive
supplied by ElectroSea.
