Elektra Beckum FB 2200 HVLP Manual

®
115 366 5450 / D/ENG/F/NL/IT/ES/DA/SV / 1001 - 1.2
Betriebs- und Wartungsanleitung für Farbspritzpistole
Operating and Maintenance Instructions Paint Spray
Notice d’utilisation et d’entretien du pistolet à peinture
Gebruikers- en onderhoudshandleiding voor
Verfspuitpistool
Istruzioni per l’uso e la manutenzione per
Pistola di spruzzatura per vernice
Manual de servicio y mantenimiento para
Pistola pulverizadora
Betjenings- og betjeningsvejledning for sprøjtemalepistol
Anvisningar för drift och skötsel av
färgspruta
FB 2200 HVLP
FB 2200
FB 150
SB 200
D
FB 2200 HVLP Best.-Nr. 090 105 4460
FB 2200 Best.-Nr. 090 105 4452
FB 150 Best.-Nr. 090 100 3874
SB 200 Best.-Nr. 090 100 3882
ENG
F
NL
IT
ES
DA
SV

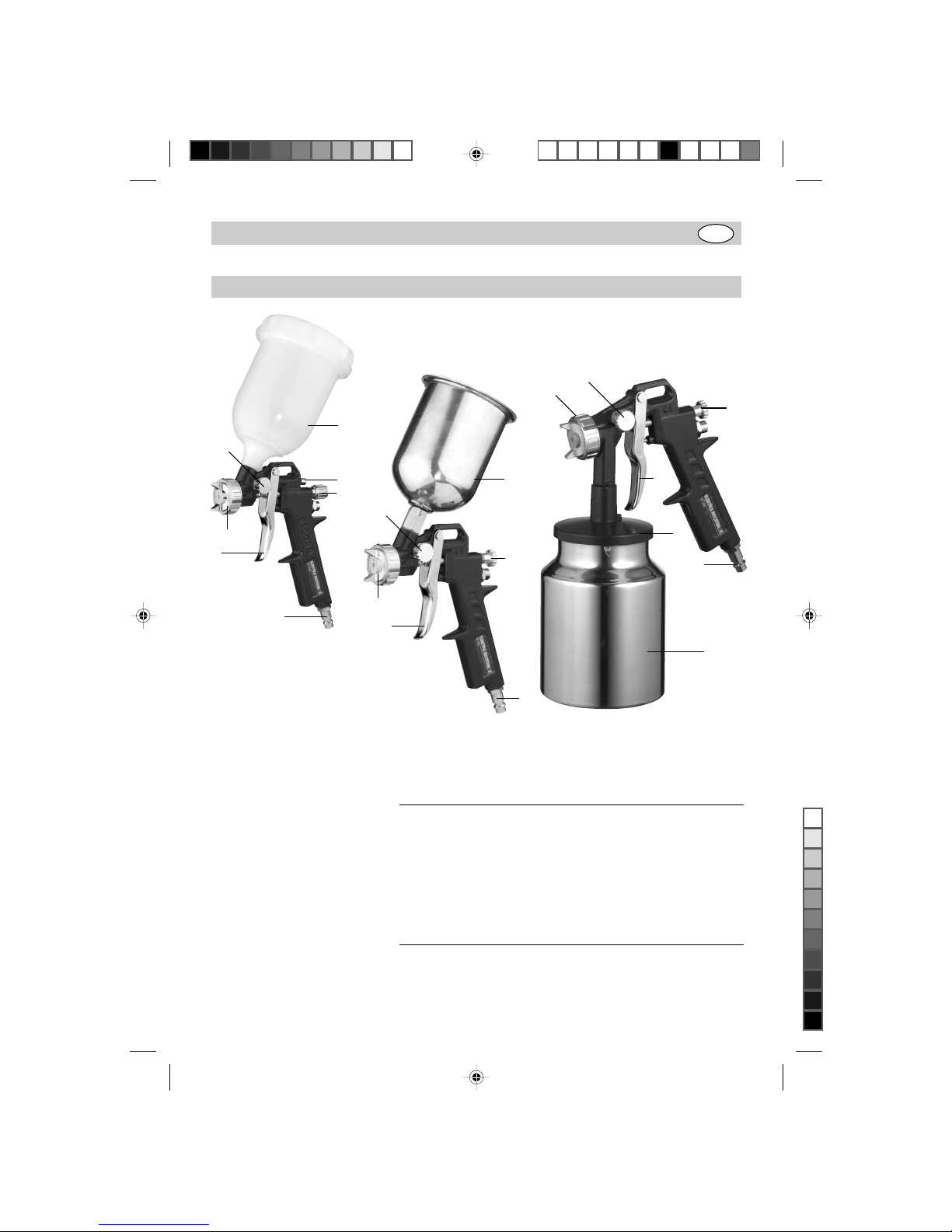

FB 2200 HVLP - FB 2200 - FB 150 - SB 200

Item Description
1 Trigger
2 Air inlet
3 Flow cup/siphon cup
4 Fluid regulating screw
5 Air control valve
6 Adjusting screw for round and wide spray pattern
7 Nozzle
8 Quick-release clamp for cup
1
7
31
2
3
4
4
8
6
6
2
7
FB 2200 HVLP FB 150 SB 200
FB 2200
6
7
1
2
3
5
4
1. Getting to Know Your Paint Spray Gun FB 2200 HVLP, FB 2200, FB 150 and SB 200
ENG

Contents
1. Getting to Know Your
Paint Spray Gun FB
2200HVLP,FB2200,FB
150 and SB 200
2. Please Read First!
3. Specified Conditions of
Use
4. Safety Instructions
5. Initial Operation
6. Care and Maintenance
7. Specifications
8. Standard Delivery
9. Accessories
●Thepaint spray gun isnot
suitable for treatment of
foods or medicines.
●Do not smoke, strike
sparks or light fires.
●Ensuregoodventilationof
the work area.
●Wear protective clothing,
especially respiratory
equipment with activated
carbon filter.
●Donotusethepaint spray
gunforanypurposeitwas
not designed for.
●Be careful when handling
inflammable materials.
●Keep air tools out of the
reach of children.
●Always be rested and
concentrated when wor-
king with the paint spray
gun.
●Never direct the paint
spray gun against other
persons or animals.
●Connecttopressurisedair
supply only with a quick
coupler.
●Workingpressuremustbe
set by means of a filter/
pressure regulator.
●Do not use oxygen or fuel
gas as energy source.
●Disconnect from air
source before servicing.
●Solvents and residue
paint must be disposed of
in an environmetally
friendly manner.
2. Please Read First
3. Specified Conditions
of Use
These Paint Spray Guns are
handy, air-powered paint
spraygunsforuseinDIYand
trade.
They are especially suitable
for spraying larger objects.
The air stream atomises the
spraying material into very
fine particles, resulting in
excellent paint transfer and
a high quality finish.
The spray pattern is ad-
justable from round to wide
(item 6) and can be adopted
to the object to be sprayed.
Forlargerobjects,thenozzle
adjusts steplessly from
horizontal to vertical pattern.
The amount of paint can be
proportionedbymeansofthe
fluid regulating screw (item
4), making these spray guns
very versatile.
Special feature of the HVLP
version: The HVLP (high
volumelowpressure)system
reduces the paint consump-
tion and increases material
transfer. Savings of up to
30%in spraying materialare
possible.When working with
the HVLP system it is impor-
tant not to exceed the max.
pressure of 2.6 bar.
●Read instructions before
commissioning, especi-
allythesafetyinstructions.
●If you notice transport
damagewhile unpacking,
notify your supplier im-
mediately.Do not operate
the air tool!
●Dispose of the packing in
anenvironmentallyfriend-
ly manner. Take to a pro-
per collecting point.
●Keep instructions for
future use.
●If you lend or sell this air
tool be sure to have the
instructions to go with it.
4. Safety Instructions
Protectyourselfand your en-
vironment by suitable pre-
cautions against dangers of
accident.

5. Initial Operation
Connect the paint spray gun
to a suitable pressurised air
sourcebymeansofa flexible
air hose fitted with a quick
coupler. Set the filter pres-
sure reducer of the pressuri-
sedairsourcetotherequired
working pressure (max. 5
bar). Follow the paint manu-
facturer’s instructions for
preparing the spraying
material. Too much working
pressure causes a very fine
spraying material atomisa-
tion with rapid evaporation,
resulting in a rough surface
finish and poor bonding.
If the air pressure is too low,
the spraying material will be
insufficiently atomised,
resulting in rippled surfaces
and drip marks. The paint
spray gun is operated by
pulling the trigger (item 1).
Always hold paint spray gun
at even distance to object,
distance should be approx.
15 cm.
Spray pattern adjuste-
ment:
With the spray pattern
adjusting screw (item 6) the
sprayguncanbesettospray
a round or wide pattern. Use
a round spray pattern for
small areas, corners and
edges and the wide
horizontal or vertical pattern
for large areas. The amount
of spraying material is set
with the fluid regulating
screw (item 4).
Open the fluid regulating
screw by approx. 2 to 21/2
turns and make a spray test.
Additional opening of the
fluid regulating screw
increases fluid flow and thus
thespray speed. Closingthe
fluid regulating screw
reducesthefluidflowandthe
sprayspeed. Because ofthe
great variety of spraying
materials fluid flow
adjustmentshouldalwaysbe
made when spraying.
Round spray
patterns Wide (vertical) spray patterns
6. Care and Maintenance
Thoroughly clean and ser-
vicethe paint spray gun after
each use.
Do not use solvents con-
taining halogenated hydro-
carbon (trichlor methyl, ethyl
chloride, etc.), which could
resolve some of the spray
gun’s materials and lead to
dangerous reactions.
A cleaned spray gun will
perform trouble-free when
used the next time.
Periodically all moving parts
should be lightly oiled. If the
nozzle is removed for clea-
ning, its threads and gasket
should be greased before
reassembly.
Donot use lubricantscontai-
ning silicone.
Caution: Do not immerse
complete spray gun in sol-
vent!
Nozzle and valve needle are
wearing parts. It is recom-
mendedyou keep areplace-
mentnozzle kit on hand(see
chapter 9 „Accessories“).
Store your air tools in dry
rooms only.

7. Specifications
9. Acessories
Nozzle Kit Ø 1.2 mm FB 2200 Stock-no. 090 105 4649
Nozzle Kit Ø 1.5 mm FB 2200 Stock-no. 090 105 4657
Nozzle Kit Ø 1.8 mm FB 2200 Stock-no. 090 105 4665
Nozzle Kit Ø 2.0 mm FB 2200 Stock-no. 090 105 4673
Nozzle Kit Ø 1.2 mm FB 150 and SB 200 Stock-no. 090 102 6858
Nozzle Kit Ø 1.5 mm FB 150 and SB 200 Stock-no. 090 102 6866
Nozzle Kit Ø 1.8 mm FB 150 and SB 200 Stock-no. 090 102 6874
Nozzle Kit Ø 2.0 mm FB 150 and SB 200 Stock-no. 090 102 6882
Other nozzle kit sizes for FB 2200 HVLP on request
8. Standard Delivery
Paint Spray Gun
Instructions
FB 2200 HVLP FB 2200 FB 150 SB 200
Air consumption 100 - 200 l/min 100 - 200 l/min 150 - 260 l/min 150 - 260 l/min
Working pressure 2,6 bar 3 - 5 bar 3 - 5 bar 3 - 5 bar
Nozzle size Ø 1.5 mm Ø 1.5 mm Ø 1.5 mm Ø 1.5 mm
Flow cup 0.5 l 0.5 l 0.5 l
Siphon cup - - - 1.0 l
Weight 0.6 kg 0.6 kg 0.5 kg 0.7 kg
Weight, tool only 0.54 kg 0.54 kg 0.48 kg 0.67 kg
Recommend inner air
hose diameter 9 mm 9 mm 9 mm 9 mm
Spray pattern adjustment round & wide round & wide round & wide round & wide
Pressurised air required: clean, free of oil and condensate

 
