Elite Robo-Pad User manual

Elite Robo-Pad Unboxing and Assembly Instructions
For questions, clarifications or assistance call 1-800-592-0548
Section 1. Chair unboxing
Tools required: knife, scissors or razor knife.
Your chair will arrive in two separate boxes. The larger box contains the chair as well as two smaller accessories
boxes contained within. The separate smaller box contains the arms of the chair.
This is how your chair boxes should look upon delivery. If there is any damage, please call Elite
Massage Chairs.

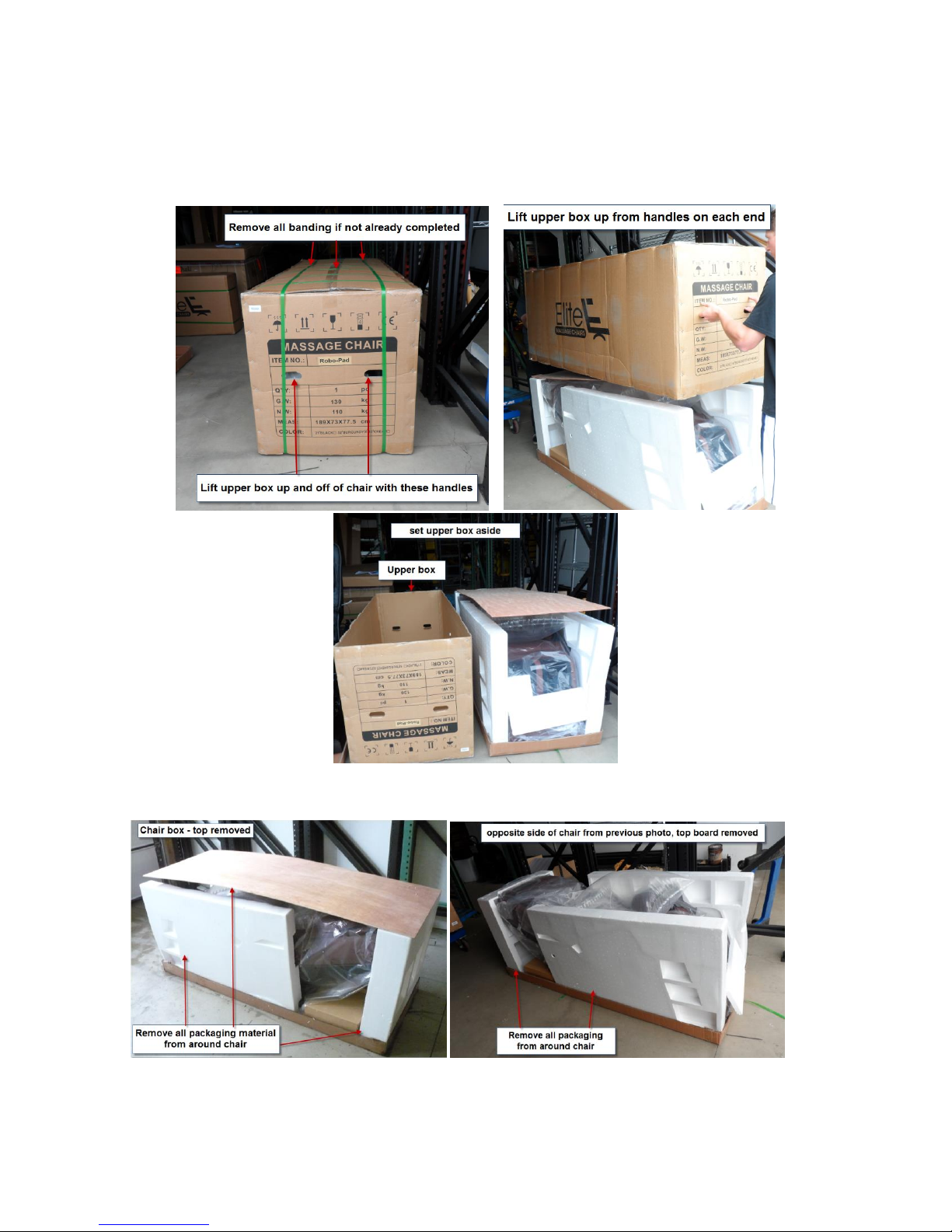

Step 1) Cut plastic bands wrapped around box.

Step 2) Lift lid off box and set aside –Lift from the handles on each end of the
box. There is no need to cut the tape on the lid to remove it.
Step 3) Remove all packaging from around chair
See additional photos of chair packaging to be removed on following page

Step 4) Remove accessories boxes and plastic off of chair
The chair is designed to be moved using the wheels on the rear of the chair. The easiest
method for removing the chair from the lower box, is to simply roll it out. In order to do
so, the chair back must be in the upright position. The chair must be plugged in to raise
the backrest. If you are unable to access electricity to power the chair, or if utilizing the
wheels to roll the chair out of the lower box is impractical for any reason, you may lift the
chair out of the box by the metal frame on each side - skip to step 10 for instruction for
this method.
Step 5) Plug in the chair, turn main power switch on.

Step 6) Unpakage the remote. The remote is placed in the footrest when shipping, remove all packaging
from the remote, or at least enough packaging to be able to access the front of the remote and the
buttons
Step 7) Raise the backrest. Do not press the power switch on the remote. Press and hold only the
following button until the chair is in the full upright position:

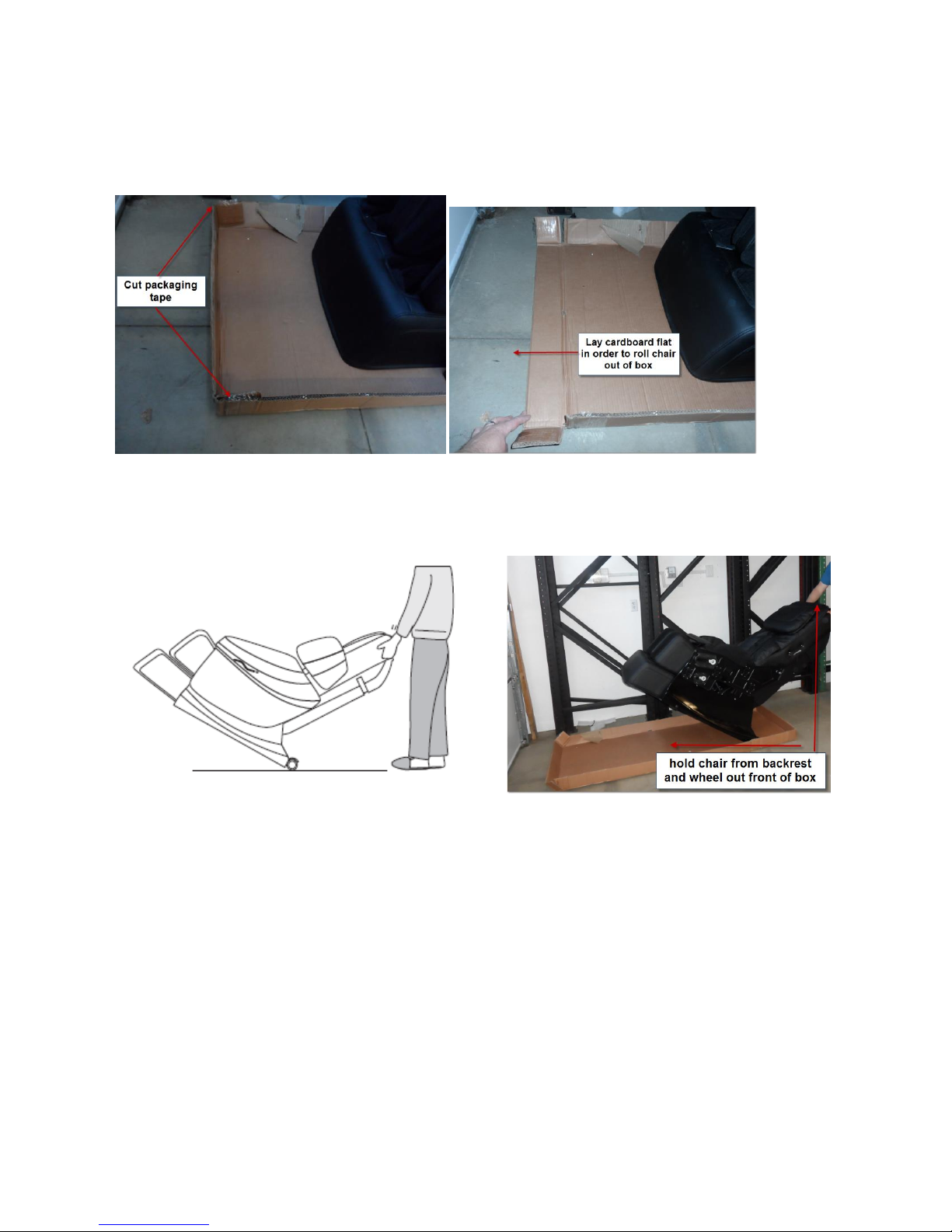

Step 8) Cut tape on box edge. Cut tape on the front edge of the box. Lay the box edge flat in
order to roll the chair out. As the front edge of the box is held upright with tape only, the box
may be easily be used again if needed by re-applying packaging tape where cut.
Step 9. Roll chair out of box. Refer to the following diagram and picture as a reference. The
chair may be tilted back with one person to the point that the chairs center of gravity is resting
on the rear wheels. Roll the chair out of the box and gently bring back to the ground.

Step 10. (Alternate method for removal) If you are unable to plug in the chair, or if utilizing the wheels
to roll the chair out of the lower box is impractical for any reason, you may lft the chair out of the box
by the metal frame on each side. This is most easily done with the chair back in the upright position as
the center of gravity for the chair is more equally balanced. If you are unable to raise the backrest to
the upright position this step may still be followed.
For questions clarification or assistance with unboxing the chair
please call 800-592-0548
Assembly instructions begin on next page

Section 2: Chair assembly
Tools required: Philips screwdriver, #5 Allen wrench / Hex key (included with chair)
Your chair arms will be located in a separate box from the chair and require installation.
There are two accessories boxes (removed in section 1) located inside the large chair box
which contain the controller stand and upper air bag / speaker assembly’s which also require
installation.
Inside the smaller accessories box is the #5 Hex key used to install the arms in step one. Set the
controller stand located in the same box aside to install in step four. The speaker / upper air
bag assembly’s are located in the larger accessories box. These will be installed in step three.
Step 1: Install right arm.

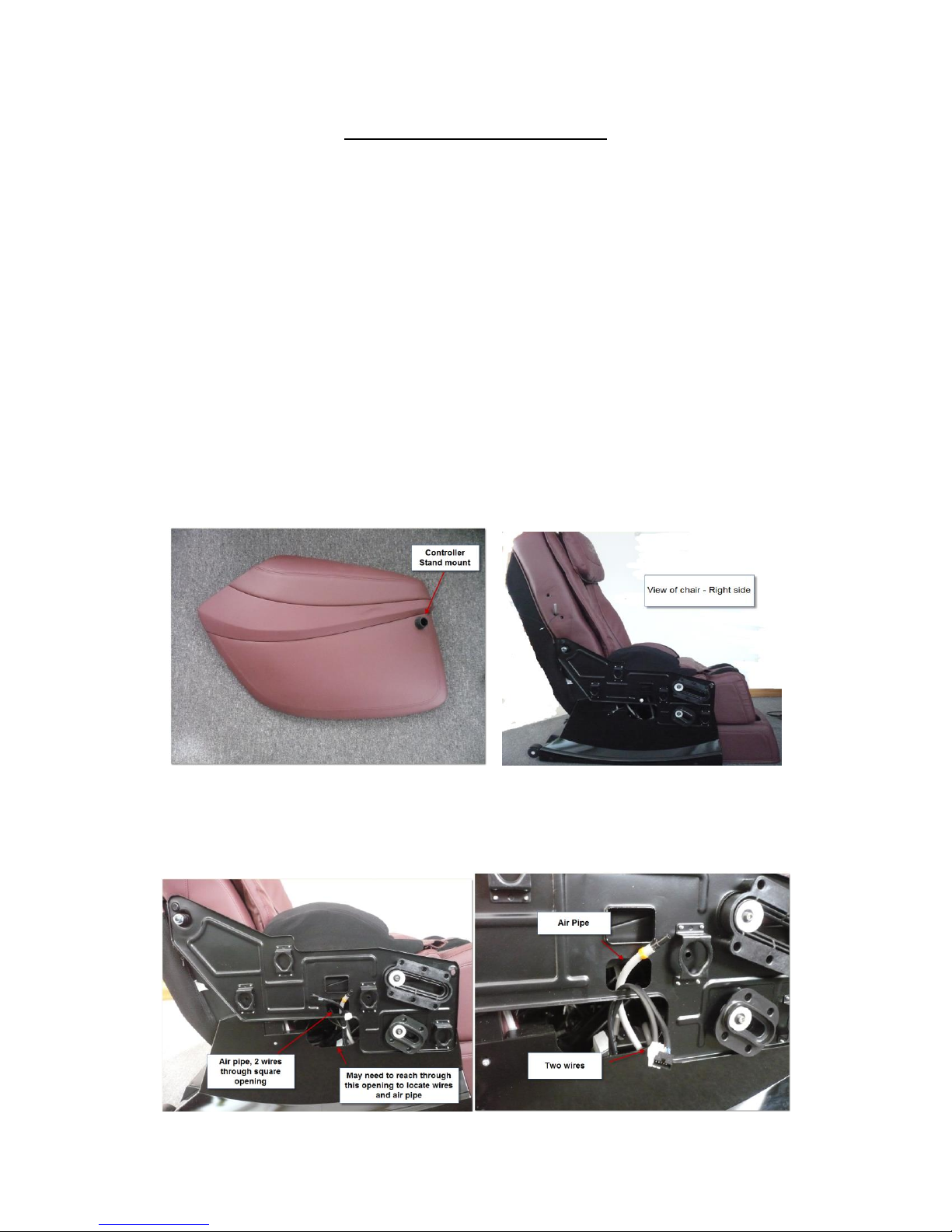

Step 1A: Connect right arm wires and air pipe. Identify which arm is the right by the controller stand
mount located on the exterior of the arm. Identify the correct side of the chair to install the arm. The
Right arm will be where your right arm is located when sitting in the chair
Locate the two wire plugs and air pipe on the right side of the chair. These plugs should protrude from
the square opening shown in the below picture. The wires may be inside the frame of the chair and you
will need to reach through the side of the chair to pull them out through the square opening.

Locate the corresponding wires on the interior of the chair arm. Please note that there is one wire and
one air pipe from the arm. One wire from the chair frame is not used on the right side only. Connect the
white plug wire and air pipe
Step 1B: Mount right arm to chair frame. Note: Before mounting the arm, remove the silver attaching
screws which are pre-screwed into the arm. Locate the white round plastic mounts on the arm, and the
corresponding slots on the chair frame. Place the arm onto the frame at these locations. The plastic
mounts for the arm should slide into their respective locations on the frame of the chair without
applying force; press down slightly on the arm to lock into place. The chair arm will still fit loosely until
mounting screws are re-attached. Note also the location of the mounting screw holes on the frame of
the chair.

Step 1C: Install the screws for the arm. Install the screws removed in step 1B. The silver hex key
provided will be used to tighten the screws
Rear screw location:
Front screw location:

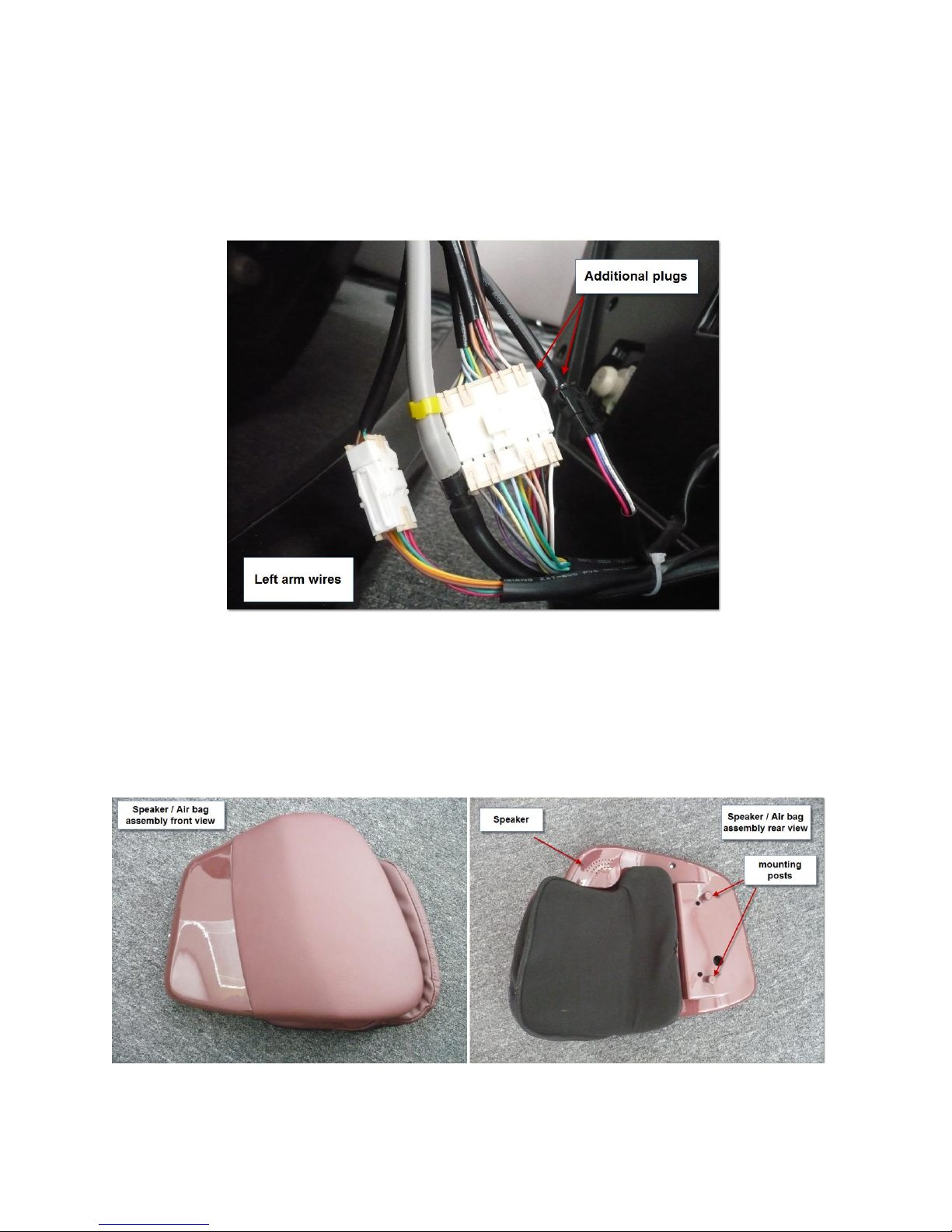

Step 2: Install left arm. Repeat the procedure for step one. Note that there are two additional plugs for
the left arm, three total, as shown below. Connect the plugs and air pipe accordingly. The remainder of
the procedure is the same as the right arm
Step 3: Install right and left upper air bag / speaker assembly.

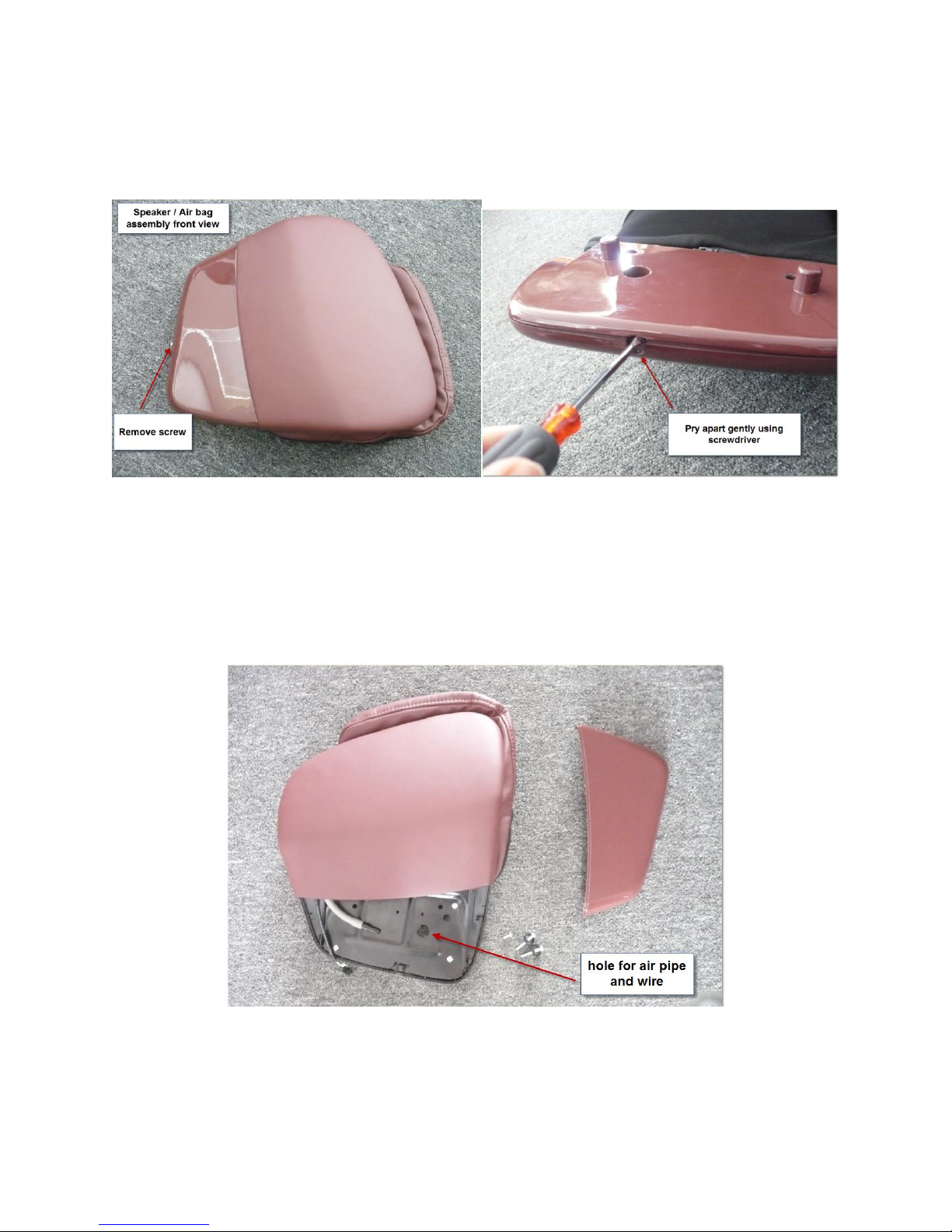

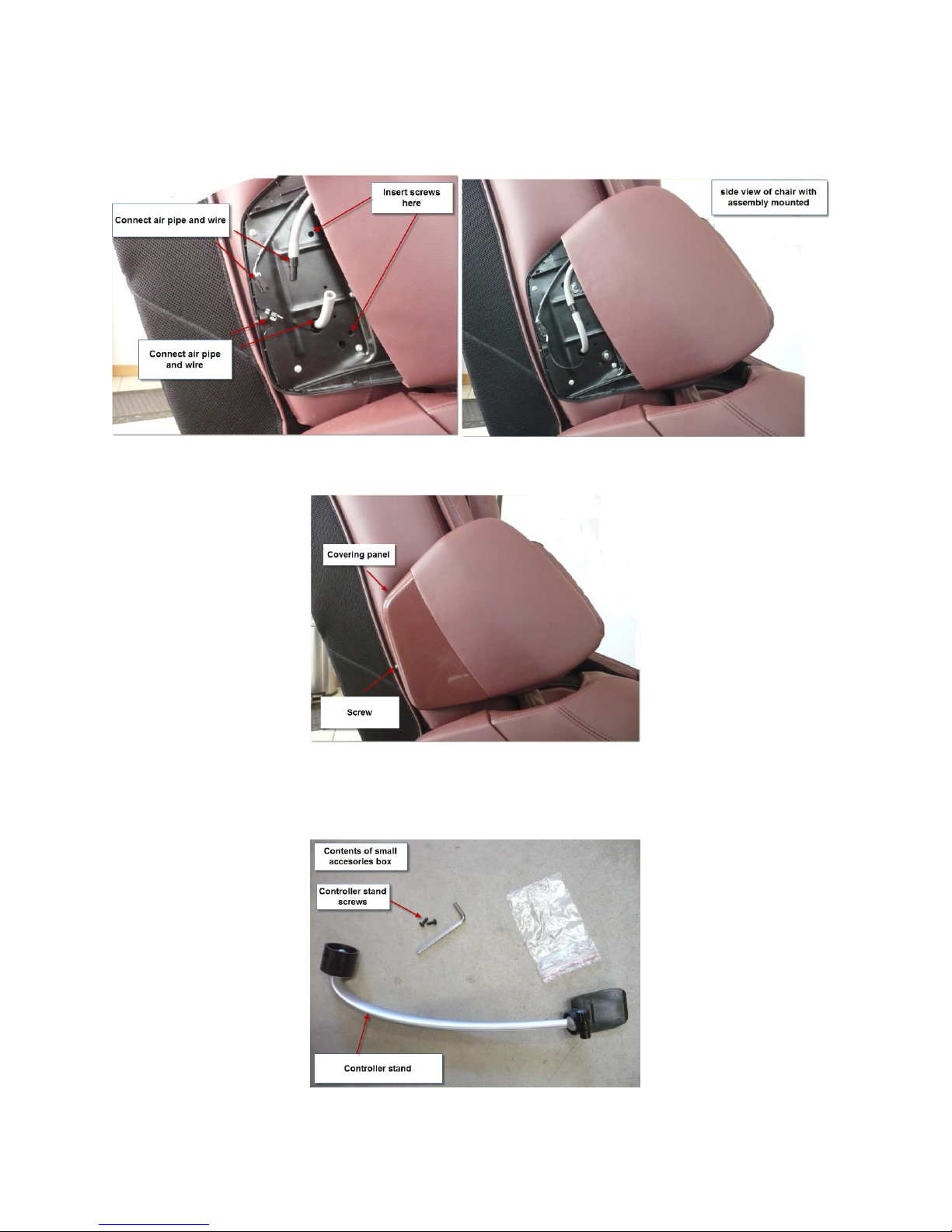

Step 3A: Remove plastic covering panel from speaker assembly. Locate the speaker / upper air bag
assembly in the large accessories box. Note the mounting posts and orientation of the speaker which
will assist you to differentiate the left from the right assembly
