Elite EVBS-26 Service manual

Operating Instructions and Parts Manual
Vertical Band Saw
Model EVBS-26
JET®
427 New Sanford Road
LaVergne, Tennessee 37086
www.jettools.com
Ph.: 855-336-4032
Part No. M-891115
REV B2 02/2017
Copyright © 2017 JET

2
Vertical Band Saw
1.0 WARRANTY AND SERVICE
JET®warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please
contact Technical Service by calling 1-855-336-4032, 8AM to 5PM CST, Monday through Friday.
WARRANTY PERIOD
The general warranty lasts for the time period specified in the literature included with your product or on the official JET
branded website, jettools.com.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product from the date of delivery.
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty does not
cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair,
alterations or lack of maintenance.
HOW TO GET TECHNICAL SUPPORT
Please contact Technical Service by calling 1-855-336-4032. Please note that you will be asked to provide proof of initial
purchase when calling. If a product requires further inspection, the Technical Service representative will explain and assist
with any additional action needed. JET hasAuthorized Service Centers located throughout the United States. For the name
of an Authorized Service Center in your area call 1-855-336-4032 or use the Service Center Locator on the JET website.

3
EVBS-26
MORE INFORMATION
JET®is constantly adding new products. For complete, up-to-date product information, check with your local distributor or
visit the JET website, jettools.com.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights, subject to applicable state law.
LIMITATIONS ON THIS WARRANTY
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.
EXCEPTASSTATEDHEREIN,ANYIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULAR
PURPOSEARE EXCLUDED. SOME STATES DO NOTALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOTAPPLY TO YOU.
JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL,
CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOTAPPLY TO YOU.
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as
general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations
to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. JET®branded
products are not sold in Canada by JPW Industries, Inc.
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or
any of its successors in interest to the JET brand.

4
Vertical Band Saw
2.0 TABLE OF CONTENTS
1.0 WARRANTY AND SERVICE.........................................................................................................................................2
2.0 TABLE OF CONTENTS.................................................................................................................................................4
3.0 SAFETY WARNINGS....................................................................................................................................................5
4.0 INTRODUCTION...........................................................................................................................................................6
5.0 SPECIFICATIONS.........................................................................................................................................................7
6.0 UNCRATING AND ASSEMBLY.....................................................................................................................................8
7.0 INSTALLATION .............................................................................................................................................................8
8.0 ELECTRICAL CONNECTIONS.....................................................................................................................................8
8.1 VOLTAGE CONVERSION.........................................................................................................................................8
8.2 THREE-PHASE TEST RUN......................................................................................................................................8
9.0 CONTROLS...................................................................................................................................................................9
10.0 ADJUSTMENTS........................................................................................................................................................10
10.1 BLADE TENSIONING ...........................................................................................................................................10
10.2 BLADE TRACKING...............................................................................................................................................11
10.3 BLADE GUIDE ADJUSTMENT .............................................................................................................................11
10.4 TOP GUIDE ADJUSTMENT..................................................................................................................................12
10.5 CHANGING SAW BLADES...................................................................................................................................12
10.6 WORK LAMP BULB ..............................................................................................................................................12
11.0 BLADE SELECTION..................................................................................................................................................12
11.1 MATERIAL COMPOSITION...................................................................................................................................12
11.2 TOOTH SHAPE.....................................................................................................................................................13
11.3 SET TYPE..............................................................................................................................................................13
11.4 GAGE ....................................................................................................................................................................13
11.5 KERF.....................................................................................................................................................................13
11.6 WIDTH...................................................................................................................................................................13
11.7 BLADE BREAKAGE..............................................................................................................................................13
12.0 WELDER OPERATION.............................................................................................................................................13
12.1 SHEARING ...........................................................................................................................................................13
12.2 REMOVING TEETH..............................................................................................................................................14
12.3 WELDING .............................................................................................................................................................14
12.4 ANNEALING..........................................................................................................................................................15
12.4.1 CARBON STEEL BLADES............................................................................................................................16
12.4.2 CARBON STEEL HARD BLACK BLADES....................................................................................................16
12.4.3 BI-METAL BLADES .......................................................................................................................................16
12.5 BLADE GRINDING ...............................................................................................................................................16
12.6 SECONDARYANNEALING..................................................................................................................................17
12.7 WELDER CLEAN-UP............................................................................................................................................17
13.0 BAND SAW OPERATION..........................................................................................................................................17
13.1 BLADE BREAK-IN PROCEDURE ........................................................................................................................17
13.2 SETTING BLADE SPEED.....................................................................................................................................17
13.3 EVALUATING CUTTING EFFICIENCY.................................................................................................................17
14.0 MAINTENANCE ........................................................................................................................................................18
14.1 LUBRICATION SCHEDULE..................................................................................................................................18
15.0 TROUBLESHOOTING ..............................................................................................................................................19
15.1 OPERATING PROBLEMS....................................................................................................................................19
15.2 MECHANICALAND ELECTRICAL PROBLEMS ..................................................................................................20
15.3 WELDED BLADE INSPECTION...........................................................................................................................21
15.4 WELDER MECHANICAL PROBLEMS .................................................................................................................22
16.0 SPEED AND PITCH CHART.....................................................................................................................................23
17.0 REPLACEMENT PARTS — EVBS 20.......................................................................................................................24
18.0 ELECTRICAL CONNECTIONS.................................................................................................................................33
19.0 WIRING DIAGRAM ...................................................................................................................................................34

5
EVBS-26
3.0 SAFETY WARNINGS
1. Read and understand the entire owner’s manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these
warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
4. This band saw is designed and intended for use by properly trained and experienced personnel only. If you are not
familiar with the proper and safe operation of a band saw, do not use until proper training and knowledge have been
obtained.
5. Do not use this band saw for other than its intended use. If used for other purposes, JET®, disclaims any real or implied
warranty and holds itself harmless from any injury that may result from that use.
6. Always wear approved safety glasses/face shields while using this band saw. Everyday eyeglasses only have impact
resistant lenses; they are not safety glasses.
7. Before operating this band saw, remove tie, rings, watches and other jewelry, and roll sleeves up past the elbows.
Remove all loose clothing and confine long hair. Non-slip footwear or anti-skid floor strips are recommended. Do not
wear gloves.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer, or
birth defects or other reproductive harm.
10. This product, when used for welding, cutting, or working with metal, produces fumes, gases, or dusts which contain chemicals
known to the State of California to cause birth defects and, in some cases, cancer. (California Health and Safety Code Section
25249.5 et seq.)
11. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
12. Make certain the switch is in the OFF position before connecting the machine to the power supply.
13. Make certain the machine is properly grounded.
14. Make all machine adjustments or maintenance with the machine unplugged from the power source.
15. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting wrenches are removed
from the machine before turning it on.
16. Avoid contact with coolant, especially guarding your eyes.
17. Always keeps hands and fingers away from the blade when the machine is running.
18. Never hand hold the material. Always use the vise and clamp it securely.
19. Always provide adequate support for long and heavy material.
20. Keep safety guards in place at all times when the machine is in use. If removed for maintenance purposes, use extreme
caution and replace the guards immediately after maintenance is complete.
21. Check damaged parts. Before further use of the machine, a guard or other part that is damaged should be carefully
checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation.A guard or
other part that is damaged should be properly repaired or replaced.
22. Do not use power tools in damp/wet locations or other dangerous environments. Do not expose them to rain. Keep work
area well lighted. Provide for adequate space surrounding work area and non-glare overhead lighting.
23. Keep the floor around the machine clean and free of scrap material, oil and grease.
24. Keep visitors a safe distance from the work area. Keep children away. Workshop should be childproof; padlocks, master
switches, remove starter keys.
25. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that
can result in serious injury.
26. Maintain a balanced stance at all times so that you do not fall or lean against the blade or other moving parts. Do not
overreach or use excessive force to perform any machine operation.
27. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for which it was not
designed. The right tool will do the job better and more safely.
28. Use recommended accessories; improper accessories may be hazardous.
29. Maintain tools with care. Keep blade sharp and clean for the best and safest performance. Follow instructions for
lubricating and changing accessories.
30. Maintain proper adjustment of blade tension, blade guides and thrust bearings.
31. Turn off the machine and disconnect from power before cleaning. Use a brush to remove chips or debris — do not use
your hands.
32. Do not stand on the machine. Serious injury could occur if the machine tips over.

6
Vertical Band Saw
33. Never leave the machine running unattended. Turn the power off and do not leave the machine until it comes to a
complete stop.
34. Be sure that the blade is not in contact with the workpiece when the motor is started. The motor shall be started and you
should allow the saw to come up to full speed before bringing the saw blade into contact with the workpiece.
35. Adjust upper guide to clear workpiece. Hold workpiece firmly against table.
36. Direction of feed — feed work into a blade or cutter against the direction of rotation of the blade or cutter only.
37. Installation work and electrical wiring must be done by qualified electrician in accordance with all applicable codes and
standards.
38. Do not remove jammed pieces until blade has stopped.
Familiarize yourself with the following safety notices used in this manual:
4.0 INTRODUCTION
This manual is provided by JET®covering the safe operation and maintenance procedures for a JET Model EVBS-26.
This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instruc-
tions and parts breakdown. Your machine has been designed and constructed to provide years of trouble-free operation if
used in accordance with the instructions as set forth in this document.
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site:
www.jettools.com. Retain this manual for future reference. If the machine transfers ownership, the manual should accom-
pany it.
!
This means that if precautions are not heeded, it
may result in minor injury and/or possible machine
damage.
!
This means that if precautions are not heeded, it
may result in serious or even fatal injury.

7
EVBS-26

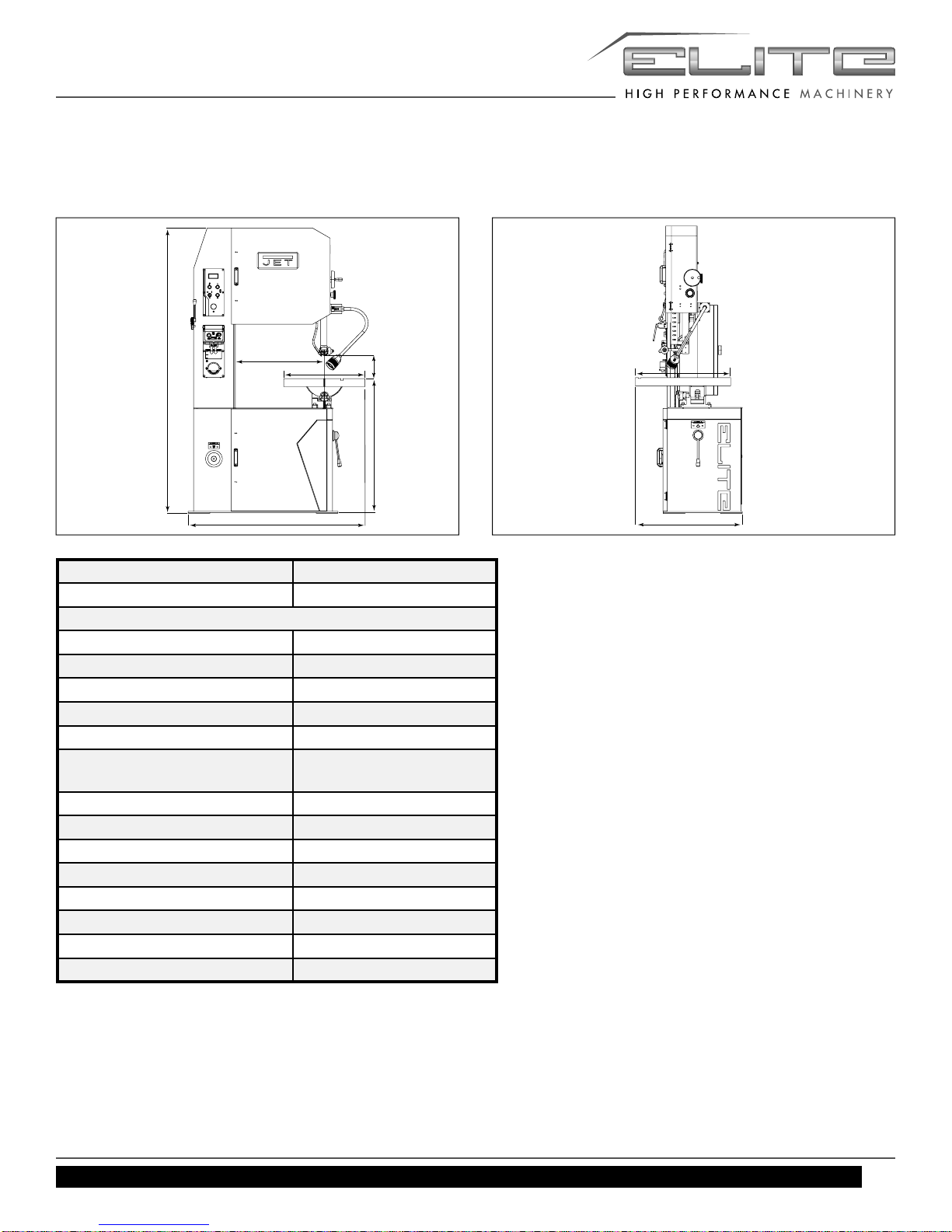

Model Number EVBS-26
Stock Number 891115
Capacities
Height (max. in) 14”
Throat (max. in) 26”
Blade Speed Variable
Low Range 50
High Range 5000
Motor 3 HP 230/460V 1Ph or 3Ph
CSA/CUS Certified
Blade Length (in.) 185-1/2
Blade Width (min.-max.) (in.) 1/8-1
Table Size (LxW in.) 27-1/2x23-1/2
Table Height (in.) 39-3/8
Table Tilt (°) 10 L, 45 R
Overall Dimensions (LxWxH in.) 51x32x83-1/2
Net Weight (lbs.) 1,433
Gross Weight (lbs.) 1,655
The specifications in this manual were current at time of publication, but because of our
policy of continuous improvement, JET®, reserves the right to change specifications at any
time and without prior notice, without incurring obligations.
5.0 SPECIFICATIONS
2120
360
1000
658 600
1290 810
700

8
Vertical Band Saw
6.0 UNCRATING AND ASSEMBLY
Note: Read and understand the entire manual before
attempting setup or operation.
1. Finish uncrating the saw and inspect for damage.
Should any have occurred, contact your local distribu-
tor.
2. Remove any preservatives with kerosene or diesel oil.
Do not use gasoline, paint thinner, or any cellulose-
based product, as these will damage painted
surfaces.
3. Remove two socket head cap screws from left side of

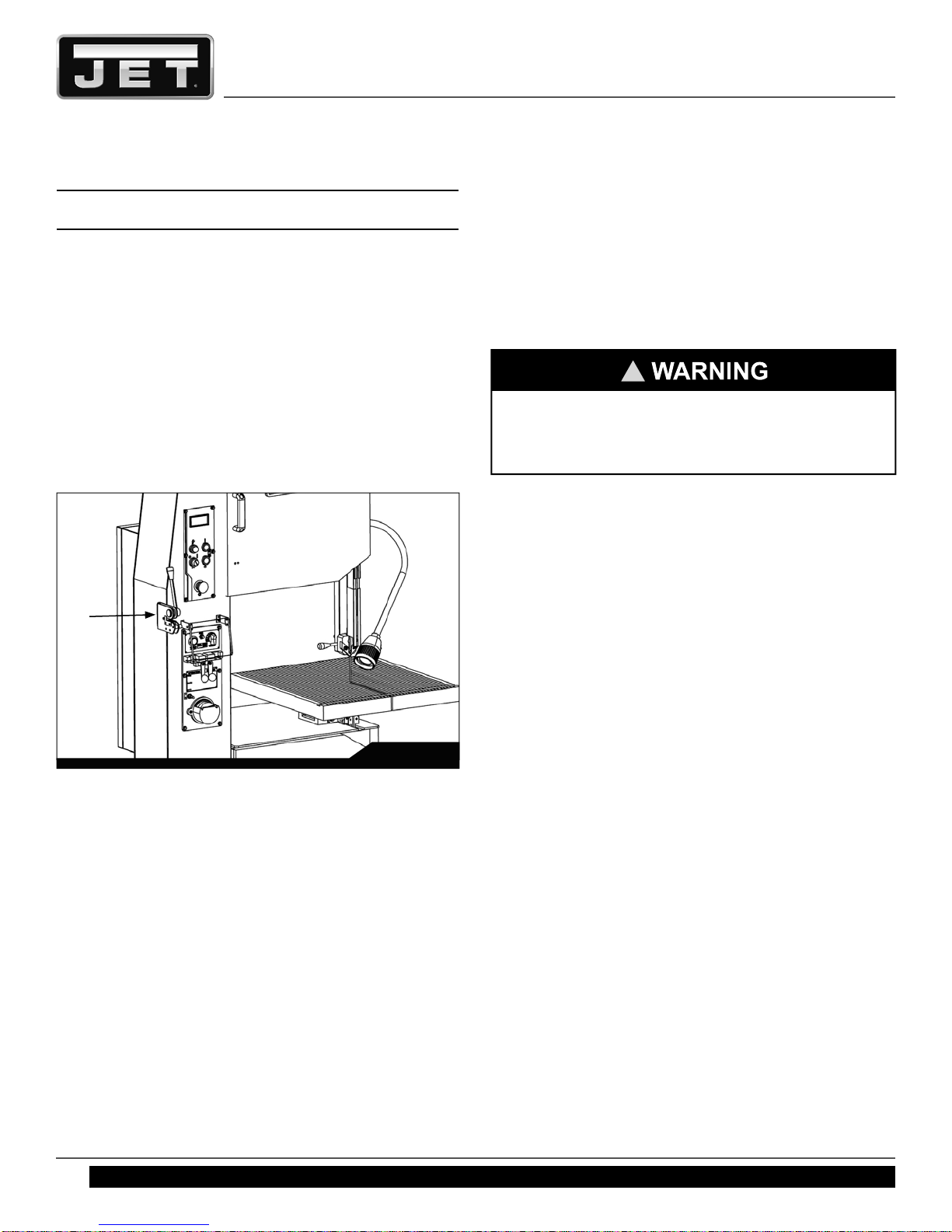

vertical column. Attach shear assembly (A, Figure 1) to
column by inserting screws.
4. Place rip fence onto table and tighten with locking
knob.
7.0 INSTALLATION
For best performance, the band saw should be located on
a solid and level foundation. Allow room for servicing and
for moving large stock around the band saw when decid-
ing a location for the machine.
1. Remove four (4) nuts and washers holding band saw
to shipping crate bottom.
2. Use the lifting ring to lift band saw into its permanent
location. For best performance, band saw should be
bolted to floor after a level position has been found.
3. Using a square, adjust table 90 degrees to blade, both
front to back and side to side. Loosen the hex cap
screws below the table to move it and tighten to
hold table in place. If necessary, adjust the pointers to
zero should they read different once table is perpen-
dicular to blade in both directions.
4. To level the machine, place a machinist’s level on the
table and observe in both directions.
5. Use metal shims under the appropriate hold down
screw. Tighten screw and recheck for level.
6. Adjust with additional shims, as required, until table is
level when all mounting screws (or nuts) are tight.
8.0 ELECTRICAL CONNECTIONS
The Vertical Band Saw is rated at 230/460V and comes
from the factory prewired 230V.
You may either connect a proper UL-listed plug suitable
for 230 volt operation, or “hard-wire” the machine directly
to your electrical panel provided there is a disconnect near
the machine for the user.
The band saw must be grounded. A qualified electrician
can make the proper electrical connections and confirm
the power on site is compatible with the saw.
Before connecting to power source, make sure switch is in
off position.
8.1 VOLTAGE CONVERSION
To switch to 460V operation:
1. Switch the incoming leads in the motor junction box
(follow wiring diagram on inside cover of motor
junction box).
2. Switch the jumper wires on the circuit board. Remove
control panel from saw body and change the jumper
wires according to the list in section 18.0, Electrical
Connections.
3. If a plug is to be used, install a proper UL-listed plug
suitable for 460V operation.
IMPORTANT: Consult the diagrams in section 19.0 for
any clarification of these changes on 230V to 460V con-
version.
8.2 THREE-PHASE TEST RUN
After wiring the band saw, you should check that the wires
have been connected properly. Connect machine to power
source and turn it on for an instant to watch direction of
blade movement.
If blade runs upward instead of downward, disconnect
Fig. 1
A
!
All electrical connections must be done by a
qualified electrician. All adjustments or repairs must
be done with machine disconnected from power
source. Failure to comply may cause serious injury.

9
EVBS-26
machine from power, and switch any two of the three
leads in the motor junction box (see section 19.0, Wiring
Diagram).
9.0 CONTROLS

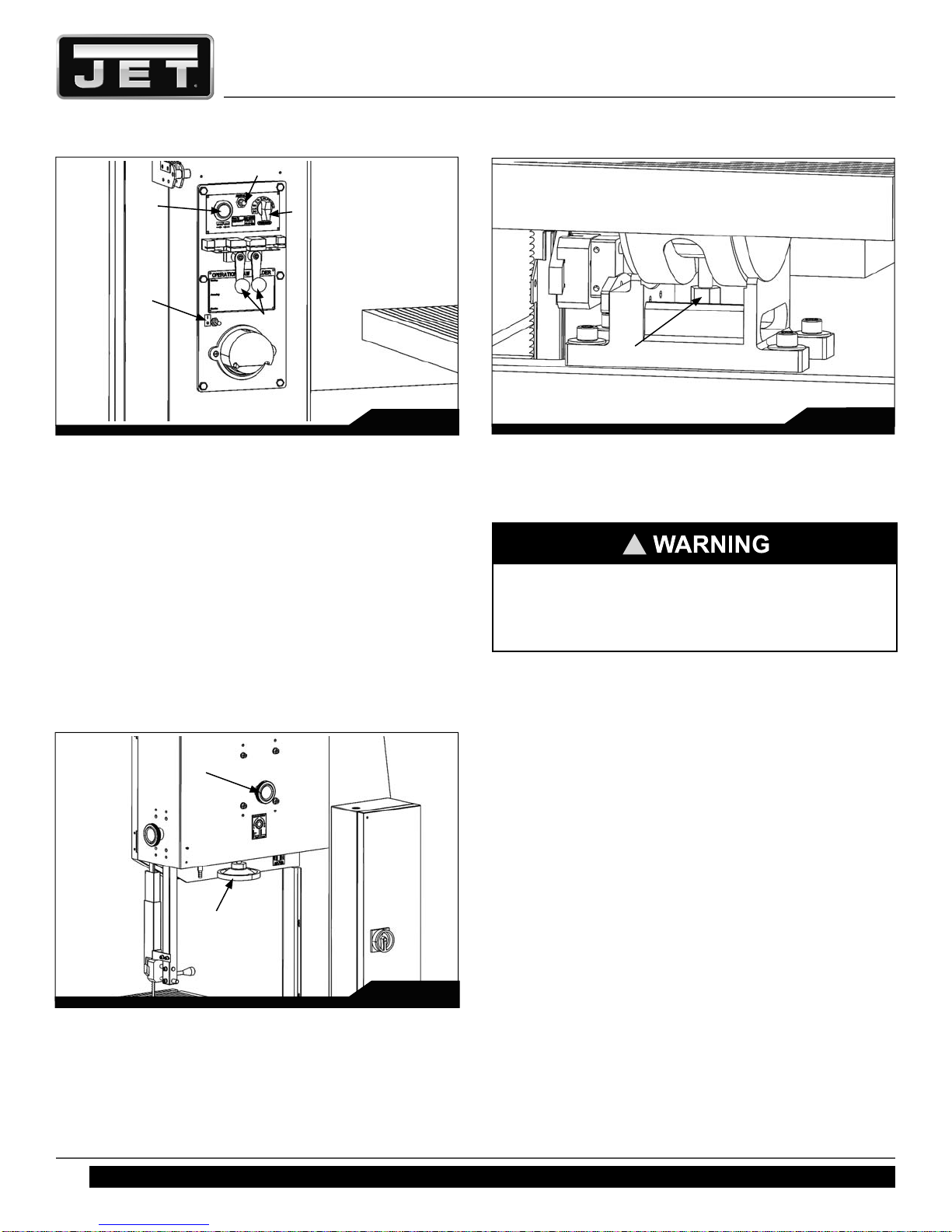

Refer to Figures 2 and 3.
Low/High Range Shift Lever (B, Figure 2) -
Pull toward the front of the machine to shift into the low
speed range. Push toward the rear of the machine to shift
into the high speed range.
Upper Blade Guide Lock Knob (D, Figure 2) -
Turn counterclockwise to loosen and clockwise to tighten.
Upper Blade Guide Knob (E, Figure 2) -
Turn clockwise to raise blade guide assembly; counter-
clockwise to lower.
Work Lamp Switch (F, Figure 2) -
Located on top of lamp shade; turns lamp on and off.
Shear Lever (G, Figure 2) -
UP position allows insertion of blade end into shear. Pull
lever DOWN to cut blade.
Main Motor Start Switch (H, Figure 3) -
Press to start band saw.
Main Motor Stop Switch (I, Figure 3) -
Press to stop band saw.
!
Do not turn knob while machine is stopped. Adjust
speed only when machine is running.

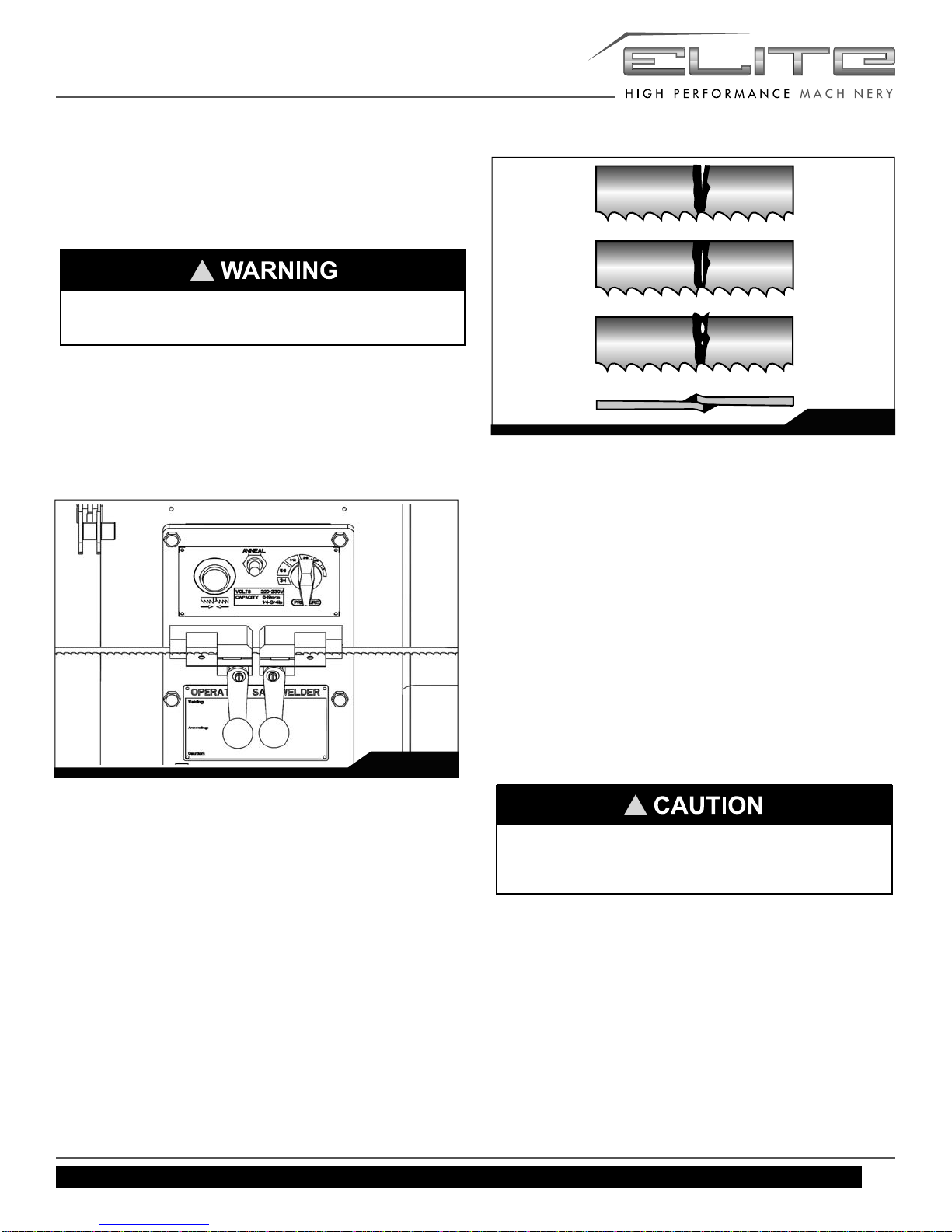

Grinder Toggle Switch (N, Figure 4) -
Located on blade welder panel. Flip switch up to start
grinder; flip down to stop grinder.
Weld Button (O, Figure 4) -
Located on blade welder panel. Press and hold to start
welding. Shuts off automatically when weld is done. Re-
lease when weld is completed.
Anneal Button (P, Figure 4) -
Located on blade welder panel. Press and hold to anneal
blade, release to stop.
Blade Clamp Pressure Knob (Q, Figure 4) -
Located on blade welder panel. Sets pressure for different
width blades.
Blade Clamps (R, Figure 4) -
Located on blade welder panel. DOWN position allows
insertion of blade into clamp. Up position locks blade.
Key Lock Switch (J, Figure 3) -
Turn to 12 o’clock position and remove key to lock out
power from the control panel. Insert key and turn to 3
o’clock position to turn on power to control panel.
Emergency Stop Switch (K, Figure 3) -
Press to stop all machine functions. Turn 90° to reset.
Power Lamp (L, Figure 3) -
Illuminated when power is being supplied to band saw.
Digital Readout (M, Figure 3) -
Indicates blade speed in feet per minute.
Note: After saw is first started or the speed has been
changed, allow at least a minute for the readout to
stabilize the new setting.
Fig. 3
H
I
K
L
J
M
Fig. 2
B
E
D
G
F

10
Vertical Band Saw
Fig. 6
U
10.0 ADJUSTMENTS
10.1 BLADE TENSIONING
1. Raise upper blade guide by loosening lock knob (A,
Figure 7) and turning blade guide knob (B)
clockwise until it stops.
2. Apply finger pressure to blade. Travel from vertical
should be approximately 3/8” each way.
3. To tighten blade, turn handwheel (C, Figure 7) clock-
wise. To loosen blade, turn knob counterclock-
wise.
4. Use blade tension indicator (D, Figure 8) as reference
only. Blade should be tensioned using the finger pres-
sure method.
Blade Tension Handwheel (S, Figure 5) -
Located on underside of upper frame. Turn clockwise to
tension blade; counterclockwise to release tension on
blade.
Blade Tracking Knob (T, Figure 5) -
Located at upper rear of the saw. Turn clockwise to track
blade toward front of the blade wheel. Turn counterclock-
wise to track blade toward rear of the blade wheel.
Table Tilt Mechanism -
Take the appropriate supplied wrench and loosen the hex
nut (U, Figure 6), set table to desired angle and re-tighten
the nut.
!
All adjustments or repairs to machine must be done
with power off and machine disconnected from
power source. Failure to comply may cause serious
injury.
Fig. 4
O
P
N
Q
R
Fig. 5
S
T
