Elkay EDFP220RC Installation manual

97296C (REV. L - 4/05)
EDFP220RC EDFPVR220RC
Installation/Care/UseManual
Composite Fountain with FLEXI-GUARD®
Toassureyouinstallthismodeleasilyandcorrectly,
PLEASEREADTHESESIMPLEINSTRUCTIONSBEFORESTARTINGTHE
INSTALLATION.CHECKYOURINSTALLATIONFORCOMPLIANCEWITH
PLUMBING,ELECTRICALANDOTHERAPPLICABLECODES.Afterinstallation,leave
theseinstructionsinsidethefountainforfuturereference.
IMPORTANT! INSTALLER PLEASE NOTE.
THEGROUNDINGOF ELECTRICALEQUIPMENTSUCH ASTELEPHONE,COMPUTERS, ETC.TO
WATER LINESISACOMMONPROCEDURE.THISGROUNDING MAYBE INTHE BUILDINGOR MAY
OCCURAWAYFROMTHE BUILDING.THIS GROUNDINGCAN CAUSEELECTRICALFEEDBACK
INTOAFOUNTAIN,CREATINGANELECTROLYSISWHICH CAUSESAMETALLICTASTE ORAN
INCREASEINTHE METALCONTENTOFTHE WATER.THIS CONDITIONISAVOIDABLE BYUSING
THEPROPER MATERIALSASINDICATED.ANYDRAINFITTINGS PROVIDEDBYTHE INSTALLER
SHOULDBEMADEOFPLASTICTOELECTRICALLYISOLATETHE FOUNTAINFROMTHE BUILDING
PLUMBINGSYSTEM.
IMPORTANT
ALLSERVICE TOBEPERFORMED BYAN AUTHORIZED SERVICEPERSON
FIG. 2FIG. 1
NOTE: WATER FLOW
DIRECTION
BUILDINGWATER
INLET
SERVICESTOP
(NOT FURNISHED)
1/4"O.D.TUBE
WATERINLET
TOCOOLER
3/8"O.D.UNPLATED
COPPERTUBECONNECT
COLDWATERSUPPLY
Installer

97296C (REV. L - 4/05)
EDFP220RC EDFPVR220RC
FIG. 3
PAGE2
LEGEND A= 3/8" O.D. UNPLATED COPPER TUBE CONNECT - SHUT OFF VALVE BYOTHERS B = WATER OUTLET 1-1/4" O.D. DRAIN - STUB OUT FROM WALL 1" (25mm)

97296C (REV. L - 4/05)
EDFP220RC EDFPVR220RC
PAGE3
INSTALLATIONINSTRUCTIONS
1. Wall should already be framed for the fountain using the positioning dimensions shown in Figure 3. Shown dimensions pertain to
installation location (framing must support up to 150 lbs. weight). These dimensions are required for compliance with ANSI Standard A117.0.
2. Install rough-in plumbing as shown in Figure 3. Run the supply water inlet line and connect to a service stop (not provided). Turn on supply
water and flush thoroughly.
3. Remove bottom access panel from fountain basin and save the screws. Install the fountain to the wall using (7) 5/16" bolts and washers (not
provided). Bolts should be long enough to securely fasten the fountain to the wall. Tighten securely, but do not over tighten. Over tightening will
crack the fountain.
4. Remove elbow from end of p-trap and attach it to drain tube. Reattach elbow to p-trap and cut waste tube to required length using plumbing
hardware and trap as a guide.
5. Make water supply connections from service stop to the 3/8" O.D. unplated copper tube coming out of the strainer. Turn on water supply and
check for leaks. Newly installed water supply line should be insulated after leak check is completed. DO NOT SOLDER TUBES INSERTED INTO
THE STRAINER AS DAMAGE TO THE O-RINGS MAYRESULT.
6. These products are designed to operate on 20-105 PSIG supply line pressure. If inlet pressure is above 105 PSIG, a pressure regulator must be
installed in the supply line. Any damage caused by reason of connecting these products to supply line pressures lower than 20 PSIG or higher
than 105 PSIG is not covered by warranty.
7. Check stream height from bubbler. Stream height is factory set at 35 PSI. If supply pressure varies greatly from this, adjust the screw on the
regulator (Item 15), by using a small screw driver through the small hole in the push button (Item 8). Clockwise adjustment will raise stream height
and counter-clockwise will lower stream height. For best adjustment stream should hit basin approximately 6-1/2" (165mm) from bubbler.
8. Replace bottom access panel to fountain using the screws provided. Tighten securely.
CAREANDMAINTENANCEOFELKAYCOMPOSITEFOUNTAINS
1. Elkay composite fountains provide an extremely durable, nonporous surface which resists staining. Care is very simple. Routine cleaning with a
soft sponge or cloth, or with water or a non-abrasive aerosol foam cleaner, is all that is normally needed to give many years of trouble free
service. Cleaners left standing on the fountain surface can dull the surface finish. Be certain to rinse all cleaning agents completely and polish
with a soft cloth.
2. Harsh abrasive cleaners are not required and should not be used.
3. Mild abrasives such as liquid automotive cleaning compound or baking soda paste will remove simple scratches and stains. Cigarette burns can
normally be removed without noticeable effect. Deeper scratches or gouges can be corrected with fine grit sandpaper (240 grit then 400 grit) or a
green scotchbrite pad.
4. To maintain or regain luster and make cleaning easier, periodic applications of automobile wax or like products will keep the finish looking like new.
TROUBLESHOOTINGANDMAINTENANCE
1. Orifice Assy: Mineral deposits on orifice can cause water flow to spurt or not regulate. Mineral deposits may be removed from orifice with a
small round file not over 1/8" diameter or a small diameter wire.
CAUTION: Do not file or cut orifice materials.
2. Stream Regulator: If orifice is free of material deposits, regulate flow according to instruction 7 stated above.
3. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring water seal. To remove tubing
from the fitting, relieve water pressure, push in on the gray collar while pulling on the tubing (See Figure 2). To insert tubing, push tube straight
into the fitting until it reaches a positive stop, approximately 3/4".
SEE FIG. 6 OR 7
SEE FIG. 8 3SEEFIG.5
17
713
14

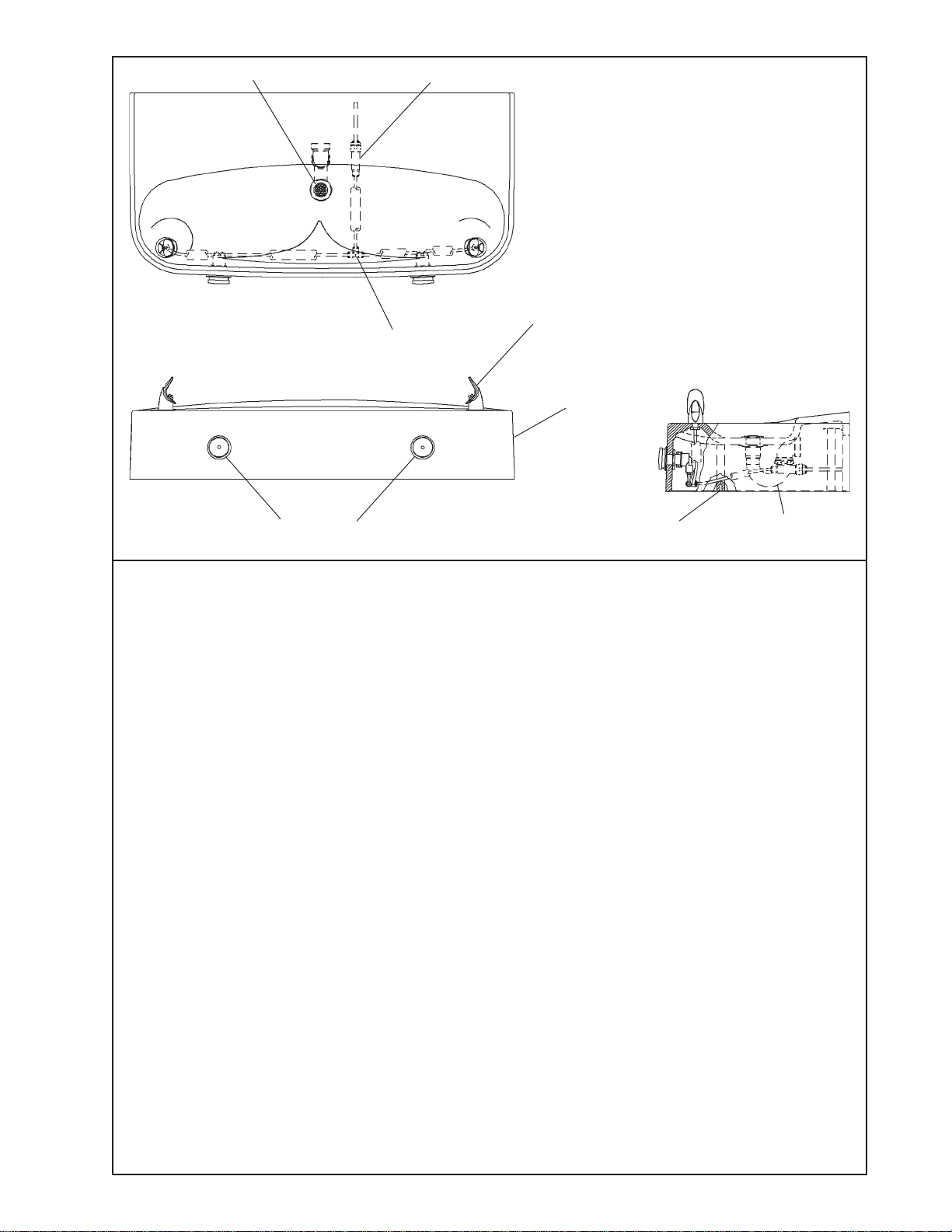

FIG. 4

97296C (REV. L - 4/05)
EDFP220RC EDFPVR220RC
PAGE4
PARTNO.ITEMNO. PARTSLIST
ORIFICEASSEMBLY
BUBBLERPEDESTAL
DRAIN
REGULATOREXTENSIONNUT
BOTTOMCOVER
HEXNUT
DRAINFERRULE
PUSHBUTTON
PUSHBUTTONSLEEVE
REGULATORHOLDER
BUBBLERHOUSING
PUSHBUTTONEXTENSION
STRAINER
BASIN
REGULATOR
SCREW - CAP #6-32 X 5/16
TEE-1/4
SCREW- #10-24PINNEDTORX
HEXNUT - 3/8-18
THREADEDINSERT
BUBBLERASSY(VR MODELONLY)
BALL-ANTI-ROTATIONAL
NUT - LOCK 3/8-18 (VR MODELONLY)
NUT-REGULATORMOUNTING
NIPPLE ASSEMBLY
POLYTUBING (CUTTOLENGTH)
40322C
55998C
LK464
15005C
27635C
40045C
45391C
45662C
45738C
50986C
56011C
56087C
55996C
56046C
61313C
75672C
70682C
75534C
75553C
75554C
98118C
75575C
70012C
45736C
15029C
56092C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
NS
DESCRIPTION FIG. 6
NOTE: WHENINSTALLINGREPLACEMENT
BUBBLERANDPEDESTAL,TIGHTENNUT
(ITEM19OR 23) ONLYTOHOLDPARTS
SNUGINPOSITION.
DONOTOVERTIGHTEN.
FIG. 8
11
18
2
5
1
20
4
BASIN
910
19
BASIN
6
8
12
FIG. 5
15
21
22
23
BASIN
FIG. 7
24
22
25
16
