Elsat iNode:0x0809 User manual

iNode Care Sensor
PHT
Instruction manual
© 2016 ELSAT ®

iNode Care Sensor PHT – instruction manual ELSAT s.c.
1. About iNode
We would like to introduce a family of iNode devices working in the Bluetooth Low Energy ®. We
will show you that it's not just tags to find lost keys, whether location tags, ut still something more.
Our devices are capa le of:
these are mainly attery device.
work without attery replacement for up to 12 months, depending on the type of application and
usage.
have memory for logging events, readings of measurements, etc.
contain precise temperature, humidity sensors, accelerometer or magnetometer which allow
home automation control, care of older persons or vehicle detection.
as a remote control device, although a small power consumption, have a large range and features
unavaila le to other competitive facilities - password protection, AES encryption, control
directly from the smartphone with BT 4.0.
a unique encryption technology ensures the safety of the JPEG images recorded y our cameras.
BT4.0 - LAN or BT4.0 - GSM gateways connect iNode sensors with the Internet.
iNode can also help to control the movement of people or goods, saving the time of appearance and
disappearance (active RFID ® long range). New features related to the development of the product
is also not a pro lem – this allows to remote firmware update with PC or smartphone with
Bluetooth 4.0 ® and Low Energy Bluetooth ena led ® (Smart Bluetooth ®).
iNode Care Sensor PHT is a wireless BT4.0 precise pressure, temperature and humidity sensor
with a uilt-in memory of events. It is intended mainly to home automation and weather
stations.
The value of measured pressure, temperature & humidity is roadcasted with a period of 1.28
seconds and may e archived in internal memory along with the date and time of the event. This
allows you to specify if and when temperature and/or humidity level was a ove or elow
threshold level. The sensor can e used with iNode Care Relay. Device configuration software
allows you to specify the conditions which are met will, send an alarm, and hence ena le/disa le
external device.
Trademarks or registered trademarks:
Bluetooth Low Energy ®, Bluetooth 4.0 ®, R ID®,CSR®,Windows®, Android, Google, Microsoft, ThingSpeak, Raspberry Pi,
Domoticz, BlueZ, Linux are used for informational purposes only.
All trademarks are property of their respective owners.
page 2

iNode Care Sensor PHT – instruction manual ELSAT s.c.
2. iNode Care Sensor PHT
Install application iNode Setup and BT4.0 drivers on PC. Next run iNode Setup application (on
Windows 7 to 10 with administrative rights), and press the red utton with magnifying glass picture.
If a BLE device you want connect to is password protected you should type the password in the text
ox with a key If you press the utton you can change the type of adapter which will e used
to communication – standard BT4.0 adapter (signed CSR …), iNode Serial Transceiver (signed
COM ...) or iNode LAN (signed the name of the device).
In case the application cannot start or system error you should try to install Microsoft Visual C++
2005 Service Pack 1 Redistributable Package M C Security Update from that page:
http://www.microsoft.com/en-us/download/confirmation.aspx?id=26347.
iNode Setup will find all near y iNode devices and sort them regarding receiving signal strength.
Each type of iNode device has a different icon. For iNode Care Sensor PHT it is the first picture in
the first row in the window elow.
To configure iNode Care Sensor PHT device you should dou le click on its icon. Application
connects with this device and reads its settings:
page 3

iNode Care Sensor PHT – instruction manual ELSAT s.c.
At the top of the window there is displayed following information:
the name of the iNode family – in this case iNode Care Sensor PHT;
the unique device identifier;
attery level: 100% means 3V or greater, while 0% it is 1,8V;
humidity;
pressure;
signal strength received y this device from the BT4.0 adapter or iNode LAN;
temperature;

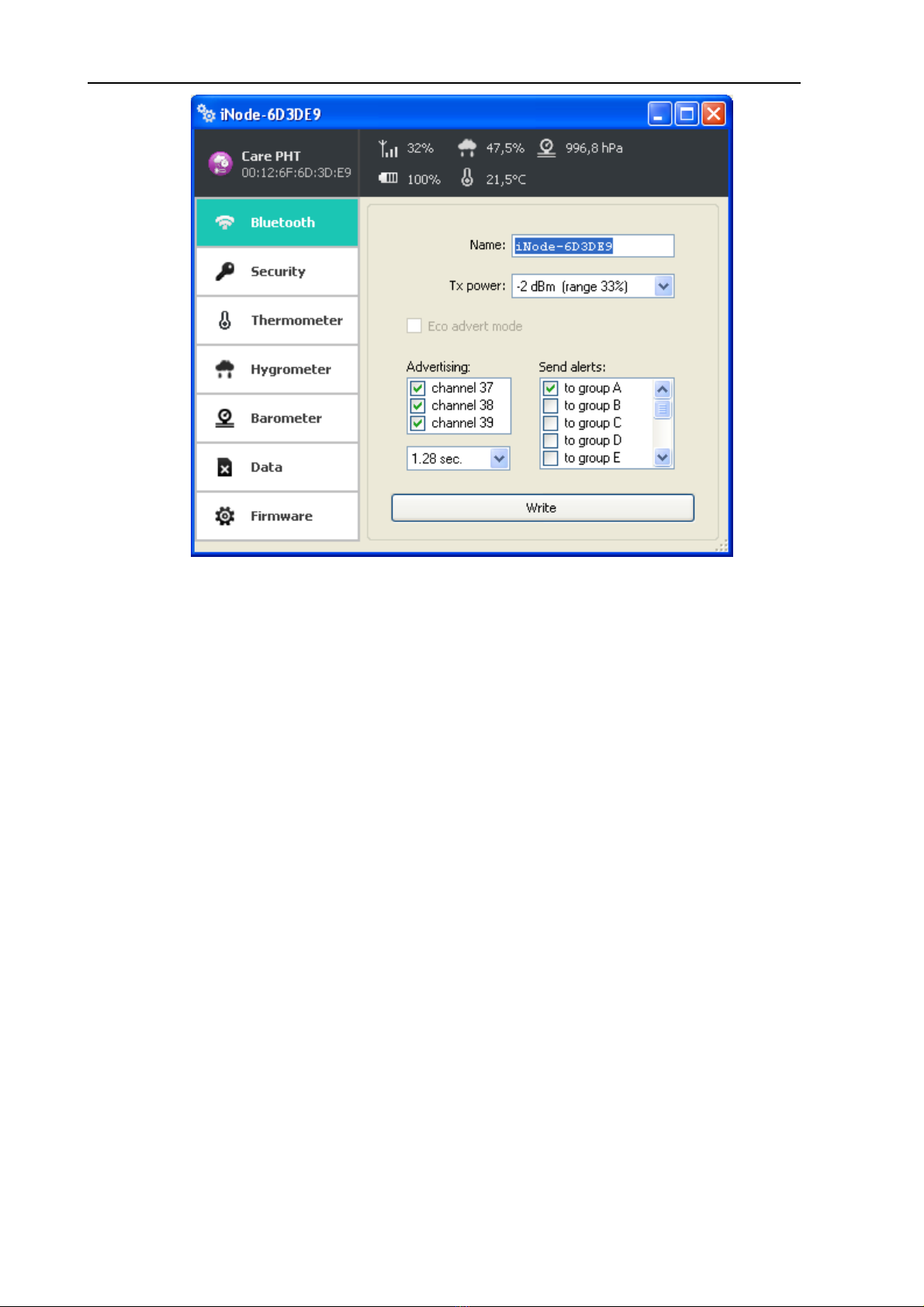

At the Bluetooth ta there are following items:
Name: you can change default device name typing a new one in this text ox. Its length is 16
characters maximum.
Tx power: determine the power the device roadcasts and simultaneously the range the device
can e scanned. If iNode Care Relay has set the scan range ~200m, and iNode Care Sensor
PHT has set the roadcast power -2dBm range 33% then effective distance from which the
device can e scanned is equal 200m*0,33=66m.
Eco advert mode: the attery saving mode. The device sends a roadcast frame in a 5-minute
interval. To use this mode, you must properly configure the iNode Care Relay (switch-on time
may not e less than 10 minutes). Besides, if you want the iNodeSetup.exe application can
connect with your device you must first move it, and then turn on the scan.
Send alerts: allows you to enter to which logical groups will e sent alerts.
Advertising: you can chose the channels the iNode Care Sensor PHT roadcasts advertising
frames. This way the attery life can e extended ut device can e more difficult to scan.
Additionally the advertisement interval can e chosen. This time determine how fast you can
connect with the device.
You can save modified settings y pressing the Write utton.
page 4

iNode Care Sensor PHT – instruction manual ELSAT s.c.

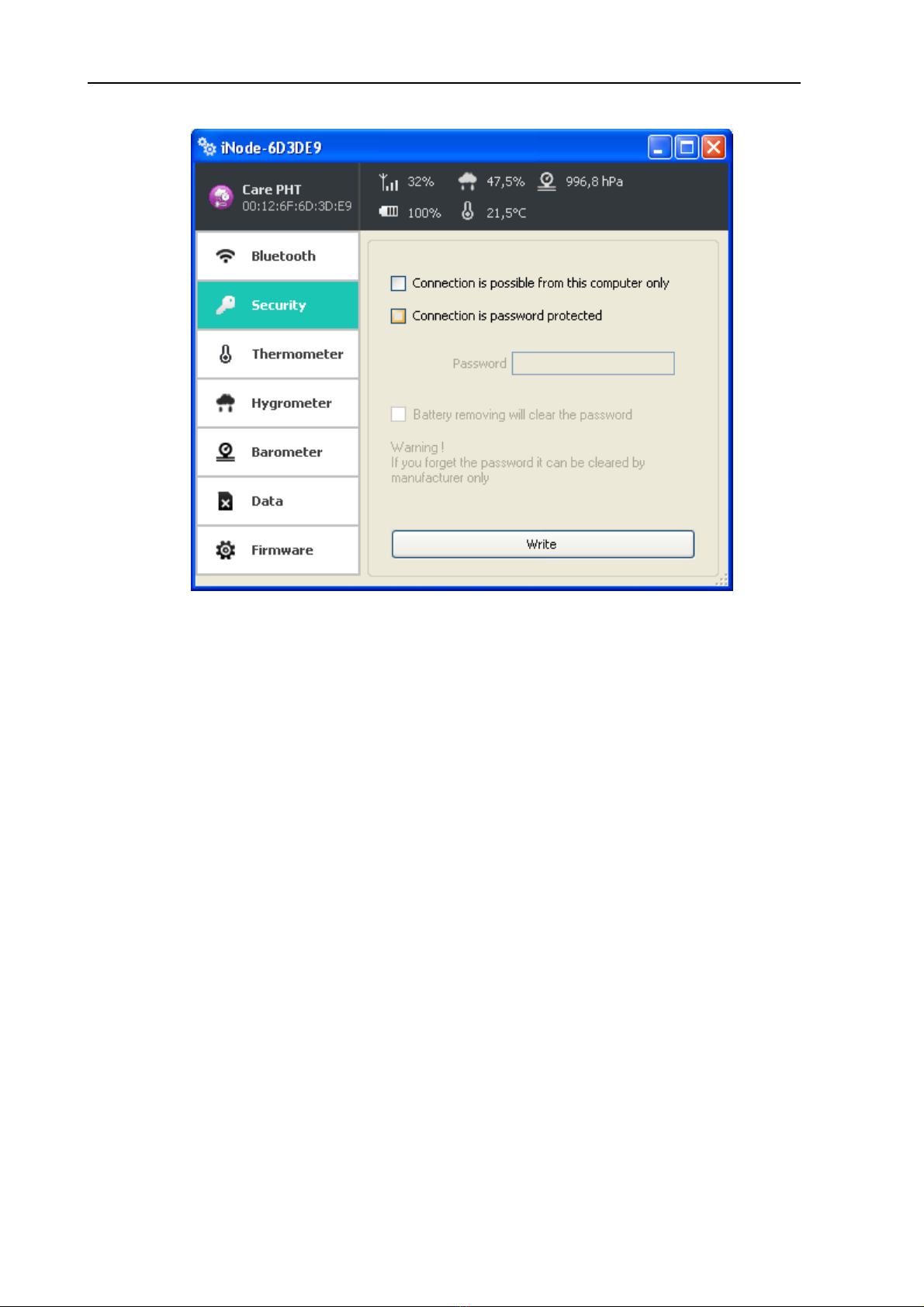

The picture elow shows the Security ta :
The following items can e set:
Connection is possible from this computer only: this option ena le you to protect the iNode
Care Sensor PHT access from others PCs or phones. You can reset this protection y attery
removing for at least one minute. This type of protection cannot e set in case of iNode Care
Relay.
Connection is password protected: access to the iNode Care Sensor PHT is password
protected. Password length is 16 characters maximum.
Battery removing will clear the password: if you unchecked this option than please remem er
that if you forget the password it can e cleared y manufacturer only.
You can save modified settings y pressing the Write utton.
page 5

iNode Care Sensor PHT – instruction manual ELSAT s.c.
The picture elow shows the Thermometer ta :
The following items can e set:
Alert if temperature is:
no alarm: the device does not respond to temperature changes.
greater than: device sends an alert in case a set threshold temperature value is exceeded.
less than: device sends an alert in case a set threshold temperature value is exceeded.
out of range: sends an alert in case a crossing one of the set temperature threshold.
in range: device sends an alert, in case that the temperature is etween set temperature
values.
You can change the temperature threshold value or values in the range from-30 ° C to + 70 ° C.
Archive alerts: the device saves the time of the eginning and end of any of the events selected
a ove.
Archive temperature: the device keeps the record measured temperature every 1 minute.
Temperature correction: the user can adjust the measured temperature in the range from -2 °C
to 2 °C with a resolution of 0.01 ° C.
You can save modified settings y pressing the Write utton.
page 6

iNode Care Sensor PHT – instruction manual ELSAT s.c.
The picture elow shows the Hygrometer ta :
The following items can e set:
Alert if humidity is:
no alarm: the device does not respond to humidity changes.
greater than: device sends an alert in case a set threshold humidity value is exceeded.
less than: device sends an alert in case a set threshold humidity value is exceeded.
out of range: sends an alert in case a crossing one of the set humidity threshold.
in range: device sends an alert, in case that the humidity is etween set humidity values.
You can change the humidity threshold value or values in the range from 1 % to 99 %.
Archive alerts: the device saves the time of the eginning and end of any of the events selected
a ove.
Archive humidity: the device keeps the record measured humidity every 1 minute.
Humidity correction: the user can adjust the measured humidity in the range from-20 % to 20
% with a resolution of 0.5 %.
You can save modified settings y pressing the Write utton.
page 7

iNode Care Sensor PHT – instruction manual ELSAT s.c.
The picture elow shows the Barometer ta :
The following items can e set:
Alert if pressure is:
no alarm: the device does not respond to pressure changes.
greater than: device sends an alert in case a set threshold pressure value is exceeded.
less than: device sends an alert in case a set threshold pressure value is exceeded.
out of range: sends an alert in case a crossing one of the set pressure threshold.
in range: device sends an alert, in case that the pressure is etween set pressure values.
You can change the pressure threshold value or values in the range from 261 hPa to 1269 hPa.
Archive alerts: the device saves the time of the eginning and end of any of the events selected
a ove.
Archive pressure: the device keeps the record measured pressure every 1 minute.
Pressure correction: the user can adjust the measured pressure in the range from -100 hPa to
+100 hPa with a resolution of 0,1 hPa.
You can save modified settings y pressing the Write utton.
page 8

iNode Care Sensor PHT – instruction manual ELSAT s.c.
The picture elow shows the Data ta :
Clear data utton erases the archived data memory and at the same time ena ling archiving data.
Data in memory are saved in a cyclical uffer, e.g. after it is full, the oldest data will e erased.
Memory has a capacity of 8192 records. One is the record time stamp and each entry three
temperature measurement. So there are up to 24576 results of pressure and/or temperature and/or
humidity measurement can e stored in memory.
page 9

iNode Care Sensor PHT – instruction manual ELSAT s.c.
The picture elow shows the irmware ta :
Current firmware version field shows the version and creation date of the firmware in the device.
To change the firmware in the device first select New firmware file.
Firmware is uploaded to the device after clicking Send firmware utton. Application checks if this
firmware is correct for this type of device to avoid situation that we want to upload the firmware
which needs the utton to e pressed for roadcasting in the device ut this device doesn't have it.
The fep files with the firmware, manuals or other information you can find at our technical support:
http://support.inode.pl/. User: inode no password.
page 10

iNode Care Sensor PHT – instruction manual ELSAT s.c.
3. Battery replacement
The CR2032 attery from iNode Care Sensor PHT should work up to 6 months. So really the
speed of consumption depends on many factors such as operating temperature, frequency of
colla oration with the PC or Smartphone (reading the recorded data), set the transmit power level,
etc. Characteristics of the attery voltage as a function of time is over a long period of time,
practically flat. Only at the end of the attery voltage egins to decrease sharply, and its internal
resistance, which leads to rapid consumption.
In order to replace the attery:
1. Open the cover:
The iNode cover can e opened without the use of tools. The most comforta le way
to do it like the walnut shell opens. Simply insert into the gap etween the two parts
of the casing nails of thum s and opens it. Inside there is a printed circuit oard, with
the metal attery holder.
2. Remove the circuit oard from the enclosure:
The attery is inserted into the holder on the side. It can not e removed if the plate
is located in the housing.
3. Pull out the holder the old attery.
4. Insert the new attery:
The attery like a coin has two sides. On one of them there is a large "+" sign and
usually the name of the manufacturer. The other party usually has no markings. Insert
the attery so that the side marked "+" touches with metal handle (it has also the "+"
sign). If the operation was carried out correctly the LED should start flashing.
5. Insert the circuit oard into the housing:
The printed circuit oard is not perfectly round has a slight chamfer on one side.
Suits him a little ulge inside the case. By inserting the plate into the housing, pay
attention to these two items were facing each other.
6. Close the cover:
On one of the parts of the enclosure there is a pin. You need to set it up so that it was
in the vicinity of the eheading descri ed in the previous paragraph. Only with this
setting the cover will close properly
page 11

iNode Care Sensor PHT – instruction manual ELSAT s.c.
4. Technical in ormation
Bluetooth Low Energy:
configura le from your PC:
◦the power with which the device operates in the range of-18 dBm + 8 dBm (maximum range up to 200 m
in open space);
◦the name of the device;
◦the threshold pressure value resulting in sending an alert;
◦the threshold temperature value resulting in sending an alert;
◦the threshold humidity value resulting in sending an alert;
◦type of archived information;
◦group (logical network) to which alerts are sent;
◦the password of the user;
◦the password to access the device; independent of the user's password, the password for the authorization
application on the smartphone or PC (protects against its copying and use y another client);
Power supply:
the attery CR2032;
Housing:
plastic;
dimensions: Ø 32 mm x 9.5 mm;
Other:
remote firmware update;
two LEDs;
operating temperature: from -30 to 65 °C;
humidity: 10-90 % RHG;
weight: 5 g;
Additional pressure sensor LPS331AP:
Operating pressure range :
260 to 1260 hPa
Relative accuracy over pressure:
±0.1 hPa/±0.2 hPa (typ./max.) P = 800 to 1100 hPa, T= 25°C
A solute accuracy pressure:
3.2 hPa/±2 hPa/+2.6 hPa (min./typ./max.) P = 800 to 1100 hPa, T= 0 to +80°C
Measurement Resolution:
±0.0625 hPa
Additional temperature sensor Si7021:
Accuracy:
±0.3°C/±0.4°C (typ./max.) -10°C to +85°C
Measurement Resolution:
±0.01 °C
Additional humidity sensor Si 7021:
Accuracy:
±2%RH/±3%RH (typ./max.) 0% to 80%
±2%RH/±4.5%RH (typ./max.) 80% to 100%
Measurement Resolution:
±0.025%RH
Equipment:
the attery CR2032;
Software:
Windows XP/Vista/7.0/8.0/8.1/10.0;
Linux;
page 12

iNode Care Sensor PHT – instruction manual ELSAT s.c.
Chipset:
CSR 101x;
THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES AND/OR IMPROVEMENTS IN DESIGNS, FEATURES &
DIMENSIONS WITHOUT NOTICE AND WITHOUT INCURRING OBLIGATION
page 13

iNode Care Sensor PHT – instruction manual ELSAT s.c.
5. Disposal
All the packaging materials are recycla le and are la eled as such. Dispose of
the packaging in accordance with local regulations. Keep the materials out of
children reach, as the materials can pose a hazard.
Proper disposal:
According to WEEE Directive (2012/19/UE) the crossed-out wheelie in sym ol (shown on
the left) is used to la el all electric and electronic devices requiring segregation.
Do not dispose of the spent product with domestic waste: hand it over to an electric and
electronic device collection and recycling point. The crossed-out wheelie in sym ol placed
on the product, instruction manual or package communicates this requirement.
Plastics contained in the device can e recycled in accordance with their specific marking.
By recycling materials and spent equipment you will help to protect the environment.
Information on electric and electronic devices collection locations is availa le from local
government agencies or from the dealer.
Spent or fully discharged single-use and rechargea le atteries must e discarded in
dedicated la eled ins, handed over to hazardous waste collectors or returned to electric
equipment dealers.
page 14

iNode Care Sensor PHT – instruction manual ELSAT s.c.
DECLARATION O CON ORMITY 2/4/2016
(according to ISO/IEC Guide 22)
Producer: ELSAT s.c.
Address: Warszawska 32E/1, 05-500 Piaseczno k/Warszawy POLAND
Declares that the product:
Product: iNode Care Sensor PHT
odel: iNode:0x0809
Conforms to the following Product Specifications and Regulations:
PN-EN 60950-1:2007/AC:2012
PN-ETSI EN 301 489-1 V1.9.2:2012
PN-ETSI EN 301 489-3 V1.6.1:2014-03
PN-ETSI EN 301 489-17 V2.2.1:2013-05
PN-ETSI EN 300 328 V1.8.1:2013-03
PN-EN 62479:2011/Ap1:2013-07
The product herewith complies with the requirements of the Low Voltage Directive 73/023/EEC, the
EMC Directive 89/336/EEC, the RoHS Directive 2011/65/EU and carries the CE - marking
accordingly.
Place of issue: Signed on ehalf of producer: Paweł Rzepecki
Piaseczno k/Warszawy Function: Co-owner
Date of issue: Signature:
08.04.2016
ELSAT s.c. ul.Warszawska 32E/1 05-500 Piaseczno k/Warszawy POLAND
phone: [phone]
http://iNode.pl/
page 15
