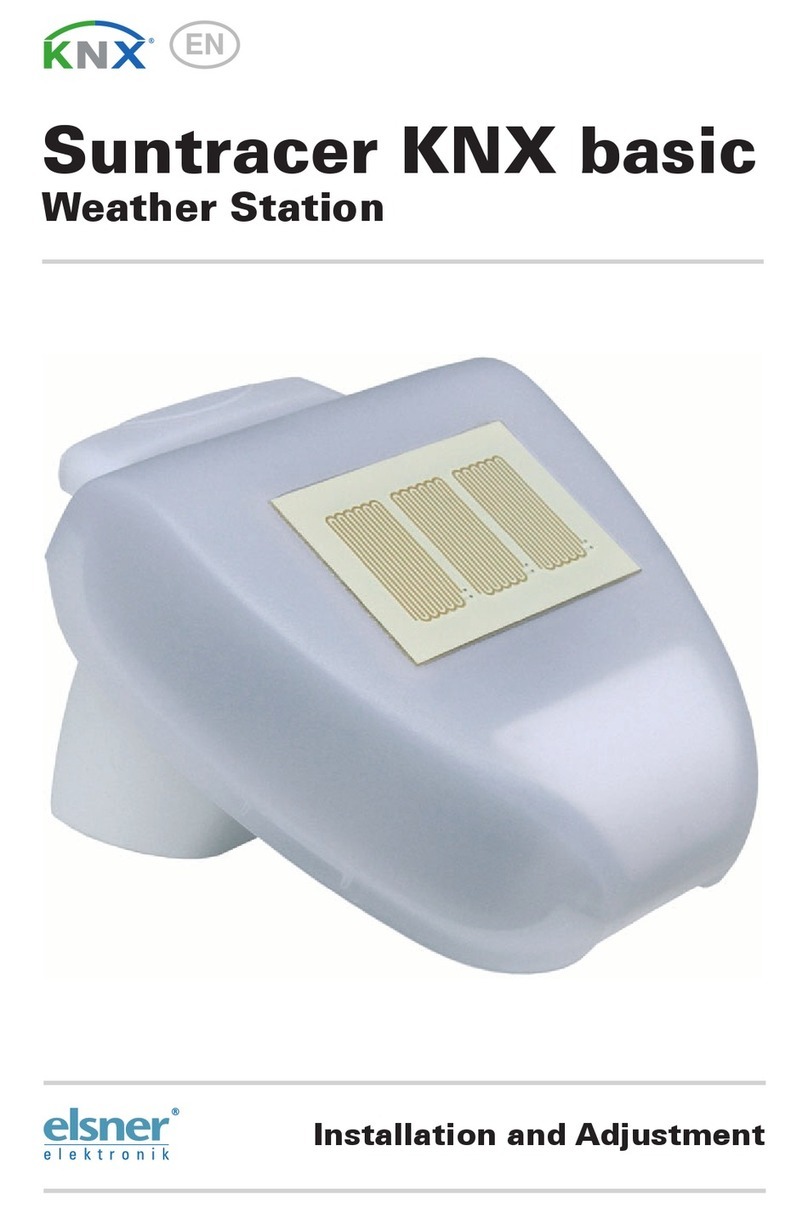

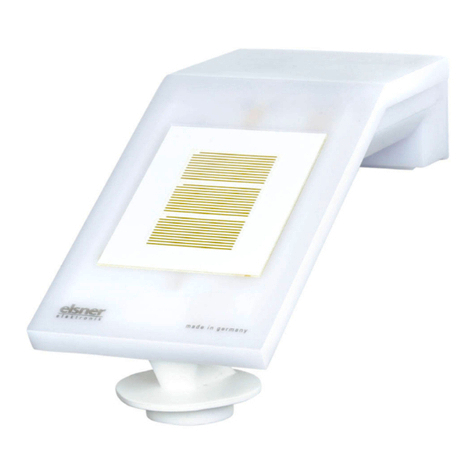

Elsner Suntracer KNX basic Series User manual

Suntracer KNX basic
Weather Station
Technical specifications and installation instructions
EN
Elsner Elektronik GmbH Control and Automation Engineering
Herdweg 7
D – 75391 Gechingen Phone [phone] / 93 97-0 [email protected]
Germany Fax [phone] / 93 97-20 www.elsner-elektronik.de
Suntracer KNX basic
Suntracer KNX basic
230 V
24 V

2 Description
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
1. Description

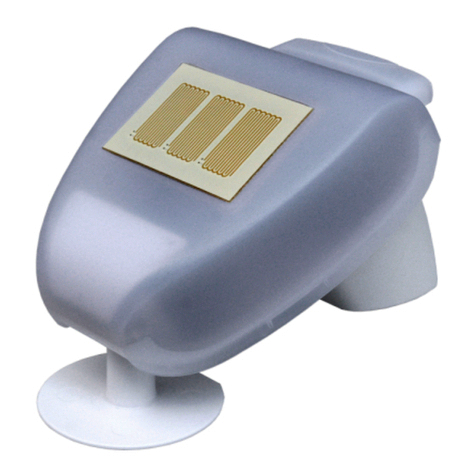

The Weather Station Suntracer KNX basic perceives temperature, wind speed,
brightness and precipitation. All data may be used for the control of switching outputs
which depend on threshold values. The states may be linked by means of AND and OR
logic gates. The compact housing of Suntracer KNX basic stores the sensor system,
the evaluation electronics and the electronics of the bus connection.
Functions:
•Brightness measurement: The current light intensity is measured by means
of a sensor
•Wind measurement: The measurement of wind speed is accomplished
electronically and thus noiseless and reliable even in case of hail, snow and
minus temperature. Air swirls and up-draught in the radius of the weather
station are collected, too
•Precipitation perception: The surface of the sensor is heated so that only
drops and flakes are recognised as precipitation but not fog or dew. If it stops
raining or snowing, the sensor dries quickly and the precipitation message
ends
•Temperature measurement
•Switching outputs for all measured and calculated values (Threshold values
can be set by parameter or via communication objects)
•8 AND and 8 OR logic gates with each 4 inputs. Every switching incident as
well as 8 logic inputs (in the form of communication objects) may be used as
inputs for the logic gates. The output of each gate may optionally be configured
as 1 bit or 2 x 8 bits
Configuration is made using the KNX software ETS. The programme file (format VD),
the data sheet and the manual can be downloaded from the Elsner Elektronik
homepage on www.elsner-elektronik.de in the “Service” menu.
1.1. Technical specifications
Housing Plastic material
Colour White / translucent
Mounting On-wall
Protection category IP 44
Dimensions approx. 96 × 77 × 118 (W × H × D, mm)
Weight 230 V AC version: approx. 240 g
24 V DC version: approx. 170 g
Ambient temperature Operation -30…+50°C, Storage -30…+70°C
Operating voltage Available for 230 V AC or for 24 V DC (20 V AC)
Current 230 V AC version: max. 20 mA
24 V DC version: max. 100 mA
Residual ripple 10%
Data output KNX +/- bus terminal plug

3 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
The product conforms with the provisions of EC guidelines
• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC
The following standards and/or technical specifications have been applied:
• EN 50491-5-1: 2010
• EN 50491-5-2: 2011
2. Installation and commissioning
2.1. Installation notes
Installation, testing, operational start-up and troubleshooting should
only be performed by an electrician.
DANGER!
Risk to life from live voltage (mains voltage)!
There are unprotected live components within the device.
• National legal regulations are to be followed.
• Ensure that all lines to be assembled are free of voltage and take
precautions against accidental switching on.
BCU type Own micro controller
PEI type 0
Group addresses max. 254
Allocations max. 255
Communication objects 222
Heating rain sensor approx. 1.2 W (230 V and 24 V)
Measurement range
temperature
-40…+80°C
Resolution (temperature) 0.1°C
Accuracy (temperature) ±1°C at -10…+85°C
±1.5°C at -25…+150°C
Measurement range wind 0…70 m/s
Resolution (wind) <10% of the measured value
Accuracy (wind) ±25% at 0…15 m/s
at an angle of attack of 45°, pole mounting
Measurement range
brightness
0…150 000 lux
Resolution (brightness) 1 lux at 0…120 lux
2 lux at 121…1 046 lux
63 lux at 1 047…52 363 lux
423 lux at 52 364…150 000 lux
Accuracy (brightness) ±35%

4 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
• Do not use the device if it is damaged.
• Take the device or system out of service and secure it against
unintentional use, if it can be assumed, that risk-free operation is no
longer guaranteed.
The device is only to be used for its intended purpose. Any improper modification or
failure to follow the operating instructions voids any and all warranty and guarantee
claims.
After unpacking the device, check it immediately for possible mechanical damage. If it
has been damaged in transport, inform the supplier immediately.
The device may only be used as a fixed-site installation; that means only when assem-
bled and after conclusion of all installation and operational start-up tasks and only in
the surroundings designated for it.
Elsner Elektronik is not liable for any changes in norms and standards which may occur
after publication of these operating instructions.
2.1.1. Location
Select an assembly location at the building where wind, rain and sun may be collected
by the sensors unobstructedly. Do not assemble any construction components above
the weather station from where water may drop on to the rain sensor after it has
stopped raining or snowing. The weather station may not be shaded by the building or
for example by trees. Leave at least 60 cm of free space beneath the weather station in
order to enable a correct wind measurement and in order to avoid that the weather sta-
tion is snowed in if there is heavy snowfall. The distance also protects the unit against
damage by birds.
Please ensure that the extended awning does not cast shade on the unit, and that this
is not protected from the wind.
Temperature measurements can also be affected by external influences such as by
warming or cooling of the building structure on which the sensor is mounted, (sun-
light, heating or cold water pipes). Temperature variations from such sources of inter-
ference must be corrected in the ETS in order to ensure the specified accuracy of the
sensor (temperature offset).
Fig. 1
The wind sensor must be mounted onto a
vertical wall (or pole).
Wall
or
pole

5 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
2.2. Mounting the weather station
2.2.1. Attaching the mount
The sensor comes with a combination wall/pole mount. The mount comes adhered by
adhesive strips to the rear side of the housing. Fasten the mount vertically onto the wall
or pole.
Fig. 2
The wind sensor must be mounted horizon-
tally in the lateral direction.
Horizontal
Fig. 3
When wall mounting: flat side on wall, crescent-
shaped collar upward.
Collar
Fig. 4
When pole mounting: curved side on pole, collar
downward.
Collar

6 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
2.2.2. View of rear side and drill hole plan
Fig. 5
Different mounting arms are available from El-
sner Elektronik as additional, optional accesso-
ries for flexible installation of the weather station
on a wall, pole or beam.
Example of the use of a mounting arm: Due to
flexible ball joints, the sensor can be brought
into ideal position.
Fig. 6
Example use of the hinge arm mounting:
With the hinge arm mounting, the weather sta-
tion projects from beneath the roof overhang.
Sun, wind and precipitation can act upon the
sensors without hindrance.
Fig. 7
Example use of the hinge arm mounting:
Fitting to a pole with worm drive hose clips
Langloch 7,5 x 5 mm
Fig. 8 a+b
Drill hole plan
Dimensions of rear side of
housing with bracket. Sub-
ject to change for technical
enhancement.

7 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
2.2.3. Preparing the weather station
The weather station cover with the rain sensor snaps in on the left and right along the
bottom edge (see Fig.). Remove the weather station cover. Proceed carefully, so as not
to pull off the wire connecting the PCB in the bottom part with the rain sensor in the
cover (soldered cable connection in case of 230 V AC version, cable with plug in case
of 24 V DC version).
Push the power supply and bus connection cable through the rubber seal on the bot-
tom of the weather station and connect voltage LN and bus +/- to the provided clamps.
Fig. 9
1 Screw-on cover (230V
device)
2 Cover with rain sensor
3 Cover snaps
4 Bottom part of housing
3
4
Unsnap cover
and remove upwards
2
1

8 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
For 24V devices the connection cable must be plugged in between the cover and circuit
board.
2.2.4. PCB layout
230 V AC version
Fig. 10
Remove the cable shielding under the circuit
board and only feed the connector cables up-
wards through the openings in the circuit
board.
Fig. 11
1 Cable connection to the rain
sensor in the housing cover
2 Opening for the cable for the
voltage supply
3 Tension clamp for voltage
supply (230 V AC),
suitable for massive conduc-
tors of up to 1.5 mm² or con-
ductors with fine wires
4 Opening for bus cable
5SlotforKNXclamp+/-
6 Programming pushbutton for
the teach-in of the device
7 Programming LED
231
6
7
4 5

9 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
24 V DC version
2.2.5. Mounting the sensor
Close the housing by putting the cover back over the bottom part. The cover must snap
in on the left and right with a definite “click”.
Fig. 12
1 Slot for cable connection to
the rain sensor in the housing
cover
2 Tension clamp for voltage
supply (24 V DC/20 V AC).
Massive conductors of up to
1.5 mm² or conductors with
fine wires. Terminal configu-
ration independent from po-
larity (+/- or -/+).
3 Opening for the cable for the
voltage supply and for bus ca-
ble
4SlotforKNXclamp+/-
5 Programming pushbutton for
the teach-in of the device
6 Programming LED
231
5
6
4
Fig. 13
Make sure the cover and bottom part are
properly snapped together! This picture is
looking at the closed sensor from under-
neath.
Fastening

10 Installation and commissioning
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
DANGER!
There is a risk to life from the live voltage on a 230 V device!
• The cover must be screwed on in operation.
To remove it, the sensor can be simply pulled upwards out of the mount, against the
resistance of the fastening.
2.3. Notes on mounting and commissioning
Do not open weather station if water (rain) might ingress: even some drops might
damage the electronic system.
Observe the correct connections. Incorrect connections may destroy the weather sta-
tion or connected electronic devices.
Please take care not to damage the temperature sensor (small blank at the bottom part
of the housing.) when mounting the weather station. Please also take care not to break
away or bend the cable connection between the blank and the rain sensor when con-
necting the weather station.
Remove all existing protection labels after installation.
The measured wind value and thus all other wind switching outputs may only be sup-
plied 60 seconds after the supply voltage has been connected.
After the auxiliary voltage has been applied, the device will enter an initialisation phase
lasting a few seconds. During this phase no information can be received via the bus.
Fig. 14
With the 230V model, screw the cover on to
the underpart, to prevent unauthorised or ac-
cidental opening.
Fig. 15
Push the housing from above into the fas-
tened mount. The bumps on the mount must
snap into the rails in the housing.

11 Addressing of the device at the bus
Weather Station Suntracer KNX basic • Status: 15.07.2013 • Technical changes reserved. Errors reserved.
3. Addressing of the device at the bus
The device is supplied with the bus address 15.15.250. You can program another ad-
dress into the ETS by overwriting the 15.15.250 address or by teaching via the pro-
gramming key on the circuit board inside the housing.
DANGER!
Risk to life from live voltage (mains voltage)!
• With the 230V model, bus addressing via the programming key
should only be done by an accredited electrician.
• Do not touch any components on the circuit board while pressing
the key.
4. Maintenance
DANGER!
There is a risk to life from the live voltage (mains voltage)!
If you come into contact with live components in the device, (e.g. caused
also by a jet of water) there is the risk of an electric shock with
230 V devices.
Risk of injury caused by components moved automatically!
The automatic control can start system components and place people in
danger (e.g. moving windows/awnings if a rain/wind alarm has been
triggered while cleaning).
• Always isolate the device from the mains for servicing and cleaning
(e. g. switch off or remove the fuse).
The device must regularly be checked for dirt twice a year and cleaned if necessary. In
case of severe dirt, the sensor may not work properly anymore.
ATTENTION
The device can be damaged if significant volumes of water penetrate the
housing.
• Do not clean with high pressure cleaners or steam jets.
