QUICKSTART GUIDE
STUDIOVISION
STV-150-4KH / STV-230-4KH / STV-280-4KH
4K HDMI Monitor (15" / 23" / 28")
STUDIOVISION 4K
SDI HDMI1 HDMI2 HDMI3 HDMI4 DVI VGA MENU EXIT F1 F2 F3 F4

2
BOX CONTENTS
• Elvid StudioVision Monitor
• Sun hood
• AC adapter
• DC power cord
• Tally connector and hardware
• Mounting feet (×2) and hardware
PRECAUTIONS
• Keep this product away from water and any ammable gases or liquids.
• Do not expose this product to humidity or extreme heat or cold.
• Make sure this product is powered off when plugging it into a power source.
• Use only the correct, recommended voltage.
• Do not attempt to disassemble or repair this product.
• Exposure to high sound levels can cause permanent hearing loss. Avoid listening at high volumes for extended periods of time.
• When the monitor is not in the protective case, do not place or store it facedown, since this can damage the screen.
• Handle this product with care. Avoid any impacts to this product.
• Do not block the vents in this product.
• Disconnect this product from its power source before storage and during electrical storms.
• Do not use chemical solutions to clean this product. Clean it with only a soft, dry cloth.
• Keep this product away from children.
• Make sure that this product is intact and that there are no missing parts.
• To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded ttings.
• All images are for illustrative purposes only.

3

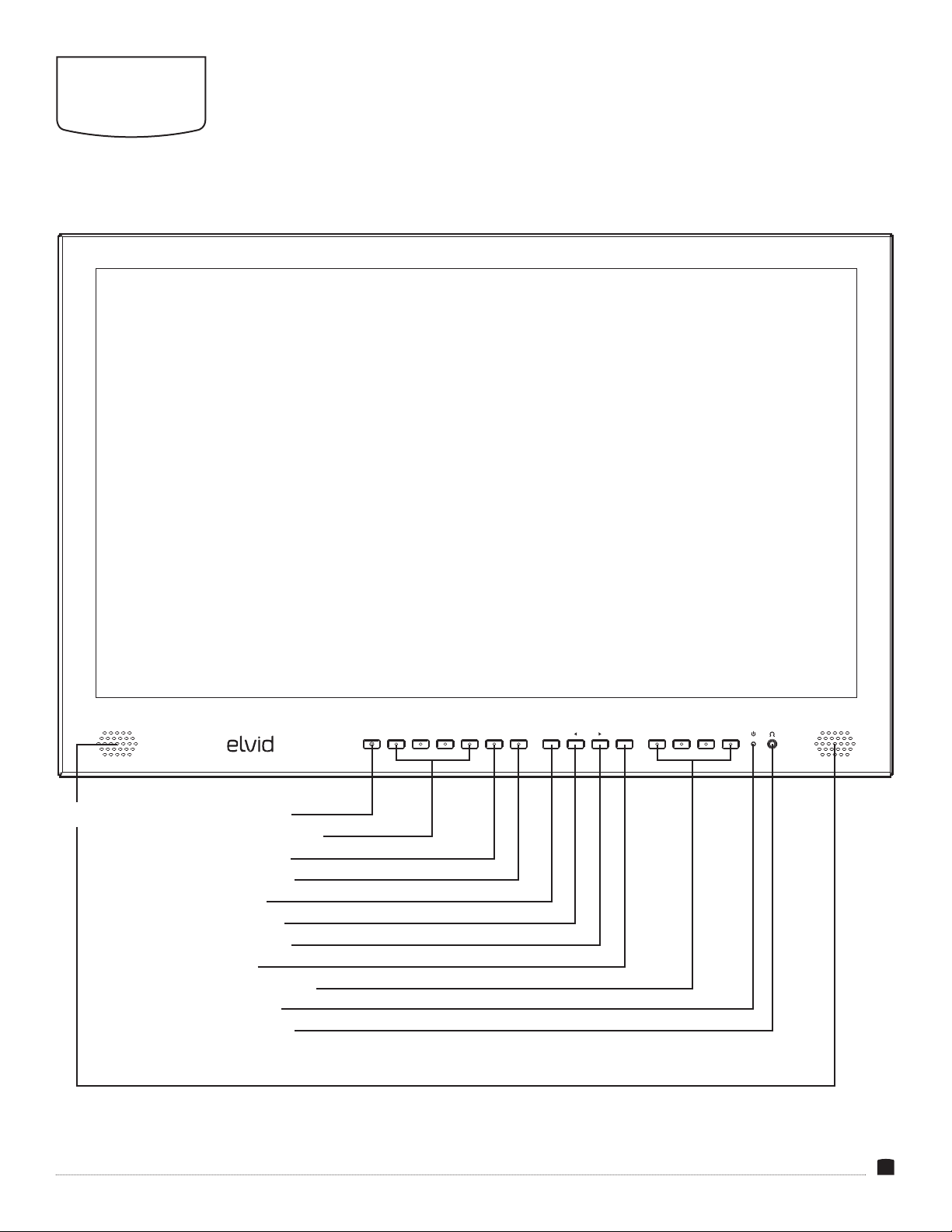

OVERVIEW
STUDIOVISION 4K
SDI HDMI1 HDMI2 HDMI3 HDMI4 DVI VGA MENU EXIT F1 F2 F3 F4
Speakers SDI input selector
HDMI 1–4 input selectors
DVI input selector
VGA input selector
Menu button
Scroll left button
Scroll right button
Exit button
F1–F4 function buttons
Power indicator
Headphone output
FRONT

4
R 2
G 3
GND 5
TALLY
VGA
DVI
2
4
L R
AUDIO
IN OUT SDI
HDMI
1
3
DC 15V
OFF
ON

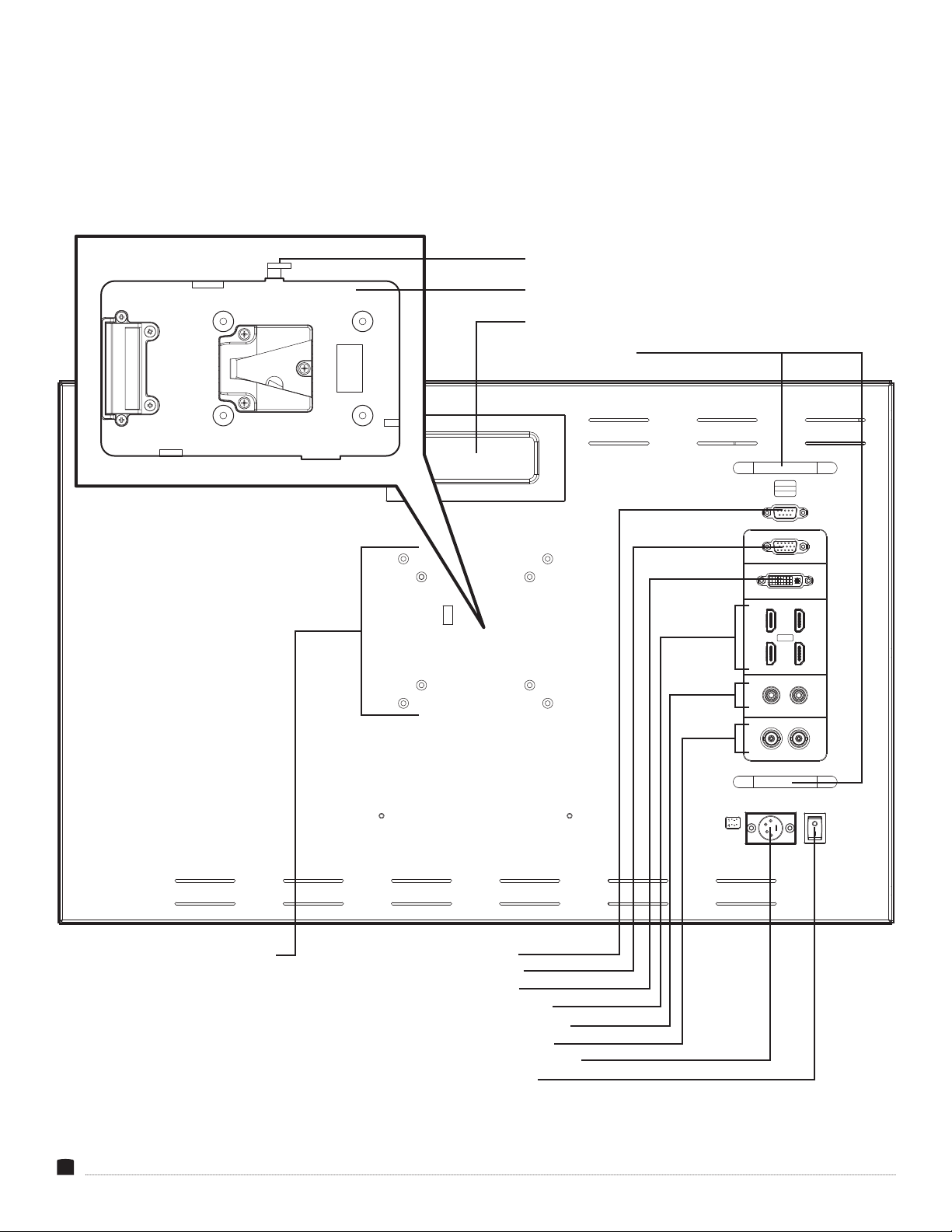

Handle
V-mount battery plate
Connector protection
Tally port
VGA input
DVI input
HDMI input (×4)*
*Note: HDMI 1 supports 4K @ 60 Hz. HDMI 2–4 support 4K @ 30 Hz.
RCA audio L/R input
SDI input/output
4-pin XLR power input
Power switch
VESA 75/100 mounting threads
BACK
Release button

5
GETTING
STARTED
ATTACHING A V-MOUNT BATTERY
Attach a battery by sliding it into the V-mount plate until it clicks into place.
Release the battery by pressing the release button and sliding the battery off the V-mount.
CONNECTING TO AC POWER
1. Plug the AC power adapter’s 4-pin XLR connector into the power input on the back of the monitor.
2. Connect the power cable to the AC adapter, and plug it into an outlet.
POWERING ON
1. Connect the video and audio signals from your camera to the StudioVision monitor with the appropriate cables.
2. Move the Power switch to the DC position for plug-in power, or the BATT position for battery power.
Once the monitor is powered on, the and buttons adjust the volume output to the speakers or headphones. The output level is
displayed on the screen as you adjust the volume.
SUN HOOD
The sun hood can be used only with the StudioVision monitor’s case. To attach the sun hood, remove it from the inside of the front case
door, and follow these steps:
1. Align the touch-connect strips on the sun hood and the case.
2. Press the hood to the case to secure it.

6
USER
INTERFACE
MENUS
1. Press the Menu button to open the main menu.
Main menu items are Picture, Function, Display Mode, Display
Setting, Select Region, Input, Audio, VGA, System, and
Information.
2. Use the and buttons to navigate to the desired menu. As you
scroll through the menus, the submenu options appear in the bar
beneath the menu item.
3. Once the menu item is highlighted, press Menu to open it.
To close the main menu and return to the main view, press the Exit
button.
SUBMENUS
1. As you scroll through the submenu functions, the current value
will appear below it.
2. Scroll to function you want to adjust, and press Menu. The value
will change to yellow.
3. Use the and buttons to change the value of the submenu
function, and press Menu. The new value will be saved, and you’ll
return to the submenu.
4. Press Exit to return to the main menu.
5. Press Exit again to close the menu. The main screen is always on.
To return to the sub menu without saving the change to the
submenu selection, press the Exit button.
FUNCTION BUTTONS
The function buttons default to the following menus:
• F1: Display Mode
• F2: Display Rotate
• F3: Safety Marker
• F4: Aspect
Pressing the function button opens the submenu for that menu
item.
To reassign menus to the function buttons, follow these steps:
1. Press and hold the function button until the function select menu
appears.
2. Press the function button repeatedly to select the desired option
or value, and press Menu to set the change and return to the
main view.
Pressing Exit before you set the value change with the Menu
button will revert to the previous value and return you to the main
view.
RESTORING THE FACTORY PRESETS
To erase all submenu changes and return to the factory presets:
1. Press Menu to open the main menu, and scroll to the System
menu. Press Menu to open the submenu.
2. Use the and buttons to select Reset in the System submenu,
and press the Menu button.
The monitor takes about 5 seconds to reset, and you will return to
the main view.
Note: Once the monitor is reset, the volume will be reset to zero.
Use the and buttons to reset to the desired audio level.

7
USER OPTIONS
REMOVING THE MONITOR FROM THE FLIGHT CASE
1. Remove the V-mount battery, or unplug the AC power adapter.
2. Set the monitor faceup on a at surface.
3. Use an M5 hex key to remove the four mounting screws.
4. Lift the monitor out of the case by the front handles.
VESA MOUNT
The StudioVision 4K monitors are equipped with 75×75 and
100×100 mm VESA mounting holes. Refer to your VESA mount's
weight capacity specications to ensure that it will securely support
the monitor.
To mount the StudioVision monitor on a VESA mount, follow these
steps:
1. Remove the monitor from its ight case.
2. Remove the battery.
3. Unscrew the four V-mount plate screws, and remove and unplug
the V-mount plate.
4. Unscrew the four sub-plate screws, and remove the sub plate
from the monitor.
5. Use the screws that are included with the VESA mount to attach
the monitor to the mount.
Important: VESA screws should screw in snugly. But if the screw
meets some resistance, do not use force to continue screwing it in.
Doing so may damage the monitor.
STAND-ALONE USE
Metal feet and attachment screws are included for stand-alone
operation.
1. Attach the feet to the bottom edge of the monitor with the
included screws.
2. For semi-permanent installation, or to operate the stand-alone
monitor with a V-mount battery, bolt the feet to a table top or
other at horizontal surface through the holes on the base of the
feet.
RACK MOUNT (15 IN. MONITOR ONLY)
To mount the STV-150-4KH 15-inch monitor into a standard 19-inch
machine rack, follow these steps:
1. Remove the V-mount battery, or unplug the AC power adapter.
2. Remove the monitor from its ight case.
3. Use standard rack screws to mount the monitor into a 19-inch
machine rack.
Important: Refer to the machine rack’s specications for maximum
weight capacity to ensure that it will securely hold the monitor.

8
SUPPORTED RESOLUTIONS
AND FRAME RATES
HDMI2.0 HDMI1.4 3G-SDI
480i (59.94) 480i (59.94) SD 525 59.94i
480i (60) 480i (60) 625 50i
576i (50) 576i (50)
HD
(1920×720)
720 50p
480p (59.94) 480p (59.94) 720 59.94p
480p (60) 480p (60) 720 60p
576p (50) 576p (50) 720 23.98p
720p (23.98) 720p (23.98) 720 24p
720p (24) 720p (24) 720 25p
720p (25) 720p (25) 720 29.97p
720p (29.97) 720p (29.97) 720 30p
720p (30) 720p (30)
HD
(1920×1080)
1080 50i
720p (50) 720p (50) 1080 59.94i
720p (59.94) 720p (59.94) 1080 60i
720p (60) 720p (60) 1080 23.98p
1080i (50) 1080i (50) 1080 23.98sF
1080i (59.94) 1080i (59.94) 1080 24p
1080i (60) 1080i (60) 1080 24sF
1035i (59.94) 1035i (59.94) 1080 25p
1035i (60) 1035i (60) 1080 25sF
1080p (23.976) 1080p (23.976) 1080 29.97p
1080p (23.98) 1080p (23.98) 1080 29.97sF
1080p (24) 1080p (24) 1080 30p
1080p (25) 1080p (25) 1080 30sF
1080p (29.97) 1080p (29.97) 3G-Level A
(1920×1080)
1080 50p
1080p (30) 1080p (30) 1080 59.94p
1080p (50) 1080p (50) 1080 60p
1080p (59.94) 1080p (59.94) 3G-Level B
(1920×1080)
1080 50p
1080p (60) 1080p (60) 1080 59.94p
3840×2160 (24) 3840×2160 (24) 1080 60p
3840×2160 (25) 3840×2160 (25)
3840×2160 (30) 3840×2160 (30)
3840×2160 (50)
3840×2160 (60)

9
VGA DVI-I
Resolution Hz Resolution Hz
800x600 56/60/70/72/75 720x480 60
1024x768 50/60/66/70/75 800x600 56/60/72/75
1152x864 60/70/75 1024x768 50/60/66/70/75
1152x900 76 1152x864 60/70/75/76
1280x720 50/60/70/72/75 1280x720 50/60/70/72/75
1280x768 50/60/70/75 1280x768 50/60/70/75
1280x800 60/70/72/75 1280x800 60/70/72/75/85
1280x960 60/70/72/75 1280x960 60/72/75
1280x1024 60/70/72/75/76 1280x1024 60/70/72/75/76
1360x768 60 1360x768 60
1440x900 60/75 1400x1050 60/75/85
1400x1050 60/75 1440x900 60/75/85
1600x900 60 1600x900 60
1600x1200 60/65/70/75 1600x1000 60/75
1680x1050 60/75 1680x1050 60/75/85
1920x1080 24/25/50/60 1920x1080 24/60
1920x1200 60

10
SPECIFICATIONS
DISPLAY POWER
ENVIRONMENTAL
GENERAL
MOUNTING
I/O
Panel Type IPS LCD
Display Size STV-150-4KH: 15.6 in. (39.6 cm)
STV-230-4KH: 23.8 in. (60.5 cm)
STV-280-4KH: 28 in. (71.1 cm)
Screen Resolution 3840 × 2160
Aspect Ratio 16:9
Viewing Angle
(H/V)
STV-150-4KH: 176°/176°
STV-230-4KH: 178°/178°
STV-280-4KH: 170°/160°
Touchscreen No
Maximum
Brightness
STV-150-4KH: 330 cd/m2
STV-230-4KH: 300 cd/m2
STV-280-4KH: 450 cd/m2
Contrast Ratio 1000:1
Bit Depth/
Color Support
STV-150-4KH: 8-Bit (16.7 million colors)
STV-230-4KH: 8-Bit + FRC (1.07 billion colors)
STV-280-4KH: 10-Bit (1.07 billion colors)
LUT Support No
Image Controls Brightness, Contrast, Saturation, Hue,
Sharpness, Color Temperature, Backlight,
Center Marker, Safety Marker, Aspect,
Underscan, Check Field, Freeze Input,
Peaking, Display Mode, Display Rotate
DC Input Power 12 to 24 V DC
Battery Type V-mount
Power
Consumption
STV-150-4KH: ≤15 W
STV-230-4KH: ≤36 W
STV-280-4KH: ≤48 W
Operating Temperature 32°F to 140°F (0°C to 60°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Dimensions
(W × H × D)
STV-150-4KH: 11.1 × 10.5 × 1.5 in.
(28.3 × 26.7 × 3.8 cm)
STV-230-4KH: 22.8 × 14.8 × 1.8 in.
(57.9 × 37.6 × 4.5 cm)
STV-280-4KH: 26.4 × 16.7 × 1.8 in.
(67 × 42.5 × 4.5 cm)
Dimensions
with Case (W
× H × D)
STV-150-4KH: 20.6 × 12 × 6.7 in.
(52.4 × 30.5 × 17 cm)
STV-230-4KH: 26.2 × 16.4 × 6.8 in.
(66.6 × 41.7 × 17.3 cm)
STV-280-4KH: 30 × 18.7 × 6.8 in.
(76.1 × 47.4 × 17.3 cm)
Approximate
Weight
STV-150-4KH: 9.5 lb. (4.3 kg)
STV-230-4KH: 19.4 lb. (8.8 kg)
STV-280-4KH: 23.1 lb. (10.5 kg)
Approximate
Weight with
Case
STV-150-4KH: 20.5 lb. (9.3 kg)
STV-230-4KH: 35.9 lb.(16.3 kg)
STV-280-4KH: 41.9 lb. (19 kg)
Mounting-Hole Pattern VESA 75×75 and 100×100 mm
Mounting STV-150-4KH: 19-inch machine rack
STV-230-4KH: None
STV-280-4KH: None
Video Input HDMI 2.0 (HDMI Type A)
HDMI 1.4 (HDMI Type A) ×3
3G-SDI (BNC)
Dual-Link DVI (DVI-I)
VGA (DE-15)
Video Output 3G-SDI (BNC)
Audio 2 RCA line input
1/8 in. (3.5 mm) headphone output
Built-In Speaker 2
Power 4-pin XLR input
Other I/O Tally (DE-9)
Card Slot None

11
TROUBLESHOOTING
Problem Solution
The StudioVision will not turn on. • Make sure that the AC adapter is fully plugged in, and that the AC power source is reliable.
• Make sure the V-mount battery is fully charged and properly seated in the V-mount battery plate.
The StudioVision is turned on, but
there is only a black and white
• Check whether the color saturation is properly congured.
• Make sure the Check Field mode is disabled.
The StudioVision is turned on, but
there is no onscreen image.
• Check your cables to make sure they are properly connected.
• Make sure your cables are securely plugged into the correct input.
• Make sure the video resolution and frame rate are supported by the monitor. See the Supported
Resolutions and Frame Rates chart in this manual.
• Check your cables to make sure they are reliable.
The StudioVision is not receiving
a video signal.
• Make sure the proper input is selected.
• Check your cables to make sure they are properly connected.
• Check your cables to make sure they are reliable.
• Make sure your cables are securely plugged into the inputs.
A “no signal” or “not supported”
message is displayed onscreen.
• Make sure the video resolution and frame rate are supported by the monitor. See the Supported
Resolutions and Frame Rates chart in this manual.
The onscreen image size is not
correct.
• Make sure the Underscan and Pixel-to-pixel modes are disabled.
• Check whether the aspect ratio is set correctly.
There’s no sound coming from the
speakers.
• Make sure the volume is turned up.
• Disconnect headphones if they’re plugged into the headphone port.
• Make sure the proper source is selected in the Audio Source menu.

www.elvidcinema.com
ONE-YEAR LIMITED WARRANTY
This Elvid product is warranted to the original purchaser to be free from defects in materials and
workmanship under normal consumer use for a period of one (1) year from the original purchase
date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s
responsibility with respect to this limited warranty shall be limited solely to repair or replacement,
at the provider’s discretion, of any product that fails during normal use of this product in its
intended manner and in its intended environment. Inoperability of the product or part(s) shall be
determined by the warranty provider. If the product has been discontinued, the warranty provider
reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration,
abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. This warranty provides you with specic legal rights, and you may
also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Elvid Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Elvid along with
the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s
own risk and expense.
For more information or to arrange service, visit www.elvidcinema.com or call Customer Service at
212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
Elvid is a registered trademark of the Gradus Group.
© 2019 Gradus Group LLC. All Rights Reserved.
GG2
