EMC SVR-I2U-H2316 Product manual

EMC® SVR-I2U-H2316 Server Installation and
Maintenance Guide
P/N 300-013-761
REV 03
March, 2015
This document describes installation and maintenance procedures for the SVR-I2U-H2316
server. This server has slots for sixteen 2.5-inch drive assemblies. Some server
components are replaceable as field replaceable units (FRUs). Refer to your product
documentation for information on which components are FRUs. Before attempting to
perform hardware service procedures, review your service contract because replacement of
some server components by unauthorized personnel may void service warranties.
lTechnical information and requirements.................................................................... 2
lInstalling the server in a cabinet.................................................................................3
lMaintaining the server............................................................................................. 14
lAdding or replacing a compute node........................................................................16
lReplacing a disk drive assembly.............................................................................. 19
lReplacing a power supply........................................................................................ 23
lReplacing the server.................................................................................................24
lRemoving the slide rails from the cabinet.................................................................35

Technical information and requirements
This section contains the following server information:
lServer power and cooling information on page 2
lServer dimensions and weight on page 2
lServer placement requirements on page 2
lOperating limits on page 3
lShipping and storage requirements on page 3
Server power and cooling information
Table 1 on page 2 contains specifications for the server power consumption and
dissipation. Calculations based on this table are intended to provide maximum power
and heat dissipation. EMC provides a power and weight calculator at http://
powercalculator.EMC.com. Use this calculator to refine the power and heat values in the
table below to more-closely match the specific server hardware configuration. Ensure that
the server installation site meets the requirements for your configuration.
Table 1 Server power consumption and dissipation
Requirement Description
AC line voltage 90-264 V AC, autoranging, 47- 63 Hz
Power consumption
(operating maximum)
1320 VA (1295 W) maximum (fully configured)
Heat dissipation 46.64 x 105 J/hr (4421 BTU/hr) maximum
Maximum inrush current 55 A per power supply for 6 ms or less under typical line
conditions and over the entire system ambient operating range
Server dimensions and weight
Table 2 Server dimensions and weight
Dimension Server Server with rails
Height 3.46 in (8.79 cm) 2.0 U (with or without bezel)
Depth 28.86 in (73.3 cm) 28.86 in to 29.5 in (73.3 cm to 74.9 cm)
Width 17.24 in (43.8 cm) without
cabinet latch brackets
18.99 in (48.24 cm) with cabinet latch
brackets
Maximum weight 71 lb (32.2 kg) 76 lb (34.47 kg)
Server placement requirements
There are no restrictions on the location of the server in the cabinet. Allow at least 36
inches of service clearance in front of the cabinet. Power distribution must support the
number of outlets required for the server and the server power rating listed on the Device
2

Rating label on the chassis. For additional information, refer to the preparation/planning
guides for your specific site and cabinet.
Operating limits
The ambient temperature specification is measured at the front bezel inlet. The site must
have air conditioning of the correct size and placement to maintain the specified ambient
temperature range and offset the heat dissipation listed in the table that follows.
Table 3 Operating limits
Requirement Description
Ambient temperature 10°C to 35°C (50°F to 95°F)
Temperature gradient 10°C/hr (18°F/hr)
Relative humidity extremes 20% to 80% noncondensing
Recommended operating relative
humidity
40% to 55% noncondensing
Elevation -50 to 10,000 ft (-16 to 3,048 m)*
* For altitudes above 2,950 feet, the maximum operating temperature is de-rated 1°F/550 ft.
Shipping and storage requirements
Table 4 Shipping and storage requirements
Requirement Description
Ambient temperature -40°C to 65°C (-40°F to 149°F)
Temperature gradient 25°C/hr (45°F/hr)
Relative humidity 10% to 90% noncondensing
Elevation -50 to 35,000 ft (-16 to 10,600 m)
Installing the server in a cabinet
To install the server in a cabinet you must perform the tasks below in the order listed.
This section describes how to perform each task.
1. Review the warnings and recommendations section.
2. Verify the contents of the mounting kit.
3. Adjust the rail assemblies for the cabinet channel holes.
4. Remove the inner rails from the rail assemblies.
5. Attach the inner rails to the server.
6. Install the slide rails in the cabinet.
7. Install the server on the slide rails in the cabinet.
8. Connect cables to the server.
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Operating limits 3

9. Install the bezel on the server.
10. Power up the server.
Warnings and recommendations
The cabinet in which you will install the server must have a full earth ground to provide
reliable grounding. Also, the cabinet should have its own switchable power distribution.
We suggest that you use a cabinet that has dual power distribution units, one on each
side.
We recommend that you use cabinet anti-tip devices, especially if you are installing or
removing a server in the upper half of the cabinet when the lower half is empty.
Verifying the mounting kit parts
Verify that the server mounting kit includes the parts listed in the table that follows.
Table 5 Mounting kit parts
Component Use
2 universal rail assemblies
(consists of slide rails for connection to the
cabinet and inner rails for connection to
server)
Attach back to front on either side between
cabinet channels
Four Phillips pan-head 8-32 x 0.35 in screws Stabilize the server and rail mounting in
cabinet
Two M5 mounting screws. (Presence is
dependant on when system was delivered)
Stabilize the server mounting in cabinet
2U bezel (application specific) Covers front of server in cabinet
4

Table 5 Mounting kit parts (continued)
Component Use
CL4973
You need a # 2 Phillips-head screwdriver to complete the installation of the rails and
server.
Adjusting the rail assemblies for the cabinet channel holes
The rail assemblies ship with round alignment posts at the end of the rails for cabinet
channels (NEMA rails) with round holes. If your cabinet has channels with square holes,
switch the rail alignment posts to square posts.
Switching rail alignment posts
On each end of each rail assembly, switch the alignment post assembly using the
procedure that follows. Refer to Figure 1 on page 6 while performing the procedure.
Procedure
1. Remove the screw that secures the alignment post assembly.
2. Push the plastic tab on the alignment post assembly up or down, depending on the
rail end, and hold the tab in.
3. Rotate the alignment post assembly either clockwise to switch from round posts to
square posts or counter clockwise to switch from square posts to round posts until
the assembly clicks into place.
4. Secure the alignment post assembly in place with the screw that you removed.
Note
The screw goes in the hole opposite the hole from which you removed it.
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Adjusting the rail assemblies for the cabinet channel holes 5

Figure 1 Switching from round rail alignment posts to square alignment posts
CL4951
1 32 4
1 32 4
Removing inner rails from the rail assemblies
Perform the procedure that follows on each rail assembly. Refer to Figure 2 on page 7
while performing the procedure.
Procedure
1. Slide the inner rail out from the slide rail as far as possible.
2. On the inner rail, slide the blue disconnect tab forward to release the inner rail from
the slide rail.
3. Slide the inner rail completely out of the slide rail.
6

Figure 2 Removing the inner rail from the slide rail
CL4883
3
1 2
Attaching the inner rails to the server
Attach an inner rail to each side of the server by performing the procedure that follows for
each rail. Refer to Figure 3 on page 8 while performing the procedure.
Procedure
1. With the flat side of the inner rail facing the side of the server, align the large end of
the rail notches of the inner rail with the connection studs on the server and push the
inner rail onto the connection studs.
2. Slide the inner rail forward along the server until the studs fit securely into the small
end of the rail notches.
An audible click indicates that the rail is secure.
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Attaching the inner rails to the server 7

Figure 3 Attaching an inner rail to the server
CL4988
12
Installing the slide rails in the cabinet
The universal rail assemblies for this server support cabinets in which the front and rear
mounting channels are 24 inches to 34 inches apart. Each assembly contains a right and
a left slide rail.
Before you begin
Select the 2 U (3.5 in) of cabinet space for the server (Figure 4 on page 8).
Figure 4 Location for the rails in the 2U space for the server
CL5101
2U
Install each slide rail in the cabinet using the procedure that follows.
8

Procedure
1. From the front of the cabinet, align rail alignment posts with the rear channel holes for
the selected cabinet space for the server, and insert the alignment posts securely into
the holes (Figure 5 on page 9).
An audible click indicates that the connection is secure.
Figure 5 Inserting rail alignment posts into rear channel holes
CL5090
2. Pull the slide rail forward so the front alignment posts go securely into the holes on
the front channel (Figure 6 on page 9).
An audible click indicates that the connection is secure.
Figure 6 Inserting rail alignment posts into front channel holes
CL5091
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Installing the slide rails in the cabinet 9

3. Secure the rail to the rear channel with a small stabilizer screw (Figure 7 on page
10).
Figure 7 Installing stabilizer screws
CL4854
Installing the server on the rails in the cabinet
CAUTION
The enclosure is heavy and should be installed into or removed from a rack by two
people. To avoid personal injury and/or damage to the equipment, do not attempt to lift
and install the enclosure into a rack without a mechanical lift and/or help from another
person.
L’armoire étant lourde, sa mise en place sur une rampe nécessite deux personnes. Afin
de ne pas vous blesser et/ou endommager le matériel, n’essayez pas de soulever et
d’installer l’armoire sur une rampe sans avoir recours à un relevage mécanique et/ou à
l’aide d’une autre personne.
Das Gehäuse ist schwer und sollte nur von zwei Personen in einem Rack installiert
werden. Zur Vermeidung von körperlichen Verletzungen und/oder der Beschädigung des
Gerätes, bitte das Gehäuse nicht ohne die Hilfe einer zweiten Person anheben und
einbauen.
Il contenitore è pesante e dev'essere installato nel rack da due persone. Per evitare
danni personali e/o all’apparecchiatura, non tentare di sollevare ed installare in un rack
il contenitore senza un sollevatore meccanico e/o l’aiuto di un’altra persona.
Debido a su considerable peso, la instalación del compartimento en el bastidor deben
realizarla siempre dos personas. Para evitar daños personales o en el equipo, el
compartimento no debe levantarse ni instalarse en el bastidor sin la ayuda de un
elevador mecánico o de otra persona.
10

NOTICE
When installing the server in the cabinet, do not pick the server up by its power/control
modules and do not push on its power/control modules. These modules are on either
side of the front of the server.
Procedure
1. On each slide rail bring the ball bearing retainer assembly fully to the front, so it rides
onto the security knob (Figure 8 on page 11).
Figure 8 Correct location for ball bearing retainer assembly
CL5092
2. From the front of the cabinet, align the inner rails attached to the server with the white
plastic guide block on the front inside of each slide rail (Figure 9 on page 11).
Note
For clarity Figure 9 on page 11 shows the inner rail without the server attached.
Figure 9 Aligning the inner rail with white plastic guide block
CL5093
3. Slide the server into the cabinet so the inner rails extends over the plastic guide
blocks and the first part of the ball bearing retainer assemblies (Figure 10 on page
12).
Note
For clarity Figure 10 on page 12 shows the inner rail without the server attached.
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Installing the server on the rails in the cabinet 11

Figure 10 Inner rail over the first part of ball bearing retainer assembly
CL5094
4. Once the inner rails are properly engaged with the ball bearing retainer assemblies,
push the server into the cabinet until the slide rails are engaged and locked.
An audible click indicates that the slide rails are engaged and locked.
5. On the outside of each rail assembly, slide the blue disconnect tab forward to unlock
the server, and push the server completely into the cabinet (Figure 11 on page 12).
Figure 11 Inserting the server in the cabinet
CL4989
Note
Perform step 6 or step 7 as applicable to the quantity of stabilizer screws provided for
the server installation:
lPerform step 6 if only two Phillips pan-head 8-32 screws are provided for securing
the server in the cabinet.
lPerform step 7 if four screws (two Phillips pan-head 8-32 screws and two M5
mounting screws) are provided for securing the server in the cabinet.
6. To further secure the rail assembly and server in the cabinet, insert and tighten a
Phillips pan-head 8-32 screw directly behind each bezel latch (Figure 12 on page
13).
12

Figure 12 Installing the server with two stabilizer screws
CL4990
7. To further secure the rail assembly and server in the cabinet:
a. Insert and tighten a Phillips pan-head 8-32 screw directly behind each bezel latch
(Figure 13 on page 13).
b. Insert and tighten an M5 mounting screw in the upper screw hole of each bracket
Figure 13 on page 13
Figure 13 Installing the server with four stabilizer screws
CL5575
Connecting cables
Procedure
1. Plug the power cords into the power supplies and connect these cords to AC power
sources as described in the documentation for your product.
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Connecting cables 13

2. Attach any I/O cables as described in the documentation for your product.
Installing the bezel
Bezels are application specific, and may not appear as shown. Bezels may include a key
lock. All bezels include two tabs on either side that you press in to release the bezel and
its latches.
Refer to Figure 14 on page 14 while you perform the procedure that follows.
Procedure
1. Pushing on the ends, not the middle, of the bezel, press the bezel onto the latch
brackets until is snaps into place.
2. If the bezel has a key lock, lock the bezel with the provided key and store the key in a
secure place.
Figure 14 Installing the bezel
CL4991
Powering up the server
Power up the server as described in the documentation for your product.
Maintaining the server
Only certain server components are addable or replaceable as field replaceable units
(FRUs). Should any non-FRU component fail you must replace the entire server. Refer to
your product documentation for information on which components are FRUs.
Before attempting to perform hardware service procedures, review your service contract
because replacement of some server components by unauthorized personnel may void
service warranties.
Note
This document refers to hard drive modules as disk drive assemblies.
14

Handling field replaceable units (FRUs)
This section describes the precautions that you must take and the general procedures
that you must follow when removing and storing any field replaceable unit (FRU). The only
FRUs in the server are the disk drive assemblies and power supply modules. Depending
on the product in which the server is used, the disk drive assemblies may be hot-
swappable; that is you can replace a disk drive assembly while the server is running. To
determine if disk drive assemblies are hot-swappable, refer to your product
documentation. Regardless of the product in which the server is used, the power supply
modules are hot-swappable; that is you can replace a power supply module while the
server is running.
You should not remove a faulty FRU until you have a replacement available.
When you replace FRUs, you can inadvertently damage the sensitive electronic circuits in
the equipment by simply touching them. Electrostatic charge (ESD) that has accumulated
on your body discharges through the circuits. If the air in the work area is very dry,
running a humidifier in the work area will help decrease the risk of ESD damage. Follow
the procedures below to prevent damage to the equipment.
lProvide enough room to work on the equipment. Clear the work site of any
unnecessary materials or materials that naturally build up electrostatic charge, such
as foam packaging, foam cups, cellophane wrappers, and similar items.
lDo not remove replacement or upgrade FRUs from their antistatic packaging until you
are ready to install them.
lBefore you service a server, gather together the ESD kit and all other materials you
will need. Once servicing begins, avoid moving away from the work site; otherwise,
you may build up an electrostatic charge.
lUse the ESD kit when handling any FRU. Use an ESD wristband. To use the ESD
wristband (strap), attach the clip of the wristband to any bare (unpainted) metal on
the server; then put the wristband around your wrist with the metal button against
your skin. If an emergency arises and the ESD kit is not available, follow the
procedures in Emergency procedures (without an ESD kit) on page 15.
Emergency procedures (without an ESD kit)
In an emergency when an ESD kit is not available, use the procedures below to reduce
the possibility of an electrostatic discharge by ensuring that your body and the
subassembly are at the same electrostatic potential. These procedures are not a
substitute for the use of an ESD kit. Follow them only in the event of an emergency.
lBefore touching any FRU, touch a bare (unpainted) metal surface of the cabinet or
server.
lBefore removing any FRU from its antistatic bag, place one hand firmly on a bare
metal surface of the server, and at the same time, pick up the FRU while it is still
sealed in the antistatic bag. Once you have done this do not move around the room
or touch other furnishings, personnel, or surfaces until you have installed the FRU.
lWhen you remove a FRU from the antistatic bag, avoid touching any electronic
components and circuits on it.
lIf you must move around the room or touch other surfaces before installing a FRU,
first place the FRU back in the antistatic bag. When you are ready again to install the
FRU, repeat these procedures.
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Handling field replaceable units (FRUs) 15

Adding or replacing a compute node
Each compute node is in special hot-swappable tray that fits in a node slot. Node slots
are accessible from the rear of the server. The locations of the node slots are as follows:
Node 4 Power supply 2 Node 3
Node 2 Power supply 1 Node 1
Depending on your product configuration, your server may ship with less than four
compute nodes and allows you to add additional nodes until the chassis is full. Filler
modules occupy slots without compute nodes.
NOTICE
To maintain proper system cooling, any node slot without a compute node installed must
be occupied by a filler module.
Adding a compute node
Before you add a compute node, review the section on handling field replaceable units
(FRUs).
To add a compute node to the server you must perform the tasks below in the order
listed. This section describes how to perform each task.
1. Remove the node filler module to expose the slot for the new node.
2. Unpack the new compute node.
3. Install the new compute node in the slot.
Removing a node filler module
Before you can install a compute node, you must remove the filler module from the slot
where you will install the node.
Procedure
1. At the rear of the server, locate the slot where you want to install the compute node.
2. While pushing the green latch to the right on the filler module in the slot, pull the filler
module out of the server by its handle (Figure 15 on page 16).
Figure 15 Removing a node filler module
CL5028
16

Unpacking a part
Procedure
1. Attach an ESD wristband to your wrist and the enclosure in which you are installing
the part.
2. Unpack the part and place it on a static-free surface.
3. If the part is a replacement for a faulted part, save the packing material to return the
faulted part.
Installing a new compute node
Refer to Figure 16 on page 17while performing the procedure that follows.
Procedure
1. Align the compute node with chassis rail.
2. Push the node along the rail until the latch locks in position with a click.
3. Attach any needed cables to the compute node.
Figure 16 Installing a compute node
CL5026
Replacing a faulted compute node
Before you replace a faulted compute node, review the section on handling field
replaceable units (FRUs).
To replace a faulted compute node in the server you must perform the tasks below in the
order listed. This section describes how to perform each task.
1. Identify the faulted compute node.
2. Remove the faulted compute node.
3. Unpack the replacement compute node.
4. Install the replacement compute node.
Identifying a faulted compute node
Consult your product documentation on how to identify a faulted compute node in the
server. A faulted computed node may have an amber LED indication on:
lThe front console, which is visible when you remove the server’s bezel.
lThe rear of the compute node.
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Replacing a faulted compute node 17

Removing a faulted compute node
Procedure
1. Unplug the cables attached to the faulted compute node.
2. While carefully pushing the green latch to the right on the faulted compute node, pull
the node out of the server by its handle (Figure 17 on page 18).

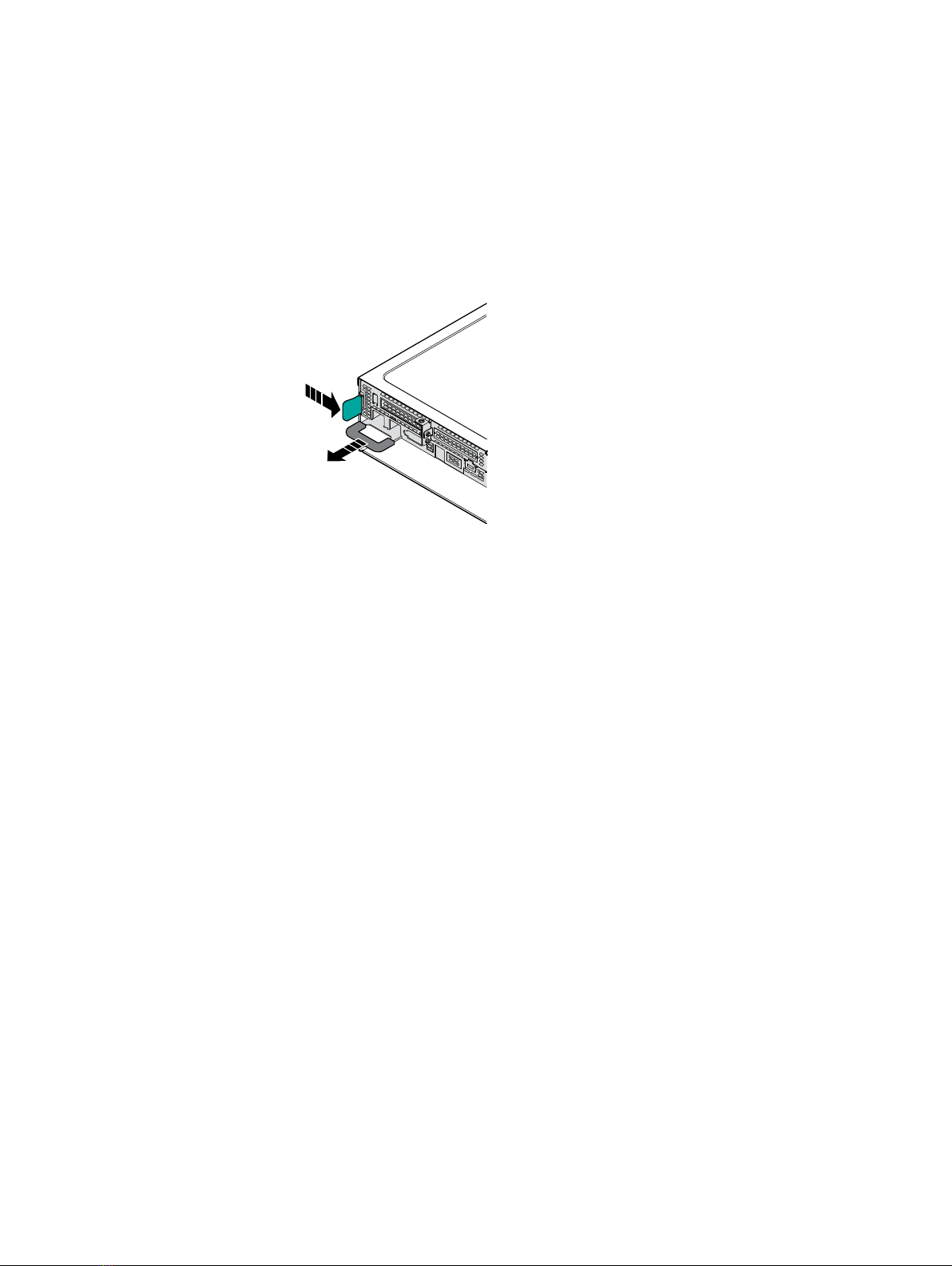

Figure 17 Removing a faulted compute node
CL5025
Unpacking a part
Procedure
1. Attach an ESD wristband to your wrist and the enclosure in which you are installing
the part.
2. Unpack the part and place it on a static-free surface.
3. If the part is a replacement for a faulted part, save the packing material to return the
faulted part.
Installing a replacement compute node
Refer to Figure 18 on page 19 while performing the procedure that follows.
Procedure
1. Align the compute node with chassis rail.
2. Push the node along the rail until the latch locks in position with a click.
3. Attach the cables that you unplugged from the faulted compute node.
18

Figure 18 Installing a compute node
CL5026
Replacing a disk drive assembly
A disk drive assembly consists of a hard disk drive supplied in special hot-swappable
hard-drive carrier that fits in a disk slot. Disk slots are accessible from the front of the
server. Refer to your product documentation to determine if a disk drive assembly is hot-
swappable.
NOTICE
To maintain proper system cooling, any hard-drive bay without a disk drive assembly or
device installed must be occupied by filler module.
If a disk drive assembly is not hot-swappable, you may lose data when your replace a
disk drive assembly while the system is powered up and I/O is occurring. To determine if
disk drive assemblies are hot-swappable, refer to your product documentation.
Do not turn off or reboot your system while the drive is being formatted. Doing so can
cause a drive failure. Use appropriate ESD precautions, including the use of a grounding
strap, when performing the drive module replacement procedure.
To replace a disk drive assembly, you must perform the tasks below in the order listed.
The rest of the section describes how to perform each task.
1. Review the section on handling disk drive assemblies.
2. Identify the faulted disk drive assembly.
3. Remove the bezel from the server.
4. Replace the fault disk drive assembly.
5. Reinstall the bezel on the server.
Before you replace a disk drive assembly, review the section on handing field replaceable
units (FRUs).
Handling disk drive assemblies
lDo not remove a disk drive filler until you have a replacement disk drive assembly
available to replace it.
lDisk drive assemblies are sensitive to the extreme temperatures that are sometimes
encountered during shipping. We recommend that you leave the new disk drive
assembly in its shipping material and expose the package to ambient temperature for
EMC® SVR-I2U-H2316 Server Installation and Maintenance Guide
Replacing a disk drive assembly 19

at least four hours before attempting to use the new disk drive assemblies in your
system.
lAvoid touching any exposed electronic components and circuits on the disk drive
assembly.
lDo not stack disk drive assemblies upon one another, or place them on hard
surfaces.
lWhen installing multiple disk drive assemblies in a powered up system, wait at least
6 seconds before sliding the next disk drive assembly into position.
Identifying the faulted disk drive assembly
Consult your product documentation on how to identify a faulted disk assembly in the
server. A faulted disk drive assembly may have an amber LED indicator on its carrier,
which is visible when you remove the server’s bezel.
Removing the bezel
The front of the server may be covered by a bezel. Bezels are application specific, and
may not appear as shown. Bezels may include a key lock. If the server has a bezel,
remove it.
Refer to Figure 19 on page 20 while performing the procedure that follows.
Procedure
1. If the bezel has a key lock, unlock the bezel with the provided key.
2. Press the two tabs on either side of the bezel to release the bezel from its latches, and
pull the bezel off the latches.
Figure 19 Removing the bezel
CL4992
Replacing a faulted disk drive assembly
Procedure
1. Attach an ESD wristband to your wrist and the server chassis.
20
