Emerald Home 4 User manual

PASSPORT AND OPERATION MANUAL
EMERALD HOME 4
FOR PURIFICATION AND ELECTRIAL TREATMENT OF FRESH WATER

1
TABLE OF CONTENTS
1. FOREWORD ...............................................................................................................................2
2. INFORMATION ON ANTIOXIDANT WATER ....................................................................2
3. METHODS OF WATER PURIFICATION AND ELECTRICAL TREATMENT .............3
Main stages of water treatment in EMERALD device. .................................................................................. 5
4. PRECAUTIONARY MEASURE ..............................................................................................6
5. CONNECTION OF THE DEVICE ...........................................................................................8

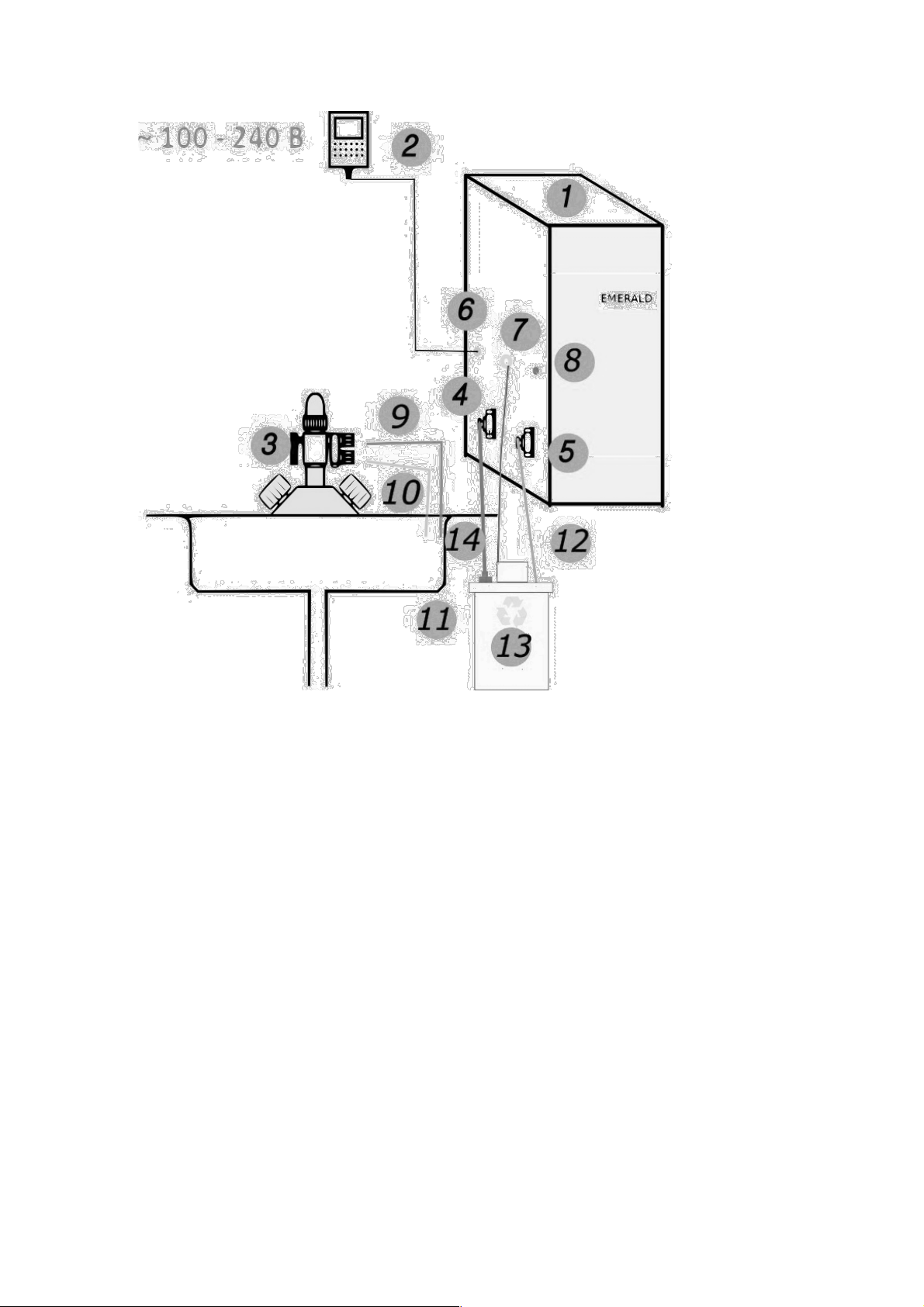

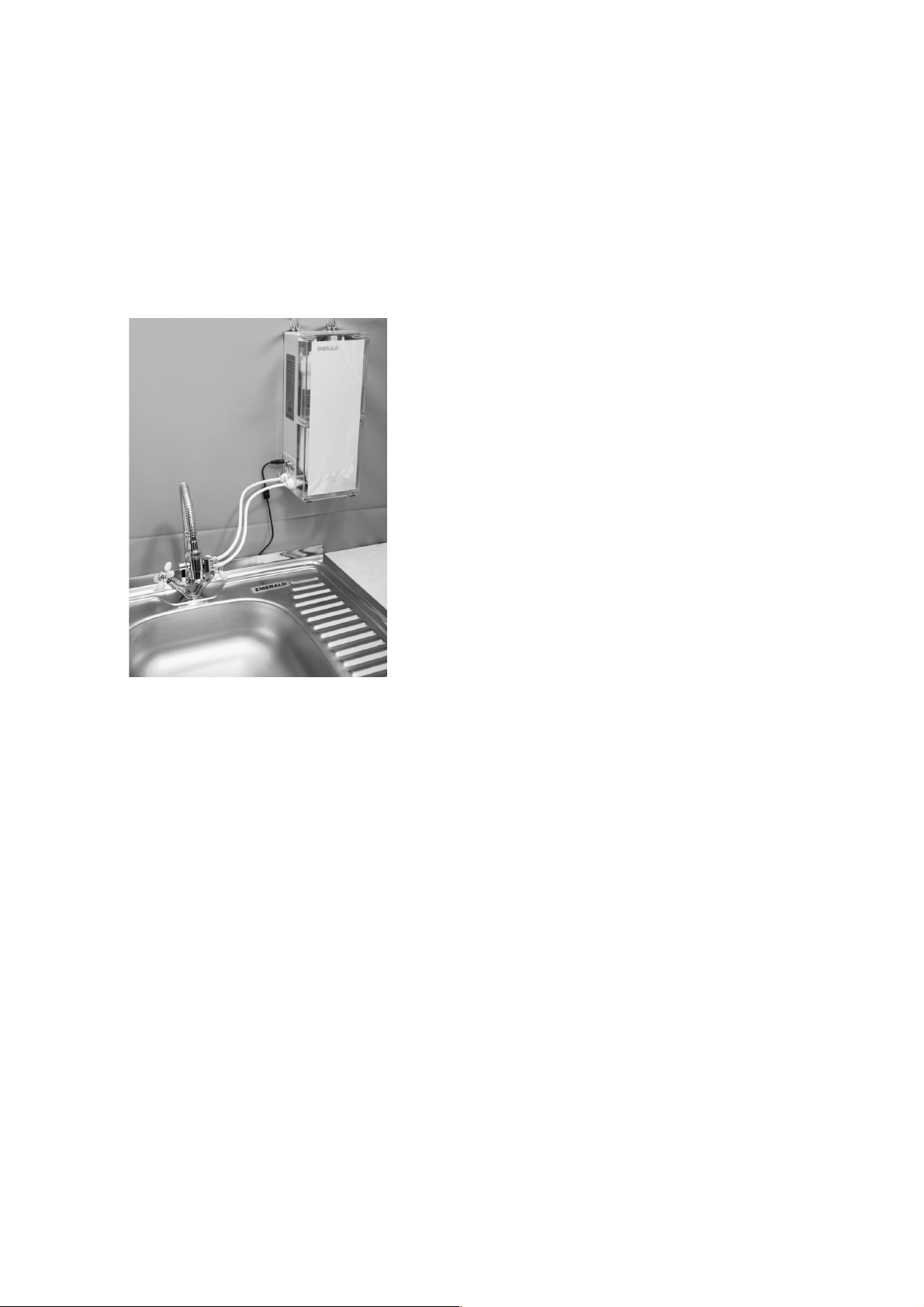

EMERALD device location above the sink. ................................................................................................... 8

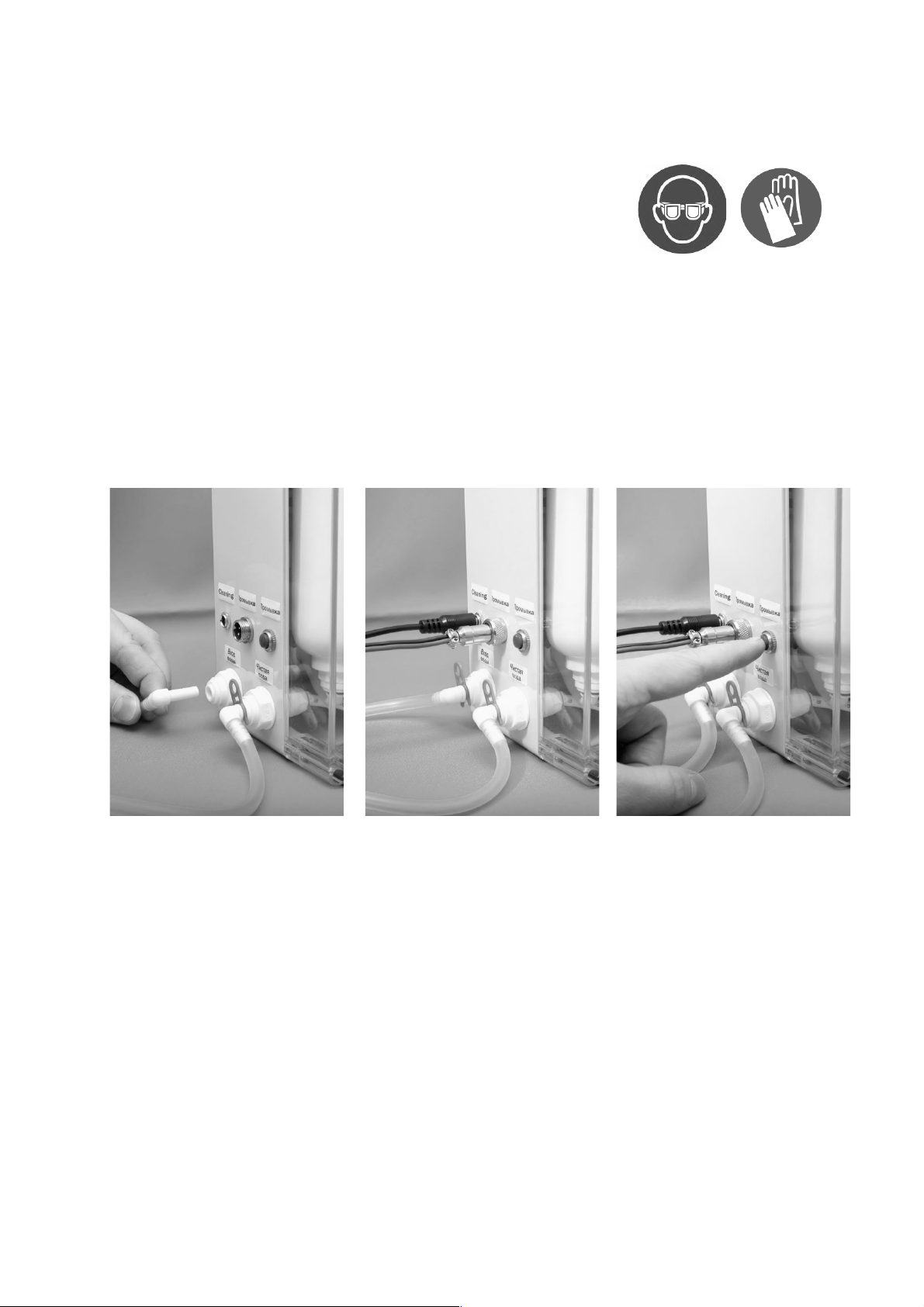

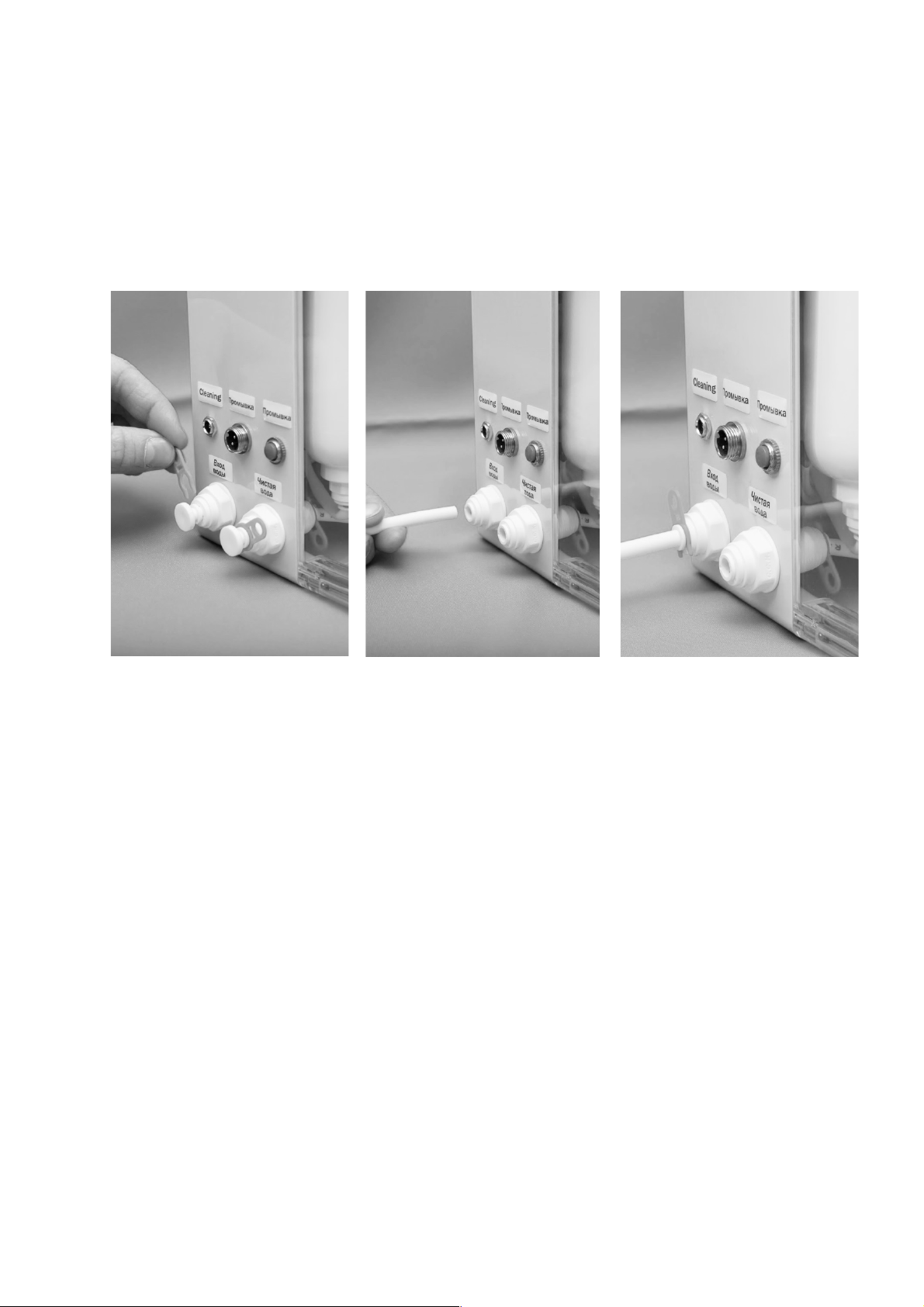

General rules for handling quick fittings like John Guest® . .......................................................................... 9
EMERALD device connection above the sink ............................................................................................. 10

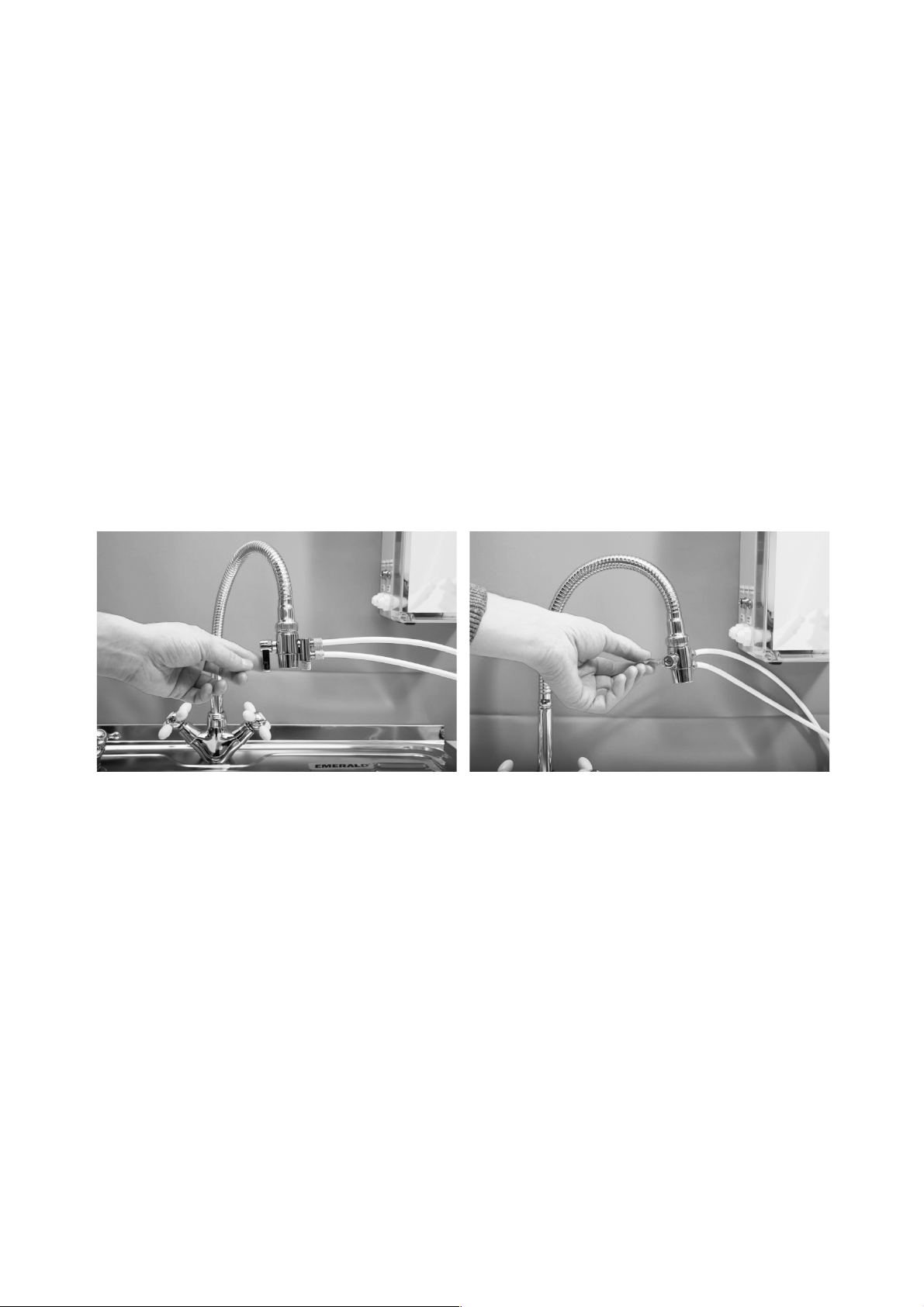

Connection of diverter to the tap ................................................................................................................... 10
Connection of the device to the electric network. ......................................................................................... 11
6. OPERATION OF THE DEVICE ............................................................................................12
Cold tap water supply to the device .............................................................................................................. 12
LED indication of the device. ....................................................................................................................... 13
Main operating modes ................................................................................................................................... 13
7. MAINTENANCE OF THE DEVICE. .....................................................................................14
Preparation of citric acid washing solution. .................................................................................................. 15
FLUSHING mode. ........................................................................................................................................ 16
8. TROUBLESHOOTING GUIDE. ............................................................................................18
9. WARRANTY RESPONSIBILITIES ......................................................................................19
10. HANDLING AND STORAGE. ............................................................................................20
11. TECHNICAL CHARACTERISTICS. ................................................................................21
12. DELIVERY PACKAGE. ......................................................................................................22
13. CERTIFICATE OF ACCEPTANCE AND SALE. ............................................................23
APPENDIX No 1. CERTIFICATES ...............................................................................................24

2
ATTENTION! Prior to start using the EMERALD HOME 4 DEVICE (hereinafter
referred to as "EMERALD" or "device"), please carefully read this specification and operating
manual. If the device is carefully used and all the requirements specified in this specification
and the operating manual are followed then the EMERALD will serve you for many years.
1. FOREWORD
We would offer congratulations on your purchase of the EMERALD for purification and
electrical treatment of fresh water. You have wisely invested in the well-being of your family and also
made a very important step towards improving your health!
The EMERALD is designed to produce the drinkable water with the antioxidant properties at
home from the ordinary tap water, purified from the microbes and microbial toxins, heavy metal ions
and harmful organic compounds. Antioxidant water from the EMERALD has a beneficial effect on
the entire body, normalizes the metabolism and the functioning of internals, cleanses from the residues
and toxins and also strengthens the immune system, improves the memory and increases the body's
energy tone.
The EMERALD was developed jointly with Vitold Bakhir Institute which is the main scientific
center in the field of electrochemical activation of the water. Many years of experience and modern
discoveries by experts from Vitold Bakhir Institute as well as the direct participation of Professor
V.M. Bakhir, Doctor of Technical Sciences and made it possible to combine in the EMERALD the
most advanced technologies of purification and electrical treatment of water.
All the processes of purification and electrical treatment of water in the device are as close as
possible to what happens to water in the animate nature. Reproducing the most complex natural
processes of water purification and treatment has become possible due to the creation of highly reliable
electrochemical modules which are the main elements of the device. The modules consist of two flow
through chambers: anode and cathode ones. Namely the processes of electrical treatment of water are
repeated under the influence of positive and negative current on the anode and cathode in these
chambers which occur in nature.
2. INFORMATION ON ANTIOXIDANT WATER
The human body contains the water more than 70%. The water plays the most important role in
the life activity of the human body. An adult needs to consume about 2-3 liters of water per day to
maintain the normal functioning of the body.
The antioxidant water from the EMERALD has a positive effect on the body when it is used as
a part of the usual ration. The antioxidant water from the EMERALD protects the body from the action
of strong toxic oxidizing agents. The mechanism of action of the antioxidant water is based on the
transfer of protective antioxidant properties to the internal media of the body which contributes to the
protection against the toxic oxidants that are present not only in the water but also in the air and in the
food. The tissue respiration is stimulated which enhances the action of vitamins and chemical
antioxidants in the body. The antioxidant water also reduces the effects of ionizing radiation, i.e. it
exhibits the antiradiation properties specific to the antioxidants. The antioxidant water improves the
passive immunity and the general condition of the body, improves the functioning of the
gastrointestinal tract, urinary tract and normalizes the blood values.
Water purified by the EMERALD retains its antioxidant properties no more than 24 hours from the
moment of treatment. After this period the oxidation-reduction potential (ORP) of the treated water

3
returns to its original ORP of tap water +150 ÷ + 500 mV. When boiling the ORP value of antioxidant
water decreases in absolute value but the water continues to exhibit the properties of the deoxidizer.
The water obtained from the EMERALD should be stored for no more than 24 hours in the glass
containers with the cap closed away from the direct sunlight and the heat sources. Water treated by
the EMERALD meets the requirements of hygienic standards (see Appendix 1 "Certificates").
Cooking – the food on antioxidant water is cooked faster and retains more useful properties. The
antioxidant water is great for the water steeping of fruits, vegetables, fish and meat since due to its
properties this water more actively removes the harmful chemicals from the products such as the
growth hormones and the antibiotics.
Preparation of beverage – together with drinking the antioxidant water purified by the EMERALD
the antioxidant effect can be enhanced due to the phenomena of synergism and the antioxidant
beverage can be prepared using the natural antioxidants using the freshly squeezed carrot, apples
juices and various berries by adding the antioxidant water treated by the EMERALD. The herbal teas
made with this water acquire the special taste and aroma. The ice cubes of frozen antioxidant water
will give the drink an added advantage.
Air humidification – the antioxidant water is useful to apply in the form of fog when it is used in the
humidifiers. The humidified air, with micro droplets of the antioxidant water with the properties of
deoxidizer has the beneficial effect on the respiratory and cardiovascular devices and prevents the
asthma attacks and allergic diseases.
Cosmetic purposes - for cosmetic purposes the antioxidant water is adventitious to use for washing
in the form of ice cubes to wipe the face or spray the water in the form of aerosol to moisturize the
skin. Moisturizing masks with the use of antioxidant water will have the special effect.
Pets and Plants – the pets will prefer the antioxidant water to usual tap or bottled water. The use of
water from the EMERALD for watering the indoor plants will be conductive to their rapid growth and
development.
3. METHODS OF WATER PURIFICATION AND ELECTRICAL TREATMENT
The EMERALD is highly productive and runs on cold tap water allowing you to get from 50 to 60
liters of drinking antioxidant water per hour.
Electrochemical activation technologies in the EMERALD allowed combining the high-performance
purification and the water treatment in order to restore its antioxidant properties.
The EMERALD provides the highest quality of drinking water by sequential combining the electrical
treatment of water in the electrochemical module and the use of auxiliary filter elements. The main
element of the EMERALD is the electrochemical module (Bakhir’s special flow-through
electrochemical modular element) in which the oxidative reactions take place on the anode and
reducing reactions on the cathode. The auxiliary elements in the device are the catalytic filter and the
electrokinetic filter. The absence of replaceable and short-life elements are identifying feature of the
EMERALD.
The oxidative reactions take place in the anode chamber of module where the destruction of the
microbes and microbial toxins as well as harmful organic compounds is occurred. In nature the similar
processes of antimicrobial protection namely phagocytosis have been occurring in all living forms for
millions of years without any failure occurrences.
In the cathode chamber the reducing reactions take place during which the water regains the useful
antioxidant properties (oxidation-reduction potential close to the internal media of the body). The
similar processes in nature occur during the contact of spring water with rocks as well as during the
phase transitions in the process of deglaciation.

4
The auxiliary catalytic filter consisting of the highest quality natural processed coal (grade A
hydroanthracite) serves for advanced water treatment from the oxidized organic and the chloroorganic
compounds (including the herbicides, pesticides, surfactants, phenols, antibiotics, antidepressants,
hormones).
The auxiliary electrokinetic filter consisting of the purest natural mountain quartz serves for the
advanced treatment of water from the mechanical impurities, heavy metals, iron, manganese and
hydrogen sulfide.
Useful information
The purification and electrical treatment of water in the anode and cathode chambers are highly
efficient and safe. The water treatment processes are identical to natural ones but they are ac-
celerated tens of thousands of times due to the use of the latest technologies and electrochemical
modules.
The catalytic and electrokinetic filters work in "purity". They are located after the anodic
destruction of microbes, microbial toxins and biofilms which significantly increases their ef-
ficiency and service life. Therefore the filter elements in the EMERALD are protected from the
reproduction of microbes, fouling with the harmful biofilms and water contamination by the
microbial toxins!
The latest technologies used in the EMERALD allow you to get the clean and useful antioxidant
water while maintaining a neutral level of acid-base balance (pH level). The antioxidant water
with the neutral pH level is suitable for regular use in the composition of the usual dietary. Due
to the similarity with the internal media of a human body such water is instantly absorbed by
the body and holistically restores it.

5

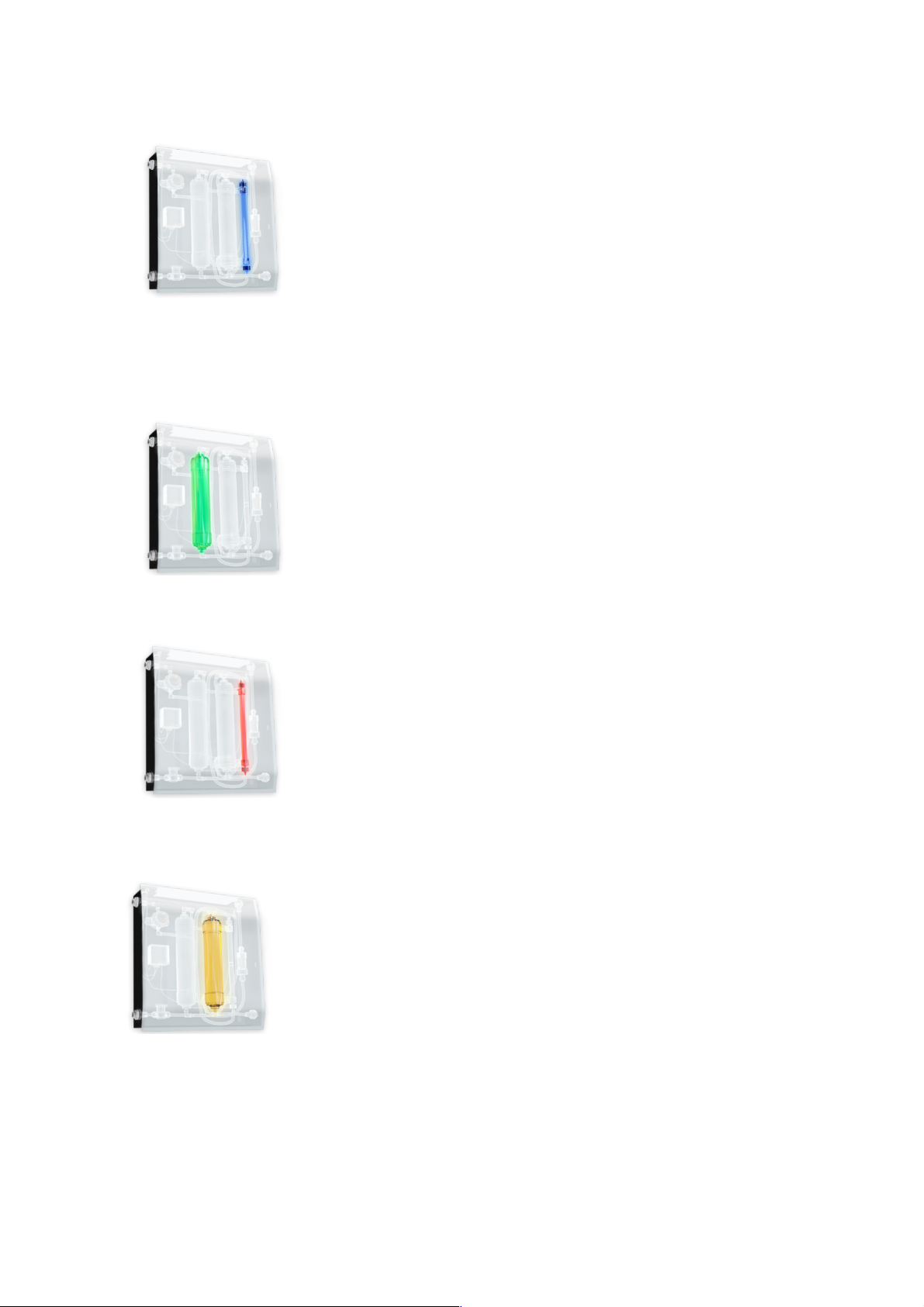

Main stages of water treatment in EMERALD device.
Fig. 1 Anode chamber of
module
Stage 1. Anode chamber of the electrochemical module
u The microorganisms, microbial toxins and biofilms are
destroyed in the water flowing through the anode chamber of the
electrochemical module;
u Oxidative destruction of the organic compounds such as
herbicides, pesticides, surfactants, phenols, petroleum products
and etc.;
u Deferrization of water is carried out with the transformation of
iron ions into a 3-valent form that is easy for mechanical
purification;
u Water obtains the properties of the active oxygen carrier.
Fig. 2 Catalytic filter
Stage 2. Catalytic filter
u At this stage the water is purified from a wide range of organic
and inorganic dissolved impurities that have undergone the oxidative
destruction in the anode chamber of the module;
u Water is being purified from free chlorine and chlororganic
compounds ;
u Improves the taste of water and eliminates the unpleasant
odors, due to the anodic removal of phenols and hydrogen
sulfide.
Fig. 3 Cathodic chamber of
module
Stage 3. The cathode chamber of the electrochemical module
u Water treatment in the cathode chamber of the electrochemical
module imparts the antioxidant properties to the water reducing
the oxidation-reduction potential of water;
u Ions of heavy metal are converted to the insoluble hydroxides
and subsequently they are removed on the electrokinetic filter;
u At the same time all trace elements are preserved in water:
calcium, magnesium, sodium, potassium, lithium, fluorine,
iodine that are useful and necessary for a man;
u The properties is given to water as the active carrier of hydrogen;
Fig. 4 Electrokinetic filter .
Stage 4. Electrokinetic filter
u Water undergoes final cleaning from mechanical impurities,
hydroxides of heavy metals, iron, manganese, hydrogen sulfide;
u Provides guaranteed transparency of water, removal of turbidity
and impurities.

6
4. PRECAUTIONARY MEASURE
u Important! For normal operation of the EMERALD it is necessary to comply with all require-
ments for its operation and service maintenance specified in this specification and operating
manual.
u Prior to start using the device you are requested to read carefully all instructions. If you have
any questions about the connection or operation of the EMERALD you are requested to con-
sult with our authorized dealers or call our customer service.
u When using the electrical device you shall always follow the basic safety guidelines to reduce
the risk of fire, electric shock, and / or personal injury.
u To prevent the electric shock, do not lay the electrical wires of the sensor disc and power
source, body or other electronic components of the device near the water or other liquid sub-
stances. The outlet shall not be located directly above the sink or in any other place where the
water can get into it. Avoid hanging of electrical wires from the edge of the tabletop and avoid
their contact with hot surfaces. Prior to connect to the electrical network, make sure that the
device and all its elements are dry. During the operation all elements of the EMERALD shall
be dry and not leak.
u Water purification device is not intended for use by children, people with physical and mental
disabilities, with the lack of necessary experience and knowledge except in cases of direct
instruction by a person responsible for their safety.
u Use only the spare parts that are authorized by the manufacturer. Do not use the device with
damaged electrical wires of the sensor disc and the power source after breaking their integrity.
u Do not use this device for other purposes. Do not use the device outdoors. The device is in-
tended for home use only. Do not use the device for the desalination of water .
u Do not disassemble or repair the device by yourself. Contact the authorized service center. In
order to reduce the risk of fire or electric shock it is strongly recommended not to disassemble
the electronic components of the device.
u Avoid the rough handling with the device; do not drop or hit it. Do not store or transport the
device with residual water at ambient temperature below 0 ºС. Use the device only in an up-
right position;
u Before starting the operation make sure that all hydraulic and electrical connections are se-
cured. Do not leave the running device unattended;
u In case of absence for a long time at home it is recommended to shut off cold water supply
line;
u Do not use the device for purification of microbiologically unsafe water or the water of un-
known origin without the proper prior disinfection. If you have the weakened immune system
or if for medical reasons you need absolutely pure water, then consult with medical profes-
sional prior to start using the device.
u Additional mechanical filters shall be installed down to water inlet into the device if there are
visible suspended matters, turbidity, rust flakes in tap water.
u Make sure the device is disconnected from the power supply during long interruptions. Do
not use any other power-supply units and adapters instead of the included power adaptor.
Check the power cord, power plug and the device itself for damages. If any damage is found,
then contact your nearest service center for the inspection or repair.
u The device should not contain the materials with which the plumber seals the joints. Avoid to
entry into the device the vegetable oil, technical petroleum jelly or other lubricants, solvents,
ammonia, alcohols or powerful cleaning solutions. They can seriously damage the device.
u Avoid the contact of the electrical components of the device with water and any other liquids
(including the contact of water with the sensor tap of clean water supply and its LED part).
u The electrical outlet shall be grounded to connect the power cord. If you need to install a new
outlet it should be done by the electrician with the appropriate permit or certificate issued in

7
accordance with the current legislation of your host country.
u For proper function the EMERALD outlet shall run faultlessly and it shall have the GROUND-
ING.
u Incorrect connection to the power supply network may result in the risk of electric shock. Do
not replace the plug by yourself.
u Regular maintenance of the EMERALD with flushing of the filter elements and the electro-
chemical module is required (see the section “MAINTENANCE OF THE DEVICE”).
u Do not use the first 30 liters of purified water immediately after connecting the device or after
washing the device with the citric acid. In case of long downtime of the device (more than 1
day) the first 30 liters of purified water should also be discharged.
u The device is designed for purification and treatment of COLD WATER ONLY! Never use
the warm or hot water in the device as this may damage the device (see the section “OPERA-
TION OF THE DEVICE”)

8
5. CONNECTION OF THE DEVICE
ATTENTION! This section describes the main method of connecting
the EMERALD device above the sink, recommended by the manufacturer. If you use an alternative
method of connecting the EMERALD device, you must make sure that the method you choose does
not contradict other conditions of this Passport and the instruction manual. In the event of a violation
of the device and operating conditions of the EMERALD device, claims for warranty may be rejected.
EMERALD device location above the sink.
The EMERALD device can be located without fas-
tening on the countertop, or it can be fixed to the wall with
screws, for which there are special suspensions on the rear
wall of the devices’ casing ( see Fig. 5). To connect the EM-
ERALD device above the sink, you must use the connect-
ing tubes (white tube ¼ made of food-grade plastic) and the
parts included in the kit to connect the device in accordance
with the diagram in Fig. 7 .!
!
ATTENTION! Before starting the device connec-
tion procedure, be sure to familiarize yourself with the basic
principles of connecting a white tube to fittings described in
the General Guidelines for Handling Quick Couplings of the
John Guest® Type Section .!
!
Connecting an EMERALD device requires certain
skills in working with plumbing equipment. We recom-
mend using the services of authorized specialists of the
company EMERALD ECOTECHNOLOGIES LLC , a rep-
resentative of the dealer network or the services of a quali-
fied plumber-plumber of the housing and communal ser-
vices organization at your place of residence. Do not install the device in a place where its maintenance
will be difficult.!
!
Before connecting, turn off the cold water tap and then open the cold water tap on the kitchen
faucet to relieve pressure in the pipe. Avoid direct sunlight on the surface of the device enclosure.!
Fig. 5 EMERALD device option for wall
mounting near the sink .

9
General rules for handling quick fittings like John Guest® .
The connection of the white ¼ tube to the fittings can be done manually or using the special key
included in the package. Quick-release joints of the John Guest® type allow, if it is necessary, to carry
out procedures for connecting / disconnecting the tubes and the fittings multiple times.
!
Important! Do not apply the force when performing these procedures! The correct connections /
disconnections of tubes and fittings like John Guest® do not require excessive force!
Fig. 6 General principles of connecting tubes to the quick release fittings such as John Guest®
To connect the tube to the fitting the following actions should be done:
u Insert the white tube until it stops in the hole of the fitting; If the connection is right then the
tube enters the fitting hole by 15-18 mm;
u Check the reliability of tube connection by countermotion of the tube. At the countermotion
of the tube the end ring (collet sleeve) of the fitting extends from the base;
u A retaining lock (blue / red clip) is inserted into the gap between the end ring (collet sleeve)
and the base of the fitting.
To disconnect the tube from the fitting:
u Temporarily remove the retaining lock (blue / red clip) from the fitting;
u Press the end ring (collet sleeve) of the fitting to the base of the fitting by the hand or with
special key and hold it in this position while pulling out the white tube;
u Pull the tube out of the fitting hole.
!

10
EMERALD device connection above the sink
Fig.7. EMERALD device connection in OPERATION mode
1. EMERALD HOME 4 device above the sink; 2. Power supply (adapter); 3. A diverter on the crane
with a regulator; 4. Fitting in the course of a tap water ; 5. Fitting in Exit and purified water ; 6. Plug
for connecting a power source; 7. A plug for connecting the power of the flushing device; 8. On / off
button flushing device; 9. Tube for supplying tap water to the device; 10 Tube of the outlet of purified
water from the device
Connection of diverter to the tap
To install the divertor on the crane, you must:!
!
u"Remove the regular aerator from the tap; !
u"Using the necessary nozzles from the delivery set, install a di-
verter on the crane; !
u"To fix the diverter on the tap, press it against the tap and tighten
the ring at the base of the diverter by hand. !
u"Check that all connections are secure and tight. !
Fig. 8. Water tap divertor with
additional fittings

11
During device, the connecting tube included in the connection kit is cut into 2 parts (the length
of the parts is selected on the spot). In accordance with the diagram in Fig. 7, the first segment of the
tube connects the diverter with the fitting "TAP WATER" on the side of the device; the sec-
ond tube section connects the fitting "PURE WATER" on the side of the device to the diverter.!
!
After the device is fully connected, make sure all connections are tight. If you notice water leak-
age at the points where the divertor is connected to the tap, at the points where the connecting tubes
are connected to the divertor, or at the places where the tubes connect to the water inlet and outlet
fittings, disconnect and reconnect them. During device, pay attention to the fact that the inlet and
outlet tubes pass freely along radii that exclude kinks.!
Connection of the device to the electric network.
!
The EMERALD device is connected to the electric network in several stages - see Fig. 9. First
you need to connect the power supply (adapter) to the network cable. Then you need to connect the
power cable to an electrical outlet and insert the plug of the power supply into the power socket of
the EMERALD device on the lower left part of the body.!
Fig. 9 .General view of connecting the EMERALD device to hydraulic line and to electrical network in OPERA-
TION mode!
Important !!
It is forbidden to disconnect a working device from the network by pulling the plug of the power
source from the device. This can lead to malfunctioning of the device. Disconnecting devices from
the power supply should only be done by disconnecting the power plug from the outlet.

12
6. OPERATION OF THE DEVICE
Important! After connecting the EMERALD device, it is necessary to familiarize yourself
with the operating rules of the device.
!
Important! Do not use the first 30 liters of purified water immediately after connecting the
device for food purposes . For prolonged shutdowns of the device (more than 1 day), the
first 30 liters of purified water should also be drained .
The device is designed for cleaning and electric processing ONLY COLD WATER FROM
SYSTEMS OF CENTRALIZED WATER SUPPLY! In the drinking water preparation mode,
do not pass warm or hot water through the device, as this may damage it.
Do not use the device for cleaning microbiologically unsafe water or water of unknown
origin without proper pre-filtration and disinfection.
Cold tap water supply to the device
Fig. 10. Water supply using the regulator on the diverter.!
To enable the device in the OPERATION mode, it is necessary to open the cold water supply on
the tap, and then smoothly turn the regulator on the diverter to a horizontal position ( see Fig. 10) so
that cold tap water begins to flow into the device.!
!
- The vertical position of the regulator on the diverter - water goes to the device;!
- The horizontal position of the regulator on the diverter - the water drains into the sink.!
!
The device turns on automatically as soon as water begins to flow into it. When the device is
switched on in the OPERATION mode, the multifunctional LED lights up in one of the corresponding
modes.!
!
Turning off the device also occurs automatically immediately after the water supply stops. When
the device is turned off, the multi-function LED turns off.!

13
LED indication of the device.
The main indicator of the proper functioning of the EMERALD device is a multifunctional LED
integrated into the device housing. The multifunctional indicator allows you to evaluate:!
u"Device resource, after which it is necessary to flush the device; !
u"Device flushing process, allowing the user to verify that all stages of the FLUSHING mode
are correctly completed ; !
u"Correct connection of the hydraulic and electrical connections of the device. !
Main operating modes
The EMERALD works in the semi-automatic mode. The built-in monitoring and control device
of the EMERALD allows the user to monitor the most important aspects of the device status.
!
STANDBY mode.
In STANDBY mode, the device is connected to the mains and to the water supply device,
but is in the off state. The LED indication is off.
If the idle time of the device in the STANDBY mode is more than 8 hours, then when it is
turned on, a green flashing LED lights up for 60 seconds, indicating that stagnant water must be
drained from the device during this time. After the stagnant water discharge time has elapsed, the
green LED turns on, indicating that the device has entered the full-fledged OPERATION mode,
and the drinking water quality has returned to normal .
Some features of the OPERATION mode.
u If the STANDBY mode (idle) of the device is less than 8 hours then when it is turned on
the green LED will not be flashing which will indicate that water is not required to be
discharged from the device.
u After 8 hours of working in the OPERATION mode the LED will light in orange
indicating that the device is DESIRED to be washed with the acid solution.
u After 10 hours of working in the OPERATION mode the LED will light in red indicating
that the device SHALL be washed with the acid solution.
u Using the device in OPERATION mode for more than 10 hours without washing with the
acid solution is not limited by the device’s software but it is the violation of the device’s
operating conditions.
u The total active time of the working hours is the energy-independent characteristic and
that is when the power network is disconnected the active time of the working hours is
stored in energy-independent memory.
The visual method of monitoring the device’s operation is the availability of microbubbles of
hydrogen in the purified antioxidant drinking water.
The instrumental method of monitoring the parameters of purified antioxidant water is to measure
the parameters of pH and the reductive-oxidative potential (ORP) of purified water with the use of
appropriate instruments.

14
7. MAINTENANCE OF THE DEVICE.
To achieve the highest quality of purified water in the EMERALD as well as to ensure the regulatory
compliance of water quality the user shall regularly flush the device with the solution of citric acid.
With timely and uncomplicated maintenance your device will produce the highest quality drinking
water with excellent taste characteristics for many years.
Important! The EMERALD does not require the consumables materials and high-wear parts. The
electrochemical module and the auxiliary filtering elements (catalytic filter and electrokinetic filter)
do not require the periodic replacement while observing the operating rules described above.
Maintenance of the EMERALD including the regular flushing of the entire device (including the
electrochemical module and filter elements) with the solution of citric acid to remove the accumulated
impurities and deposits. The regularity of maintenance of the EMERALD depends on the quality of
the primary water, the usage rate and it is also based on user’s experience. At the average when using
the drinking water from the municipal water supply devices the maintenance of the device shall be
carried out at least once every 4 months or after 1,200 liters of the purified water (whichever comes
earlier).
The EMERALD automatically monitors the volume of purified water and it notifies you about the
need for flushing:
u After 8 hours of working in the OPERATION mode the LED will light in orange (≈480 liters
of the purified water) indicating that the device is DESIRABLE to flush with the citric acid
solution.
u After 10 hours of working in the OPERATION mode (≈ 600 liters of the purified water) the
LED will light in red indicating that the Unit MUST be flushed out with the citric acid solution.
Important! The flushing frequency is calculated for the tap water with average salinity of
200 ppm. For regions with the excessive water hardness (mineralization of more than 350 ppm)
it is necessary to use the water softener filter (purchased separately) or to perform more frequent
flushing of the device with the citric acid. The regularity of the flushing in this case is
determined in situ depending on the hardness of the supplied tap water, the operating mode of
the device and the organoleptic qualities of the purified water.
* If during the operation of the device after a series of flushes it seems to you that the taste of
purified water does not suit you it is possible to purchase and replace the filter elements of the device.
The order can be placed with your nearest dealer or at the official website of the manufacturer.

15
Fig. 11. EMERALD device connection in FLUSHING mode
1. EMERALD HOME 4 device over the sink; 2. Power supply (adapter); 3. A diverter on
the crane with a regulator; 4. Tap water inlet fitting ; 5. The outlet fitting of purified water ; 6.
Plug for connecting a power source; 7. A plug for connecting the power of the flushing de-
vice; 8. On / off button flushing device; 9. Tube for supplying tap water to the device (not used
in the FLSHING mode) ; 10 Tube of the outlet of purified water from the device (not used in
the FLUSHING mode ) ; 11. Kitchen sink; 12. Hose supply of a solution of citric acid from the
flushing device to the device; 13. Flushing device Emerald ; 14 Hose for the exit of the citric
acid solution from the device back into the flushing device.
Maintenance of the EMERALD device is carried out in accordance with the diagram on Fig. 11
Preparation of citric acid washing solution.
To carry out the flushing procedure for the EMERALD it is necessary to prepare 1 (one) liter of
citric acid washing solution in the tank of the flushing device (Fig. 18 – “5”). The flushing solution of
citric acid is prepared on the basis of 200 grams of the citric acid and a half liter of water. Citric acid
crystals are recommended to be diluted in hot water but the flushing is carried out by the solution with
temperature of 60-70 °C (not hotter!).
Important! It is not allowed flushing the EMERALD by the citric acid solution over 70°С.
This may damage the device! Claims in this case will not be accepted. For accurate
determination of the temperature of the flushing solution you are requested to use the
temperature control instrument.

16
Attention! All works related to the preparation of the washing
solution as well as the entire flushing process of the device shall be
carried out using the personal protective equipment for the skin and
eyes!
FLUSHING mode.
To start this mode the EMERALD device must be in STANDBY mode (the device is connected
to the electrical network, but is turned off. The LED indicator is off).!
Connection of the device in the FLUSHING mode is carried out according to the Fig. 11 . In
the FLUSHING mode, to connect the flushing device to the device, transparent PVC hoses from the
delivery kit are used (instead of the standard white tubes used in the OPERATION mode).
Fig 12. Connection of the EMERALD device in FLUSHING mode
All hydraulic and electrical connections must be securely locked . The device must be in
STANDBY mode and be connected to a power source. The flushing device should be located on a flat
and stable surface (on the countertop next to the sink or on the floor) and be connected to the device .!
!
To turn on /off the flushing device and start /interrupt the FLUSHING mode , press
the on/off button on the body of the device ( Fig. 11 - " 8 " ). After the first press of the button , the
automatic procedure for PUMPING and RETENTION of the washing solution of citric acid be-
gins . During all stages of PUMPING and RETENTION of the washing solution, the LED in the de-
vice lights up in blue.!
The automatic flushing procedure takes 30 minutes and consists of six similar sequential steps,
each of which includes:!
a) 1 minute - pumping and circulation of the washing solution in the device (flushing device
included); !
b) 4 minutes - exposure of the washing solution in the device (the flushing device is turned off); !

17
After completion of all six automatic rinsing cycles, the LED in the device starts flashing blue ,
indicating that the PUMPING and RETENTION procedures are completed.!
!
Next, the user must disconnect the flushing device and connect the device according to the usual
OPERATION mode (see Fig. 7) . In this mode, it is necessary to carry out WASH OUT procedure
and rinse the device with cold tap water to wash out the dissolved contaminants and residues of the
citric acid washing solution from the device. The WASH OUT mode should be carried out within
1 0 minutes . At this time, any electrical treatment of water is turned off (the electrochemical module
is turned off), and the LED flashes green. After 10 minutes, the WASH OUT mode is automatically
turned off (the flashing green LED stops) and the Setting enters the normal OPERATION mode.!
!
The WASH OUT mode is completed and the device is again ready for use in normal OPERATION
mode. !
Some features of the FLUSHING mode.!
!
uUser can always pause the automatic FLUSHING mode and start it again by repeated pressing of
the button ( Fig. 11- “ 8 ” ). This function allows the user to suspend the FLUSHING mode if there
are problems with pumping the washing solution into the device and resume this mode again. !
!
uFLUSHING mode is non-volatile and has priority. That is, when the network disappears and when
it reappears, the device will automatically enter the stage of the FLUSHING mode from which it
was removed by disconnecting the network. It protects the user from the risk of accidental inges-
tion of a citric acid solution in the body if the FLUSHING mode is violated. !
!
u"Important! If during the FLUSHING of the device there were any malfunctions that could interrupt
the course of the FLUSHING mode, please repeat the FLUSHING procedure before using the
device. If faults are detected during the FLUSHING mode, it is necessary to additionally make
sure that the washing solution was successfully flushed with tap water from the device
for 10 minutes before starting to use the device in normal mode. !
!
Important! To increase the useful life of the flushing device, it is suggested that after carrying
out maintenance procedures user should rinse thoroughly the intake part of pump, the holding tank for
flushing solution and connecting hoses of the flushing device with warm tap water so as to wash out
residues of the citric acid crystals. After flushing, all elements of the flushing device must be dried
and removed to dry and clean place while waiting for the next flush. The FLUSHING procedure of
the main elements of the flushing device must also be repeated at the beginning of future flushing
procedures to ensure the smooth operation of the device.

18
8. TROUBLESHOOTING GUIDE.
Tab. 1. Troubleshooting Guide
Problem
Probable cause
Probable solution
device does not turn
on. LED indication
does not light up.
1. Hydraulic and electrical
connections of the device are
connected incorrectly.
2. There is no electrical contact /
mains power
3. There is no grounding in the
electrical outlet.
.
11. Connect the hydraulic and electrical
connections in accordance with section 5
“Connection of the device”.
2. Check the presence of electrical
contact / power in the power supply
network.
3. Make sure there is grounding in the
electrical outlet.
Increasing the rate of
flow of water does not
work. The rate of water
flow in the device is be-
low normal.
1. Insufficient pressure in the water
supply line.
2. Excess deposits have formed on the
electrochemical module and filter ele-
ments.
1. Provide the necessary pressure in the
water supply line (see Table 5).
2. Flush the device with citric acid
solution (see the section
MAINTENANCE OF THE DEVICE).
The citric acid washing
solution is not pumped
into the device.
It is necessary to pause
the FLUSHING mode
to eliminate the trou-
bleshooting.
1. There air jams or crystallized
residues of citric acid in the citric acid
supply hose (Fig. 11 - “12”)
2. The citric acid supply hose is
pinched (Fig. 11 - “12”) .
3. It is necessary to suspend the
FLUSHING mode if the washing so-
lution is not pumped into the device,
but the FLUSHING program is al-
ready running.
1. Rinse with warm tap water the
flushing solution supply hose and the
lower intake part of the pump for 2-
3 minutes. Then repeat the FLUSHING
mode.
2. Check if the supply hose for the
flushing solution is not pinched;
3. It is possible to suspend FLUSHING
mode by pressing the on/off button on
the body of the device (Fig. 11
- " 8 " ). After troubleshooting, press
the button again and continue the
FLUSHING mode.

19
9. WARRANTY RESPONSIBILITIES
The manufacturer guarantees that the device complies with the requirements of the technical
terms and conditions subject to the operation conditions, transportation, storage and installation set
forth in this Specification and Operating Manual. The term of warranty service of the EMERALD is
1 year from the date of its sale but not more than 24 months from the date of its production. In case of
absence of the date of sale and the stamp of the trading organization the period of warranty service
starts from the date of production.
The manufacturer guarantees that the EMERALD (with the exception of auxiliary and
replacement filters / cartridges) subject to use correctly will not be defective (as it defined below) for
1 year from the date of purchase. A product is considered to be defective if it is associated with the
poor-quality material or improper manufacture or if such defect interferes with the use or deteriorates
the result of using the EMERALD by the end customer.
Warranty obligations would be valid only if the payment documents have been filled in correctly
and the availability of the identification document and operating manual.
The warranty does not apply to:
u The EMERALD which was used inappropriately or in a manner that contradicts the
instructions of this specification and operating manual;
u Any EMERALD that was not used to its intended purpose, met into the emergency
situation, suffered the physical damage, was incorrectly installed or improperly operated,
reworked, neglected and exposed to the adverse external factors (including but not limited
to the effects of lightning, flooding or fire);
u Any of EMERALD that was damaged due to the improper repair, modification, corrective
actions or maintenance performed by any person other than the authorized representative
of the warranty service and maintenance service of the manufacturer or official trading
partner;
u Any EMERALD device in which a defect was found or which became worse to work due
to the use of any non-original spare or auxiliary parts (including non-original filters for
pre-treatment of water) that were not intended for use with the EMERALD
u Any EMERALD that was installed without using the set of original components for
installation of the EMERALD supplied with the device.
The manufacturer is also exempted from the liability in the following cases: the product or its
parts have external mechanical damages; filter elements (if available in the package and specific
configuration) have outlived usefulness but they were not promptly replaced or serviced; the
EMERALD was not serviced in a timely manner (in accordance with the instructions of this
specification and operating manual); the given identification document and the operating manual with
filled in dates of production and/or sale have been lost and there are no other ways to establish the
service life of the product; when the consumer uses the spare parts from other manufacturers other
than the original components supplied with the device; when installing and operating the device in
excess of the limits established by the technical requirements for the operating conditions of the
product; under the action of force majeure; in other cases stipulated by the law.
Legal reservations.
The manufacturer reserves the right to make the changes and improvements into the device design
that does not impair the operational properties of the device and the quality of the purified water;
Although all necessary steps were taken to verify the text of this operating manual the manufacturer
does not guarantee its completeness or the absence of errors.
