Pentair FLECK 5810 SXT User manual

FLECK 5810 & 5812 SXT UPFLOW/DOWNFLOW
SERVICE MANUAL
waterpurification.pentair.com
5810
5812

JOB SPECIFICATION SHEET
Job Number: ___________________________________________________
Model Number: _________________________________________________
Water Hardness: _______________________________________ ppm or gpg
Capacity Per Unit: _______________________________________________
Mineral Tank Size: ______________ Diameter: ________ Height: _________
Salt Setting per Regeneration: _____________________________________
Regenerant Flow: Upow Downow
1. Meter Size:
A. 1-1/4" Turbine
2. System Type:
A. System #4: 1 Tank, 1 Meter, Immediate, or Delayed Regeneration
B. System #4: Time Clock
3. Control Program Settings:
A. Backwash: ____________________________________ Minutes
B. Brine and Slow Rinse: ___________________________ Minutes
C. Rapid Rinse: ___________________________________ Minutes
D. Brine Tank Refill: _______________________________ Minutes
E. Pause Time: ___________________________________ Minutes
F. Second Backwash: ______________________________ Minutes
4. Drain Line Flow Control:_____________________________ gpm
5. Brine Line Flow Control: ____________________________ gpm
6. Injector Size#: ___________________________________
TABLE OF CONTENTS
JOB SPECIFICATION SHEET.................................................... 2
INSTALLATION ......................................................................... 3
START-UP INSTRUCTIONS ...................................................... 4
CONTROL FEATURES .............................................................. 4
USER PROGRAMMING............................................................. 5
CONTROL OPERATION............................................................. 6
MASTER PROGRAMMING MODE CHART ................................ 7
MASTER PROGRAMMING MODE............................................. 8
VIEWING DIAGNOSTIC DATA.................................................... 12
SYSTEM DISINFECTION........................................................... 13
INSTALLATION CHECKLIST..................................................... 13
CARE AND USE OF YOUR BRINE TANK................................... 13
TROUBLESHOOTING................................................................ 14
POWERHEAD ASSEMBLY......................................................... 15
5810 CONTROL VALVE ASSEMBLY .......................................... 16
5812 CONTROL VALVE ASSEMBLY .......................................... 17
5812 DRAIN LINE FLOW CONTROLS....................................... 18
BYPASS ASSEMBLY.................................................................. 19
SAFETY BRINE VALVE.............................................................. 20
WATER CONDITIONER FLOW DIAGRAMS ............................... 21
WATER CONDITIONER FLOW DIAGRAMS ............................... 23
5810 DIMENSIONAL DRAWINGS ............................................. 25
5812 DIMENSIONAL DRAWINGS ............................................. 26
INJECTOR FLOW DATA ............................................................ 27
IMPORTANT PLEASE READ:
• The information, specifications and illustrations
in this manual are based on the latest information
available at the time of release. The manufacturer
reserves the right to make changes at any time
without notice.
• This manual is intended as a guide for service
of the valve only. System installation requires
information from a number of suppliers not known
at the time of manufacture. This product should be
installed by a plumbing professional.
• This unit is designed to be installed on potable
water system only.
• This product must be installed in compliance with
all state and municipal plumbing and electrical
codes. Permits may be required at the time of
installation.
• It is established that when daytime water pressure
exceeds 80 psi (5.5 bar), the maximum pressure
rating of 125 psi (8.6 bar) can be exceeded. A
pressure regulator must be installed on this
system or warranty is voided.
• Do not install the unit where temperatures may
drop below 32°F (0°C) or above 125°F (52°C).
• Do not place the unit in direct sunlight. Black
units will absorb radiant heat increasing internal
temperatures.
• Do not strike the valve or any of the components.
• Warranty of this product extends to manufacturing
defects. Misapplication of this product may result
in failure to properly condition water, or damage to
product.
• A prefilter should be used on installations in which
free solids are present.
• In some applications local municipalities treat
water with Chloramines. High Chloramine levels
may damage valve components.
• Correct and constant voltage must be supplied to
the controller to maintain proper function.
CALIFORNIA PROPOSITION 65 WARNING
WARNING:
This product contains chemicals known to the
State of California to cause cancer or birth
defects or other reproductive harm.
This Valve is Tested and Certified by the WQA to
NSF/ANSI Standard 44 & 372 for material safety
and structural integrity & lead free compliance and
CSA B483.1.
Component
2 • FLECK 5810 & 5812 SXT Upflow/Downflow

INSTALLATION
Water Pressure
A minimum of 20 psi (1.4 bar) of water pressure is required for
the regeneration valve to operate effectively.
Electrical Facilities
An uninterrupted alternating current (120 VAC) supply is
required. The control uses a transformer to supply 12 VDC.
Please make sure your voltage supply is compatible with your
unit before installation.
Existing Plumbing
Condition of existing plumbing should be free from lime and
iron buildup. Piping that is built up heavily with lime and/or iron
should be replaced. If piping is clogged with iron, a separate
iron filter unit should be installed ahead of the water softener.
Location Of Softener And Drain
The softener should be located close to a drain to prevent air
breaks and back flow.
Outdoor Locations
When the water conditioning system is installed outdoors,
several items must be considered.
• Moisture — The system is not designed to withstand
extreme humidity or water spray from below. Examples
are: constant heavy mist, near corrosive environment,
upwards spray from sprinkler.
CAUTION
This unit is for dry location use only unless used
with a Listed Class 2 power supply suitable for
outdoor use.
• Direct Sunlight — The materials used will fade or
discolor over time in direct sunlight. The integrity of the
materials will not degrade to cause system failures. If
it is necessary to locate the system in direct sunlight, a
protective outdoor cover (P/N 61994) over the valve and
controller is necessary.
• Insects — If installing in an environment that may expose
the system to insects or other small animals, a protective
cover is required. The protective outdoor cover (P/N
61994) has been designed to keep all but the smallest
insects out of the critical areas. The cover should be
installed securely in place.
Bypass Valves
Always provide for the installation of a bypass valve if unit is not
equipped with one.
CAUTION
Water pressure is not to exceed 125 psi (8.6 bar),
water temperature is not to exceed 110°F (43°C),
and the unit cannot be subjected to freezing
conditions.
WARNING:
The system must be depressurized before
removing any connections for servicing.
Installation Instructions
1. Place the softener tank where you want to install the unit.
Make sure the unit is level and on a firm base.
2. During cold weather, the installer should warm the valve to
room temperature before operating.
3. All plumbing should be done in accordance with local
plumbing codes. The pipe size for a residential drain line
should be a minimum of 1/2" (13 mm). Backwash flow rates
in excess of 7 gpm (26.5 Lpm) or drain line length in excess
of 20' (6 m) require 3/4" (19 mm) drain line. Commercial
drain lines should be the same size as the drain line flow
control.
NOTE: The tank should have the distributor tube installed and
have the proper amount of regenerant in place.
4. Refer to the spec sheet for cutting height of the distributor
tube.
5. Lubricate the distributor O-ring seal and tank O-ring
seal. Place the main control valve on tank. Note: Only use
silicone lubricant.
6. Soldering of joints near the drain port must be done prior to
connecting the Drain Line Flow Control fitting (DLFC). Leave
at least 6" (15 cm) between the DLFC and solder joints
when soldering pipes that are connected on the DLFC.
Failure to do this could cause interior damage to the DLFC.
7. PTFE plumbing tape is the only sealant to be used on the
drain fitting.
8. Make sure that the floor is clean beneath the salt storage
tank and that the tank is level.
9. Place approximately 1" (25 mm) of water above the grid
plate. If a grid is not utilized, fill to the top of the air check
(Figure 1) in the salt tank. Do not add salt to the brine tank
at this time.
CAUTION
If grid plate is used, cut air check height even with
grid plate. This is critical on 6", 7", 8" and 9" tanks.
The brine refill water must come above the grid
plate and make contact with the salt.
10. On units with a bypass, place in bypass position. Turn on
the main water supply. Open a cold soft water tap nearby
and let run a few minutes or until the plumbing is free from
foreign material (usually solder) that may have resulted
from the installation. Once clean, close the water tap.
11. Slowly place the bypass in service position and let water
flow into the mineral tank. When water flow stops, slowly
open a cold water tap nearby and let water run until the air
is purged from the unit.
12. Plug the transformer into an electrical outlet.
NOTE: All electrical connections must be connected according
to local codes. Be certain the outlet is uninterrupted.
60002 Rev E

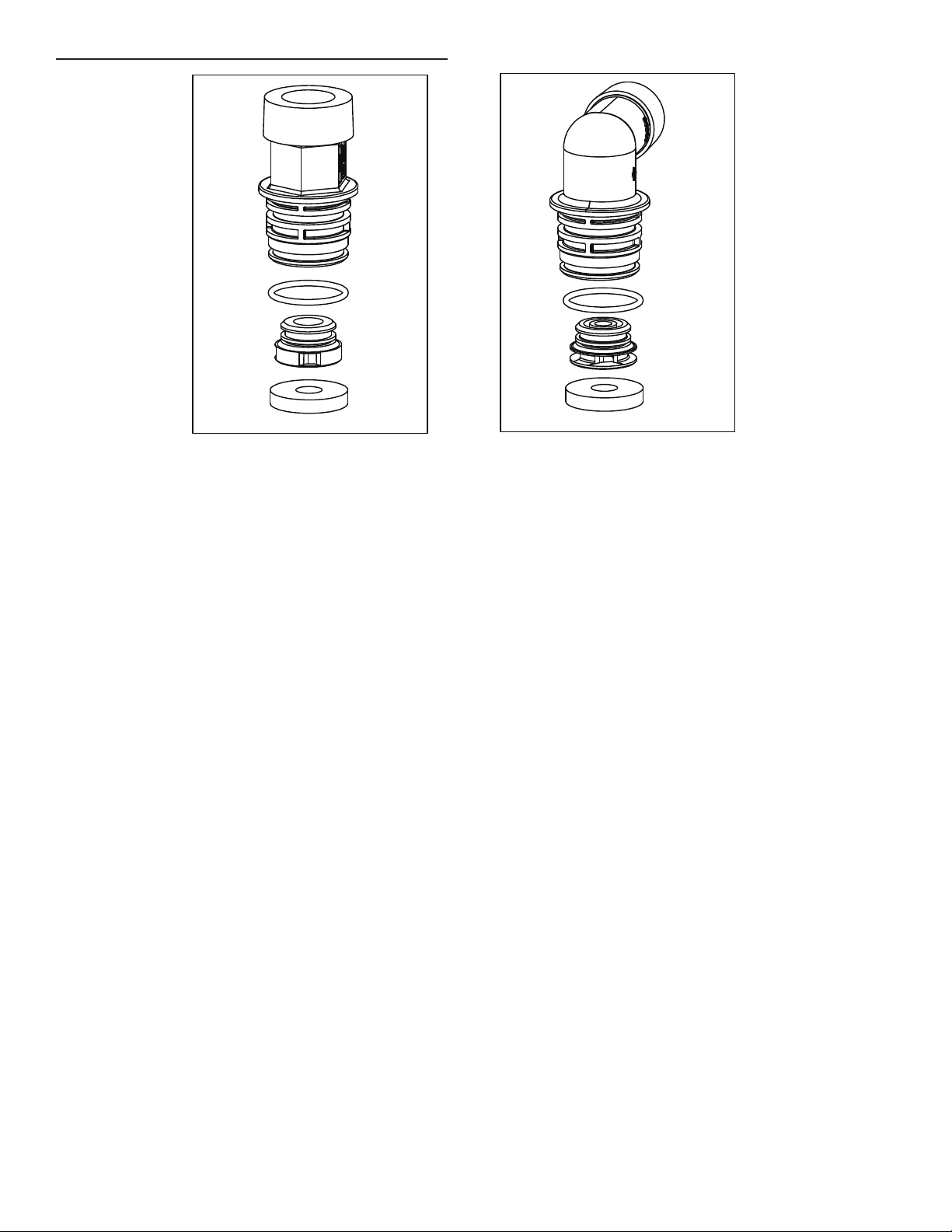

Figure 1 Residential Air Check Valve
Electrical Connection
The controller operates on 12-volt DC power supply. This
requires use of the supplied power adapter included with your
system.
NOTE: The power source should be constant. Be certain the
power adapter is not on a switched outlet. Power
interruptions longer than 8 hours may cause the
controller to lose the time setting. When power is
restored, the time setting must then be re-entered.
FLECK 5810 & 5812 SXT Upflow/Downflow • 3

START-UP INSTRUCTIONS
The water softener should be installed with the inlet,
outlet, and drain connections made in accordance with the
manufacturer’s recommendations, and to meet applicable
plumbing codes.
1. Program the valve control according to instructions shown
in this manual.
2. Start an immediate regeneration by holding the Extra Cycle
button for five seconds. Position the valve to backwash.
Ensure the drain line flow remains steady for 10 minutes or
until the water runs clear.
3. Position the valve to the brine / slow rinse position. Ensure
the unit is drawing water from the brine tank (this step may
need to be repeated).
4. Position the valve to the rapid rinse position. Check the
drain line flow, and run for five minutes or until the water
runs clear.
5. Position the valve to the start of the brine tank fill cycle.
Ensure water goes into the brine tank at the desired rate.
The brine valve drive cam will hold the valve in this position
to fill the brine tank for the first regeneration.
6. Replace control cover.
7. Put salt in the brine tank.
NOTE: Do not use granulated or rock salt.
CONTROL FEATURES
Figure 2
Features of the SXT:
• Power backup that continues to keep time and the
passage of days for a minimum of 8 hours in the event of
power failure. During a power outage, the control goes
into a power-saving mode. It does not monitor water
usage during a power failure, but it does store the volume
remaining at the time of power failure.
• Settings for both valve (basic system) and control type
(method used to trigger a regeneration).
• Day-of-the-Week controls.
• While in service, the display alternates between time of
day, volume remaining or days to regeneration.
• The Flow Indicator flashes when outlet flow is detected.
• The Service Icon flashes if a regeneration cycle has been
queued.
• A Regeneration can be triggered immediately by pressing
the Extra Cycle button for five seconds.
• The Parameter Display displays the current cycle step
(BW, BF, RR etc) during regeneration, and the data
display counts down the time remaining for that cycle
step. While the valve is transferring to a new cycle step,
the display will flash. The parameter display will identify
the destination cycle step (BW, BF, RR, etc.) and the data
display will read "------". Once the valve reaches the cycle
step, the display will stop flashing and the data display
will change to the time remaining. During regeneration,
the user can force the control to advance to the next cycle
step immediately by pressing the Extra Cycle button.
Setting the Time of Day
1. Press and hold either the Up or Down buttons until the
programming icon replaces the service icon and the
parameter display reads TD.
2. Adjust the displayed time with the Up and Down buttons.
3. When the desired time is set, press the Extra Cycle button
to resume normal operation. The unit will also return
to normal operation after five seconds if no buttons are
pressed.
Figure 3
Queueing a Regeneration
1. Press the Extra Cycle button. The service icon will flash to
indicate that a regeneration is queued.
2. To cancel a queued regeneration, press the Extra Cycle
button.
Regenerating Immediately
Press and hold the Extra Cycle button for five seconds.
4 • FLECK 5810 & 5812 SXT Upflow/Downflow

USER PROGRAMMING
The SXT control was designed to operate under most
conditions with minimal programming. Follow the procedure
below to set up the control for normal operation. For more in-
depth programming information, see the Master Programming
section.
Abbreviation Parameter Description
DO Day Override The control's day override
setting.
RT Regeneration Time The time of the day that
the system will regenerate
(meter delayed, time clock,
and day-of-week systems)
HFeed Water Hardness The hardness of the inlet
water - used to calculate
system capacity for
metered systems.
RC or SF Reserve Capacity The fixed reserve
capacity of the system
in gallons to maintain
before the next scheduled
regeneration. Can also
be set as a percentage of
total capacity. See Master
Programming section..
CD Current Day The current day of week.
NOTE: Some items may not be shown depending on control
configuration. The control will discard any changes
and exit User Programming Mode if a button is not
pressed for 60 seconds.
User Programming Mode Steps
1. Press the Up and Down buttons for five seconds while in
service, and the time of day is NOT set to 12:01 PM.
2. Use this display to adjust the Day Override. This option
setting is identified by "DO" in the upper left hand corner of
the screen.
Figure 4
3. Press the Extra Cycle button. Use this display to adjust the
Regeneration Time. This option setting is identified by "RT"
in the upper left hand corner of the screen.
Figure 5
4. Press the Extra Cycle button. Use this display to adjust the
Feed Water Hardness. This option setting is identified by
"H" in the upper left hand corner of the screen.
Figure 6
Range: 1-199 hardness
5. Press the Extra Cycle button. Use this display to adjust the
Fixed Reserve Capacity. This option setting is identified by
"RC" or "SF" in the upper left-hand corner of the screen.
NOTE: This setting is dependent upon Reserve Selection
setting in Master Programming. Default is RC -
Reserve Capacity (Gallons). See Master Programming
section for more information.
Figure 7
6. Press the Extra Cycle button. Use this display to set the
Current Day of the Week. This option setting is identified by
"CD" in the upper left hand corner of the screen.
Figure 8
7. Press the Extra Cycle button to end User Programming.
FLECK 5810 & 5812 SXT Upflow/Downflow • 5

CONTROL OPERATION
Meter Immediate Control
A Meter Immediate control measures water usage and
regenerates the system as soon as the calculated system
capacity is depleted. The control calculates the system capacity
by dividing the unit capacity (typically expressed in grains/
unit volume) by the feed water hardness and subtracting the
reserve. Meter Immediate systems generally do not use a
reserve volume. The control will also start a regeneration cycle
at the programmed regeneration time if a number of days
equal to the regeneration day override pass before water usage
depletes the calculated system capacity.
Meter Delayed Control
A Meter Delayed Control measures water usage. The system
regenerates at the programmed regeneration time after
the calculated system capacity is depleted. As with Meter
Immediate systems, the control calculates the system capacity
by dividing the unit capacity by the feed water hardness and
subtracting the reserve. The reserve should be set to ensure
that the system delivers treated water between the time the
system capacity is depleted and the actual regeneration time.
A Meter Delayed control will also start a regeneration cycle at
the programmed regeneration time if a number of days equal
to the regeneration day override pass before water usage
depletes the calculated system capacity.
Time Clock Delayed Control
A Time Clock Delayed Control regenerates the system on a
timed interval. The control will initiate a regeneration cycle
at the programmed regeneration time when the number of
days since the last regeneration equals the regeneration day
override value.
Day of the Week Control
This control regenerates the system on a weekly schedule. The
schedule is defined in Master Programming by setting each day
to either "off" or "on". The control will initiate a regeneration
cycle on days that have been set to "on" at the specified
regeneration time.
Control Operation During Regeneration
During regeneration, the control shows the current
regeneration step number the valve is advancing to, or has
reached, and the time remaining in that step. The step number
that displays flashes until the valve completes driving to this
regeneration step position. Once all regeneration steps are
complete the valve returns to service and resumes normal
operation.
Pressing the Extra Cycle button during a regeneration cycle
immediately advances the valve to the next cycle step position
and resumes normal step timing.
Control Operation During Programming
The control only enters the Program Mode with the valve in
service. While in the Program Mode, the control continues
to operate normally monitoring water usage and keeping all
displays up to date. Control programming is stored in memory
permanently.
Manually Initiating a Regeneration
1. When the system is in service, press the Extra Cycle button
for five seconds on the main screen.
2. The control advances to Regeneration Cycle Step #1
(backwash), and begins programmed time count down.
3. Press the Extra Cycle button once to advance valve to
Regeneration Cycle Step #2 (brine draw and slow rinse).
4. Press the Extra Cycle button once to advance valve to
Regeneration Cycle Step #3 (rapid rinse).
5. Press the Extra Cycle button once to advance valve to
Regeneration Cycle Step #4 (brine refill).
6. Press the Extra Cycle button once more to advance the
valve back to in service.
NOTE: If the unit is a filter or upflow, the cycle step order
may change.
NOTE: A queued regeneration can be initiated by pressing
the Extra Cycle button. To clear a queued
regeneration, press the Extra Cycle button again
to cancel. If regeneration occurs for any reason
prior to the delayed regeneration time, the manual
regeneration request will be cleared.
Control Operation During a Power Failure
The SXT includes integral power backup. In the event of power
failure, the control shifts into a power-saving mode. The control
stops monitoring water usage. The display and motor shut
down, but it continues to keep track of the time and day for a
minimum of 8 hours.
The system configuration settings are stored in a non-volatile
memory and are stored indefinitely with or without power.
The Time of Day flashes when there has been a power failure.
Press any button to stop the Time of Day from flashing.
If power fails while the unit is in regeneration, the control will
save the current valve position before it shuts down. When
power is restored, the control will resume the regeneration
cycle from the point where power failed.
CAUTION
If power fails during a regeneration cycle, the valve
will remain in it’s current position until power
is restored. The valve system should include all
required safety components to prevent overflows
resulting from a power failure during regeneration.
The control will not start a new regeneration cycle without
power. If the valve misses a scheduled regeneration due to
a power failure, it will queue a regeneration. Once power is
restored, the control will initiate a regeneration cycle the next
time that the Time of Day equals the programmed regeneration
time. Typically, this means that the valve will regenerate one
day after it was originally scheduled. If the treated water
output is important and power interruptions are expected, the
system should be set up with a sufficient reserve capacity to
compensate for regeneration delays.
6 • FLECK 5810 & 5812 SXT Upflow/Downflow

MASTER PROGRAMMING MODE CHART
CAUTION
Before entering Master Programming, please
contact your local professional water dealer.
Master Programming Options
Abbreviation Parameter Option Abbreviation Options
DF Display Format GAL Gallons
Ltr Liters
VT Valve Type 5810 5810 Control Valve
5812 5812 Control Valve
RF Regenerant Flow dF1b Standard Downflow Single Backwash
dF2b Standard Downflow Double Backwash
Fltr Filter
UFbd Upflow Brine First
UFdF Upflow Brine Backwash First
UFFF Upflow Fill First
DFNWB Downflow No Hard Water Bypass (5812 only)
UFlt Upflow Filter
O-dF Other Downflow
O-UF Other Upflow
CT Control Type Fd Meter (Flow) Delayed
FI Meter (Flow) Immediate
tc Time Clock
dAY Day of Week
C Unit Capacity Unit Capacity (Grains)
H Feed Water Hardness Hardness of Inlet Water (Grains)
RS Reserve Selection SF Percentage Safety Factor
rc Fixed Reserve Capacity
SF Safety Factor Percentage of the system capacity to be used as a reserve
RC Fixed Reserve Capacity Fixed volume to be used as reserve
DO Day Override The system's day override setting
RT Regen Time The time of day the system will regenerate
BW, BD, RR, BF Regen Cycle Step Times The time duration for each regeneration step. Adjustable from OFF and 0-199
minutes.
NOTE: If "Othr" is chosen under "Valve Type", then C1, C2, ..., C20 will be
displayed along with available cycle steps RR, BD, SR, BW, RF, SP. LC
denotes the Last Cycle.
D1, D2, D3, D4, D5,
D6, D7
Day of Week Settings Regeneration setting (On or Off) for each day of the week on day-of-week systems.
CD Current Day The Current day of the week
FM Flow Meter Type P0.7 3/4" Paddle Wheel Meter
t0.7 3/4" Turbine Meter
P1.0 1" Paddle Wheel Meter
t1.0 1" Turbine Meter
t1.2 1.25" Turbine Meter
P1.5 1.5" Paddle Wheel Meter
t1.5 1.5" Turbine Meter
P2.0 2" Paddle Wheel Meter
Gen Generic or Other non-Fleck Meter
K Meter Pulse Setting Meter pulses per gallon for generic/other flow meter
NOTE: Some items may not be shown depending on control
configuration. The control will discard any changes
and exit Master Programming Mode if any button is
not pressed for five minutes.
FLECK 5810 & 5812 SXT Upflow/Downflow • 7

MASTER PROGRAMMING MODE
When Master Programming Mode is entered, all available
option setting displays may be viewed and set as needed.
Depending on current option settings, some parameters
cannot be viewed or set.
Setting the Time of Day
1. Press and hold either the Up or Down buttons until the
programming icon replaces the service icon and the
parameter display reads TD.
2. Adjust the displayed time with the Up and Down buttons.
3. When the desired time is set, press the Extra Cycle button
to resume normal operation. The unit will also return
to normal operation after five seconds if no buttons are
pressed.
Figure 9
Entering Master Programming Mode
Set the Time of Day display to 12:01 P. M. Press the Extra Cycle
button (to exit Setting Time of Day mode). Then press and hold
the Up and Down buttons together until the programming
icon replaces the service icon and the display format screen
appears.
Exiting Master Programming Mode
Press the Extra Cycle button to accept the displayed settings
and cycle to the next parameter. Press the Extra Cycle button
at the last parameter to save all settings and return to normal
operation. The control will automatically disregard any
programming changes and return to normal operation if it is
left in Master Programming mode for 5 minutes without any
keypad input.
Resets
Soft Reset
Press and hold the Extra Cycle and Down buttons for 25
seconds while in normal Service mode. This resets all
parameters to the system default values. Not reset are the
volume remaining in meter immediate or meter delayed
systems and days since regeneration in the time clock system.
Master Reset
Hold the Extra Cycle button while powering up the unit. This
resets all of the parameters in the unit. Check and verify the
choices selected in Master Programming Mode.
1. Display Format (Display Code DF)
This is the first screen that appears when entering Master
Programming Mode. The Display Format setting specifies
the unit of measure that will be used for volume and how
the control will display the Time of Day. This option setting is
identified by "DF" in the upper left hand corner of the screen.
There are two possible settings.
Display Format
Setting
Unit of Volume Time Display
GAL U.S. Gallons 12-Hour AM/PM
Ltr Liters 24-Hour
Figure 10
2. Valve Type (Display Code VT)
Press the Extra Cycle button. Use the display to set the Valve
Type to 5810 or 5812, depending on the valve being installed.
3. Regenerant Flow (Display Code RF)
Press the Extra Cycle button. The Regenerant Flow Setting
specifies the type of cycle that the valve follows during
regeneration. Note that some valve configurations are built
with specific subcomponents. Ensure the valve is configured
properly before changing the Regenerant Flow setting. This
option setting is identified by "RF" in the upper left hand corner
of the screen. There are eight possible settings.
NOTE: Not all regenerant flow options are available for all
valve types.
Abbreviation Parameter
dF1b Standard Downflow Single Backwash
dF2b Standard Downflow Double Backwash
Fltr Filter
UFbd Upflow Brine First
UFdF Upflow Brine Backwash First
UFFF Upflow Fill First
DFNWB Downflow No Hard Water Bypass
(5812 only)
UFlt Upflow Filter
O-dF Other Downflow
O-UF Other Upflow
Figure 11
8 • FLECK 5810 & 5812 SXT Upflow/Downflow

MASTER PROGRAMMING MODE continued
4. Control Type (Display Code CT)
Press the Extra Cycle button. Use this display to set the Control
Type. This specifies how the control determines when to trigger
a regeneration. For details on how the various options function,
refer to the Control Operation section of this service manual.
This option setting is identified by "CT" in the upper left hand
corner of the screen. There are four possible settings.
Abbreviation Parameter
Fd Meter (Flow) Delayed
FI Meter (Flow) Immediate
tc Time Clock
dAY Day of Week
Figure 12
5. Unit Capacity (Display Code C)
Press the Extra Cycle button. Use this display to set the Unit
Capacity. This setting specifies the treatment capacity of the
system media. Enter the capacity of the media bed in grains
of hardness when configuring a softener system, or desired
volume capacity when configuring a filter system. This option
setting is identified by "C" in the upper left hand corner of
the screen (or by "V' if volume capacity for a filter). The Unit
Capacity parameter is only available if the control type has
been set to one of the metered options. Use the Up and Down
buttons to adjust the value as needed.
Figure 13
Range: 1-999.9 x 1000 grains/gallon (mg/liter)
6. Feed Water Hardness (Display Code H)
Press the Extra Cycle button. Use this display to set the Feed
Water Hardness. Enter the feed water hardness in grains per
gallon or degrees for softener systems. This option setting is
identified by "H" in the upper left hand corner of the screen.
The feed water hardness parameter is only available if the
control type has been set to one of the metered softener
options. Use the Up and Down buttons to adjust the value as
needed.
Figure 14
Range: 1-199 grains (degrees)
7. Reserve Selection (Display Code RS)
Press the Extra Cycle button. Use this display to set the Safety
Factor and to select the type of reserve to be used in your
system. This setting is identified by "RS" in the upper left-hand
corner of the screen. The reserve selection parameter is only
available if the control type has been set to one of the metered
options. There are two possible settings.
Abbreviation Parameter
SF Safety Factor
rc Fixed Reserve Capacity
Figure 15
8. Safety Factor (Display Code SF)
Press the Extra Cycle button. Use this display to set the Safety
Factor. This setting specifies what percentage of the system
capacity will be held as a reserve. Since this value is expressed
as a percentage, any change to the unit capacity or feed water
hardness that changes the calculated system capacity will
result in a corresponding change to the reserve volume. This
option setting is identified by "SF" in the upper left hand corner
of the screen. Use the UP and Down buttons to adjust the value
from 0 to 50% as needed.
Figure 16
Range: 0-50%
9. Fixed Reserve Capacity (Display Code RC)
Press the Extra Cycle button. Use this display to set the
Reserve Capacity. This setting specifies a fixed volume that will
be held as a reserve. The reserve capacity cannot be set to a
value greater than one-half of the calculated system capacity.
The reserve capacity is a fixed volume and does not change
if the unit capacity or feed water hardness are changed. This
option setting is identified by "RC" in the upper left-hand
corner of the screen. Use the Up and Down buttons to adjust
the value as needed.
Figure 17
Range: 0-half of the calculated system capacity
FLECK 5810 & 5812 SXT Upflow/Downflow • 9

MASTER PROGRAMMING MODE continued
10. Day Override (Display Code DO)
Press the Extra Cycle button. Use this display to set the Day
Override. This setting specifies the maximum number of days
between regeneration cycles. If the system is set to a timer-
type control, the day override setting determines how often
the system will regenerate. A metered system will regenerate
regardless of usage if the days since last regeneration cycle
equal the day override setting. Setting the day override value
to "OFF" disables this function. This option setting is identified
by "DO" in the upper left hand corner of the screen. Use the Up
and Down buttons to adjust the value as needed.
Figure 18
Range: Off-99 days
11. Regeneration Time
Press the Extra Cycle button. Use this display to set the
Regeneration Time. This setting specifies the time of day the
control will initiate a delayed, manually queued, or day override
regeneration. This option setting is identified by "RT" in the
upper left hand corner of the screen. Use the Up and Down
buttons to adjust the value as needed.
Figure 19
12. Regeneration Cycle Step Times
Press the Extra Cycle button. Use this display to set the
Regeneration Cycle Step Times. The different regeneration
cycles are listed in sequence based on the valve type selected
for the system, and are identified by an abbreviation in the
upper left-hand corner of the screen. The abbreviations used
are listed below.
Abbreviation Cycle Step
BD Brine Draw
BF Brine Fill
AD Air Draw
BW Backwash
RR Rapid Rinse
SV Service
If the system has been configured with the "Other" valve type,
the regeneration cycles will be identified as C1, C2, ..., C20.
Cycle steps can be programmed in any order using the Up or
Down buttons with the following selections. Up to 20 individual
cycles can be set. Time for each cycle can be set from 0 to 199
minutes. Setting a cycle step time to 0 will cause the control
to skip that step during regeneration, but keeps the following
steps available. Use the Up and Down buttons to adjust the
value as needed. Press the Extra Cycle button to accept the
current setting and move to the next parameter. Program the
last cycle step as LC which forces the valve back to the service
position.
Abbreviation Cycle Step
RR Rapid Rinse
BD Brine Draw
SR Slow Rinse
BW Backwash
RF Refill
SP Service Position
LC Last Cycle
Figure 20
Range: 0-199 minutes
13. Day of Week Settings
Press the Extra Cycle button. Use this display to set the
regeneration schedule for a system configured as Day of Week
control. The different days of the week are identified as D1,
D2, D3, D4, D5, D6, and D7 in the upper left-hand corner of the
display. Set the value to "ON" to schedule a regeneration or
"OFF" to skip regeneration for each day. Use the Up and Down
buttons to adjust the setting as needed. Press the Extra Cycle
button to accept the setting and move to the next day. Note that
the control requires at least one day to be set to "ON" If all 7
days are set to "Off", the unit will return to Day 1 until one or
more days are set to "ON".
Figure 21
10 • FLECK 5810 & 5812 SXT Upflow/Downflow

MASTER PROGRAMMING MODE continued
14. Current Day (Display Code CD)
Press the Extra Cycle button. Use this display to set the current
day on systems that have been configured as Day of Week
controls. This setting is identified by "CD" in the upper left-
hand corner of the screen. Use the Up and Down buttons to
select from Day 1 through Day 7.
Figure 22
15. Flow Meter Type (Display Code FM)
Press the Extra Cycle button. Use this display to set the type
of flow meter connected to the control. This option setting
is identified by "FM" in the upper left-hand corner of the
screen. Use the Up and Down buttons to select one of the eight
available settings.
Abbreviation Description
P0.7 3/4" Paddle Wheel Meter
t0.7 3/4" Turbine Meter
P1.0 1" Paddle Wheel Meter
t1.0 1" Turbine Meter
t1.2 1.25" Turbine Meter
P1.5 1.5" Paddle Wheel Meter
t1.5 1.5" Turbine Meter
P2.0 2" Paddle Wheel Meter
Gen Generic or Other non-Fleck Meter
Figure 23
16. Meter Pulse Setting (Display Code K)
Press the Extra Cycle button. Use this display to specify the
meter pulse setting for a non-standard flow meter. This option
setting is identified by "K" in the upper left-hand corner of
the screen. Use the Up and Down buttons to enter the meter
constant in pulses per unit volume.
Figure 24
17. End of Master Programming Mode
Press the Extra Cycle button to save all settings and exit
Master Programming Mode.
FLECK 5810 & 5812 SXT Upflow/Downflow • 11

4. Press the Up button. Use this display to view the Hours
in Service since the last regeneration cycle. This option
setting is identified by "HR" in the upper left hand corner of
the screen.
Figure 27
5. Press the Up button. Use this display to view the Volume
Used since the last regeneration cycle. This option setting
is identified by "VU" in the upper left-hand corner of the
screen.
Figure 28
6. Press the Up button. Use this display to view the Reserve
Capacity. This option setting is identified by "RC" in the
upper left hand corner of the screen.
Figure 29
7. Press the Up button. Use this display to view the Software
Version. This option setting is identified by "SV" in the upper
left hand corner of the screen.
Figure 30
8. Press the Extra Cycle button to end Diagnostic
Programming Mode.
VIEWING DIAGNOSTIC DATA
The SXT control records and maintains diagnostic data to assist
with servicing and troubleshooting the water treatment system.
Abbreviation Parameter Description
FR Flow Rate Displays the current outlet
flow rate.
PF Peak Flow Rate Displays the highest flow
rate measured since last
regeneration.
HR Hours in Service Displays the total hours
that the unit has been
in service since last
regeneration.
VU Volume Used Displays the total volume
of water treated by the unit
since last regeneration.
RC Reserve Capacity Displays the system's
reserve capacity calculated
from the system capacity,
feed water hardness, and
safety factor
SV Software Version Displays the software
version installed on the
controller.
NOTE: Some items may not be shown depending on control
configuration. The control will discard any changes
and exit the Diagnostics View if a button is not pressed
for 60 seconds.
Diagnostics View Steps
1. Press the Up and Extra Cycle buttons for five seconds while
in service.
2. Use this display to view the current Flow Rate. This option
setting is identified by "FR" in the upper left hand corner of
the screen.
Figure 25
3. Press the Up button. Use this display to view the Peak Flow
Rate since the last regeneration cycle. This option setting
is identified by "PF" in the upper left hand corner of the
screen.
Figure 26
12 • FLECK 5810 & 5812 SXT Upflow/Downflow

SYSTEM DISINFECTION
Disinfection Of Water Softeners
The materials of construction of the modern water softener
will not support bacterial growth, nor will these materials
contaminate a water supply. During normal use, a softener
may become fouled with organic matter, or in some cases with
bacteria from the water supply. This may result in an off-taste
or odor in the water.
Some softeners may need to be disinfected after installation
and some softeners will require periodic disinfection during
their normal life.
Depending upon the conditions of use, the style of softener, the
type of ion exchanger, and the disinfectant available, a choice
can be made among the following methods.
Sodium or Calcium Hypochlorite
Application
These materials are satisfactory for use with polystyrene
resins, synthetic gel zeolite, greensand and bentonites.
5.25% Sodium Hypochlorite
These solutions are available by various sellers of household
bleach. If stronger solutions are used, such as those sold for
commercial laundries, adjust the dosage accordingly.
1. Dosage
A. Polystyrene resin; 1.2 fluid ounce (35.5 ml) per cubic
foot.
B. Non-resinous exchangers; 0.8 fluid ounce (23.7 ml) per
cubic foot.
2. Salt tank softeners
A. Backwash the softener and add the required amount
of hypochlorite solution to the well of the salt tank. The
salt tank should have water in it to permit the solution
to be carried into the softener.
B. Proceed with the normal recharge.
Calcium Hypochlorite
Calcium hypochlorite, 70% available chlorine, is available in
several forms including tablets and granules. These solid
materials may be used directly without dissolving before use.
1. Dosage
A. Two grains (approximately 0.1 ounce [3 ml]) per cubic
foot.
2. Salt tank softeners
A. Backwash the softener and add the required amount of
hypochlorite to the well of the salt tank. The salt tank
should have water in it to permit the chlorine solution to
be carried into the softener.
B. Proceed with the normal recharge.
INSTALLATION CHECKLIST
Read the owner's/installation manual?
Follow all safety guidelines in the manual?
If metal pipe was used, did you restore the electrical ground?
Securely install both drain hoses to an approved drain?
Perform a leak test?
Move the bypass valve to service?
Sanitize the softener?
Add salt pellets to the salt storage tank?
Program the control correctly to meet your needs?
Start a recharge?
CARE AND USE OF YOUR BRINE TANK
Each time the softener recharges, salty water (brine) is needed
to recondition the media in the water tank. The brine is pulled
from the salt tank at a controlled amount. If the salt tank does
not contain enough salt, the brine is weak, the media will not
fully recondition and untreated water will pass through.
You must keep salt in the tank.
The salt tank operates best when the salt level is below half-
full. If the tank is filled more than that the salt pellets may
"bridge". The salt pellets wedge against each other and do
not fall into the water at the bottom. Bridging will eventually
provide no salt to make brine. The softener will recharge but
not recondition the media. A salt bridge can be broken up using
a broom handle or similar rod. Carefully pound it into the salt
and the pellets will collapse. After loosening the salt pellets
wait 2 hours and start a regeneration. A second recharge may
be needed to fully recondition the media.
You should only use sodium chloride pellet salt for water
softeners. Other types of salt (rock or snow melting) will
contain dirt and chemicals that will affect your water softener.
Keep the brine tank covered.
Empty and clean the tank every three years.
FLECK 5810 & 5812 SXT Upflow/Downflow • 13

TROUBLESHOOTING
Error Codes
NOTE: Error codes appear on the In Service display.
Error Code Error Type Cause Reset and Recovery
---0 Motor Stall /Cam
Sense Error
No state changes in the optical
sensor are detected for six
seconds.
Unplug the unit and plug back in. Allow the control to attempt to find
position again.
Verify the optical sensor is in place with the wires connected to the
circuit board. Verify the motor and drive train components are in good
condition and assembled properly. Check the valve and verify that the
piston travels freely. Replace/reassemble the various components as
necessary.
Plug the unit back in and observe its behavior. If the error reoccurs,
unplug the unit, put it into bypass and contact technical support.
---1 Motor Run-On Error
/Cycle Sense Error
An undesired optical sensor state
change occurred.
Non-critical error. Extra optical sensor pulse detected. Press any
button to clear the error. Press extra cycle button to advance motor to
clear error.
---2 Regen Failure The system has not regenerated
for more than 99 days (or 7 days if
the Control Type has been set to
Day-of-Week).
Perform a Manual Regeneration to reset the error code.
If the system is metered, verify that it is measuring flow by running
service water and watching for the flow indicator on the display. If the
unit does not measure flow, verify that the meter cable is connected
properly and that the meter is functioning properly.
Enter Master Programming Mode and verify that the unit is configured
properly, For the valve configuration. Check that the correct system
capacity has been selected, that the day override is set properly, and
that meter is identified correctly. If the unit is configured as a Day-of-
Week system, verify that at least one day is set ON. Correct the setting
as necessary.
---3 Memory Error Control board memory failure. Perform a Master Reset and reconfigure the system via Master
Programming Mode. After reconfiguring the system, step the valve
through a manual regeneration. If error continues, call technical
support.
---4 Fail Safe Error Valve has failed to find position in
one minute.
Unplug the unit and plug it back in. If error continues, call technical
support.
14 • FLECK 5810 & 5812 SXT Upflow/Downflow

Item No. QTY Part No. Description
1..................
POWERHEAD ASSEMBLY
Item No. QTY Part No. Description
1.................1........ 61832-01............Cover Assembly, Black/Black
2.................1........ 61957-02............Panel Gear Assembly, Upflow/
Downflow
3.................1........ 61834 .................Timer Assembly, SXT
4.................1........ 61835 .................Motor Assembly
5.................1........ 61994 .................Cover Assembly, Environmental
6.................1........ 43291 .................Transformer 12V UL
7.................1........ 43318 .................Transformer, Intl, 12V UL
8.................1........ 43715 .................Cover, Lower, 5800 Series
1
2
3
4
5
6 7
8
FLECK 5810 & 5812 SXT Upflow/Downflow • 15

5810 CONTROL VALVE ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
20
21
22
23
24
25
26
19
12
10
L1487214 REV A
Item No. QTY Part No. Description
1................... 1......... 61961 .................... Kit, Mounting, 5810/5812
2................... 1......... 61956-01............... Kit, Piston, Seal, and Spacer,
5810/5812, Downflow
................................. 61956-02............... Kit, Piston, Seal, and Spacer,
5810/5812, Upflow
................................. 61956-03............... Kit, Piston, Seal, and Spacer,
5810/5812, Filter
3................... 1......... 19791-01............... Assy, Meter Cable
4................... 1......... 60016 .................... Brine Valve, 7000
5................... 1......... 40947 .................... Plug, Brine Valve
6................... 1......... 13302 .................... O-ring, -014
7................... 1......... 61450-00............... BLFC Assy 3/8", Blank
................................. 61450-12............... BLFC Assy 3/8", .12 GPM
................................. 61450-25............... BLFC Assy 3/8", .25 GPM
................................. 61450-50............... BLFC Assy 3/8", .50 GPM
................................. 61450-100............. BLFC Assy 3/8", 1.0 GPM
8................... 1......... 61451-00............... BLFC Assy 1/2", Blank
................................. 61451-12............... BLFC Assy 1/2", .12 GPM
................................. 61451-25............... BLFC Assy 1/2", .25 GPM
................................. 61451-50............... BLFC Assy 1/2", .50 GPM
................................. 61451-100............. BLFC Assy 1/2", 1.0 GPM
9................... 1......... 41056 .................... Nut Assy, 1/2"
10................. 2......... 40576 .................... Clip, H, Plastic
11................. 1......... 61923-20............... Cap, Regulated Injector, 20 PSI
................................. 61923-30............... Cap, Regulated Injector, 30 PSI
12................. 2......... 61958 .................... Injector Cap Assy, w/O-ring
13................. 1......... 61454-00............... Injector Assy, #00, Violet
................................. 61454-0................. Injector Assy, #0, Red
................................. 61454-1................. Injector Assy, #1, White
................................. 61454-2................. Injector Assy, #2, Blue
................................. 61454-3................. Injector Assy, #3, Yellow
................................. 61454-4................. Injector Assy, #4, Green
................................. 61454-5................. Injector Assy, #5, Gray
14................. 1......... 40945 .................... Clip, Drain Retaining
15................. 1......... 61959 .................... Injector Plug, w/O-rings
16................. 1......... 43719 .................... Screen, Injector 5810/5812
17................. 1......... 40946 .................... Clip, Brine Retaining
18................. 1......... 61983-01............... Valve Body Assy, 5810*
................................. 61983-02............... Valve Body Assy, 5810, Mixing*
................................. 61983-03............... Valve Body Assy, 5810, AIO*
19................. 1......... 61919 .................... Meter Assy, 1-1/4", 5810/5812
20................. 1......... 19054 .................... O-ring, -124
21................. 1......... 40538 .................... Retainer, 32mm, O-ring Dist, 7000
22................. 1......... 19877 .................... O-ring, -027
23................. 1......... 43726 .................... Retainer, 1" Dist Tube, O-ring
24................. 1......... 61419 .................... Kit, 1.05" Distributor Adapter
25................. 1......... 61455-00............... DLFC 3/4", Blank
.......... 61455-17............... DLFC 3/4", 1.7 gpm
.......... 61455-20............... DLFC 3/4", 2.0 gpm
.......... 61455-24............... DLFC 3/4", 2.4 gpm
.......... 61455-30............... DLFC 3/4", 3.0 gpm
.......... 61455-35............... DLFC 3/4", 3.5 gpm
.......... 61455-40............... DLFC 3/4", 4.0 gpm
.......... 61455-45............... DLFC 3/4", 4.5 gpm
.......... 61455-50............... DLFC 3/4", 5.0 gpm
.......... 61455-60............... DLFC 3/4", 6.0 gpm
.......... 61455-70............... DLFC 3/4", 7.0 gpm
26............................. 61456-00............... DLFC 1", Blank
.......... 61456-8.0.............. DLFC 1", 8.0 gpm
.......... 61456-9.0.............. DLFC 1", 9.0 gpm
.......... 61456-10............... DLFC 1", 10.0 gpm
.......... 61456-12............... DLFC 1", 12.0 gpm
.......... 61456-15............... DLFC 1", 15.0 gpm
.......... 61456-20............... DLFC 1", 20.0 gpm
.......... 61456-25............... DLFC 1", 25.0 gpm
.......... 61456-30............... DLFC 1", 30.0 gpm
* Includes items 20, 21, 22, 23, and 24. Each valve body is
packaged with distributor adapter kits for 32 mm (items 20 and
21), 1" (items 22 and 23), and 1.05" (item 24) distributors.
NOTE: Install injector in hole "DF" and plug in hole "UF"
for downflow units. In upflow units the injector plug
and injector assembly are installed in reverse holes.
In filter units, both injector holes are plugged with
61959. See illustration below.
DF
UF
16 • FLECK 5810 & 5812 SXT Upflow/Downflow

5812 CONTROL VALVE ASSEMBLY
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
10
18
19
20
23
24
25
26
27
21
22
*** See NOTE below.
11
13
27
26
L1487216 REV A
Item No. QTY Part No. Description
1.................1........ 61961 .................Kit, Mounting, 5810/5812
2.................1........ 61956-01............Kit, Piston, Seal, and Spacer,
5810/5812, Downflow
............................ 61956-02............Kit, Piston, Seal, and Spacer,
5810/5812, Upflow
............................ 61956-03............Kit, Piston, Seal, and Spacer,
5810/5812, Filter
3.................1........ 19791-01............Assy, Meter Cable
4.................1........ 60016 .................Brine Valve, 7000
5.................1........ 40947 .................Plug, Brine Valve
6.................1........ 13302 .................O-ring, -014
7.................1........ 61450-00............BLFC Assy 3/8", Blank
............................ 61450-12............BLFC Assy 3/8", .12 GPM
............................ 61450-25............BLFC Assy 3/8", .25 GPM
............................ 61450-50............BLFC Assy 3/8", .50 GPM
............................ 61450-100..........BLFC Assy 3/8", 1.0 GPM
8.................1........ 61451-00............BLFC Assy 1/2", Blank
............................ 61451-12............BLFC Assy 1/2", .12 GPM
............................ 61451-25............BLFC Assy 1/2", .25 GPM
............................ 61451-50............BLFC Assy 1/2", .50 GPM
............................ 61451-100..........BLFC Assy 1/2", 1.0 GPM
9.................1........ 41056 .................Nut Assy, 1/2"
10...............2........ 40576 .................Clip, H, Plastic
11...............1........ 61923-20............Cap, Regulated Injector, 20 PSI
............................ 61923-30............Cap, Regulated Injector, 30 PSI
12...............1........ 61454-00............Injector Assy, #00, Violet
............................ 61454-0..............Injector Assy, #0, Red
............................ 61454-1..............Injector Assy, #1, White
............................ 61454-2..............Injector Assy, #2, Blue
............................ 61454-3..............Injector Assy, #3, Yellow
............................ 61454-4..............Injector Assy, #4, Green
............................ 61454-5..............Injector Assy, #5, Gray
13...............2........ 61959 .................Injector Plug, w/O-rings
14...............1........ 43719 .................Screen, Injector 5810/5812
15...............1........ 40946 .................Clip, Brine Retaining
16...............1........ 61984-01............Valve Body Assy, 5812, 2-1/2"
Base*
............................ 61984-11............Valve Body Assy, 5812, 4" Base**
............................ 61984-02............Valve Body Assy, 5812, 2-1/2"
Base, Mixing*
............................ 61984-12............Valve Body Assy, 5812, 4" Base,
Mixing**
17...............1........ 43596 .................Clip, Drain Retaining
18...............1........ 61919 .................Meter Assy, 1-1/4", 5810/5812
19...............1........ 19877 .................O-ring, -027
20...............1........ 40538 .................Retainer, 32mm, O-ring Dist,
7000
21...............1........ 19054 .................O-ring, -124
22...............1........ 43726 .................Retainer, 1" Dist Tube, O-ring
23...............1........ 61419 .................Kit, 1.05" Distributor Adapter
24...............1........ 13577-01............O-ring, -226, 560CD
25...............1........ 41747 .................Retainer, Distributor, 1.5"
26...............2........ 61958 .................Injector Cap Assy, w/O-ring
27...............2........ 1000269 .............Cap Assembly, Blank
* Includes items 19, 20, 21, 22, and 23. Each valve body is
installed with adapters for a 2.5" tank base and packaged with
distributor adapter kits for 32 mm (items 19 and 20), 1" (items
21 and 22), and 1.05" (item 23) distributors.
** Includes items 24 and 25. Each valve body is installed with
adapters for a 4" tank base and packaged with distributor
adapter kits for 1.5" distributors (items 24 and 25).
***See "5812 DRAIN LINE FLOW CONTROLS" on page 18.
NOTE: Install injector in hole "DF" and plug in hole "UF" for
downflow units. In upflow units the plug and injector
are installed in reverse holes. In filter units, both
injector holes are plugged with 61959. See illustration
below.
NOTE: Install plug in hole "A" for units that allow hard
water to flow during regeneration. For no hard water
bypass (downflow only), install plug in hole "B". See
illustration below.
DF
UF
A
B
FLECK 5810 & 5812 SXT Upflow/Downflow • 17

5812 DRAIN LINE FLOW CONTROLS
Item No. QTY Part No. Description
1................... 1......... 61971-00............... DLFC, 1", NPT, Blank, 5812
.......... 61971-1.7.............. DLFC, 1", NPT, 1.7 GPM, 5812
.......... 61971-2.0.............. DLFC, 1", NPT, 2.0 GPM, 5812
.......... 61971-2.4.............. DLFC, 1", NPT, 2.4 GPM, 5812
.......... 61971-3.0.............. DLFC, 1", NPT, 3.0 GPM, 5812
.......... 61971-3.5.............. DLFC, 1", NPT, 3.5 GPM, 5812
.......... 61971-4.0.............. DLFC, 1", NPT, 4.0 GPM, 5812
.......... 61971-4.5.............. DLFC, 1", NPT, 4.5 GPM, 5812
.......... 61971-5.0.............. DLFC, 1", NPT, 5.0 GPM, 5812
.......... 61971-6.0.............. DLFC, 1", NPT, 6.0 GPM, 5812
.......... 61971-7.0.............. DLFC, 1", NPT, 7.0 GPM, 5812
.......... 61972-8................. DLFC, 1", NPT, 8.0 GPM, 5812
.......... 61972-9................. DLFC, 1", NPT, 9.0 GPM, 5812
.......... 61972-10............... DLFC, 1", NPT, 10.0 GPM, 5812
.......... 61972-12............... DLFC, 1", NPT, 12.0 GPM, 5812
.......... 61972-15............... DLFC, 1", NPT, 15.0 GPM, 5812
.......... 61972-20............... DLFC, 1", NPT, 20.0 GPM, 5812
.......... 61972-25............... DLFC, 1", NPT, 25.0 GPM, 5812
.......... 61973-30............... DLFC, 1", NPT, 30.0 GPM, 5812
.......... 61973-35............... DLFC, 1", NPT, 35.0 GPM, 5812
.......... 61974-00............... DLFC, 1", BSP, Blank, 5812
.......... 61974-1.7.............. DLFC, 1", BSP, 1.7 GPM, 5812
.......... 61974-2.0.............. DLFC, 1", BSP, 2.0 GPM, 5812
.......... 61974-2.4.............. DLFC, 1", BSP, 2.4 GPM, 5812
.......... 61974-3.0.............. DLFC, 1", BSP, 3.0 GPM, 5812
.......... 61974-3.5.............. DLFC, 1", BSP, 3.5 GPM, 5812
.......... 61974-4.0.............. DLFC, 1", BSP, 4.0 GPM, 5812
.......... 61974-4.5.............. DLFC, 1", BSP, 4.5 GPM, 5812
.......... 61974-5.0.............. DLFC, 1", BSP, 5.0 GPM, 5812
.......... 61974-6.0.............. DLFC, 1", BSP, 6.0 GPM, 5812
.......... 61974-7.0.............. DLFC, 1", BSP, 7.0 GPM, 5812
.......... 61975-8................. DLFC, 1", BSP, 8.0 GPM, 5812
.......... 61975-9................. DLFC, 1", BSP, 9.0 GPM, 5812
.......... 61975-10............... DLFC, 1", BSP, 10.0 GPM, 5812
.......... 61975-12............... DLFC, 1", BSP, 12.0 GPM, 5812
.......... 61975-15............... DLFC, 1", BSP, 15.0 GPM, 5812
.......... 61975-20............... DLFC, 1", BSP, 20.0 GPM, 5812
.......... 61975-25............... DLFC, 1", BSP, 25.0 GPM, 5812
.......... 61976-30............... DLFC, 1", BSP, 30.0 GPM, 5812
.......... 61976-35............... DLFC, 1", BSP, 35.0 GPM, 5812
2............................... 61977-00............... DLFC, 1.25", NPT, Blank, 5812
.......... 61977-1.7.............. DLFC, 1.25", NPT, 1.7 GPM, 5812
.......... 61977-2.0.............. DLFC, 1.25", NPT, 2.0 GPM, 5812
.......... 61977-2.4.............. DLFC, 1.25", NPT, 2.4 GPM, 5812
.......... 61977-3.0.............. DLFC, 1.25", NPT, 3.0 GPM, 5812
.......... 61977-3.5.............. DLFC, 1.25", NPT, 3.5 GPM, 5812
.......... 61977-4.0.............. DLFC, 1.25", NPT, 4.0 GPM, 5812
.......... 61977-5.0.............. DLFC, 1.25", NPT, 5.0 GPM, 5812
.......... 61977-6.0.............. DLFC, 1.25", NPT, 6.0 GPM, 5812
.......... 61977-7.0.............. DLFC, 1.25", NPT, 7.0 GPM, 5812
.......... 61978-8................. DLFC, 1.25", NPT, 8.0 GPM, 5812
.......... 61978-9................. DLFC, 1.25", NPT, 9.0 GPM, 5812
.......... 61978-10............... DLFC, 1.25", NPT, 10.0 GPM, 5812
.......... 61978-12............... DLFC, 1.25", NPT, 12.0 GPM, 5812
.......... 61978-15............... DLFC, 1.25", NPT, 15.0 GPM, 5812
.......... 61978-20............... DLFC, 1.25", NPT, 20.0 GPM, 5812
.......... 61978-25............... DLFC, 1.25", NPT, 25.0 GPM, 5812
.......... 61979-30............... DLFC, 1.25", NPT, 30.0 GPM, 5812
.......... 61979-35............... DLFC, 1.25", NPT, 35.0 GPM, 5812
.......... 61979-40............... DLFC, 1.25", NPT, 40.0 GPM, 5812
.......... 61979-45............... DLFC, 1.25", NPT, 45.0 GPM, 5812
.......... 61980-00............... DLFC, 1.25", BSP, Blank, 5812
.......... 61980-1.7.............. DLFC, 1.25", BSP, 1.7 GPM, 5812
.......... 61980-2.0.............. DLFC, 1.25", BSP, 2.0 GPM, 5812
.......... 61980-2.4.............. DLFC, 1.25", BSP, 2.4 GPM, 5812
.......... 61980-3.0.............. DLFC, 1.25", BSP, 3.0 GPM, 5812
.......... 61980-3.5.............. DLFC, 1.25", BSP, 3.5 GPM, 5812
.......... 61980-4.0.............. DLFC, 1.25", BSP, 4.0 GPM, 5812
.......... 61980-5.0.............. DLFC, 1.25", BSP, 5.0 GPM, 5812
.......... 61980-6.0.............. DLFC, 1.25", BSP, 6.0 GPM, 5812
.......... 61980-7.0.............. DLFC, 1.25", BSP, 7.0 GPM, 5812
.......... 61981-8................. DLFC, 1.25", BSP, 8.0 GPM, 5812
.......... 61981-9................. DLFC, 1.25", BSP, 9.0 GPM, 5812
.......... 61981-10............... DLFC, 1.25", BSP, 10.0 GPM, 5812
.......... 61981-12............... DLFC, 1.25", BSP, 12.0 GPM, 5812
.......... 61981-15............... DLFC, 1.25", BSP, 15.0 GPM, 5812
.......... 61981-20............... DLFC, 1.25", BSP, 20.0 GPM, 5812
.......... 61981-25............... DLFC, 1.25", BSP, 25.0 GPM, 5812
.......... 61982-30............... DLFC, 1.25", BSP, 30.0 GPM, 5812
.......... 61982-35............... DLFC, 1.25", BSP, 35.0 GPM 5812
.......... 61982-40............... DLFC, 1.25", BSP, 40.0 GPM, 5812
.......... 61982-45............... DLFC, 1.25", BSP, 45.0 GPM, 5812
Item No. QTY Part No. Description
12
18 • FLECK 5810 & 5812 SXT Upflow/Downflow

BYPASS ASSEMBLY
Item No. QTY Part No. Description
1.................1........ 43644 .................Bypass Assembly, 1.25", 5810/12
Not Shown:
1........ 61991 .................Connector Assy
1........ 61991-01............Connector Assy, 1" NPT
1........ 61991-02............Connector Assy, 1" BSP
1........ 61991-03............Connector Assy, 1-1/4" NPT
1........ 61991-04............Connector Assy, 1-1/4" BSP
1........ 61991-05............Connector Assy, 3/4" -1" Sweat
1........ 61991-06............Connector Assy, 1" - 1-1/4"
Sweat
1........ 61991-07............Connector Assy, 1-1/4" - 1-1/2"
Sweat
1........ 61992 .................Connector Elbow Assy
NOTE: Each connector assembly contains two connectors,
two O-rings, two retainer rings, and two connector
nuts.
43644 REV A
1
FLECK 5810 & 5812 SXT Upflow/Downflow • 19

SAFETY BRINE VALVE
Item No. QTY Part No. Description
1.................1........ 19645 .................Body, Safety Brine Valve, 2310
2.................1........ 19803 .................Safety Brine Valve Assy
3.................1........ 19804 .................Screw, Sckt Hd, Set, 10-24 x 0.75
4.................1........ 19805 .................Nut, Hex, 10-24, Nylon Black
5.................1........ 19652-01............Poppet Assy, SBV w/O-ring
6.................1........ 19649 .................Flow Dispenser
7.................1........ 11183 .................O-ring, -017
8.................1........ 19647 .................Elbow, Safety Brine Valve
9.................2........ 19625 .................Nut Assy, 3/8" Plastic
10...............1........ 18312 .................Retainer, Drain
11...............1........ 60014 .................Safety Brine Valve Assy, 2310
12...............2........ 10150 .................Grommet, 0.30 Dia
13...............1........ 60068-10.5.........Float Assy, 2310, w/10.5" Rod
......... 60068-11.5.........Float Assy, 2310, w/11.5" Rod
......... 60068-20............Float Assy, 2310, w/20" Rod
......... 60068-30............Float Assy, 2310, w/30" Rod
14...............1........ 60002-11.38.......Air Check, #500, 11.38" Long
......... 60002-27............Air Check, #500, 27" Long
......... 60002-32............Air Check, #500, 32" Long
......... 60002-34............Air Check, #500, 34" Long
......... 60002-36............Air Check, #500, 36" Long
......... 60002-48............Air Check, #500, 48" Long
......... 60002-26.25.......Air Check, #500, 26.25" Long
......... 60002-33.25.......Air Check, #500, 33.25" Long
9
8
6
5
1
10
3
4
9
2
7
42112 Rev A
11
11
13
14
12
20 • FLECK 5810 & 5812 SXT Upflow/Downflow
