Elkay EZFMK User manual

Page 1 2000000888 (Rev. A - 04/23)
EZFMK
INSTALLATION MANUAL
To insure you install this Kit easily and correctly, PLEASE READ THESE
SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK
YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND
OTHER APPLICABLE CODES.
IMPORTANT
THIS IS AN INDOOR APPLICATION ONLY. ALL SERVICE TO BE
PERFORMED BY AN AUTHORIZED SERVICE PERSON.
IMPORTANT! INSTALLER PLEASE NOTE.
INSTALLER
TOOLS REQUIRED
BUT NOT PROVIDED:
GLOVES
SAFETY GLASSES
5/16 NUT DRIVER (HIGHLY RECOMMENDED)
OR FLAT HEAD SCREWDRIVER
EZ FILTER MAINTENANCE KIT

Page 2
EZFMK
2000000888 (Rev. A - 04/23)
SPACE RECOMMENDATION: AT LEAST 36”
(
915MM
)
O
F
S
PA
C
E
O
N LEFT
S
IDE
O
F DRINKIN
G
WATER
U
NIT
IS
RE
CO
MMENDED T
O
CO
NDU
C
T FILTER REPLA
C
EMENT
COMPATIBLE ON
SINGLE-LEVEL
EZ COOLERS ONLY
WALL
EZFMK Rough in

Page 3 2000000888 (Rev. A - 04/23)
EZFMK

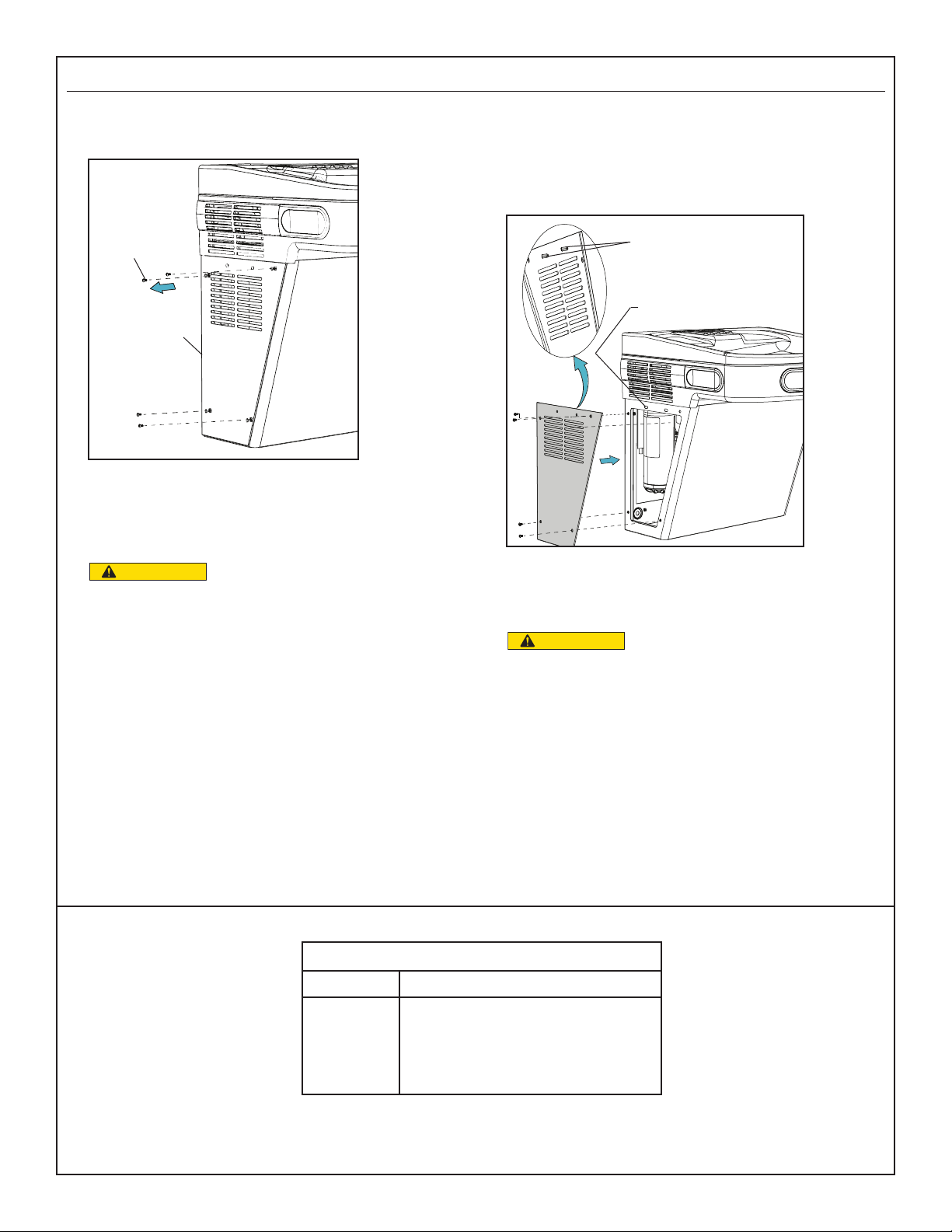

1. Installation Procedure
1. Remove existing lower wrapper on the cooler by
removing the (4) screws using a 5/16 nut driver.
2. If you are replacing the lter, do that now with the
lower wrapper removed. Refer to the Filter
Replacement Instructions in Section 2, Step 3 or
instruction sheet included with the replacement lter. If
not, skip to the next step.
3. Unpack new side access wrapper from the box, peel
o󰀨 protective wrap and install it using the (4) supplied
screws.
CAUTION Do not operate unit with access
panel removed.
Note: While the side access wrapper is being
secured, verify the upper profile (left, front, and
right side) of the wrapper frame slides up and
under the plastic basin shroud assembly for a
tight fit (as shown).
4. Dispose of old lower wrapper. It can be brought to
a scrap metal recycler. Please check with your local
waste hauler prior to placing scrap metal into a
municipal recycling cart.
Side Access
Wrapper
Screw
Access
Panel
Lower
Wrapper
Screws
Plastic Basin
Shroud
Assembly
Side Access Wrapper

Page 4
EZFMK
2000000888 (Rev. A - 04/23)
2. Future Filter Replacement Steps (Side Access)
1. Remove (4) security Torx screws using Torx T25 bit
(included).
2. Remove side access panel and set it aside.
3. Refer to the following lter replacement steps.
CAUTION To avoid danger of an electric
shock hazard, disconnect power
to your unit before replacing the lter.
●Turn o󰀨 water supply; dispense water to relieve
pressure.
●Turn used lter counterclockwise 1/4 turn to remove
from lter head.
●Remove cap from new lter and use to seal used
lter.
●Write the date of lter installation on the label.
Insert new lter into exiting lter head and turn fully
clockwise so the label with date is clearly visible.
●Turn on water supply and run water for 10 minutes
to purge air and ne carbon particles from lter.
●Reset the lter monitor, if necessary. See the Use
Manual of the dispenser for instructions.
4. Take the side access panel and place it back on
opening of the side access wrapper. Align the access
panel by inserting the alignment pins on the back side
of the panel into the alignment slots above wrapper
frame opening (as shown).
5. Once the access panel is set in place, refasten the
(4) security Torx screws bits starting by hand and rmly
secure each screw in place.
CAUTION Do not operate unit with
access panel removed.
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
PRINTED IN U.S.A.
ELKAY MANUFACTURING COMPANY • 1333 BUTTERFIELD ROAD SUITE 200 DOWNERS GROVE, IL 60515 • 630.574.8484 • www.elkay.com
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
Alignment Pins
Alignment Slots
Torx Screw
Replacement Parts
Part Number Description
2000000859 Wrapper Frame Assembly
Bit - Pinned Torx T-25
Replacement Filter - 3000 Gallons
2000000853
75520C
51300C
Kit - Replacement Filter Access Door
W/Hardware
Access
Panel
