Instruction manual –English
SAFETY INSTRUCTIONS
Before use make sure to read all of the below instructions in
order to avoid injury or damage, and to get the best results
from the appliance. Make sure to keep this manual in a safe
place. If you give or transfer this appliance to someone else
make sure to also include this manual.
In case of damage caused by user failing to follow the
instructions in this manual the warranty will be void. The
manufacturer/importer accepts no liability for damages
caused by failure to follow the manual, a negligent use or
use not in accordance with the requirements of this manual.
1. Read and save these instructions. Attention: pictures in
the instructions are for reference only.
2. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by
children without supervision.
5. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
6. Indoor use only.
7. Do not use the unit in an area: near to source of fire;
where oil is likely to splash; exposed to direct sunlight;
where water is likely to splash; near a bath, a laundry, a
shower or a swimming pool.
8. Never insert your fingers, rods into the air outlet. Take
special care to warn children of these dangers.
9. Before cleaning or moving the appliance, always turn off
and disconnect the power supply.

- 3 -
10. Do not pull, deform or modify the power supply cord, or
immerse it in water. Pulling or misuse of the power
supply cord can result in damage to the unit and cause
electrical shock.
11. Servicing shall only be performed as recommended by
the equipment manufacturer. Maintenance and repair
requiring the assistance of other skilled personnel shall
be carried out under the supervision of the person
competent in the use of flammable refrigerants.
12. Do not operate or stop the unit by inserting or pulling out
power plug, it may cause electric shock or fire due to
heat generation.
13. Unplug the unit if strange sounds, smell, or smoke comes
from it.
14. Always plug the appliance into an earthed plug socket.
15. In case of any damage, please turn off the switch,
disconnect the power supply, and contact an authorized
service center for repair.
16. Do not use means to accelerate the defrosting process or
to clean, other than those recommended by the
manufacturer.
17. The appliance shall be stored in a room without
continuously operating ignition sources (for example:
open flames, an operating gas appliance or an operating
electric heater.)
18. This appliance contains R290 refrigerant gas. R290 is a
refrigerant gas that complies with the European
directives on the environment. Do not puncture any part
of the refrigerant circuit.
19. If the appliance is operated or stored in an unventilated
area, the room must be designed to prevent to the
accumulation of refrigerant leaks resulting in a risk of fire
or explosion due to ignition of the refrigerant caused by
electric heaters, stoves, or other sources of ignition.

- 4 -
20. Individuals who operate or work on the refrigerant circuit
must have the appropriate certification issued by an
accredited organization that ensures competence in
handling refrigerants according to a specific evaluation
recognized by associations in the industry.
21. Repairs must be performed based on the
recommendation from the manufacturing company.
Maintenance and repairs that require the assistance of
other qualified personnel must be performed under the
supervision of an individual specified in the use of
flammable refrigerants.
22. Regarding the instructions for repairing appliances
containing R290, please kindly refer to below paragraphs.
23. Always let the appliance rest for at least 2 hours after
moving it from one location to another.
Warning: Risk of fire / Flammable materials.
Read instruction manuals.
Operator’s manual; operating instructions.
Service indicator; read technical manual.
Warning: Keep ventilation openings clear of obstruction.
Warning: The appliance shall be stored in a well-ventilated
area where the room size corresponds to the room area as
specified for operation.
The required distance around the unit should be at least
20cm.
Appliance shall be operated and stored in a room with a
floor area larger than 13 m2.

- 5 -
Precautions
1. Before the first use, please turn on the power supply,
press the power button, and connect the machine with
the water tap with the self-contained Water inlet / outlet
hose according to the voice prompt.
2. When cooling, the highest water temperature is 40℃, and
the lowest water temperature is -6 ℃. The highest
working pressure of the water cycle is 0.03MPa, and the
lowest working pressure is 0.005MPa. The maximum
water inlet pressure is 0.2-0.6MPa. When heating, the
highest water temperature is 30℃, and the lowest water
temperature is -6℃.
3. Since it is an energy storage heat pump type mobile air
conditioner, this machine can be used without installation.
Before cooling operation or heating operation, please
complete cold storage or heat storage in advance. In
order to get longer time of cooling operation or heating
operation, please store cold energy or heat energy as
much as possible.
4. Move slowly to avoid collision or toppling.
5. Please do not stack things at the air inlet / outlet of the
machine. There shall be a space of at least 200mm
between the air inlet / outlet and surrounding objects,
and keep the air inlet / outlet unobstructed to avoid
affecting the air exchange of the air inlet / outlet of the
machine.
6. When cleaning and maintaining the machine, please use
soft cloth to wipe the machine. Do not use wax, diluent or
irritant detergent.
7. Please clean the filter frequently. It is recommended to
clean it every two weeks.
8. If you do not use the machine for a long time, please
unplug the power plug and drain the water in the water
tank.
9. Do not disassemble or repair the machine without
professional maintenance personnel.

- 6 -
10. When the water temperature is 18 degrees or below,
please do not inflow or drain water. (The water tank
temperature will be shown on the digital display under
cold storage or heat storage function, and on the App
control interface.)
Special Remind
1. During cold storage, please open doors and windows for
ventilation.
2. After switching the mode, the compressor may enter the
protection state. You must wait for 3 minutes before the
compressor can operate normally.
3. When the compressor starts, there is a little noise of
two-phase flow. After the compressor starts, the noise of
two-phase flow will disappear.
4. After the completion of drainage, screw off the inlet /
outlet pipe and take it off the machine. Otherwise,
siphonage will occur. Even if the drainage has stopped,
water will flow out of the machine.
5. Even if the drainage function of the machine is used to
drain the water in the tank, the water cannot be
completely drained. Therefore, when moving, carrying
and storing, the machine body should be upright and not
be dumped. In case of toppling, do not start the power
supply immediately, it should be placed for a period of
time, and start the power supply after the water is
completely evaporated.
6. Users should pay attention to the temperature of the
water in the water tank when draining water. Water in
tank should be drained at the temperature above 18℃. If
it is lower than 18℃, please use the heat storage function
to increase the water temperature before draining.
Otherwise, the ice in water tank may cause drainage
failure, or water cannot be emptied completely.

- 7 -
PAC-127560 EN

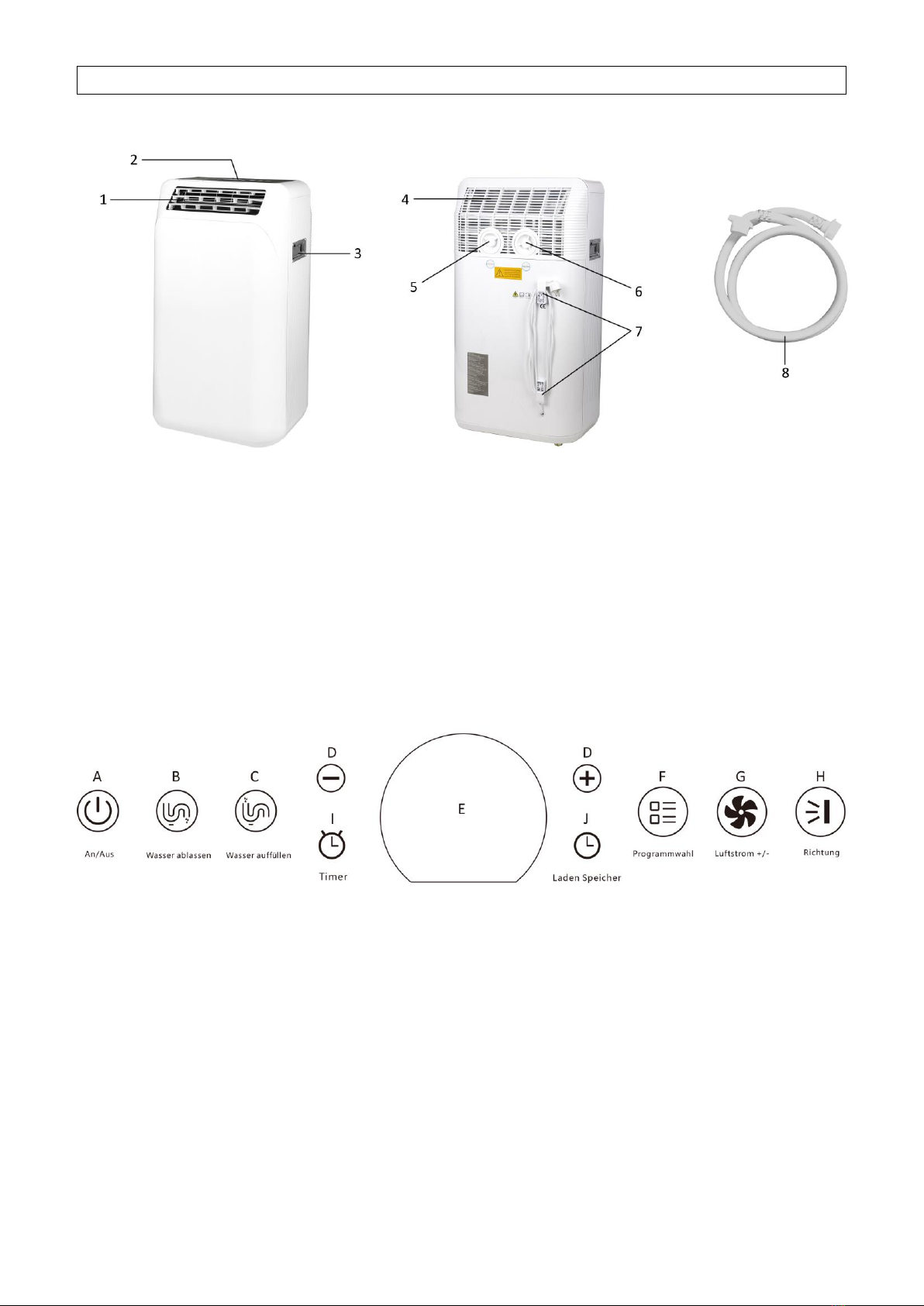

PARTS DESCRIPTION
1. Air outlet with adjustable swing blade
2. Control panel
3. Handle (on both sides)
4. Air inlet
5. Water inlet and knob
6. Water outlet and knob
7. Cord storage
8. Water inlet / outlet hose
Note: please check the separate leaflet for the water connectors.
Control panel
A. Power button
Press this button to switch on/off the appliance.
B. Drainage button
Press this button to start water drainage function.
C. Inflow button
Press this button to start water inflow function.
D. + / - buttons
In cold storage, cooling, strong cooling, heat storage or heating mode, press the buttons to increase or
decrease the setting temperature (Each press adjusts 1 degree).
For timer and preset functions, press the buttons to increase or decrease the setting time (Each press
adjusts 1 hour.)

- 8 -
E. Digital display
1. Wi-Fi indicator
2. Low temperature
3. High temperature
4. Cold storage
5. Lack water
6. Water full
7. Heat storage
8. Cooling mode
9. Strong cooling mode
10. Dehumidification mode
11. Heating mode
12. Ventilation mode
13. Timer
14. Cold storage preset
15. Heat storage preset
16. Energy indicator (energy bar)
17. Water inflow function
18. Water drainage function
19. Low / mid / high wind speed
20. Automatic wind speed
21. Swing function
22. Temperature/timer display
F. Mode button
Press this button to select the mode: Cold storage, cooling mode, strong cooling mode, dehumidification
mode, heat storage, heating mode and ventilation mode.
G. Wind speed button
Press this button to select the wind speed: low / mid / high / automatic.
H. Swing button
Press this button to select up-down swing or stop swing.
I. Timer button
When the machine is running under cooling, strong cooling, dehumidification, heating or ventilation
mode, press this button to set the end time of the mode. When the machine is just powered on, press
this button to set the start time and end time of the mode.
J. Preset button
Press this button to preset hours before the unit will be used, and this unit will store the energy (cold
storage / heat storage) automatically during this period.

- 9 -
USE
This machine adopts a unique energy storage system. Please complete cold storage or heat storage in
advance before setting the cooling mode / strong cooling mode or heating mode.
1. Connect the power supply
1) For the first use, please connect the power supply and then refer to step 2 of “Water inflow”.
2) When it is not used for the first time or there is water in the water tank, please insert the power plug
into the power socket and press the power button on the control panel.
2. Water inflow
In case of water shortage alarm (no water in the water tank during the first use or water shortage during
use), please follow the steps below to feed water into the water tank inside the machine.
1) Remove the water inlet knob at the back of the appliance by rotating it anti-clockwisely.
2) Use the water inlet/outlet pipe to connect the machine with faucet. Press the water inflow button
and the faucet should be turned on at the same time.
3) When the water level reaches the specified height, the water inlet valve will automatically close to
complete the water inlet.
4) Remove the water inlet/outlet pipe and screw back the water inlet knob.
3. Cold storage
1) Press the mode button to select the cold storage function.
2) Press the button “+”or “-”to set the cold storage temperature. The lower the setting temperature is,
the greater the storage capacity is. Set the temperature range between -6℃and 5℃.
3) After the completion of cold storage, the unit will automatically enter the standby state.
Note:
•During cold storage, the wind is at high speed and the swing blade is at the maximum outlet angle. At
this time, the heat energy will be discharged. In a narrow space, please open the doors and windows
for ventilation.
•The actual temperature of water in the water tank is displayed during cold storage.
•The air inlet and air outlet shall not be covered.
4. Cooling
Once the cold storage is finished:
1) Press the mode button to select the cooling mode.
2) Press the button “+”or “-”to set the cooling temperature, between 16℃and 32℃.
3) Press the wind speed button to select the low / mid / high / automatic wind speed in 4 levels.
4) Press the swing button to turn on/off the swing function.
Note:
•It displays the room temperature during cooling.
•When the cooling capacity of the water in the water tank is used up (the water temperature reaches
40℃), the cooling shall be stopped, and the water can only be used after the cold storage or the
high-temperature water in the water tank is replaced.
5. Strong cooling
This mode can be used when fast cooling is required.
1) Press the mode button to select the strong cooling mode.

- 10 -
2) Press the button “+”or “-”to set the strong cooling temperature, between 16℃and 32℃.
3) The wind speed is by default and cannot be adjusted.
4) Press the swing button to turn on/off the swing function.
Note:
•It displays the room temperature during strong cooling.
•When the cooling capacity of the water in the water tank is used up (the water temperature reaches
40 ℃), the cooling shall be stopped, and the water can only be used after the cold storage or the
high-temperature water in the water tank is replaced.
6. Heat storage
1) Press the mode button to select the heat storage function.
2) Press the button “+”or “-”to set the heat storage temperature, between 20℃and 30℃.
3) Once the digital display shows your set temperature, it means the heat storage completes.
Note:
•During heat storage, the air outlet fan is closed, and there is no air volume to blow out.
•The actual temperature of water in the water tank is displayed during heat storage.
7. Heating
Once the heat storage is finished:
1) Press the mode button to select the heating mode.
2) Press the button “+”or “-”to set the heating temperature, between 16℃and 32℃.
3) Press the wind speed button to select the low / mid / high / automatic wind speed in 4 levels.
4) Press the swing button to turn on/off the swing function.
Note:
•It displays the room temperature during heating.
•The air inlet and air outlet shall not be covered.
8. Dehumidification
1) Press the mode button to select the dehumidification mode.
2) Press the swing button to turn on/off the swing function.
Note:
•It displays the room temperature during dehumidification.
9. Ventilation
1) Press the mode button to select the ventilation mode.
2) Press the wind speed button to select the low / mid / high wind speed in 3 levels.
3) Press the swing button to turn on/off the swing function.
Note:
•It displays the room temperature during ventilation.
10. Timing
-Set the end time when the appliance is running under cooling, strong cooling, dehumidification,
heating or ventilation mode:

- 11 -
1) Press the timer button.
2) Press the button “+”or “-”to set the end time.
3) Press the timer button again for confirmation.
-Set the start time and end time when the appliance is just powered on, not running under cooling,
strong cooling, dehumidification, heating or ventilation mode:
1) Press the power button to turn on the appliance and then press the timer button.
2) Follow the voice prompt to press the mode button to select your desired mode: cooling, strong
cooling, dehumidification, heating or ventilation.
3) Press the timer button for confirmation.
4) Press the button “+”or “-”to set the start time and then press the timer button for confirmation.
5) Press the button “+”or “-”to set the end time and then press the timer button for confirmation.
For example:
We set the start time “1”and end time “2”at 9 a.m.
The appliance will then start at 10 a.m. and stop at 12 a.m.
Note:
•At the end of the timer setting, there shall be a voice prompt.
•Once the timer is set, the mode cannot be changed. If you want to change the mode, please press the
power button to turn off and restart.
11. Preset
-Preset setting:
1) Press the preset button to enter the preset mode, and then select the cold storage preset or heat
storage preset.
2) Press the button “+”or “-”to select how many hours to use after the preset, and select the time
interval between 4 hours and 24 hours. After selecting the time, press the preset button again for
confirmation, and the voice prompts that the preset is completed.
-Preset cancellation method:
1) Press the preset button again, the previous preset will be cancelled, and a new preset can be
made at this time.
2) After the power is off, the preset will be cancelled automatically.
3) Press and hold the preset button for more than 3 seconds to cancel the preset.
Note:
A few hours before the preset, the machine starts cold storage or heat storage. After the end of cold
storage or heat storage, it will automatically enter the standby state.
Other operations cannot be carried out after the preset. If users need to do other operations, please
cancel the preset first.
When using preset for cooling function, please make sure the windows are open for ventilation.
12. Child lock
1) Press and hold the button “+”and “-”at the same time for 3 seconds to turn on the child lock
function. All the buttons will be locked and cannot be operated.
2) Press and hold the button “+”and “-”at the same time for 3 seconds again to turn off the child lock
function or unplug the power plug directly.

- 12 -
13. Drainage
In case of full water alarm and users need to drain the water to the working level or drain the water in the
water tank, please follow the steps below to drain the water in the internal water tank of the machine.
1) Unscrew the water outlet knob at the back of the appliance, tighten one end of the Water inlet /
outlet hose to the drain hole, and connect the other end to the water collecting container or floor
drain.
2) Insert the power plug into the power socket and press the power button on the control panel.
3) Press the drainage button, a voice prompt will be heard. Continue to press and hold the drainage
button for more than 3 seconds, the system will automatically start the water pump for drainage.
4) If the water level is above the working level, the drainage will stop when it reaches the working level.
If it is necessary to drain the water in the water tank, repeat step (3) to continue the drainage until it
is drained.
5) After the completion of drainage, the drainage pump will automatically shut down.
6) Remove the Water inlet / outlet hose and screw back the water outlet knob.
Important:
After switching the mode, the compressor may enter the protection state. You must wait for 3 minutes
before the compressor can operate normally.
Observe the energy bar to check the status of the remaining stored energy. If the energy bar runs out or
the low temperature indicator / high temperature indicator illuminate, please perform the heat storage /
cold storage.
Notice:
Once the room temperature reaches to the set temperature, the unit will automatically stop and restart
(according to the room temperature with a temperature difference of 2 degrees).
Wi-Fi CONNECTION GUIDE (The guide for the APP may not be updated regularly due to software version
upgrade or other reasons. This instruction is used as a guide only. Below mobile phone interface uses
English version in iOS as an example.):
1. Search “Tuya Smart” in App Store (for iOS) or Google play (for Android) to download the application.
2. Sign up or log in to your account on the APP. Tap the “+” at top right corner or button “Add Device” to add
your device. (Fig.1)
3. Find “Large home appliances”and tap the icon “Portable Air Conditioner (BLE+Wi-Fi)”. (Fig.2)
Press and hold the power button on the control panel of the machine for 5 seconds until the Wi-Fi
indicator flashes quickly.
4. Tap “Next” on Fig.3. Continue to tap “Blinking or breathing rapidly”on Fig.4.
You will get the prompt that asks you to use the 2.4 GHz Wi-Fi network. Note that the 5 GHz Wi-Fi is not
supported by this application. Enter your Wi-Fi password and tap “Next”. (Fig.5)
5. Wait until you get Fig.6 and then tap “Done” at the top right corner.
6. Now you can operate your device in the control interface. Tap buttons to set your appliance.

- 13 -
Fig.1 Fig.2 Fig.3
Fig.4 Fig.5 Fig.6

- 14 -

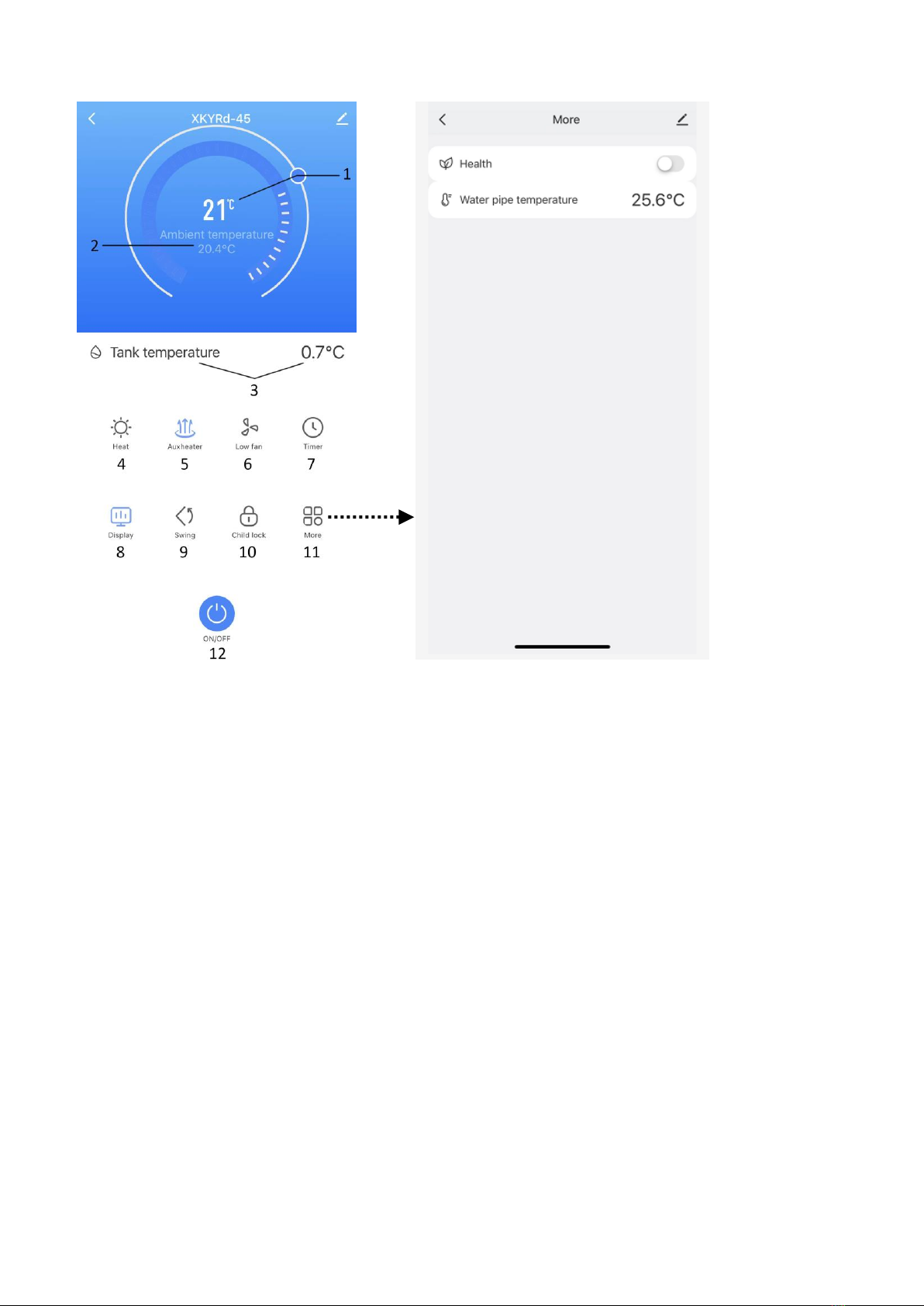

Control interface
1. Set temperature
2. Ambient temperature
3. Tank temperature
4. Mode selection
5. Auxheat (Only workable under heating mode.)
6. Fan speed selection
7. Timer function
8. Light on/off of the machine’s control panel
9. Swing function
10. Child lock
11. More functions (No reference value for this product model.)
12. Power button
Note:

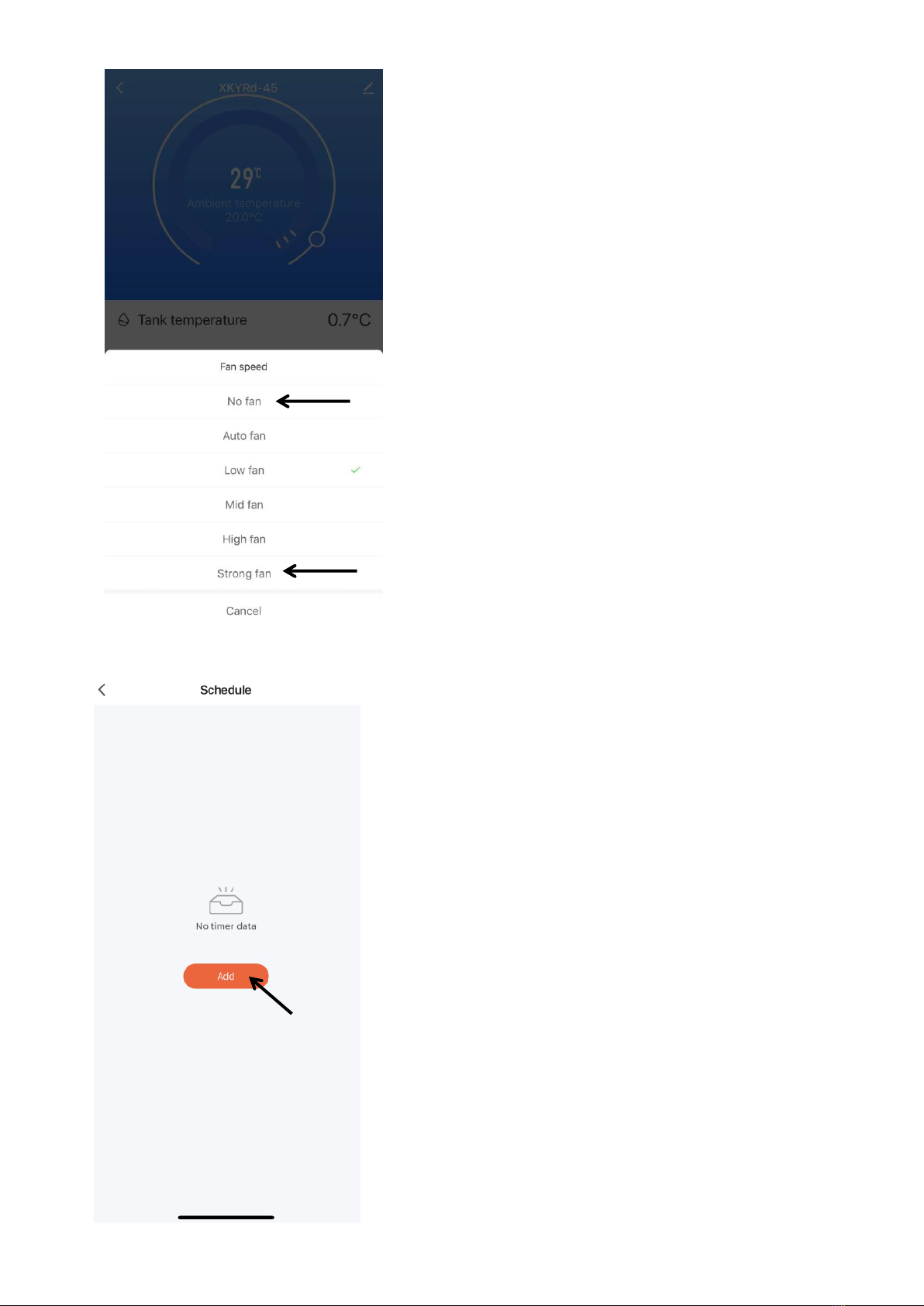

1. “No fan”and “Strong fan”options in the list of fan speed selection are set by the App default. They are
not valid for this machine.

- 15 -
2. No preset button in App. Users can set the start time and shutdown time for all modes including cold
storage and heat storage by adding schedules under timer function.

- 16 -
If you need to set a start time for a mode, make sure:
1) Select the start time;
2) Tap “ON/OFF”and choose “ON”;
3) Choose your desired mode;
4) Set other functions like temperature, swing function and wind speed.
5) Tap “Save”on the top right corner.
If you need to set a shutdown time for a mode, make sure:
1) Select the shutdown time;
2) Tap “ON/OFF”and choose “OFF”;
3) Choose your desired mode;
4) No need to set the temperature, wind speed or swing function.
5) Tap “Save”on the top right corner.
Make sure all settings are in the valid options / ranges (see section “USE”).
For example, the valid temperature range of the heating mode is 16℃to 32℃. However, the set
temperature list shows -6℃to 32℃in App. Remember to choose a temperature between 16℃
and 32℃if heating mode is selected.

- 17 -
CLEANING AND MAINTENANCE
Before cleaning, be sure to disconnect the appliance from any electric supply outlet.
Do not use gasoline or other chemicals to clean the appliance.
Do not wash the appliance directly. Do not let water splash into the machine. Wipe with a soft semi dry
cloth.

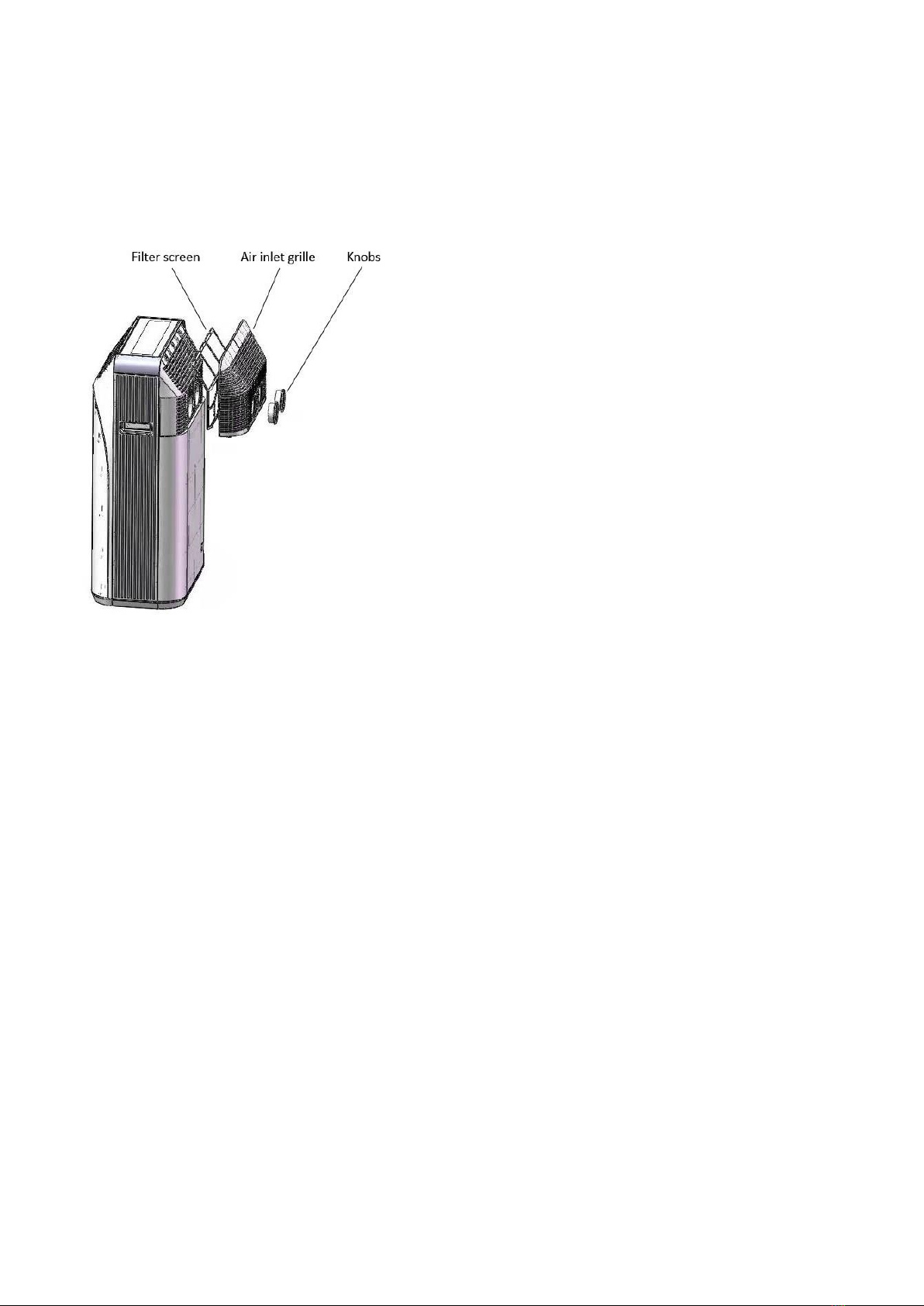

Filter screen cleaning:
Unscrew the two knobs of water inlet and water outlet from the rear side, then remove the rear air inlet grille,
and remove the filter screen from the rear air inlet grille for cleaning. Put the filter screen into clean water or
warm water (about 40℃) which has been added with neutral detergent, and then place it in dry air to dry
naturally, and then reinstall the filter screen.
Note:
1. Do not use water with too high temperature (suitable temperature is about 40℃) or irritant detergent
(such as alcohol, gasoline, benzene, etc.) to clean the filter screen.
2. In order to avoid the deformation of the filter screen, the cleaned filter screen should be kept away from
the heat source and put in the dry air to dry naturally.
3. It is recommended to clean the filter screen once every two weeks.
Replace the water in the water tank regularly
It is recommended to replace the water in the water tank through water outlet / water inlet at least every
quarter.
Seasonal maintenance
If you do not use the machine for a long time, please follow the steps below to maintain it:
1. Drain the water from the tank.
2. Clean and reinstall the filter screen.
3. Cover the machine with plastic bags and place it in a cool and dry place.
If it is not used for a long time, please pay attention to the following points when using it again:
1. Confirm whether there is water in the water tank or whether the water volume meets the requirements.
There will be a voice prompt when you start the machine. Please follow the prompt.
2. Check whether the power cord is in good condition. Do not use it if it is damaged.

- 18 -
COMMON FAULTS AND TROUBLESHOOTING
Intelligent Fault Detection
Fault Code
Code Meaning
Solution
E1
Water shortage of water
tank
Please connect the Water inlet / outlet hose and press
the inflow button to feed water.
E2
Water tank is full
Please connect the Water inlet / outlet hose and press
the drainage button to drain water.
Fault Maintenance
The following table lists the common faults and maintenance methods of this energy storage mobile air
conditioner. When the machine is abnormal, simple diagnosis and maintenance can be carried out through the
following table. If it still cannot be solved, please contact professional maintenance personnel.
Problem
Possible Reason
Solution
The appliance does not work
Power is not on.
Turn on the power.
Cooling and heating do not start.
Check whether the set
temperature has been reached.
No waiting for three minutes after
switching cooling / heating mode
or shutdown.
Wait for over three minutes.
Poor cooling (heating) effect of
the appliance
The doors and windows are open,
and there is a cold or heat leak in
the room. There are other heat
sources (cold sources).
Close the door or window and
remove the heat source (cold
source).
Filter screen is dirty.
Clean or replace the filter screen.
Air inlet or outlet blocked; poor air
circulation.
Remove blockage.
The appliance is noisy
The appliance is not put flat.
Put it on flat surface to avoid
waggling.
Compressor does not
work
Compressor delay protection is
enabled.
Wait for more than 3 minutes and
turn on the appliance after the
temperature drops.
In the cooling mode, when the
water temperature does not reach
the starting condition of the
compressor, the water cycle is
used for cooling, and the
compressor does not start at this
time.
When the water cycle cooling is
completed, the compressor will
be automatically started for
cooling.
In the dehumidification mode,
when the water temperature is
below 18℃，the compressor does
not work.
Once the water temperature is
above 18℃，the compressor will
start to work.
During cold storage, there is
condensate on the front and back
of the appliance.
When the air humidity is high and
the water vapor in the air is cold,
the dew will condense on the front
and back of the appliance.
It is not a fault; you can continue
to use the machine.

- 19 -
TECHNICAL DATA
Below data for your operating reference
Model：
PAC-127560
Cold storage quantity：
4.5kW.h
Storing cold consumes electricity:
0.9kW.h
Cooling capacity:
600～2500W
Heating capacity:
900～2500W
Circulating air volume:
360m3/h
Kind of electricity proof safety:
ClassⅠ
Rated voltage and frequency:
220-240V ~, 50Hz
Rated power input when cooling:
30～800W
Rated current input when cooling:
0.14～3.7A
Rated power input when heating (including aux.)
600～1400W
Rated current input when heating:
2.8～6.5A
Max. power input when cooling:
800W
Max. power input when heat pump working:
800W
Power input when heating energy storage:
1000W
Noise:
33/40/45dB(A)
Net wet (without water):
40kg
Refrigerant type and filling capacity:
R290, 0.245kg
Maximum operating pressure of heat exchanger:
2.1MPa
Exhaust side overpressure:
2MPa
Draw side overpressure:
1MPa
Temperature control range:
16～32℃
Use ambient temperature range:
5～38℃
Max. power input of the whole machine:
1400W
Max. transmitting power
15.3 dBm
Frequency range
2412 - 2472MHz
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred
during production or transportation, please return the device to your dealer. In addition to statutory legal
rights, the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a
defective product, you can directly go back to the point of purchase.
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs
by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,
without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction
manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.
Neither can we hold responsible for material damage or personal injury caused by improper use if the
instruction manual is not properly executed. Damage to accessories does not mean free replacement of the
whole appliance. In such case please contact our service department. Broken glass or breakage of plastic
parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning,
maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
