Section 1: Preface
Preface
Section 1: Preface
1.1 Purpose
Bettis Actuation Technologies is an Emerson Business Unit that specializes in the
manufacture of valve actuators and manual operators. Its manual actuation product range
consists of three series of valve operators as mentioned below:
• Quarter-turn worm gear operators for manual valve operation (AT Series)
• Quarter-turn worm gear operators for electrical actuation of valves (AT Series)
• Quarter-turn worm gear manual overrides for pneumatic/hydraulic operation of
valves (mor series)
The AT Series is a selection of quarter turn worm gear operators for manually operated
valve systems. The AT Series gear operator is used to operate the valve manually with the
help of a hand wheel.
The AT Series gearbox is used to operate either a buttery valve or a ball valve or a plug
valve or used in damper applications or any 90-degree device. The torque is transmitted
through the hand wheel and worm shaft which in turn drives the worm wheel thereby
multiplying the torque transmitted from worm shaft to the valve stem which is connected
to the worm wheel.
The purpose of this IOM manual is to help the user of this equipment on the following:
• Safety instructions
• Installation of AT Series Gearboxes
• Operation of AT Series Gearboxes
• Maintenance of AT Series Gearboxes
Safety notices in this manual highlight the precautions the user must take in order to
avoid personal injury and damage to the equipment. The user must read this manual
before attempting to install the equipment or operate or carry out maintenance of the
equipment. Failure to follow the instructions mentioned in this manual could result in
serious personal injury, equipment damage, operational difculty and voiding of the
warranty.
Emerson will not be responsible for any possible damage or physical injury resulting from
the use of their equipment other than the designed application or the lack of care taken
by the user during installation, operation or maintenance of the equipment. Such risks lie
entirely with the user.

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
2
Section 2: About the AT Series
About the AT Series
Section 2: About the AT Series
2.1 Introduction
The AT Series gear operators are quarter turn worm gearboxes which are used to operate
quarter turn valves like ball, buttery and plug valves or any other quarter turn device.
The AT Series gearbox has one valve mounting face on the bottom side (either plain face or
ribbed face depending on model) and the worm wheel of the gearbox has a bore to suit the
valve stem directly or suit the coupling between valve stem and gearbox. This is so because
the gearbox can be directly mounted onto the valve or it can be coupled with the valve
with the help of a bracket and coupling.
Please nd below different views of the AT Series gearbox highlighting its different parts as
well as instructions and warning plates.
2.2 The AT Series Operator

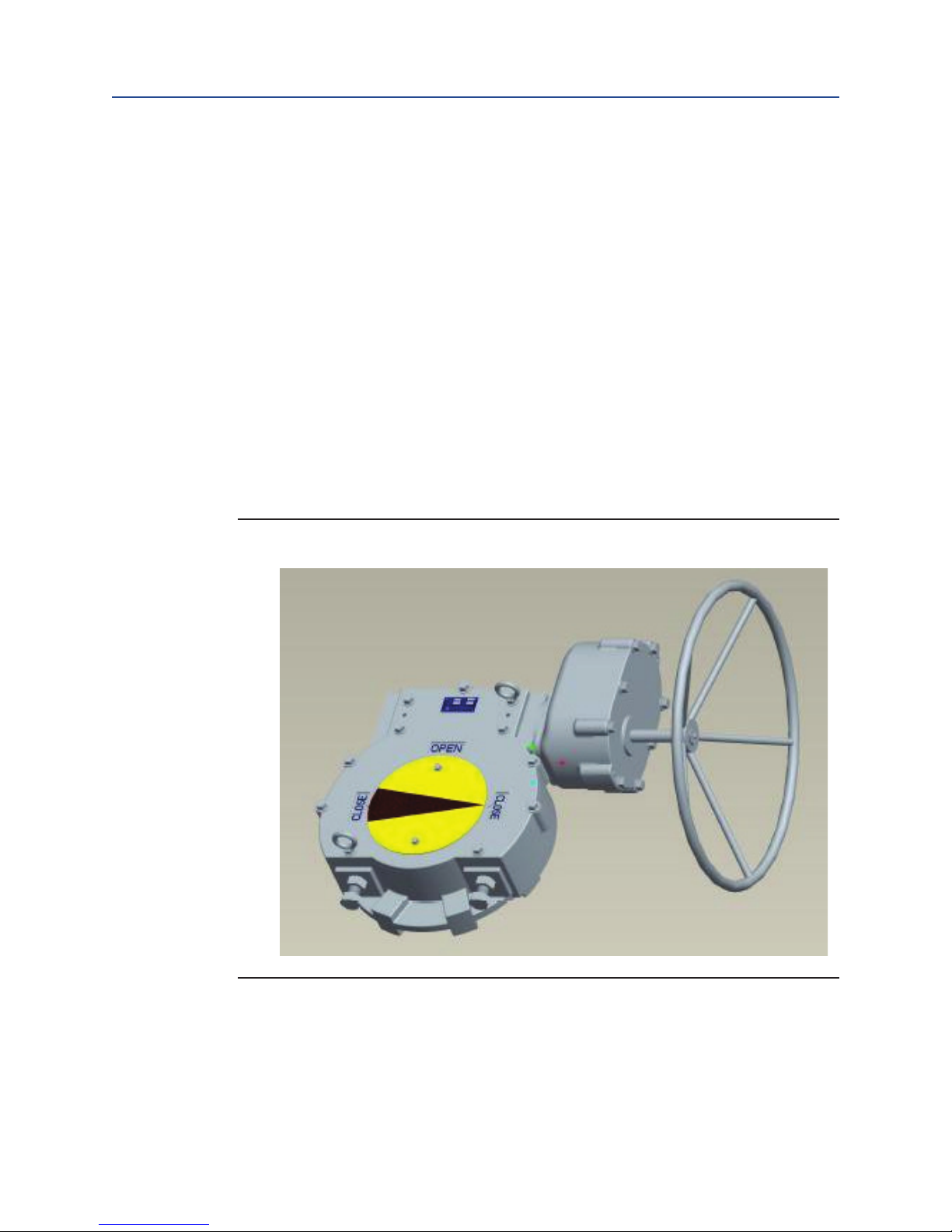

Figure 1 AT Series General View

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
3
Section 2: About the AT Series
About the AT Series

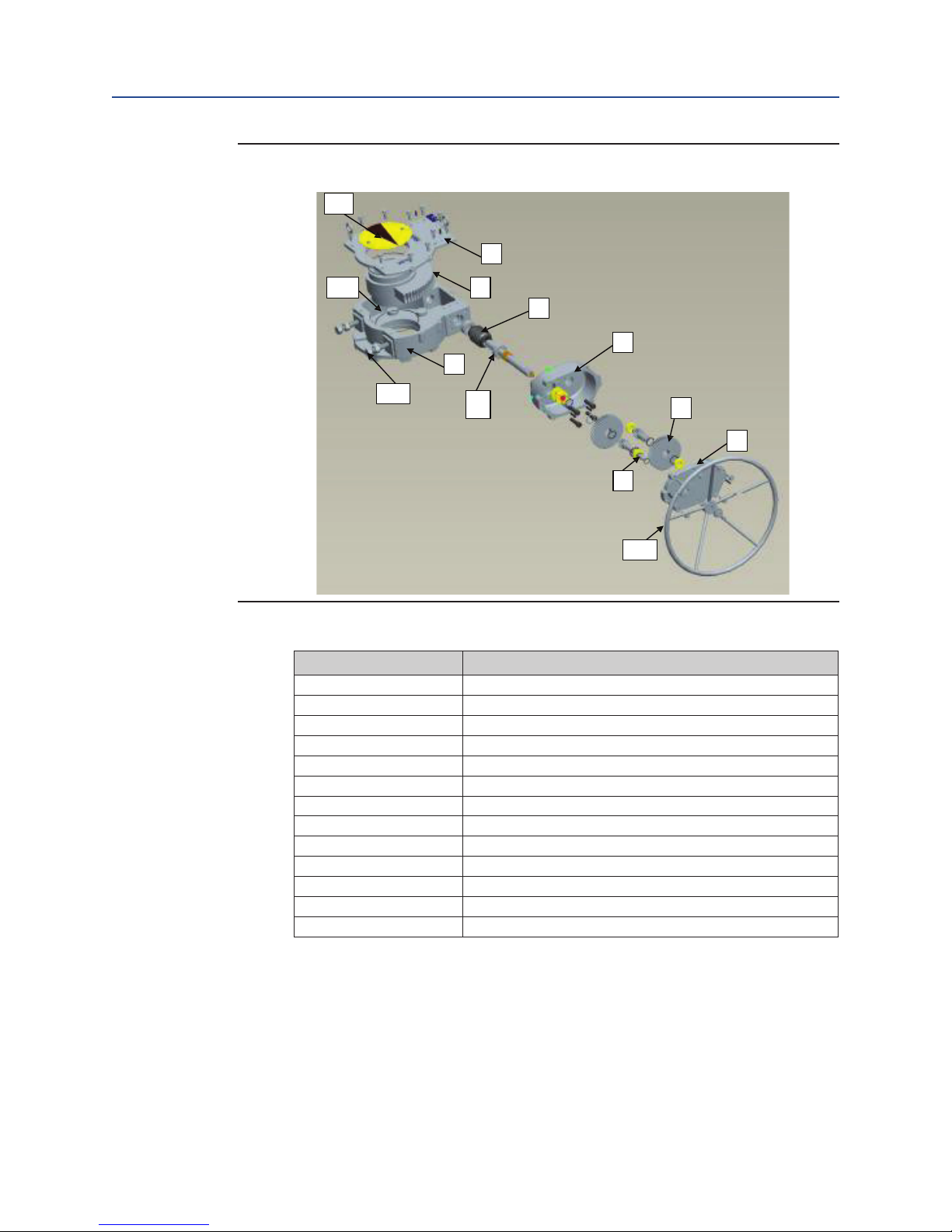

Figure 2 AT Series Exploded View
12
11
2
3
10
1
5
4
6
9
8
7
13
Table 1. Component List
Component Number Part Name
1Housing
2 Housing Cover
3Gear
4Worm
5 Bearing
6 Spur Housing
7 Spur Cover
8 Primary Pinion
9 Spur Gear
10 Stopper Bolt
11 'O'-Ring
12 Indicator
13 Hand wheel

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
4
Section 2: About the AT Series
About the AT Series

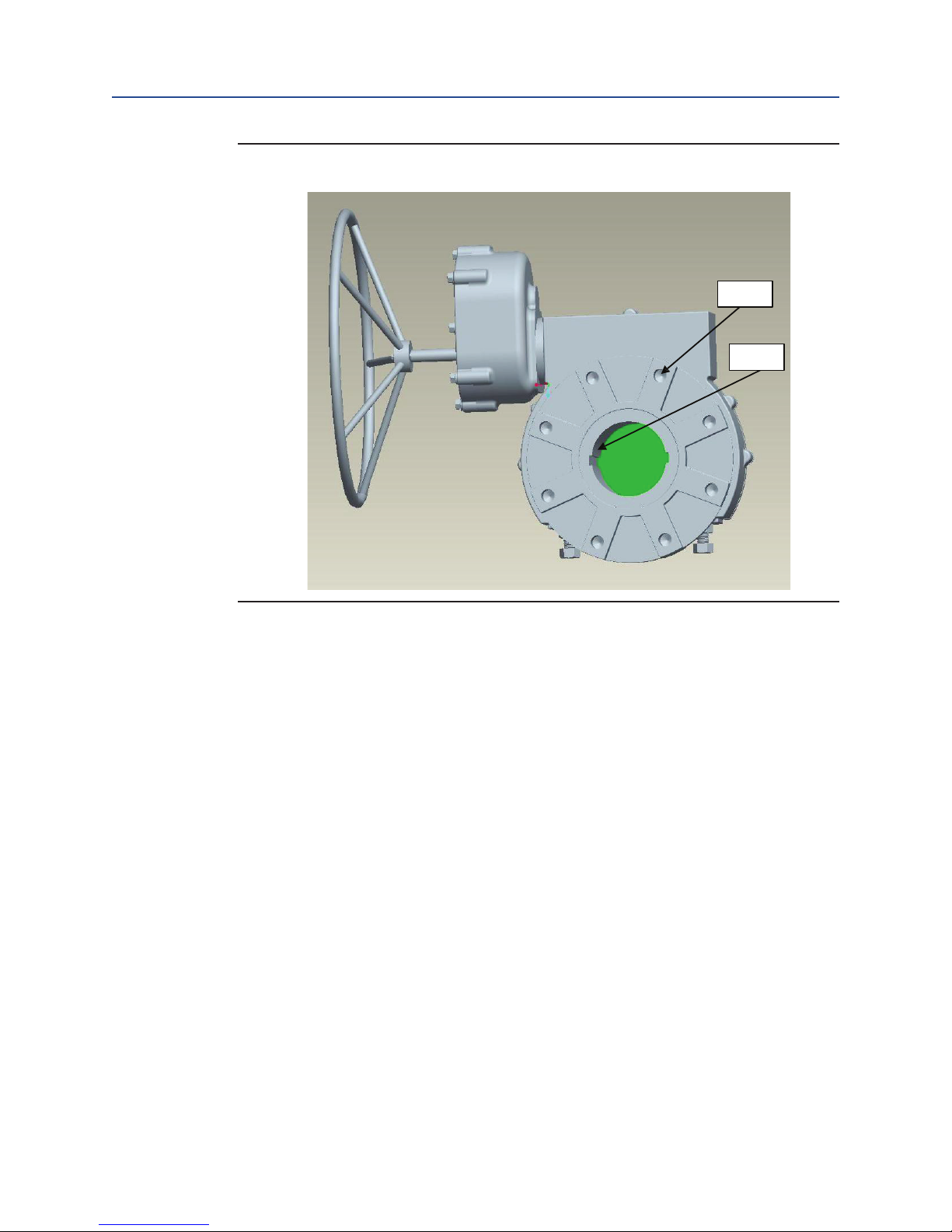

Figure 3 AT Series Bottom View
PCD
ID

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
5
Section 3: Storage and Preinstallation
Storage and Preinstallation
Section 3: Storage and Preinstallation
3.1 Before Installation
1. Firstly check whether the AT Series gearbox received is not in damaged condition
during transportation.
2. Also, check whether the data on the nameplate corresponds to the expected
product data.
3. If the AT Series gearbox is to be stored indoors for a brief period (less than 12
months), it should be ensured that the gearbox is kept in a dry place preferably on
a wooden pallet and protected from dust.
4. If the AT Series gearbox is to be stored outdoors for a brief period (less than 12
months), it should be protected from coming in direct contact with rain with a
canvas or something similar. Also, it should be kept on a wooden pallet or a raised
platform to avoid direct contact with the ground and protected from dust.
5. If the AT Series gearbox is to be stored for a longer period (more than 12 months),
then the mating surfaces, couplings, exposed parts, etc. should be coated with a
protective oil or grease to avoid corrosion.

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
6
Section 4: Installation
Installation
Section 4: Installation
4.1 Mounting Types
The AT Series gearbox can be installed onto the valve in two different ways:
1. DIRECT MOUNTING -- This involves mounting the gearbox directly on the valve
stem and valve mounting ange.
2. BRACKET MOUNTING – This involves installing the bracket on the valve ange.
The AT Series Gearbox is mounted on the bracket and is coupled to the valve stem
with a coupling.
Following procedure should be followed while installation of AT Series gearboxes onto
valve systems:
1. The valve and gearbox should be in the same position i.e. completely ‘open’ or
completely ‘closed’ position, at the time of installation. Any exception to this will
cause a condition wherein the person operating the valve might try to open the
valve with a gearbox which is already in open position. This will lead to excessive
torque on the worm and worm wheel assembly which might lead to excessive
wear / breakage of internals.
2. The gearbox should be positioned in such a way so that “clockwise rotation of
hand wheel gives clockwise rotation of output to close the valve”.
3. Check whether the mounting dimensions (stem dia. and mounting PCD) between
valve and the gearbox are correct and as per the requirement
4. The mounting ange of valve and gearbox should be de-greased
5. Mount the gearbox on valve or spigot carefully making sure the valve stem /
coupling enters the sector gear bore. Never use the hand wheel or spur gear
attachment to lift the gearbox while mounting onto the valve
6. Fasten the mounting bolts with the help of spring washers. Use 8.8 grade fasteners
or above
7. In case of re-installation after a long storage period, check the status of oil seals,
‘O’ rings and also whether the gearbox body / cover are cracked or broken.

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
7
Section 5: AT Series Gearbox Operation
AT Series Gearbox Operation
Section 5: AT Series Gearbox Operation
5.1 Manual Use
1. The gearbox is to be operated with a hand wheel which is supplied along with the
gearbox.
2. Do not manually operate the gearbox with devices other than the hand wheel.
Using cheater bars, wheel wrenches or other such devices on the gearbox hand
wheel may cause serious injury and / or damage to the gearbox or valve.
3. In standard applications, “clockwise rotation of hand wheel gives clockwise
rotation of output to close the valve”.

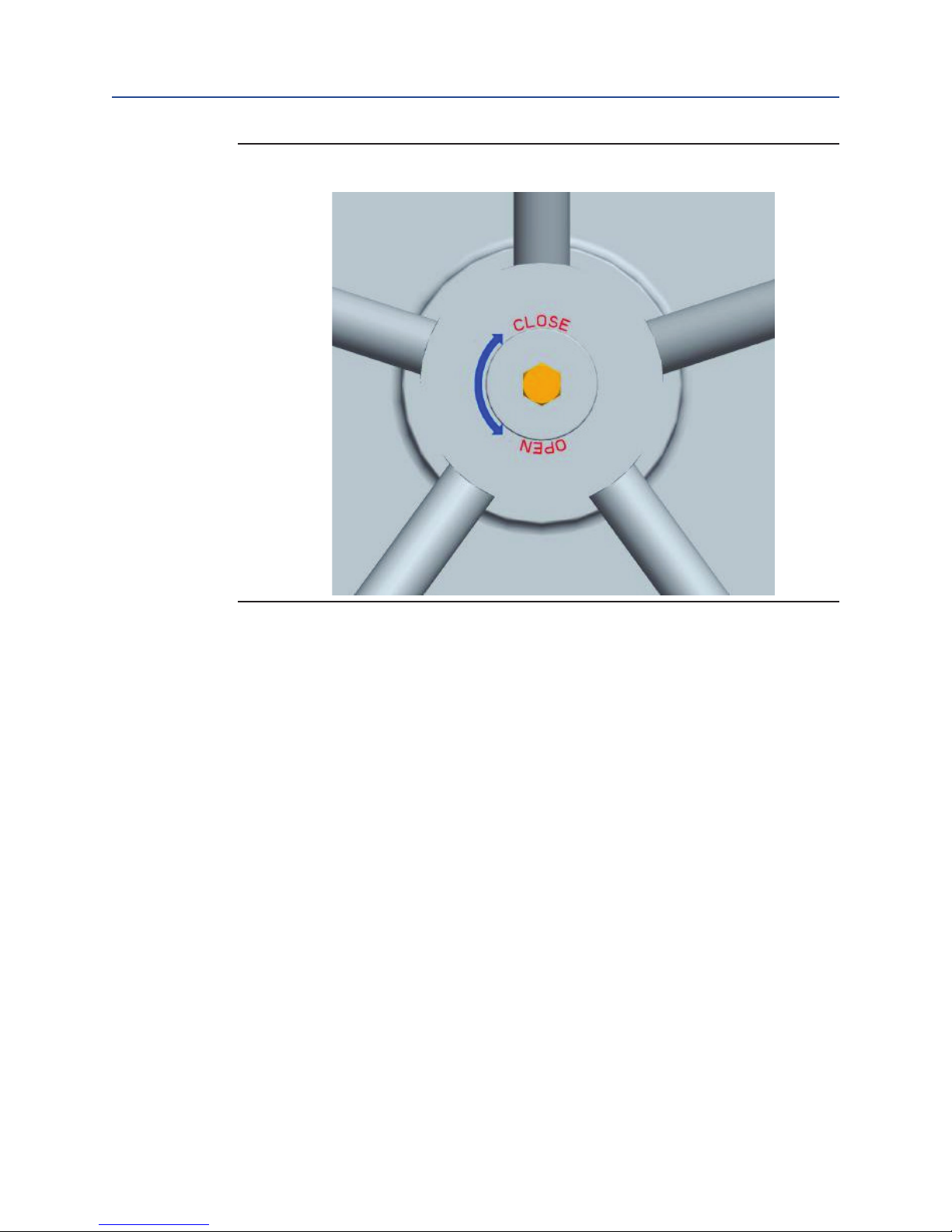

Figure 4 Hand Wheel Rotation

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
8
Section 5: AT Series Gearbox Operation
AT Series Gearbox Operation
Figure 5 Another View of Hand Wheel Rotation
5.2 Stopper Setting
1. There are two mechanical stoppers on all AT Series gearboxes to limit the stroke
from ‘open’ to ‘close’.
2. This stroke of 90° needs to be set correctly for all gearboxes as described below.
3. Withdraw the stoppers completely. Rotate the valve to the fully closed position
by rotating the hand wheel clockwise. Once the valve is fully closed, advance the
stopper till it touches the sector gear. Secure this stopper position with a nut.
4. Similarly, for stopper setting at fully open position of the valve, withdraw the
stopper at open side completely. Rotate the valve to the fully open position by
rotating the hand wheel anti-clockwise. Once the valve is fully opened, advance
the stopper till it touches the sector gear. Secure this stopper position with a nut.

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
9
Section 5: AT Series Gearbox Operation
AT Series Gearbox Operation

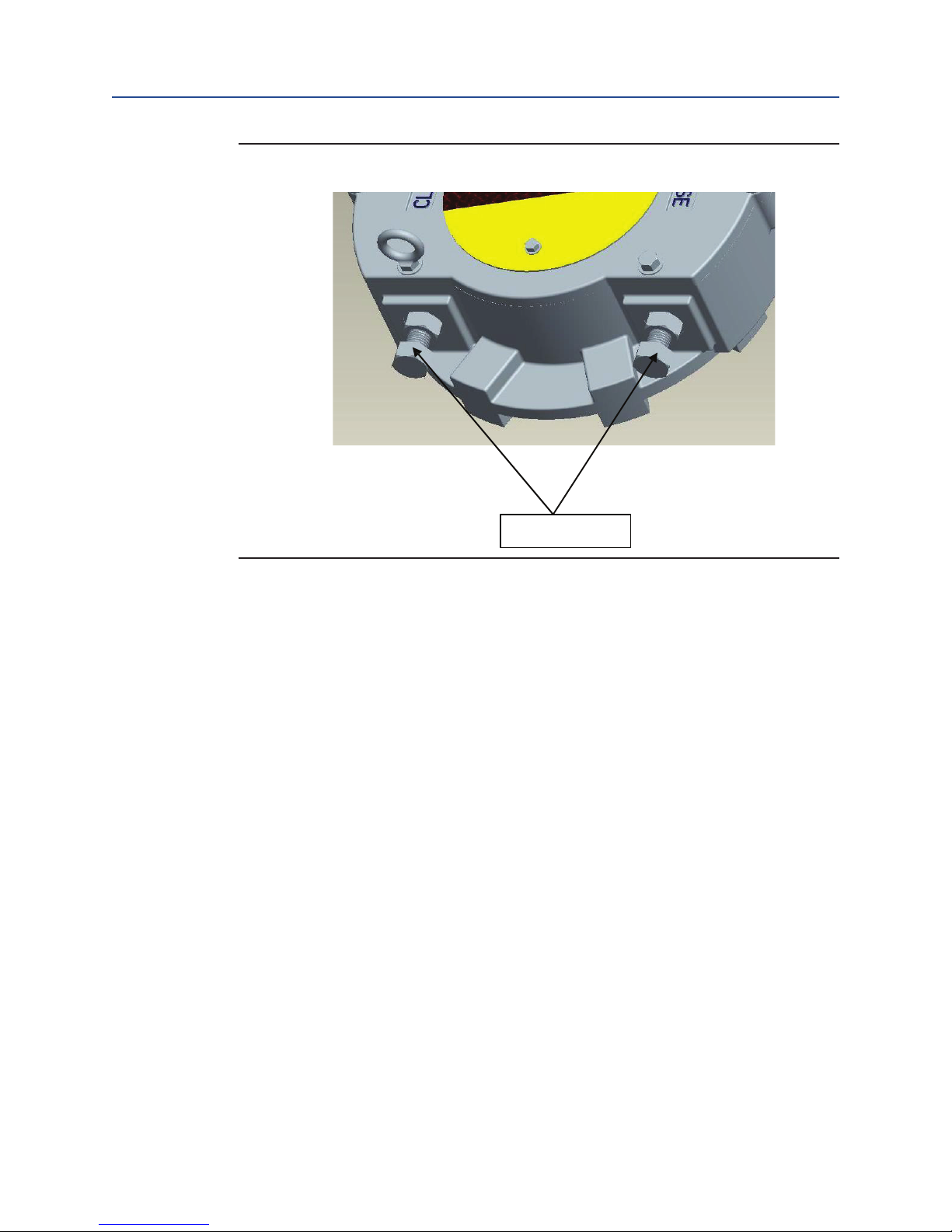

Figure 6 Stopper Bolt Location
Stopper Bolt

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
10
Section 6: Lubrication
Lubrication
Section 6: Lubrication
6.1 Application
1. The AT Series gearbox is grease lubricated.
2. All AT Series gearboxes are supplied with EP-1 premium quality lithium soap based
grease (NLGI grade 1) suitable for an ambient temperature of -20° to + 120° (in
case of specialty greases, the temperature range could be different).
3. Grease should be changed after 6 months if the gearbox is in continuous operation
whereas it should be changed after 12 months if it is operated intermittently.
4. Do not mix different greases.

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
11
Section 7: Disassembly and Reassembly
Disassembly and Reassembly
Section 7: Disassembly and Reassembly
Instructions
7.1 Removal of Cover
• Remove the cover by loosening the cover bolts with a spanner.
• Each time the cover is removed, the gasket sealing is lost as it is a liquid sealant.
Re-apply gasket sealant (Loctite no. 596 or equivalent).
• Take proper care not to damage the mating surface of the cover.

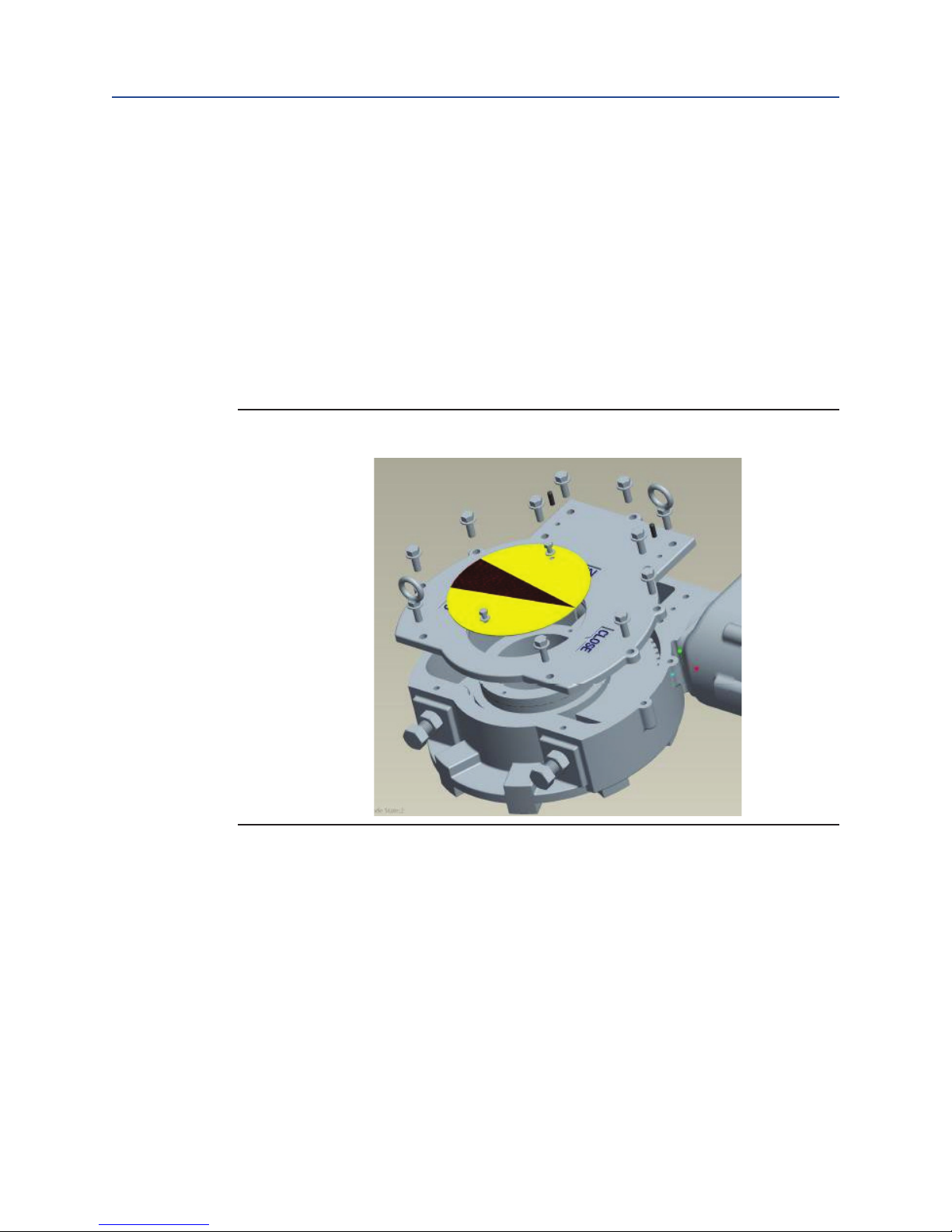

Figure 7 Cover Removal

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
12
Section 7: Disassembly and Reassembly
Disassembly and Reassembly
7.2 Disassembly of Spur Gear Reduction Unit
• Remove the cover by loosening the cover bolts with a spanner.
• Each time the cover is removed, the gasket sealing is lost as it is a liquid sealant.
Re-apply gasket sealant (Loctite no. 596 or equivalent).
Figure 8 Spur Gear Bolts
• Both spur pinions and spur gears can be removed with a circlip plier once the cover
is removed.
• Remove the spur gear unit casing by loosening the allen cap screws with which it is
mounted on the main AT Series GB casing.
Figure 9 Spur Housing Disassembled

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
13
Section 7: Disassembly and Reassembly
Disassembly and Reassembly
7.3 Dismantling of Worm Line Assembly
• Loosen the grub screw and key / spring pin with which the worm is xed to the
input shaft.
• Pull the input shaft out of the main housing. This will disassemble the entire worm
line assembly. Now, remove the worm and all other small parts like spacers,
washers, bearings, etc. from this assembly.
Figure 10 Grub Screw Removal
Grub Screw
Key
Figure 11 Removal of Spring Pin
Spring Pin

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
14
Section 7: Disassembly and Reassembly
Disassembly and Reassembly
7.4 Removal of Worm Wheel
• Remove the worm wheel by lifting it from the gearbox housing.
• Replace and lubricate the ‘O’ rings in the housing before reassembling the worm
wheel.
Figure 12 Removing the Worm Wheel
7.5 Reassembly of AT Series Gearbox
• In reassembly of the AT Series gearbox, follow all above steps in reverse order.
• Be sure to lubricate all mating / rotating parts with grease
• Ensure to provide a liquid sealant on both covers and housing

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
15
Section 8: Document Revision
Document Revision
Section 8: Document Revision
Table 2. Revision Overview
ECN DATE REVISION STATUS BY * DATE
XXXXXX 6/16/2016 1 Completed Charles Rico 6/16/2016
* Signatures on le Bettis, Houston, Texas

Installation, Operation and Maintenance Manual
XXXXXXXX Rev. 1 July 2016
16
Appendix
Appendix
Appendix A: List of Figures
Figure 1 AT Series General View .......................................................................................... 2
Figure 2 AT Series Exploded View........................................................................................ 3
Figure 3 AT Series Bottom View .......................................................................................... 4
Figure 4 Hand Wheel Rotation ............................................................................................ 7
Figure 5 Another View of Hand Wheel Rotation .................................................................. 8
Figure 6 Stopper Bolt Location ........................................................................................... 9
Figure 7 Cover Removal .................................................................................................... 11
Figure 8 Spur Gear Bolts.................................................................................................... 12
Figure 9 Spur Housing Disassembled ................................................................................ 12
Figure 10 Grub Screw Removal ........................................................................................... 13
Figure 11 Removal of Spring Pin.......................................................................................... 13
Figure 12 Removing the Worm Wheel ................................................................................ 14
