Emerson Fisher 4320 User manual

4320WirelessPositionMonitorHELP



____________________________________________________________________
www.Fisher.com

Contents:
Instruction Manual – Fisher®4320 Wireless Position Monitor,
with On/Off Control Option
This document explains device function and usage.
Instruction Manual Supplement – Getting Started with Modbus®and OPC Systems
This document explains how to set up a link to a
control system so that the set point can be
communicated to the device.

www.Fisher.com
Fisherr4320 Wireless Position Monitor, with
On/Off Control Option
Contents
Introduction 2.................................
Scope of Manual 2.............................
Description 2.................................
Terminology 4................................
Specifications 4...............................
FCC Compliance 4.........................
Educational Services 4.........................
Installation 8..................................
Installing Standard and Extended Life
Power Module 9............................
Network Setup 11.............................
Using the Field Communicator 11............
Using AMS Wireless Configurator
or AMS Device Manager 12...............
Hazardous Area Classifications and
Special Instructions for “Safe Use” and
Installations in Hazardous Locations 13.........
Valve / Actuator Mounting 16...................
Sliding‐Stem (Linear) Actuators
(e.g. Fisher 667) 18......................
Guidelines for Mounting on Quarter‐Turn
(Rotary‐Shaft) Actuators 19...............
Pneumatic Hookup Procedure for
On/Off Control Option 21......................
Communication Connections 23..................
Wireless Communications 23.....................
Basic Setup 25.................................
Using the Local User Interface 25................
Identifying Device Revision 25...............
Language Selection 25.....................
Quick Position 26..........................
Status 26.................................
Power 27...............................
Network 27.............................
Calibration 28...........................
Using the Field Communicator 30................
Overview 30..............................
Configure 32.............................
Service Tools 44...........................
Accessing Features 50...........................
Update Rate 50...............................
Trip Points and Deadband 50....................
Diagnostics 51................................
Locate 55....................................
X0535

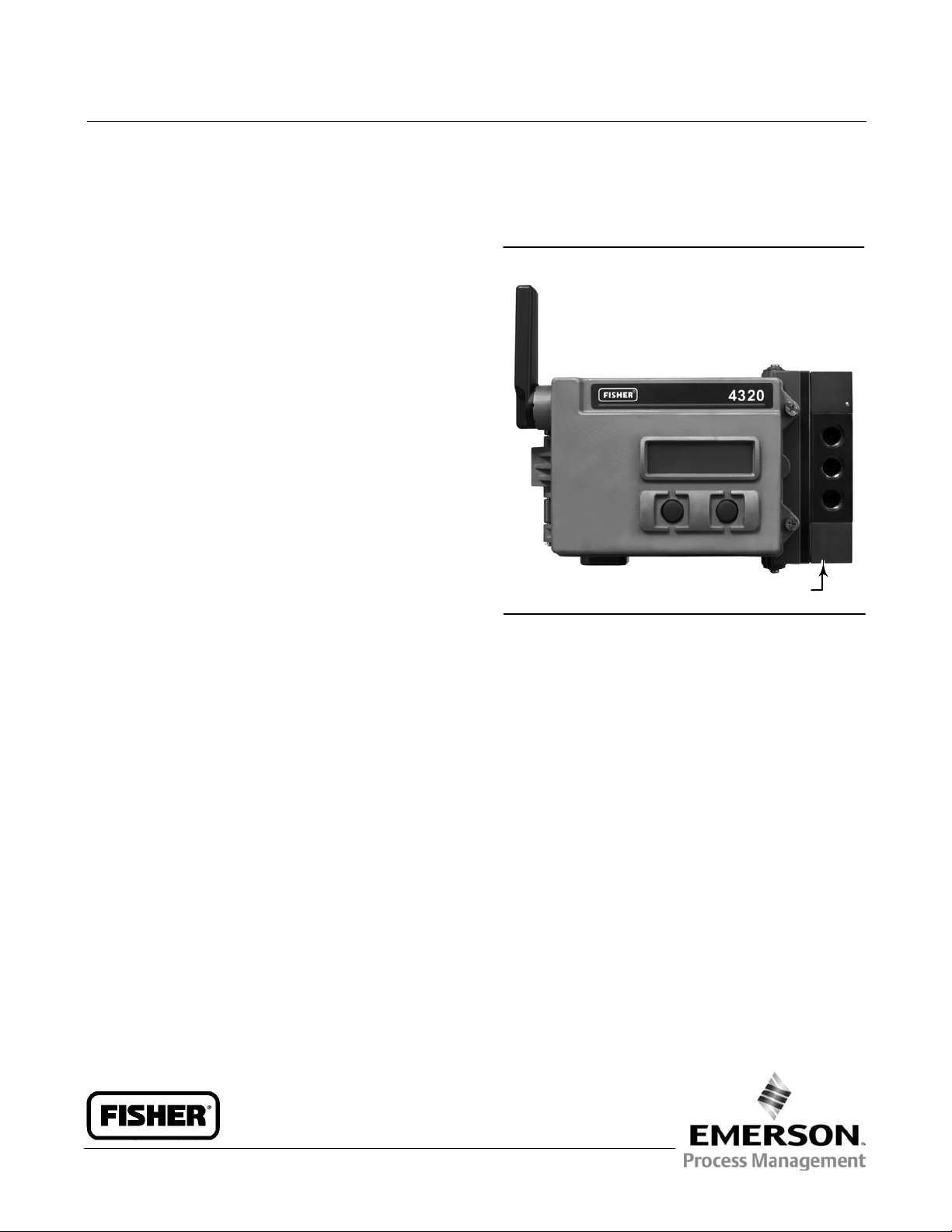

Figure 1. Fisher 4320 Wireless Position Monitor
ON/OFF CONTROL OPTION
Maintenance 56................................
Replacing the Instrument 57....................
Instrument Removal 57.....................
Replacing the Magnetic
Feedback Assembly 57.......................
Replacing the Power Module 57.................
Removal 58...............................
Installation 58.............................
Hot Swap Procedure 58.....................
Resetting Power Module Variables 59.........
Component Maintenance—On/Off Control Option 61
Spool Valve and Pneumatic Gasket Removal 62.
Spool Valve and Pneumatic Gasket Installation 62
Pneumatic Interface and Gasket Removal 62...
Pneumatic Interface and Gasket Installation 63.
Filter Replacement 63......................
Parts 63.......................................
Repair Kits 63.................................
Replaceable Parts 64...........................
Instruction Manual
D103621X012
4320 Position Monitor
October 2012

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
2
Introduction
Scope of Manual
This instruction manual includes specifications, installation, initial setup, configuration, operation, troubleshooting,
and maintenance information for the Fisher 4320 wireless position monitor.
This manual describes using the local interface to setup and calibrate the instrument.
Do not install, operate, or maintain a 4320 wireless position monitor without being fully trained and qualified in valve,
actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is
important to carefully read, understand, and follow all of the contents of this manual, including all safety cautions and
warnings. If you have any questions about these instructions, contact your Emerson Process Management sales office
before proceeding.
Description
The 4320 uses digital set point signals from a control host that causes the pneumatic output to deliver a discrete
(open/closed) control action to a valve actuator. Confirmation of the control command is provided with valve position
feedback, as shown in figure 2.
The input signal is received where the internal microprocessor runs a digital control algorithm resulting in an output
signal to the pneumatic output stage.
The pneumatic output stage is connected to supply pressure; using the set point action, air is directed to either open
or close the valve. The output can be used with either airtoopen or airtoclose and supports both single and
doubleacting actuators. When a single-acting actuator is used one of the output ports on the spool valve will be
plugged.
For both monitoring and on/off control, valve position is sensed through the noncontact, linkageless feedback
sensor. There are no moving linkages and the 4320 is physically separated from the valve stem through the use of a
magnetic Hall effect sensor. A magnetic array is mounted to the valve stem and the sensor is embedded in the 4320
housing. The sensor is electrically connected to the printed wiring board to provide a travel feedback signal used in the
control algorithm. The valve continues to move until the correct position is attained.
The on/off control device can also be configured as a snapacting controller. In this configuration, the controlled valve
is separate from the position being monitored by the device. (There is no feedback signal for the controlled
equipment.) The state of the process being monitored generates the command to the controlled valve.
The 4320 uses position feedback to cause valve changes, as shown in figure 3. When the level in the storage tank
reaches a high level, the 4320 changes the inlet valve to closed, as a high level protection instrument. In this example,
the control system is alerted to changes in the level and valve, but the control action remains in the field instrument.
In directacting snap, high or open trip on the input causes the controlled valve to open, and low/closed trip on the
input causes the controlled valve to close. In reverseacting snap, high/open trip causes the controlled valve to close,
and low/closed trip causes the controlled valve to open.

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
3

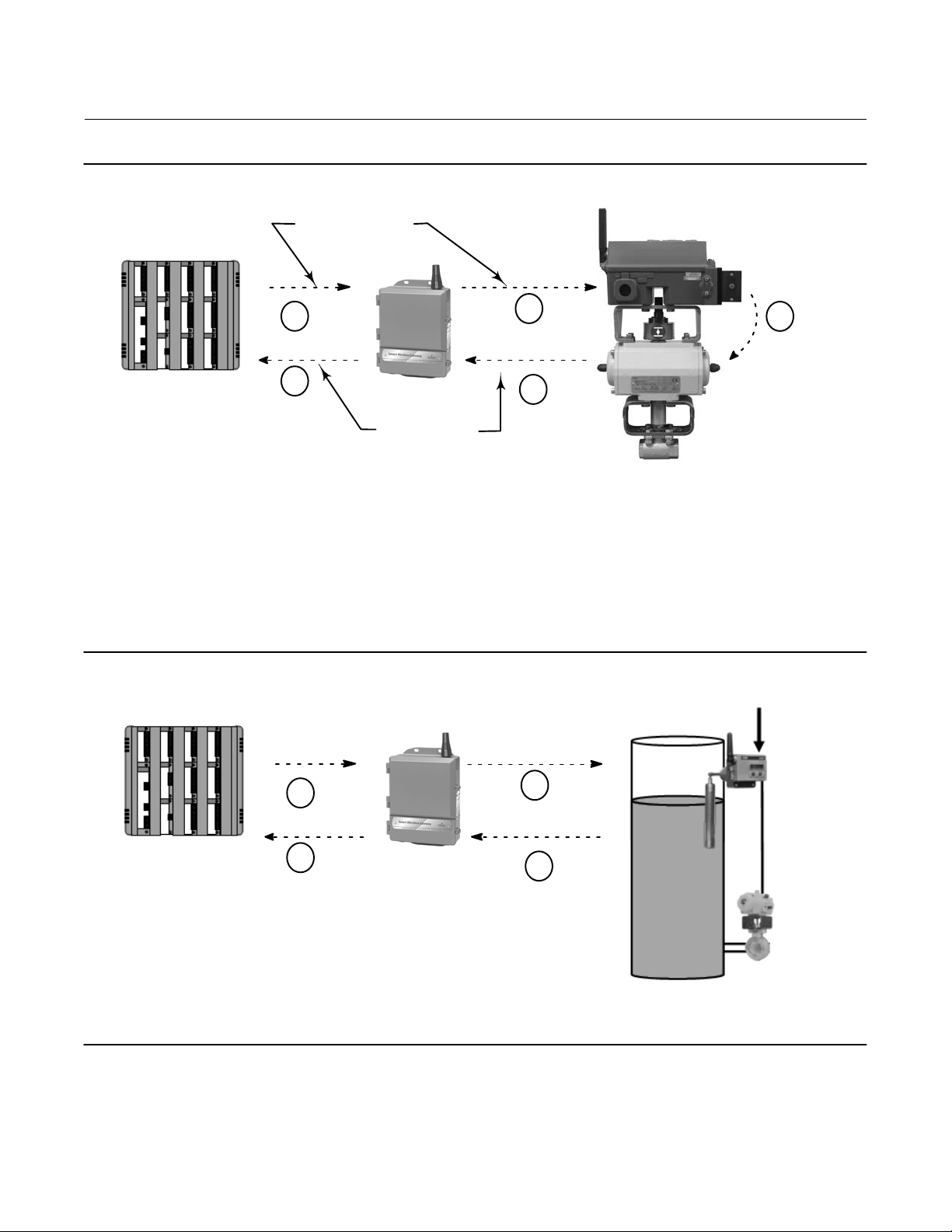

Figure 2. Control Operation—Wireless Automated Valve
CHANGE COMMAND
VALVE POSITION
FEEDBACK
CHANGE
COMMAND
RESULTS IN
VALVE CHANGE
123
4
5
COMMAND TO MAKE A VALVE CHANGE STARTS AT THE CONTROL SYSTEM HOST AND IS SENT TO THE GATEWAY.
THE GATEWAY ROUTES THE VALVE CHANGE COMMAND TO THE 4320 WITH ON/OFF CONTROL OPTION
THE 4320 ACTS ON THE VALVE COMMAND AND MAKES VALVE CHANGE
THE 4320 MONITORS VALVE POSITION AND SENDS UPDATES TO THE GATEWAY
THE GATEWAY PROVIDES CURRENT VALVE POSITION DATA TO CONTROL SYSTEM HOST. THE VALVE POSITION
FEEDBACK IS USED TO CONFIRM THAT THE REQUESTED ACTION “COMMAND” WAS PERFORMED.
CONTROL SYSTEM HOST WIRELESS NETWORK
GATEWAY
Figure 3. Control Operation—Snap-Acting Control
12
3
4
AND THE SET POINT IS SENT TO THE FIELD DEVICE. THE 4320 ACTS
ON THE PROCESS STATE AND MAKES THE VALVE CHANGES LOCALLY.
AND THE 4320 MONITORS THE PROCESS POSITION AND SENDS UPDATES TO THE GATEWAY
CONTROL SYSTEM HOST WIRELESS NETWORK
GATEWAY
LEVEL
CONTROL
PNEUMATIC
SUPPLY

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
4
Terminology
Local Interface—All 4320 wireless position monitors come standard with a Liquid Crystal Display (LCD) and two (2)
pushbuttons. The local interface provides the capability to setup and calibrate the monitor.
Magnet Assembly—This is the feedback component that is mounted directly to the valve stem. It supplies a magnetic
field that is sensed by the wireless position monitor. This component is typically part of most mounting kit assemblies.
Specifications
Specifications for the 4320 wireless position monitor are shown in table 1.
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
This product is an FCC approved device. Changes or modifications to the 4320 wireless position monitor that are not
expressly approved by the party responsible for compliance may void your authority to operate the device.
WARNING
This product is intended for a specific temperature range and other application specifications. Failure to adhere to these
specification could result in the malfunction of the product, property damage, or personal injury.
Educational Services
For information on available courses for the 4320 wireless position monitor, as well as a variety of other products,
contact:
Emerson Process Management
Educational Services, Registration
P.O. Box 190; 301 S. 1st Ave.
Marshalltown, IA 50158-2823
Phone: [phone] or
Phone: [phone]
FAX: [phone]
e‐mail: [email protected]

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
5
Table 1. Specifications
Available Mountings
JQuarter‐turn rotary‐shaft
Jsliding‐stem or
Jlinear applications
Can also be mounted on other actuators that comply
with IEC 60534‐6‐1, IEC 60534‐6‐2, VDI/VDE 3845
and NAMUR mounting standards
Input Measurement
Stem Travel (linear movement)
Minimum: 2.5 mm (0.10 inch)
Maximum: 210 mm (8.25 inches)
Shaft Rotation (rotary movement)
Minimum: 45_
Maximum: 90_
Shaft Rotation (rotary movement, arced array)
Minimum: 13_
Maximum: 30_
Measurement Output
Analog: 0-100%
Discrete: on/off switches (2)
Reference Accuracy
1% of span
On/Off Control
Output Signal
Pneumatic signal as required by the actuator, up to
95% of supply pressure
Minimum Span: 3.1 bar (45 psig)
Maximum Span: 7 bar (101 psig)
Action: Single or Double Acting
Supply Pressure
Minimum: 3.1 bar (45 psig)
Maximum: 7 bar (101 psig)
Supply Medium
Air or natural gas
Air: Supply pressure must be clean, dry air or
noncorrosive, nonflammable gas that meets the
requirements of ISA Standard 7.0.01. A maximum
40 micrometer particle size in the air system is
acceptable. Further filtration down to 5 micrometer
particle size is recommended. Lubricant content is
not to exceed 1 ppm weight (w/w) or volume (v/v)
basis. Condensation in the air supply should be
minimized.
Gas: Natural gas must be clean, dry, oil-free and
noncorrosive. H2s content should not exceed 20
ppm.
Air Consumption(1)
At 5.5 bar (80 psig) supply pressure:
0.036 m3/hr (1.27 scfh)
Air Capacity / Flow Rate
Supply Pressure:1.2 Cv
Connections (Optional)
Supply, Output Pressure, and Vent:1/4 NPT
Wireless Set Point Command
IEC 62591 (WirelessHART) 2.4 GHz DSSS
Local User Interface
Liquid Crystal Display (LCD)
Two pushbuttons for navigation, setup, and
calibration
Communication Protocol
HART 7
Input Communication Signal
WirelessHARTrcommunication
Initial Dynamic Variable Assignments (Default)
Variable Variable Name
On/Off Control Monitoring
Primary (PV) Position Position
Secondary (SV) Set Point Closed Limited Switch
Tertiary (TV) Switch State Open Limit Switch
Quaternary (QV) Battery Voltage Battery Voltage
Refer to table 4 for a complete list of Device Variables
Output Communication Signal
2.4 Ghz, DSSS, WirelessHART
Maximum 10 dBm (10 mW) EIRP at 2.46 GHz
Wireless Classifications
Class A digital device, complies with part 15 of the
FCC Rules
Contains FCC ID: LW2RM2510
Contains IC: 2731A‐RM2510
‐continued‐

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
6
Table 1. Specifications (continued)
Electromagnetic Compatibility
Meets EN 61326‐1 (First Edition)
Immunity—Industrial locations per Table 2 of
the EN 61326‐1 standard. Performance is
shown in table 2 below.
Emissions—Class A & B. Performance is shown in
table 3 below.
ISM equipment rating: Group 1, Class A & B
Vibration Testing
Meets or exceeds vibration levels specified in
ANSI/ISA 75.13.01 1996 (2007):
4 mm peak to peak at 5 Hz,
2 GHz from 15150 Hz, and
1 GHz from 150 2000 Hz
European Directive Information
This product complies with the following directives:
ATEX Directive (94/9/EC)
Electro Magnetic Compatibility (EMC) (2004/108/EC)
Radio and Telecommunications Terminal Equipment
Directive (R&TTE) (1999/5/EC)
Refer to the Safety Instructions (D103022X012) for
the Declaration of Conformity
Operating Temperature Limits(2)(3)
Monitoring only:
-40 to 85_C (-40 to 185_F)
LCD may not be readable below -20_C (-4_F)
With Pneumatic Output (On/Off Control):
-20 to 50_C (-4 to 122_F)
Temperature Sensitivity
0.06% change per degree C
Storage Temperature Limits(2)(3)
-40 to 70_C (-40 to 158_F)
Humidity Limits
10-95% Non‐Condensing Relative Humidity
Electrical Classification
CSA (C/US)— Intrinsically Safe
ATEX— Intrinsically Safe
IECEx— Intrinsically Safe
Refer to Hazardous Area Classifications and Special
Instruction for “Safe Use” and Installations in
Hazardous locations, starting on page 13, for
additional information
Electrical Housing
4X & IP66
IEC 61010 Compliance
Meets Pollution Degree 2
Adjustments
Zero and Maximum Span through local interface
Weight
Monitoring— 0.57 kg (1.25 lbs)
On/Off Control— 1.6 kg (3.4 lbs)
Power Module(3)
Standard —Lithium, non‐rechargeable
Power Module Limits(4)
Standard— 5 years at update rate of 16 seconds or
longer with 3 additional devices communicating
through it
Extended‐Life— 10 years at update rate of 8 seconds
or longer with 3 additional devices communicating
through it.
Shelf life— 10 years (radio off)
‐continued‐

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
7
Table 1. Specifications (continued)
Update Rates
For position feedback, temperature, and power
module voltage—selectable from 1 second to 1 hour;
1s, 2s, 4s, 8s, 16s, 32s, 1 to 60 minutes
Note: Sample rate for position feedback is normally
the same as the update rate. When using Report by
Exception reporting refer to Advanced Wireless
Reporting, on page 34, for additional information.
Construction Material
Housing/Base: A03600 low copper aluminum alloy
Elastomers: nitrile, fluorosilicone
Cover: engineered resin
1. Normal m3/hour - Normal cubic meters per hour at 0_C and 1.01325 bar, absolute. Scfh - Standard cubic feet per hour at 60_F and 14.7 psia.
2. The pressure/temperature limits in this manual and any applicable standard or code limitation for valve should not be exceeded.
3. Due to the combustible nature of the lithium content, the power module has special installation, operation, storage, and/or shipping requirements. Observe all warnings included with the power
module before installing, operating, storing, or shipping. Contact your Emerson Process Management sales office if additional information is needed.
4. When operating in temperatures between -10_C (14_F) and -20_C (-4_F) it is recommended that you use the extended power module, as power module life is impacted. The life expectancy of
an extended life power module used continually in the -10_C (14_F) and -20_C (-4_F) range is 3 years.
Table 2. EMC Summary Results—Immunity
Port Phenomenon Basic Standard Test Level Performance Criteria(1)
Enclosure
Electrostatic discharge (ESD) IEC 61000‐4‐2 6 kV contact
8 kV air B
Radiated EM field IEC 61000‐4‐3
80 to 1000 MHz @ 10 V/m with 1 kHz AM at 80%
1400 to 2000 MHz @ 10 V/m with 1 kHz AM at 80%
2000 to 2700 MHz @ 3 V/m with 1 kHz AM at 80%
A
Rated power frequency
magnetic field IEC 61000‐4‐8 100 A/m @ 50 Hz & 60 Hz A
Performance criteria: +/- 2% of effect
1. A = No degradation during testing. B = Temporary degradation during testing, but is self‐recovering.
Table 3. EMC Summary Results—Emissions
Port Frequency
Range (MHz) Basic Standard Emissions Level Given Rating
Enclosure 30 to 230 EN 55011 Group 1 Class A: 40 dB (μV/m) measured at 10 m distance
Group 1 Class B: 30 dB (μV/m) measured at 10 m distance Class A & B
Enclosure
230 to 1000 EN 55011 Group 1 Class A: 47 dB (μV/m) measured at 10 m distance
Group 1 Class B: 37 dB (μV/m) measured at 10 m distance Class A & B
1000 to 3000
EN 55022
Group 1 Class B
50 dB (μV/m) measured at 3 m distance, peak limit not to exceed 70 dB (μV/m) Class A & B
3000 to 6000 Group 1 Class B
54 dB (μV/m) measured at 3 m distance, peak limit not to exceed 74 db (μV/m) Class A & B
NOTES:
The 4320 is considered as a Group 1 device.
Industrial, Scientific, and Medial (ISM) radio frequency (RF) equipment is rated according to its Group and Class as follows;
Group I - Equipment in which there is intentionally generated and/or used conductively coupled radio-frequency energy which is necessary for the internal functioning of the equipment itself.
Group II - Equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding
equipment.
Class A - Equipment suitable for use in industrial and commercial environments
Class B - Equipment suitable for use in domestic environments

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
8
Table 4. Device Variables
INDEX DEVICE VARIABLE DESCRIPTION
DD Published To Gateway
0 Position PERCENT_OF_SPAN Travel (% of Calibration Output Span)
1Closed/Low Limit Switch CLOSED_TRIGGER Reports Closed/Low condition (1 = Tripped, 0 = Not Tripped)
2Opened/High Limit Switch OPEN_TRIGGER Reports Opened/High condition (1 = Tripped, 0 = Not Tripped)
3 Temperature DEVICE_TEMPERATURE Electronics Module Temperature (Degrees C)
4Supply Voltage BATTERY_VOLTAGE Power Supply Output (Volts DC)
5Set Point (on/off control only) SET_POINT Set Point (1 = Closed, 2 = Open)
6Switch States SWITCH_STATE Combines information in variables 1
and 2
(0 = Part Open, 1 = Closed,
2 = Opened, 3 = Unknown,
4 = Mid, 5 = High, 6 = Low)
7Valve Close Stroke Time CLOSE_STROKE_TIME Time the on/off controller took to previously close the valve
8Valve Open Stroke Time OPEN_STROKE_TIME Time the on/off controller took to previously open the valve
9Burst Message 0 Timestamp MESSAGE_0_TIMESTAMP Timestamp of burst message 0
10 Burst Message 1 Timestamp MESSAGE_1_TIMESTAMP Timestamp of burst message 1
11 Burst Message 2 Timestamp MESSAGE_2_TIMESTAMP Timestamp of burst message 2
12 Opened/High Dwell OPEN_DWELL_TIME The time the state has been/previously was in the open state.
13 Closed/Low Dwell CLOSED_DWELL_TIME The time the state has been/previously was in the closed state.
14 Transition Dwell PARTIALLY_OPEN_DWELL_TIME The time the state has been/previously was in the partially open state.
15 Accumulated Count CYCLE_COUNTS Cycle counted by the device
243 Battery Life Remaining BATTERY_LIFE Estimated battery life remaining (days) - meaningless with
External Power option
244 PV % Range PERCENT_RANGE Copy of Variable 0 (%)
245 Loop Current CURRENT Always Indeterminate (not a number) (mA)
INDEX DISCRETE VARIABLES DESCRIPTION
DD Published To Gateway
0Discrete Switch State DISCRETE_SWITCH_STATE Current state of the switch variable
(6 = Closed, 17 = Opening,
18 = Closing, 46 = Opened
48 = Unknown, 52 = Part-Open,
53 = Mid, 54 = High, 55 = Low)
1Discrete Set Point
(On/Off Control only) DISCRETE_SET_POINT Target value for the controlled variable (4 = Close, 5 = Open, 6 = Closed, 46 = Opened)
Installation
WARNING
Before mounting the 4320 wireless position monitor:
D Always wear protective clothing, gloves, and eyewear when performing any installation procedures to avoid personal
injury or property damage.
D If installing into an existing application, also refer to the WARNING at the beginning of the Maintenance section in this
instruction manual.
D Check with your process or safety engineer for any additional measures that must be taken to protect against process
media.

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
9
WARNING
The 4320 power module contains two primary lithiumthionyl chloride batteries. Under normal conditions of use, the
battery materials are selfcontained and are not reactive as long as the batteries and power module integrity are
maintained. Care should be taken to prevent mechanical, electrical, or thermal damage. DO NOT recharge, short-circuit,
disassemble, heat, or expose the power module to water. The batteries contain flammable materials and performing any of
the above actions could cause them to become damaged, ignite, or explode, resulting in personal injury or property
damage. Observe all warnings included with the power module before installing, operating, storing, or shipping the 4320
position monitor.
Personal injury and property damage can result from fire or explosion if the power module is subjected to heat above
100_C (212_F). Power modules should be stored in a cool, dry and ventilated area; for maximum life, storage should not
exceed 30_C (86_F).
CAUTION
When installing components, proper means of electrostatic discharge protection is required. Failure to use a grounding
strap, or other means of electrostatic discharge protection can result in damage to the electronics.
WARNING
To avoid static discharge do not rub or clean the antenna with solvents.
Installing Standard and Extended Life Power Modules
There are two battery-sourced power options, standard life and extended life power modules. Refer to the power
module warning labels, shown in figure 4, to determine which power module you have. Refer to figure 5 when
installing.
Figure 4. Warning Labels from Power Module
STANDARD LIFE POWER MODULE EXTENDED LIFE POWER MODULE
GE57654X012 GE57655X012
Note
Default configuration is for a standard power module. If installing the extended life power module you must change the
configuration. Incorrect power module configuration will affect remaining days of life calculations. If using the Field

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
10
Communicator go to Configure, Manual Setup, Power Module, Reset Module Data. In AMS Device Manager go to Configure, Manual
Setup and select Reset Power Module Variables from the Power tab.
To install the power module:
1. Loosen the two instrument screws and open the cover.
2. Align the power module over the four banana plug connectors and insert on the main board.
3. Insert the four self tapping screws into the corresponding female receptors on the cover/main board assembly and
tighten to a torque of 0.282 N•m (2.5 lbf•in) to ensure that the power module is secured properly.
4. If you are replacing the power module see the additional steps to reset the power module remaining life counter, in
the Resetting Power Module Variables procedure found on page 59.
5. Close the cover and tighten the instrument cover screws.
X0552
POWER
MODULE
HART
TERMINALS
BANANA PLUG CONNECTORS (4)
SELF TAPPING SCREWS (4)
GND
TERMINAL
PWR TERMINAL
COVER SCREWS
Figure 5. Fisher 4320 Wireless Position Monitor with Battery Sourced Power Modules
FILTER (2)

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
11
Network Setup
The 4320 should have wireless network parameters configured prior to becoming part of a wireless network. All
WirelessHART devices within a network have two network parameters that are the same; the Network ID and the Join
Key.
The 4320 is shipped with a pre‐configured Network ID of 1229 and a Join Key which is set to all zeros. Prior to being
installed these should be set to match the other devices on the network. These configuration changes can be made
using a 475 or 375 Field Communicator, AMS Wireless Configurator, or AMS Device Manager 10.5 and above.
Note
When the 1420 or other WirelessHART gateway is configured in an advanced security mode each device is required to have an
individual join key.
Using the Field Communicator
1. Verify the Field Communicator has a device description (DD) loaded for the 4320 Device Revision 3 (DD Revision 1
or later).
Note
4320 DD's for the Field Communicator are available for download at:
http://www2.emersonprocess.com/en-US/brands/fieldcommunicator/475FC/Pages/SysSoftDDs.aspx
Note that there may be a delay in posting new DD's to this site.
The above link is for the English website. Go to http://www2.emersonprocess.com/Pages/worldwide.aspx to access a specific
country or regional website.
2. Obtain the Network ID and Join Key from the 1420 gateway via web interface. Go to Setup, then select Network. The
Network ID will be shown. Select Yes to see the Join Key.
3. Open the cover of the 4320 and attach the Field Communicator leads to the 4320 HART terminals (see figure 5).
4. Select Online, Overview, Join Device to Network to enter the network parameter settings (see figure 22 for the
Overview menu tree).
5. Remove the leads from the 4320 and close the cover.
6. Install the 4320 on monitored equipment and/or verify the 1420 gateway.

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
12
Using AMS Wireless Configurator or AMS Device Manager (Using a HART Modem)
1. Verify that AMS has a device description (DD) loaded for the 4320 Device Revision 3 (DD Revision 1 or later).
Note
4320 DD's for AMS are available for download at:
http://www2.emersonprocess.com/en-US/documentation/deviceinstallkits/Pages/deviceinstallkitsearch.aspx
Note that there may be a delay in posting new DD's to this site.
The above link is for the English website. Go to http://www2.emersonprocess.com/Pages/worldwide.aspx to access a specific
country or regional website.
2. Obtain the Network ID and Join Key from the 1420 gateway via web interface.
3. Open the cover of the 4320 and attach the HART modem leads to the HART terminals (see figure 5).
4. In AMS select the device that is connected to the HART modem.
5. Go to Configure, Guided Setup, Wireless to configure network membership (see figure 6). Select Join Device to
Network enter the network parameter settings.
Figure 6. Wireless Setup
CONFIGURE
CONFIGURE
PUBLISHING
GUIDED SETUP
JOIN DEVICE TO NETWORK
There are three burst messages that can be configured. Each can have its own content, one of 5 trigger modes, and a
range of update rates. Burst messages may be set to default values or tailored to your application in Configure
Publishing. Refer to Burst on page 37 for additional information on burst configuration.
6. Remove the leads from the 4320 and close the cover.
7. Install the 4320 on monitored equipment and/or verify the 1420 gateway.

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
13
Hazardous Area Classifications and Special Instructions for “Safe Use” and
Installations in Hazardous Locations
Certain nameplates may carry more than one approval, and each approval may have unique installation/wiring
requirements and/or conditions of “safe use”. These special instructions for “safe use” are in addition to, and may
override, the standard installation procedures. Special instructions are listed by approval.
Note
This information supplements the nameplate markings affixed to the product.
Always refer to the nameplate itself to identify the appropriate certification. Contact your Emerson Process Management sales
office for approval/certification information not listed here.
WARNING
Failure to follow these conditions of “safe use” could result in personal injury or property damage from fire or explosion,
and area re‐classification.
CSA (C/US)
Intrinsically Safe
Battery Sourced Power Module
Ex ia Intrinsically Safe
Class I Division 1 GP ABCD T3/T4/T5
Install per control drawing GE59530
Ex ia IIC T3/T4/T5
Class I Zone 0 AEx ia IIC T3/T4/T5 Ga
Enclosure: Type 4X and IP66
Entity Ratings
Backup Power Terminals (Main Board WP2/WP3)
Ui = 10V, Li = 150mA, Pi = 1W
HART Communication Terminals (Battery Module WP1/WP2)
Ui = 6 V, li = 5 mA, Pi = 30 mW, Ci = 2.5 nF, Li = 0 mH
Uo = 6 V, lo = 14 mA, Co = 39 μF, Lo = 150 mH
Temperature classification
Battery Sourced Power Module
T5 to Ta = +40_C ; T4 to Ta = +75_C ; T3 to Ta = +85_C
Refer to control drawing GE59530 (figure 7 and 8) for installation requirements.

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
14
ATEX
Intrinsically Safe II 1 G
Battery Sourced Power Module
Ex ia IIC T3/T4/T5 Ga
Enclosure: Type 4X and IP66
Special Conditions of Use
The apparatus must be only connected to certified intrinsic safety equipment and this combination must be
compatible regarding intrinsic safety rules. Specific parameters of the mode(s) of protection concerned:
Backup Power Terminals (Main board WP2/WP3)
Ui = 10 V, Li = 150 mA, Pi = 1 W
Hart Communication Terminals (Battery Module WP1/WP2)
Ui = 6 V, li = 5 mA, Pi = 30 mW, Ci = 2.5 nF, Li = 0 mH
Uo = 6 V, lo = 14 mA, Co = 39 μF, Lo = 150 mH
Battery Sourced Power Module:
The equipment can only powered with a module type GE57654X012 or GE57655X012
Temperature classification:
Battery Sourced Power Module
T5 to Ta = +40_C ; T4 to Ta = +75_C ; T3 to Ta = +85_C
Refer to control drawing GE59530 (figure 7 and 8) for installation requirements.
IECEx
Intrinsically Safe
Battery Sourced Power Module
Ex ia IIC T3/T4/T5 Ga
Enclosure: Type 4X and IP66
Special Conditions of Use
The apparatus must be only connected to a certified intrinsically safe equipment and this combination must be
compatible regarding intrinsic safety rules:
Backup Power Terminals (Main board WP2/WP3)
Ui = 10 V, Li = 150 mA, Pi = 1 W
Hart Communication Terminals (Battery Module WP1/WP2)
Ui = 6 V, li = 5 mA, Pi = 30 mW, Ci = 2.5 nF, Li = 0 mH
Uo = 6 V, lo = 14 mA, Co = 39 μF, Lo = 150 mH
Battery Sourced Power Module:
The equipment can only powered with a module type GE57654X012 or GE57655X012
Temperature classification:
Battery Sourced Power Module
T5 to Ta = +40_C ; T4 to Ta = +75_C ; T3 to Ta = +85_C
Refer to control drawing GE59530 (figure 7 and 8) for installation requirements.

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
15

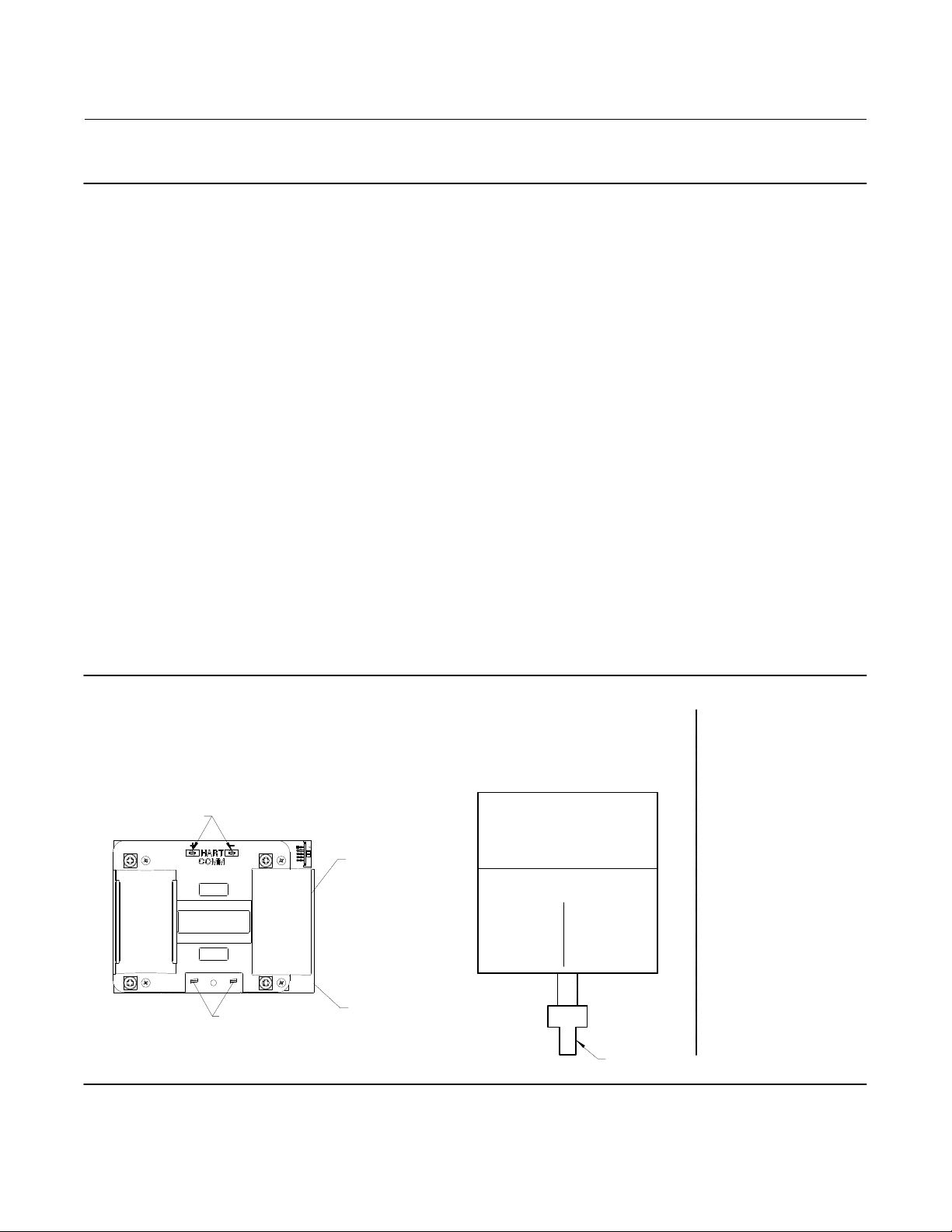

Figure 7. Loop Schematic Notes; See Figure 8 for Battery Module Assembly
INSTALLATION MUST BE IN ACCORDANCE WITH THE NATIONAL WIRING PRACTICES OF THE COUNTRY IN USE.
BARRIERS MUST BE CONNECTED PER MANUFACTURE'S INSTALLATION INSTRUCTIONS.
INTRINSICALLY SAFE APPARATUS MAY BE CONNECTED TO ASSOCIATED APPARATUS NOT SPECIFICALLY
EXAMINED IN SUCH COMBINATION. THE CRITERIA FOR INTERCONNECTION IS THAT THE VOLTAGE (Ui) AND
THE CURRENT (Ii) OF THE INTRINSICALLY SAFE APPARATUS MUST BE EQUAL TO OR GREATER THAN THE
VOLTAGE (Uo) AND CURRENT (Io) DEFINED BY THE ASSOCATED APPARATUS. IN ADDITION, THE SUM OF
THE MAXIMUM UNPROTECTED CAPACITANCE (Ci) AND INDUCTANCE (Li) OF EACH INTRINSICALLY SAFE
APPARATUS, AND THE INTERCONNECTING WIRING, MUST BE LESS THAN THE ALLOWABLE CAPACITANCE (Co)
AND INDUCTANCE (Lo) DEFINED BY THE ASSOCIATED APPARATUS. IF THESE CRITERIA ARE MET, THEN THE
COMBINATION MAY BE CONNECTED.
FORMULAS Ui > Uo
Ii > Io
Ci + Ccable < Co
Li + Lcable < Lo
Pi > Po
RESISTANCE BETWEEN BARRIER GROUND AND EARTH GROUND MUST BE LESS THAN ONE OHM.
IF HAND-HELD COMMUNICATOR OR MULTIPLEXER IS USED, IT MUST BE APPROVED WITH ENTITY
PARAMETERS AND INSTALLED PER THE MANUFACTURER'S CONTROL DRAWING.
Figure 8. Loop Schematic for Battery Module Assembly
HART COMM TERMINALS
WP1/WP2
BATTERY
MODULE
ASSEMBLY
HAND HELD
HAZARDOUS LOCATION NON-HAZARDOUS LOCATION
INTRINSICALLY SAFE
CLASS I DIV 1 GP ABCD
CLASS I, ZONE 0 GP IIC
4320 POSITION MONITOR
Ui = 6 V
Ii = 5 mA
Pi = 30 mW
Ci = 2.5 nf
Li = 0 mH
Uo = 6 V
Io = 14 mA
Co = 39 mf
Lo = 150 mH
HART COMM TERMINALS
(BATTERY MODULE - WP1 / WP2)
GE59530
MAIN BOARD
ASSEMBLY
BACKUP POWER
TERMINALS
(WP2/WP3)
BACKUP POWER TERMINALS
MAIN BOARD - WP2 / WP3
Ui = 10 V Pi = 1 W
Li = 150 mA

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
16
Valve / Actuator Mounting
If ordered as a part of a control valve assembly, the factory will mount the wireless position monitor on the actuator
and calibrate the instrument. If you purchased the wireless position monitor separately, you will need a mounting kit
to mount the wireless position monitor on the actuator. The following procedures are general guidelines you should
consider when mounting the wireless position monitor. See the instructions that come with the mounting kit for
detailed information on mounting the wireless position monitor to a specific actuator model.
Note
All mounting materials should be non-ferrous. Ferrous materials are magnetic and may affect feedback.
The feedback system for the 4320 wireless position monitor utilizes a magnetic field for true linkage‐less,
non‐contacting position measurement. In order to prevent inadvertent stem movement while the instrument is in
operation, magnetic tools (such as a magnetic‐tipped screwdriver) should not be used.
CAUTION
The magnet material has been specifically chosen to provide a long‐term stable magnetic field. However, as with any
magnet, care must be taken when handling the magnet assembly. Another high powered magnet placed in close proximity
(less than 25 mm) can cause permanent damage. Potential sources of damaging equipment include, but are not limited to:
transformers, DC motors, stacking magnet assemblies.
CAUTION
General Guidelines for use of High Power Magnets with Position Monitoring Instruments
Use of high power magnets in close proximity to any position monitoring instrument which is operating a process should
be avoided. Regardless of the model, high power magnets can affect feedback accuracy. Technicians should avoid the use
of high power magnets in close proximity with any position monitoring instrument.
Use of Magnetic Tools with the 4320
D Magnetic Tip Screw Drivers – Magnetic tip screw drivers can be used to work on the 4320.
However, they should not be brought in close proximity to the magnet assembly (located
at the back of the instrument) during process operations.
Note
As a general rule, do not use less than 50% of the magnet assembly for full travel measurement. Performance will decrease as the
assembly is increasingly subranged.
The linear magnet assemblies have a valid travel range indicated by arrows molded into the piece. This means that the Hall sensor
(on the back of the 4320 housing) has to remain within this range throughout the entire valve travel. See figure 9.
The linear magnet assemblies are symmetrical. Either end may be up.

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
17

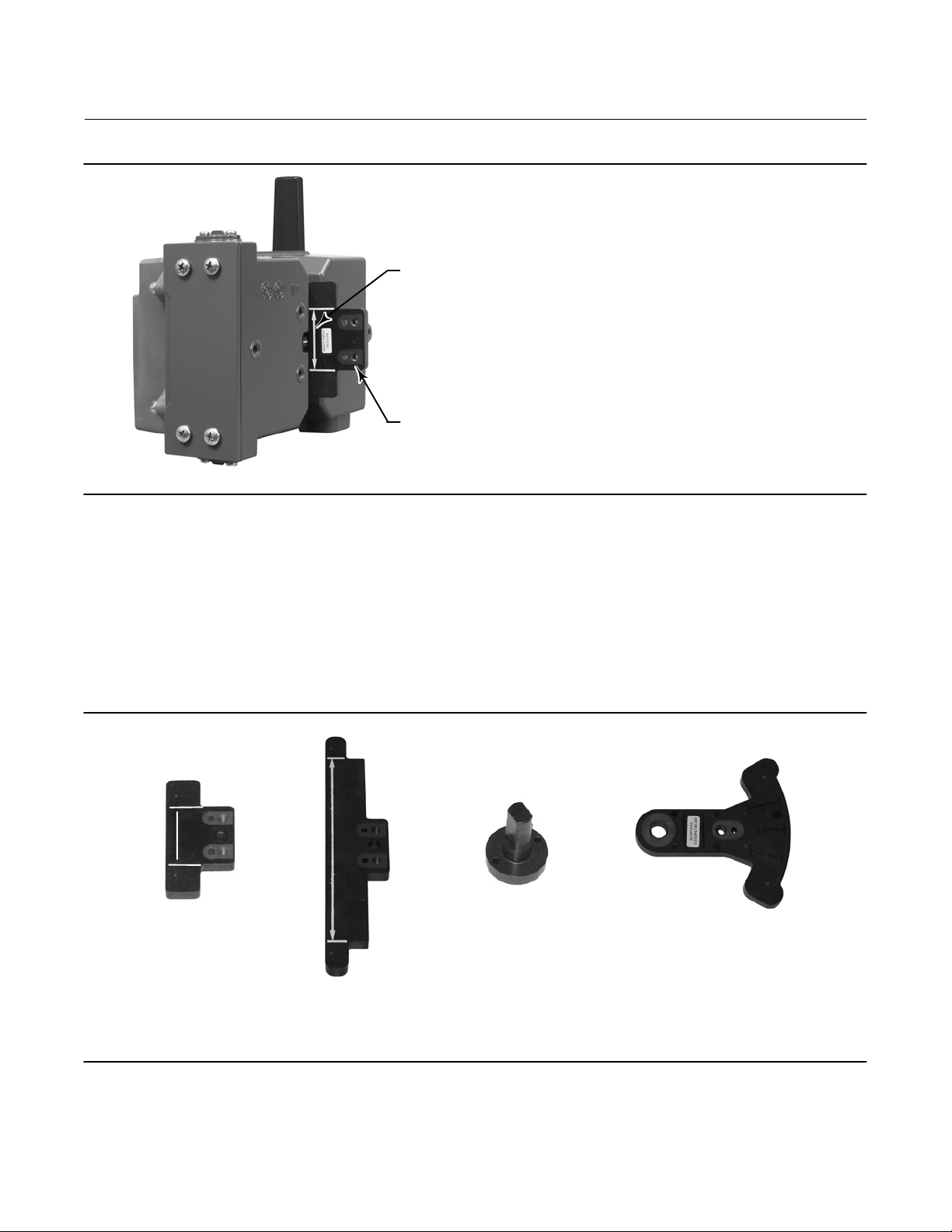

VALID TRAVEL
RANGE
25 mm (1 INCH)
SHOWN
MAGNET
ASSEMBLY
(ATTACHED TO
VALVE STEM)
X0543
Figure 9. Travel Range
There are a variety of mounting brackets and kits that are used to mount the 4320 to different actuators. However,
despite subtle differences in fasteners, brackets, and connecting linkages, the procedures for mounting can be
categorized as follows:
D Linear or sliding‐stem actuators with up to 210 mm (8.25 inch) travel
D Rotary actuators with travel up to 90 degrees
D Device-specific applications for rotary actuators requiring 13 to 30 degree rotation
See figure 10 for the different travel feedback magnet assemblies.
Figure 10. Magnet Assemblies
Y
B
ROTARY
TRAVEL UP TO 90 DEGREES
LINEAR
7, 19, OR 25 mm
(1/4, 3/4, OR 1 INCH) ASSEMBLY
LINEAR
38, 50, 100, OR 210 mm
(1-1/2, 2, 4, OR 8-1/4 INCH) ASSEMBLY
ARCED
13 TO 30 DEGREE ROTATION
NOTE: VALID TRAVEL RANGE INDICATED BY WHITE ARROWS

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
18
Sliding‐Stem (Linear) Actuators (e.g. Fisher 667)
Before mounting, verify that linear travel is greater than one‐half and not more than the maximum recommended
travel of the feedback kit.
1. Attach the mounting bracket to the actuator.
2. Loosely attach the feedback pieces and magnet assembly to the valve stem connector. Do not tighten the fasteners
because fine adjustment is required.
CAUTION
Do not install a magnet assembly that is shorter than the physical travel of the actuator. Loss of control will result from the
magnet assembly moving outside the range of the index mark in the feedback slot of the 4320 housing.
3. Center the magnet assembly inside the retaining slot 5.7 mm (0.22 inch) away from the bottom base of the
housing as measured from the center of the assembly bolt holes to the base of the housing (see figure 11).
4. Align the magnet assembly as shown in figure 11.
5. Tighten the fasteners.
6. Mount the wireless positioner monitor to the mounting bracket, using the mounting bolts. Any of the mounting
holes may be used for linear actuators. See figure 12.
7. Once the instrument is mounted perform the local interface calibration procedure, as described on page 28. Verify
the magnet assembly position through the entire travel range before putting into service.
Figure 11. Mounting—Sliding‐Stem Magnet Assembly
GE59830
MOUNTING FACES
MOUNTING
FACES
mm
(INCH)
MAGNET
ASSEMBLY
BOLT
BASE OF
HOUSING
5.7 $2.0
(0.22 $0.08)
ON/OFF
CONTROL OPTION

Instruction Manual
D103621X012
4320 Position Monitor
October 2012
19
MOUNTING HOLES FOR
ROTARY NAMUR, M6
OPTIONAL
MOUNTING
HOLES
NOTE: ANY OF THE MOUNTING HOLES
MAY BE USED FOR LINEAR ACTUATORS
X0545

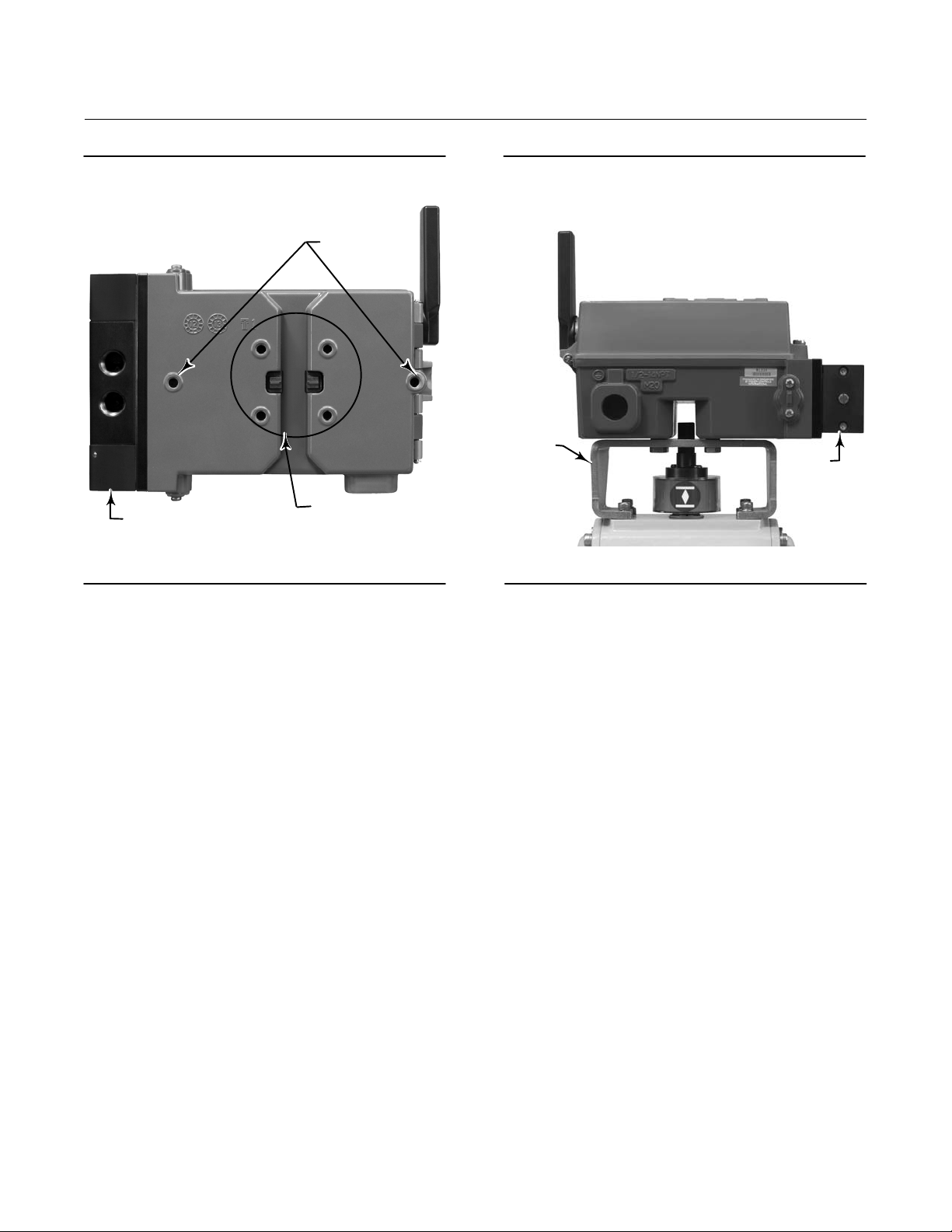

Figure 12. Housing and Mounting for Linear and
Quarter‐Turn Actuators
ON/OFF CONTROL OPTION
Figure 13. For Rotary‐Shaft Actuators (Typical
Mounting Bracket)
ROTARY
MOUNTING
BRACKET
X0572
ON/OFF
CONTROL
OPTION
Guidelines for Mounting on Quarter‐Turn (Rotary‐Shaft) Actuators
The 4320 wireless position monitor can be mounted to any quarter‐turn (rotary‐shaft) actuator, as well as those that
comply with the NAMUR guidelines. A mounting bracket and associated hardware are required. Refer to figure 13.
Before mounting, verify the rotary motion is 45 to 90 degrees of rotation.
1. Attach the magnet assembly to the actuator shaft, as shown in figure 14. Position the magnet assembly 19.5 mm
(0.77 inch) away from the bottom base of the housing as measured from the base of the assembly to the base of the
housing. At mid‐travel, the flats on the magnet assembly must be parallel to the channel on the back of the 4320
housing, as shown in figure 15.
2. Install the mounting bracket on the actuator.
3. Attach the wireless position monitor to the mounting bracket using the 4 mounting bolts, as shown in figure 13.
4. Check for clearance between the magnet assembly and the positioner feedback slot.
5. Once the instrument is mounted perform the local interface calibration procedure, as described on page 28. Verify
that the magnet assembly is centered throughout the entire rotating range.
