Emerson Rosemount 3051SF Series User manual

Quick Start Guide
00825-0300-4801, Rev BB
June 2016
Rosemount™3051S Series Pressure Transmitter
and Rosemount 3051SF Series Flowmeter
with Advanced HART®Diagnostics
Note
Before installing the transmitter, confirm the correct device driver is loaded on the host systems.
See page 3 for system readiness.
00825-0300-4801_RevBB.fm Page 1 Tuesday, June 14, 2016 7:10 AM

June 2016
2
Quick Start Guide
NOTICE
This guide provides basic guidelines for Rosemount 3051S Series Pressure Transmitters. It does not provide
instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof,
Flameproof, or intrinsically safe (I.S.) installations. Refer to the Rosemount 3051S Reference Manual,
Rosemount 3051SFA Reference Manual, Rosemount 3051SFC Reference Manual, or Rosemount 3051SFP
Reference Manual for more instruction. This document is also available electronically on
EmersonProcess.com/Rosemount.
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the appropriate local,
national, and international standards, codes, and practices. Review the approvals section of the Rosemount
3051S Reference Manual for any restrictions associated with a safe installation.
Before connecting a Field Communicator in an explosive atmosphere, make sure the instruments in the
loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.
In an Explosion-Proof/Flameproof installation, do not remove the transmitter covers when power is
applied to the unit.
Use appropriately rate Ex adapters, blanking elements, or glands during installation.
Keep process insulation at least 1-in. (25 mm) from transmitter connection.
Process leaks may cause harm or result in death.
Install and tighten process connectors before applying pressure.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.
Electrical shock can result in death or serious injury.
Avoid contact with the leads and the terminals. High voltage that may be present on leads can cause
electrical shock.
Conduit/cable entries
Unless marked, the conduit/cable entries in the transmitter housing use a 1/2–14 NPT thread form. Entries
marked “M20” are M20 ⫻1.5 thread form. On devices with multiple conduit entries, all entries have the
same thread form. Only use plugs, adapters, glands, or conduit with compatible thread form when closing
these entries.
When installing in a hazardous location, use only appropriately listed or Ex certified plugs, adapters, or
glands in cable/conduit entries.
Contents
System readiness . . . . . . . . . . . . . . . . . . . . . . . . . 3
Transmitter installation . . . . . . . . . . . . . . . . . . . . 4
Mount the transmitter. . . . . . . . . . . . . . . . . . . . . 4
Consider housing rotation . . . . . . . . . . . . . . . . . 8
Set the switches and jumpers . . . . . . . . . . . . . . 8
Connect the wiring and power up. . . . . . . . . . . 9
Verify configuration . . . . . . . . . . . . . . . . . . . . . . 11
Trim the transmitter. . . . . . . . . . . . . . . . . . . . . . 12
Safety instrumented systems. . . . . . . . . . . . . . 13
Product Certifications . . . . . . . . . . . . . . . . . . . . 14
00825-0300-4801_RevBB.fm Page 2 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
3
June 2016
1.0 System readiness
1.1 Confirm HART Revision capability
If using HART based control or asset management systems, confirm the HART
capability of those systems prior to transmitter installation. Not all systems
are capable of communicating with HART Revision 7 protocol. This
transmitter can be configured for either HART Revision 5 or 7.
For instructions on how to change the HART revision of your transmitter, see
the Rosemount 3051S Reference Manual.
1.2 Confirm correct device driver
Verify the latest device driver (DD/DTM™) is loaded on your systems to ensure
proper communications.
Download the latest device driver at EmersonProcess.com or HartComm.org.
Rosemount 3051S device revisions and drivers
Table 1 provides the information necessary to ensure you have the correct device
driver and documentation for your device.
Table 1. Rosemount 3051S Device Revisions and Files
Identify device Find device driver Review
instructions Review functionality
Software
release
date
NAMUR
software
revision(1)
1. NAMUR software revision is located on the hardware tag of the device. In accordance with NE53, revisions of
the least significant level X (of 1.0.X) do not change functionality or operation of the device and will not be
reflected in the review functionality column.
HART
software
revision(2)
2. HART software revision can be read using a HART capable configuration tool.
HART
universal
revision
Device
revision(3)
3. Device driver file names use Device and DD Revision, e.g. 10_01. HART Protocol is designed to enable legacy
device driver revisions to continue to communicate with new HART devices. To access new functionality, the
new device driver must be downloaded. It is recommended to download new device driver files to ensure full
functionality.
Manualdocument
number Changes to software(4)
4. HART Revision 5 and 7 selectable.
Apr-16 1.0.0 20
7 4
00809-0100-4801 See Footnote 4 for list of
changes.
5 3
Oct-10 N/A 12 5 3 00809-0100-4801
Added Power Advisory,
mA Output,
Power Consumption,
Coefficient of Variation
May-07 N/A 7 5 2 00809-0100-4801 Update Statistical Process
Monitoring Capability
Sep-06 N/A 4, 5, 6 5 1 00809-0100-4801 N/A
00825-0300-4801_RevBB.fm Page 3 Tuesday, June 14, 2016 7:10 AM

June 2016
4
Quick Start Guide
2.0 Transmitter installation
2.1 Mount the transmitter
Liquid applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so the drain/vent
valves are oriented above process impulse
piping.
Gas applications
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
Steam applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Flow
Flow
Flow
Flow
00825-0300-4801_RevBB.fm Page 4 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
5
June 2016
Using a mounting bracket
If the transmitter requires the use of a mounting bracket, use the images below
for instructions on how to properly mount the transmitter using the Emerson™
provided mounting brackets. Use only bolts provided with the transmitter or sold
as Emerson spare parts.
Figure 1. Panel and Pipe Mount
Panel mount Pipe mount
Coplanar flange
Traditional flange
In-line
00825-0300-4801_RevBB.fm Page 5 Tuesday, June 14, 2016 7:10 AM

June 2016
6
Quick Start Guide
Bolting considerations
If the transmitter installation requires assembly of the process flanges, manifolds,
or flange adapters, follow these assembly guidelines to ensure a tight seal for
optimal performance characteristics of the transmitters. Use only bolts supplied
with the transmitter or sold by Emerson as spare parts. Figure 2 illustrates
common transmitter assemblies with the bolt length required for proper
transmitter assembly.
Figure 2. Common Transmitter Assemblies
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adapters
C. Transmitter with traditional flange and optional flange adapters
D. Transmitter with coplanar flange and optional manifold and flange adapters
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing
the markings on the head of the bolt and referencing Table 2. If bolt material is
not shown in Table 2, contact the local Emerson Process Management
representative for more information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication and the stainless steel bolts are
coated with a lubricant to ease installation. However, no additional lubricant
should be applied when installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern.
See Table 2 for initial torque value.
4. Torque the bolts to the final torque value using the same crossing pattern.
See Table 2 for final torque value.
5. Verify flange bolts are protruding through the sensor module before applying
pressure.
A
4 × 1.75-in.
(44 mm)
D
4 × 1.75-in.
(44 mm)
4 × 2.25-in.
(57 mm)
C
4 ×1.75-in.
(44 mm) 4 ×1.50-in.
(38 mm)
B
4 × 2.88-in.
(73 mm)
00825-0300-4801_RevBB.fm Page 6 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
7
June 2016
O-rings with flange adapters
In-line gage transmitter orientation
The low side pressure port (atmospheric reference) on the In-line gage
transmitter is located under the sensor module neck label. (See Figure 3.)
Keep the vent path free of any obstruction, including but not limited to paint,
dust, and lubrication by mounting the transmitter so any contaminants can drain
away.
Figure 3. In-line Gage Transmitter
A. Low side pressure port (under neck label)

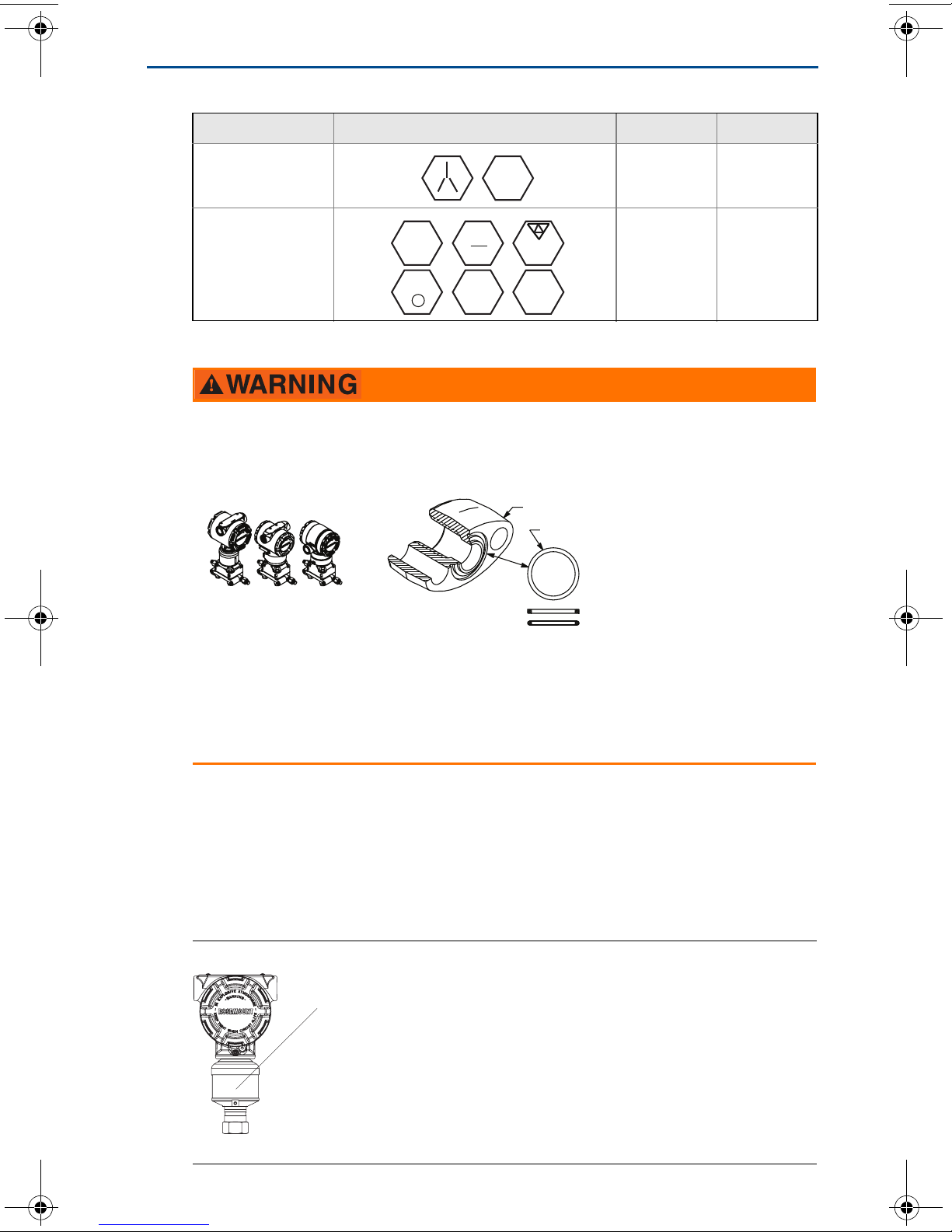

Table 2. Torque Values for the Flange and Flange Adapter Bolts
Bolt material Head markings Initial torque Final torque
Carbon Steel (CS) 300 in-lb 650 in-lb
Stainless Steel (SST) 150 in-lb 300 in-lb
Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or
serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the
O-ring designed for its specific flange adapter, as shown below:
A. Flange adapter
B. O-ring
C. PTFE based (profile is square)
D. Elastomer (profile is round)
Whenever the flanges or adapters are removed, visually inspect the O-rings. Replace them if there are
any signs of damage, such as nicks or cuts. If you replace the O-rings, re-torque the flange bolts and
alignment screws after installation to compensate for seating of the PTFE O-ring.
B7M
316
316
316
SW
316
STM
316
R
B8M
A
B
C
Rosemount 3051S/3051/2051/4088
D
A
00825-0300-4801_RevBB.fm Page 7 Tuesday, June 14, 2016 7:10 AM

June 2016
8
Quick Start Guide
2.2 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
1. Loosen the housing rotation set screw using a 3/32-in. hex wrench.
2. Rotate the housing clockwise to the desired location. If the desired location
cannot be achieved due to thread limit, rotate the housing counter clockwise
to the desired location (up to 360° from thread limit).
3. Re-tighten the housing rotation set screw to a maximum of 30 in-lb when
desired location is reached.

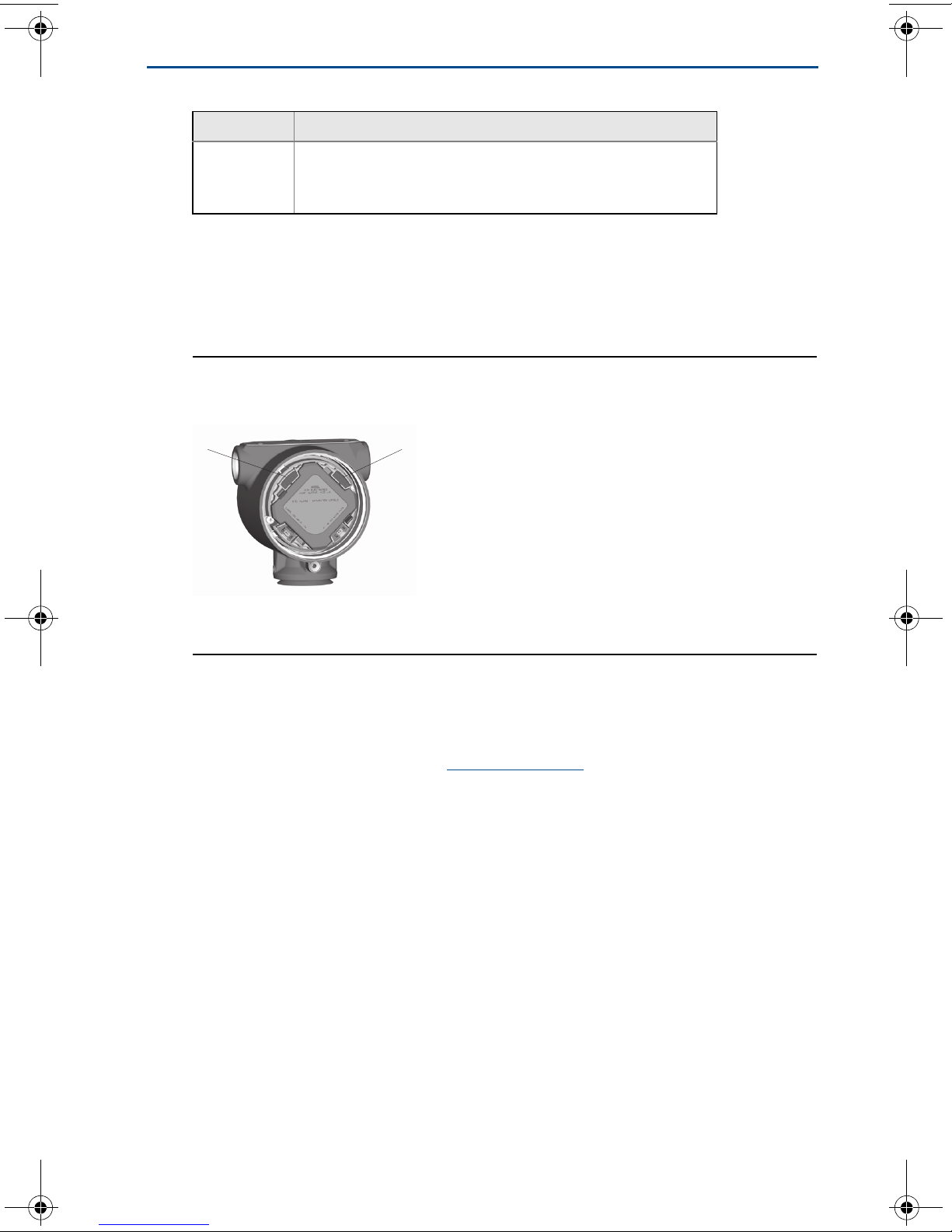

Figure 4. Transmitter Housing Set Screw
A. Housing rotation set screw (3/32-in.)
2.3 Set the switches and jumpers
Set alarm and security switch configuration before installation as shown in
Figure 5.
The alarm switch sets the analog output alarm to high or low.
- Default alarm is high.
The security switch allows (off) or prevents (on) any configuration of the
transmitter.
- Default security is off.
Use the following procedure to change the switch configuration:
1. Do not remove the transmitter covers in explosive atmospheres when the
circuit is live. If the transmitter is live, set the loop to manual and remove
power.
2. Remove the electronics compartment cover. On the PlantWeb™housing the
cover is opposite the field terminals side.
3. On the PlantWeb housing, slide the security and alarm switches into the
preferred position by using a small screwdriver (an LCD display or an
adjustment module must be in place to activate the switchers).
4. Reinstall the housing cover so metal contacts metal to meet explosion-proof
requirements.
PlantWeb
A
00825-0300-4801_RevBB.fm Page 8 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
9
June 2016
Figure 5. Transmitter Switch and Jumper Configuration
2.4 Connect the wiring and power up
Use the following steps to wire the transmitter:
1. Remove and discard orange conduit plugs.
2. Remove the housing cover labeled “Field Terminals.”
3. Connect the positive lead to the “+” terminal, and the negative lead to the “–”
terminal.
Note
Do not connect the power across the test terminals. Power could damage the test diode in
the test connection. Twisted pairs yield best results. Use 24 AWG to 14 AWG wire and do
not exceed 5,000 ft (1500 m).
4. Plug and seal the unused conduit connection.
5. If applicable, install wiring with a drip loop. Arrange the drip loop so the
bottom is lower than the conduit connections and the transmitter housing.
6. Reinstall the housing cover so metal contacts metal to meet explosion-proof
requirements.
Figure 6 and Figure 7 show the wiring connections necessary to power a
Rosemount 3051S and enable communications with a hand-held Field
Communicator.
PlantWeb
A. Meter/adjustment module
B. Security
C. Alarm
NOTICE
When the enclosed threaded plug is utilized in the conduit opening, it must be installed with a
minimum thread engagement in order to comply with explosion-proof requirements. For straight
threads, a minimum of seven threads must be engaged. For tapered threads, a minimum of five
threads must be engaged.
A
BC
00825-0300-4801_RevBB.fm Page 9 Tuesday, June 14, 2016 7:10 AM

June 2016
10
Quick Start Guide
Figure 6. PlantWeb Housing Wiring
A. RL ≥ 250 Ω
B. Power supply
Note
Installation of the transient protection terminal block does not provide transient protection
unless the Rosemount 3051S case is properly grounded.
Signal wiring grounding
Do not run signal wiring in conduit or open trays with power wiring, or near heavy
electrical equipment. Grounding terminations are provided on the sensor module
and inside the terminal compartment. These grounds are used when transient
protection terminal blocks are installed or to fulfill local regulations. See Step 2
below for more information on how the cable shield should be grounded.
1. Remove the field terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 7. The cable shield
should:
Be trimmed close and insulated from touching the transmitter housing
Continuously connect to the termination point
Be connected to a good earth ground at the power supply end
Figure 7. Wiring
A. Insulate shield
B. Minimize distance
C. Connect shield back to the power supply ground
D. Trim shield and insulate
E. Ground for transient protection
A
B
DP
C
AB
B
DE
00825-0300-4801_RevBB.fm Page 10 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
11
June 2016
3. Reinstall the housing cover so metal contacts metal to meet explosion-proof
requirements.
4. Plug and seal unused conduit connections with the provided conduit plug.
Conduit electrical connector wiring (option GE or GM)
For Rosemount 3051S with conduit electrical connectors GE or GM, refer to the
cordset manufacturer’s installation instructions for wiring details.
For FM Intrinsically Safe, non-incendive or FM FISCO Intrinsically Safe hazardous
locations, install in accordance with Rosemount drawing 03151-1009 to maintain
outdoor rating (NEMA®4X and IP66.) See Appendix B of the Rosemount 3051S
Reference Manual.
Power supply
The direct current power supply should provide power with less than two percent
ripple. The total resistance load is the sum of the resistance of the signal leads and
the load resistance of the controller, indicator, and related pieces.
Note
The resistance of intrinsic safety barriers, if used, must be included.
Figure 8. Load Limitation
The Field Communicator requires a minimum loop resistance of 250 Ωfor communication.
2.5 Verify configuration
Use any HART-compliant master to communicate with and verify configuration of
the Rosemount 3051S with Advanced HART Diagnostics (option code DA2).
A check () indicates the basic configuration parameters. At a minimum, these
parameters should be verified as part of the configuration and startup procedure.
HART diagnostics transmitter (option code DA2)
Maximum Loop Resistance = 43.5 ⫻(Power Supply Voltage – 12.0)
Table 3. Fast Key Sequence
Function HART 7 Fast Keys HART 5 Fast Keys
Alarm and Saturation Levels 2, 2, 2, 5, 6 2, 2, 2, 5
Analog Output Trim 3, 4, 1, 2, 3 3, 4, 1, 2, 3
Burst Mode On/Off 2, 2, 5, 3, 1 2, 2, 5, 2, 1
Burst Options 2, 2, 5, 3 2, 2, 5, 2, 2
1322
1000
500
0
12.0 20 30 42.4
Voltage (Vdc)
Load (Ohms)
Operating
Region
00825-0300-4801_RevBB.fm Page 11 Tuesday, June 14, 2016 7:10 AM

June 2016
12
Quick Start Guide
2.6 Trim the transmitter
Transmitters are shipped fully calibrated per request or by the factory default of
full scale (lower range value = zero, upper range value = upper range limit).
Zero trim
A zero trim is a single-point adjustment used for compensating mounting
position and line pressure effects. When performing a zero trim, ensure the
equalizing valve is open and all wet legs are filled to the correct level.
If zero offset is less than 3% of true zero, follow the Using the Field Communicator
instructions below to perform a zero trim. If zero offset is greater than 3% of true
zero, follow the Using the transmitter zero adjustment button instructions below
to rerange.
Damping 2, 2, 1, 1, 3 2, 1, 1, 1, 3
Date 2, 1, 1, 1, 1, 5 2, 1, 1, 1, 1, 4
Descriptor 2, 1, 1, 1, 1, 3 2, 1, 1, 1, 1, 2
Digital To Analog Trim (4-20 mA Output) 3, 4, 1, 2, 3 3, 4, 1, 2, 3
Field Device Information 1, 7 1, 3, 5
HART Lock 2, 2, 6, 3 N/A
LCD Display Configuration 2, 1, 4 2, 1, 3, 1
Long Tag 2, 1, 1, 1, 1, 2 N/A
Loop Test 3, 5, 1 3, 5, 1
Lower Sensor Trim 3, 4, 1, 1, 1, 2 3, 4, 1, 1, 1, 2
Message 2, 1, 1, 1, 1, 4 2, 1, 1, 1, 1, 3
Process Alert Configuration 2, 1, 2, 3 2, 1, 2, 3
Poll Address 2, 2, 5, 2, 1 2, 2, 5, 3, 1
Remapping 2, 1, 1, 1, 4 2, 1, 1, 1, 4
Rerange- Keypad Input 2, 2, 2, 1 2, 2, 2, 1
Scaled Variable Configuration 2, 2, 3, 7 2, 2, 3, 5
View All Variables 1, 6 1, 3, 3
Sensor Trim 3, 4, 1, 1, 1 3, 4, 1, 1, 1
Status 1, 1 1, 1
Tag 2, 1, 1, 1, 1, 1 2, 1, 1, 1, 1, 1
Transfer Function (Setting Output Type) 2, 2, 1, 1, 4 2, 2, 1, 1, 4
Transmitter Security (Write Protect) 2, 2, 6 2, 2, 6
Units (Process Variable) 2, 1, 1, 1, 2 2, 1, 1, 1, 2
Upper Sensor Trim 3, 4, 1, 1, 1, 1 3, 4, 1, 1, 1, 1
Zero Trim 3, 4, 1, 1, 1, 3 3, 4, 1, 1, 1, 3
Table 3. Fast Key Sequence
Function HART 7 Fast Keys HART 5 Fast Keys
00825-0300-4801_RevBB.fm Page 12 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
13
June 2016
Using the Field Communicator
Using the transmitter zero adjustment button
Push and hold the zero adjustment button for at least two seconds but no longer
than ten seconds. This procedure is to adjust the lower range point (i.e. the
pressure value represented by 4 mA).
Figure 9. Transmitter Adjustment Buttons
A. Zero
B. Span
3.0 Safety instrumented systems
For safety certified installations, refer to the “Advanced HART Diagnostic Suite”
section of the Rosemount 3051S Reference Manual for installation procedures
and system requirements specific to safety instrumented systems.
Fast Keys Steps
3, 4, 1, 1, 1, 3
1. Equalize or vent the transmitter and connect Field Communicator.
2. At the menu, input the Fast Key sequence.
3. Follow the commands to perform a zero trim.
PlantWeb
AB
00825-0300-4801_RevBB.fm Page 13 Tuesday, June 14, 2016 7:10 AM

June 2016
14
Quick Start Guide
4.0 Product Certifications
Rev 1.5
4.1 European Directive Information
A copy of the EC Declaration of Conformity can be found at the end of the Quick
Start Guide. The most recent revision of the EC Declaration of Conformity can be
found at EmersonProcess.com/Rosemount.
4.2 Ordinary Location Certification
As standard, the transmitter has been examined and tested to determine that the
design meets the basic electrical, mechanical, and fire protection requirements
by a nationally recognized test laboratory (NRTL) as accredited by the Federal
Occupational Safety and Health Administration (OSHA).
4.3 Installing Equipment in North America
The US National Electrical Code (NEC®) and the Canadian Electrical Code (CEC)
permit the use of Division marked equipment in Zones and Zone marked
equipment in Divisions. The markings must be suitable for the area classification,
gas, and temperature class. This information is clearly defined in the respective
codes.
4.4 USA
E5 FM Explosionproof (XP) and Dust-Ignitionproof (DIP)
Certificate: 3008216
Standards: FM Class 3600 – 2011, FM Class 3615 – 2006, FM Class 3616 – 2011,
FM Class 3810 – 2005, ANSI/NEMA 250 – 2003
Markings: XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III;
T5(-50 °C ≤Ta≤+85 °C); Factory Sealed; Type 4X
I5 FM Intrinsic Safety (IS) and Nonincendive (NI)
Certificate: 3012350
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005, NEMA 250 – 2003
Markings: IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III;
Class 1, Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D;
T4(-50 °C ≤Ta≤+70 °C) [HART]; T4(-50 °C ≤Ta≤+60 °C) [Fieldbus];
when connected per Rosemount drawing 03151-1006; Type 4X
Special Condition for Safe Use:
1. The Model 3051S/3051S-ERS Pressure Transmitter contains aluminum and is
considered to constitute a potential risk of ignition by impact or friction. Care must be
taken into account during installation and use to prevent impact and friction.
Note
Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations using
general Division 2 wiring methods or Nonincendive Field Wiring (NIFW). See Drawing
03151-1006.
00825-0300-4801_RevBB.fm Page 14 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
15
June 2016
IE FM FISCO
Certificate: 3012350
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005, NEMA 250 – 2003
Markings: IS CL I, DIV 1, GP A, B, C, D; T4(-50 °C ≤Ta≤+60 °C); when connected per
Rosemount drawing 03151-1006; Type 4X
Special Condition for Safe Use:
1. The Model 3051S/3051S-ERS Pressure Transmitter contains aluminum and is
considered to constitute a potential risk of ignition by impact or friction. Care must be
taken into account during installation and use to prevent impact and friction.
4.5 Canada
E6 CSA Explosionproof, Dust-Ignitionproof, and Division 2
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966,
CSA Std C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91,
CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 213-M1987,
ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05
Markings: Explosionproof Class I, Division 1, Groups B, C, D; Dust-Ignitionproof Class II,
Division 1, Groups E, F, G; Class III; suitable for Class I, Zone 1, Group IIB+H2,
T5; suitable for Class I, Division 2, Groups A, B, C, D; suitable for Class I, Zone
2, Group IIC, T5; when connected per Rosemount drawing 03151-1013;
Type 4X
I6 CSA Intrinsically Safe
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 30-M1986,
CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987,
CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003,
CSA Std C22.2 No. 60529:05
Markings: Intrinsically Safe Class I, Division 1; Groups A, B, C, D; suitable for
Class 1, Zone 0, IIC, T3C; when connected per Rosemount drawing
03151-1016 [3051S] 03151-1313 [ERS]; Type 4X
IF CSA FISCO
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 30-M1986,
CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987,
CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003,
CSA Std C22.2 No. 60529:05
Markings: FISCO Intrinsically Safe Class I, Division 1; Groups A, B, C, D;
suitable for Class 1, Zone 0, IIC, T3C; when connected per Rosemount
drawing 03151-1016 [3051S] 03151-1313 [ERS]; Type 4X
4.6 Europe
E1 ATEX Flameproof
Certificate: KEMA 00ATEX2143X
Standards: EN 60079-0:2012, EN 60079-1:2007, EN 60079-26:2007
(3051SFx models with RTD are certified to EN60079-0:2006)
Markings: II 1/2 G Ex d IIC T6…T4 Ga/Gb, T6(-60 °C ≤Ta≤+70 °C),
T5/T4(-60 °C ≤Ta≤+80 °C)
00825-0300-4801_RevBB.fm Page 15 Tuesday, June 14, 2016 7:10 AM

June 2016
16
Quick Start Guide
Special Conditions for Safe Use (X):
1. The device contains a thin wall diaphragm. Installation, maintenance and use shall take
into account the environmental conditions to which the diaphragm will be subjected.
The manufacturer’s instructions for installation and maintenance shall be followed in
detail to assure safety during its expected lifetime.
2. For information on the dimensions of the flameproof joints the manufacturer shall be
contacted.
I1 ATEX Intrinsic Safety
Certificate: BAS01ATEX1303X
Standards: EN 60079-0:2012, EN 60079-11:2012
Markings: II 1 G Ex ia IIC T4 Ga, T4(-60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500 V test as defined in Clause 6.3.13 of EN 60079-11:2012. This must
be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree of
protection of at least IP20 in accordance with IEC/EN 60529.
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in a zone 0 area.
IA ATEX FISCO
Certificate: BAS01ATEX1303X
Standards: EN 60079-0:2012, EN 60079-11:2012
Markings: II 1 G Ex ia IIC T4 Ga, T4(-60 °C ≤Ta≤+70 °C)
Temperature class Process temperature
T6 -60 °C to +70 °C
T5 -60 °C to +80 °C
T4 -60 °C to +120 °C
Model UiIiPiCiLi
SuperModule™30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9
30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A
Parameters FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
Capacitance Ci0
Inductance Li0
00825-0300-4801_RevBB.fm Page 16 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
17
June 2016
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500 V test as defined in Clause 6.3.13 of EN 60079-11:2012. This must
be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree of
protection of at least IP20 in accordance with IEC/EN 60529.
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in a zone 0 area.
ND ATEX Dust
Certificate: BAS01ATEX1374X
Standards: EN 60079-0:2012, EN 60079-31:2009
Markings: II 1 D Ex ta IIIC T105 °C T500 95 °C Da, (-20 °C ≤Ta≤+85 °C),
Vmax = 42.4 V
Special Conditions for Safe Use (X):
1. Cable entries must be used which maintain the ingress protection of the enclosure to at
least IP66.
2. Unused cable entries must be filled with suitable blanking plugs which maintain the
ingress protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient temperature range of
the apparatus and capable of withstanding a 7 J impact test.
4. The SuperModule(s) must be securely screwed in place to maintain the ingress
protection of the enclosure(s).
N1 ATEX Type n
Certificate: BAS01ATEX3304X
Standards: EN 60079-0:2012, EN 60079-15:2010
Markings: II 3 G Ex nA IIC T5 Gc, (-40 °C ≤Ta≤ +85 °C), Vmax = 45 V
Special Condition for Safe Use (X):
1. The equipment is not capable of withstanding the 500 V insulation test required by
clause 6.5 of EN 60079-15:2010. This must be taken into account when installing the
equipment.
Note
RTD Assembly is not included with the 3051SFx Type n Approval.
4.7 International
E7 IECEx Flameproof and Dust
Certificate: IECEx KEM 08.0010X (Flameproof)
Standards: IEC 60079-0:2011, IEC 60079-1:2007, IEC 60079-26:2006
(3051SFx models with RTD are certified to IEC 60079-0:2004)
Markings: Ex d IIC T6…T4 Ga/Gb, T6(-60 °C ≤Ta≤+70 °C),
T5/T4(-60 °C ≤Ta≤+80 °C)
Temperature class Process temperature
T6 -60 °C to +70 °C
T5 -60 °C to +80 °C
T4 -60 °C to +120 °C
00825-0300-4801_RevBB.fm Page 17 Tuesday, June 14, 2016 7:10 AM

June 2016
18
Quick Start Guide
Special Conditions for Safe Use (X):
1. The device contains a thin wall diaphragm. Installation, maintenance and use shall take
into account the environmental conditions to which the diaphragm will be subjected.
The manufacturer’s instructions for installation and maintenance shall be followed in
detail to assure safety during its expected lifetime.
2. For information on the dimensions of the flameproof joints the manufacturer shall be
contacted.
Certificate: IECEx BAS 09.0014X (Dust)
Standards: IEC 60079-0:2011, IEC 60079-31:2008
Markings: Ex ta IIIC T105 °C T500 95 °C Da, (-20 °C ≤Ta≤ +85 °C), Vmax = 42.4 V
Special Conditions for Safe Use (X):
1. Cable entries must be used which maintain the ingress protection of the enclosure to at
least IP66.
2. Unused cable entries must be filled with suitable blanking plugs which maintain the
ingress protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient temperature range of
the apparatus and capable of withstanding a 7 J impact test.
4. The 3051S- SuperModule must be securely screwed in place to maintain the ingress
protection of the enclosure.
I7 IECEx Intrinsic Safety
Certificate: IECEx BAS 04.0017X
Standards: IEC 60079-0:2011, IEC 60079-11:2011
Markings: Ex ia IIC T4 Ga, T4(-60 °C ≤Ta≤ +70 °C)
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500 V test as defined in Clause 6.3.13 of EN 60079-11:2012. This must
be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree of
protection of at least IP20 in accordance with IEC/EN 60529.
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in a zone 0 area.
I7 IECEx Intrinsic Safety – Group I - Mining (I7 with Special A0259)
Certificate: IECEx TSA 14.0019X
Standards: IEC 60079-0:2011, IEC 60079-11:2011
Markings: Ex ia I Ma (-60 °C ≤Ta≤+70 °C)
Model UiIiPiCiLi
SuperModule 30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9
30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A
00825-0300-4801_RevBB.fm Page 18 Tuesday, June 14, 2016 7:10 AM

Quick Start Guide
19
June 2016
Special Conditions for Safe Use (X):
1. If the apparatus is fitted with optional 90 V transient suppressor, it is not capable of
withstanding the 500V insulation test required by Clause 6.3.13 of IEC60079-11. This
must be taken into account when installing the apparatus.
2. It is a condition of safe use that the above input parameters shall be taken into account
during installation.
3. It is a condition of manufacture that only the apparatus fitted with housing, covers and
sensor module housing made out of stainless steel are used in Group I applications.
IG IECEx FISCO
Certificate: IECEx BAS 04.0017X
Standards: IEC 60079-0:2011, IEC 60079-11:2011
Markings: Ex ia IIC T4 Ga, T4(-60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500 V test as defined in Clause 6.3.13 of EN 60079-11:2012. This must
be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree of
protection of at least IP20 in accordance with IEC/EN 60529.
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in a zone 0 area.
IG IECEx Intrinsic Safety – Group I – Mining (IG with Special A0259)
Certificate: IECEx TSA 04.0019X
Standards: IEC 60079-0:2011, IEC 60079-11:2011
Markings: FISCO FIELD DEVICE Ex ia I Ma (-60 °C ≤Ta≤+70 °C)
Model UiIiPiCiLi
SuperModule 30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9
30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A
Parameters FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
Capacitance Ci0
Inductance Li0
Parameters FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
00825-0300-4801_RevBB.fm Page 19 Tuesday, June 14, 2016 7:10 AM

June 2016
20
Quick Start Guide
Special Conditions for Safe Use (X):
1. If the apparatus is fitted with optional 90 V transient suppressor, it is not capable of
withstanding the 500 V insulation test required by Clause 6.3.13 of IEC60079-11. This
must be taken into account when installing the apparatus.
2. It is a condition of safe use that the above input parameters shall be taken into account
during installation.
3. It is a condition of manufacture that only the apparatus fitted with housing, covers and
sensor module housing made out of stainless steel are used in Group I applications.
N7 IECEx Type n
Certificate: IECEx BAS 04.0018X
Standards: IEC 60079-0:2011, IEC 60079-15:2010
Markings: Ex nA IIC T5 Gc (-40 °C ≤Ta≤+85 °C)
Special Condition for Safe Use (X):
1. The equipment is not capable of withstanding the 500 V insulation test required by
clause 6.5 of EN 60079-15:2010. This must be taken into account when installing the
equipment.
4.8 Brazil
E2 INMETRO Flameproof
Certificate: UL-BR15.0393X
Standards: ABNT NBR IEC 60079-0:2008 + Corrigendum 1:2011,
ABNT NBR IEC 60079-1:2009 + Corrigendum 1:2011,
ABNT NBR IEC 60079-26:2008 + Corrigendum 1:2008
Markings: Ex d IIC T* Ga/Gb, T6(-60 °C ≤Ta≤+70 °C), T5/T4(-60 °C ≤Ta≤+80 °C), IP66
Special Conditions for Safe Use (X):
1. The device contains a thin wall diaphragm. Installation, maintenance and use shall take
into account the environmental conditions to which the diaphragm will be subjected.
The manufacturer's instructions for installation and maintenance shall be followed in
detail to assure safety during its expected lifetime.
2. For information on the dimensions of the flameproof joints, the manufacturer shall be
contacted.
I2/IB INMETRO Intrinsic Safety/FISCO
Certificate: UL-BR 15.0392X
Standards: ABNT NBR IEC 60079-0:2008 + Corrigendum 1:2011,
ABNT NBR IEC 60079-11:2009
Markings: Ex ia IIC T4 Ga, T4(-60 °C ≤Ta≤+70 °C), IP66
Special Condition for Safe Use (X):
1. The 3051S enclosure may be made of aluminium alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in areas that requires EPL Ga.
Capacitance Ci0
Inductance Li0
Model UiIiPiCiLi
SuperModule 30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
Parameters FISCO
00825-0300-4801_RevBB.fm Page 20 Tuesday, June 14, 2016 7:10 AM
