RosemountTM 9295 Process Flow Meter

October 2018
2
Quick Start Guide
NOTICE
This guide provides basic guidelines for the installation of the Rosemount 9295 Primary Element. For
comprehensive instructions on configuration, diagnostics, maintenance, service or troubleshooting, refer to
the Rosemount 9295 Primary Element Reference Manual and appropriate transmitter reference manuals. The
manual and this guide are also available electronically on Emerson.com/Rosemount.
If the Rosemount 9295 Primary Element was ordered assembled to a Rosemount Pressure Transmitter,
Manifold or RTD, refer to the following Quick Start Guides for information on configuration and hazardous
locations certifications:
Rosemount 3051S Quick Start Guide
Rosemount 3051SMV Quick Start Guide
Rosemount 3051 Quick Start Guide
Rosemount 2051 Quick Start Guide
Rosemount 214C (RTD) Quick Start Guide
Hazardous Area Approvals: This assembly is assembled from certified pieces of equipment. The overall
assembly is subject to inspection by the authority having jurisdiction over the installation.
If the meter was ordered with a wireless transmitter, the battery will be shipped separately due to freight
carrier regulations.
Process leaks may cause harm or result in death.
To avoid process leaks, only use gaskets and O-rings designed for the corresponding flange to seal process
connections.
Transmitter electronics maintenance should not be conducted on energized equipment in a hazardous
atmosphere.
Failure to comply with the requirements for intrinsic safety in a hazardous atmosphere could result in an
explosion.
If the process fluid is hazardous, the procedure outlined here should be modified as required.
Failure to do so could result in serious injury to personnel or death.
If the line is pressurized, always open valves slowly.
Failure to do so could result in serious injury to personnel or death.
During installation, never lift the meter by the transmitter, RTD or impulse lines/valves.
Doing so may result in meter damage and serious injury.
Contents
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . 3
Locate the installation point . . . . . . . . . . . . . . . 4
Orient the primary element . . . . . . . . . . . . . . . . 7
Install the primary element . . . . . . . . . . . . . . . 11
Trim the transmitter . . . . . . . . . . . . . . . . . . . . . 14
Additional information . . . . . . . . . . . . . . . . . . . 15
Declaration of Conformity . . . . . . . . . . . . . . . . 16

Quick Start Guide
3
October 2018
1.0 Before you begin
Before you begin the installation, consider the vibration and temperature limits
of the meter:
The vibration limit of the Rosemount 9295 primary element with direct
mount transmitter is 0.5g amplitude, 10-500Hz frequency range. If the
application exceeds the vibration limits above, mount the transmitter and
manifold remotely.
The process temperature limits are:
- Direct mount transmitter: -20 °F (-28 °C) to 450 °F (232 °C)
- Remote mount transmitter: -20 °F (-28 °C) to 850 °F (454 °C)
Figure 1. Exploded View
A. Manifold gasket
B. Transmitter
C. Transmitter manifold assembly
D. Label, low-side impulse line
E. Label, high-side impulse line
F. RTD assembly
G. Manifold attachment nut
H. Manifold attachment stud
I. Opposite side head plug
J. Rod-out plug (1/2” ANPT)
K. Primary element tag
L. Primary element
M. RTD assembly plug
The four steps to install and zero the Rosemount 9295 Process Flow Meter are
described in this guide:
Locate the installation point
Orient the primary element
Install the primary element
Trim the transmitter

October 2018
4
Quick Start Guide
2.0 Locate the installation point
Locate the primary element installation point. If possible, install the meter at
ground level to allow meter access. No straight run is required for disturbances
in Table 1. In all cases, if additional straight run is available, a best practice is to
position the Rosemount 9295 primary element where 80 percent of the run is
upstream of the meter and 20 percent is downstream.
For redundant transmitter installations, it is recommended that the primary
element be installed with a minimum of five diameters of straight run upstream
of the meter. In cases where this isn’t possible, please consult your EmersonTM
representative for recommendations.
Table 1. Straight Pipe Requirements (Distance in Number of Pipe Diameters)(1)(2)
(1) Consult an EmersonTM representative if a disturbance is not listed.
(2) Straight pipe lengths are measured from the upstream and downstream flanges of the Rosemount 9295 primary
element. A zero diameter requirement implies that the primary element can be installed directly adjacent to a
disturbance.
Figure 2. Process Flow Meter Installation (Gas Installation Example)
Type of flow disturbance upstream of
flow meter
Diameters of straight pipe run
needed
Upstream (inlet) side of
primary
Single 90°bends in the same plane 0
Two or more 90°bends in the same
plane 0
Two or more 90°bends in different
planes 0
Up to 10°of swirl 0
Reducer (One line size) 0
Butterfly Valve (75%-100% open) 0
Downstream (outlet) side of primary (all disturbances) 0

Quick Start Guide
5
October 2018
2.1 Reversing the electronics (transmitter and RTD)
The Rosemount 9295 primary element with direct mount transmitter has
reversible electronics. If there is interference in the mounting location, the
transmitter and RTD (if applicable) can be reinstalled on the opposite side of the
meter by following the directions below. To reverse the electronics, use
Figure 1, Figure 3, Table 2 and follow these instructions.
This operation should not be conducted on energized equipment in a hazardous atmosphere.
Failure to comply with the requirements for intrinsic safety in a hazardous atmosphere could result in an
explosion.
1. (Not shown) Remove the opposite side head plus and RD assembly plug (if
applicable).
2. Remove the manifold/transmitter assembly and switch it to the opposite
side.
Install the electronics with the new gaskets that are provided.
If the meter is equipped with an RTD, the wiring will need to be removed
from the transmitter.
3. Rotate the transmitter 180° on the manifold, ensuring high and low pressure
ports match those on the Rosemount 9295 meter body.
4. Reinstall the bolts using a cross or star pattern. Refer to Table 2 for bolt
torque guidelines.
5. Remove the RTD assembly and install it on the opposite side.
6. If the wiring was unhooked from the transmitter, reinstall it.
7. (Not shown) Reinstall the opposite side head plugs and the RTD assembly
plug.
Figure 3. Reversing the Electronics

October 2018
6
Quick Start Guide
Table 2. Torque Values for Transmitter Mounting Bolts
Bolt material Head markings Initial torque Final torque
Carbon steel (CS) 300 in-lb 650 in-lb
Stainless steel (SST) 150 in-lb 300 in-lb
B7M

Quick Start Guide
7
October 2018
3.0 Orient the primary element
The primary element can be installed in any position around the circumference
of the pipe, provided the vents are positioned within the recommended zone to
allow for bleeding or venting. Orienting the unit within the recommended zone
will also prevent inaccurate measurements. Determine the orientation based on
the application type, mounting type, flow direction, single or dual transmitter
and the flowmeter’s orientation in relation to the pipe.
For steam applications, remote mount is recommended for vertical flow
applications. For liquid applications, flow down is not a recommended
installation.
3.1 Integrated meter orientations
Figure 4. Horizontal Flow Orientation Based on Fluid Type
Note
Images above show acceptable orientation range; 45° is preferred.
Figure 5. Vertical Flow Orientation Based on Fluid Type
Liquids Gas Steam
Liquids Gas Steam
Not best practice; remote
preferred Not permitted

October 2018
8
Quick Start Guide
3.2 Remote transmitter mount meter orientations

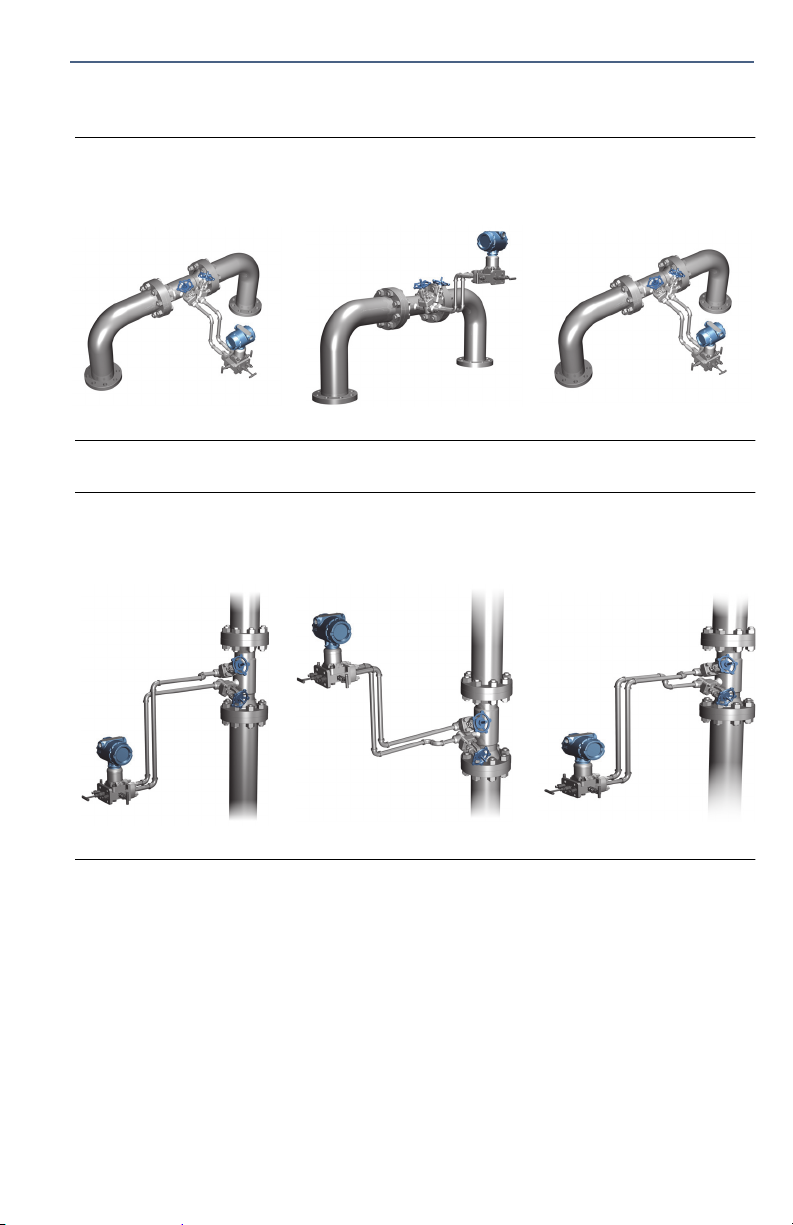

Figure 6. Horizontal Flow Orientation Based on Fluid Type
Figure 7. Vertical Flow Orientation Based on Fluid Type
Liquids Gas Steam
Liquids Gas Steam

Quick Start Guide
9
October 2018
3.3 Redundant transmitter direct mount meter orientations
Figure 8. Horizontal Flow Orientation Based on Fluid Type
Note
For all orientations, the meter should be level with the grade.
Figure 9. Vertical Flow Orientation Based on Fluid Type
Liquids Gas Steam
Liquids Gas Steam
Not permitted

October 2018
10
Quick Start Guide
3.4 Redundant transmitter remote mount meter orientations

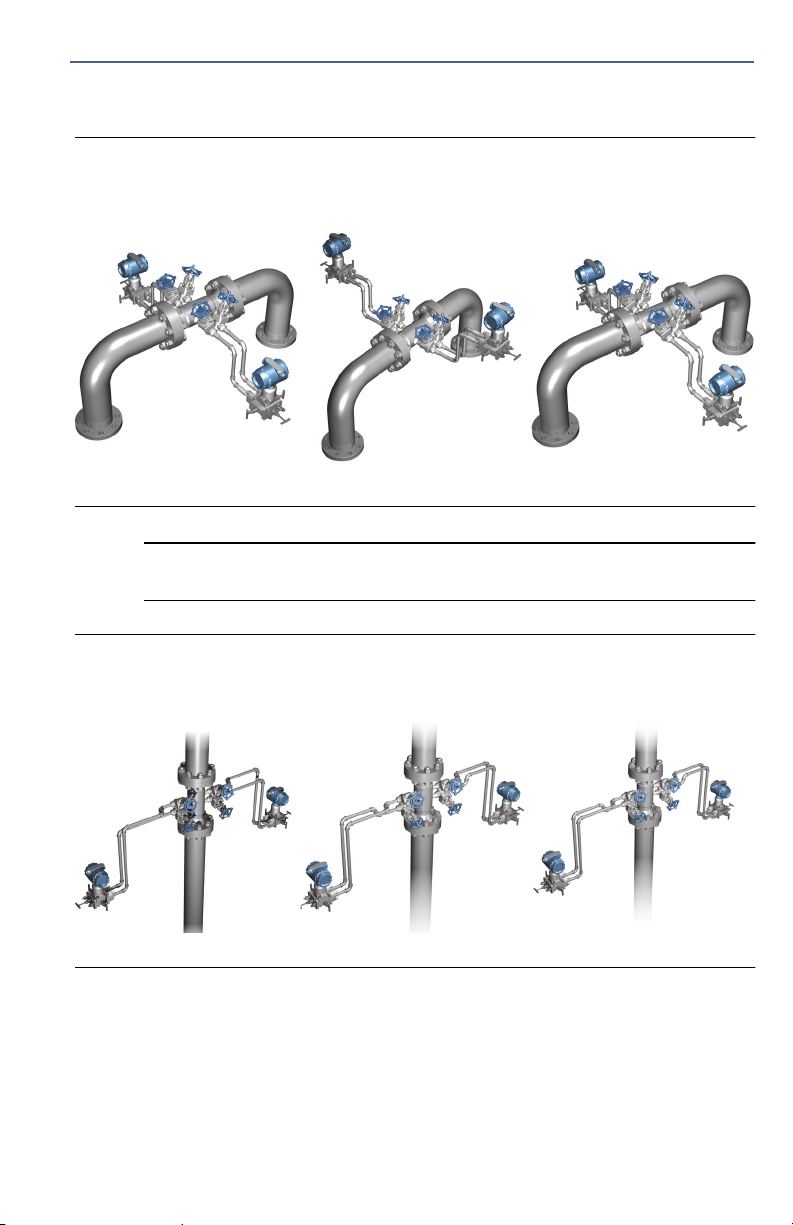

Figure 10. Horizontal Flow Orientation Based on Fluid Type
Note
For all orientations, the meter should be level with the grade.
Figure 11. Vertical Flow Orientation Based on Fluid Type
Liquids Gas Steam
Liquids Gas Steam

Quick Start Guide
11
October 2018
4.0 Install the primary element
The unit must be oriented with the flow arrow pointing in the direction of flow.
Otherwise, the primary element will produce erroneous readings. See Figure 12.

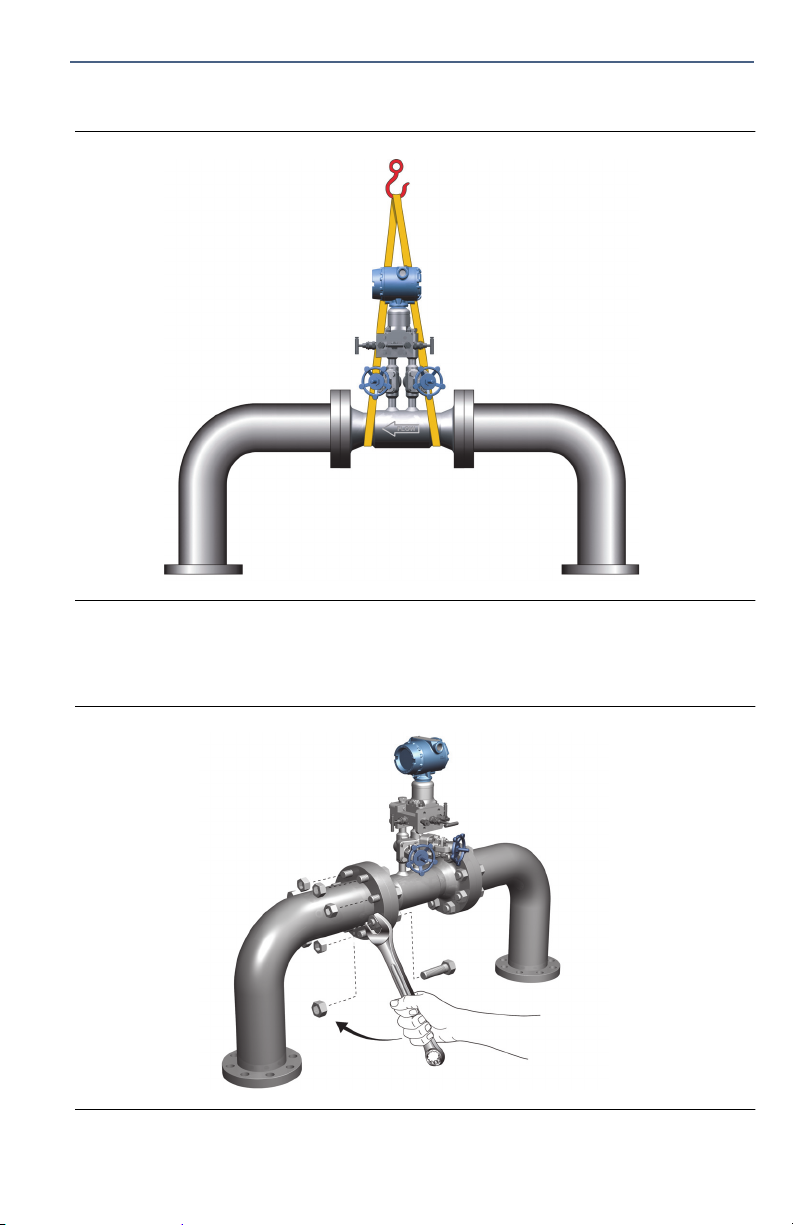

Figure 12. Flow Direction
1. Lift the meter by using the straps on the body of the meter. See Figure 13.
Follow local guidelines on lifting safety. Do not lift the meter by the impulse
lines or the transmitter body. Ensure meter is secured correctly within straps.
If not secured correctly, the meter may rotate during lifting operations.
Figure 13. Lifting the Meter Using Straps

October 2018
12
Quick Start Guide
2. Install the flanged ends into the process pipe as shown in Figure 14.
Figure 14. Installed Meter
3. Use the appropriate studs, nuts, gaskets and torque spec for the given flange
size, rating and process conditions. Tighten the nuts following a star pattern.
See Figure 15.
Figure 15. Flange Bolting

Quick Start Guide
13
October 2018
For remote mount installations, use stainless steel tubing with the largest
convenient internal diameter per site practices. A best practice is to
minimize the length of the impulse lines. An example of a remote mount
installation is shown in Figure 16.
Figure 16. Remote Mount Installation
Once the flow meter is installed in the line, wire the transmitter electronics into
the control system.
Perform this task in an environment free of hazardous or combustible gases.
Failure to comply with the requirements for intrinsic safety in a hazardous atmosphere could result in an
explosion.

October 2018
14
Quick Start Guide
5.0 Trim the transmitter
Before the unit is put in service, a transmitter zero trim should be performed at
normal line pressure:
1. Start the procedure by closing all the valves on the unit.
2. Open both primary isolation valves (D and G). See Figure 17.
3. Open both manifold isolation valves (C and F).
For liquid or steam service, open vent valves (B and E) slightly to allow
removal of trapped gases. Actuate primary isolation valves (D and G) to
remove any trapped gases.
For gas service, open vent valves (B and E) slightly to allow removal of
trapped liquids.
4. Close both vent valves once Step 3has been completed.
5. Close the manifold low side isolation valve (C).
6. Open the manifold equalization valve (A). The pressure will now be equal
across the differential pressure transmitter.
7. Perform the zero trim. Refer to the transmitter Quick Start Guide for more
information.
8. To put the transmitter back into service, close the equalization valve (A).
9. Open the manifold low side isolation (C).
The flow meter assembly is now ready for service.
Figure 17. Transmitter Components
A. Equalizer valve
B. Low pressure drain/vent
C. Low pressure secondary isolation valve
D. Low pressure primary isolation valve
E. High pressure drain/vent
F. High pressure secondary isolation valve
G. High pressure primary isolation valve

Quick Start Guide
15
October 2018
6.0 Additional information
6.1 Rod-out operation
The Rosemount 9295 Process Flow Meter is designed to accommodate a right
angle (90°) rod-out tool with 1/2” NPT connection. Straight rod-out tools may
need a nipple extension installed in order to provide clearance for the
transmitter housing.
Follow site-specific safety procedures when performing the rod-out operation.
6.2 Replacing the RTD
RTD replacement can be performed online as the assembly is not pressure
containing. Refer to the RTD Quick Start Guide for more information.
Figure 18. Replacing the RTD
6.3 Insulation recommendations
To protect the transmitter electronics and ensure an accurate temperature
measurement (when applicable), it is recommended that the meter body be
covered with 4 in. (100 mm) of insulation up to the bottom of the valve bodies.
Do not insulate the valves, uppers impulse lines, manifold or transmitter.
Insulation could lead to overheating and premature failure of the electronics.

October 2018
16
Quick Start Guide
7.0 Declaration of Conformity

Quick Start Guide
17
October 2018

October 2018
18
Quick Start Guide

Quick Start Guide
19
October 2018

Global Headquarters
Emerson Automation Solutions
6021 Innovation Blvd.
Shakopee, MN 55379, USA
[phone] or [phone]
[phone]
[email protected]
North America Regional Office
Emerson Automation Solutions
8200 Market Blvd.
Chanhassen, MN 55317, USA
[phone] or [phone]
[phone]
[email protected]
Latin America Regional Office
Emerson Automation Solutions
1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA
[phone]
[phone]
[email protected]
Linkedin.com/company/Emerson-Automation-Solutions
Twitter.com/Rosemount_News
Facebook.com/Rosemount
Youtube.com/user/RosemountMeasurement
Google.com/+RosemountMeasurement
Standard Terms and Conditions of Sale can be found on the Terms
and Conditions of Sale page.
The Emerson logo is a trademark and service mark of Emerson
Electric Co.
Rosemount and Rosemount logotype are trademarks of Emerson.
All other marks are the property of their respective owners.
© 2018 Emerson. All rights reserved.
Europe Regional Office
Emerson Automation Solutions
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland
[phone]
[phone]
[email protected]
Asia Pacific Regional Office
Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461
[phone]
[phone]
[email protected]
Middle East and Africa Regional Office
Emerson Automation Solutions
Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates
[phone]
[phone]
[email protected]
Quick Start Guide
00825-0100-4295, Rev AA
October 2018
*00825-0100-4295*
