Quick Start Guide
00825-0400-4101, Rev BD
February 2019
Rosemount™ 2051 Pressure Transmitter
and Rosemount 2051CF Series
Flowmeter
with PROFIBUS® PA Protocol

Contents
Mount the transmitter................................... 3
Housing rotation..........................................10
Set jumpers and switches.............................11
Connect wiring and power up...................... 12
Basic configuration...................................... 16
Trim the transmitter.................................... 19
Rosemount™ 2051 Product Certifications.....20
Quick Start Guide February 2019
2 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

1 Mount the transmitter
1.1 Liquid applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so the drain/vent valves are oriented upward.
1.2 Gas applications
Procedure
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
February 2019 Quick Start Guide
Quick Start Guide 3

1.3 Steam applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Example
Figure 1-1: Panel and Pipe Mounting
Panel mount(1) Pipe mount
Coplanar flange
Traditional flange
Quick Start Guide February 2019
4 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

Rosemount 2051T
(1) × 1 panel bolts are customer supplied.
1.4 Bolting considerations
If the transmitter installation requires assembly of the process flanges,
manifolds, or flange adapters, follow the assembly guidelines to ensure a tight
seal for optimal performance characteristics of the transmitters. Use only
bolts supplied with the transmitter or sold by Emerson™ as spare parts. Figure
1-2 illustrates common transmitter assemblies with the bolt length required
for proper transmitter assembly.
February 2019 Quick Start Guide
Quick Start Guide 5

Figure 1-2: Common Transmitter Assemblies
A
4 × 1.75-in.
(44 mm)
D
4 × 1.75-in.
(44 mm)
4 × 2.25-in.
(57 mm)
C
4 ×1.75-in.
(44 mm) 4 ×1.50-in.
(38 mm)
B
4 × 2.88-in.
(73 mm)
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adapters
C. Transmitter with traditional flange and optional flange adapters
D. Transmitter with coplanar flange and optional manifold and flange
adapters
Bolts are typically carbon steel or stainless steel. Confirm the material by
viewing the markings on the head of the bolt and referencing Table 1-1. If bolt
material is not shown in Table 1-1, contact a local Emerson Process
Management representative for more information.
Carbon steel bolts do not require lubrication and the stainless steel bolts are
coated with a lubricant to ease installation. However, no additional lubricant
should be applied when installing either type of bolt.
Use the following bolt installation procedure:
Procedure
1. Finger tighten the bolts.
2. Torque the bolts to the initial torque value using a crossing pattern.
See Table 1-1 for initial torque value.
3. Torque the bolts to the final torque value using the same crossing
pattern. See Table 1-1 for final torque value.
4. Verify the flange bolts are protruding through the sensor module bolt
holes before applying pressure.
Quick Start Guide February 2019
6 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

Example
Table 1-1: Torque Values for the Flange and Flange Adapter Bolts
Bolt material Head markings Initial
torque
Final torque
Carbon Steel (CS)
B7M
300 in-lb 650 in-lb
Stainless Steel (SST)
316
316
316
SW
316
STM
316
R
B8M
150 in-lb 300 in-lb
1.5 O-rings
The two styles of Rosemount flange adapters (Rosemount 1151 and
Rosemount 3051/2051/2024/3095) each require a unique O-ring (see Figure
1-3). Use only the O-ring designed for the corresponding flange adapter.
WARNING
Failure to install proper flange adapter O-rings may cause process leaks, which
can result in death or serious injury. The two flange adapters are distinguished
by unique O-ring grooves. Only use the O-ring that is designed for its specific
flange adapter, as shown below. When compressed, PTFE O-rings tend to cold
flow, which aids in their sealing capabilities.
February 2019 Quick Start Guide
Quick Start Guide 7

Figure 1-3: O-rings
A. Flange adapter
B. O-ring
C. PFTE based
D. Elastomer
Note
You should replace PTFE O-rings if you remove the flange adapter.
1.6 Environmental seal for housing
Thread sealing (PTFE) tape or paste on male threads of conduit is required to
provide a water/dust tight conduit seal and meets requirements of NEMA®
Type 4X, IP66, and IP68. Consult factory if other Ingress Protection ratings are
required.
For M20 threads, install conduit plugs to full thread engagement or until
mechanical resistance is met.
1.7 In-line gage transmitter orientation
The low side pressure port (atmospheric reference) on the in-line gage
transmitter is located in the neck of the transmitter, behind the housing. The
vent path is 360° around the transmitter between the housing and sensor.
(See Figure 1-4.)
Quick Start Guide February 2019
8 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

Keep the vent path free of any obstruction, including but not limited to paint,
dust, and lubrication by mounting the transmitter so fluids can drain away.
Figure 1-4: In-line Gage Low Side Pressure Port
A
A. Pressure port location
February 2019 Quick Start Guide
Quick Start Guide 9

2 Housing rotation
To improve field access to wiring or to better view the optional LCD display:
Figure 2-1: Housing Rotation
A
A. Housing Rotation Set Screw (5/64-inch)
Procedure
1. Loosen the housing rotation set screw using a 5/64 -in. hex wrench.
2. Rotate the housing clockwise to the desired location.
3. If the desired location cannot be achieved due to thread limit, rotate
the housing counterclockwise to the desired location (up to 360° from
thread limit).
4. Re-tighten the housing rotation set screw to no more than 7 in-lbs
when desired location is reached.
Quick Start Guide February 2019
10 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

3 Set jumpers and switches
3.1 Security
After the transmitter is configured, you may want to protect the configuration
data from unwarranted changes. Each transmitter is equipped with a security
jumper that can be positioned ON to prevent the accidental or deliberate
change of configuration data. The jumper is labeled “Security”. The security
jumper also prevents changes made using the Local Operator Interface.
3.2 Simulate
The simulate jumper is used in conjunction with the analog input (AI) block.
This jumper is used to simulate the pressure measurement and is used as a
lock-out feature for the AI block. To enable the simulate feature, the jumper
must be moved to the ON position after power is applied. This feature
prevents the transmitter from being accidentally left in simulate mode.
Figure 3-1: Transmitter Jumper Locations
February 2019 Quick Start Guide
Quick Start Guide 11

4 Connect wiring and power up
Use the following steps to wire the transmitter:
Procedure
1. Remove the housing cover on the field terminals side.
2. Connect the power leads to the terminals indicated on the terminal
block label.
3. Power terminals are polarity insensitive - connect positive or negative
to either terminal
4. Ensure full contact with Terminal Block screw and washer. When using
a direct wiring method, wrap wire clockwise to ensure it is in place
when tightening the terminal block screw.
Note
The use of a pin or a ferrule wire terminal is not recommended as the
connection may be more susceptible to loosening over time or under
vibration.
5. Ensure proper grounding. It is important that the instrument cable
shield:
6. Be trimmed close and insulated from touching the transmitter housing
7. Be connected to the next shield if cable is routed through a junction
box
8. Be connected to a good earth ground at the power supply end
9. Plug and seal unused conduit connections.
10. If applicable, install wiring with a drip loop. Arrange the drip loop
so the bottom is lower than the conduit connections and the
transmitter housing.
11. Replace the housing cover.
Quick Start Guide February 2019
12 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

Example
Figure 4-1: Terminals
A
B
A. Power terminals
B. Ground terminal
February 2019 Quick Start Guide
Quick Start Guide 13

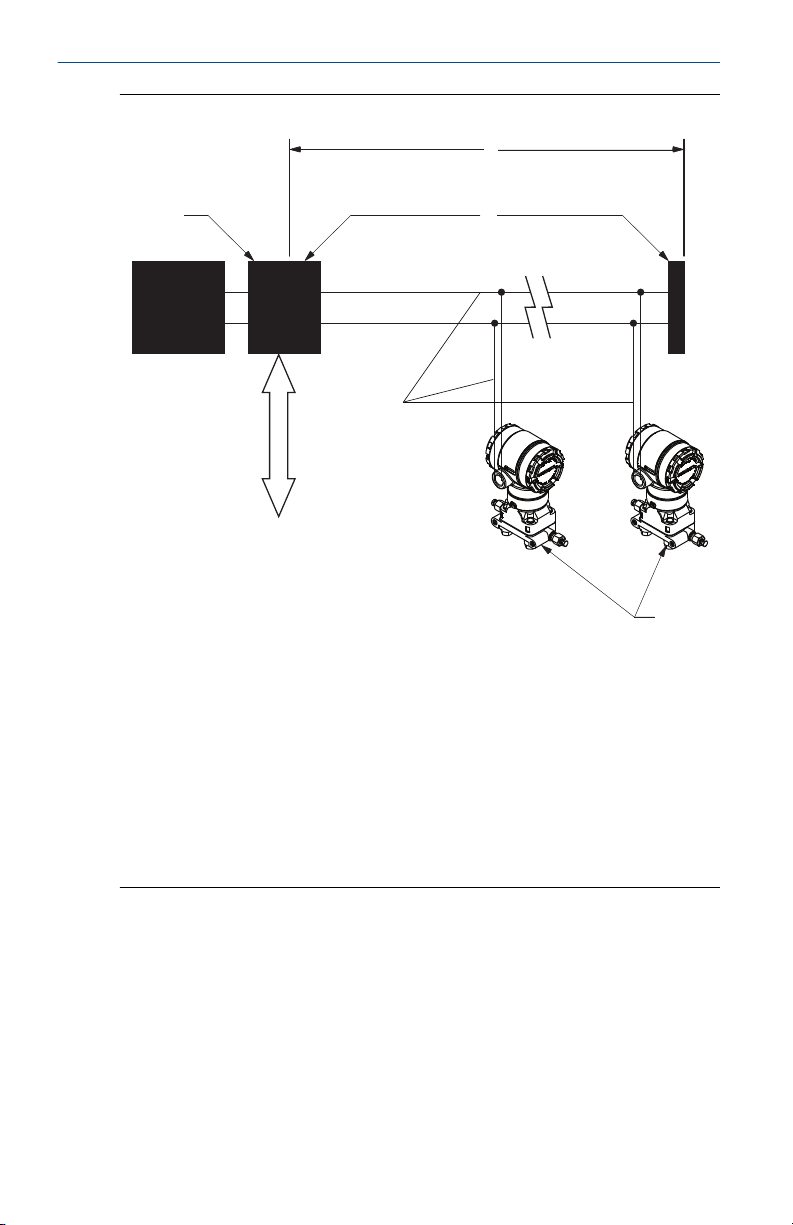

Figure 4-2: Wiring
B
A
C
D E
G
F
II
J
H
A. 6234 ft (1900 m) max (depending on cable characteristics)
B. Integrated power conditioner and filter
C. Terminators
D. Power supply
E. DP/PA coupler/link
F. Trunk
G. DP network
H. Signal wiring
I. Spur
J. PROFIBUS PA device
4.1 Signal wiring grounding
Do not run signal wiring in conduit or open trays with power wiring, or near
heavy electrical equipment. Grounding terminations are provided on the
outside of the electronics housing and inside the terminal compartment.
These grounds are used when transient protect terminal blocks are installed
or to fulfill local regulations. See step 2 below for more information on how
the cable shield should be grounded.
Quick Start Guide February 2019
14 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

Procedure
1. Remove the field terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 4-3. The
cable shield should:
3. Be trimmed close and insulated from touching the transmitter
housing.
4. Continuously connect to the termination point.
5. Be connected to a good earth ground at the power supply end.
Figure 4-3: Wiring
DP
A
B
C
A. Trim shield and insulate
B. Insulate shield
C. Connect shield back to the power supply ground
6. Replace the housing cover. It is recommended that the cover be
tightened until there is no gap between the cover and the housing.
7. Plug and seal unused conduit connections.
4.1.1 Power supply
The dc power supply should provide power with less than two percent ripple.
The transmitter requires between 9 and 32 Vdc at the terminals to operate
and provide complete functionality.
4.1.2 Power conditioner
The DP/PA coupler/link often includes an integrated power conditioner.
4.1.3 Grounding
Transmitters are electrically isolated to 500 Vac rms. Signal wiring can not be
grounded.
4.1.4 Shield wire ground
Shield wire usually requires a single grounding point to avoid creating a
ground loop. The ground point is typically at the power supply.
February 2019 Quick Start Guide
Quick Start Guide 15

5 Basic configuration
5.1 Configuration tasks
The transmitter can be configured via either the local operator interface (LOI)
– option code M4, or via a Class 2 master (DD or DTM™ based). The two basic
configuration tasks for the PROFIBUS PA Pressure transmitter are:
Procedure
1. Assign address.
2. Configure engineering units (scaling).
Note
Rosemount 2051 PROFIBUS PA Profile 3.02 devices are set to
identification number adaptation mode when shipped from the
factory. This mode allows the transmitter to communicate with any
PROFIBUS PA control host with either the generic Profile GSD (9700) or
Rosemount 2051 specific GSD (3333) loaded on the host; therefore, it
is not required to change the transmitter identification number at
startup.
5.1.1 Assign address
The Rosemount 2051 Pressure Transmitter is shipped with a temporary
address of 126. This must be changed to a unique value between 0 and 125 in
order to establish communication with the host. Usually, addresses 0–2 are
reserved for masters or couplers, therefore transmitter addresses between 3
and 125 are recommended.
Address can be set via either:
•LOI – see Table 5-1 and Figure 5-1
•Class 2 master – see Class 2 Master Manual for setting address
5.1.2 Configure engineering units
Unless otherwise requested, the Rosemount 2051 Pressure Transmitter ships
with the following settings:
•Measurement mode: Pressure
•Engineering units: inches H2O
•Scaling: None
Engineering units should be confirmed or configured before installation. Units
can be configured for Pressure, Flow, or Level measurement.
Measurement type, Units, Scaling, and Low Flow Cutoff (when applicable) can
be set via either:
Quick Start Guide February 2019
16 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

•LOI – see Table 5-1 and Figure 5-1
•Class 2 master – see Table 5-2 for parameter configuration
5.2 Configuration tools
5.2.1 Local operator interface (LOI)
When ordered, the LOI can be used for commissioning the device. To activate
the LOI, push either configuration button located under the top tag of the
transmitter. See Table 5-1 and Figure 5-1 for operation and menu
information. The security jumper prevents changes made using the LOI.
Note
Buttons must be fully engaged ≈ 0.5-in. (10 mm) of travel.
Table 5-1: LOI Button Operation
Button Action Navigation Character Entry Save?
Scroll Moves down menu
categories
Changes character
value(1)
Changes between
Save and Cancel
Enter Selects menu
category
Enters character and
advances
Saves
(1) Characters blink when they can be changed.
Figure 5-1: LOI Menu
1. ADDRESS
6. IDENTIFICATION #
7. EXIT
4. DAMPING
5. DISPLAY
3. UNITS
2. CALIBRATION
PRESSURE
FLOW
LEVEL
TEMPERATURE
0-126
ZERO
LOWER SENSOR
UPPER SENSOR
RESET FACTORY
5.3 Class 2 Master
The Rosemount 2051 PROFIBUS DD and DTM files are available at
EmersonProcess.com/Rosemount or by contacting your local salesperson.
See Table 5-2 for steps to configure the transmitter for Pressure
measurement. See Rosemount 2051 Reference Manual for Flow or Level
configuration instructions.
Table 5-2: Pressure Configuration via Class 2 Master
Steps Actions
Set blocks to Out of Service Put Transducer Block into Out of Service mode
February 2019 Quick Start Guide
Quick Start Guide 17

Table 5-2: Pressure Configuration via Class 2 Master (continued)
Steps Actions
Put Analog Input Block into Out of Service mode
Select Measurement Type Set Primary Value type to Pressure
Select Units Set Engineering Units
- Primary and secondary units must match
Enter Scaling Set Scale In in Transducer Block to 0–100
Set Scale Out in Transducer Block to 0–100
Set PV Scale in Analog Input Block to 0–100
Set Out Scale in Analog Input Block to 0–100
Set Linearization in Analog Input Block to No
Linearization
Set blocks to Auto Put Transducer Block into Auto mode
Put Analog Input Block into Auto mode
5.4 Host integration
5.4.1 Control host (Class 1)
The Rosemount 2051 device utilizes condensed status as recommended by
the Profile 3.02 specification and NE 107. See manual for condensed status bit
assignment information.
The appropriate GSD file must be loaded on the control host - Rosemount
2051 specific (rmt3333.gsd) or Profile 3.02 Generic (pa139700.gsd). These
files can be found on EmersonProcess.com/Rosemount or Profibus.com.
5.4.2 Configuration host (Class 2)
The appropriate DD or DTM file must be installed in the configuration host.
These files can be found at EmersonProcess.com/Rosemount.
Quick Start Guide February 2019
18 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide

6 Trim the transmitter
Devices are calibrated by the factory. Once installed, it is recommended to
perform a zero trim on the sensor to eliminate error due to mounting position
or static pressure effects.
This can be done by performing a zero trim via:
•LOI – see Table 5-1 and Figure 5-1
•Class 2 master – see Zero trim via Class 2 Master for parameter settings
6.1 Zero trim via Class 2 Master
Procedure
1. Place the transducer block into Out of Service (OOS) mode.
2. Apply zero pressure to device and allow to stabilize.
3. Go to Basic Setup > Calibration and set the lower calibration point to
0.0.
4. Place the transducer block to AUTO mode.
February 2019 Quick Start Guide
Quick Start Guide 19

7 Rosemount™ 2051 Product Certifications
Rev 1.11
European directive information
A copy of the EC Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EC Declaration of
Conformity can be found at www.Emerson.com.
Ordinary Location Certification
As standard, the transmitter has been examined and tested to determine that
the design meets the basic electrical, mechanical, and fire protection
requirements by a nationally recognized test laboratory (NRTL) as accredited
by the Federal Occupational Safety and Health Administration (OSHA).
Hazardous location certifications
Note
Device ambient temperature ratings and electrical parameters may be limited
to the levels dictated by the hazardous location certificate parameters.
7.1 Overview
This Appendix contains information on approved manufacturing locations,
European directive information, Ordinary Location certification, Hazardous
Locations Certifications and approval drawings.
Quick Start Guide February 2019
20 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Quick Start Guide
