Emerson Liebert GXT-MT User manual

Liebert GXT-MT
1 - 3 kVA True On Line Double Conversion UPS
User Manual
Power Protection for
Business-Critical Continuity

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １V2.11 Emerson Network Power
Liebert GXT-MT Series 1-3 kVA UPS
User Manual
Version: V2.11
Revision date: September 29, 2005
Emerson Network Power provides customers with technical support. Users may contact the nearest
Emerson local sales office or service center.
While every precaution has been taken to ensure accuracy and completeness in this manual,
Emerson Network Power assumes no responsibility and disclaims all liability for damages resulting
from use of this information or for any errors or omissions.
Emerson Network Power pursues a policy of continuous product development and reserves the
right to change the equipment design without notice.
Copyright © 2005 by Emerson Network Power
All rights reserved. The contents in this document are subject to change without notice

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page 2 V2.11 Emerson Network Power
Table of Contents
Contents
SafetyInstructions
1. Description of commonly used notations 5
2. Product Introduction 6
3. System Description 7
4. Installation 8-9
5. Connection and operation 10-13
6. Operating modes 14-15
7. Communication port 16
8. Software 17
9. Maintenance 18-19
10. Troubleshooting 20
11. Technical data 21-22
Appendix: Back Panel 23-24

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page 3 V2.11 Emerson Network Power
Safety Instructions
Safety Instructions
As dangerous voltages are present within the UPS, only an Emerson technician or an Emerson-authorized
technician is permitted to open it. Failure to observe this could result in electric shock risk and invalidation
of any implied warranty
Transport
•Please transport the UPS system only in the original packaging (to protect against shock and
impact).
Set-up
• Condensation may occur if the UPS system is moved directly from a cold to a warm environment.
The UPS system must be absolutely dry before being installed. Please allow an acclimatization
time of at least two hours.
• Do not install the UPS system near water or in damp environments.
• Do not install the UPS system where it would be exposed to direct sunlight or near heat source.
• Do not block off ventilation openings in the UPS system’s housing.
Installation
This manual contains information concerning the installation and operation of the Emerson Network Power
Liebert GXT-MT Uninterruptible Power System (UPS)
All relevant parts of the manual should be read prior to commencing the installation.
•Do not connect appliances or equipment (e.g. laser printer) to the output socket, which would
overload the UPS system.
•Place cables in such a way that no one can step on or trip over them.
•Do not connect domestic appliances such as hair dryers to UPS output sockets.
•Connect the UPS system only to an earthed shockproof socket outlet.
•The building wiring socket outlet (shockproof socket outlet) must be easily accessible and close
to the UPS system.
•Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your computer) to
connect the UPS system to the building wiring socket outlet (shockproof socket outlet).
•Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system.
•The UPS must be commissioned and serviced by an authorized representative of Emerson
Network Power. Failure to do so could result in personnel safety risk, equipment malfunction and
invalidation of warranty.
•The Liebert GXT-MT has been designed for Commercial/Industrial use only, and is not
recommended for use in life support applications.
•When installing the equipment, it should ensure that the sum of the leakage current of the
UPS and the connected consumer does not exceed 3.5mA.

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page 4 V2.11 Emerson Network Power
Safety Instructions
Operation
•Do not disconnect the mains cable on the UPS system or the building wiring socket outlet
(shockproof socket outlet) during operations since this would cancel the protective earthing of the
UPS system and of all connected loads.
•The UPS system features its own, internal current source (batteries). The UPS output sockets or
output terminals block may be electrically lived even if the UPS system is not connected to the
building wiring socket outlet.
•In order to fully disconnect the UPS system, first press the Standby switch then disconnect the
mains lead.
•Ensure that no fluids or other foreign objects can enter the UPS system.
•The UPS operates with hazardous voltages. Only qualified maintenance personnel may carry out
repairs.
Maintenance, servicing and faults
•The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified
maintenance personnel.
•Caution - risk of electric shock. Even after the unit is disconnected from the mains power supply
(building wiring socket outlet), components inside the UPS system are still connected to the
battery and are still electrically live and dangerous.
•Before carrying out any kind of servicing and/or maintenance, disconnect the batteries and verify
that no current is present and no hazardous voltage exist in the terminals of high capability
capacitor such as BUS-capacitors.
•Only persons who are familiar with batteries and with the required precautionary measures may
replace batteries and supervise operations. Unauthorised persons must be kept well away from
the batteries.
•Caution - risk of electric shock. The battery circuit is not isolated from the input voltage.
Hazardous voltages may occur between the battery terminals and the ground. Before touching,
please verify that no voltage is present!
•Batteries may cause electric shock and have a high short-circuit current. Please take the
precautionary measures specified below and any other measures necessary when working with
batteries:
－remove wristwatches, rings and other metal objects
－use only tools with insulated grips and handles.
•When changing batteries, install the same number and same type of batteries.
•Do not attempt to dispose of batteries by burning them. This could cause battery explosion.
•Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It
may be toxic.
•Please replace the fuse only by a fuse of the same type and of the same amperage in order to
avoid fire hazards.
•Do not dismantle the UPS system

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page 5 V2.11 Emerson Network Power
Commonly Used Notations

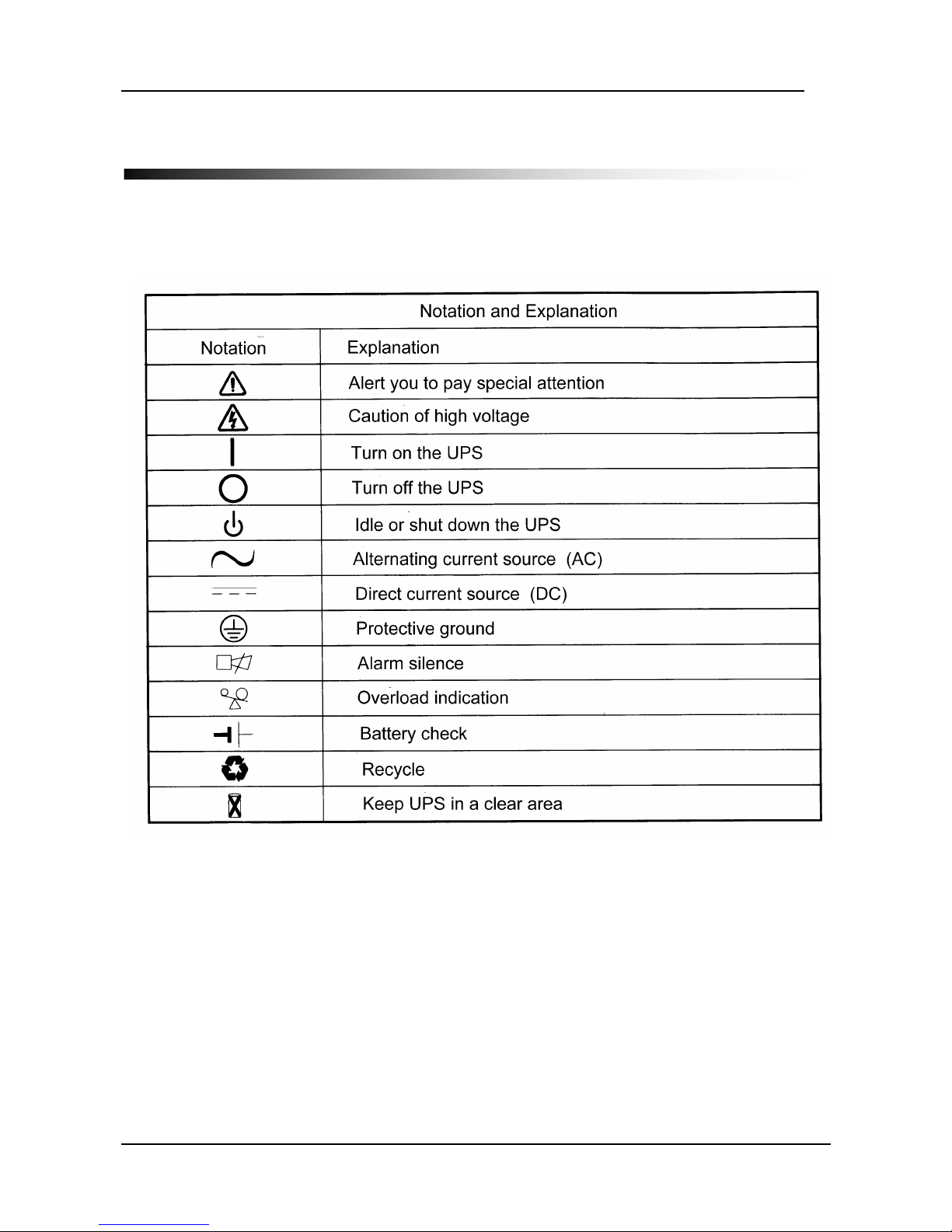

1. Description of commonly used notations
Some or all of the following Notations may be used in this manual and may appear in your
application process. Therefore, all users should be familiar with them and understand their
explanations.

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page ６V2.11 Emerson Network Power
2 . Product Introduction
The Liebert GXT-MT On-Line-Series is an uninterruptible power supply incorporating
double-conversion technology. It provides perfect protection specifically for Novell, Windows NT and
UNIX servers.
The double-conversion principle checks all mains power disturbances. A rectifier converts the
alternating current from the socket outlet to direct current. This direct current charges the batteries and
powers the inverter. On the basis of this DC voltage, the inverter generates a sinusoidal AC voltage,
which permanently supplies the loads.
Computers and peripherals are thus powered entirely by the inverter on the mains mode and in the
event of power failure, the maintenance-free batteries power the inverter.
This manual covers the UPS listed as follows. Please confirm whether it is the model you intend to
purchase by performing a visual inspection of the Model No. on the rear panel of the UPS.
Model Number Runtime
GXT1000-MT Standard
GXT1000L-MT Long Run
GXT2000-MT Standard
GXT2000L-MT Long Run
GXT3000-MT Standard
GXT3000L-MT Long Run
Product Introduction

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page ７V2.11 Emerson Network Power
System Description
3. System Description
Figure 1: Display Panel
Switch Function
ON - Switch
Turn on UPS system:
By pressing the ON-Switch “I” the UPS system is turned on.
Deactivate acoustic alarm:
By pressing this switch an acoustic alarm can be deactivated.
OFF-Switch
When mains power is normal, the UPS system switches to Standby mode by pressing
OFF-Switch “ “. It is then switched to Bypass and the inverter is off. At this moment,
the output sockets are supplied with voltage via the bypass if the mains power is
available.
Display Function
LINE LED
The green LINE LED lights up if mains voltage is applied to the UPS input.
LINE LED blinks when the phase and neutral conductor have been reversed at the
input of the UPS system.
If LINE LED and BATTERY-LED light up, the mains power supply is out of tolerance.
BATTERY LED The orange-coloured BATTERY-LED lights up when the mains power has failed and
the inverter is being powered by the batteries.
BYPASS LED The orange-coloured BYPASS LED lights up when the UPS system is supplying
voltage provided by the mains power via the bypass.
INVERTER LED The green-coloured INVERTER LED lights up if the UPS system is supplying voltage
provided by the mains power via the inverter.
FAULT LED The red FAULT LED lights up and an acoustic warning signal is issued continuously when the UPS system is in fault condition. Press the Standby switch in order to turn off
the warning tone.
Display Function
LOAD & BATTERY
CAPACITY LEDs
These LEDs show the load of the UPS system if the mains power is available (normal
operation):
2nd LED 96%-105 % 3rd LED 76%-95 %
4th LED 56%-75 % 5th LED 36%-55 %
6th LED. 0-35 %
In the battery operation, the LEDs indicate the capacity of the batteries:
2nd LED 0-25 % 3rd LED 26%-50 %
4th LED 51%-75 % 5th LED 76%-95 %
6th LED 96%-100 %

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page ８V2.11 Emerson Network Power
4. Installation
Unpacking and Inspection
1) Unpack the packaging and check the package contents. The shipping package contains:
zA UPS
zA user manual
zA communication cable
zA battery cable (for Long Runtime models only)
zA CD containing UPS Monitoring Software (WinPower)
2) Inspect the appearance of the UPS to see if there is any damage during transportation.
Do not turn on the unit and notify the carrier and dealer immediately if there is any
damage or lacking of some parts.
Input and output power cords and protective earth ground installation
1. Notes for installation
1) The UPS must be installed in a location with good ventilation, far away from water,
inflammable gas and corrosive agents.
2) Ensure the air vents on the front and rear of the UPS are not blocked. Allow at least
0.25m of space on each side.
3) Condensation to water drops may occur if the UPS is unpacked in a very low
temperature environment. In this case it is necessary to wait until the UPS is fully dried
inside out before proceeding installation and use. Otherwise there are hazards of electric
shock.
2. Installation
Installation and wiring must be performed in accordance with the local electric code and
the following instructions by professional personnel.
For safety, please cut off the mains power switch before installation. The battery
breaker also needs to be cut off if it is a long backup time model (“GXT-L” model).
1) Open the terminal block cover located on the rear panel of the UPS; please refer to
the appearance diagram.
2) For 1KVA UPS, it is recommended to select the 1.5mm2wire.
3) For 2/3KVA, it is recommended to select the 2.5mm2wire.
Installation

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page ９V2.11 Emerson Network Power
Installation
Note: Do not use the wall receptacle as the input power source for the 2/3KVA UPS, as
its rated current is less than the UPS’s maximum input current. Otherwise the receptacle
may be burned and destroyed.
4) Connect the input and output wires to the corresponding input and output terminals
according to the following diagram.
Note: you must make sure that the input and output wires and the input and output
terminals are connected tightly.
5) The protective earth ground wire refers to the wire connection between the
equipment which consumes electric equipment and the ground wire. The wire
diameter of protective earth ground wire should be at least as above mentioned for
each model and green wire or green wire with yellow ribbon wire is used.
6) After having completed the installation, make sure the wiring is correct.
7) Please install the leak current protective breaker at the output power distribution
panel of the UPS if necessary.
8) To connect the load with the UPS, please turn off all the loads first, then perform the
connection and finally turn on the loads one by one.
9) No matter the UPS is connected to the utility power or not, the output of the UPS
may have electricity. The parts inside the unit may still have hazardous voltage after
turning off the UPS. To make the UPS have no output, power off the UPS, and then
disconnect the utility power supply.
10) Suggest charging the batteries for 8 hours before use. After connection, turn the
input breaker in the “ON” position, the UPS will charge the batteries automatically.
You can also use the UPS immediately without charging the batteries first, but the
backup time may be less than the standard value.
11) If it is necessary to connect the inductance load such as a monitor or a laser printer
to the UPS, the start-up power should be used for calculating the capacity of the
UPS, as its start-up power consumption is too big when it is started.

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １０ V2.11 Emerson Network Power
Connection and Operation
5. Connection and Operation
1) Inspection:
Inspect the packaging carton and its contents for damage. Please inform the transport agency
immediately should you find signs of damage. Please keep the packaging in a safe place for future use.
Note: Please ensure that the incoming feeder is isolated and secured to prevent it from being
switched back on again.
2) Connection:
2.1) UPS Input Connection
If the UPS is connected via the power cord, please use a proper socket with protection against
electric current, and pay attention to the capacity of the socket: over 10A for 1KVA & over 16A for
2KVA & 3KVA.
2.2) UPS Output Connection
The output of the UPS is CE socket-types only. If the load is couple of PCs simply plug the load
power cord to the output sockets to complete connection. However, if there are more loads, cut the
load end of the load power cord and wire to the extension board. Use one cord for every 5A load.
Model No. Output Socket (pcs) Terminal Block
GXT1000-MT / GXT1000L-MT 4(CE) Nil
GXT2000-MT / GXT2000L-MT 6 / 4(CE) Nil /Available
GXT3000-MT / GXT3000L-MT 4(CE) Available
The system may be installed and wired only by qualified electricians in
accordance with applicable safety regulations
When installing the electrical wiring, please note the nominal amperage of
your incoming feeder

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １１ V2.11 Emerson Network Power
Connection and Operation
The wiring configuration is shown as the following procedure:
a) Remove the small cover of the terminal block
b) Use 2.5mm2wires for wiring configuration
c) Upon completion of the wiring configuration, please check whether the wires
are securely affixed.
d) Put the small cover back to the rear panel.
Figure 2: Connection diagram
2.3) Computer Connection:
Connect your computer to the outlet sockets of the UPS system following the above diagram.
3) Battery Charge:
Fully charge the batteries of the UPS system by leaving the UPS system connected to the mains for 8
hours. You may use the UPS system directly without charging it but the stored energy time may be
shorter than the nominal value specified.
Caution!
*Do not connect e
q
ui
p
ment, such as laser
p
rinters, which ma
y
overload the UPS s
y
stem

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １２ V2.11 Emerson Network Power
Connection and Operation
4) Turn On the UPS:
4.1) With utility power connected:
Press “I” button continuously for more than 1 second to turn on the UPS. Then the UPS will get into
self-test status first. After having finishing the self-test, the UPS will get into the inverter mode, at
this time, the Utility Power LED, Inverter LED, and Load and Battery Capacity LEDs will light up.
4.2) Without utility power connected:
Even though utility power is connected to the UPS, the UPS still can be turned on by just simply
pressing “I” button continuously for more than 1 second. Then the UPS will get into self-test
status first. After having finishing the self-test, the UPS will get into the inverter mode, at this time,
Battery LED, Inverter LED, and Load and Battery Capacity LEDs will light up.
Note: The default setting for bypass mode is no output after UPS is connecting utility power
and breaker is turned on. This can be configured by monitoring software.
5) Test Function:
Test the function of the UPS system by either pressing the On-Switch “I” or disconnecting the input
of the UPS system from the power supply.
6) Turn Off the UPS:
6.1) In Inverter Mode:
Press “ “ button continuously for more than 1 second to turn off the UPS. Then the UPS will get into
self-test status first. After having finished the self-test, the UPS will get into bypass mode and the
Utility Power LED and Bypass LED will light up. At this time, the UPS might has output. Disconnect
the utility power to turn off the output.
6.2) In Battery Mode:
Press “ “ button continuously for more than 1 second to turn off the UPS. Then the UPS will get into
self-test status first. After having finished the self-test, the UPS will be turned off completely.
7) Audible Alarm Mute Function:
If the alarm is too annoying in battery mode, you may press “I” button continuously for more than 1
second to clear it. Moreover, the alarm will be enabled when the battery is low to remind you to
shutdown the load soon.
8) Operation Procedure of External Battery for Long Backup time Model
•Use the battery pack with voltage: 36Vdc for GXT1000L-MT (3 pcs of 12V batteries), 96Vdc for
GXT2000L-MT / GXT3000L-MT (8 pcs of 12V batteries). Connection of batteries more than or
less than required will cause abnormality.
•One end of the external battery cord is a plug for connecting the UPS and the other end has 3
(or 2) open wires for connecting the battery pack.

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １３ V2.11 Emerson Network Power
Connection and Operation
•The battery connection procedure is very important. Any incompliance may result in the risk of
electric shock. Therefore, the following steps must be strictly complied with.
•First connect in series the batteries of the pack to ensure proper battery voltage.
•Connect the external battery cord to the battery terminal (DO NOT connect the battery socket of
the UPS first. Otherwise, it may cause electric shock). Connect the red wire to the "+" terminal
of the battery. The black wire is connected to the "-" terminal of the battery. (Note: the
green/yellow wire is grounded for protection purpose.)
•Do not connect the UPS to any load yet. Then, connect the power cord of the UPS to supply
utility power to the UPS to make the UPS operation in utility power mode.
•Plug the external battery cord to the external battery socket on the rear panel of the UPS to
complete the connection procedure and the UPS will start to charge the battery pack.
Caution!
The output sockets of the UPS system may still be electrically live even if the power supply
system has been disconnected or the Bypass switch is on “OFF” position.

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １４ V2.11 Emerson Network Power
6. Operating modes for all models
1. Utility power mode
The display panel in utility power mode is shown in the following diagram. The utility power LED
and the INV LED are turned on. The load level LEDs will be turned on in accordance with the
load capacity connected.
1) If the battery LED is turned on and the utility power LED flashes, it indicates the voltage
or frequency of the utility power has exceeded the normal range, the UPS operates in battery
mode.
2) If output overloaded, the load level LEDs will be turned on and alarm will sound twice every
second. You should get rid of some unnecessary loads one by one to decrease the loads
connected to the UPS less than 90% of its nominal power capacity.
Note: Please follow the following steps to connect the generator：
zActivate the generator and wait until the operation is stable before supplying generator
power to the UPS.
zThe generator capacity should be sized to match the performance characteristics of the
UPS
.2. Battery mode
The display panel in battery mode is shown in the following diagram Fig.15.2. The battery LED
and the INV LED are turned on. The displayed number of the battery level LEDs will be turned
on in accordance with the battery capacity. Note that the load level LEDs in utility power mode
will indicate the level of the battery capacity in battery mode instead.
1) When the UPS is running in battery mode, the buzzer beeps once every 4 seconds. If
the “ON” button on the front panel is pressed
2) For more than 1 second again, the buzzer will stop beeping (in silence mode). Press the
“ON” button once again for more than 1 second to resume the alarm function.
Fig 15.1 The utility power mode
Operating modes

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １５ V2.11 Emerson Network Power
2) When the battery capacity decreases, the number of the battery capacity LEDs turned on will
be reduced. If the battery voltage descends to the alarm level, the buzzer will beep once
every second to remind the users of insufficient battery capacity and the UPS is soon going
to shut down automatically. Then the load operations should be carried out promptly and the
loads should be eliminated one by one.
3. Bypass mode
The display panel in bypass mode is shown in the following diagram Fig 15.3. The utility power
LED and the bypass LED are lit. The displayed number of the load LEDs will be turned on in
accordance with the load capacity connected. The UPS will beep once every 2 minutes in
bypass mode.
The utility power LED flashes, it shows that the voltage or frequency of the utility power has
exceeded the normal range of the UPS.
1) Other indications on the display panel are the same in utility mode.
2) The UPS does not have the backup function when it is in bypass mode. The power used
by the load is supplied from the utility power via internal filter.
4. Abnormality mode
In case the fault LED is turned on when the UPS is in use, it shows that the UPS is operating in
abnormal mode.

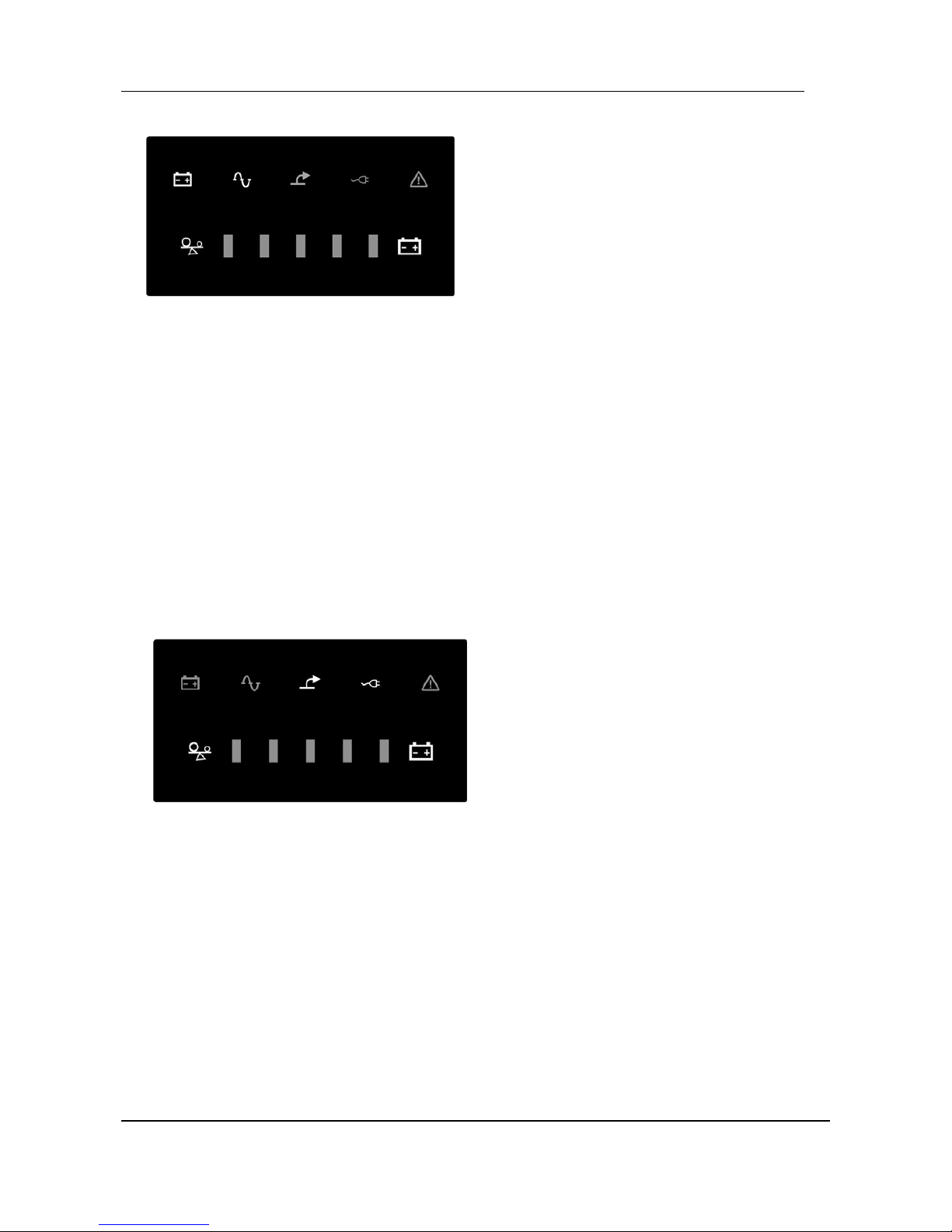

Fig 15.2 Battery mode diagram
Fig 15.3 UPS bypass mode diagram
Battery Maintenance

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １６ V2.11 Emerson Network Power
7. Communication Port
RS232 Interface
The following is the pin assignment and description of DB-9 connector.
Pin # Description I/O
2 TXD Output
3 RXD Input
5 GND Input
AS400 Interface (Option)
Except for the communication protocol as mentioned above, this series UPS has AS400 card (an
optional accessory) for AS400 communication protocol. Please contact your local distributor for
details. The following is the pin assignment and description of DB-9 connector in AS400 card.
Pin # Description I/O
1 UPS Fail Output
2 Summary Alarm Output
3 GND Input
4 Remote Shutdown Input
5 Common Input
6 Bypass Output
7 Battery Low
Output
8 UPS ON Output
9 Line Loss Output
Figure 16.2: DB-9 Interface of AS400
communication
p
rotocol
Communication Port

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １７ V2.11 Emerson Network Power
8. Software
Free Software – WinPower
WinPower is a brand new UPS monitoring software, which provides user-friendly interface to
monitor and control your UPS. This unique software provides safely auto shutdown for
multi-computer systems while power failure. With this software, users can monitor and control any
UPS on the same LAN no matter how far from the UPSs.
Installation procedure:
1. Insert the CD into CD ROM.
2. Connect the software cable
3. Follow the on-screen instructions to install the software.
When your computer restarts, the WinPower software will appear as a green plug icon located in
the system tray, near the clock.
Software

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １８ V2.11 Emerson Network Power
Maintenance
9. Maintenance
Operation
The UPS system contains no user-serviceable parts. If the battery service life has been
exceeded, the batteries must be replaced. In this case please contact your dealer.
Battery Maintenance
zThis series UPS only requires minimal maintenance. The battery used for standard models are
value regulated sealed lead-acid maintenance free battery. These models require minimal
repairs. The only requirement is to charge the UPS regularly in order to maximize the expected
life of the battery. When being connected to the utility power, whether the UPS is turned on or
not, the UPS keeps charging the batteries and also offers the protective function of
overcharging and over-discharging.
zThe UPS should be charged once every 4 to 6 months if it has not been used for a long time.
zIn the regions of hot climates, the battery should be charged and discharged every 2 months.
The standard charging time should be at least 12 hours.
zBattery replacement should be performed by qualified personnel.
zReplace batteries with the same number and same type of batteries.
zDo not replace the battery individually. All the batteries should be replaced at the same time
following the instructions of the battery supplier.
zNormally, the batteries should be charged and discharged once every 4 to 6 months. Charging
should begin after the UPS shuts down automatically in the course of discharging, the standard
charging time for the standard UPS should be at least 12 hours.

Liebert GXTMT Series Installation and User Manual
1-3 kVA UPS
Page １９ V2.11 Emerson Network Power
Maintenance
Notes for Battery Disposal and Battery Replacement
1) Before disposing of batteries, remove conductive jewelry such as necklace, wrist watches and
rings.
2) If it is necessary to replace any connection cables, please purchase the original materials from
the authorized distributors or service centers, so as to avoid overheat or spark resulting in fire
due to insufficient capacity.
3) Do not dispose of batteries or battery packs in a fire, they may explode.
4) Do not open or mutilate batteries, released electrolyte is highly poisonous and harmful to the
skin and eyes.
5) Do not short the positive and negative of the battery electrode, otherwise, it may result in
electric shock or fire.
6) Make sure that there is no voltage before touching the batteries. The battery circuit is not
isolated from the input potential circuit. There may be hazardous voltage between the battery
terminals and the ground.
7) Even though the input breaker is disconnected, the components inside the UPS are still
connected with the batteries, and there are potential hazardous voltages. Therefore, before any
maintenance and repairs work is carried out, switch off the breaker of the battery pack or
disconnect the jumper wire of connecting between the batteries.
8) Batteries contain hazardous voltage and current. Battery maintenance such as the battery
replacement must be carried out by qualified personnel who are knowledgeable about batteries.
No other persons should handle the batteries.
