EMPERO EMP.3003 User manual

1
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 11

2
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Baget Bread Slicer ,that provides high efficiency has been designed to be
used in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.3003
400x545x1001
30
580x490x600
A2 TECHNICAL INFORMATION
Product
Code
Capacity
(slice/h)
Slice
Thickness
(mm)
Power
(KW)
Operating
Voltage
(V)
Cable
(mm²)
Fuse
(A)
EMP.3003
8000
10-80
0,60
230
3x1,5
6

4
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can be moved by hand from area to area.Do not crash and drop the appliance
while transporting.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety
rules and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
!

5
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*Do not take off the appliance’s safety guard sheet metal.
*Do not interfere to the blade by unsettling the bread inlet unit during the operation.
!
!

!
!
!
!
!

!

6
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
D OPERATION

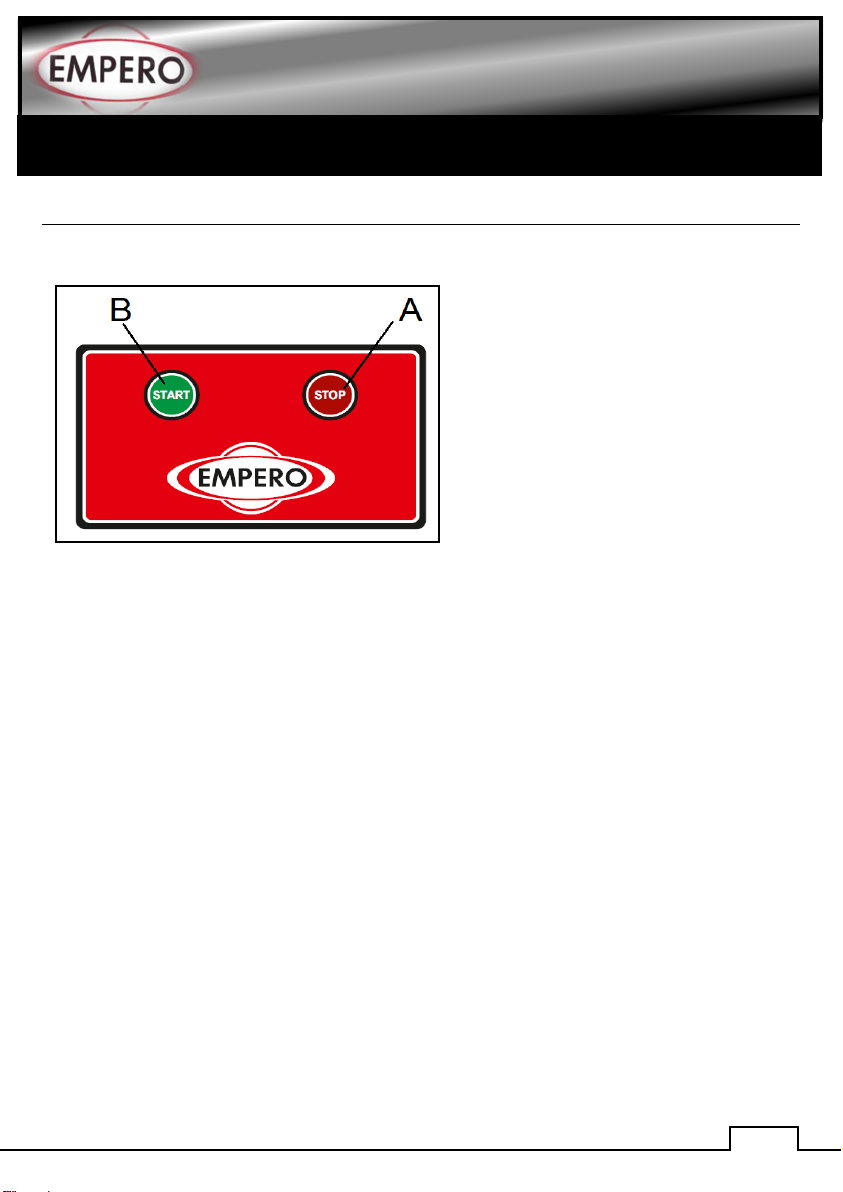

*Control Panel;
A: OFF Position
B: ON Position
*Operating;
•Clean the bread tank and blade with wet cloth.
•Switch ON.
•When the appliance starts to operate, insert the baget bread to inlet unit and adjust by
compressing according to thickness of the bread.
•Adjust the thickness of the slices with adjustment handle.
•Take off the sliced breads from outlet mouth.
•When the operation is completed,switch off and unplug the appliance.

7
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Always turn off the appliance and disconnect from the power supply before cleaning.
•Clean the outer surface of the appliance and bread inlet unit with wet cloth and then
dry.
•Take off the upper lid of the appliance after every use and clean the inside of the
appliance.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•Get the periodic maintenance of the appliance once in every 15 days.
•The Baget Slicers require low maintenance (Motor and ball bearings are lubricated).
•Maintenance of the appliance’s contactor should be done by compressed air
according to frequency of use.

8
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check if the fuse is on or off.
THE BREADS ARE NOT SLICED WELL
1. Check the bread inlet unit.If it is not
adjusted at suitable thickness,the
breads are not sliced well.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
•If bread slicing is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları

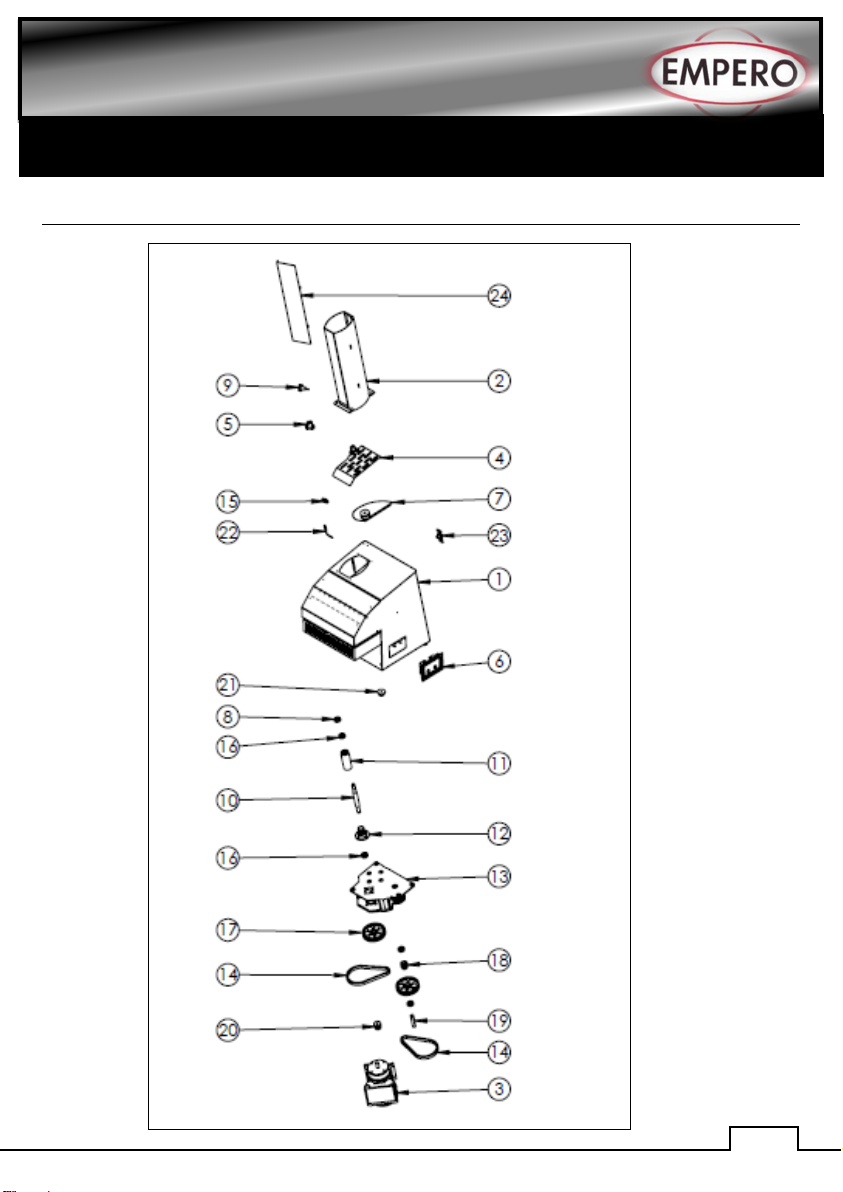

G SPARE PART LIST-EXPLODING DRAWING

10
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EMP.3003
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.3003.1001
2
BREAD INLET UNIT
Y.EMP.3003.1002
3
MOTOR
Y.EMP.3003.1003
4
ADJUSTMENT PLATFORM
Y.EMP.3003.1004
5
ADJUSTMENT SCREWI M8X20
Y.EMP.3003.1005
6
PANEL
Y.EMP.3003.1006
7
BLADE
Y.EMP.3003.1007
8
SEAL 15X32X17
Y.EMP.3003.1008
9
SCREW M4X20
Y.EMP.3003.1009
10
SHAFT
Y.EMP.3003.1010
11
BEARING BLOCK
Y.EMP.3003.1011
12
SHAFT BEARING BLOCK
Y.EMP.3003.1012
13
GEAR BOX CASTING
Y.EMP.3003.1013
14
BELT PJ508
Y.EMP.3003.1014
15
MAGNET
Y.EMP.3003.1015
16
BALL BEARING 6002
Y.EMP.3003.1016
17
BIG PULLEY
Y.EMP.3003.1017
18
SMALL PULLEY
Y.EMP.3003.1018
19
SHAFT
Y.EMP.3003.1019
20
MOTOR PULLEY
Y.EMP.3003.1020
21
FEET
Y.EMP.3003.1021
22
SENSOR
Y.EMP.3003.1022
23
LID LATCH
Y.EMP.3003.1023
24
SPACER SHEETMETAL
Y.EMP.3003.1024

11
BAGET BREAD SLICER
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
M
S1
Motor 0,60 kw 1400 rpm 220V
Magnetic Sensor
