EMPERO EM.01 User manual

1
MEAT MINCERS
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 4
A3 TRANSPORTATION Page 5
A4 UNPACKING Page 5
B INSTALLATION Page 5
C SAFETY INSTRUCTIONS Page 6
D OPERATION Page 7
E CLEANING & MAINTENANCE Page 9
F TROUBLESHOOTING Page 10
G SPARE PART LIST- EXPLODING DRAWING Page 11
H ELECTRIC CIRCUIT SCHEMA Page 25

2
MEAT MINCERS
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel
3. This appliance has to be used by trained person
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
MEAT MINCERS
A1 PRODUCT DESCRIPTION
*The Professional Meat Mincers,that provides high efficiency has been designed to be used
in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EM.01
360x850x395
66
375x865x430
EM.02
360x850x395
66
375x865x430
EM.09
320x790x400
52
335x805x430
EM.10
320x790x400
52
335x805x430
EM.01.P
360x800x410
56
375x815x430
EM.02.P
360x800x410
56
375x815x430
EM.09.P
320x770x405
51
335x785x425
EM.10.P
320x770x405
51
335x785x425
EM.22.09
320x520x610
49
340x540x630
EM.22.10
550x290x330
40
540x340x630
EM.32.09
350x650x610
54
370x660x690
EM.32.10
645x340x546
47
660x370x690

4
MEAT MINCERS
A2 TECHNICAL INFORMATION
Product Code
Capacity
(kg/h)
Power
(Kw)
Operating
Voltage
(V)
Cable
(mm²)
Fuse
(A)
EM.01
600
2,2
220
3x2,5
32
EM.02
600
2,2
380
4x1,5
32
EM.09
400
1,5
220
3x2,5
32
EM.10
400
1,5
380
4x1,5
32
EM.01.P
600
2,2
220
3x2,5
32
EM.02.P
600
2,2
380
4x1,5
32
EM.09.P
400
1,5
220
3x2,5
32
EM.10.P
400
1,5
380
4x1,5
32
EM.22.09
400
2,2
220
3x2,5
32
EM.22.10
400
2,2
380
4x1,5
32
EM.32.09
600
2,2
220
3x2,5
32
EM.32.10
600
2,2
380
4x1,5
32
*Volume Level: max.65 dB

5
MEAT MINCERS
A3 TRANSPORTATION
*This appliance can be moved by hand from area to area.Do not crash and drop the appliance
while transporting.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
!

6
MEAT MINCERS
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not dislocate the safety guards during meat mincing process.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*Get the necessary cautions against electric danger.
*Do not touch the feeder hole without protective equipments.Otherwise your fingers
may be ruptured.
!

!
!
!
!
!

!


7
MEAT MINCERS
D OPERATION

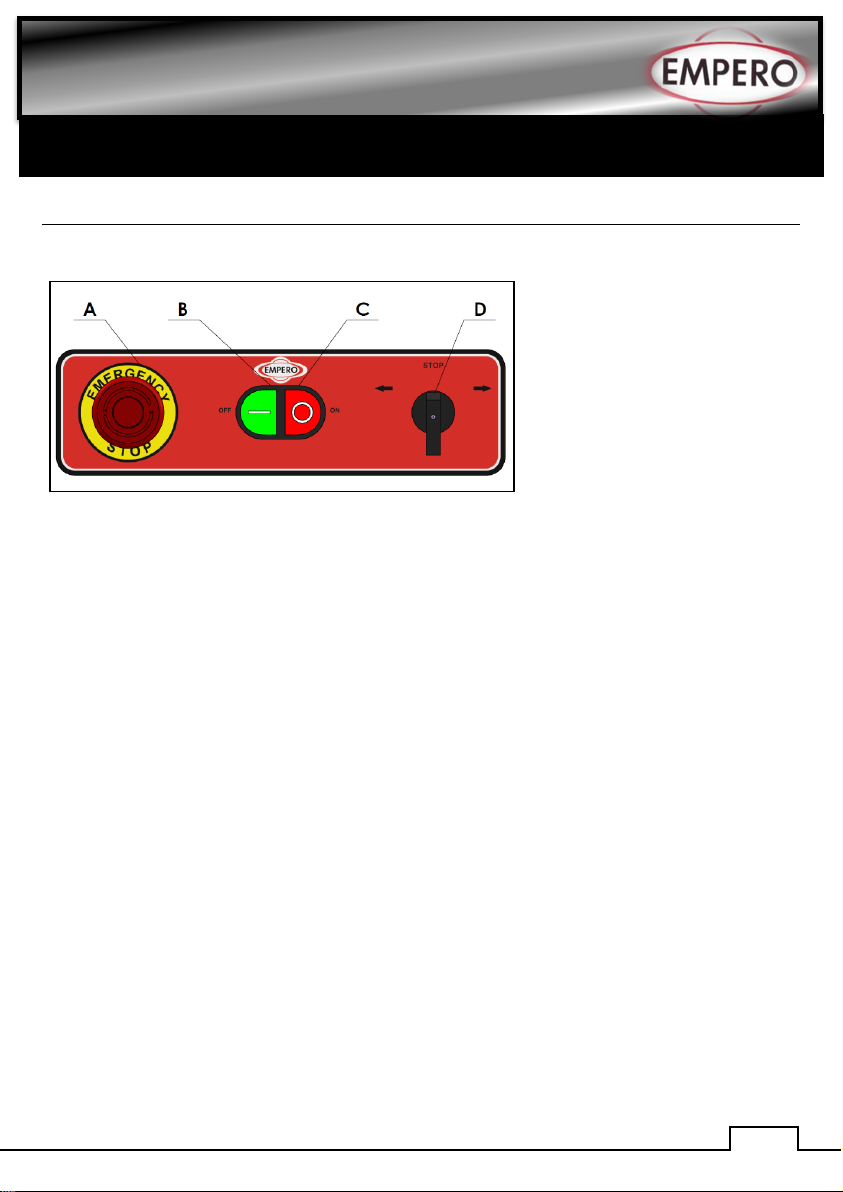

*Control Panel;
A: Urgent stop button
B: Start button
C: Stop button
D: Operation to forward-back
EM.01-02-09-10 / EM.01.P-02.P-09.P-10.P
*Operating;
•Before operating,clean the spiral,disk,blade and inside of meat tube with a hot water and
dry.
•For operating the appliance be sure that URGENT STOP BUTTON must be unpressed
and press the START BUTTON.
•Choose the suitable disc according to desired material thickness.
•Put some meat to the feeder hole, press the Operation to forward button (Not to damage
disk and blade while squeezing the nut).
•If the appliance operates with 380 V,while plugging during first operation ,pay attention to
be operated on the direction of arrow.
•If the appliance is operated when it is empty,it may cause abrasion on blade and disk so
always put meal into the feeder hole while the appliance is operated.
•When meat is stuck run the device backwards for 1-2 sec.
•Push the meats in feeder hole with plastic pestle.
•Turn off the appliance by pressing STOP button after the operation completed.

8
MEAT MINCERS

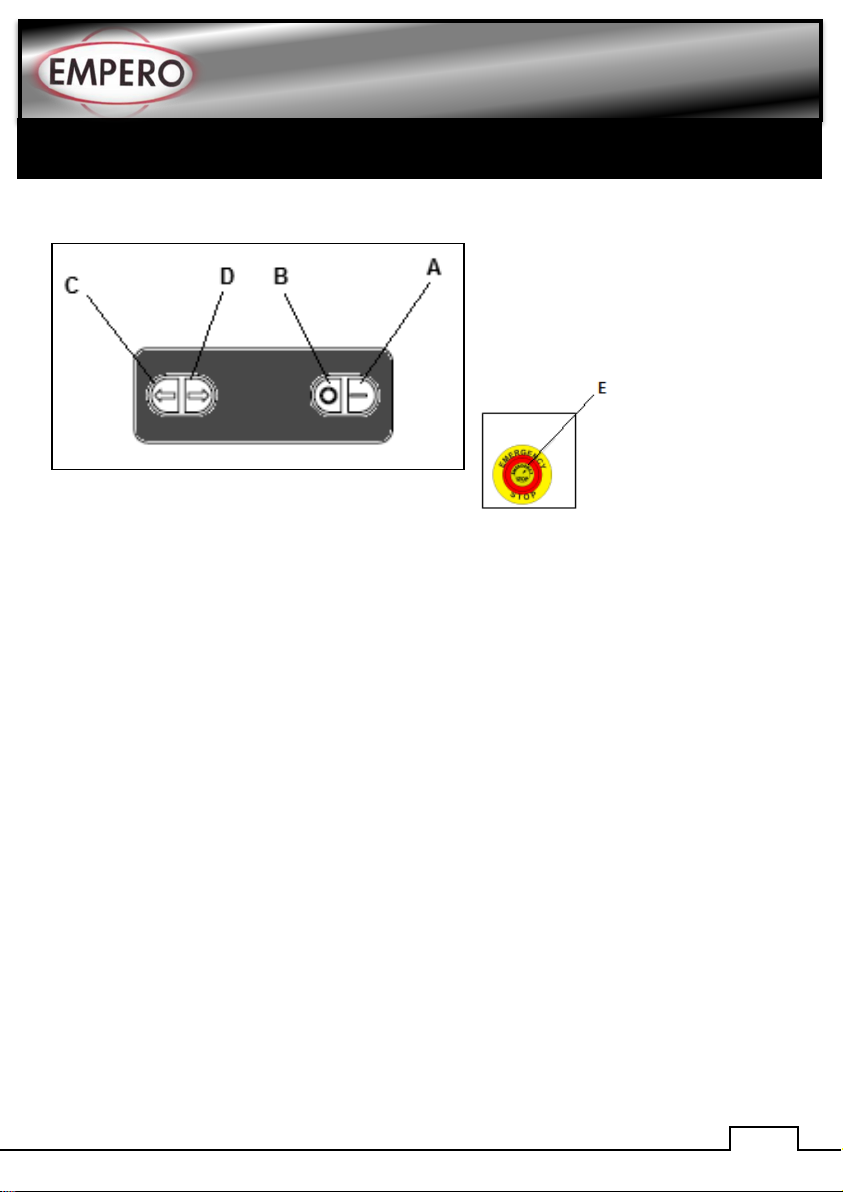

* Control Panel:
A: Start button
B: Stop button
C: Operation to back
D: Operation to forward
E: Urgent stop button
EM.22.09-10 / EM.32.09-10
* Operating:
•Before operating,clean the spiral,disk,blade and inside of meat tube with a hot water and
dry.
•For operating the appliance be sure that URGENT STOP BUTTON must be unpressed
and press the START BUTTON.
•Choose the suitable disc according to desired material thickness.
•Put some meat to the feeder hole, press the Operation to forward button (Not to damage
disk and blade while squeezing the nut).
•If the appliance operates with 380 V,while plugging during first operation ,pay attention to
be operated on the direction of arrow.
•If the appliance is operated when it is empty,it may cause abrasion on blade and disk so
always put meal into the feeder hole while the appliance is operated.
•When meat is stuck run the device backwards for 1-2 sec.
•Push the meats in feeder hole with plastic pestle.
•Turn off the appliance by pressing STOP button after the operation completed.

9
MEAT MINCERS
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Clean the meat tube,spiral,disk and blade after every meat mincing process.
•Clean the outer surface of appliance with a wet cloth and then dry.
•Always turn off the appliance and disconnect from the power supply before cleaning.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•Get the periodic maintenance of the appliance once in every 15 days.
•The Meat Mincers require low maintenance (Motor and ball bearings are lubricated).
•According to frequency of use,change the lubrication in every 6 months.
- Remove the lubricant stopple and take off the lubricant.
- Put 1,5 Liter of gear lubricant numbered 140 into the appliance.
•Maintenance of the appliance’s contactor should be done by compressed air
according to frequency of use.
•Clean the appliance’s meat tube system in particular periods according to frequency
of use.
•Check the power cable sometimes if it is damaged or not.If there is any damage dont
use the appliance absolutely.Provide it to be changed by authorized service or
technical person.
•If the performance of the appliance drops,sharpen the disc and blade

10
MEAT MINCERS
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check the urgent stop button.
THE APPLIANCE IS NOISY
1. There may remain bone pieces in the
meat.In thıs situation stop the appliance
check the meat and blade.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
2. If the appliance is overloaded,turn off
the appliance and allow to cool down by
taking off some materials from bowl.
ANY MATERİAL DOESN’T GO OUT
1. Check the appliance’s feeder hole if
there is material accumulated or not.
2. If there is congestion on disk holes,stop
the appliance.Clean the disk and
operate the appliance again.
•If meat mincing is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized service.

11
MEAT MINCERS

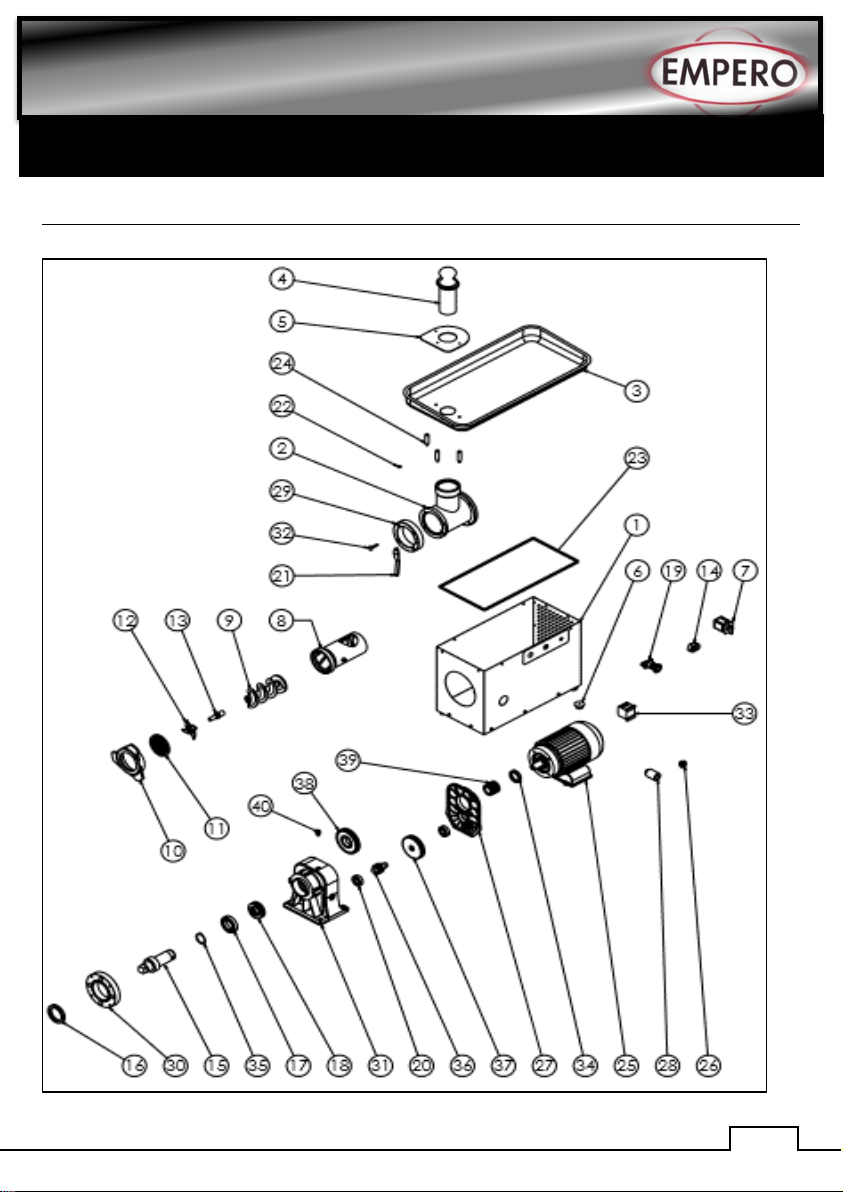

G SPARE PART LIST-EXPLODING DRAWING

12
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE : EM.01
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.01.1001
2
BRACKET
Y.EM.01.1002
3
SPILLAGE TRAY
Y.EM.01.1003
4
PESTLE
Y.EM.01.1004
5
SAFETY GUARD
Y.EM.01.1005
6
FEET
Y.EM.01.1006
7
SWITCH
Y.EM.01.1007
8
MEAT TUBE
Y.EM.01.1008
9
SPIRAL
Y.EM.01.1009
10
MEAT TUBE NUT
Y.EM.01.1010
11
DISC
Y.EM.01.1011
12
BLADE
Y.EM.01.1012
13
SPIRAL SCREW
Y.EM.01.1013
14
START-STOP BUTTON
Y.EM.01.1014
15
SHAFT
Y.EM.01.1015
16
SEAL 63X85X10
Y.EM.01.1016
17
BALL BEARING 6009
Y.EM.01.1017
18
BALL BEARING 51209
Y.EM.01.1018
19
URGENT STOP
Y.EM.01.1019
20
BALL BEARING 6204
Y.EM.01.1020
21
LOCK SHEETMETAL
Y.EM.01.1021
22
ORING
Y.EM.01.1022
23
WICK
Y.EM.01.1023
24
SAFETY GUARD PIN
Y.EM.01.1024
25
MOTOR
Y.EM.01.1025
26
LUBRICANT INDICATOR
Y.EM.01.1026
27
REDUCER LID
Y.EM.01.1027
28
SLEEVE
Y.EM.01.1028
29
BRACKET FLANGE
Y.EM.01.1029
30
REDUCER CONNECTION FLANGE
Y.EM.01.1030
31
REDUCER BODY
Y.EM.01.1031
32
LOCK GROUP
Y.EM.01.1032
33
CONTACTOR DILEM10
Y.EM.01.1033
34
SEAL 25X40X8
Y.EM.01.1034
35
SEGMAN
Y.EM.01.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.01.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.01.1037
38
SHAFT GEAR
Y.EM.01.1038
39
MOTOR GEAR
Y.EM.01.1039
40
STOPPLE
Y.EM.01.1040

13
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EM.02
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.02.1001
2
BRACKET
Y.EM.02.1002
3
SPILLAGE TRAY
Y.EM.02.1003
4
PESTLE
Y.EM.02.1004
5
SAFETY GUARD
Y.EM.02.1005
6
FEET
Y.EM.02.1006
7
SWITCH
Y.EM.02.1007
8
MEAT TUBE
Y.EM.02.1008
9
SPIRAL
Y.EM.02.1009
10
MEAT TUBE NUT
Y.EM.02.1010
11
DISC
Y.EM.02.1011
12
BLADE
Y.EM.02.1012
13
SPIRAL SCREW
Y.EM.02.1013
14
START-STOP BUTTON
Y.EM.02.1014
15
SHAFT
Y.EM.02.1015
16
SEAL 63X85X10
Y.EM.02.1016
17
BALL BEARING 6009
Y.EM.02.1017
18
BALL BEARING 51209
Y.EM.02.1018
19
URGENT STOP
Y.EM.02.1019
20
BALL BEARING 6204
Y.EM.02.1020
21
LOCK SHEETMETAL
Y.EM.02.1021
22
ORING
Y.EM.02.1022
23
WICK
Y.EM.02.1023
24
SAFETY GUARD PIN
Y.EM.02.1024
25
MOTOR
Y.EM.02.1025
26
LUBRICANT INDICATOR
Y.EM.02.1026
27
REDUCER LID
Y.EM.02.1027
28
SLEEVE
Y.EM.02.1028
29
BRACKET FLANGE
Y.EM.02.1029
30
REDUCER CONNECTION FLANGE
Y.EM.02.1030
31
REDUCER BODY
Y.EM.02.1031
32
LOCK GROUP
Y.EM.02.1032
33
CONTACTOR DILEM10
Y.EM.02.1033
34
SEAL 25X40X8
Y.EM.02.1034
35
SEGMAN
Y.EM.02.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.02.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.02.1037
38
SHAFT GEAR
Y.EM.02.1038
39
MOTOR GEAR
Y.EM.02.1039
40
STOPPLE
Y.EM.02.1040

14
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EM.09
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.09.1001
2
BRACKET
Y.EM.09.1002
3
SPILLAGE TRAY
Y.EM.09.1003
4
PESTLE
Y.EM.09.1004
5
SAFETY GUARD
Y.EM.09.1005
6
FEET
Y.EM.09.1006
7
SWITCH
Y.EM.09.1007
8
MEAT TUBE
Y.EM.09.1008
9
SPIRAL
Y.EM.09.1009
10
MEAT TUBE NUT
Y.EM.09.1010
11
DISC
Y.EM.09.1011
12
BLADE
Y.EM.09.1012
13
SPIRAL SCREW
Y.EM.09.1013
14
START-STOP BUTTON
Y.EM.09.1014
15
SHAFT
Y.EM.09.1015
16
SEAL 63X85X10
Y.EM.09.1016
17
BALL BEARING 6009
Y.EM.09.1017
18
BALL BEARING 51209
Y.EM.09.1018
19
URGENT STOP
Y.EM.09.1019
20
BALL BEARING 6204
Y.EM.09.1020
21
LOCK SHEETMETAL
Y.EM.09.1021
22
ORING
Y.EM.09.1022
23
WICK
Y.EM.09.1023
24
SAFETY GUARD PIN
Y.EM.09.1024
25
MOTOR
Y.EM.09.1025
26
LUBRICANT INDICATOR
Y.EM.09.1026
27
REDUCER LID
Y.EM.09.1027
28
SLEEVE
Y.EM.09.1028
29
BRACKET FLANGE
Y.EM.09.1029
30
REDUCER CONNECTION FLANGE
Y.EM.09.1030
31
REDUCER BODY
Y.EM.09.1031
32
LOCK GROUP
Y.EM.09.1032
33
CONTACTOR DILEM10
Y.EM.09.1033
34
SEAL 25X40X8
Y.EM.09.1034
35
SEGMAN
Y.EM.09.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.09.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.09.1037
38
SHAFT GEAR
Y.EM.09.1038
39
MOTOR GEAR
Y.EM.09.1039
40
STOPPLE
Y.EM.09.1040

15
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EM.10
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.10.1001
2
BRACKET
Y.EM.10.1002
3
SPILLAGE TRAY
Y.EM.10.1003
4
PESTLE
Y.EM.10.1004
5
SAFETY GUARD
Y.EM.10.1005
6
FEET
Y.EM.10.1006
7
SWITCH
Y.EM.10.1007
8
MEAT TUBE
Y.EM.10.1008
9
SPIRAL
Y.EM.10.1009
10
MEAT TUBE NUT
Y.EM.10.1010
11
DISC
Y.EM.10.1011
12
BLADE
Y.EM.10.1012
13
SPIRAL SCREW
Y.EM.10.1013
14
START-STOP BUTTON
Y.EM.10.1014
15
SHAFT
Y.EM.10.1015
16
SEAL 63X85X10
Y.EM.10.1016
17
BALL BEARING 6009
Y.EM.10.1017
18
BALL BEARING 51209
Y.EM.10.1018
19
URGENT STOP
Y.EM.10.1019
20
BALL BEARING 6204
Y.EM.10.1020
21
LOCK SHEETMETAL
Y.EM.10.1021
22
ORING
Y.EM.10.1022
23
WICK
Y.EM.10.1023
24
SAFETY GUARD PIN
Y.EM.10.1024
25
MOTOR
Y.EM.10.1025
26
LUBRICANT INDICATOR
Y.EM.10.1026
27
REDUCER LID
Y.EM.10.1027
28
SLEEVE
Y.EM.10.1028
29
BRACKET FLANGE
Y.EM.10.1029
30
REDUCER CONNECTION FLANGE
Y.EM.10.1030
31
REDUCER BODY
Y.EM.10.1031
32
LOCK GROUP
Y.EM.10.1032
33
CONTACTOR DILEM10
Y.EM.10.1033
34
SEAL 25X40X8
Y.EM.10.1034
35
SEGMAN
Y.EM.10.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.10.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.10.1037
38
SHAFT GEAR
Y.EM.10.1038
39
MOTOR GEAR
Y.EM.10.1039
40
STOPPLE
Y.EM.10.1040

16
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EM.01.P
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.01.P.1001
2
BRACKET
Y.EM.01.P.1002
3
SPILLAGE TRAY
Y.EM.01.P.1003
4
PESTLE
Y.EM.01.P.1004
5
SAFETY GUARD
Y.EM.01.P.1005
6
FEET
Y.EM.01.P.1006
7
SWITCH
Y.EM.01.P.1007
8
MEAT TUBE
Y.EM.01.P.1008
9
SPIRAL
Y.EM.01.P.1009
10
MEAT TUBE NUT
Y.EM.01.P.1010
11
DISC
Y.EM.01.P.1011
12
BLADE
Y.EM.01.P.1012
13
SPIRAL SCREW
Y.EM.01.P.1013
14
START-STOP BUTTON
Y.EM.01.P.1014
15
SHAFT
Y.EM.01.P.1015
16
SEAL 63X85X10
Y.EM.01.P.1016
17
BALL BEARING 6009
Y.EM.01.P.1017
18
BALL BEARING 51209
Y.EM.01.P.1018
19
URGENT STOP
Y.EM.01.P.1019
20
BALL BEARING 6204
Y.EM.01.P.1020
21
LOCK SHEETMETAL
Y.EM.01.P.1021
22
ORING
Y.EM.01.P.1022
23
WICK
Y.EM.01.P.1023
24
SAFETY GUARD PIN
Y.EM.01.P.1024
25
MOTOR
Y.EM.01.P.1025
26
LUBRICANT INDICATOR
Y.EM.01.P.1026
27
REDUCER LID
Y.EM.01.P.1027
28
SLEEVE
Y.EM.01.P.1028
29
BRACKET FLANGE
Y.EM.01.P.1029
30
REDUCER CONNECTION FLANGE
Y.EM.01.P.1030
31
REDUCER BODY
Y.EM.01.P.1031
32
LOCK GROUP
Y.EM.01.P.1032
33
CONTACTOR DILEM10
Y.EM.01.P.1033
34
SEAL 25X40X8
Y.EM.01.P.1034
35
SEGMAN
Y.EM.01.P.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.01.P.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.01.P.1037
38
SHAFT GEAR
Y.EM.01.P.1038
39
MOTOR GEAR
Y.EM.01.P.1039
40
STOPPLE
Y.EM.01.P.1040

17
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE : EM.02.P
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.02.P.1001
2
BRACKET
Y.EM.02.P.1002
3
SPILLAGE TRAY
Y.EM.02.P.1003
4
PESTLE
Y.EM.02.P.1004
5
SAFETY GUARD
Y.EM.02.P.1005
6
FEET
Y.EM.02.P.1006
7
SWITCH
Y.EM.02.P.1007
8
MEAT TUBE
Y.EM.02.P.1008
9
SPIRAL
Y.EM.02.P.1009
10
MEAT TUBE NUT
Y.EM.02.P.1010
11
DISC
Y.EM.02.P.1011
12
BLADE
Y.EM.02.P.1012
13
SPIRAL SCREW
Y.EM.02.P.1013
14
START-STOP BUTTON
Y.EM.02.P.1014
15
SHAFT
Y.EM.02.P.1015
16
SEAL 63X85X10
Y.EM.02.P.1016
17
BALL BEARING 6009
Y.EM.02.P.1017
18
BALL BEARING 51209
Y.EM.02.P.1018
19
URGENT STOP
Y.EM.02.P.1019
20
BALL BEARING 6204
Y.EM.02.P.1020
21
LOCK SHEETMETAL
Y.EM.02.P.1021
22
ORING
Y.EM.02.P.1022
23
WICK
Y.EM.02.P.1023
24
SAFETY GUARD PIN
Y.EM.02.P.1024
25
MOTOR
Y.EM.02.P.1025
26
LUBRICANT INDICATOR
Y.EM.02.P.1026
27
REDUCER LID
Y.EM.02.P.1027
28
SLEEVE
Y.EM.02.P.1028
29
BRACKET FLANGE
Y.EM.02.P.1029
30
REDUCER CONNECTION FLANGE
Y.EM.02.P.1030
31
REDUCER BODY
Y.EM.02.P.1031
32
LOCK GROUP
Y.EM.02.P.1032
33
CONTACTOR DILEM10
Y.EM.02.P.1033
34
SEAL 25X40X8
Y.EM.02.P.1034
35
SEGMAN
Y.EM.02.P.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.02.P.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.02.P.1037
38
SHAFT GEAR
Y.EM.02.P.1038
39
MOTOR GEAR
Y.EM.02.P.1039
40
STOPPLE
Y.EM.02.P.1040

18
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EM.09.P
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.09.P.1001
2
BRACKET
Y.EM.09.P.1002
3
SPILLAGE TRAY
Y.EM.09.P.1003
4
PESTLE
Y.EM.09.P.1004
5
SAFETY GUARD
Y.EM.09.P.1005
6
FEET
Y.EM.09.P.1006
7
SWITCH
Y.EM.09.P.1007
8
MEAT TUBE
Y.EM.09.P.1008
9
SPIRAL
Y.EM.09.P.1009
10
MEAT TUBE NUT
Y.EM.09.P.1010
11
DISC
Y.EM.09.P.1011
12
BLADE
Y.EM.09.P.1012
13
SPIRAL SCREW
Y.EM.09.P.1013
14
START-STOP BUTTON
Y.EM.09.P.1014
15
SHAFT
Y.EM.09.P.1015
16
SEAL 63X85X10
Y.EM.09.P.1016
17
BALL BEARING 6009
Y.EM.09.P.1017
18
BALL BEARING 51209
Y.EM.09.P.1018
19
URGENT STOP
Y.EM.09.P.1019
20
BALL BEARING 6204
Y.EM.09.P.1020
21
LOCK SHEETMETAL
Y.EM.09.P.1021
22
ORING
Y.EM.09.P.1022
23
WICK
Y.EM.09.P.1023
24
SAFETY GUARD PIN
Y.EM.09.P.1024
25
MOTOR
Y.EM.09.P.1025
26
LUBRICANT INDICATOR
Y.EM.09.P.1026
27
REDUCER LID
Y.EM.09.P.1027
28
SLEEVE
Y.EM.09.P.1028
29
BRACKET FLANGE
Y.EM.09.P.1029
30
REDUCER CONNECTION FLANGE
Y.EM.09.P.1030
31
REDUCER BODY
Y.EM.09.P.1031
32
LOCK GROUP
Y.EM.09.P.1032
33
CONTACTOR DILEM10
Y.EM.09.P.1033
34
SEAL 25X40X8
Y.EM.09.P.1034
35
SEGMAN
Y.EM.09.P.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.09.P.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.09.P.1037
38
SHAFT GEAR
Y.EM.09.P.1038
39
MOTOR GEAR
Y.EM.09.P.1039
40
STOPPLE
Y.EM.09.P.1040

19
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EM.10.P
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EM.10.P.1001
2
BRACKET
Y.EM.10.P.1002
3
SPILLAGE TRAY
Y.EM.10.P.1003
4
PESTLE
Y.EM.10.P.1004
5
SAFETY GUARD
Y.EM.10.P.1005
6
FEET
Y.EM.10.P.1006
7
SWITCH
Y.EM.10.P.1007
8
MEAT TUBE
Y.EM.10.P.1008
9
SPIRAL
Y.EM.10.P.1009
10
MEAT TUBE NUT
Y.EM.10.P.1010
11
DISC
Y.EM.10.P.1011
12
BLADE
Y.EM.10.P.1012
13
SPIRAL SCREW
Y.EM.10.P.1013
14
START-STOP BUTTON
Y.EM.10.P.1014
15
SHAFT
Y.EM.10.P.1015
16
SEAL 63X85X10
Y.EM.10.P.1016
17
BALL BEARING 6009
Y.EM.10.P.1017
18
BALL BEARING 51209
Y.EM.10.P.1018
19
URGENT STOP
Y.EM.10.P.1019
20
BALL BEARING 6204
Y.EM.10.P.1020
21
LOCK SHEETMETAL
Y.EM.10.P.1021
22
ORING
Y.EM.10.P.1022
23
WICK
Y.EM.10.P.1023
24
SAFETY GUARD PIN
Y.EM.10.P.1024
25
MOTOR
Y.EM.10.P.1025
26
LUBRICANT INDICATOR
Y.EM.10.P.1026
27
REDUCER LID
Y.EM.10.P.1027
28
SLEEVE
Y.EM.10.P.1028
29
BRACKET FLANGE
Y.EM.10.P.1029
30
REDUCER CONNECTION FLANGE
Y.EM.10.P.1030
31
REDUCER BODY
Y.EM.10.P.1031
32
LOCK GROUP
Y.EM.10.P.1032
33
CONTACTOR DILEM10
Y.EM.10.P.1033
34
SEAL 25X40X8
Y.EM.10.P.1034
35
SEGMAN
Y.EM.10.P.1035
36
SMALL BEARING BLOCK GEAR
Y.EM.10.P.1036
37
PLASTIC BEARING BLOCK GEAR
Y.EM.10.P.1037
38
SHAFT GEAR
Y.EM.10.P.1038
39
MOTOR GEAR
Y.EM.10.P.1039
40
STOPPLE
Y.EM.10.P.1040

20
MEAT MINCERS
G SPARE PART LIST-EXPLODING DRAWING
EM.22.09-EM.22.10 / EM.32.09-EM.32.10
