EMPERO EMP.MF.20 User manual

1
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 17

2
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Fermantation Cabinet ,that provides high efficiency has been designed to
be used in industrial kitchen.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.MF.20
500X720X1800
80
1020x980x870
EMP.MF.20-T
500X720X1800
83
1020x980x870
EMP.MFI.20
630X850X1900
93
1150X1110X970
EMP.MFI.20-T
630X850X1900
96
1150x1110X970
A2 TECHNICAL INFORMATION
Product Code
Capacity
Electric
Inlet
(V)
Cable
(mm²)
Power
(KW)
Fuse
(A)
EMP.MF.20
16 ad.(40x60)
220
3x2,5
3
16
EMP.MF.20-T
16 ad.(40x60)
220
3x2,5
3
16
EMP.MFI.20
16 ad.(40x60)
220
3x2,5
3
16
EMP.MFI.20-T
16 ad.(40x60)
220
3x2,5
3
16

4
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*This appliance can bu used by installing under patisserie ovens.
!

5
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.The
distance between cabinet surface and flammable material must be minimum 10 cm.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity .
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.

!
!
!
!
!

!

6
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
D OPERATION

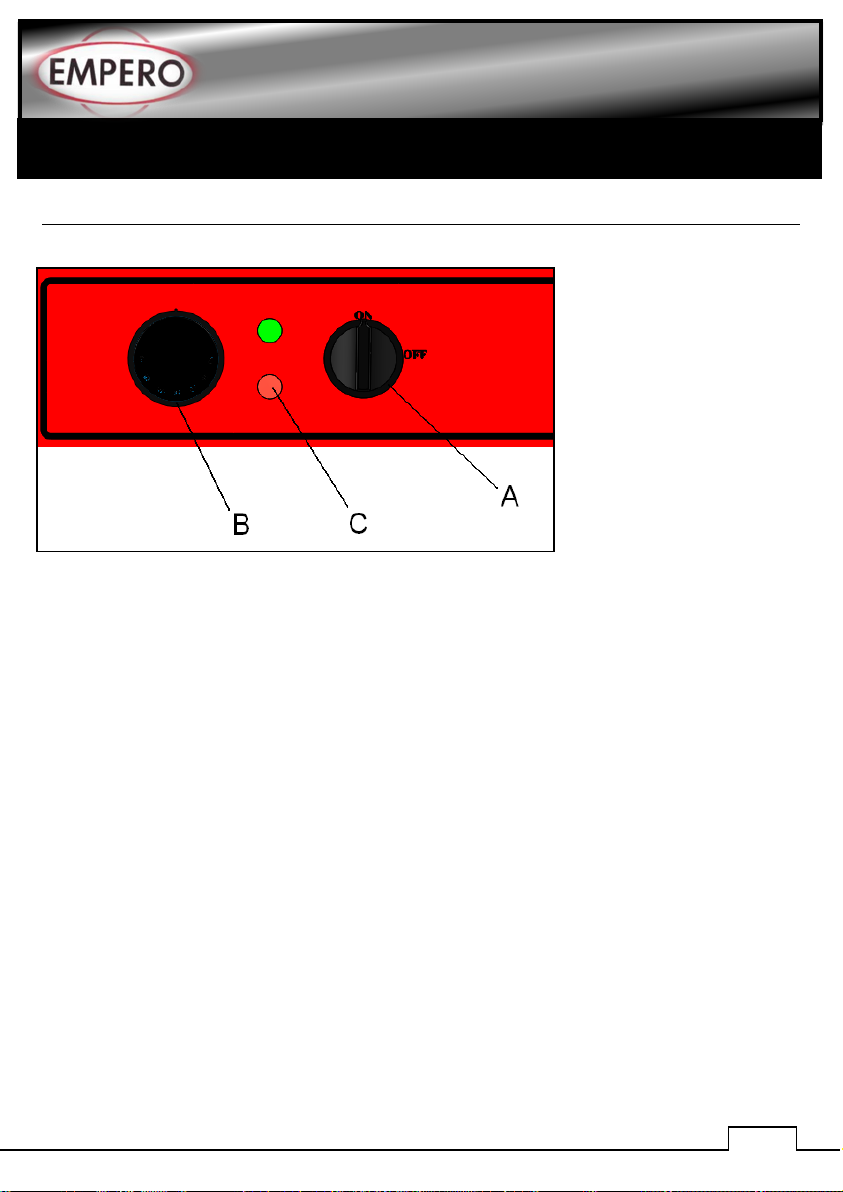

*Control Panel;
A: ON/OFF Button
B: Thermostat Setting Button
C: Indicator lamp
*Operating;
•Plug in the appliance and switch ON.
•Add water to tank that is under the appliance.
•When the resistance gets heated,the fan starts to operate.
•Switch the thermostat to "30-90 ºC " according to dough’s fermantation time.
•Insert the trays that include the dough that will be fermented into the cabinet.
•Take off the trays after fermantation process.
•Switch OFF.
•Unplug the appliance.

7
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Always turn off the appliance and disconnect from the power supply before cleaning.
•Clean the inside of the cabinet with soft cloth before the appliance gets cooled
exactly.
•Clean the outer surface of the appliance with moist cloth.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not clean the appliance by spraying water directly ,otherwise electric motor may
get damaged.
•Do not clean the appliance with the materials that may damage to chrome material.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•Get the periodic maintenance of the appliance once in every 15 days.
•Check the resistances according to frequency of use.

8
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check if the fuse is on or off.
THE APPLIANCE DOESN’T FERMENT
WELL
1. Check the heat settings.
2. Check that if there is enough water at
water tank or not.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
2. Check the resistances.When there is no
water in the tank,the resistances gets
damaged.
•If Dough Fermenting is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
EMP.MF.20

10
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE: EMP.MF.20
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.MF.20.001
2
RESISTANCE
Y.EMP.MF.20.002
3
FEET
Y.EMP.MF.20.003
4
LID
Y.EMP.MF.20.004
5
GLASS
Y.EMP.MF.20.005
6
HINGE GROUP
Y.EMP.MF.20.006
7
THERMOSTAT BUTTON
Y.EMP.MF.20.007
8
CONTACTOR DILEM 01
Y.EMP.MF.20.008
9
SWITCH BUTTON
Y.EMP.MF.20.009
10
SWITCH 0-1
Y.EMP.MF.20.010
11
WARNING LAMP (GREEN)
Y.EMP.MF.20.011
12
WARNING LAMP (RED)
Y.EMP.MF.20.012
13
THERMOSTAT 30-90
Y.EMP.MF.20.013
14
HANDLE
Y.EMP.MF.20.014
15
VESSEL
Y.EMP.MF.20.015
16
VESSEL SHEETMETAL
Y.EMP.MF.20.016
17
GASKET
Y.EMP.MF.20.017
18
SLEDGE
Y.EMP.MF.20.018

11
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
EMP.MF.20-T

12
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWING
PRODUCT CODE: EMP.MF.20-T
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.MF.20-T.001
2
RESISTANCE
Y.EMP.MF.20-T.002
3
BREAK WHEEL
Y.EMP.MF.20-T.003
4
LID
Y.EMP.MF.20-T.004
5
GLASS
Y.EMP.MF.20-T.005
6
HINGE GROUP
Y.EMP.MF.20-T.006
7
THERMOSTAT BUTTON
Y.EMP.MF.20-T.007
8
CONTACTOR DILEM 01
Y.EMP.MF.20-T.008
9
SWITCH BUTTON
Y.EMP.MF.20-T.009
10
SWITCH 0-1
Y.EMP.MF.20-T.010
11
WARNING LAMP (GREEN)
Y.EMP.MF.20-T.011
12
WARNING LAMP (RED)
Y.EMP.MF.20-T.012
13
THERMOSTAT 30-90
Y.EMP.MF.20-T.013
14
HANDLE
Y.EMP.MF.20-T.014
15
VESSEL
Y.EMP.MF.20-T.015
16
VESSEL SHEETMETAL
Y.EMP.MF.20-T.016
17
GASKET
Y.EMP.MF.20-T.017
18
SLEDGE
Y.EMP.MF.20-T.018
19
NON-BREAK WHEEL
Y.EMP.MF.20-T.019

13
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWING
EMP.MFI.20

14
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWING
PRODUCT CODE: EMP.MFI.20
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.MFI.20.001
2
RESISTANCE
Y.EMP.MFI.20.002
3
FEET
Y.EMP.MFI.20.003
4
LID
Y.EMP.MFI.20.004
5
GLASS
Y.EMP.MFI.20.005
6
HINGE GROUP
Y.EMP.MFI.20.006
7
THERMOSTAT BUTTON
Y.EMP.MFI.20.007
8
CONTACTOR DILEM 01
Y.EMP.MFI.20.008
9
SWITCH BUTTON
Y.EMP.MFI.20.009
10
SWITCH 0-1
Y.EMP.MFI.20.010
11
WARNING LAMP (GREEN)
Y.EMP.MFI.20.011
12
WARNING LAMP (RED)
Y.EMP.MFI.20.012
13
THERMOSTAT 30-90
Y.EMP.MFI.20.013
14
HANDLE
Y.EMP.MFI.20.014
15
VESSEL
Y.EMP.MFI.20.015
16
VESSEL SHEETMETAL
Y.EMP.MFI.20.016
17
GASKET
Y.EMP.MFI.20.017

15
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWING
EMP.MFI.20-T

16
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWING
PRODUCT CODE: EMP.MFI.20-T
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.MFI.20-T.001
2
RESISTANCE
Y.EMP.MFI.20-T.002
3
BREAK WHEEL
Y.EMP.MFI.20-T.003
4
LID
Y.EMP.MFI.20-T.004
5
GLASS
Y.EMP.MFI.20-T.005
6
HINGE GROUP
Y.EMP.MFI.20-T.006
7
THERMOSTAT BUTTON
Y.EMP.MFI.20-T.007
8
CONTACTOR DILEM 01
Y.EMP.MFI.20-T.008
9
SWITCH BUTTON
Y.EMP.MFI.20-T.009
10
SWITCH 0-1
Y.EMP.MFI.20-T.010
11
WARNING LAMP (GREEN)
Y.EMP.MFI.20-T.011
12
WARNING LAMP (RED)
Y.EMP.MFI.20-T.012
13
THERMOSTAT 30-90
Y.EMP.MFI.20-T.013
14
HANDLE
Y.EMP.MFI.20-T.014
15
VESSEL
Y.EMP.MFI.20-T.015
16
VESSEL SHEETMETAL
Y.EMP.MFI.20-T.016
17
GASKET
Y.EMP.MFI.20-T.017
18
NON-BREAK WHEEL
Y.EMP.MFI.20-T.018

17
FERMANTATION CABINET
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
I
A1
T1
R1
FN
Terminal
Large lighted 0-1
switch
Thermostat
30-90ºC
Heater resistance
1000 W 230V
Inner air
circulation fan
230V
