EMPERO EMP.3EE User manual

1
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
CONTENTS
A GENEREAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 6
D OPERATION Page 7
E CLEANING & MAINTENANCE Page 8
F TROUBLESHOOTING Page 9
G DEVICE VIEWS Page 10
H SPARE PART LIST- EXPLODING DRAWINGS Page 11

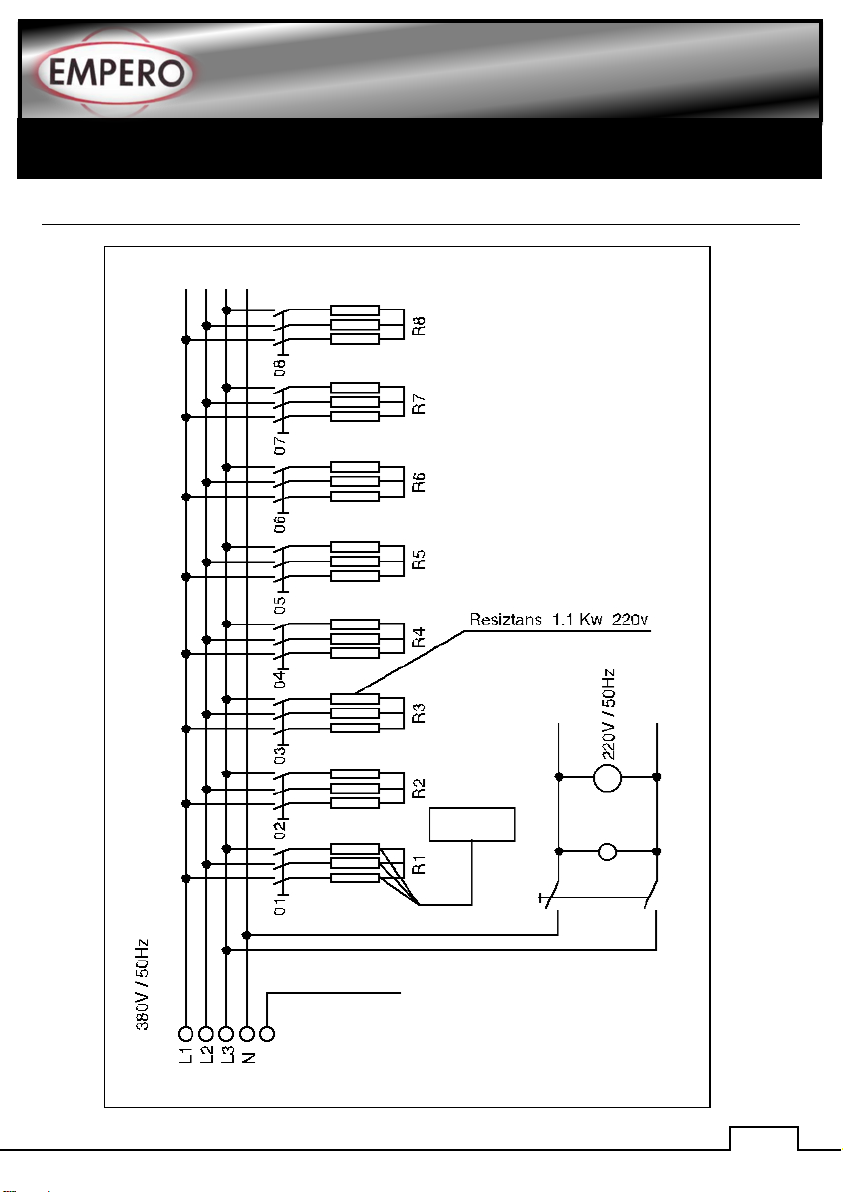

I ELECTRİCAL CİRCUİT DİAGRAM Sayfa 20

2
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of that
country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Electrical chicken rotisserie ,that provides high efficiency has been
designed to be used in industrial kitchen.
Product Code
Dimensions (mm)
Weight (kg)
EMP.3EE
1098x480x820
80
EMP.5EE
1098x480x1170
104
EMP.PLS.5EE
1100x480x2030
193
EMP.8EE
1098x480x2020
183
EMP.8EED
1098x660x2020
220
A2 TECHNICAL INFORMATION
Code
Capacity (Pieces)
Power
(KW)
Operating Voltage
(V)
Frequency (Hz)
EMP.3EE
18
9,9
220/380
50
EMP.5EE
30
16,5
220/380
50
EMP.PLS.5EE
30
16,5
220/380
50
EMP.8EE
48
26,4
220/380
50
EMP.8EED
48+48
26,4
220/380
50

4
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standard.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*The rotisserie is equipped with at least one infrared burner and may have up to eight.
Each burner has three linear resistors, arranged in a parallel configuration over the width of
the roasting chamber. The electric equipment of the rotisserie is supplied by three-phase 380
VAC, 50 Hz power set by the companies which produce in accordance with legal regulations and
the power conditions. The rotisserie contains a neutral wire and an earthing connection. Power is
supplied through a terminal box located at the rear of the appliance. (figure 10)
!

5
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
MAINS CONNECTION
Removethecontrolknobs,loosenthescrewsholdingtheknobcoverandremovethecover.Connectthethree
phasewires,neutralandearthingconnectiontotheterminalstrip, thenattachthecabletoclamp(A).
Makesurethatthecableratingishighenoughfortherotisseriepower!
Thedrivemotorisfactory-installedanddoesnotrequireanyfurtherinstallation.

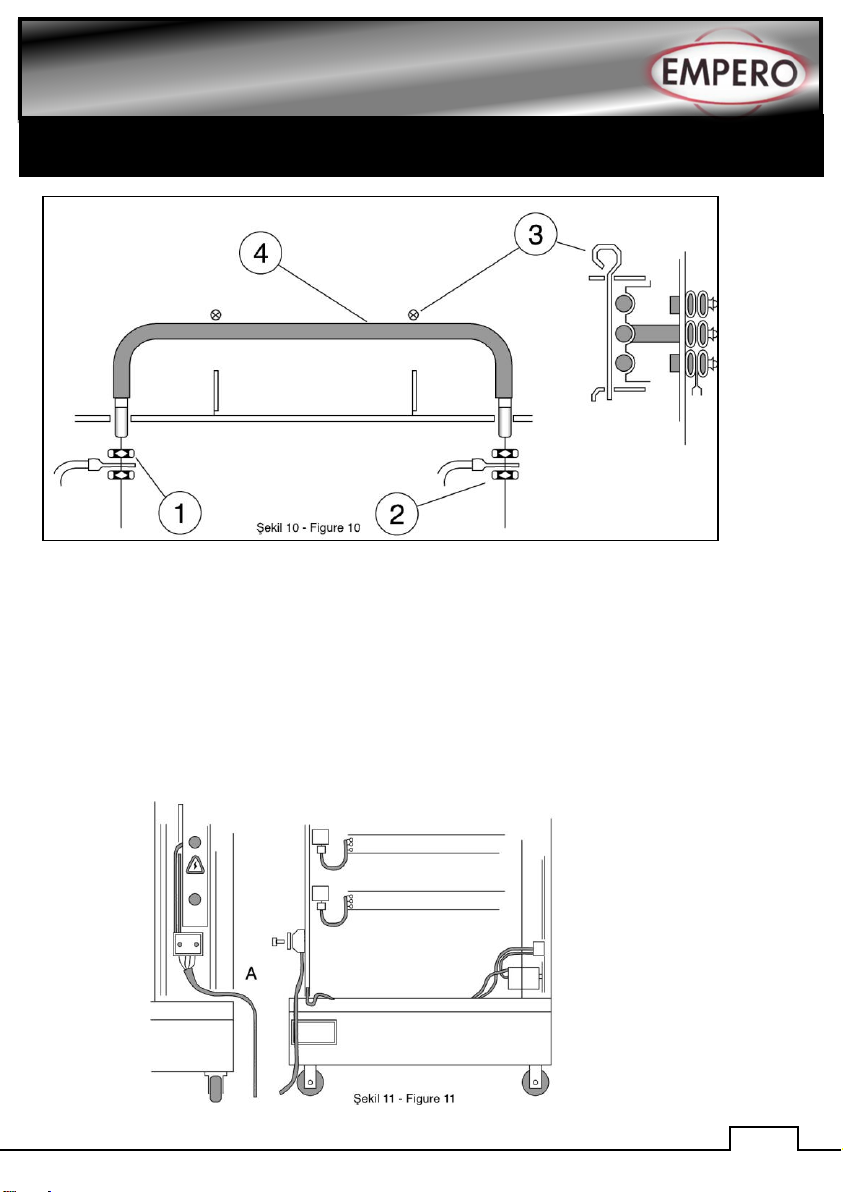

(Figure 11)

6
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on warranty.

!
!
!
!
!
!


7
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
D OPERATION

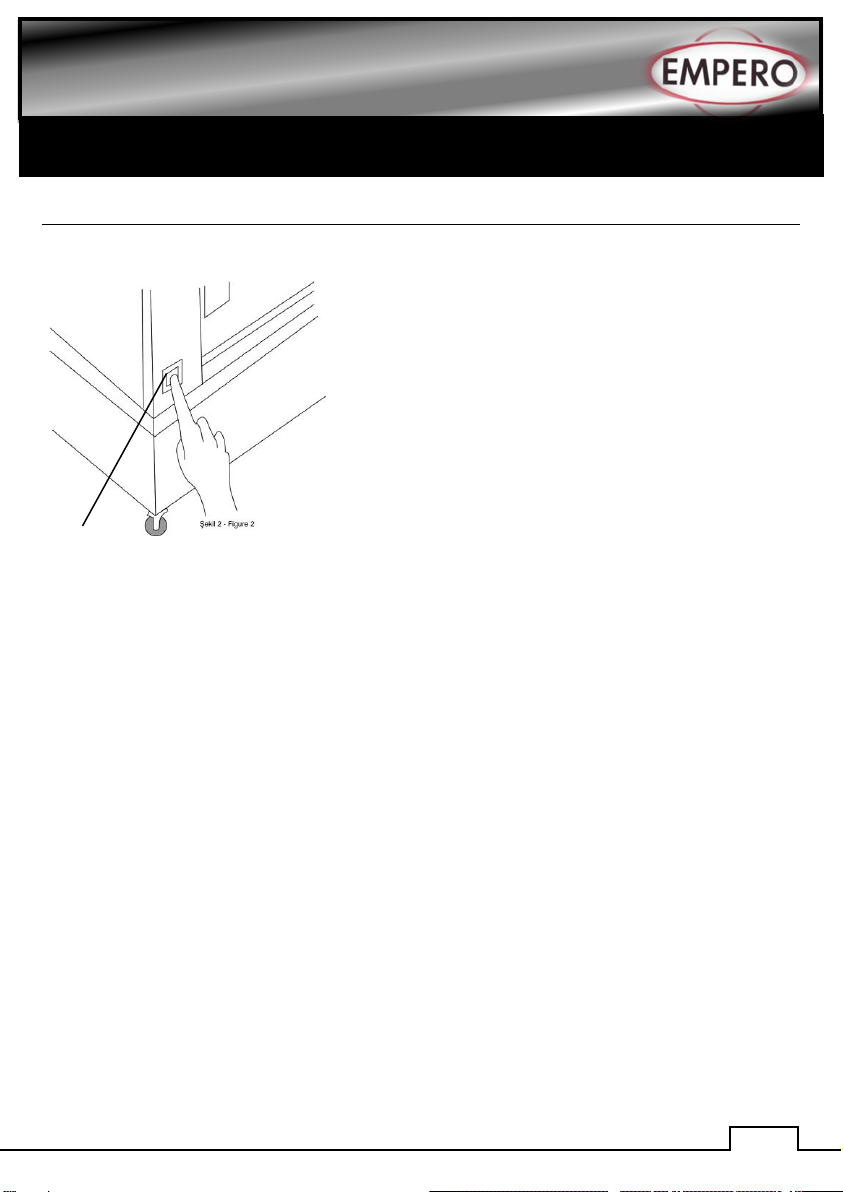

* Control Panel:
A : ON/OFF button
*Operating:
Plug in the appliance.
Switch to (on/off) position.
Therotisserieisequippedwithadrivechaintransmissionusedto rotateallspits atthesame timein
ordertoheatallmeatevenly.Theoptimalpresetrotationalspeedforperfectroastingis4.5rpmand
thegearboxensuresmaximumcontinuoustorqueof81.9Ncm(9Ibs.inch).
Thetransmissionislocatedintheleftcolumn(facingthemachine), with themotoratthebottomabovethe
base.Thecolumnalsocontainsalightedstart-stop switch.
To useallburners,alwaysbeginbylightingthetopburner,workingdownwarduntilreachingthelowest
burnerasshown.Neverleaveaburneronforroastingwhentheonlyimmediatelybelowitisoff!
Yourrotisseriecomesequippedwithanaccessorykitthatincludesspits,skewers,ahooktoremove
thespitsandatray.
Usedto holdthechickensorpiecesofmeat.The spitshaveasquarecross-section whichis inserted
intothedrivehubsandusedtoturnthemeat.Thespitsareequippedwith aheat-resistanthandleto
preventburns. Thenumberofspitsdepends onthemodel.
Placedbeneaththespitsat thebottomoftheroastingchambertocollectjuicesreleasedwhen
roasting. Alwayscleanthetraycarefullyaftereachroast.
Turn off all knobs when the rotisserie is not used.
A

8
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
Toclean
Tocleantherotisserie,youmayuseanynontoxic,nonaggressive,productavailableonthemarket.
Take care not to pour the cleaning product directly on the burner’s microperforated surface.
Neveruseabrasiveproductsthatcouldscratchpaintedorstainlesssteelsurfaces.Thequalityofyourroasts
depend onthe cleanliness ofyour rotisserie.
To cleaningthe platebetweentheburners
Followthesesteps
a)Push thelower edgeoftheplateuptoitshorizontalposition.
b)Pushtheplateasfaraspossible.
c)Pull theplateupand thenouttoremovecompletely.
Toinserttheplate,followthesesteps
a)Insertthehorizontalplatesuchthatthesideslotsmatchthepivotsonbothsides.
b)Lettheplaterotatefreely.

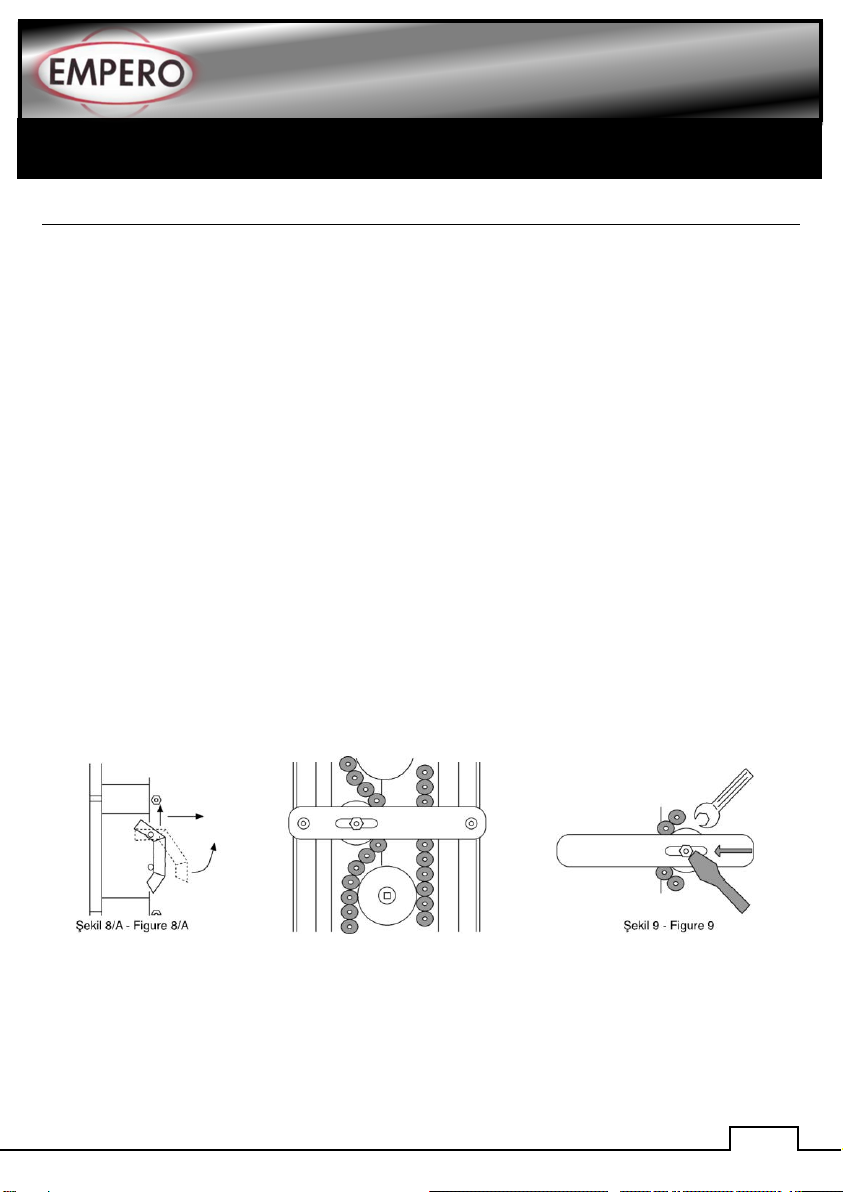

Tensing thedrivechain
To tensethedrivechain,loosen theidlerpinionscrews(A)withascrewdriverand pushthepinionslightlyto the
rightuntilthechainistaut.Tightenthescrew(A).Lubricatewithmolikote-typegreaseorsimilar(Figure9)

9
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check if the fuse is on or off.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
If chicken rotisserie is not done at suitable quality
If any function of security doesn’t work,
Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

10
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
G APPLIANCE DRAWINGS

11
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları

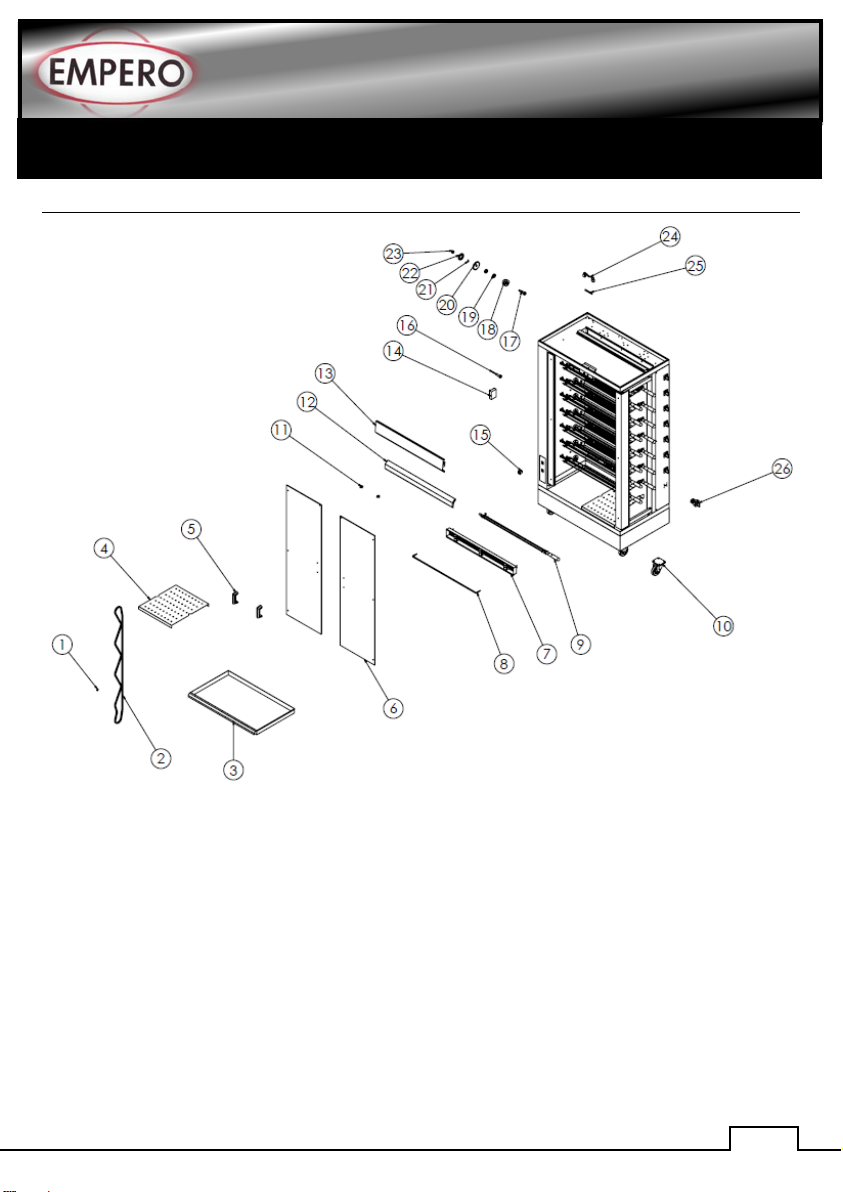

H SPARE PART LIST- EXPLODING DRAWINGS
EMP.3EE

12
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE : EMP.3EE
NO
PRODUCT NAME
P.CODE
1
CHASSIS
Y.EMP.3EE.1001
2
GEAR CHAIN LOCK
Y.EMP.3EE.1002
3
OIL PAN PLATE
Y.EMP.3EE.1003
4
FLAT SHEET
Y.EMP.3EE.1004
5
BAKALITE HANDLE
Y.EMP.3EE.1005
6
TEMPERED GLASS RIGHT LEFT
Y.EMP.3EE.1006
7
RESISTANCE SHEET
Y.EMP.3EE.1007
8
CHICKEN ROASTING SHAFT
Y.EMP.3EE.1008
9
DOOR LOCK CLIP
Y.EMP.3EE.1009
10
RESISTANCE INTERMEDIATE SHEET
Y.EMP.3EE.1010
11
RESISTANCE INTERMEDIATE SHEET
Y.EMP.3EE.1011
12
KELVİN CHICKEN MOTOR 45 KW
Y.EMP.3EE.1012
13
HALOGEN LAMP SENSE
Y.EMP.3EE.1013
14
ŞARTEL TRİFAZE 3x20A
Y.EMP.3EE.1014
15
RESISTANCE
Y.EMP.3EE.1015
16
ON-OFF SWITCH
Y.EMP.3EE.1016
17
BEARING SHAFT SHORT
Y.EMP.3EE.1017
18
BEARING SHAFT LONG
Y.EMP.3EE.1018
19
SPINDLE BEARING ALUMINUM
Y.EMP.3EE.1019
20
6202 ZZ BEARING
Y.EMP.3EE.1020
21
GEAR
Y.EMP.3EE.1021
22
SLOTTED PIN 5x20
Y.EMP.3EE.1022
23
AZM MASON NUT
Y.EMP.3EE.1023
24
HALOGEN LAMP
Y.EMP.3EE.1024
25
GEAR CHAIN
Y.EMP.3EE.1025

13
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS

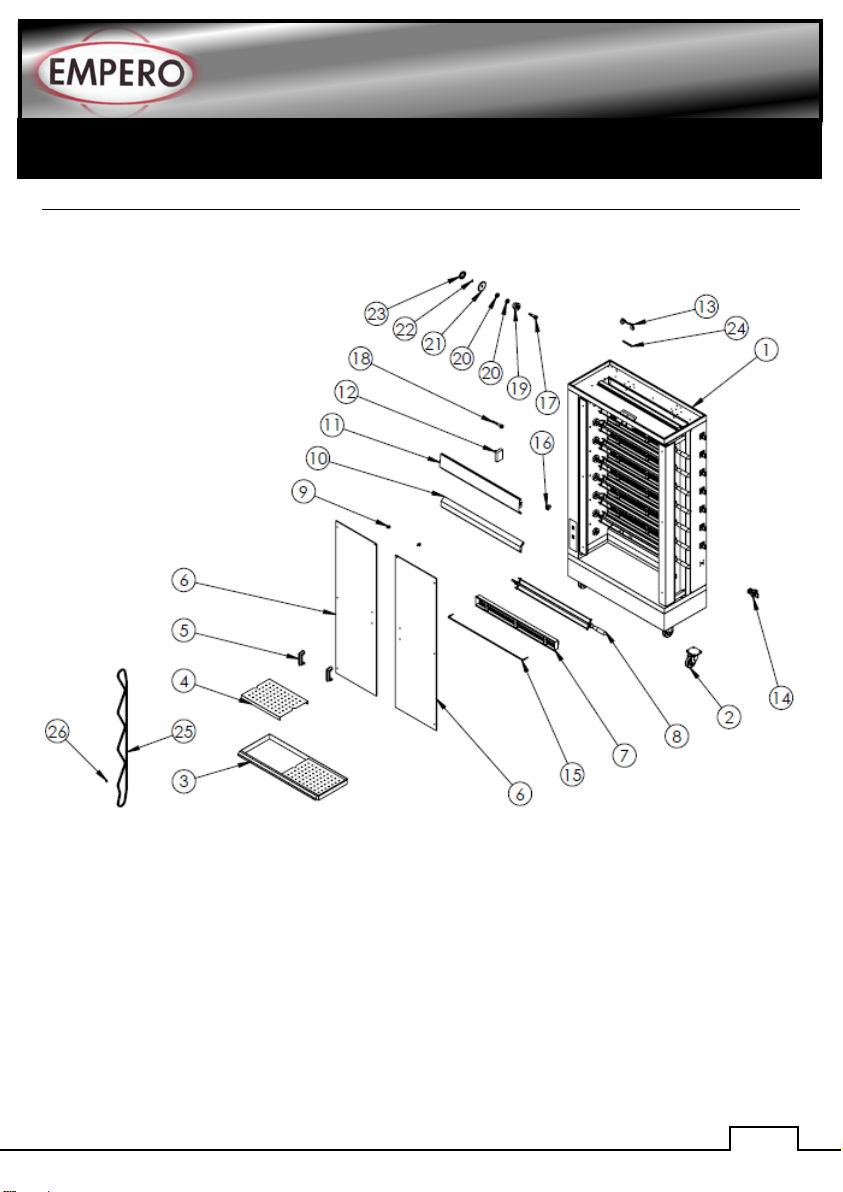

EMP.5EE –PLS.5EE

14
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE : EMP.5EE
NO
PRODUCT NAME
P.CODE
1
CHASSIS
Y.EMP.5EE.1001
2
GEAR CHAIN LOCK
Y.EMP.5EE.1002
3
OIL PAN PLATE
Y.EMP.5EE.1003
4
FLAT SHEET
Y.EMP.5EE.1004
5
BAKALITE HANDLE
Y.EMP.5EE.1005
6
TEMPERED GLASS RIGHT LEFT
Y.EMP.5EE.1006
7
RESISTANCE SHEET
Y.EMP.5EE.1007
8
CHICKEN ROASTING SHAFT
Y.EMP.5EE.1008
9
DOOR LOCK CLIP
Y.EMP.5EE.1009
10
RESISTANCE INTERMEDIATE SHEET
Y.EMP.5EE.1010
11
RESISTANCE INTERMEDIATE SHEET
Y.EMP.5EE.1011
12
KELVİN CHICKEN MOTOR 45 KW
Y.EMP.5EE.1012
13
HALOGEN LAMP SENSE
Y.EMP.5EE.1013
14
ŞARTEL TRİFAZE 3x20A
Y.EMP.5EE.1014
15
RESISTANCE
Y.EMP.5EE.1015
16
ON-OFF SWITCH
Y.EMP.5EE.1016
17
BEARING SHAFT SHORT
Y.EMP.5EE.1017
18
BEARING SHAFT LONG
Y.EMP.5EE.1018
19
SPINDLE BEARING ALUMINUM
Y.EMP.5EE.1019
20
6202 ZZ BEARING
Y.EMP.5EE.1020
21
GEAR
Y.EMP.5EE.1021
22
SLOTTED PIN 5x20
Y.EMP.5EE.1022
23
AZM MASON NUT
Y.EMP.5EE.1023
24
HALOGEN LAMP
Y.EMP.5EE.1024
25
GEAR CHAIN
Y.EMP.5EE.1025

15
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE : EMP.PLS.5EE
NO
PRODUCT NAME
P.CODE
1
CHASSIS
Y.EMP.PLS.5EE.1001
2
GEAR CHAIN LOCK
Y.EMP.PLS.5EE.1002
3
OIL PAN PLATE
Y.EMP.PLS.5EE.1003
4
FLAT SHEET
Y.EMP.PLS.5EE.1004
5
BAKALITE HANDLE
Y.EMP.PLS.5EE.1005
6
TEMPERED GLASS RIGHT LEFT
Y.EMP.PLS.5EE.1006
7
RESISTANCE SHEET
Y.EMP.PLS.5EE.1007
8
CHICKEN ROASTING SHAFT
Y.EMP.PLS.5EE.1008
9
DOOR LOCK CLIP
Y.EMP.PLS.5EE.1009
10
RESISTANCE INTERMEDIATE SHEET
Y.EMP.PLS.5EE.1010
11
RESISTANCE INTERMEDIATE SHEET
Y.EMP.PLS.5EE.1011
12
KELVİN CHICKEN MOTOR 45 KW
Y.EMP.PLS.5EE.1012
13
HALOGEN LAMP SENSE
Y.EMP.PLS.5EE.1013
14
ŞARTEL TRİFAZE 3x20A
Y.EMP.PLS.5EE.1014
15
RESISTANCE
Y.EMP.PLS.5EE.1015
16
ON-OFF SWITCH
Y.EMP.PLS.5EE.1016
17
BEARING SHAFT SHORT
Y.EMP.PLS.5EE.1017
18
BEARING SHAFT LONG
Y.EMP.PLS.5EE.1018
19
SPINDLE BEARING ALUMINUM
Y.EMP.PLS.5EE.1019
20
6202 ZZ BEARING
Y.EMP.PLS.5EE.1020
21
GEAR
Y.EMP.PLS.5EE.1021
22
SLOTTED PIN 5x20
Y.EMP.PLS.5EE.1022
23
AZM MASON NUT
Y.EMP.PLS.5EE.1023
24
HALOGEN LAMP
Y.EMP.PLS.5EE.1024
25
GEAR CHAIN
Y.EMP.PLS.5EE.1025

16
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS
EMP.8EE

17
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE : EMP.8EE
NO
PRODUCT NAME
P.CODE
1
CHASSIS
Y.EMP.8EE.1001
2
GEAR CHAIN LOCK
Y.EMP.8EE.1002
3
OIL PAN PLATE
Y.EMP.8EE.1003
4
FLAT SHEET
Y.EMP.8EE.1004
5
BAKALITE HANDLE M6
Y.EMP.8EE.1005
6
TEMPERED GLASS RIGHT LEFT
Y.EMP.8EE.1006
7
RESISTANCE SHEET
Y.EMP.8EE.1007
8
CHICKEN ROASTING SHAFT
Y.EMP.8EE.1008
9
DOOR LOCK CLIP
Y.EMP.8EE.1009
10
RESISTANCE INTERMEDIATE SHEET
Y.EMP.8EE.1010
11
RESISTANCE INTERMEDIATE SHEET
Y.EMP.8EE.1011
12
KELVİN CHICKEN MOTOR 45 KW
Y.EMP.8EE.1012
13
HALOGEN LAMP SENSE
Y.EMP.8EE.1013
14
ŞARTEL TRİFAZE 3x20A
Y.EMP.8EE.1014
15
RESISTANCE
Y.EMP.8EE.1015
16
ON-OFF SWITCH
Y.EMP.8EE.1016
17
BEARING SHAFT SHORT
Y.EMP.8EE.1017
18
BEARING SHAFT LONG
Y.EMP.8EE.1018
19
SPINDLE BEARING ALUMINUM
Y.EMP.8EE.1019
20
6202 ZZ BEARING
Y.EMP.8EE.1020
21
GEAR
Y.EMP.8EE.1021
22
SLOTTED PIN 5x20
Y.EMP.8EE.1022
23
AZM MASON NUT
Y.EMP.8EE.1023
24
HALOGEN LAMP
Y.EMP.8EE.1024
25
GEAR CHAIN
Y.EMP.8EE.1025
26
GEAR CHAIN LOCK
Y.EMP.8EE.1026

18
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS
EMP.8EED

19
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
H SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE : EMP.8EED
NO
PRODUCT NAME
P.CODE
1
GEAR CHAIN LOCK
Y.EMP.8EED.1001
2
GEAR CHAIN
Y.EMP.8EED.1002
3
OIL PAN PLATE
Y.EMP.8EED.1003
4
OIL PAN FLAT SHEET
Y.EMP.8EED.1004
5
KEEPING BAKALITE (M6) NO 1
Y.EMP.8EED.1005
6
TEMPERED GLASS RIGHT LEFT 465 * 1500 * 6 MM
Y.EMP.8EED.1006
7
RESISTANCE SHEET
RESISTANCE CARD SHEET UPPER
RESISTANCE COMB HAIR LOWER
M8 NO: 5 BAKALITE OVAL 11 CM ARMUID HANDLE
Y.EMP.8EED.1007
8
117749 220V 1000W L: 86 cm U
FLAT REZ. M4 DRY LB.5 2 BIG.
Y.EMP.8EED.1008
9
HANDLE BUSH
BROACH HANDLE CONNECTION INTERMEDIATE
12 * 12 MM SQUARE ROTARY SPINDLE
SHOT FIXED PLATE
ŞİŞ RIGHT LEFT SPINDLE DIAMETER 5,8 MM
Y.EMP.8EED.1009
10
100 * 32 TABLE DRUNK WHEEL
Y.EMP.8EED.1010
11
DOC013 PANEL CLIP METAL STUD M5
Y.EMP.8EED.1011
12
DOC043 PANEL CLIP METAL DOOR LOCK CLIP
Y.EMP.8EED.1012
13
RESISTANCE INTERMEDIATE SHEET
Y.EMP.8EED.1013
14
RESISTANCE INTERMEDIATE SHEET
Y.EMP.8EED.1014
15
KELVIN CHICKEN ROASTING MOTOR 45 KW
Y.EMP.8EED.1015
16
ILLUMINATED SQUARE KEY-GREEN-DOUBLE
Y.EMP.8EED.1016
17
BEARING SHAFT LONG
Y.EMP.8EED.1017
18
BEARING SHAFT SHORT
Y.EMP.8EED.1018
19
SPINDLE BEARING
Y.EMP.8EED.1019
20
6202 ZZ BEARING (35 * 15 * 11)
Y.EMP.8EED.1020
21
20 GEAR
Y.EMP.8EED.1021
22
SLOTTED PIN (5X20)
Y.EMP.8EED.1022
23
KM-09 AZM MASON NUT
Y.EMP.8EED.1023
24
B-MSM-GLV-ABP-M14
Y.EMP.8EED.1024
25
500W HALOGEN BULB SENSE EMFA.2211
Y.EMP.8EED.1025
26
500W HALOGEN BAR BULB GLOBAL.J118 (OSRAM BRAND)
Y.EMP.8EED.1026

20
ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
I ELECTRIC CIRCUIT SCHEMA
