Empire Comfort Systems TRADITIONAL DXT30IN NAT Quick start guide

Page 1
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
DIRECT VENT GAS
FIREPLACE INSERT
TRADITIONAL
DXT(30,35)IN91(N,P)-1
UL FILE NO. MH 30033
GAS-FIRED
EMPIRE
EMPIRE
Comfort Systems
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by state or local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not

kit is used.
WARNING
If not installed, operated and maintained in accordance
with the manufacturer’s instructions, this product
could expose you to substances in fuel or from fuel
combustion which can cause death or serious illness.
Fireplace Insert
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING: If the information in these instructions
        
result causing property damage, personal injury or
loss of life.
 
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
  
         
use any phone in your building.
        
neighbor’s phone. Follow the gas supplier’s
instructions.
  

— Installation and service must be performed by a
-
plier.

31210-1-0713Page 2

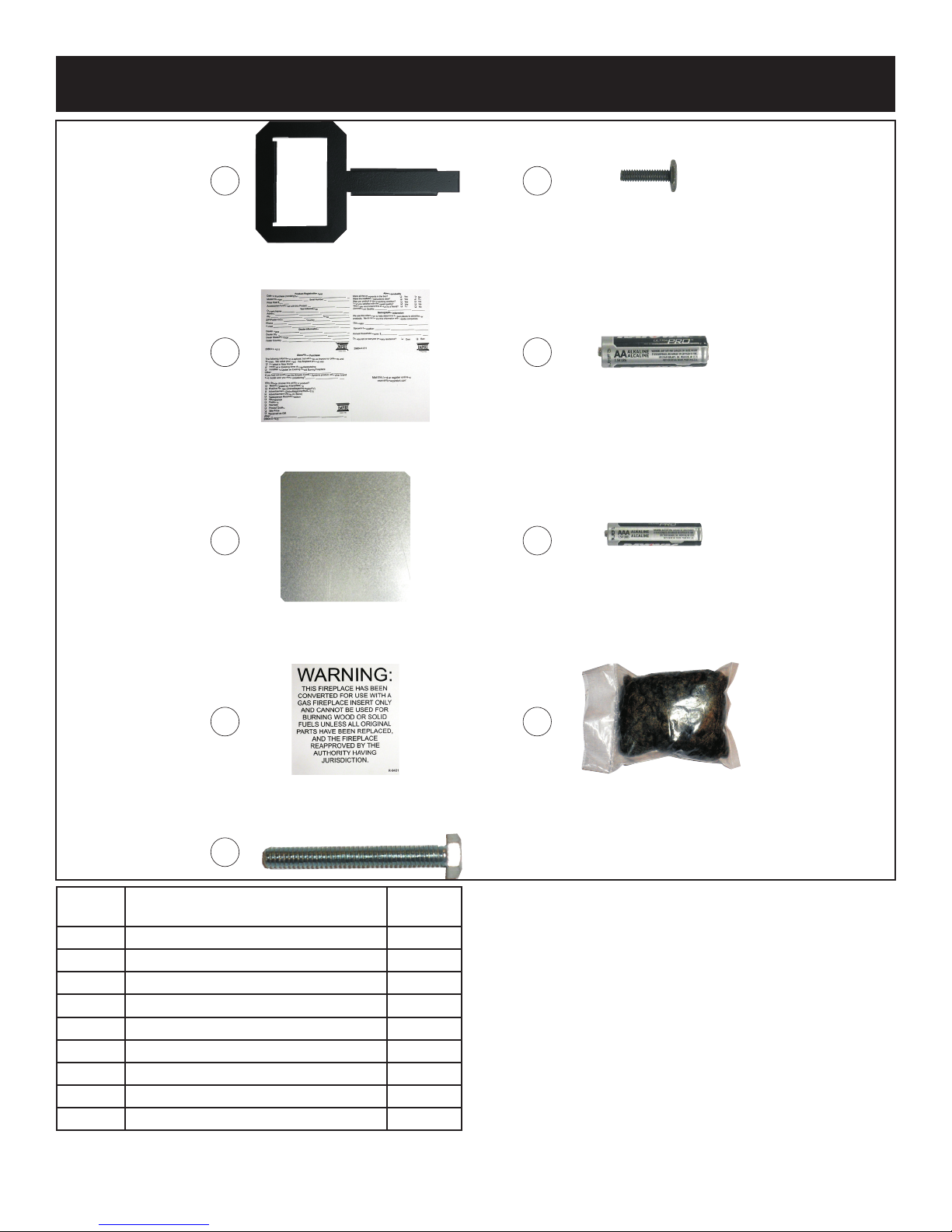

CARTON CONTENTS
Index
Number
Description Quantity
Supplied
1Latch Tool 1
2 Product Registration Card 1
3 Label Plate 1
4 Warning Label 1
5 1/4-20 Bolt 1
6 Leveling Leg 4
7 AA Battery 2
8 AAA Battery 4
9 Rock Wool 1
See pages 42 to 43 for ordering repair parts.
1
2
3
4
6
7
8
9
5

31210-1-0713 Page 3
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION ......................................................................................... 4
SAFETY INFORMATION FOR USERS OF LP-GAS..................................................................... 5
INTRODUCTION ........................................................................................................................... 6
SPECIFICATIONS & ACCESSORIES........................................................................................... 7
FIREPLACE INSERT DIMENSIONS ..........................................................................................8-9
MANTEL AND TRIM CLEARANCES............................................................................................. 9
GAS SUPPLY .............................................................................................................................. 10
VENTING AND INSTALLATION ............................................................................................. 11-13
VERTICAL TERMINATION .......................................................................................................... 14
GLASS ASSEMBLY REMOVAL................................................................................................... 15
GLASS ASSEMBLY PLACEMENT .............................................................................................. 16
FIBER LINER PLACEMENT........................................................................................................ 17
REFLECTIVE LINER PLACEMENT .......................................................................................18-19
LOG IDENTIFICATION................................................................................................................ 20
LOG PLACEMENT .................................................................................................................21-28
SAFETY SCREEN BARRIER, SURROUND AND DECORATIVE FRONT INSTALLATION ....... 29
LIGHTING INSTRUCTIONS........................................................................................................ 30
IPI SYSTEM WIRING DIAGRAM ................................................................................................ 31
REMOTE CONTROL OPERATION INSTRUCTIONS ............................................................32-37
INSERT MAINTENANCE AND SERVICE ................................................................................... 38
BLOWER REMOVAL/REPLACEMENT..................................................................................39-40
DECORATIVE FRONTS.............................................................................................................. 41
PARTS LIST................................................................................................................................. 42
EXPLODED VIEW ....................................................................................................................... 43
MASTER PARTS DISTRIBUTOR LIST ....................................................................................... 44
HOW TO ORDER REPAIR PARTS ............................................................................................. 44
WARRANTY ................................................................................................................................ 45
APPLIANCE SERVICE HISTORY ..........................................................................................46-47
SECTION PAGE

31210-1-0713Page 4
DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED
DANGER: Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE:Addresses practices not related to personal injury.
 
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
 
they are in the same room as the appliance.
 
placed on or near the appliance.
 
proper operation should be maintained.
       
(wood, coal, paper or cardboard etc.) be used in
this appliance.
        

vapor and liquids.
 

 
be obstructed in any way.
         
     

 

draperies.
 
the appliance must be replaced prior to operating

service person.
 
 
 Installation and repair should be done by a
QUALIFIED SERVICE PERSON. The appliance
should be inspected before use and at least annually
by a qualified service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding materials, etc. It is imperative
that control compartments, burners and circulating
air passageways of the appliance be kept clean.
    

      
installation codes and the requirements of the gas
supplier.
  keep the appliance area clear and free from

vapors and liquids.
  examine venting system periodically and replace
damaged parts.
 make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
CAUTION
    
glass. If the glass is cracked or damaged in any way,
it should be replaced only with a complete glass frame
assembly from Empire. See parts list on Pages 42 and
43 for ordering.
 
      
technician to inspect the heater and to replace any
part of the control system and any gas control which
has been under water.
 
an appliance must be replaced prior to operating
the appliance.
IMPORTANT SAFETY INFORMATION

31210-1-0713 Page 5
SAFETY INFORMATION FOR USERS OF LP-GAS

and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an ac-
cident. Read them carefully now, then review them point by
point with the members of your household. Someday when
there may not be a minute to lose, everyone’s safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas
because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
• Donotoperateelectricswitches,lightmatches,useyourphone.
Do not do anything that could ignite the gas.
• Geteveryoneoutofthebuilding,vehicle,trailer,orarea.Do
that IMMEDIATELY.
• Closeallgastankorcylindersupplyvalves.
• LP-Gasisheavierthanairandmaysettleinlowareassuch
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
reghtersdeclarethemtobesafe.
• Useyourneighbor’sphoneandcallatrainedLP-Gasservice
personand the re department.  Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, lettheservicemanandreghterscheckforescaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell

you can smell the odorant in propane. Smoking can decrease
your ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor or
their minds are on something else. Thinking about smelling a gas
odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movementofthegasthroughsoilcanltertheodorant.Odorantsin
LP-Gas also are subject to oxidation. This fading can occur if there
is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That will
take some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it to
ndoutwhatthepropaneodorsmellslike.Ifyoususpectthat
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• Ifyouarenotqualied,donotlightpilotlights,performservice,
or make adjustments to appliances on the LP-Gas system. If
youarequalied,consciouslythinkabouttheodorofLP-Gas
prior to and while lighting pilot lights or performing service or
making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the odor
if there has been a leak of LP-Gas.
• Odorfade,duetooxidationbyrustoradsorptiononwallsof
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
reinstalledoldtanks,iftheyarelledandallowedtosettoo
longbeforerelling.Cylindersandtankswhichhavebeenout
of service for a time may develop internal rust which will cause
odor fade. If such conditions are suspected to exist, a periodic
sniff test of the gas is advisable. If you have any question
about the gas odor, call your LP-gas dealer. Aperiodic
sniff test of the LP-gas is a good safety measure under
any condition.
• If,atanytime,youdonotsmelltheLP-Gasodorantandyou
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• Ifyouexperienceacomplete“gasout,”(thecontainerisunder
no vapor pressure), turn the tank valve off immediately. If the
container valve is left on, the container may draw in some air
throughopeningssuchaspilotlightorices.Ifthisoccurs,some
new internal rusting could occur. If the valve is left open, then
treat the container as a new tank. Always be sure your con-
tainer is under vapor pressure by turning it off at the container
beforeitgoescompletelyemptyorhavingitrelledbeforeitis
completely empty.

31210-1-0713Page 6
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailproductregistration
cardsuppliedwiththereplace.
3. Installer should show owner how to start and operate the insert.
Thisdirectventgasreplaceheaterisdesignedtooperatewith
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
WARNING
This unit is not for use with solid fuels

This replace is design certied in accordance with American
National Standard/CSA Standard ANSI Z.21-88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation, to ensure
compliance with local codes-including permits and inspections.
Thereplaceinsert,wheninstalled,mustbeelectricallygroundedin
accordance with local codes or, in absence of local codes, with the
National Electric Code ANSI/NFPA 70 or Canadian Electric code,
CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.

Installationandreplacementofgaspiping,gasutilizationequipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualiedagency.Theterm“qualiedagency”
meansanyindividual,rm,corporationorcompanywhicheitherin
person or through a representative is engaged in and is responsible for
(a) the installation or replacement of gas piping or (b) the connection,
installation,repairorservicingofequipment,whoisexperiencedin
suchwork,familiarwithallprecautionsrequiredandhascomplied
withalltherequirementsoftheauthorityhavingjurisdiction.
State of Massachusetts: The installation must be made by
alicensedplumberorgastterintheCommonwealthof
Massachusetts.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1 in
Canada. *Available from the American National Standards Institute,
Inc. 11 West 42nd St., New York, N.Y. 10036.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS.
        
        
carbon monoxide poisoning
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
When installing this unit at an elevation above 2000 feet (in the
United States) it may be necessary to decrease the input rating by
changingtheexistingburner orice toasmallersize.Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for proper
oricesizeidentication.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in Canada),
check with local authorities.
Consult your local gas utility for assistance in determining the proper
oriceforlocation.
Preparation
Thisdirectventgasreplaceinsertanditscomponentsaretested
and safe when installed in accordance with this Installation Manual.
Reporttoyourdealeranypartsdamagedinshipment,specically
check glass condition. Do not install unit with damaged, incomplete,
or substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximumbenetandsafety.Failuretofollowthemwillvoidyour
warrantyandmaypresentarehazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged replace insert or vent system
component.
• Modicationofthereplaceinsertordirectventsystem.
• InstallationotherthanasinstructedbyEmpireComfortSystems,
Inc.
• Improperpositioningofthelogsorglassdoorassembly.
• Installationand/oruseofanycomponentpartnotmanufactured
or approved by manufacturer.
INTRODUCTION

31210-1-0713 Page 7
SPECIFICATIONS & ACCESSOREIS
 Description Contents

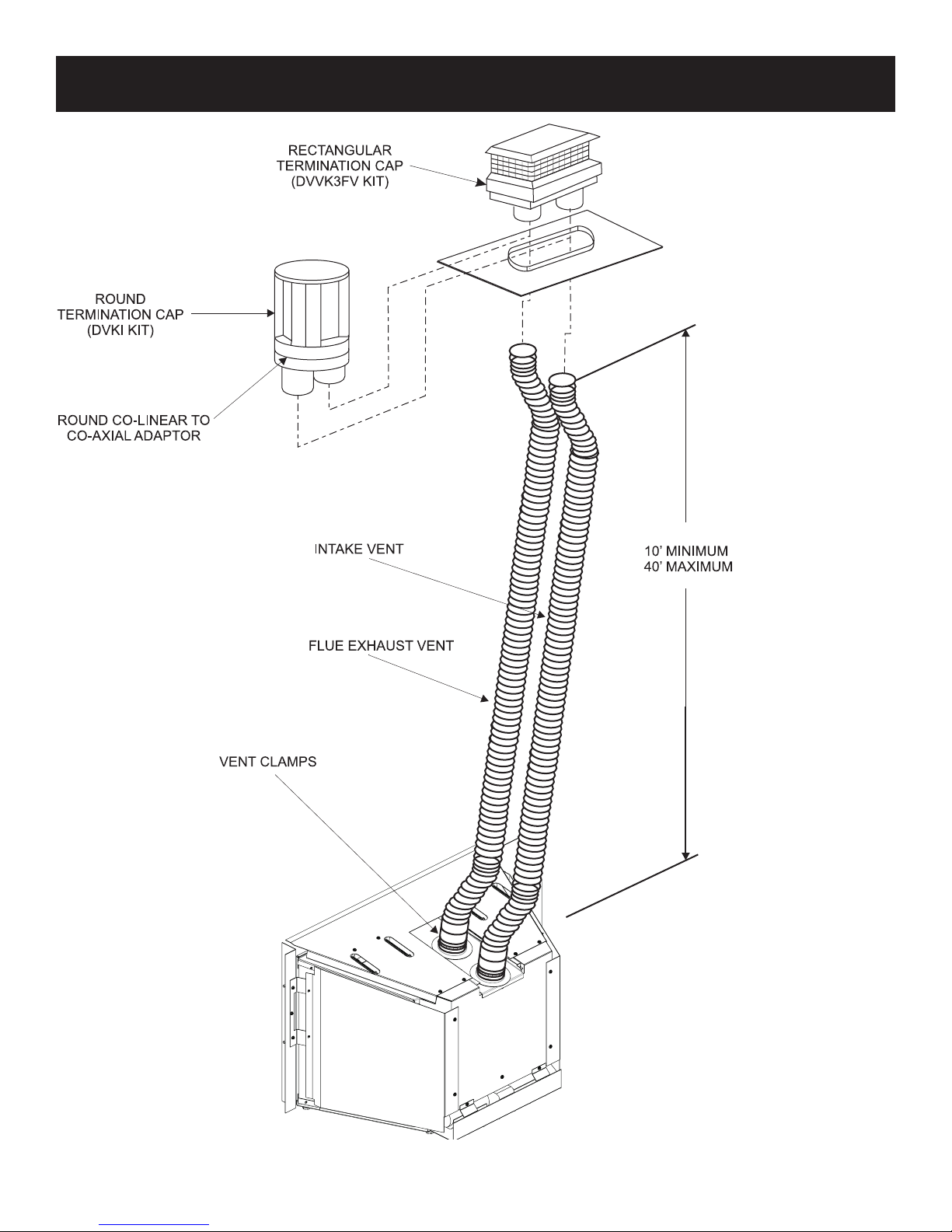

DVKI2P VerticalVentKit171/2’
Onepieceof35’FlexVent(splitfor171/2’ventrun),RoundCap,Flashing,connectors,
and clamps.
Recommendedwheninstallingtoanexistingroundreplacechimneypipe.
DVVK3FV VerticalVentKit25’ Twopiecesof25’FlexVent,RectangleCap,Flashing,connectors,andclamps
Recommendedwheninstallingtoasquareorrectangularclayue.
DVK35 Vent Extension Kit 35’exventextensionsectionwith2connectorsand4clamps
NOTICE: Wheninstallingventcaps,speciallocallymadeashingsmayberequiredtoproperlysealtheventsystemtotheexisting
chimney termination.
DXT30IN LP NAT
Input Btu/hr (Maximum) 30,000 30,000
Input Btu/hr (Minimum) 24,000 21,000
KWH (Maximum) 8.79 8.79
KWH (Minimum) 7.03 6.15
Orice 1.65mm #36
Air Shutter Opening FULL OPEN 1/4” OPEN
DXT35IN LP NAT
Input Btu/hr (Maximum) 35,000 35,000
Input Btu/hr (Minimum) 28,000 24,000
KWH (Maximum) 10.26 10.26
KWH (Minimum) 8.35 7.03
Orice #50 #33
Air Shutter Opening FULL OPEN 1/8” OPEN
DECORATIVE FRONTS
Model Description Used On
DF30ABL “Accord” - Black DXT30IN
DF30AHP “Accord” - Hammered Pewter DXT30IN
DF30ASS “Accord” - Stainless Steel DXT30IN
DF30DHPBL “Dunes” - Hammered Pewter and
Black DXT30IN
DF30DSSBL “Dunes” - Stainless Steel and Black DXT30IN
DF30VBL “Veranda” - Black DXT30IN
DF30VHP “Veranda” - Hammered Pewter DXT30IN
DF30VSS “Veranda” - Stainless Steel DXT30IN
DF30YBL “Lafayette” - Black DXT30IN
DF30YHP “Lafayette” - Hammered Pewter DXT30IN
DF30YSS “Lafayette” - Stainless Steel DXT30IN
DF35ABL “Accord” - Black DXT35IN
DF35AHP “Accord” - Hammered Pewter DXT35IN
DF35ASS “Accord” - Stainless Steel DXT35IN
DF35DHPBL “Dunes” - Hammered Pewter and
Black DXT35IN
DF35DSSBL “Dunes” - Stainless Steel and Black DXT35IN
DF35VBL “Veranda” - Black DXT35IN
DF35VHP “Veranda” - Hammered Pewter DXT35IN
DF35VSS “Veranda” - Stainless Steel DXT35IN
DF35YBL “Lafayette” - Black DXT35IN
DF35YHP “Lafayette” - Hammered Pewter DXT35IN
DF35YSS “Lafayette” - Stainless Steel DXT35IN
FIREPLACE SCREENS
Model Description Used On
DVFS30SBL Matte Black DXT30
DVFS35SBL Matte Black DXT35
REFLECTIVE LINERS
Model Description Used On
DVP30KR Black, 30-Inch DXT30
DVP35KR Black, 35-Inch DXT35
SURROUNDS
Model Description Used On
DS3066BL 3-Sided, 1 Piece, Matte Black DXT30
DS3566BL 3-Sided, 1 Piece, Matte Black DXT35
CERAMIC FIBER LINERS
Model Description Used On
DVP30XAE Aged Banded Brick DXT30
DVP30XNE Natural Banded Brick DXT30
DVP30XN New England Stack DXT30
DVP30XS Mountain Stack DXT30
DVP30XWA Aged Weave Brick DXT30
DVP30XWT Traditional Weave Brick DXT30
DVP35XAE Aged Banded Brick, 35-Inch DXT35
DVP35XNE Natural Banded Brick, 35-Inch DXT35
DVP35XN New England Stack, 35-Inch DXT35
DVP35XS Mountain Stack, 35-Inch DXT35
DVP35XWA Aged Weave Brick DXT35
DVP35XWT Traditional Weave Brick DXT35

31210-1-0713Page 8

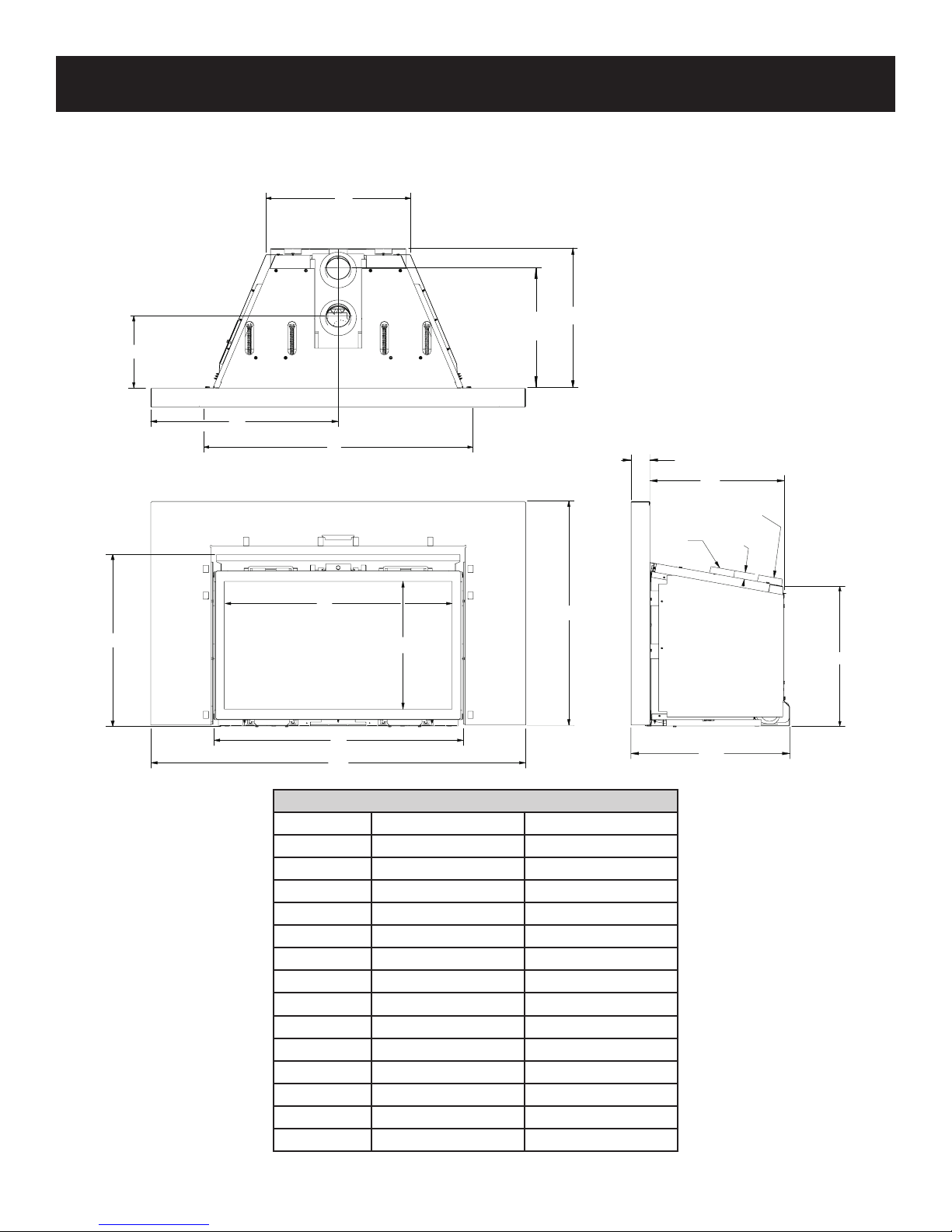

FIREPLACE INSERT DIMENSIONS
Figure 1
Whenplanningareplaceinsertinstallation,it’snecessaryto
determine:
• Theventsystemcongurationtobeused.
• Gassupplypiping.
• Electricalsupplyrequirements.
• Properopeningsizeofreplacerequiredforinstallationof
thereplaceinsert.
INSERT DIMENSIONS (in inches)
DIMENSION DXT30IN DXT35IN
A 20-1/8 24-1/16
B 29-3/8 33-3/8
C 18-5/8 21-3/4
D 15 19
E 26-3/4 30-3/4
F 16-3/8 18-15/16
G 17 20-5/8
H 16-3/8 19-3/4
I 29-3/8 33-3/8
J 13-7/8 17-1/16
K 8-1/4 11-7/16
L 22 24
M 26-3/8 30-5/16
N 44 48
A
B
N
E
D
M
C
H
2 7/32"
F
FLUE
VENT
INTAKE
VENT
1 5/8"
L
I
F
G
K
J

31210-1-0713 Page 9
A
D
C
B
FIREPLACE INSERT DIMENSIONS
MANTEL AND TRIM CLEARANCES
Figure 3
Combustible Material
No greeting cards, stockings or ornamentation of any type should
beplacedonorattachedtothereplace.Theowofheatcan
ignite combustibles.
COMBUSTIBLE
MANTEL/TRIM AREA
F
12”
TOP OF INSERT
E
A
¾
D
C
B
G
H
I
J
CEILING
76
Distance from Face of
Fireplace
(dimensions in inches)
Height Above Top of Insert
(dimensions in inches)
A10 F14
B8G17-1/2
C6H21-1/2
D3I24-1/4
E1/2 J27
The minimum distance to the room ceiling from the Top of the
Insert is 76-1/2.
Figure 4

MINIMUM FIREPLACE OPENING DIMENSIONS
(dimensions in inches)
MODEL
NO. HEIGHT A*
FRONT
WIDTH
B
DEPTH
C
REAR
WIDTH
D
DXT30IN 19-1/2 29-1/2 16-1/2 17-1/8
DXT35IN 23-9/16 33-1/2 19-5/8 20-3/4
Figure 2

31210-1-0713Page 10

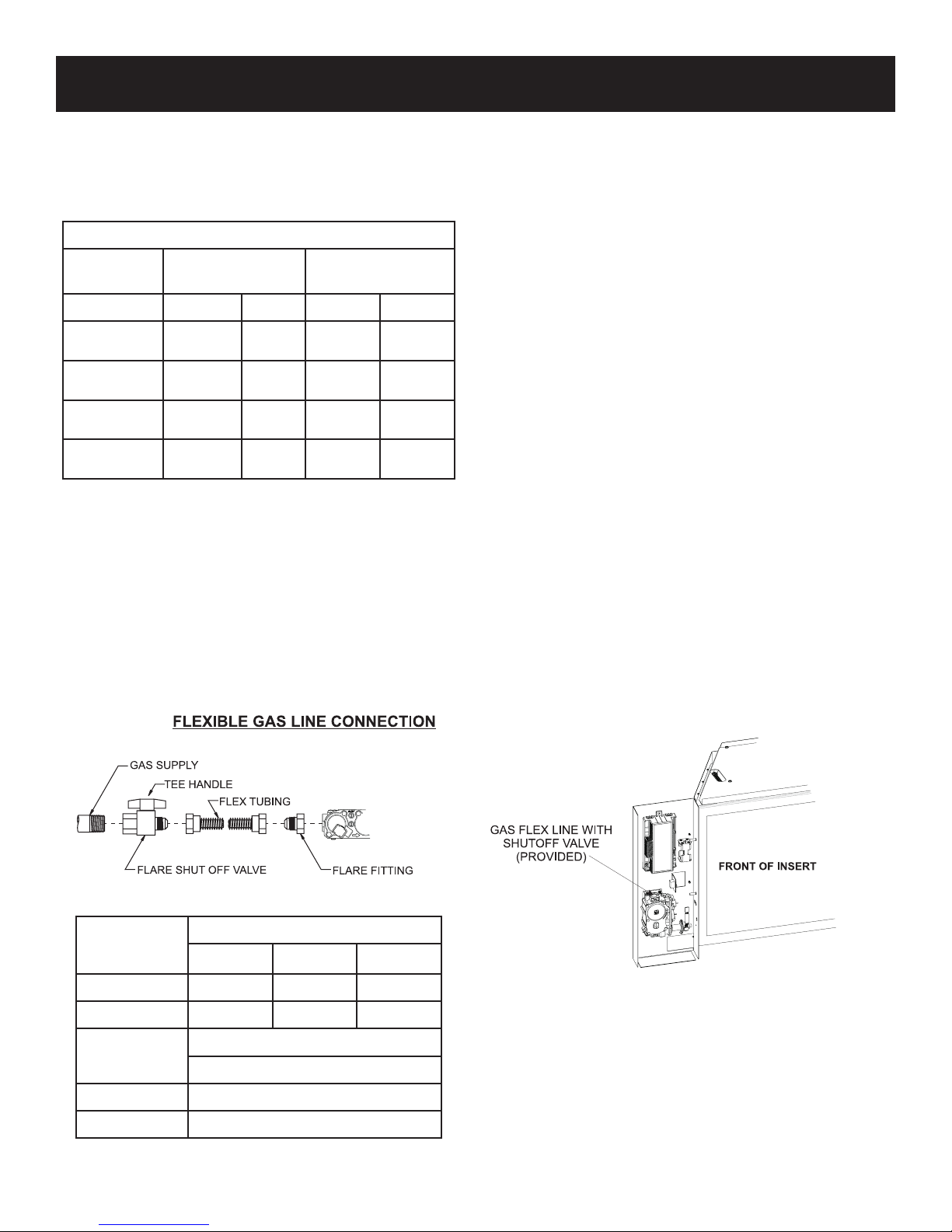

GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
the appliance. The insert has a Flexline with shutoff valve located on
the right side when facing the unit. See Figures 5 and 6. Consult
the current National Fuel Gas Code, ANSI Z223.1 CAN/CGA-B149
(.1 or .2) installation code.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10ft
0-3m
1/2"
12.7mm
3/8"
9.5mm
1/2"
12.7mm
3/8"
9.5mm
11-40ft
4-12m
1/2"
12.7mm
1/2"
12.7mm
5/8"
15.9mm
1/2"
12.7mm
41-100ft
13-30m
1/2"
12.7mm
1/2"
12.7mm
3/4"
19mm
1/2"
12.7mm
101-150ft
31-46m
3/4"
19mm
1/2"
12.7mm
7/8"
22.2mm
3/4"
1.9 mm
NOTICE:Neveruseplasticpipe.Checktoconrmwhetheryour
local codes allow copper tubing or galvanized.
NOTICE:Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANS Z21.45Assembled FlexibleAppliance Connectors of Other
Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
Figure 5
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5 7.0 14.0
LP (Propane) 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5
LP (Propane) 10.0
Installing the Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the unit.
Wherenoneexists,orwhereitssizeorlocationisnotadequate,
contact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.

be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with

Whenusingcopperorexconnectoruseonlyapprovedttings.
Theapplianceandit’sindividualshutoffvalvemustbedisconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testingofthegassupplypipingsystemattestpressuresequalto
or less than 1/2 psig (3.5kPa).
Attention! If one of the procedures results in pressures in excess of
1/2psig(14”w.c.)(3.5kPa)onthereplacegasvalve,itwillresult
in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5” w.c. (.871kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5” w.c.
(1.120kPa) for the purpose of input adjustment to a maximum of
14.0” w.c. (3.484kPa). Propane gas models will have a manifold
pressure approximately 10.0” w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8” w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0” w.c. (3.484kPa).
Figure 6

31210-1-0713 Page 11
VENTING AND INSTALLATION
1. Before beginning, remove glass door and log package from
unit. Also check to make sure there is no hidden damage
to the unit. Take a minute and plan out the gas, venting
andelectricalroute.Itisbesttostartwiththegaslinerst,
followedbythechimneylinerandelectricalsupplyrequire-
ments.
2. Minimumreplaceopeningrequirementsareshownin
Figure 2ofthisinstallationmanual.Therebrick(refrac-
tory), glass doors, screen rails, screen mesh and log grates
can be removed from a factorybuiltreplace in order to gain
minimumgasinsertopeningrequirementspriortoinstalling
thegasreplaceinsert.
3. Thisinsertrequiresnohearthextensions.Combustible
materialontheoormaybeinstalleduptotheinsert.Donot
obstructthelowerlouveroftheinsert.Theoriginalreplace
cannot be returned to solid fuel in this condition.
4. Themetaloorofthesolidfuelreboxmayberemoved
to facilitate the installation of the insert. CLEARANCE TO
COMBUSTIBLE MATERIAL UNDER THE INSERT IS 1/4
INCH. YOU MUST USE THE LEVELING LEGS TO RAISE
THE INSERT A MINIMUM OF 1/4 INCH IF THE INSERT
IS TO SIT ON COMBUSTIBLE MATERIAL. The side walls
andtopstructureofthereboxmaynotbealteredwiththe
exceptionofremovablebafesanddampers.Smokeshields,
shelvesandbafesmayberemovedifattachedwithme-
chanicalfasteners.Theoriginalreplacecannotbereturned
to solid fuel in this condition.
5. Theoriginalspeciedclearancesofafactory-builtreplace
must be maintained, with the exception of the hearth. Clear-
ancesonamasonryreplacemustbemaintainedat12
inches from the opening for combustible projections over
1-1/2 inch. Clearances for combustible projections under
1-1/2 inch must be maintained at 6 inches from the opening
per NFPA211. Plan the surround size accordingly. A surround
must be used with the insert. UNDER NO CIRCUMSTANCE
CAN COMBUSTIBLE MATERIAL BE PLACED BEHIND THE
SURROUND!
6. The insert surround is tested and approved with this gas in-
sert and may cover existing air circulation vents or grilles on
thesolidfuelreplaceitisinstalledinto.Ifthesurrounddoes
not cover the entire ventilation grille surface, the exposed
grille area should be left open.
NOTICE: Surround panel kits have been tested and approved to
cover existing air circulation vents or grilles.
NOTICE:Cuttingofsheetmetalpartsofareplaceinorderto
installthereplaceinsertisprohibited.
WARNING
Only the surround as supplied may be used to cover

components such as surrounds, sheet metal plates, etc.
may be used to seal off vents.
7. Toassuretopperformance,safetyandefciency,inserts
mustbeinstalledwithanapproveduelinerasperCAN/
CGA B-149 or National Fuel Code ANSI Z223 and these
instructions.
NOTICE: The following statement is also provided on a separate
labelplateintheinstructionpacket.Priortoinstallationofthere-
place insert, the installer must mechanically secure this warning
platetotheinsideofthereplaceforfuturereferenceasrequired.
WARNING

gas only and cannot be used for burning wood or solid
fuels unless all original parts have been replaced and the

jurisdiction.
8. Thesolidfuelreplaces’uedampermustbefullylocked
in the open position or removed for installation of the gas
replaceinsert.
9. Thereplaceandreplacechimneymustbecleanedand
in good working order and constructed of noncombustible
materials.
10. Makesurethatallchimneycleanoutstproperlysoaircan-
not leak into the chimney.
11. Install the insert without the surround panels attached and
make all gas, venting, and electrical connections.
12. To complete the installation, install surround panel assembly.
Please refer to instructions included with the surround panel
kit.
CAUTION
Ensure there are no obstructions to side air passages of
decorative trim once installed on insert.
INSTALLING THE VENT SYSTEM
Vent System Installation Precautions
Before starting installation of vent kits, the installer should read
these instructions and the Vent Kit Instructions to ensure that a
proper vent installation is completed. Consult your local Building
Codes before beginning the Installation.
WARNING
THIS GAS INSERT AND VENT ASSEMBLY MUST BE
VENTED DIRECTLY TO THE OUTSIDE AND MUST NEVER
BE ATTACHED TO A CHIMNEY SERVING A SEPARATE
SOLID FUEL BURNING APPLIANCE. EACH GAS APPLI-
ANCE MUST USE A SEPARATE VENT SYSTEM. COMMON
VENT SYSTEMS ARE PROHIBITED.

31210-1-0713Page 12
Vent System Approvals
Figure 9 shows the vent termination caps and systems approved
for use with these models. Approved vent system terminations are
labeledforidentication.3-inchdiameterlistedexiblealuminum
or stainless steel gas vent is used for both the incoming combustion
air and exhaust vent pipes. NO OTHER VENTING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation instructions
are included with each vent termination kit and should be used in
conjunction with this manual. See page 7 for approved venting
kits.

The vent system on this model CANNOT be terminated horizontally.
Vertical Venting
The inlet and exhaust vent pipes MUST be connected to the proper
collars on the unit AND to the termination cap or the unit will not
operate. See Figure 7.
WARNING
MAJOR U.S. BUILDING CODES SPECIFY MINIMUM
CHIMNEY AND/OR VENT HEIGHT ABOVE THE ROOF
TOP. THESE MINIMUM HEIGHTS ARE NECESSARY IN
THE INTEREST OF SAFETY. SEE FIGURES 9 TO 11 FOR
MINIMUM HEIGHTS, PROVIDED THE TERMINATION CAP IS
AT LEAST 2-FEET FROM A VERTICAL WALL AND 2-FEET
BELOW A HORIZONTAL OVERHANG.
NOTICE: This also pertains to vertical vent systems installed on
the outside of the building.
WARNING
THE EXHAUST PIPE MUST ONLY BE CONNECTED TO THE
EXHAUST STARTING COLLAR OF THE UNIT AND TO THE
EXHAUST COLLAR OF THE TERMINATION CAP.
THE INLET AIR PIPE MUST ONLY BE CONNECTED TO THE
INLET AIR STARTING COLLAR OF THE UNIT AND TO THE
INLET AIR COLLAR OF THE TERMINATION CAP. BOTH THE
INLET VENT AND THE FLUE VENT MUST BE CONNECTED
FROM THE INSERT TO THE VENT TERMINATION CAP.
NOTICE: The minimum vertical vent rise is 10 feet and the
maximum vertical vent rise is 35 feet. These dimensions are
measured from the starting collars of the unit to the end of the last
section of vent pipe. See Figure 9.
NOTICE: The damper of the masonry chimney may need to be
removedtoallowinstallationoftheexible-ventpipe.
When installing into a zero clearance, factory built wood-burning
replace,theuseoftheDVKIRoundVerticalTerminationKitshould
allow you to mount the vent adaptor and cap to the exposed round
chimney pipe easily.

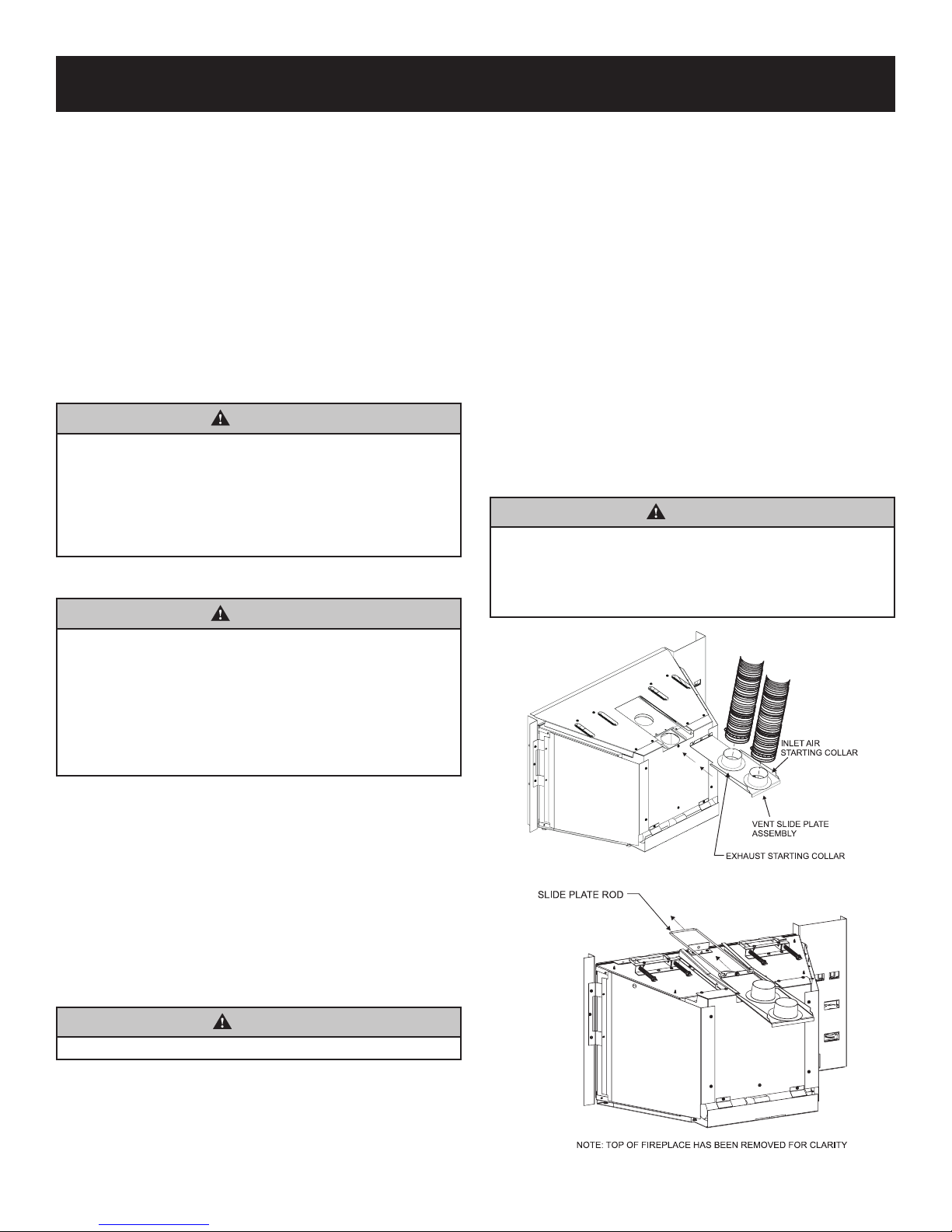

Connecting the Vent Pipe
CAUTION
Sharp edges. Always use gloves when installing.
Installthe3-inchexibleventpipesdownthroughthechimney.
Attach the pipe-to-cap adaptor to the termination cap and the top of
theexibleventpipe,theninstallthecaptothetopofthechimney.
Remove the vent slide plate assembly from the top of the insert.
See Figure 8. Trim off excess venting then attach and secure
thebottomendsoftheexpipestothe starting collars with the
adjustable band clamps provided. Slide the gas insert into place,
andpositionanyexcessexventpipebackupintothechimney.
Begininstallationoftheinsertintothereplaceopening.Alignthe
vent slide plate assembly with the guides located on top of the
insert.Worktheinsertinchbyinchintothereplacecavityasyou
pull forward on the vent slide plate assembly. Do not use excessive
force on the vent slide plate. Once the vent slide plate is close
to seating, install the bolt (provided in the installation envelope)
throughthecenterholeoftheinserttopange,andintothevent
slide plate nut. Using a wrench, tighten the bolt until the vent slide
plate is seated forward completely.
Positioning, Leveling, and Securing Insert
1. Place the insert into position.
2. Level the insert from side to side and front to back.
3. If necessary, use the leveling bolts included in the instruction
pack. Screw the legs into the nuts installed in the bottom of
the insert. Turn legs in until insert is level.
NOTICE: If desired, it is acceptable to attach metal strapping
orbrackets(notprovided)fromthereplacecavitytotheinsert
outer jacket to secure the Fireplace Insert to the replace
hearth or opening.
CAUTION
TO AVOID DOWNDRAFTS AND/OR COLD AIR PROBLEMS,
IT IS RECOMMENDED TO SEAL OFF THE AREA BETWEEN
THE TERMINATION CAP AND THE TOP OF THE SOLID-
FUEL CHIMNEY OPENING INTO WHICH THE VENT CAP
HAS BEEN INSTALLED.
Figure 7
Figure 8
VENTING AND INSTALLATION

31210-1-0713 Page 13
VENTING AND INSTALLATION
Figure 9

31210-1-0713Page 14
Vertical Through the Roof Applications
The Gas Fireplace Insert has been approved for:
a) Vertical installations up to 40 feet in height (top of insert to cap).
b) Ensure that existing vent run has no more than two sets of 45
degree elbow offsets within the vertical installation. From 0 to a
maximum of 8 ft. of vent pipe can be used between elbows.
c) Ensure that the existing vent run is support as follows: Wall
straps must be used to support offset pipe every 4'.
Thisapplicationwillrequirethatyourstdeterminetheroofpitch
and use the appropriate venting components.
General Maintenance
Conduct an inspection of the venting system semi-annually.
Recommended areas to inspect are as follows:
1. Check areas of the venting system which are exposed to the
elements for corrosion. These will appear as rust spots or
streaks and, in extreme cases, holes. These components should
immediately be replaced.
2. Removethecapandshineaashlightdownthevent.Remove
any bird nests or other foreign material.
3. Check for evidence of excessive condensate, such as water
dropletsformingintheexventingandsubsequentlydripping
out at joints or seams. Condensate can cause corrosion of caps,
pipeandttings.Itmaybecausedbyhavingexcessivelateral
runs, or having exterior portions of the system exposed to cold
weather.
4. Inspectjointstoverifythatnopipesectionsorttingshavebeen
disturbedand,consequently,loosened.Also,checkmechanical
supports,suchaswallstrapsormetalplumbers’tapeforrigidity.
Determining Minimum Vent Height Above the Roof.
WARNING
Major U.S. building codes specify minimum chimney and/or
vent height above the roof top. These minimum heights are


ROOF PITCH H (Min.)
Flat to 6/12 12" (305 mm)
6/12 to 7/12 15" (381 mm)
Over 7/12 to 8/12 18" (457 mm)
Over 8/12 to 16/12 24" (610 mm)
Over 16/12 to 21/12 36" (914 mm)
Figure 10
NOTICE: For steep roof pitches, the vent height must be increased.
In high wind conditions, nearby trees, adjoining roof lines, steep
pitched roofs, and other similar factors can result in poor draft, or
down-drafting. In these cases, increasing the vent height may solve
this problem.
Figure 11
When terminating the vent cap near an exterior wall or overhang,
maintain minimum clearances as shown in Figure 11.
VERTICAL TERMINATION

31210-1-0713 Page 15
GLASS ASSEMBLY REMOVAL
1. RemovetheairdeectorasshowninFigure12.
Removetheairdeectorfromtheouterreboxbyremoving
the two #8 x 1/2” Phillips truss head screws. See Figure 12.
Figure 12
2. Secure the glass assembly in place with one hand.
3. InserttheLatchToolintothereboxatthetopandhookit
onto the right glass clip.
4. Using steady force, pull the latch out and up until it disen-
gages from the glass assembly.
5. Repeat steps 1 through 3 for the left glass clip.
CAUTION
Top glass clips are tightly sprung. If the Latch tool slips off of
the clip while pulling, injury may occur. Ensure that the latch
tool is completely hooked around the glass clips before trying
to disengage the glass clips from the glass assembly.
NOTICE: Latch tool must be stored near unit.
Figure 13
6. Angletheglasstowardsyoufromthetopandrmlypullout.
CAUTION
Bottomglassclipsdonotrequireuseofthelatchtooltodisen-
gage them from the glass assembly. However, they are tightly
sprung and some force is needed to disengage them from the
glass assembly.
Figure 14

31210-1-0713Page 16
1. Placethebottomoftheglassassemblyintothereboxand
angle the top in.
CAUTION
Ensure the bottom glass clips engage to the glass assembly.
Figure 15
2. Secure the glass assembly in place with one hand.
3. InserttheLatchToolintothereboxatthetopandhookit
onto the right glass clip.
4. Using steady force, pull the latch out and up until it engages
to the glass assembly.
5. Repeat steps 2 through 4 for the left glass clip.
CAUTION
Top glass clips are tightly sprung. If the Latch tool slips off of
the clip while pulling, injury may occur. Ensure that the latch
tool is completely hooked around the glass clips before trying
to engage the glass clips to the glass assembly.
Figure 16
GLASS ASSEMBLY PLACEMENT
1. SlidetheairdeectorintoplaceasshowninFigure17.
Securetheairdeectortotheouterreboxwiththetwo
#8 x 1/2” Phillips truss head screws (provided). See Figure
17.
Figure 17

31210-1-0713 Page 17
FIBER LINER PLACEMENT
See page 15 for Glass removal.
1. Place the rear liner into the insert.
Figure 18
2. Slidetherightlinerintotherebox.Securetherightlinerwith
a retainer bracket by screwing the bracket to the ceiling of
the Insert with one #10 x 1/2” screw.
Figure 19
3. Slidetheleftlinerintotherebox.Securetheleftlinerwitha
retainer bracket by screwing the bracket to the ceiling of the
Insert with one #10 x 1/2” screw.
Figure 20
To remove liners, reverse the steps in this section.
Replace the glass per page 16.

31210-1-0713Page 18

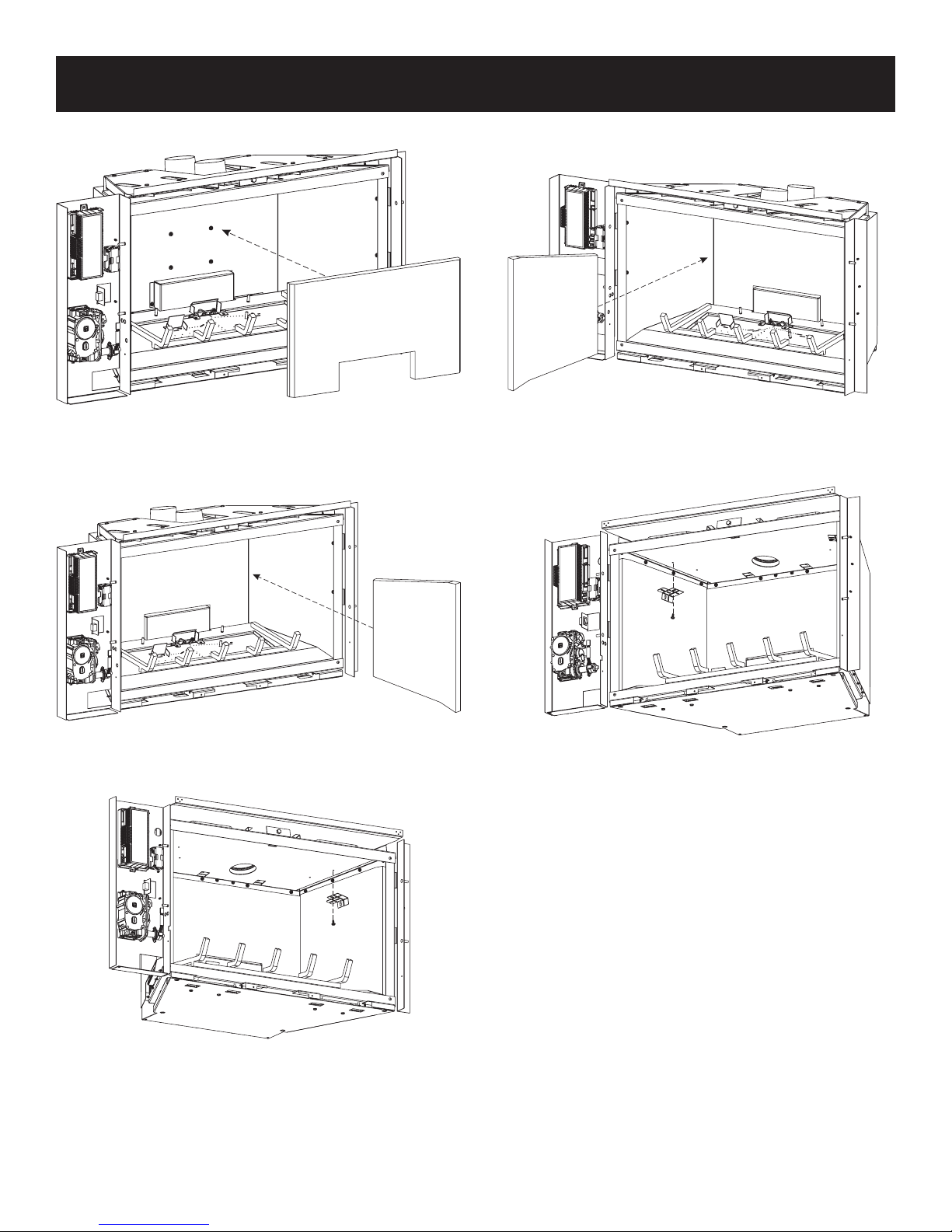

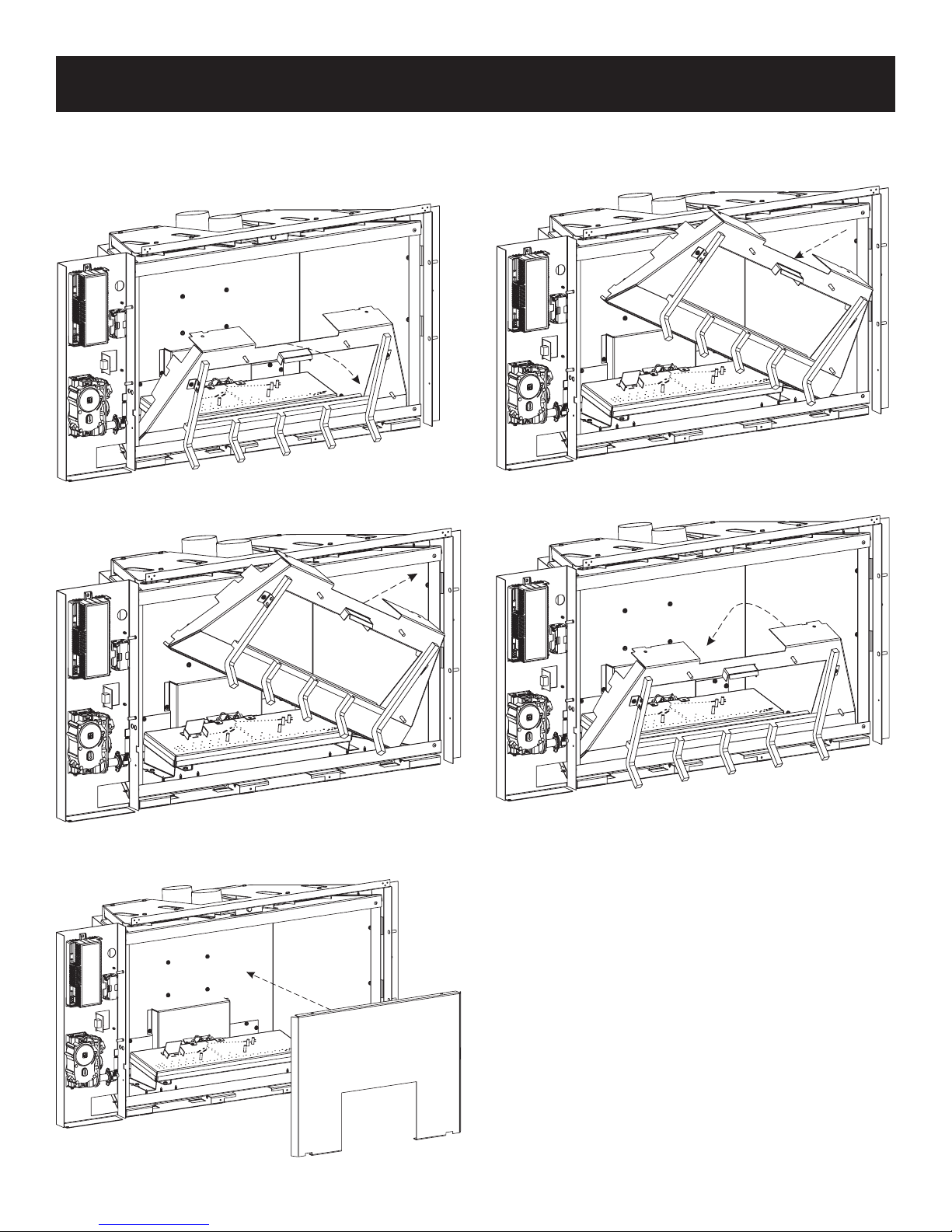

REFLECTIVE LINER PLACEMENT
See page 15 for Glass removal.
1. Tilt the burner cover out from the back past the front of the
unit. Tilt the burner cover to the side and lift out. See Figure
21.Settheburnercoveraside.Ifareectiveburnercoveris
to be used, discard the burner cover that has been removed.
Figure 21
Figure 22
2. Place rear liner in back of unit.
Figure 23
3. Place the burner cover into the Insert. Angle one corner into
thebottomrst,andthensettheothercornerdown.Gently
lowertheburnerdownovertheburnerandontotherebox
bottom.
Figure 24
Figure 25

31210-1-0713 Page 19
4. Slidetherightlinerintotherebox.Securetherightlinerwith
a retainer bracket by screwing the bracket to the ceiling of
the Insert with one #10 x 1/2” screw.
Figure 26
5. Slidetheleftlinerintotherebox.Securetheleftlinerwitha
retainer bracket by screwing the bracket to the ceiling of the
Insert with one #10 x 1/2” screw.
Figure 27
To remove liners, reverse the steps in this section.
Replace the glass per page 16.
REFLECTIVE LINER PLACEMENT

31210-1-0713Page 20
LOG IDENTIFICATION
LogIdenticationChart-TopView
Log ID Picture
(A)
Rear Log
DXT30 Part No. 31213
DXT35 Part No. 31220
(B)
Left Log
DXT30 Part No. 31212
DXT35 Part No. 31219
(C)
Right Log
DXT30 Part No. 31214
DXT35 Part No. 31221
(D)
Log Chunk
DXT30 Part No. 32008
DXT35 Part No. 32009
(E)
Front Left Log
DXT30 Part No. 31215
DXT35 Part No. 31222
(F)
Front Right Log
DXT30 Part No. 31217
DXT35 Part No. 31224
(G)
Center Log
DXT30 Part No. 31216
DXT35 Part No. 31223
Burner Pin Locations
Figure 28
