Empire Comfort Systems VFP36SB2EL-3 User manual

INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
Premium Vent-Free Universal
Fireboxes
DO NOT ATTEMPT TO MODIFY OR ALTER THE
CONSTRUCTION OF THE FIREBOX OR ITS COMPO-
NENTS. ANY MODIFICATION OR ALTERATION OF
CONSTRUCTION MAY VOID THE WARRANTY OF
THIS FIREBOX.
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURE
AND SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SU-
PERVISED WHEN THEY ARE IN THE SAME ROOM AS
THE FIREBOX.
FOR USE ONLY WITH A LISTED GAS-FIRED UN-
VENTED DECORATIVE ROOM HEATER NOT TO
EXCEED 40,000 BTU/H.
DO NOT BUILD A WOOD FIRE.
UNIVERSAL FIREBOX FOR ALL
VENT-FREE LOG SETS
SEE-THROUGH FIREBOX MODELS:
VFP36SB2EL-3
VFP36SB2EF-3
PENINSULA FIREBOX MODELS:
VFP36PB2EL-3
VFP36PB2EF-3
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property dam-
age. Refer to this manual. For assistance or additional infor-
mation, consult a qualied installer, service agency or the
gas supplier.
Carefully review the instructions supplied with the decora-
tive type unvented room heater for the minimum replace
size requirement.
DO NOT INSTALL A VENT-FREE LOG SET IN THIS
FIREBOX, UNLESS THIS FIREBOX MEETS THE
MINIMUM DIMENSIONS REQUIRED FOR THE
INSTALLATION.
GAS-FIRED
ANSI Z21.91 Ventless Fireplace Enclosures for use with any
ANSI Z21.11.2 Gas Fired Decorative Type Unvented Room
Heaters
— Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this or any other appli-
ance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a quali-
ed installer, service agency or the gas supplier.
WARNING: If the information in these instructions are
not followed exactly, a re or explosion may result caus-
ing property damage, personal injury or loss of life.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
EMPIRE
EMPIRE
Comfor t Systems
Page 1

27451-1-0810Page 2
SECTION PAGE
Important Safety Information ............................................................................................... 3
Introduction ........................................................................................................................... 3
Clearances ....................................................................................................................... 4 - 5
Firebox Installation Instructions....................................................................................... 6 - 8
Installing Hood................................................................................................................ 8 - 9
Gas Line Connection............................................................................................................. 9

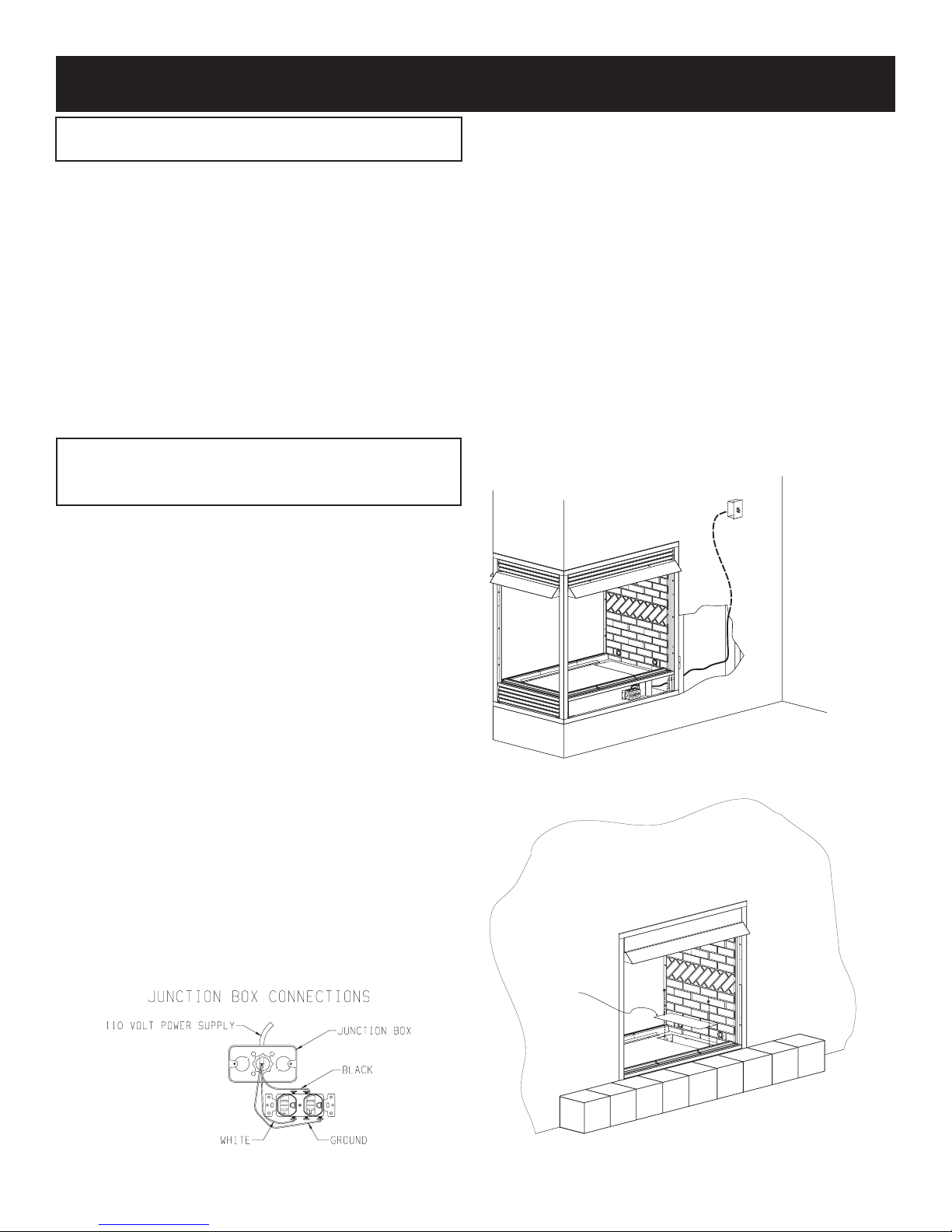

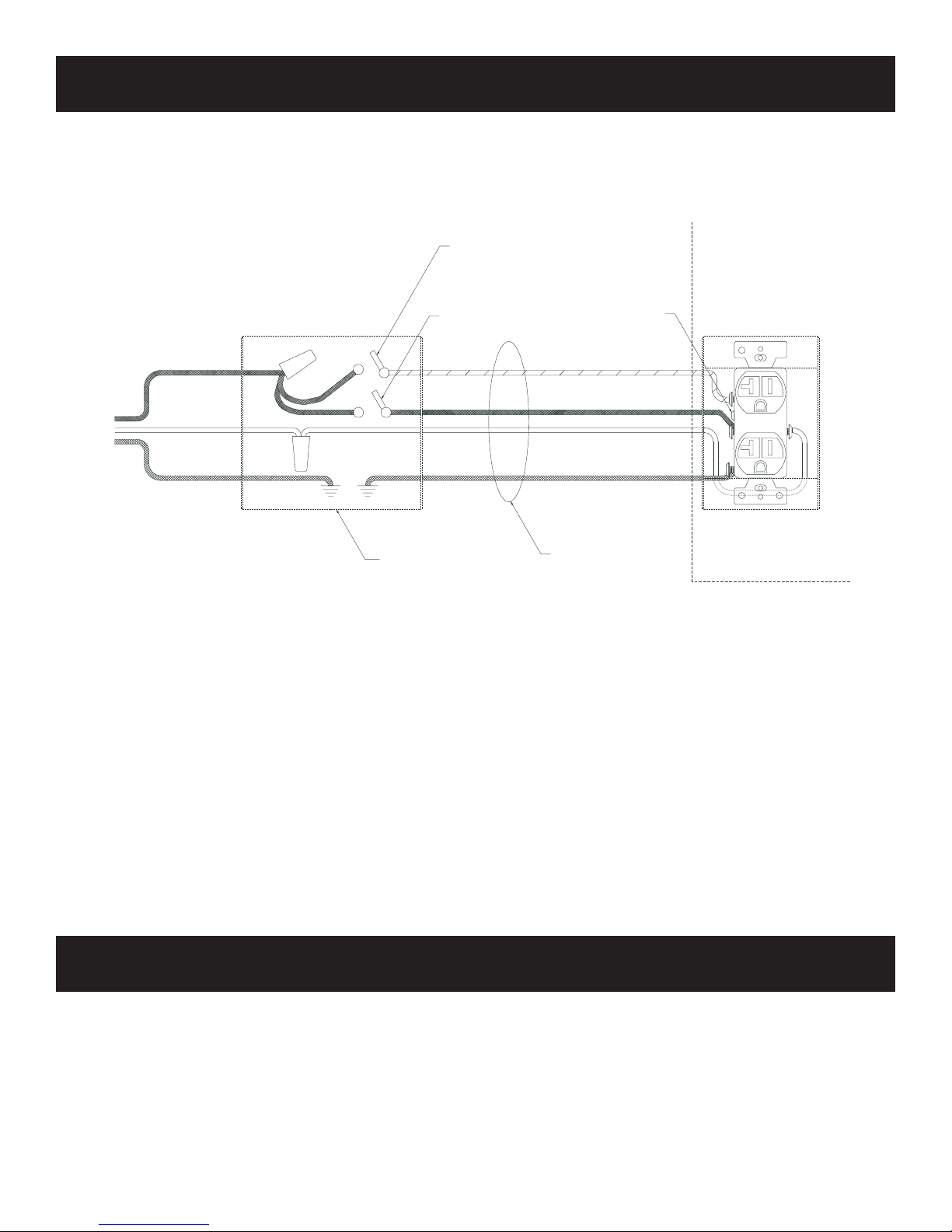

Wiring Instructions for Installing a Dual Switch / Receptacle............................................ 10
LK2 Accent Light Accessory .............................................................................................. 10
Optional Single Speed Blower Installation Instructions ............................................. 11 - 13
Maintenance ........................................................................................................................ 13
Parts List.............................................................................................................................. 14

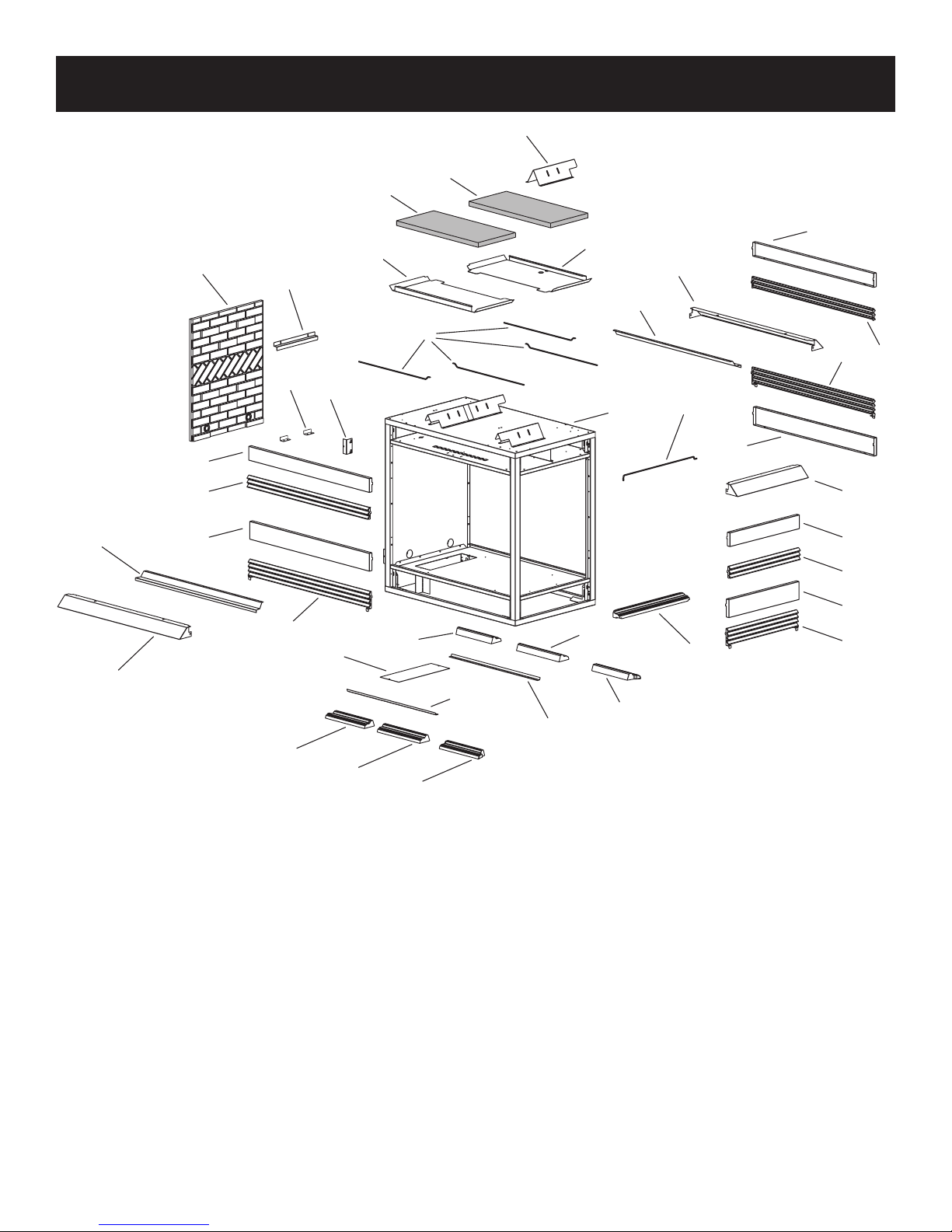

See-Through Firebox Parts View ........................................................................................ 15

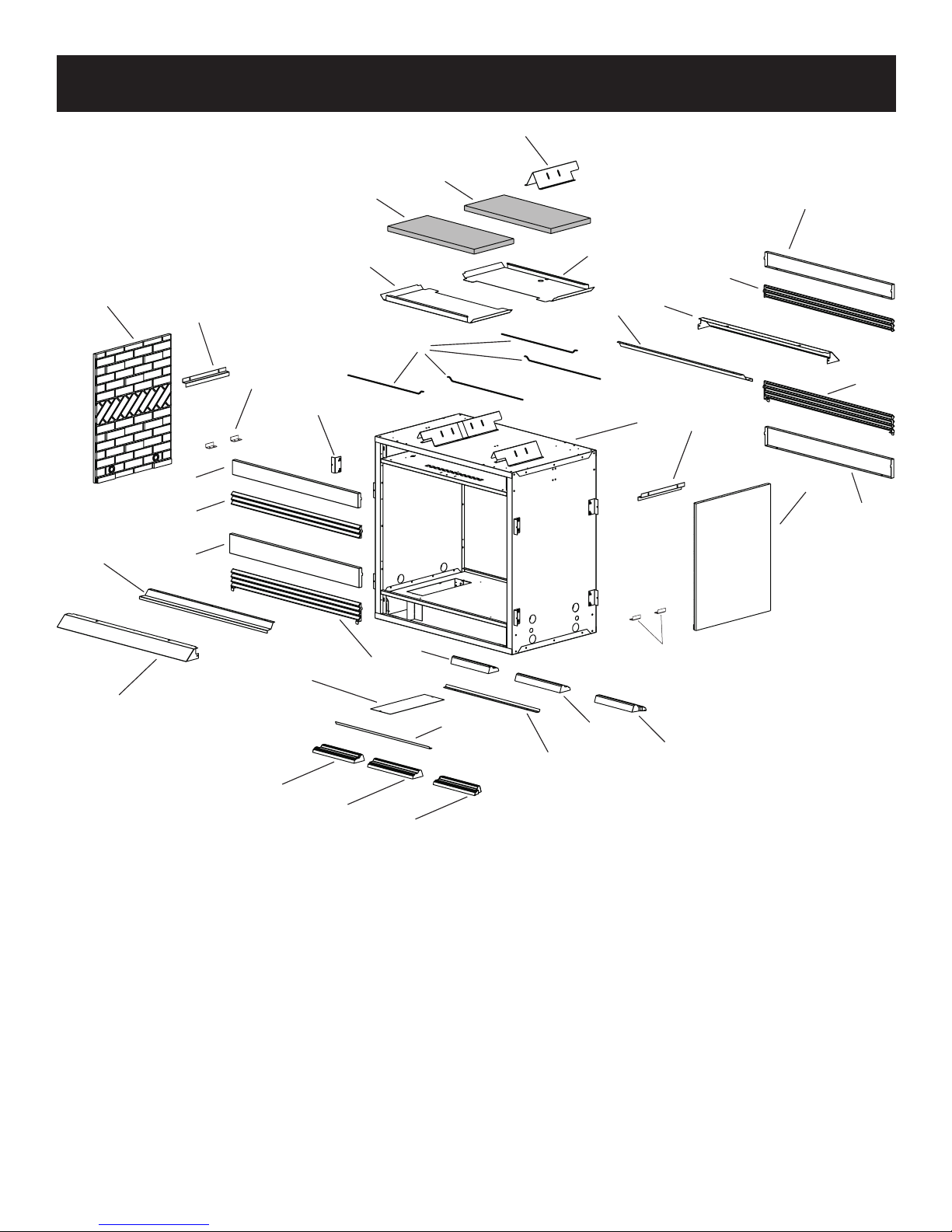

Peninsula Firebox Parts View.............................................................................................. 16

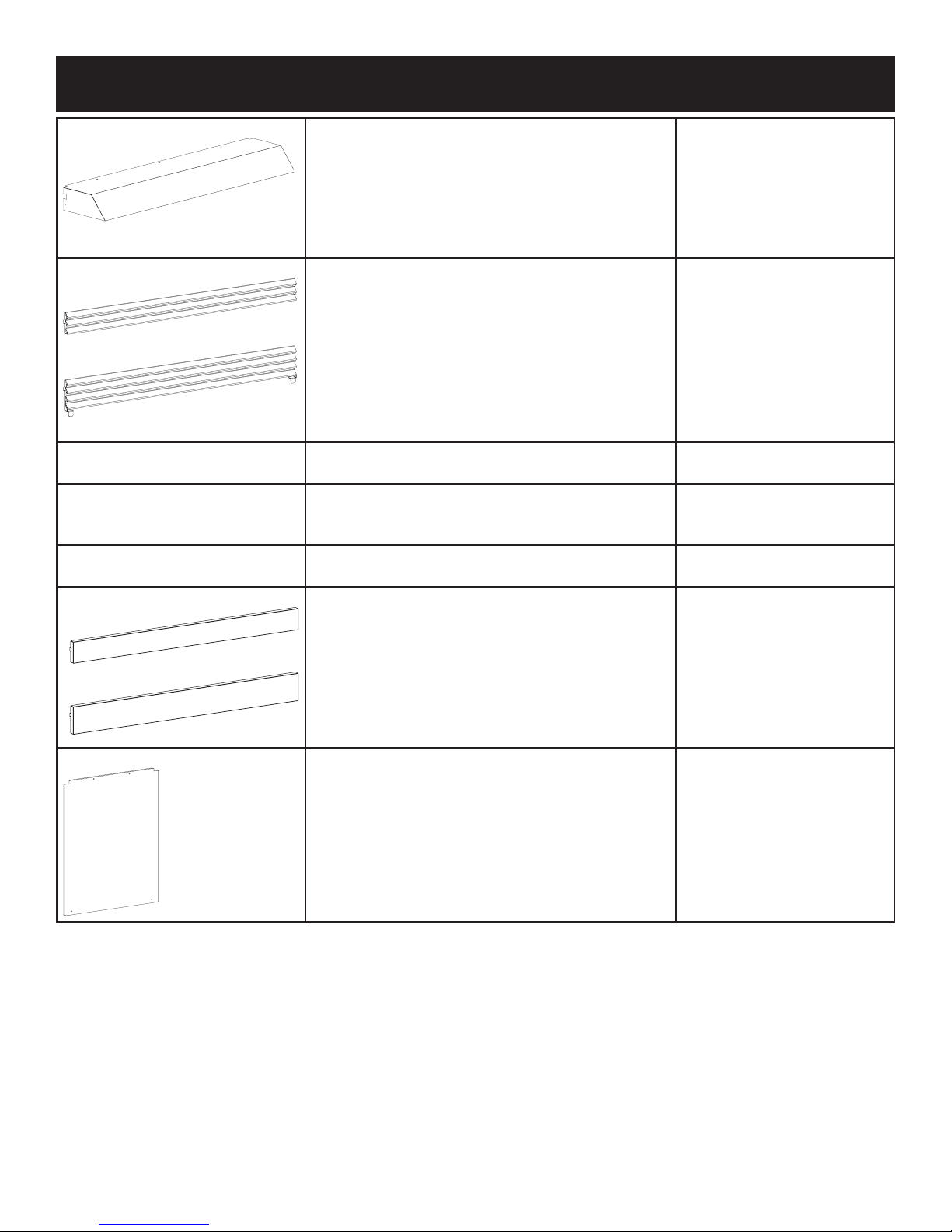

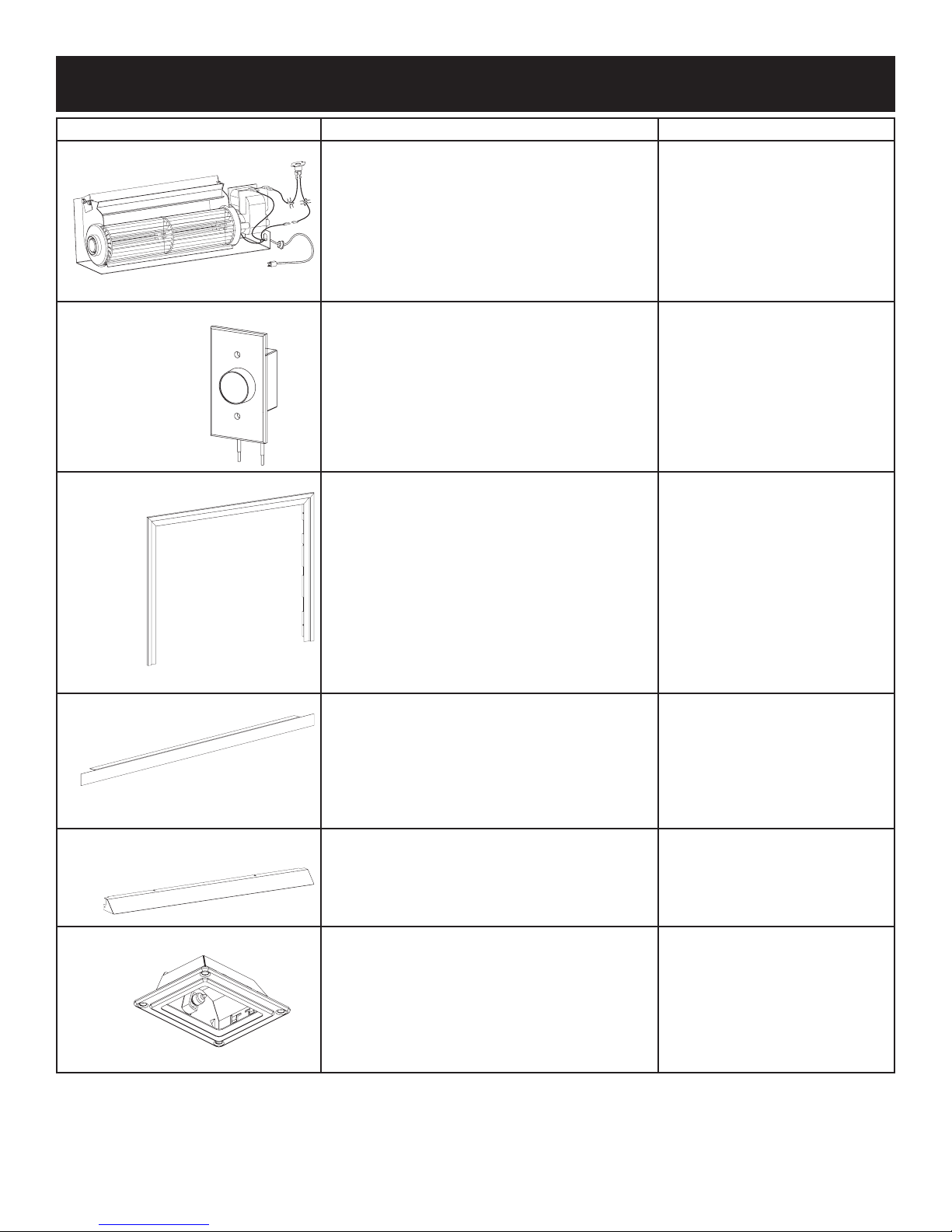

Accessories.................................................................................................................. 17 - 18
Master Parts Distributor List ................................................................................................19
How To Order Repair Parts ..................................................................................................19
TABLE OF CONTENTS

27451-1-0810 Page 3
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition) and to the National
electrical Code, ANSI/NFPA70 (latest edition).
NOTE: Installation and repair should be done by a quali-
ed service person. The appliance should be inspected
before use and at least annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It
is imperative that control compartment, burners and
circulating air passageways of the appliance be kept
clean.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the ap-
pliance. Provide adequate combustion and ventilation
air.
The ow of combustion and ventilation air MUST NOT
be obstructed.
Provide adequate clearance around air openings into
the combustion chamber and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance.
This Empire Comfort Systems Inc. firebox and its
components have been tested and will operate safely when
installed in accordance with this installation manual.
Read all instructions before starting installation, then
follow these instructions carefully during installation
to maximize rebox benet and safety. Report to your
dealer any parts damaged in shipment.
The Empire Comfort Systems Inc. warranty will be
voided by, and Empire Comfort Systems Inc. disclaims
any responsibility for the following actions:
- Installation of any damaged rebox.
- Modication of the rebox or any of the components
parts thereof.
- Installation other than as instructed by Empire
Comfort Systems Inc.
- Installation and/or use of any component part or
accessory not approved by Empire Comfort Systems
Inc. in combination or assembly with a Empire
Comfort Systems Inc. rebox, not withstanding any
independent testing laboratory or other third party
approval of such component part or accessory.
Any such action may create a possible re hazard.
Consult your local building codes.
Firebox Screen.
The rebox screen must be in place when the rebox is
operating.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner ll out and mail warranty card
suppliedwithrebox.
3. Installer should show owner how to start and operate log set
thatisinstalledintorebox.
Important
All correspondence should refer to complete Model Number,
Serial Number.
Notice:Duringinitialringofthisreboxwithalogsetinstalled,its
paint will bake out, and smoke will occur. To prevent triggering of
smoke alarms, ventilate the room in which the unit is installed.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shallbeperformedonlybyaqualiedagency.Theterm"qualied
agency" means any individual, rm, corporation or company
which either in person or through a representative is engaged in
and is responsible for (a) the installation or replacement of gas
piping or (b) the connection, installation, repair or servicing of
equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
State of Massachusetts: The installation must be made
by a licensed plumber or gas tter in the Commonwealth
of Massachusetts. The state of Massachusetts requires that
a exible appliance connector cannot exceed three feet in
length.
Sellersofunventedpropaneornaturalgas-redsupplemental
room heaters shall provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-redspaceheatersshallbeprohibitedinbedroomsand
bathrooms.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA 54.*
*Available from the American National Standards Institute, Inc., 11 West
42nd St., New York, N.Y. 10036.
IMPORTANT SAFETY INFORMATION
INTRODUCTION

27451-1-0810Page 4
Sidewall Clearances:Theclearancefromtheinsideofthereboxtoperpendicularcombustiblesidewallshouldnotbelessthan13/4".
See Figures 1a and 1b.
Combustible material clearance from front of rebox: 36" minimum
Firebox Side and Back Clearances:Thereboxoutercasingside(s)requireaminimum1/2"clearancetocombustibles.
Top Framing and Finishing:Combustibleframingmayrestontopofstandoffs.Combustiblenishingmaterialsmayextendtothetop
standoff screws on the front edge of the top outer wrap. See Figures 2a and 2b.
CLEARANCES
FIREBOX
STAND OFF
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2X4
HEADER
TOP OUTER
WRAP
FINISH WITH TRIM KIT
OR NON-COMBUSTIBLE
MATERIAL AS DESIRED.
Figure 1a - See Through Firebox Clearances
Figure 2a - Louvered Models
36”
MIN.
42”
MIN.
(CEILING TO
TOPOFHOOD)
1 3/4”MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
36”
MIN.
42”
MIN.
(CEILING TO
TOPOFHOOD)
1 3/4”MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
Figure 1b - Peninsula Firebox Clearances
Figure 2b - Flush Models
FIREBOX
STAND OFF
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2X4
HEADER
TOP OUTER
WRAP
FINISH WITH TRIM KIT
OR NON-COMBUSTIBLE
MATERIAL AS DESIRED.

27451-1-0810 Page 5
Figure 3a - Mantel Clearances with Standard Hood Figure 3b - Mantel Clearances with Optional Extended Hood
MANTEL
STANDARD
HOOD
17 ½”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOPOF HOOD)
4½”
MIN.
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
8”
6½”
5”
3½”
1½”
0”
6½”
9”
11”
13”
15”
MANTEL
13”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOPOF HOOD)
8”
MIN.
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
22”
8”
20”
6½”
18”
5”
16”
3½”
14 ½”
2½”
24 ½”
0”
FIREBOX
FACE
EXTENDED HOOD
(VB4H SERIES)
(NOT AVAILABLE ON
PENINSULA OPEN END)
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
CLEARANCES
Ceiling Clearances:Theceilingheightshouldnotbelessthan42"fromthetopofthehood.See Figures 3a and 3b.
Mantel Clearances: Ventfreereboxmodelsmustusethehoodsuppliedwiththerebox,oroneoftheoptionalhoodkitsavailablefor
each model. If a combustible mantel is installed, it must meet the clearance requirements detailed below.
Grate Clearance: Theminimumclearancebetweenthefrontlegsofthegrateandthefrontedgesofthereboxis11/2".

27451-1-0810Page 6
Any vent-free Gas Log Heater must be “For use with approved
ANSI Z21.11.2 unvented room heater.”
Follow and complete the installation instructions of the gas log set
andtherequirementsofthisrebox.
Checkallttingsforleaksbeforelightingthegaslogset.
In planning the installation for the rebox, it is necessary to
determine where the unit is to be installed and whether optional
accessories are desired. Gas supply piping should also be planned
at this time.
A gas shut off must be in this line.
Thereboxcanbemountedonanyofthesesurfaces:
1. Aathardcombustibleornon-combustiblesurface.
2. A raised platform of combustible or non-combustible
material.
3. Recessedintotheoorasillustratedby Figure 4.
4. Supportedunderall(4)cornersofthereboxsothatcontact
is made on all four perimeter edges on the bottom of the unit
(Example: Four (4) concrete masonry blocks).
If the firebox is installed directly on carpeting, tile or other
combustiblematerialotherthanwoodooring,itshouldbeinstalled
on a metal or wood panel extending the full width and depth of
the unit.
At this point, you should have decided what components to include
inyourinstallation,andwherethereboxistobelocated.Ifthis
has not been done, stop and consult your dealer for assistance with
this planning.
Planning Your Installation
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles,
plus other Decorative Frame, Hood, and Door accessory kits may
beinstalledafterthereboxissecuredtotheframing.
Refer to the instructions provided with each of the optional
accessory kits for proper installation and operation.
Firebox Framing
Firebox framing can be built before or after the rebox is set
in place. Framing should be constructed to accommodate wall
Figure 4
Figure 5
FIREBOX INSTALLATION INSTRUCTIONS
FLUSH FACE LOUVERED
COMBUSTIBLE MATERIALS ALLOWED
Premium Vent-Free Firebox Framing Dimensions (in
inches)
"A" "B" "C"*
Model Framing
Height
Framing
Width
Framing
Depth
VFP36SB 411/2" 40" 23"*
VFP36PB 411/2" 39"** 23"*
Attention: Addheightofbaseto"A"Dimensionwhenelevat-
ingreboxifinstallingonanelevatedbase.
Framing dimension A incudes a three inch clearance for
standoffs on rebox.
*Dimension"C"assumesuseof1/2"wallboardushtoboth
front faces.
**Peninsulamodelframingwidthassumesuseof1/2"wall
boardushtotheendface.
A
B
C
A
B
C
Framing - Peninsula
Framing - See-Through
coveringandreboxfacingmaterial.Thereboxframingshould
be constructed of 2 x 4 lumber or heavier. The framing headers
mayrestonthetopofthereboxstandoffs.RefertoFigure 5 for
reboxframingdimensions.
Note: On Peninsula models, a maximum weight of 250 lbs. is
recommended when construction materials are supported by the
top standoff spacers.

27451-1-0810 Page 7
Figure 6
Firebox Dimensions
FIREBOX INSTALLATION INSTRUCTIONS (continued)
LOUVERED PANELS FLUSH PANELS
VFP36SB VFP36PB VFP36SB VFP36PB
A381/8" 381/8" 381/8" 381/8"
B39" 39" 39" 39"
C24" 24" 24" 24"
D251/2" 251/2" 251/2" 251/2"
E36" 36" 36" 36"
F341/4" 351/4" 341/4" 351/4"
G291/8" 291/8" 291/8" 291/8"
H411/8" 411/8" 411/8" 411/8"
I11/4" 11/4" 11/4" 11/4"
J61/8" 61/8" 61/8" 61/8"
K71/2" 71/2" 71/2" 71/2"
L6" 6" 6" 6"
M275/8" 275/8" 275/8" 275/8"
N367/8" 367/8" 367/8" 367/8"
O21/8" 21/8" 21/8" 21/8"
SEE THRU
LOUVERED
OR
FLUSH
PENINSULA
LOUVERED
OR
FLUSH
H
B
C
A
N
E
M
J
D
F
G
H
B
A
N
E
M
J
D
I
2 9/16”
2 9/16”
L
K
L
F
I
2 9/16”
O
K
O

27451-1-0810Page 8
Locating Firebox
Placereboxinframedopening.Attachtheframingbracketsto
thereboxandsecurereboxtoframing.Differentholelocations
canbeusedfornishingmaterialswiththicknessesof3/8",1/2"
and3/4".Securethebracketswithscrewsprovidedusingtwo(2)
per framing bracket. See Figure 7.
Framingbracketsshouldtdirectlyagainstframingmaterial.Use
at least one (1) nail or screw per bracket to secure in place.
IMPORTANT!Checksquarenessofthereboxpriortosecuring
to framed opening. See Figure 8.
Figure 7
Black hoods are furnished with each rebox (or the optional
hood(s))andMUSTbeinstalledbeforethereboxisused.Failure
todosomaycreateapossiblerehazard.Forshippingpurposes,
the hoods are located behind the upper louver(s), or inside the
reboxonushfaceunits.Ifbrass,stainlesssteel,orhammered
pewter hoods are desired, they can be purchased as an option.
Attachment is the same as the standard black hood.
Louvered Models
1. Removeupperlouver,orushpanel.
2. Placethetophoodangeontopoftheinnerreboxtop,then
install three screws through the rebox top from below and
screwintothepilotholesinthehoodange(B).
3. Install one (1) screw at each end of the hood as shown (C).
4. Re-installlouver(s)orushpanel(s).
Caution: All hoods must be installed prior to operation of
appliance. See Figure 9. Figure 9
FIREBOX OPENING
CHECK TO SEE
THAT BOX IS SQUARE
PRIOR TO ATTACHING TO
FRAMING
Figure 8
FIREBOX INSTALLATION INSTRUCTIONS (continued)
INSTALLING HOOD
B
C
INNER FIREBOX TOP
Louvered Models
ATTACH (4)
FRAMING BRACKETS
TO SIDE(S) OF FIREBOX
PRIORTO INSTALLING
UNIT TO FRAMED OPENING

27451-1-0810 Page 9
Thereboxisdesignedtoacceptagaslineforanapprovedvent-
freegaslogset.Havethelineinstalledbyaqualiedserviceperson
in accordance with all building codes. Consult local building codes
to properly size the gas supply line leading to the connection of the
logsetburner.ThestateofMassachusettsrequiresthataexible
appliance connector cannot exceed three feet in length.
Gas access holes are provided through the side panel(s) of
the firebox. See Figure 10. Carefully remove the indented
knockout in the ceramic brick panel using a drill or utility knife.
See Figure 11.
Check gas type. Use only the gas type indicated on the gas log
set rating plate. If the gas listed on the plate is not your type of
gas supply, DO NOT INSTALL. Contact your dealer for proper
model.
AlwaysuseanexternalregulatorforallLPreboxestoreducethe
supplytankpressuretoamaximumof14"w.c.Thisisinaddition
totheregulatorttedtothelogset.
WA R N I N G : C O N N E C T I O N D I R E C T LY TO A N
UNREGULATED L.P. TANK CAN CAUSE EXPLOSION.
InstallonlyaANSIZ21.11.2vent-freelogsetintothisrebox.
Figure 10
Extended Hoods
Ifyournon-combustiblefacingmaterialisover1"inthicknessandwillbeusedtonishthisrebox,extendedhoodsareavailablethat
willextendout2"fartherintotheroom.Extendedhoodsarenotavailableforthepeninsulaopenends.Contactyourlocaldealerfor
details.
Finishing
Alljoints(top,bottomandsides),wherethewallordecorativefacingmaterialmeetsthereboxsurroundshouldbesealedwithanon-
combustible material.
Hearthextensionsarerequiredforthesereboxes.
Flush panels, louvers, and decorative louver panels are interchangeable, and may be mixed and matched as desired (i.e. Flush panel on
bottom with louvered panel at top, or vice versa).
Extended Hoods
VB4H36BL Standard Black (1 each)
VB4H36BR Polished Brass (1 each)
VB4H36SS Stainless Steel (1 each)
VB4H36HP Hammered Pewter (1 each)
Figure 11
INSTALLING HOOD (continued)
GAS LINE CONNECTION
GAS LINE
ACCESS
HOLES

27451-1-0810Page 10
WIRING INSTRUCTIONS FOR INSTALLING A DUAL SWITCH / RECEPTACLE
In order to install both the optional Blower and Accent Light ac-
cessories, it will be necessary to install the junction box so that
the Duplex Receptacle wiring is split. This will allow each side of
the receptacle to operate independently off separate wall switches.
See diagram below.
Note: To operate the FBB5 Blower accessory with a variable
speed control, the SCV1 Variable Speed Control Kit should be in-
stalled to control the power to one side of the duplex receptacle.
#1
ACCENT LIGHT
WALL SWITCH
#2
BLOWER
WALL
SWITCH
REMOVE TABON HOT SIDE
OF DUPLEX RECEPTACLE
TO SPLIT LUGS
PLUG
FOR
CONTROLS
PLUG
FOR
BLOWER
FIREPLACE
CONTROL
COMPARTMENT
DUAL SWITCH ELECTRICAL WIRING TO FIREPLACE RECEPTACLE
RED
BLACK
WHITE
3-WIRE, GROUNDED
CONDUCTOR
(BY OTHERS)
DOUBLE SWITCH BOX
(INSTALLER PROVIDED)
BLACK
WHITE
GROUND
TO 120V
CIRCUIT
BREAKER
LK2 ACCENT LIGHT ACCESSORY
1. To wire Junction Box Receptacle, remove the tab on the side
of the receptacle (hot side) to split receptacle. This will be
required to separate blower and Accent Light circuits.
2. Power for switched and live sides of Duplex Receptacle must
come from the same power source. (One circuit breaker on
main panel must switch all power off.)
3. Fromthewallboxtothereplacea3-wire conductorwith
ground is recommended, however (2) two-wire conductors
with grounds may be used in place of a 3-wire conductor with
a ground if the black wires from the Accent Light and blower
accessoriesareidentied.
4. Two wall switches may be used to activate the two receptacle
plugs independently.
Note: WiringtotheJunctionBoxshouldberunthroughthe7/8"
diameteraccessholelocatedononeofthesidesofthereplace
outer wall. A Romex type connector is provided and should be
used to protect and restrain the wiring where it passes through
thereplaceouterwall.TheJunctionBoxshouldbepositionedin
thelowercompartmentofthereplace/reboxsothatitdoesnot
interfere with moving parts of the blower assembly. The Junction
Box incorporates magnets on the bottom side to retain and reduce
the chance of movement or vibration during blower operation.
Note: If only the blower option is to be installed, wiring may be
performed as described and illustrated in the following Blower
Installation section.
An Accent Light Kit model LK2 is available for installation in
thetopoftherebox.Providingthejunctionboxhasbeenpre-
wiredwithseparatecircuitsasdescribedinthe"Wiringforadual
switch/receptacle"section,theAccentLightkitmaybeinstalled
atanytimeonlouveredmodels,oronushpanelmodelspriorto
theupperpanelsbeingcoveredwithnishingmaterials.
Follow the instructions provided with the LK2 Accent Light kit
forproperinstallationinthereplace/rebox.

27451-1-0810 Page 11
BLOWER AND JUNCTION
BOX ACCESS COVER
PLATE
Attention: Install blower assembly before connecting gas inlet
supply line.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, if an exter-
nal electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. For an ungrounded receptacle,
an adapter, which has two prongs and a wire for grounding, can
be purchased, plugged into the ungrounded receptacle and its wire
connected to the receptacle mounting screw. With this wire com-
pleting the ground, the appliance cord plug can be plugged into
the adapter and be electrically grounded.
Caution: Label all wires prior to disconnection when servic-
ing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
Note: Junction box is to be located in the lower compartment of
thereboxandmustbepre-wiredattimeofreboxinstal-
lation for use with blower assembly. A standard ON/OFF
wall switch or optional SCV1 Variable Speed Control Kit
should be installed to activate power to the Junction Box
and provide power for the operation of the FBB5 Blower
assembly. It is recommended that installation of the wir-
ingbeperformedbyaqualiedelectrician.See Figures 12
and 13.
1. Ifinstalled,turnOFFgassupplytorebox/gaslog.
2. Ifapplicable,turnOFFelectricsupplytorebox.
CAUTION: ALL WIRING SHOULD BE DONE BY
A QUALIFIED ELECTRICIAN AND SHALL BE IN
COMPLIANCE WITH ALL LOCAL, CITY AND STATE
BUILDING CODES. BEFORE MAKING THE ELECTRI-
CAL CONNECTION, MAKE SURE THAT MAIN POWER
SUPPLY IS DISCONNECTED. THE APPLIANCE, WHEN
INSTALLED, MUST BE ELECTRICALLY GROUNDED
IN ACCORDANCE WITH LOCAL CODES, WITH THE
NATIONAL ELECTRICAL CODE ANSI/NFPA 70 (LAT-
EST EDITION).
To install the blower kit, access the junction box, or install a light
kit,removetheaccesscoverplateand/orlowerlouversorush
panelsasillustratedbygures13and14.
A factory included junction box is located on the lower right
sideoftherebox.Wiringmustbefedthroughthe7/8"di-
ameterholeprovided on thelowerside of the rebox,and
secured to the outer wrap with the clamp provided. Leave
approximately 6” of wire in the junction box for connection.
Attach black wire to one side of the receptacle and white wire
to opposite side of receptacle. The ground wire should be at-
tached to the green (ground) screw. See Figure 12.
Install the receptacle into the junction box as illustrated.
Attach cover plate. Place Junction Box so that it is approxi-
mately8to12"awayfromtheouterwrapwall.Securewiring
atouterwrapofreplacewithwireclampprovided.
Attention: If installed, do not damage gas inlet supply line
whenblowerassemblyisinsertedintorebox.Insomecases,
removal of the gas inlet supply line may be necessary.
3. Determinewhichtypeofreboxyouhavepriortoinstalla-
tion. See Figures 13 and 14.
Figure 12
Figure 13
Figure 14
Flush Or Louvered
Models
Flush Face Models With
Raised Hearth Extensions
OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS

27451-1-0810Page 12
4. Insertblowerassemblyintointerior,bottomofrebox.Po-
sition blower assembly so that you align the notch on back
of blower assembly with the center screw on side/end panel,
thenpushtheblowerassembly againstreboxouter panel.
The blower wheel must be centered with the side/end wall of
therebox.Themagnetsonthebackandbottomofblower
assemblywillsufcientlyholdblowerassemblyinplace.See
Figure 16.
5. Once the blower assembly is in position, locate the plug but-
toninthetopcorneroftherebox.Removetheplugwitha
standard screwdriver and discard plug.
6. Next, nd the fan control switch and wire assembly. Feed
thewiresthroughtheholeatthetopoftherebox.Feedthe
wiresoverthereboxtopanddownbetweenthereboxside
and outer wrap then, secure the fan control switch with (2) #6
screws provided. See Figure 15.
7. The fan control wires will slide down between the rebox
and outer wrap near the blower assembly. See Figure 16.
8. One fan control wire will have a 1/4” female terminal that
must be attached to the open terminal on the blower motor.
See Figure 19, Connection A.
9. The other fan control wire has a 1/4” male terminal. Attach
this terminal to the open terminal on the blower power cord.
See Figure 19, Connection B
10. Route the wires away from moving parts of the blower as-
sembly and retain wires together near the blower motor using
the plastic purse clip provided.
11. To complete the installation, plug the power cord into the
junction box receptacle previously installed in the bottom of
therebox.See Figures 16 and 18.
12. Once all connections are made electrically, it is recommend-
ed that you test the blower fan control operation by turning
on power to the blower (Caution: 110 Volt). Then apply heat
tothefancontrolswitchinsidethereboxwithalighteror
match until blower is activated. Once blower is activated,
check for proper operation. Do not place hands near blower
assembly or other wiring while power is on.
13. Replacebloweraccessplateandlouversorushpanels.See
Figures 13 and 14.
14. This completes the installation of the optional FBB5 Blower
kit accessory.
Note: This blower is equipped with a heat activated fan control
switch. Blower will operate when the rebox warms up,
and will turn off automatically when the rebox cools
down. The time will vary for the activation of the fan con-
trolswitchdependingonseveralfactorsincludingrebox/
log set sizing, BTU input variables, and log set position-
ing. Generally, it may take from 5 to 20 minutes to activate
blower/fan control from a cold start.
Figure 15
Figure 17
FA N CONTROL
SWITCH LOCATION
USE SCVI VARIABLE SPEED
CONTROL OPTION, OR STANDARD
ON/OFF WALL SWITCH TO
OPERATE OPTIONAL BLOWER
Figure 16
JUNCTION
BOX
HEARTH
POWER CORD BLOWER ASSEMBLY
(CENTER AND INSTALL
AGAINST OUTER WRAP
AS SHOWN)
WIRES
FROM FAN
CONTROL
SWITCH
OUTER
WRAP

27451-1-0810 Page 13
Blower Motor
The blower motor does not have oiling holes. Do not attempt to
oil the blower motor.
Blower Wheels
The blower wheels will collect lint and could require periodic
cleaning. If the air output decreases or the noise level increases,
it indicates a dirty blower wheel. Remove fan and clean blower
wheels.
1 FBB5 BLOWER ASSEMBLY COMPLETE
2 R8199 FAN CONTROL SWITCH
1
2
A
B
110 VOLT AC
JUNCTION BOX
WHITE
FAN
SWITCH
BLACK
FAN/MOTOR
ASSEMBLY
Figure 18
Figure 19
Keep the control compartment, logs and burner area surrounding the
logs clean by vacuuming or brushing area at least twice a year.
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN
COOL.
Always turn off gas to the pilot before cleaning. For relighting,
refer to lighting instructions located on the log set.
Neverobstructtheowofthecombustionandventilationair.Keep
thefrontofthereboxclearofallobstaclesandmaterials.
Screens must be closed during operation.
MAINTENANCE

27451-1-0810Page 14
PARTS LIST
Use Only Manufacturer’s Replacement Parts. Use of Any Other Parts Could Cause Injury Or Death.
Index
Number
Part Number Description
VFP36SB2EL VFP36SB2EF VFP36PB2EL VFP36PB2EF
1 - - - - FIREBOX ASSEMBLY
2 17149 17149 17149 17149 TOP STANDOFF
3 R9655 R9655 R9655 R9655 INSULATION - TOP
4 24067 24067 24067 24067 INSULATION SUPPORT
5 R7052 R7052 R7052 R7052 SCREEN ROD
6 - - R9633 R9633 SCREEN ROD
7 R9631 R9631 R9631 R9631 BRICK PANEL - SIDE BULK
8 19945 19945 19945 19945 BRICK LINER BRACKET
9 20145 20145 20145 20145 HOOD
10 - - 24056 24056 PENINSULA HOOD
11 20073 20073 20073 20073 INNER AIR BAFFLE
12 18807 18807 18807 18807 LOUVER ASSEMBLY - UPPER
13 18808 18808 18808 18808 LOUVER ASSEMBLY - LOWER
14 - - 24059 24059 UPPER LOUVER ASSEMBLY
15 - - 24058 24058 LOWER LOUVER ASSEMBLY
16 19990 19990 19990 19990 BLOWER COVER PLATE
17 23004 23004 23004 23004 HEARTH RETAINER
18 R9293 R9293 R9293 R9293 HEARTH LEDGE - LEFT
19 R9295 R9295 R9295 R9295 HEARTH LEDGE - CENTER
20 R9292 R9292 R9292 R9292 HEARTH LEDGE - RIGHT
21 - - R9634 R9634 HEARTH LEDGE
22 10554 10554 10554 10554 NAILING FLANGE
23 - 24051 - 24051 FLUSH PANEL - UPPER - LONG
24 - 24052 - 24052 FLUSH PANEL - LOWER - LONG
25 - - - 24054 FLUSH PANEL - UPPER - SHORT
26 - - - 24053 FLUSH PANEL - LOWER - SHORT
27 19401 19401 19401 19401 BRICK LINER BRACKET - LOWER
See Page 15 for See-Through Models VFP36SB2E(L,F) Parts View for ordering parts.
See Page 16 for Peninsula Models VFP36PB2E(L,F) Parts View for ordering parts.

27451-1-0810 Page 15
SEE-THROUGH FIREBOX PARTS VIEW
1
2
3
4
5
8
78
9
11
12
13
16
17
18
19
20
22
7
24
23
27
23
12
13
9
11
24
20
19
18
27
17
3
4

27451-1-0810Page 16
PENINSULA FIREBOX PARTS VIEW
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20
21
22
25
26
23
24
27
12
23
24
13
9
11
3
4
20 19
18
17

27451-1-0810 Page 17
Accessory Description Model Numbers
Fan Kit
Designedtoprovideforcedairow.
Note:Forusewithlouveredorushpanelmodels.
FBB5
Variable Speed Control Kit
Wall mounted variable speed control for use with
FBB5 blower SCV-1
Frame Kits
Standard 3-Piece Frame Kits
Black, Brass, Stainless Steel, or Hammered Pewter
Extruded Aluminum Frame Kits
Black, Brass, Stainless Steel, or Hammered Pewter
For use with See-Through models:
VFP36SB2E(L,F) ONLY
Contact dealer for all available
optional frame kits
Bottom Trim Strip
Available as optional kits in Black, Brass, Ham-
meredPewter,andStainlessSteelnishes.
For VFP36SB2E(F,L) ONLY
Contact dealer for all available
optional trim accessories
Standard Hood Brass hood = BR
Stainless Steel = SS
Hammered Pewter = HP
Contact dealer for all available
optional hood accessories
Accent Light Kit
Optional light kit that installs in top of rebox to
enhance logset. Operates with a Rheostat control to
vary brightness of light for desired effect.
LK2
ACCESSORIES

27451-1-0810Page 18
Extended 4" Hoods Extendedhoodsthatextendout2"fartherthanthestan-
dard hoods, to accommodate thicker surround materials.
Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Note: Not available for Peninsula open ends.
Contact dealer for all available
optional hood accessories
Louvers
Styles include Slat, Mission, Arch, and Leaf Patterns.
Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Contact dealer for all available
optional louver accessories
Decorative Door Kits Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Contact dealer for all available
optional frame kit accessories
Decorative Frame Kits Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Contact dealer for all available
optional decorative door kit
accessories
Mantel Systems Availableinvariousstylesandnishes. Contact dealer for all available
mantel options.
Flush Panel Kits
Flush panel kits may be used to replace louvered panels
asdesiredfortheSee-ThroughandPeninsularebox
models.
Available in black only.
FPK22 (For Peninsula open end)
FPK36 (For See-Through and
Peninsula front openings)
Decorative Liner Kits
Decorative liner kits replace brick liner as optional kit.
Availableinstainlesssteelandreectiveblack
Contact dealer for all available
decorative liner kits.
ACCESSORIES (continued)

27451-1-0810 Page 19
To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.com. To provide
warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the
unit.
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below. This list
changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equipment repair parts
for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc.
Star-Fire Distributors
1355 Evans Avenue
Akron, OH 44305
Phone: [phone]
Toll Free: 800-875-6220
Fax: [phone]
Parts: Heater & Hearth and Grills
Dey Distributing
1401 Willow Lake Boulevard
Vadnais Heights, MN 55101
Phone: [phone]
Toll Free: 800-397-1339
Website: www.deydistributing.com
Parts: Heater & Hearth
East Coast Energy Products
10 East Route 36
West Long Branch, NJ 07764
Phone: [phone]
Toll Free: 800-755-8809
Fax: [phone]
Website: www.eastcoastenergy.com
Parts: Heater & Hearth and Grills
Victor Division of F. W. Webb Company
200 Locust Street
Hartford, CT 06114
Phone: [phone]
Toll Free: 800-243-9360
Fax: [phone]
Toll Free Fax: [phone]
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater & Hearth and Grills
MASTER PARTS DISTRIBUTOR LIST
Parts Not Under Warranty
Parts can be ordered through your Service Person, Dealer, or a Master Parts Distributor. See this page for the Master Parts Distribu-
tors list. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the
service person/dealer.
Warranty Parts
Warranty parts will need a proof of purchase and can be ordered by your Service Person or Dealer. Proof of purchase is required for
warranty parts.
AllpartslistedinthePartsListhaveaPartNumber.Whenorderingparts,rstobtaintheModelNumberandSerialNumberfromthe
name plate on your equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the
following illustration and part list. Be sure to give all this information . . .
Appliance Model Number Part Description
Appliance Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipmentscontingentuponstrikes,resandallcausesbeyondourcontrol.
HOW TO ORDER REPAIR PARTS

27451-1-0810Page 20
EMPIRE
EMPIRE
Comfor t Systems
Empire Comfort Systems Inc.
918 Freeburg Ave. Belleville, IL 62220
PH: 618-233-7420 or 800-851-3153
FAX: [phone] or 800-443-8648
[email protected]
www.empirecomfort.com
