ENDA ET1411 User manual

SN: XXXXXXXXX
1 2 3 4 5 6 78910 11 12
ET1411-NTC-230VAC
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
230V AC +10% -20%
50/60Hz 3VA
OUTPUT
250V AC 8A
RESISTIVE LOAD
NTC
SENSOR
SN: XXXXXXXXX
1 2 3 4 5 6 7 8 9 10 11 12
ET1411-NTC-12
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
OUTPUT
250V AC 8A
RESISTIVE LOAD
NTC
SENSOR
12V AC/DC 10%
50/60Hz 3VA
±
SN: XXXXXXXXX
1 2 3 4 5 6 7 8 9 10 11 12
ET1411-NTC-24
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
OUTPUT
250V AC 8A
RESISTIVE LOAD
NTC
SENSOR
24V AC/DC 10%
50/60Hz 3VA
±

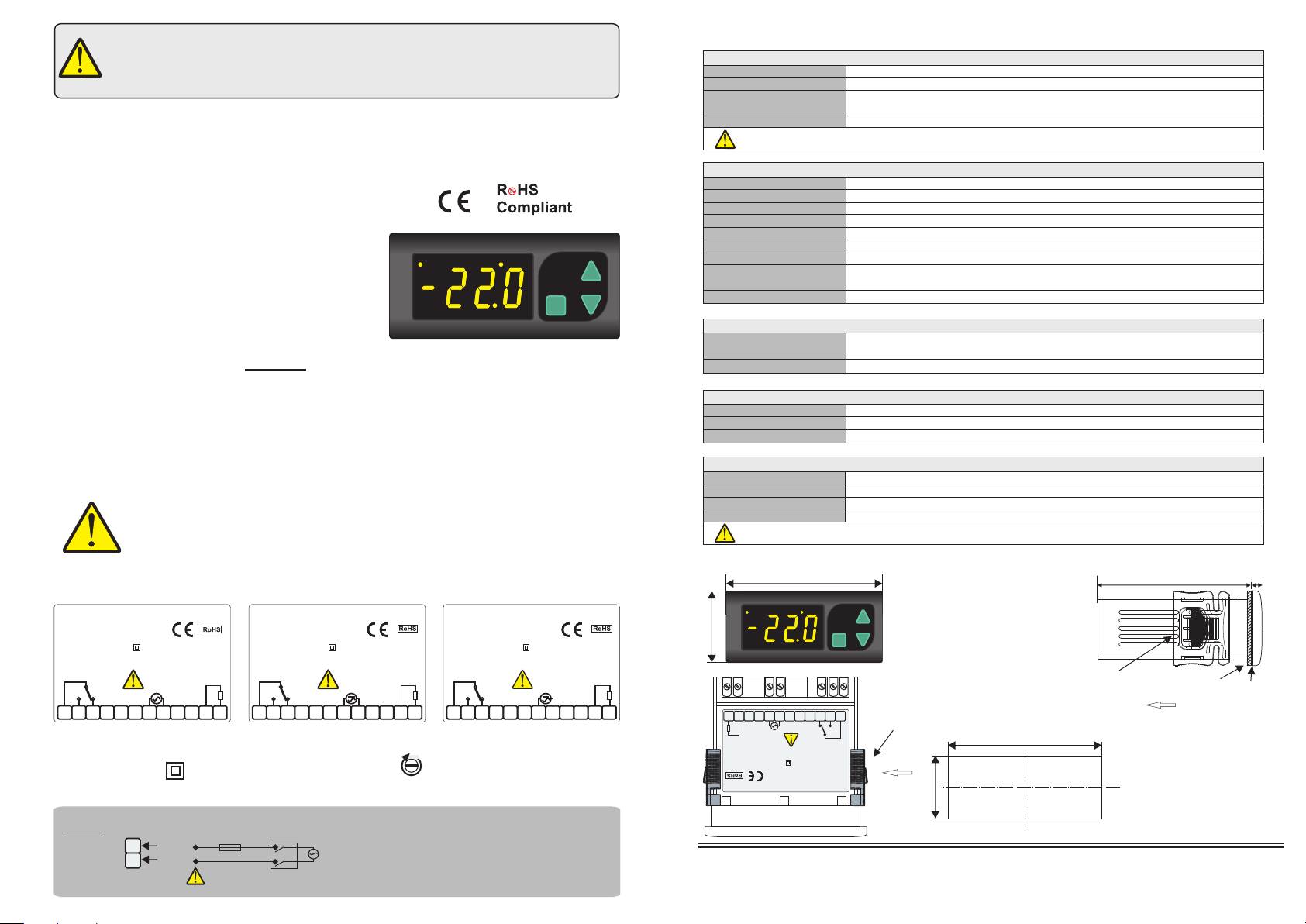

Technical Specifications
Thank you for choosing ENDA ET1411 temperature controller.
Please read this document carefully before using this product. The guarantee will be
invalidated if the device is damaged by not following instructions detailed in the
manual. The company shall not be responsible for any damage or losses however
caused, which may be experienced as a result of the installation or use of this product.
Connection Diagram
ENDA ET1411 is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried out by a qualified staff
and must be according to the relevant locally applicable regulations. During an installation, all of
the cables that are connected to the device must be free of electrical power. The device must be
protected against inadmissible humidity, vibrations, severe soiling and make sure that the
operation temperature is not exceeded. The cables should not be close to the power cables or
components.
1/2
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Tel : [phone] Pbx. Fax : [phone]
url : www.enda.com.tr
Panel cut-out
Dimensions
Note :
1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the panel.
ET1411-E-06-R
71mm
29mm
Flush mounting
clamp
For removing mounting clamps:
Push the flush-mounting
clamp in direction 1as shown
in the figure below. Then, pull
out the clamp in direction 2.
1
ENDA ET1411 DIGITAL THERMOSTAT
Holding screw
0.4-0.5Nm.
Equipment is protected throughout
by DOUBLE INSULATION
* 35 x 77mm sized.
* On-Off control.
* Single contact output for selectable heating
or cooling control.
* Single NTC probe input.
* Offset value can be entered for NTC probe.
* In the case of probe failure, output state can be
selected on, off or periodical running.
* Upper and lower limits of the setpoint can be
adjusted.
* Temperature unit can be selected °C or °F.
* CE marked according to European Norms.
Order Code : ET1411-NTC-     
1
Supply Voltage
230VAC.......230V AC
24................24V AC/DC
12................12V AC/DC
7
8
SUPPLY:
NOTE:
184-253V AC
50/60Hz 3VA
Line
Neutral
230V AC
Supply
Switch
Note:
Cable size: 1,5mm²
Fuse
F 100 mA
250V AC
Fuse should
be connected
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
2) In accordance with the safety regulations, the power
supply switch shall bring the identification of the
relevant instrument and it should be easily
accessible by the operator.
Supply voltage 230V AC +10% -20%, 50/60Hz or 12/24V AC/DC ±10%, 50/60Hz.
Power consumption Max. 3VA
2.5mm² screw-terminal connections.
(±1%-1sec)
4 digits, 12.5mm, 7 segment yellow LED
Wiring
Scale
Sensitivity/Accuracy
Time Accuracy
Indicator
EMC
Safety requirements
The device is designed to operate in controlled electromagnetic environment)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
CONTROL
Control type Single-setpoint control
On-Off control
Control algorithm
Hysteresis Adjustable between 0.1 ... 20.0°C.
OUTPUT
ELECTRICAL CHARACTERISTICS
OUTPUT Relay: 250V AC, 8A ( ), NO+NC;
1/2 HP 240V AC CosF= 0.4 (for inductive load)
for resistive load
Mechanical 30.000.000; Electrical 100.000 operation.
Life expectancy for relay
ENVIRONMENTAL CONDITIONS
Height Max. 2000m
80 , up to 40% 31°C decreasing linearly 50% at °C
Ambient/storage temperature
Max. relative humidity
0 ... +50°C/-25 ... 70°C (with no icing)
-60.0 ... +150.0°C (-76.0 ... +302.0°F)
0.1°C / ±1°C
Rated pollution degree According to EN 60529 Front panel : IP65
Rear panel : IP20
Do not use the device in locations subject to corrosive and flammable gasses.
HOUSING
Housing type Suitable for flush-panel mounting.
Dimensions 5 1W77xH3 xD7 mm
Weight Approx. 205g (A )fter packing
Enclosure material Self extinguishing plastics
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SET
SET
ET1411
ENDA
OUT
°F
°C
35mm
77mm
SET
SET
ET1411
ENDA
OUT
°F
°C
Flush mounting
clamp
Depth
Panel
2
71mm 5mm
Rubber
packing
SN: XXXXXXXXX
1 2 3 4 5 6 7 8 9 10 11 12
ET1411-NTC-230VAC
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
230V AC +10% -20%
50/60Hz 3VA
OUTPUT
250V AC 8A
RESISTIVE LOAD
NTC
SENSOR

SET
SET
ET1411
ENDA
OUT
°F
°C
ET1411-E-06-R
2/2

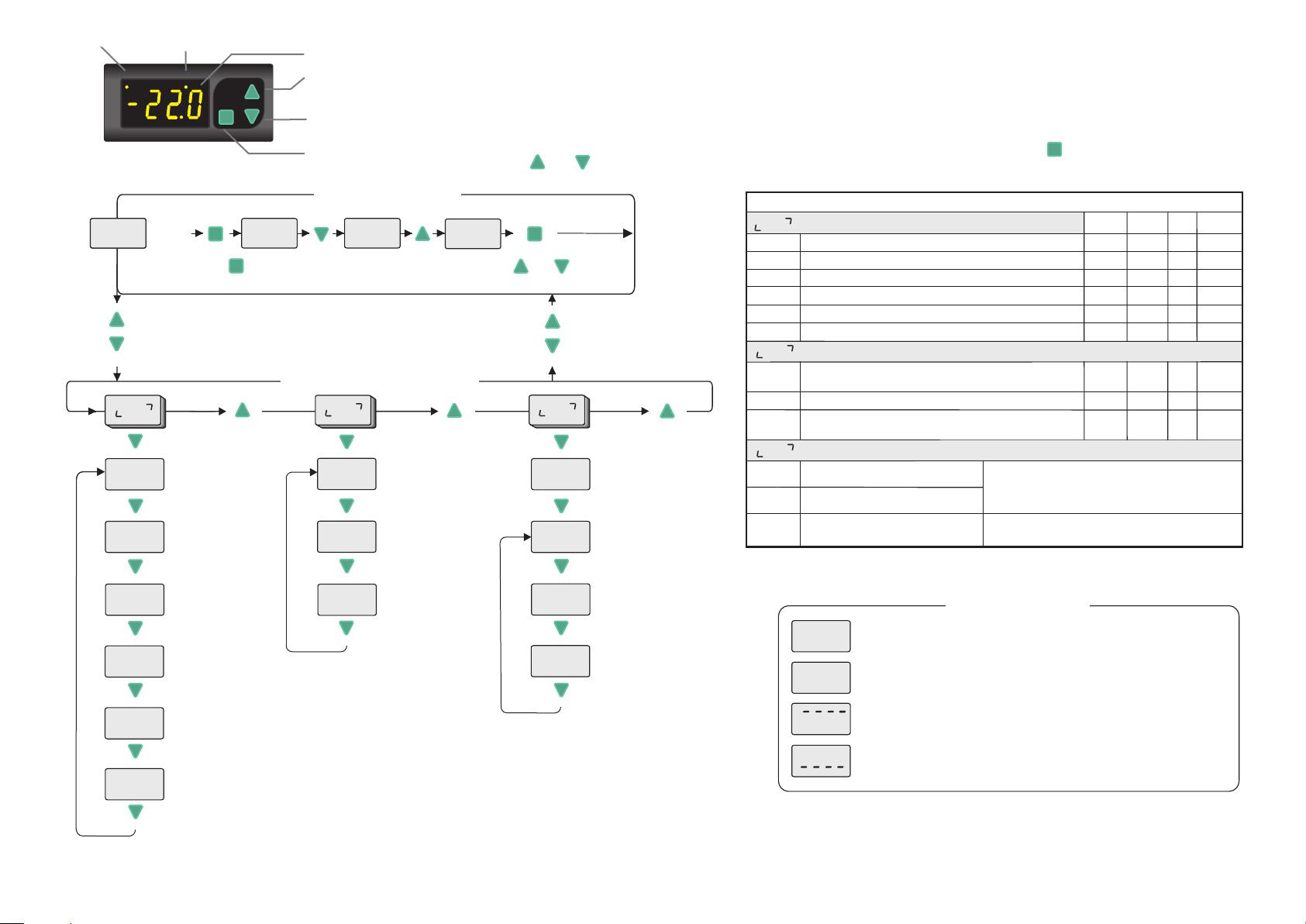

The lower limit
of the setpoint.
Control mode
While holding key OUTPUT setpoint value appears and by using and keys
the value can be adjusted.
C.typ
Programming Mode
Run Mode
Process
Value 30.0 29.9 30.0
o.lol
1000
If both keys are pressed and held for 3 seconds,
programming mode is entered.
The offset value
for the output
o.off
Output
hysteresis
o.Hys
Decimal place
The upper limit
of the setpoint.
o.uPl Unit
22.0
If both keys are pressed,
run mode is entered.
ou Cn
Security parameter
for configuration menu
A.-Cn
Security parameter
for output setpoint value
A.ou.S.
A.-ou
Security parameter
for output menu
S.Cod
Access code for security menu.
This parameter should be 321 .
o.PPF
o.PPn On time for the output
in the case of
probe failure.
Off time for the output
in the case of
probe failure.
Temperature unit
dres
Menu of Output control parameters
o.HYS
o.LoL
o.uPL
o.oFF
Output hysteresis
The lower limit of the setpoint.
The upper limit of the setpoint.
The offset value for the output
ou
-60.0
-20.0
0.1
o.LoL 150.0
MIN UNIT
MAX DEF.
SET
o.PPn
On time for the output in the case of probe failure.
o.PPF
Off time for the output in the case of probe failure.
A. ou-
A.ou.S.
A. Cn-
Security parameter for
menu of output control = Menu is invisible.
NonE
P.yes
P.no
= Parameters of menu are changeable.
= Parameters of menu are only visible.
= Setpoint value is changeable.
= Setpoint value is only visible.
P.yes
P.no
Security parameter for
menu of configuration
Security parameter for
output setpoint value
Unit
dres
Temperature unit
Decimal place (no = no decimal point, 22 °C
yes = with decimal point, 22.3 °C )
C.tyP
Control mode (Heat = Heating cotrol
Cool
°C °F °C
=Cooling control)
o.uPL -60
°C
°C
150
°C
°C 0
20.0
2
20.0
0
255 Min. 0
0
255 Min. 1
Heat Cool Heat
no yes no
Menu of Configuration
Cn
Menu of Parameter security
SE
PARAMETER TABLE
Used for selecting menu and increasing setpoint value of the parameters in the programming mode and for increasing the setpoint value in the run mode.When held down for a
few seconds, the change rate accelerates.
Used for selecting parameters and decreasing the setpoint value in the programming mode and for decreasing the setpoint value in the run mode.When held down for a few
seconds, the change rate accelerates.
OUT
LED
FAHRENHEIT
LED Displayed process value in the run mode, parameter name or value in programming mode.
Used for adjusting the value of the setpoint in the run mode and for adjusting the selected parameter in the programming mode. While holding key, setpoint value of the
selected parameter appears and by using and keys the value can be adjusted.
Pfa
Means, thermostat probe is short circuit.
PsC
Means, thermostat probe is broken.
Error Messages
Temperature value is higher than the scale.
Temperature value is lower than the scale.
Se
SETSET
SETSET
SETSET SETSET
