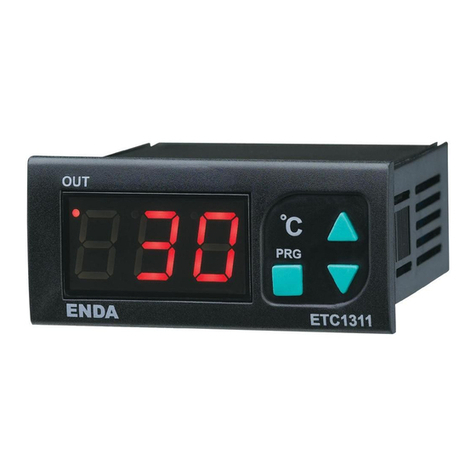

ENDA ETC1311 User manual

SET
PRG
ETC1311
ENDA
OUT
°C
Technical Specifications
Thank you for choosing ENDA ETC1311 temperature controller.
* 35x 77mm sized.
* On-Off control.
* J, K,Pt100 or Pt1000 input.
* Temperature compensation.
* In the case of probe failure, heating can be
selected on, off or periodical running.
* Upper and lower limits of the setpoint can be
adjusted.
* Set value can be adjusted by using single key.
* CE marked according to European Norms.
Connection Diagram
ENDA ETC1311 is intended for installation in control panels. Make sure that the device is
used only for intended purpose. The electrical connections must be carried out by a
qualified staff and must be according to the relevant locally applicable regulations. During
an installation, all of the cables that are connected to the device must be free of electrical
power. The device must be protected against inadmissible humidity, vibrations, severe
soiling and make sure that the operation temperature is not exceeded. The cables should
not be close to the power cables or components.
1/2
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Tel : [phone] Pbx. Fax : [phone]
url : www.enda.com.tr ETC1311-E-10-R
Holding screw 0.4-0.5Nm
Equipment is protected throughout
by DOUBLE INSULATION.
ENDA ETC1311 DIGITAL THERMOSTAT
ENVIRONMENTAL CONDITIONS
Height Max. 2000m
80 , up to 40% 31°C decreasing linearly 50% at °C
Ambient/storage temperature
Max. relative humidity
0 ... +50°C/-25 ... 70°C (with no icing)
Rated pollution degree According to EN 60529 Front panel : IP65
Rear panel : IP20
Do not use the device in locations subject to corrosive and flammable gasses.
Supply voltage 230V AC +10% -20%, 50/60Hz or 24V AC 10%, 50/60Hz or 12V AC 10%, 50/60Hz or
optional 9-30V DC / 7-24V AC 10% SMPS module.
± ±
±
Power consumption Max. 4VA
2.5mm² screw-terminal connections.
3 digits, 14.2mm, 7 segment red LED
Wiring
Scale
Accuracy
Indicator
EMC
Safety requirements
The device is designed to operate in controlled electromagnetic environment)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
ELECTRICAL CHARACTERISTICS
0 .... +600°C for Fe-Const (J) and NiCr-Ni (K). -100 .... +600°C for Pt100 and Pt1000
± 0.5% (of full scale) ±1 digit
OUTPUT
HEAT OUT For Relay: 250VAC, 8A( ), NO+NC,
For ETC1311-XX-XX-P ; Relay: 240VAC, 16A(for resistive load), NO or 12VDC 20mA logic out.
ETC1311-XX-XX ; for resistive load
For ETC1311-XX-XX ;
For ETC1311-XX-XX-P ; Mechanical 30.000.000; Electrical 30.000 operation.
Mechanical 30.000.000; Electrical 100.000 operation.
Life expectancy for relay
CONTROL
Control type Single-setpoint control
On-Off control
Control algorithm
Hysteresis Adjustable between 1 ... 20°C.
HOUSING
Housing type Suitable for flush-panel mounting.
Dimensions W77xH35xD71mm
Weight Approx. 198g (A )fter packing
Enclosure material Self extinguishing plastics
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
4
5
SUPPLY:
NOTE:
184-253V AC
50/60Hz 4VA
Line
Neutral
230V AC
Supply
Switch
Note:
Cable size: 1,5mm²
Fuse
F 100 mA
250V AC
Fuse should
be connected
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
2) In accordance with the safety regulations, the power
supply switch shall bring the identification of the
relevant instrument and it should be easily
accessible by the operator.
Order Code : ETC1311-  -      -
1 - Input
FE.....Fe-Const (J)
RT.....Pt100
PT.....Pt1000
K.......NiCr-Ni (K)
2 - Supply Voltage
230VAC...230V AC
24VAC.....24V AC
12VAC.....12V AC
SM...........9-30V DC / 7-24V AC
3 - Output
P......... Relay-16A
None...Relay-8A
SSR....Logic output
Please read this document carefully beforeusing this product. The guaranteewill be
invalidated if the device is damaged by not following instructions detailed in the
manual. Thecompany shall not be responsible for any damageorlosses however
caused, which may be experienced as a result ofthe installation or use of this product.
1 2 3
SET
PRG
ETC1311
ENDA
OUT
°C
SN: XXXXXXXXX
ETC1311-RT-12VAC
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
HEAT OUT
250V AC 8A
RESISTIVE LOAD
1 2 3 4 5 6 7 8 9 10 11 12
12V AC ±10%
50/60Hz 4VA
Pt100
SN: XXXXXXXXX
ETC1311-K-230VAC
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
HEAT OUT
250V AC 8A
RESISTIVE LOAD
1 2 3 4 5 6 7 8 9 10 11 12
230V AC +10% -20%
50/60Hz 4VA
K (NiCr-Ni)
-
+
SN: XXXXXXXXX
1 2 3
ETC1311-FE-SM-P
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
HEAT OUT
240V AC 16A
RESISTIVE LOAD
9-30V DC / 7-24V AC
±10% 4VA
J(Fe-CuNi)
-
+
4 5 6 7 8 9 10 11 12
Panel cut-out
Dimensions
Note :
1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the
Panel.
71mm
29mm
Flush mounting
clamp
For removing mounting clamps:
Push the flush-mounting
clamp in direction 1as shown
in the figure below. Then, pull
out the clamp in direction 2.
1
35mm
77mm
Flush mounting
clamp
Depth
Panel
2
71mm 5mm
Rubber
packing
SN: XXXXXXXXX
ETC1311-K-230VAC
DIGITAL THERMOSTAT
ENDA INDUSTRIAL ELECTRONICS
HEAT OUT
250V AC 8A
RESISTIVE LOAD
1 2 3 4 5 6 7 8 9 10 11 12
230V AC +10% -20%
50/60Hz 4VA
K (NiCr-Ni)
-
+

SET
PRG
ETC1311
ENDA
OUT
°C
Switch hysteresis
for the setpoint.
Access code for menu of security.
Enter 311 then press key.
When pressed or key, temperature set value flashes and by using and keys the value can be adjusted.
If no key is pressed for 3 seconds run mode is returned.
Aco
Ase
Programming Mode
Run mode
Process
Value 200 199 200
Cod
SeC
1000
If key is pressed and held for 3 seconds,
programming mode is entered.
100
Security parameter for menu of configuration.
Security parameter for temperature set value.
If key is pressed,
run mode is entered.
Used for adjusting the value of the setpoint in the run mode and for adjusting the selected parameter in the programming mode.
While holding key, setpoint value of the selected parameter appears and by using and keys the value can be adjusted.
Used for selecting menu and increasing setpoint value of the parameters in the programming mode and for
increasing the setpoint value in the run mode. When held down for a few seconds, the change rate accelerates.
Used for selecting parameters and decreasing the setpoint value in the programming mode and for decreasing
the setpoint value in the run mode. When held down for a few seconds, the change rate accelerates.
HEATING OUT
LED Displayed process value in the run mode, parameter name or value in programming mode.
2/2
Means, temperature value is higher than the scale.
Error Messages
Means, temperature value is lower than the scale.
Means, temperature sensor is broken or over temperature.
Non= Menu is invisible.
Pye= Parameters of menu are changeable.
Pno= Parameters of menu are only visible.
Pye= Set value is changeable.
Pno= Set value is only visible.
The upper limit
of the setpoint.
In the case of error,
on time rate of
the relay output.
The lower limit
of the setpoint.
In the case of error,
period of
the relay output.
Con
Switch hysteresis for the setpoint. (When temperature
falls to SET-HYS, output relay becomes active.)
Menu of Configuration parameters
PARAMETER TABLE
The upper limit of the setpoint.
In the case of error, on time rate of the relay output.
The lower limit of the setpoint.
In the case of error, period of the relay output.
Hys
Aco
ASE
Upl
Eon
LoL
Ect
SEC
Con
Security parameter for menu of configuration.
Non= Menu is invisible.
Pye= Parameters of menu are changeable.
Pno= Parameters of menu are only visible.
Security parameter for temperature set value.
Pye= Set value is changeable.
Pno= Set value is only visible.
Menu of Parameter security
0 °C 0UPL
10 250 sec 30
1 20 °C 1
°C 600LoL 600
0 100 0% Ect
MIN MAX UNIT DEF.SET
ETC1311-E-10-R
If no key is pressed
for 3 seconds
Offset value
Offset value.
EoFs -99 99 0°C
-99 UPL °C -99
Fe-CuNi / NiCr-Ni
Pt100
PRG
PRG
PRG
Hys
Upl
Eon
Lol
Ect
oFsO
Pfa
___
___
