Endon EL-10047 User manual

The product contains spot light with
connection terminals and Gu10 bulbs.
The product contains spot light with
connection terminals and Gu10 bulbs.
The following tools may be required:
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
INSTRUCTION MANUAL
This product is only suitable for connection to a 240V~50Hz supply in accordance with current IEE
wiring Regulations and should be installed in accordance with local Building Regulations and is for
Domestic indoor ceiling use only (it must be mounted out of arms reach) and is not suitable for a
Bathroom location.
This product should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp
miniature circuit breaker).
If in doubt we recommend you contact a qualified electrician. Before installing your light fitting
always:
Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit
breaker before commencing installation.
Ensure that no one else has access to the supply such that it could be inadvertently reconnected.
Never fit bulbs of a higher wattage or of a type other than those specified on the label as this may
cause overheating and damage the fitting.
The spot heads, and bulbs, become hot during use so please switch off and allow 10 minutes to cool
before replacing bulb, adjusting or cleaning.
This product contains glass parts – be careful during handling and maintenance to avoid breakage.
Clean with a dry cloth only. Do not use liquid or abrasive cleaners on this product.
The “Minimum Distance” Label on the product – typical format shown below – indicates that lighted
objects should not be placed within the distance stipulated on the label. The example label below
indicates that lighted objects should not be placed within 0.5m (50cm) of the spotlight to prevent
them overheating.
If any modification is made it will invalidate the warranty and may render the product unsafe.
Before you start
Please read these instructions carefully before fitting your new spotlight and retain for reference.
Make sure that there are no pipes or cables beneath the mounting surface.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly.
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
This type of Light Fitting may be connected to a Dimmer if a Tungsten incandescent bulb is used
(as supplied). If a CFL/LED type bulb is fitted then these cannot (generally) be controlled by a
dimmer.
EL-10047 (4 light Spotlight).
0.5m
Safety Warnings

Assembly/ User Instructions
1. Decide on the position of the light
fitting / or remove existing light
fitting. Take a note of the position
of the electrical connections.
Ensure there is a solid mounting
surface, preferably a wooden joist
or joist bridge to support the
weight of the light fitting.

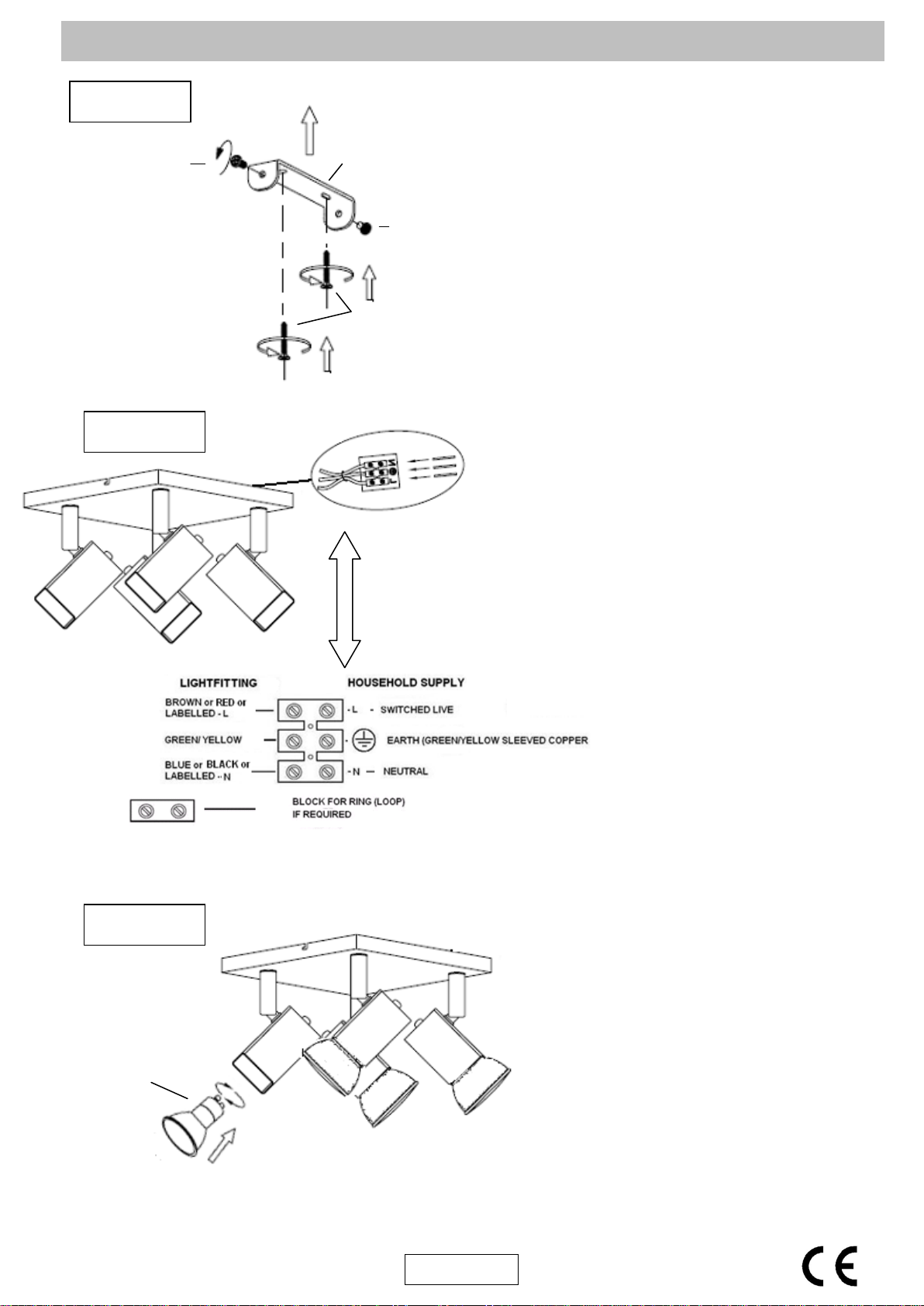

2. Diagram 1. Remove the fixing
bracket by undoing the 2 side
screws (1), retain these for re-use.
3. Use the fixing bracket (2) as a
template to mark the screw holes,
mark the screw holes and secure
to the ceiling with the screws (3)
supplied.
4. Diagram 2. Support your fitting
and connect the house wiring to
the terminal block (4) – see wiring
details. NOTE: This is a Class I
fitting and must be earthed. The
4th terminal block connector shown
is used for the “loop” wires of the
“Ring Circuit”. There may be more
than one set of cables in the “loop”
connections. If there is a “Ring
Circuit” and you do not
understand the connections you
must consult an electrician.
Any loose terminal block –not
secured to ceiling cup - should
always be covered with 2 layers of
good quality insulation tape.
5. Diagram 3. Secure the fitting back
onto the fixing bracket with the 2
side screws removed in 2 above.
Make sure that all the internal
cables and connections are inside
the ceiling cup, taking care not to
trap or strain the internal cables.
6. Fit the appropriate bulbs (5) into
the lamp holders. NOTE; Never fit
bulbs of a higher wattage than
those specified on the label (as
these may cause overheating
and damage the fitting).
7. Turn on the power and test.
Y20 30
Diagram 1.
Diagram 2.
Diagram 3.
(1)
(4)
(3)
(2)
(5)
(1)
