Brief Operating Instructions
Proline Prosonic Flow P
Ultrasonic time-of-flight sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Brief Operating Instructions part 1 of 2: Sensor
Contain information about the sensor.
Brief Operating Instructions part 2 of 2: Transmitter
→  3.
KA01474D/06/EN/01.21
71508892
2021-05-10

Proline Prosonic Flow P
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Proline Prosonic Flow P Brief Operating Instructions for flowmeter
Endress+Hauser 3
Brief Operating Instructions for flowmeter
The device consists of a transmitter and a sensor.
The process of commissioning these two components is described in two separate manuals
that together form the Brief Operating Instructions for the flowmeter:
• Brief Operating Instructions Part 1: Sensor
• Brief Operating Instructions Part 2: Transmitter
Please refer to both parts of the Brief Operating Instructions when commissioning the device,
as the contents of the manuals complement one another:
Brief Operating Instructions Part 1: Sensor
The Sensor Brief Operating Instructions are aimed at specialists with responsibility for
installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Brief Operating Instructions Part 2: Transmitter
The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for
commissioning, configuring and parameterizing the measuring device (until the first
measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
Additional device documentation
These Brief Operating Instructions are the Brief Operating Instructionspart 1: Sensor.
The "Brief Operating Instructions part 2: Transmitter" are available via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline Prosonic Flow P
4 Endress+Hauser
Table of contents
1 About this document .............................................................. 5
1.1 Symbols used ......................................................................... 5
2 Basic safety instructions .......................................................... 6
2.1 Requirements for the personnel ............................................................ 6
2.2 Designated use ........................................................................ 7
2.3 Workplace safety ...................................................................... 7
2.4 Operational safety ......................................................................8
2.5 Product safety ......................................................................... 8
2.6 IT security ............................................................................ 8
3 Incoming acceptance and product identification ................................... 8
3.1 Incoming acceptance .................................................................... 8
3.2 Product identification ................................................................... 9
4 Storage and transport ........................................................... 10
4.1 Storage conditions .................................................................... 10
4.2 Transporting the product ................................................................10
5 Installation ...................................................................... 10
5.1 Mounting conditions ................................................................... 10
5.2 Mounting the measuring device ...........................................................15
5.3 Post-installation check ................................................................. 37
6 Disposal ......................................................................... 38
6.1 Removing the measuring device .......................................................... 38
6.2 Disposing of the measuring device ......................................................... 38

Proline Prosonic Flow P About this document
Endress+Hauser 5
1 About this document
1.1 Symbols used
1.1.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.3 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.

Basic safety instructions Proline Prosonic Flow P
6 Endress+Hauser
Symbol Meaning
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.

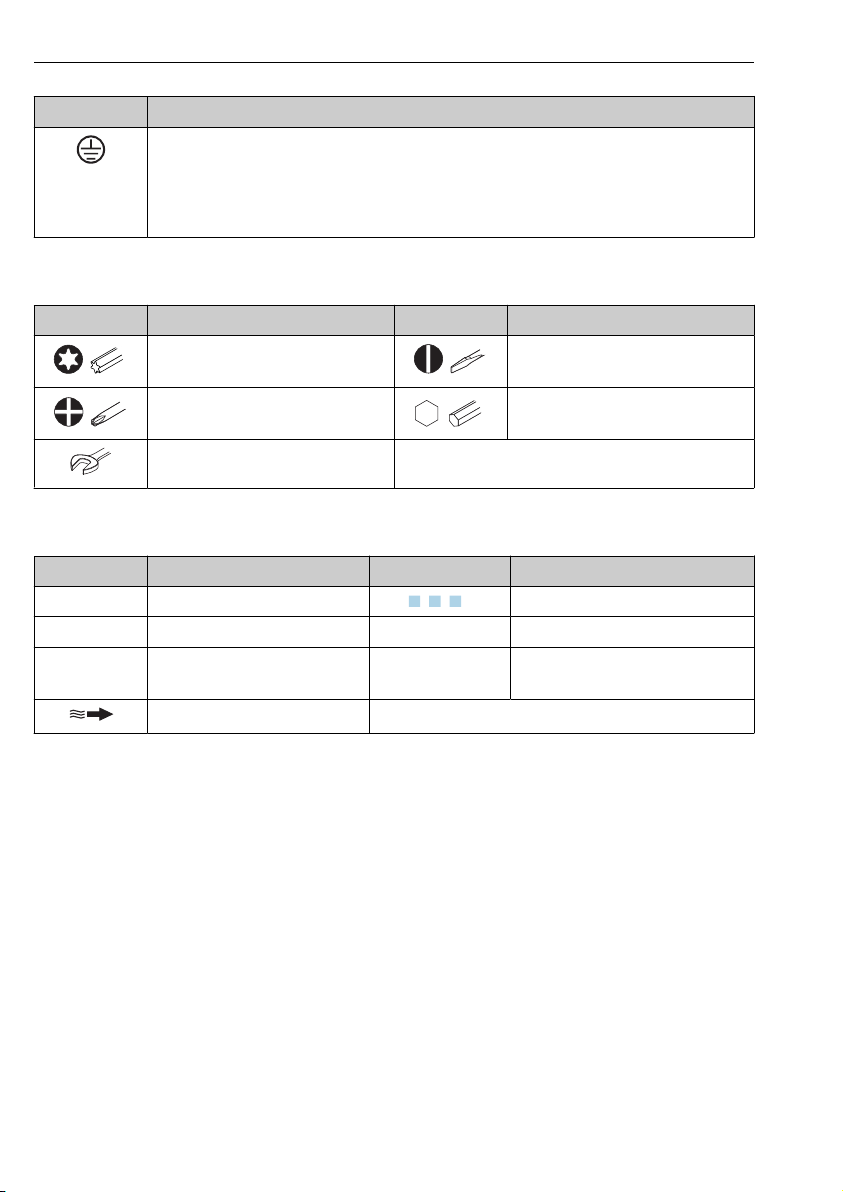

1.1.4 Tool symbols
Symbol Meaning Symbol Meaning
Torx screwdriver Flat blade screwdriver
Cross-head screwdriver Allen key
Open-ended wrench
1.1.5 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
Flow direction
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.

Proline Prosonic Flow P Basic safety instructions
Endress+Hauser 7
2.2 Designated use
Application and media
The measuring device described in these Operating Instructions is intended only for flow
measurement of liquids.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or where there is an
increased risk due to process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Keep within the specified pressure and temperature range.
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣If the ambient temperature of the measuring device is outside the atmospheric
temperature, it is absolutely essential to comply with the relevant basic conditions as
specified in the device documentation.
‣Protect the measuring device permanently against corrosion from environmental
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
Residual risks
LWARNING
The electronics and the medium may cause the surfaces to heat up or freeze. This
presents a burn hazard!
‣For elevated or low fluid temperatures, ensure protection against contact.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
If mounting the sensors and tensioning bands:
‣Due to the increased risk of cuts, gloves and goggles must be worn.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, gloves must be worn.

Incoming acceptance and product identification Proline Prosonic Flow P
8 Endress+Hauser
2.4 Operational safety
Risk of injury!
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
2.6 IT security
Our warranty is valid only if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the settings.
IT security measures, which provide additional protection for the device and associated data
transfer, must be implemented by the operators themselves in line with their security
standards.
3 Incoming acceptance and product identification
3.1 Incoming acceptance

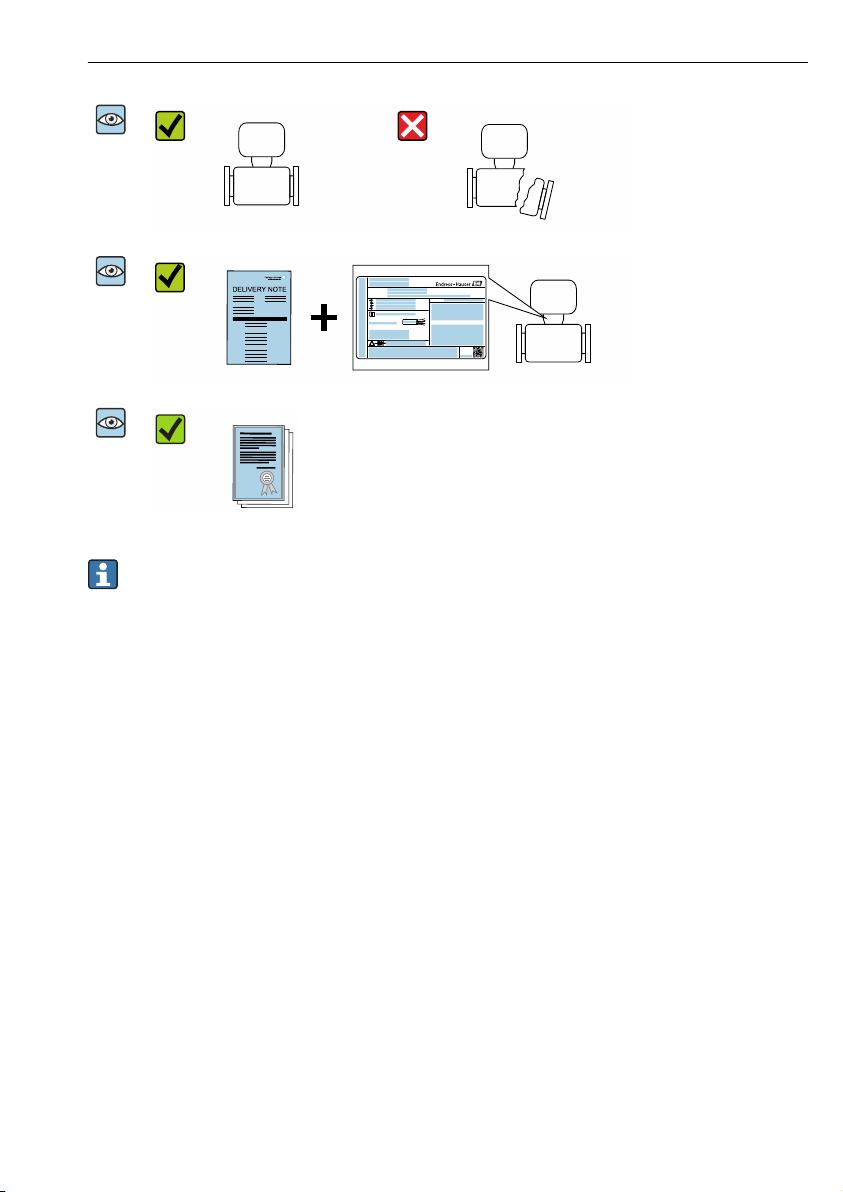

1
2
1
2
Are the order codes on
the delivery note (1)
and the product sticker
(2) identical?

Proline Prosonic Flow P Incoming acceptance and product identification
Endress+Hauser 9
Are the goods
undamaged?
Order code:
Ser. no.:
Ext. ord. cd.:
ii
Date:
Do the nameplate data
match the ordering
information on the
delivery note?
Is the envelope present
with accompanying
documents?
• If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center.
• The Technical Documentation is available via the Internet or via the Endress+Hauser
Operations App.
3.2 Product identification
The following options are available for identification of the device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in the W@M Device Viewer
(www.endress.com/deviceviewer): All information about the device is displayed.
• Enter the serial number from nameplates in the Endress+Hauser Operations App or scan the
2-D matrix code (QR code) on the nameplate using the Endress+Hauser Operations App: All
information about the device is displayed.

Storage and transport Proline Prosonic Flow P
10 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
Order code:
Ext. ord. cd.:
Ser. no.:
1
2
3
4
A0030196

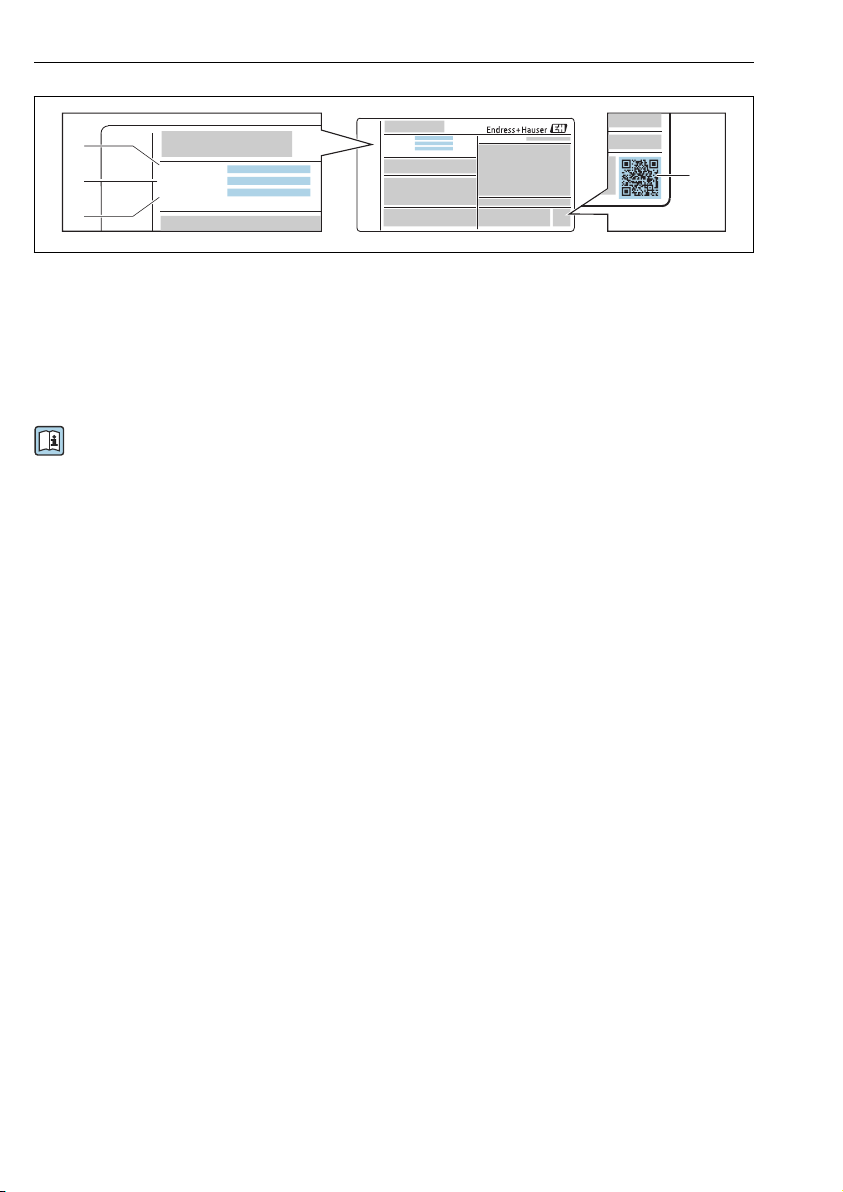

 1 Example of a nameplate
1 Order code
2 Serial number (Ser. no.)
3 Extended order code (Ext. ord. cd.)
4 2-D matrix code (QR code)
For detailed information on the breakdown of the specifications on the nameplate, see
the Operating Instructions for the device .
4 Storage and transport
4.1 Storage conditions
Observe the following notes for storage:
‣Store in the original packaging to ensure protection from shock.
‣Protect from direct sunlight to avoid unacceptably high surface temperatures.
‣Store in a dry and dust-free place.
‣Do not store outdoors.
4.2 Transporting the product
Transport the measuring device to the measuring point in the original packaging.
4.2.1 Transporting with a fork lift
If transporting in wood crates, the floor structure enables the crates to be lifted lengthwise or
at both sides using a forklift.
5 Installation
5.1 Mounting conditions
No special measures such as supports are necessary. External forces are absorbed by the
construction of the device.

Proline Prosonic Flow P Installation
Endress+Hauser 11
5.1.1 Mounting position
Mounting location
A0042039
Orientation
A
B
C C
UP
CH1
CH2
UP
Down
Down
1
2
A0041970
 2 Orientation views
1 Channel 1 upstream
2 Channel 1 downstream
A Recommended orientation with upward direction of flow
B Non-recommended installation range with horizontal orientation (30°)
C Recommended installation range max. 120°
Vertical
Recommended orientation with upward direction of flow (View A). With this orientation,
entrained solids will sink and gases will rise away from the sensor area when the medium is
not flowing. Furthermore, the pipe can be completely drained and protected against the
buildup of deposits.

Installation Proline Prosonic Flow P
12 Endress+Hauser
Horizontal
In the recommended installation range with a horizontal orientation (View B), gas and air
accumulations at the top of the pipe and interference from deposit buildup at the bottom of
the pipe can influence the measurement to a lesser degree.
Inlet and outlet runs
If possible, the sensor should be installed upstream from valves, T-sections, pumps etc. If this
is not possible, the inlet and outlet runs indicated below must be maintained at the very
minimum in order to attain the specified level of accuracy of the measuring device. If there are
several flow disturbances present, the longest specified inlet run must be maintained.
For the dimensions and installation lengths of the device, see the "Technical Information"
document, "Mechanical construction" section .
Shorter inlet and outlet runs are possible with the following device versions:
Two-path measurement with 2 sensor sets 1) and FlowDC (for item numbers 1 to 4b):
Up to minimum 2 × DN for inlet run, 2 × DN for outlet run
1) Order code for "Mounting type", option A2 "Clamp-on, 2-channel, 2-sensor sets"

Proline Prosonic Flow P Installation
Endress+Hauser 13
1 2
15 × DN 3 × DN 15 × DN 3 × DN
3 4
15 × DN 3 × DN
5 6
15 × DN 3 × DN
a
b
20 × DN 3 × DN 20 × DN 3 × DN
A0042041
 3 Minimum inlet and outlet runs with various flow obstructions
1 Pipe bend
2 Two pipe bends (on one plane)
3 Two pipe bends (on two planes)
4a reduction
4b Expansion
5 Control valve (2/3 open)
6 Pump
5.1.2 Environment and process requirements
Ambient temperature range
For detailed information on the ambient temperature range, see the Operating
Instructions for the device.
If operating outdoors:
• Install the measuring device in a shady location.
• Avoid direct sunlight, particularly in warm climatic regions.
• Avoid direct exposure to weather conditions.
Temperature tables
For detailed information on the temperature tables, see the separate document entitled
"Safety Instructions" (XA) for the device.

Installation Proline Prosonic Flow P
14 Endress+Hauser
5.1.3 Special mounting instructions
Weather protection cover: Proline 500
146 (5.75)
48 (1.9)
12 (0.47)
280 (11.0) 255 (10.0)
134 (5.3) 30 (1.18)
A0029553
 4 Weather protection cover for Proline 500; engineering unit mm (in)
Cover locking
NOTICE
Order code for "Transmitter housing", option L "Cast, stainless": The covers of the
transmitter housing are provided with a borehole to lock the cover.
The cover can be locked using screws and a chain or cable provided by the customer.
‣It is recommended to use stainless steel cables or chains.
‣If a protective coating is applied, it is recommended to use a heat shrink tube to protect the
housing paint.

Proline Prosonic Flow P Installation
Endress+Hauser 15
1
1
2
2
1
1
5 (0.2) min. 15 (0.6)
SW 2.5
M3
A0029799
1 Cover borehole for the securing screw
2 Securing screw to lock the cover
5.2 Mounting the measuring device
5.2.1 Required tools
For transmitter Proline 500
For mounting on a post:
Proline 500 transmitter
Open-ended wrench AF 13
For wall mounting:
Drill with drill bit ⌀ 6.0 mm
For sensor
For installation on the measuring pipe: use a suitable mounting tool
5.2.2 Preparing the measuring device
1. Remove all remaining transport packaging.
2. Remove stick-on label on the electronics compartment cover.

Installation Proline Prosonic Flow P
16 Endress+Hauser
5.2.3 Mounting the measuring device
‣Install the measuring device or turn the transmitter housing so that the cable entries do
not point upwards.

A0029263
5.2.4 Mounting the sensor
LWARNING
Risk of injury when mounting the sensors and strapping bands!
‣Due to the increased risk of cuts, wear suitable gloves and protective goggles.
Sensor configuration and settings
DN 15 to 65 (½ to 2½") DN 50 to 4000 (2 to 160")
Strapping band Strapping band Welded bolt
2 traverses
[mm (in)]
1 traverse
[mm (in)]
2 traverses
[mm (in)]
1 traverse
[mm (in)]
2 traverses
[mm (in)]
Sensor distance 1) Sensor distance 1) Sensor distance 1) Sensor distance 1) Sensor distance 1)
– Wire length →  27 Measuring rail 1) 2) Wire length Measuring rail 1) 2)
1) Depends on the conditions at the measuring point (measuring pipe, medium etc.). The dimension can be
determined via FieldCare or Applicator. See also the Result sensor distance / measuring aid parameter in the
Measuring point submenu
2) Only up to DN 600 (24")
Mounting types
Sensor holder with U-shaped screws
Can be used for
• Measuring devices with measuring range DN 15 to 65 (½ to 2½")
• Mounting on pipes DN 15 to 32 (½ to 1¼")
Procedure:
1. Disconnect the sensor from the sensor holder.
2. Position the sensor holder on the measuring pipe.
3. Fit the U-shaped screws through the sensor holder and lightly grease the thread.

Proline Prosonic Flow P Installation
Endress+Hauser 17
4. Screw the nuts onto the U-shaped screws.
5. Position the sensor holder correctly and tighten the nuts uniformly.
1
A0043369
 5 Holder with U-shaped screws
1 Sensor holder
LCAUTION
Risk of damaging plastic or glass pipes if the nuts on the U-shaped screws are tightened
too much!
‣The use of a metal half-shell (on the opposite side of the sensor) is recommended for
plastic or glass pipes.
The visible measuring pipe surface must be clean (free from flaking paint and/or rust) to
ensure good acoustic contact.
Sensor holder with strapping bands (small nominal diameters)
Can be used for
• Measuring devices with measuring range DN 15 to 65 (½ to 2½")
• Mounting on pipes DN > 32 (1¼")
Procedure:
1. Disconnect the sensor from the sensor holder.
2. Position the sensor holder on the measuring pipe.

Installation Proline Prosonic Flow P
18 Endress+Hauser
3. Wrap the strapping bands around the sensor holder and measuring pipe without
twisting them.

1
A0043371
 6 Positioning the sensor holder and mounting the strapping bands
1 Sensor holder
4. Guide the strapping bands through the strapping band locks.
5. Tighten the strapping bands as tightly as possible by hand.
6. Set the sensor holder to the desired position.

Proline Prosonic Flow P Installation
Endress+Hauser 19
7. Push down the tensioning screw and tighten the strapping bands so they cannot slip.

1
A0043372
 7 Tightening the tensioning screws of the strapping bands
1 Sensor holder
8. If necessary, shorten the strapping bands and trim the cut edges.
LWARNING
Risk of injury!
‣To avoid sharp edges, trim the cut edges after shortening the strapping bands. Wear
suitable gloves and protective goggles.
The visible measuring pipe surface must be clean (free from flaking paint and/or rust) to
ensure good acoustic contact.
Sensor holder with strapping bands (medium nominal diameters)
Can be used for
• Measuring devices with measuring range DN 50 to 4000 (2 to 160")
• Mounting on pipes DN ≤ 600 (24")
Procedure:
1. Fit the mounting bolt over strapping band 1.
2. Position strapping band 1 as perpendicular as possible to the measuring pipe axis
without twisting it.
3. Guide the end of strapping band 1 through the strapping band lock.
4. Tighten strapping band 1 as tightly as possible by hand.

Installation Proline Prosonic Flow P
20 Endress+Hauser
5. Set strapping band 1 to the desired position.
6. Push down the tensioning screw and tighten strapping band 1 so it cannot slip.
7. Strapping band 2: proceed as for strapping band 1 (steps 1 to 6).
8. Only slightly tighten strapping band 2 for final mounting. It must be possible to move
strapping band 2 for final alignment.
9. If necessary, shorten both strapping bands and trim the cut edges.
LWARNING
Risk of injury!
‣To avoid sharp edges, trim the cut edges after shortening the strapping bands. Wear
suitable gloves and protective goggles.
1
23
A0043373
 8 Holder with strapping bands (medium nominal diameters), with hinged screw
1 Mounting bolts
2 Strapping band
3 Tensioning screw
1
23
A0044350
 9 Holder with strapping bands (medium nominal diameters), without hinged screw
1 Mounting bolts
2 Strapping band
3 Tensioning screw
