Brief Operating Instructions
Proline 200
FOUNDATION Fieldbus
Transmitter with Coriolis sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Transmitter Brief Operating Instructions
Contain information about the transmitter.
Sensor Brief Operating Instructions →  3
KA01267D/06/EN/02.18
71409635
2018-08-01

Proline 200 FOUNDATION Fieldbus
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Proline 200 FOUNDATION Fieldbus Brief Operating Instructions for the device
Endress+Hauser 3
Brief Operating Instructions for the device
The device consists of a transmitter and a sensor.
The process of commissioning these two components is described in two separate manuals:
• Sensor Brief Operating Instructions
• Transmitter Brief Operating Instructions
Please refer to both Brief Operating Instructions when commissioning the device as the
contents of the manuals complement one another:
Sensor Brief Operating Instructions
The Sensor Brief Operating Instructions are aimed at specialists with responsibility for
installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Transmitter Brief Operating Instructions
The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for
commissioning, configuring and parameterizing the measuring device (until the first
measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
Additional device documentation
These Brief Operating Instructions are the Transmitter Brief Operating Instructions.
The "Sensor Brief Operating Instructions" are available via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline 200 FOUNDATION Fieldbus
4 Endress+Hauser
Table of contents
1 Document information ............................................................ 5
1.1 Symbols used ......................................................................... 5
2 Basic safety instructions .......................................................... 7
2.1 Requirements for the personnel ............................................................ 7
2.2 Designated use ........................................................................ 7
2.3 Workplace safety ...................................................................... 8
2.4 Operational safety ......................................................................8
2.5 Product safety ......................................................................... 9
2.6 IT security ............................................................................ 9
2.7 Device-specific IT security ................................................................ 9
3 Product description ............................................................... 9
4 Installation ....................................................................... 9
4.1 Turning the transmitter housing ........................................................... 9
4.2 Turning the display module .............................................................. 10
4.3 Transmitter post-installation check ........................................................ 11
5 Electrical connection ............................................................ 12
5.1 Connection conditions .................................................................. 12
5.2 Connecting the measuring device ......................................................... 16
5.3 Ensuring the degree of protection ......................................................... 18
5.4 Post-connection check ..................................................................19
6 Operation options ............................................................... 20
6.1 Overview of operation options ............................................................ 20
6.2 Structure and function of the operating menu ................................................ 21
6.3 Access to the operating menu via the local display ............................................. 22
6.4 Access to the operating menu via the operating tool ............................................ 25
7 System integration .............................................................. 25
8 Commissioning .................................................................. 25
8.1 Function check ....................................................................... 25
8.2 Switching on the measuring device ........................................................ 26
8.3 Setting the operating language ........................................................... 26
8.4 Configuring the measuring device ......................................................... 27
8.5 Defining the tag name ..................................................................27
8.6 Protecting settings from unauthorized access ................................................. 28
9 Diagnostic information .......................................................... 28

Proline 200 FOUNDATION Fieldbus Document information
Endress+Hauser 5
1 Document information
1.1 Symbols used
1.1.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.3 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.

Document information Proline 200 FOUNDATION Fieldbus
6 Endress+Hauser
Symbol Meaning
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.1.4 Communication symbols
Symbol Meaning Symbol Meaning
Wireless Local Area Network
(WLAN)
Communication via a wireless, local
network.
LED
Light emitting diode is off.
LED
Light emitting diode is on.
LED
Light emitting diode is flashing.
1.1.5 Tool symbols
Symbol Meaning Symbol Meaning
Torx screwdriver Flat blade screwdriver
Cross-head screwdriver Allen key
Open-ended wrench
1.1.6 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
Flow direction

Proline 200 FOUNDATION Fieldbus Basic safety instructions
Endress+Hauser 7
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Designated use
Application and media
The measuring device described in these Brief Operating Instructions is intended only for flow
measurement of liquids and gases.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or where there is an
increased risk due to process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Keep within the specified pressure and temperature range.
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣Use the measuring device only for media to which the process-wetted materials are
sufficiently resistant.
‣If the ambient temperature of the measuring device is outside the atmospheric
temperature, it is absolutely essential to comply with the relevant basic conditions as
specified in the device documentation.
‣Protect the measuring device permanently against corrosion from environmental
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
LWARNING
Danger of breakage due to corrosive or abrasive fluids and ambient conditions!
‣Verify the compatibility of the process fluid with the sensor material.
‣Ensure the resistance of all fluid-wetted materials in the process.
‣Keep within the specified pressure and temperature range.

Basic safety instructions Proline 200 FOUNDATION Fieldbus
8 Endress+Hauser
NOTICE
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
LWARNING
The electronics and the medium may cause the surfaces to heat up. This presents a burn
hazard!
‣For elevated fluid temperatures, ensure protection against contact to prevent burns.
Only applies for Proline Promass A, E, F, O, X and Cubemass C
LWARNING
Danger of housing breaking due to measuring tube breakage!
If a measuring tube ruptures, the pressure inside the sensor housing will rise according to the
operating process pressure.
‣Use a rupture disk.
LWARNING
Danger from medium escaping!
For device versions with a rupture disk: medium escaping under pressure can cause injury or
material damage.
‣Take precautions to prevent injury and material damage if the rupture disk is actuated.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, gloves must be worn.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.

Proline 200 FOUNDATION Fieldbus Product description
Endress+Hauser 9
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
2.6 IT security
Our warranty is valid only if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the settings.
IT security measures, which provide additional protection for the device and associated data
transfer, must be implemented by the operators themselves in line with their security
standards.
2.7 Device-specific IT security
The device offers a range of specific functions to support protective measures on the operator's
side. These functions can be configured by the user and guarantee greater in-operation safety
if used correctly.
For detailed information on device-specific IT security, see the Operating Instructions for
the device.
3 Product description
The device consists of a transmitter and a sensor.
The device is available as a compact version:
The transmitter and sensor form a mechanical unit.
For detailed information on the product description, see the Operating Instructions for
the device
4 Installation
For detailed information about mounting the sensor, see the Sensor Brief Operating
Instructions →  3
4.1 Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned.

Installation Proline 200 FOUNDATION Fieldbus
10 Endress+Hauser
max. 350°
8 mm 8 mm
1.
2.
3.
A0032242

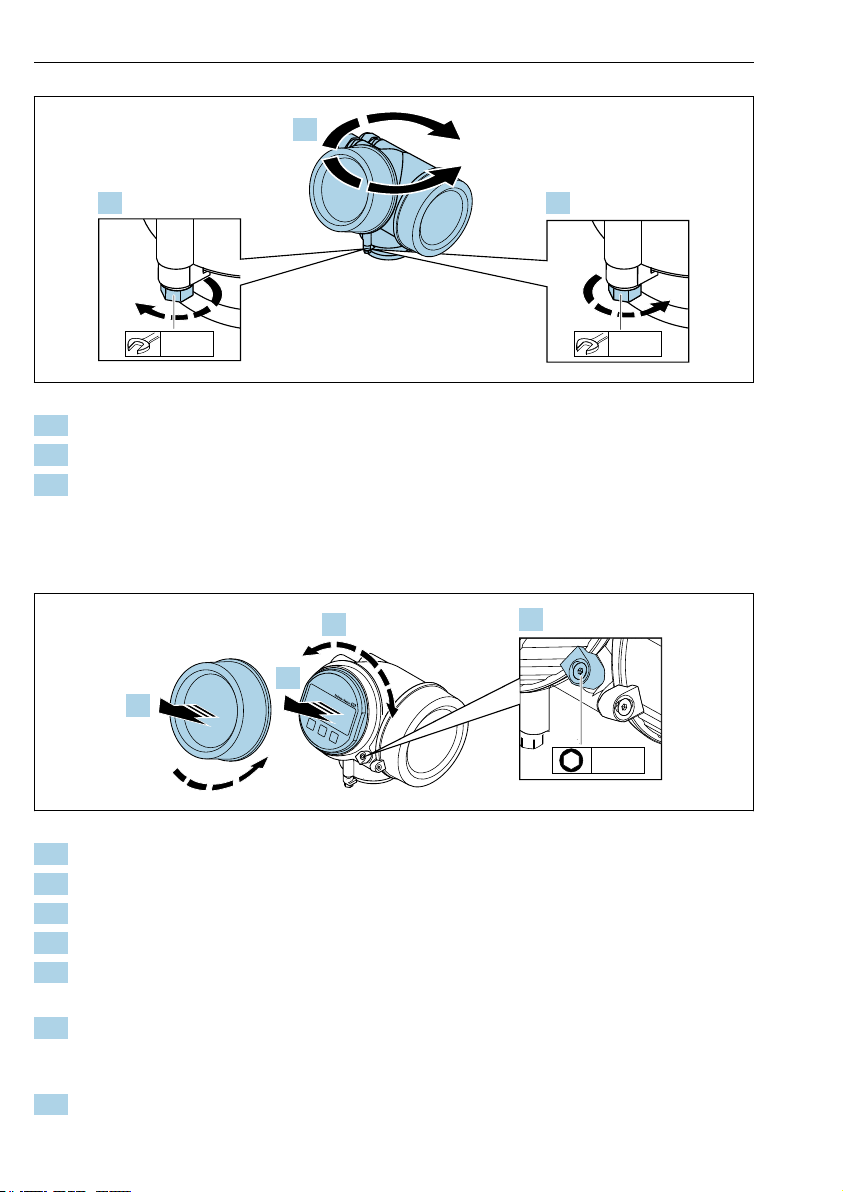

1. Release the fixing screw.
2. Turn the housing to the desired position.
3. Firmly tighten the securing screw.
4.2 Turning the display module
The display module can be turned to optimize display readability and operability.
+E
–
1
3 mm
1.
2.
3.
4.
A0032238
1. Loosen the securing clamp of the electronics compartment cover using an Allen key.
2. Unscrew cover of the electronics compartment from the transmitter housing.
3. Optional: pull out the display module with a gentle rotational movement.
4. Turn the display module to the desired position: max. 8 × 45° in every direction.
5. Without display module pulled out:
Allow display module to engage at desired position.
6. With display module pulled out:
Feed the cable into the gap between the housing and main electronics module and plug
the display module into the electronics compartment until it engages.
7. Reverse the removal procedure to reassemble the transmitter.

Proline 200 FOUNDATION Fieldbus Installation
Endress+Hauser 11
4.3 Transmitter post-installation check
The post-installation check must always be performed after the following tasks:
• Turning the transmitter housing
• Turning the display module
Is the device undamaged (visual inspection)? 
Are the securing screw and securing clamp tightened securely? 

Electrical connection Proline 200 FOUNDATION Fieldbus
12 Endress+Hauser
5 Electrical connection
5.1 Connection conditions
5.1.1 Required tools
• For cable entries: Use corresponding tools
• For securing clamp: Allen key 3 mm
• Wire stripper
• When using stranded cables: Crimper for wire end ferrule
• For removing cables from terminal: Flat blade screwdriver ≤ 3 mm (0.12 in)
5.1.2 Connecting cable requirements
The connecting cables provided by the customer must fulfill the following requirements.
Electrical safety
In accordance with applicable federal/national regulations.
Permitted temperature range
• The installation guidelines that apply in the country of installation must be observed.
• The cables must be suitable for the minimum and maximum temperatures to be expected.
Signal cable
Pulse/frequency/switch output
Standard installation cable is sufficient.
FOUNDATION Fieldbus
Twisted, shielded two-wire cable.
For further information on planning and installing FOUNDATION Fieldbus networks see:
• Operating Instructions for "FOUNDATION Fieldbus Overview" (BA00013S)
• FOUNDATION Fieldbus Guideline
• IEC 61158-2 (MBP)
Cable diameter
• Cable glands supplied:
M20 × 1.5 with cable  6 to 12 mm (0.24 to 0.47 in)
• Plug-in spring terminals for device version without integrated overvoltage protection: wire
cross-sections 0.5 to 2.5 mm2 (20 to 14 AWG)
• Screw terminals for device version with integrated overvoltage protection: wire cross-
sections 0.2 to 2.5 mm2 (24 to 14 AWG)

Proline 200 FOUNDATION Fieldbus Electrical connection
Endress+Hauser 13
5.1.3 Terminal assignment
Transmitter

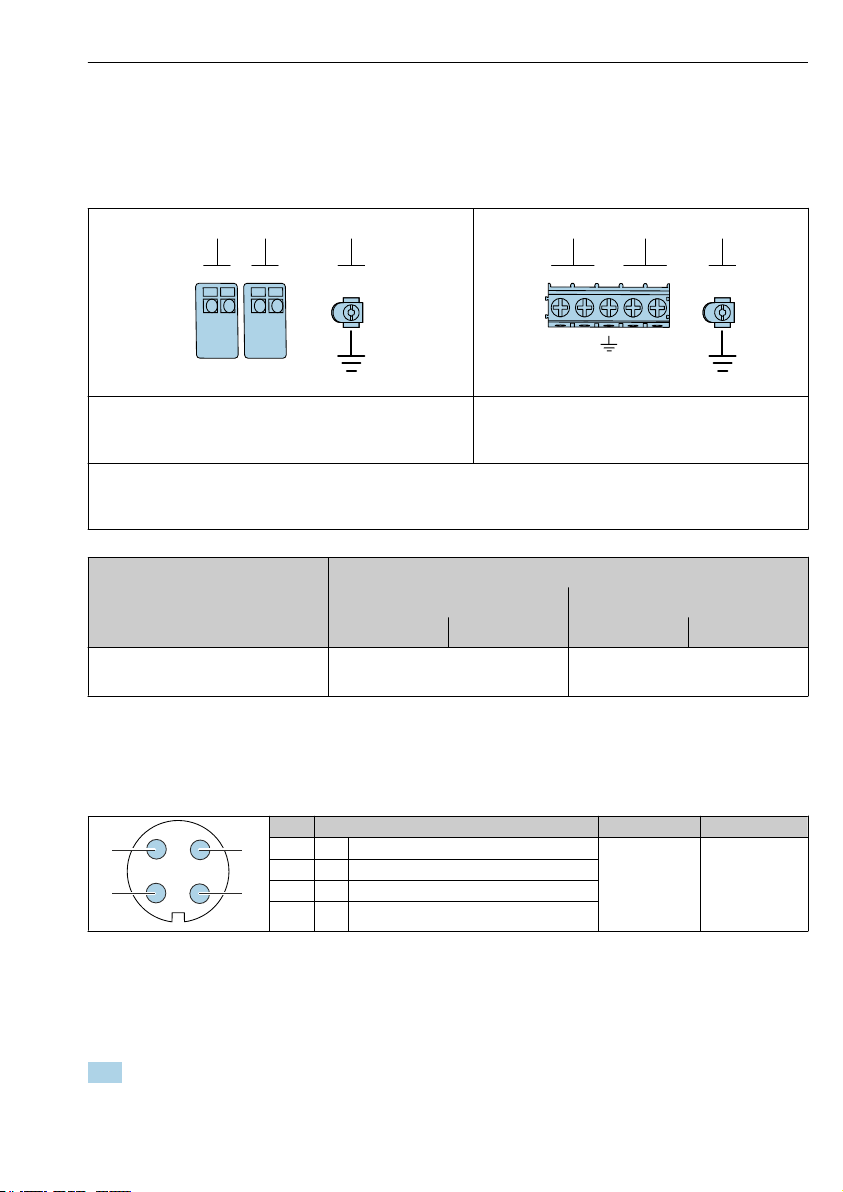

Connection version for FOUNDATION Fieldbus, pulse/frequency/switch output
+
1
–
2
–
4
+
3
1
23
A0013570
+
1
–
2
–
4
+
3
1
23
A0018161
Maximum number of terminals Maximum number of terminals for order code for
"Accessory mounted", option NA "Overvoltage
protection"
1
2
3
Output 1: FOUNDATION Fieldbus
Output 2 (passive): pulse/frequency/switch output
Ground terminal for cable shield
Order code for "Output" Terminal numbers
Output 1 Output 2
1 (+) 2 (-) 3 (+) 4 (-)
Option E 1) 2) FOUNDATION Fieldbus Pulse/frequency/switch output
(passive)
1) Output 1 must always be used; output 2 is optional.
2) FOUNDATION Fieldbus with integrated reverse polarity protection.
5.1.4 Pin assignment of device plug
1
2
4
3
Pin Assignment Coding Plug/socket
1 + Signal + A Plug
2 - Signal –
3 Grounding
4 Not assigned
5.1.5 Shielding and grounding
Optimal electromagnetic compatibility (EMC) of the fieldbus system can be guaranteed only if
the system components and, in particular, the lines are shielded and the shield forms as
complete a cover as possible. A shield coverage of 90 %is ideal.
1. To ensure optimal EMC protection, connect the shield to the reference ground as often
as possible.

Electrical connection Proline 200 FOUNDATION Fieldbus
14 Endress+Hauser
2. For reasons concerning explosion protection, it is recommended that grounding be
dispensed with.
To comply with both requirements, there are basically three different types of shielding in the
fieldbus system:
• Shielding at both ends
• Shielding at one end on the feed side with capacitance termination at the field device
• Shielding at one end on the feed side
Experience shows that the best results with regard to EMC are achieved in most cases in
installations with one-sided shielding on the feed side (without capacitance termination at
the field device). Appropriate measures with regard to input wiring must be taken to allow
unrestricted operation when EMC interference is present. These measures have been taken
into account for this device. Operation in the event of disturbance variables as per NAMUR
NE21 is thus guaranteed.
1. Observe national installation requirements and guidelines during installation.
2. Where there are large differences in potential between the individual grounding points,
connect only one point of the shielding directly to the reference ground.
3. In systems without potential equalization,
the cable shielding of fieldbus systems should be grounded on one side only, for
example at the fieldbus supply unit or at safety barriers.
NOTICE
In systems without potential matching, the multiple grounding of the cable shield causes
mains frequency equalizing currents!
Damage to the bus cable shield.
‣Only ground the bus cable shield to either the local ground or the protective ground at one
end.
‣Insulate the shield that is not connected.

Proline 200 FOUNDATION Fieldbus Electrical connection
Endress+Hauser 15
21 3 4
78
6 6
6
6
5
6
6
5
A0028768

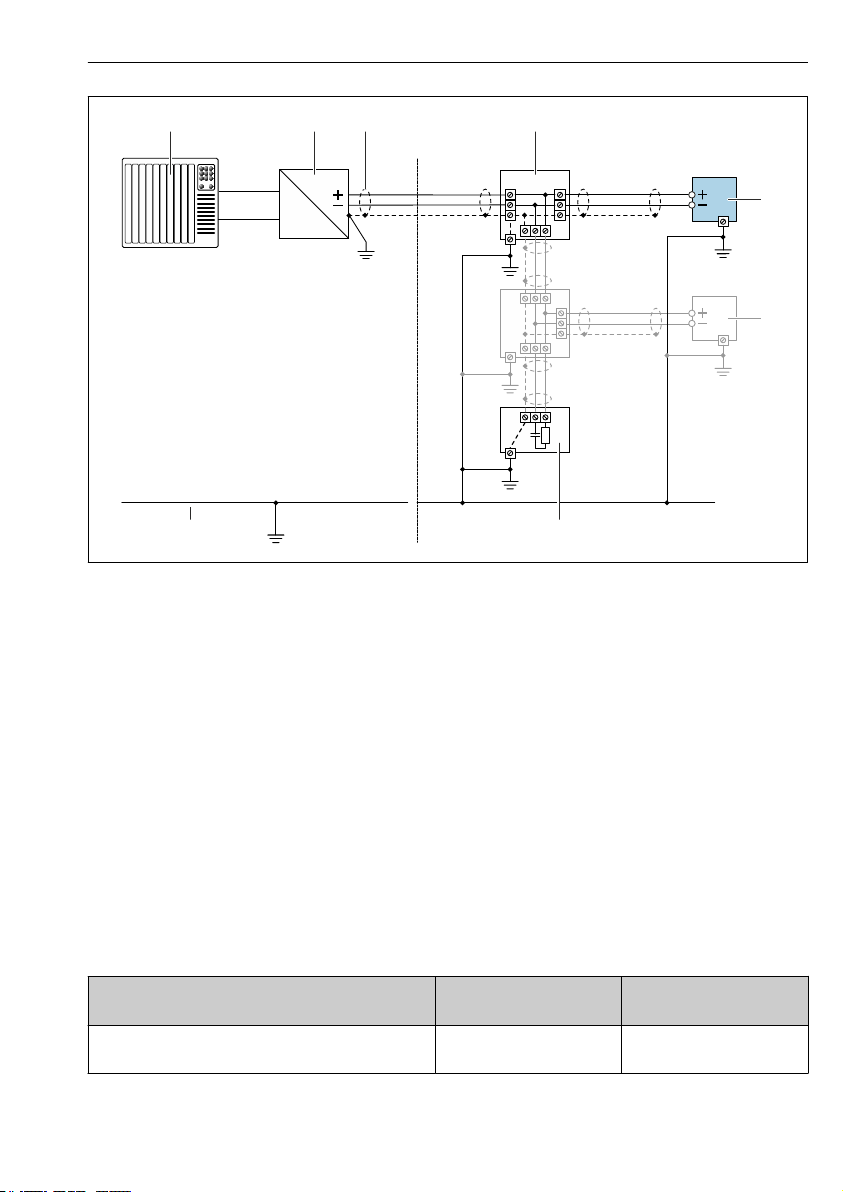

 1 Connection example for FOUNDATION Fieldbus
1 Control system (e.g. PLC)
2 Power conditioner (FOUNDATION Fieldbus)
3 Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements;
observe cable specifications
4 T-box
5 Measuring device
6 Local grounding
7 Bus terminator
8 Potential equalization conductor
5.1.6 Requirements for the supply unit
Supply voltage
Transmitter
An external power supply is required for each output.
Order code for "Output" Minimum
terminal voltage
Maximum
terminal voltage
Option E 1): FOUNDATION Fieldbus, pulse/frequency/
switch output
≥ DC 9 V DC 32 V
1) For device version with SD03 local display: The terminal voltage must be increased by DC 0.5 V if backlighting is
used.

Electrical connection Proline 200 FOUNDATION Fieldbus
16 Endress+Hauser
5.1.7 Preparing the measuring device
NOTICE
Insufficient sealing of the housing!
Operational reliability of the measuring device could be compromised.
‣Use suitable cable glands corresponding to the degree of protection.
1. Remove dummy plug if present.
2. If the measuring device is supplied without cable glands:
Provide suitable cable gland for corresponding connecting cable.
3. If the measuring device is supplied with cable glands:
Observe requirements for connecting cables →  12.
5.2 Connecting the measuring device
NOTICE
Limitation of electrical safety due to incorrect connection!
‣Have electrical connection work carried out by appropriately trained specialists only.
‣Observe applicable federal/national installation codes and regulations.
‣Comply with local workplace safety regulations.
‣Always connect the protective ground cable  before connecting additional cables.
‣For use in potentially explosive atmospheres, observe the information in the device-specific
Ex documentation.
5.2.1 Connecting the transmitter

Proline 200 FOUNDATION Fieldbus Electrical connection
Endress+Hauser 17
Connection via terminals
10 (0.4)
mm (in)
20 mm3 mm
1.2. 3.
4.
5. 6.
A0032239
1. Loosen the securing clamp of the connection compartment cover.
2. Unscrew the connection compartment cover.
3. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
5. Connect cable in accordance with terminal assignment →  13.
6. LWARNING
Housing degree of protection may be voided due to insufficient sealing of the
housing.
‣Screw in the screw without using any lubricant. The threads on the cover are coated
with a dry lubricant.
Firmly tighten the cable glands.
7. Reverse the removal procedure to reassemble the transmitter.

Electrical connection Proline 200 FOUNDATION Fieldbus
18 Endress+Hauser
Removing a cable
213 4
3 (0.12)
A0032240

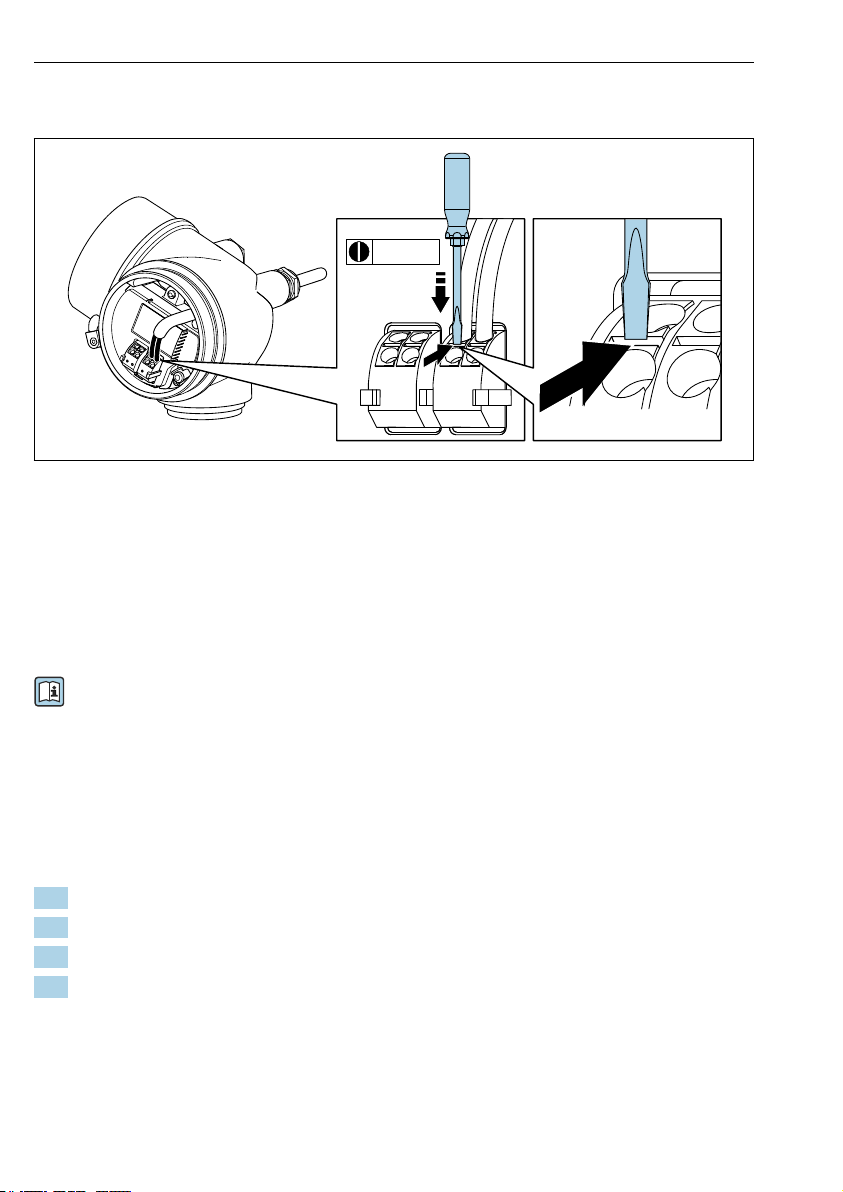

‣To remove a cable from the terminal, use a flat-blade screwdriver to push the slot between
the two terminal holes while simultaneously pulling the cable end out of the terminal.
5.2.2 Ensuring potential equalization
Requirements
No special measures for potential equalization are required.
For devices intended for use in hazardous locations, please observe the guidelines in the
Ex documentation (XA).
5.3 Ensuring the degree of protection
The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type
4X enclosure.
To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps
after the electrical connection:
1. Check that the housing seals are clean and fitted correctly.
2. Dry, clean or replace the seals if necessary.
3. Tighten all housing screws and screw covers.
4. Firmly tighten the cable glands.

Proline 200 FOUNDATION Fieldbus Electrical connection
Endress+Hauser 19
5. To ensure that moisture does not enter the cable entry:
Route the cable so that it loops down before the cable entry ("water trap").

A0029278
6. Insert dummy plugs into unused cable entries.
5.4 Post-connection check
Are cables or the device undamaged (visual inspection)? 
Do the cables used meet the requirements→  12? 
Do the cables have adequate strain relief? 
Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap" →  18? 
Depending on the device version: are all the device plugs firmly tightened →  16? 
Does the supply voltage match the specifications on the transmitter nameplate →  15? 
Is the terminal assignment correct ? 
If supply voltage is present, do values appear on the display module? 
Are all housing covers installed and firmly tightened? 
Is the securing clamp tightened correctly? 

Operation options Proline 200 FOUNDATION Fieldbus
20 Endress+Hauser
6 Operation options
6.1 Overview of operation options
12 3 4
E+-
ESC
5
6
A0032226

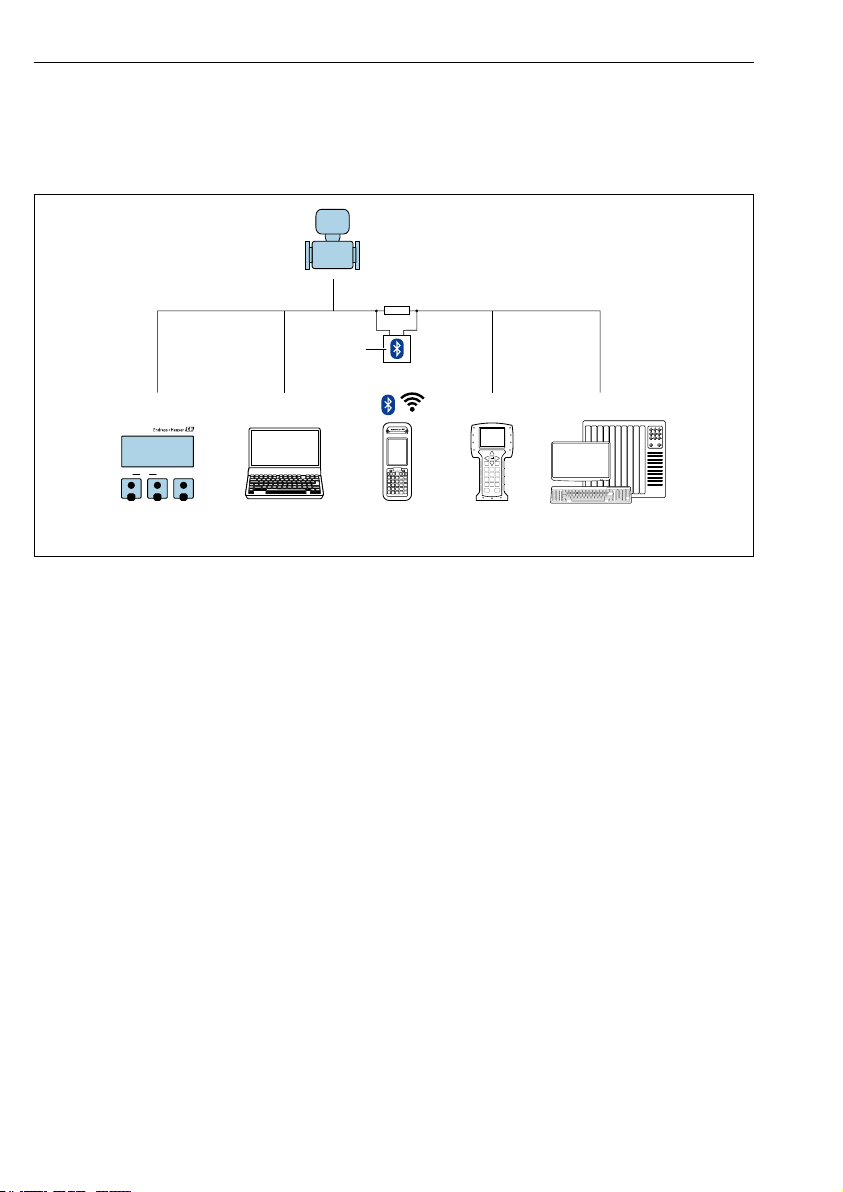

1 Local operation via display module
2 Computer with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM)
3 Field Xpert SFX350 or SFX370
4 Field Communicator 475
5 Control system (e.g. PLC)
6 VIATOR Bluetooth modem with connecting cable
