Endress+Hauser Stamoclean CAT430 User manual

Quality made by
Endress+Hauser
ISO 9001
BA 380C/07/en/10.03
51514215 StamoClean CAT 430
Micro / Ultra filtration system
with diaphragm pump
Operating Instructions

Brief overview
Here is how to use these Operating Instructions to commission your device quickly and
safely:
Safety instructions
→Page 4 ff.
→Page 5
General safety instructions
Explanation of the warning symbols
You can find special instructions at the appropriate position in the chapter in
question. The positions are indicated with the icons Warning
# , Caution " and
Note
! .
▼
Installation
→Page 9 ff.
→Page 10 ff.
Here you can find installation conditions such as the dimensions of the control box
and of the filter elements.
The steps for installing the individual system components and connecting them can
be found here.
▼
Wiring
→Page 17 CAT 430 is supplied fully wired to a large degree. You have to make additional
connections for special versions.
▼
Commissioning
→Page 18 ff.
→Page 21 ff.
In the "Operation" section, you become familiar with the operating elements and the
various setting options.
In the "Commissioning" section, you learn how to switch on CAT 430 and check the
functioning.
▼
Maintenance
→Page 24 ff.
→Page 26 ff.
→Page 34 ff.
For normal operation of the CAT 430, it is absolutely essential to carry out
maintenance tasks on a regular basis, such as filter cleaning etc.
Individual parts are subject to normal wear and tear. Here you can find out how to
replace such parts.
Here you can find an overview of the spare parts which can be delivered as well as
an overview of the system.
▼
Trouble-shooting
→Page 33 ff.
→Page 26 ff.
If faults occur during operation, use the checklist to localise the cause.
Here you can find measures you can take yourself to take remedial action against the
fault.
▼
▼
Index
→Page 38 ff. You can find important terms and keywords on the individual sections here. Use the
keyword index to find the information you need quickly and efficiently.

StamoClean CAT 430
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Notes on safety icons and symbols . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . 6
2.1 Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Certificates and approvals . . . . . . . . . . . . . . . . 7
3 Installation. . . . . . . . . . . . . . . . . . . . . 8
3.1 Incoming acceptance, transport, storage . . . . 8
3.2 Quick installation guide . . . . . . . . . . . . . . . . . . 8
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . 9
3.4 Installation instructions . . . . . . . . . . . . . . . . . 10
3.5 Post-installation check . . . . . . . . . . . . . . . . . . 15
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Electrical connection . . . . . . . . . . . . . . . . . . . 16
4.2 Post-connection check . . . . . . . . . . . . . . . . . 17
5 Operation . . . . . . . . . . . . . . . . . . . . . 18
5.1 Operation and commissioning . . . . . . . . . . . . 18
5.2 Display and operating elements . . . . . . . . . . 18
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . 19
6 Commissioning . . . . . . . . . . . . . . . . 21
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . 21
6.2 Switch-on . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3 Checking the sampling quantity . . . . . . . . . . 22
6.4 Checking the sample transportation . . . . . . . 22
6.5 Setting the collecting volume . . . . . . . . . . . . . 22
7 Maintenance . . . . . . . . . . . . . . . . . . 24
7.1 Maintenance activities . . . . . . . . . . . . . . . . . . 24
7.2 Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Accessories . . . . . . . . . . . . . . . . . . . 32
9 Trouble-shooting. . . . . . . . . . . . . . . 33
9.1 Trouble-shooting instructions . . . . . . . . . . . . 33
9.2 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.3 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
10 Technical data . . . . . . . . . . . . . . . . . 36
10.1 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.2 Performance characteristics . . . . . . . . . . . . . . 36
10.3 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.4 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.5 Mechanical construction . . . . . . . . . . . . . . . . . 37
Index . . . . . . . . . . . . . . . . . . . . . . . . . 38

Safety instructions StamoClean CAT 430
4Endress+Hauser
1Safetyinstructions
1.1 Designated use
The CAT 430 Micro/Ultra Filtration system is a filtration system for taking samples for
process measuring devices in sewage treatment plants.
The system transports clear samples directly from the clarification basin to the
measuring device.
Any other use than the one described here compromises the safety of persons and the
entire measuring system and is, therefore, not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
1.2 Installation, commissioning and operation
Please note the following items:
•Installation, electrical connection, commissioning, operation and maintenance of the
measuring system must only be carried out by trained technical personnel.
The technical personnel must be authorised for the specified activities by the system
operator.
•Technical personnel must have read and understood these Operating Instructions
and must adhere to them.
•Before commissioning the entire measuring point, check all the connections for
correctness. Ensure that electrical cables and hose connections are not damaged.
•Do not operate damaged products and secure them against unintentional
commissioning. Mark the damaged product as being defective.
•Measuring point faults may only be rectified by authorised and specially trained
personnel.
•If faults can not be rectified, the products must be taken out of service and secured
against unintentional commissioning.
•Repairs not described in these Operating Instructions may only be carried out at the
manufacturer’s or by the Endress+Hauser service organisation.
1.3 Operational safety
The sample preparation unit has been designed and tested according to the state of
the art and left the factory in perfect functioning order.
Relevant regulations and European standards have been met.
As the user, you are responsible for complying with the following safety conditions:
•Installation instructions
•Local prevailing standards and regulations.
1.4 Return
If the device requires repair, please send it cleaned to the appropriate Endress+Hauser
sales office. Please use the original packaging, if possible.
Please enclose the completed Dangerous Goods sheet (copy the second last page of
these Operating Instructions) with the packaging and the transportation documents.
No repair without completed Dangerous Goods sheet!

StamoClean CAT 430 Safety instructions
Endress+Hauser 5
1.5 Notes on safety icons and symbols
#
Warning!
This symbol alerts you to hazards. They can cause serious damage to the instrument or
to persons if ignored.
"
Caution!
This symbol alerts you to possible faults which could arise from incorrect operation.
They could cause damage to the instrument if ignored.
!
Note!
This symbol indicates important items of information.

Identification StamoClean CAT 430
6Endress+Hauser
2 Identification
2.1 Nameplate
C07-CAT430xx-18-14-00-xx-002.eps
Fig. 1: Example of a nameplate
2.1.1 Product structure
!
Note!
Please, order basin rim holders separately. See "Accessories".
order code / Best.Nr.:
serial no. / Ser.-Nr.:
sample transport system /
Probentransporteinrichtung:
prot. class / Schutzart:
ambient temp. / Umgebungstemp.:
mains / Netz :
ENDRESS + HAUSER
StamoClean CAT430
CAT430-A4A0A2A
3C0331C3BM7
no (max. 20m)
nein (max. 20m)
IP 65
-25°C … +50°C
230V AC, 50/60Hz, 130VA
136073-0100-4A
Sample volume
A 250 ml/h; 1-2 StamoLys CA 7X, incl. 5 m hose to filter and pump box
B 500 ml/h; 3-4 StamoLys CA 7X, incl. 5 m hose to filter and pump box
Y Special version acc. to customers specification
Length of the sample tube (from pump box to analyzer)
1 up to 20 m (65.62 ft), with hose pump
2 up to 100 m (328.1 ft) with hose pump, 100 m (328.1 ft) hose, compressed air is needed
3 up to 100 m (328.1 ft) with hose pump+internal compressor and 100 m (328.1 ft) hose
4 up to 100 m (328.1 ft) with diaphragm pump and 100 m (328.1 ft) hose
5 up to 100 m (328.1 ft) with diaphragm pump and 50 m (164.05 ft) hose
9 Special version acc. to customers specification
Fittings (from pump box to analyzer)
A Without sample hose heater
D With 8 m (26.24 ft) sample hose heater
F With 18 m (59.06 ft) sample hose heater
Y Special version acc. to customers specification
Power supply
0230VAC
1115VAC
Sampling between filter and pump box
A with heating
B without heating
Mounting pump box
2 Wall mounting
3 Basin rim mounting and protection cover
4 Special housing for additional CSM resp. CNM 750
9 Special version acc. to customers specification
Assembly
A No assembly
Y Special version acc. to customers specification
CAT 430 - complete order code

StamoClean CAT 430 Identification
Endress+Hauser 7
2.2 Scope of delivery
The scope of delivery comprises:
•1 Pump box, complete with filtrate line connected, length 4.5 m (14.75 ft),
hose heating 24 V
•2 Hose clamps 44 - 49 mm (1.73 - 1.93 inch), set screw M8
•4 Plastic brackets
•1 Cushion with screw
•1 Collecting vessel with PE hose 10/8 mm (0.31/0.39 inch), length 2.5 m (8.2 ft)
•1 PE hose roll 4/2 mm (0.16/0.08 inch), length 2.5 m (8.2 ft)
•1 PVC hose roll 4/2 mm (0.16/0.08 inch), length 2.0 m (6.65 ft)
•1 PTFE hose roll 3/1.5 mm (0.12/0.06 inch), length 2.5 m (8.2 ft)
•1 or 2 Filter plate(s) (depending on ordered version)
•1 or no assembly (depending on ordered version)
•1 Filtrate line with PE filtrate hose 4/2 mm(0.16/0.08 inch), min. length 20 m
(65.62 inch) depending on ordered version
•1 Acceptance certificate
•1 Allen key 4 mm (0.16 inch)
•1 Allen key 4 mm (0.16 inch) with handle, length 200 mm (7.87 inch)
•1 Fitting 3 mm (0.12 inch)
•1 Dummy plug
•1 Operating Instructions BA 380C/07/en
2.3 Certificates and approvals
Declaration of conformity
The product meets the legal requirements of the harmonised European standards.
Endress+Hauser confirms compliance with the standards by affixing the
4 symbol.

Installation StamoClean CAT 430
8Endress+Hauser
3Installation
3.1 Incoming acceptance, transport, storage
•Make sure the packaging is undamaged!
Inform the supplier about damage to the packaging.
Keep the damaged packaging until the matter has been settled.
•Make sure the contents are undamaged!
Inform the supplier about damage to the delivery contents.
Keep the damaged products until the matter has been settled.
•Check that the scope of delivery is complete and agrees with your order and the
shipping documents.
•The packaging material used to store or to transport the product must provide shock
protection and humidity protection. The original packaging offers the best protection.
Also, keep to the approved ambient conditions (see "Technical data").
•If you have any questions, please contact your supplier or your Endress+Hauser
sales centre responsible (see back page of these Operating Instructions).
3.2 Quick installation guide
A complete measuring system comprises:
•a CAT 430 filter system
•a collecting vessel
•a CA 71xx analyzer
Optionally, a sensor with flow assembly can also be integrated into the measuring
system.

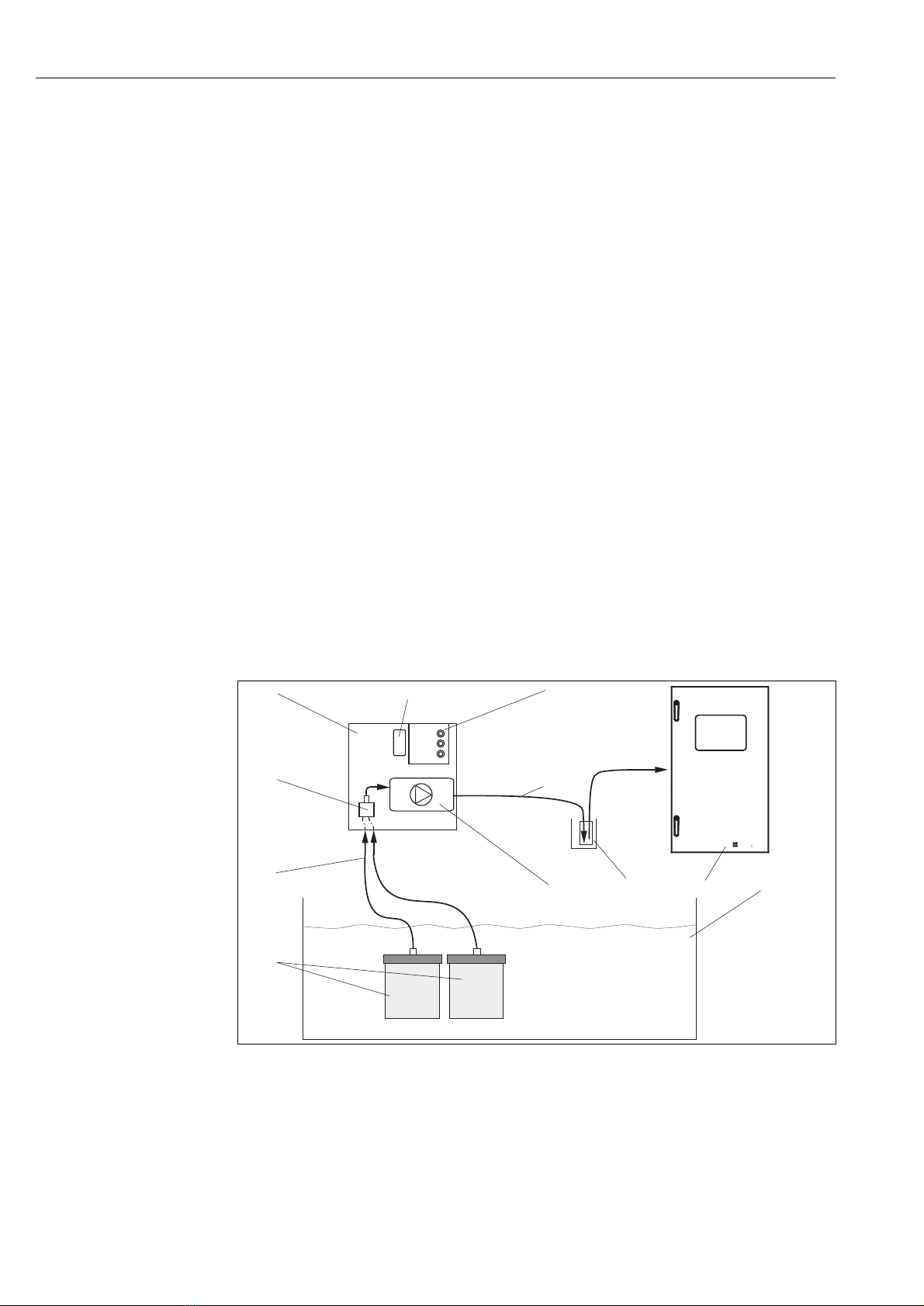

C07-CAT430xx-14-14-00-xx-001.EPS
Fig. 2: Measuring system
1 Pump box 5 Collecting vessel
2Timer 6Analyzer
3 Control unit 7 Activated sludge basin
4 Diaphragm pump 8 Membrane filter
A Filtrate line to the analyzer1
1) Two sample hoses are integrated in a protecting hose:
1 x 1.5/3 mm (0.06/0.12 inch) PTFE hose (standard) and 1 x 2/4 mm (0.08/0.16 inch) PE hose (spare).
9Y-piece
B Filtrate line from the filter elements (PE, 4.5 m (14.76 ft), with hose heating)
12 3
7
6
5
4
8
A
B
STAMOLYSCA71
Endress Hauser
9

StamoClean CAT 430 Installation
Endress+Hauser 9
3.3 Installation conditions
3.3.1 Holders and filter elements dimensions

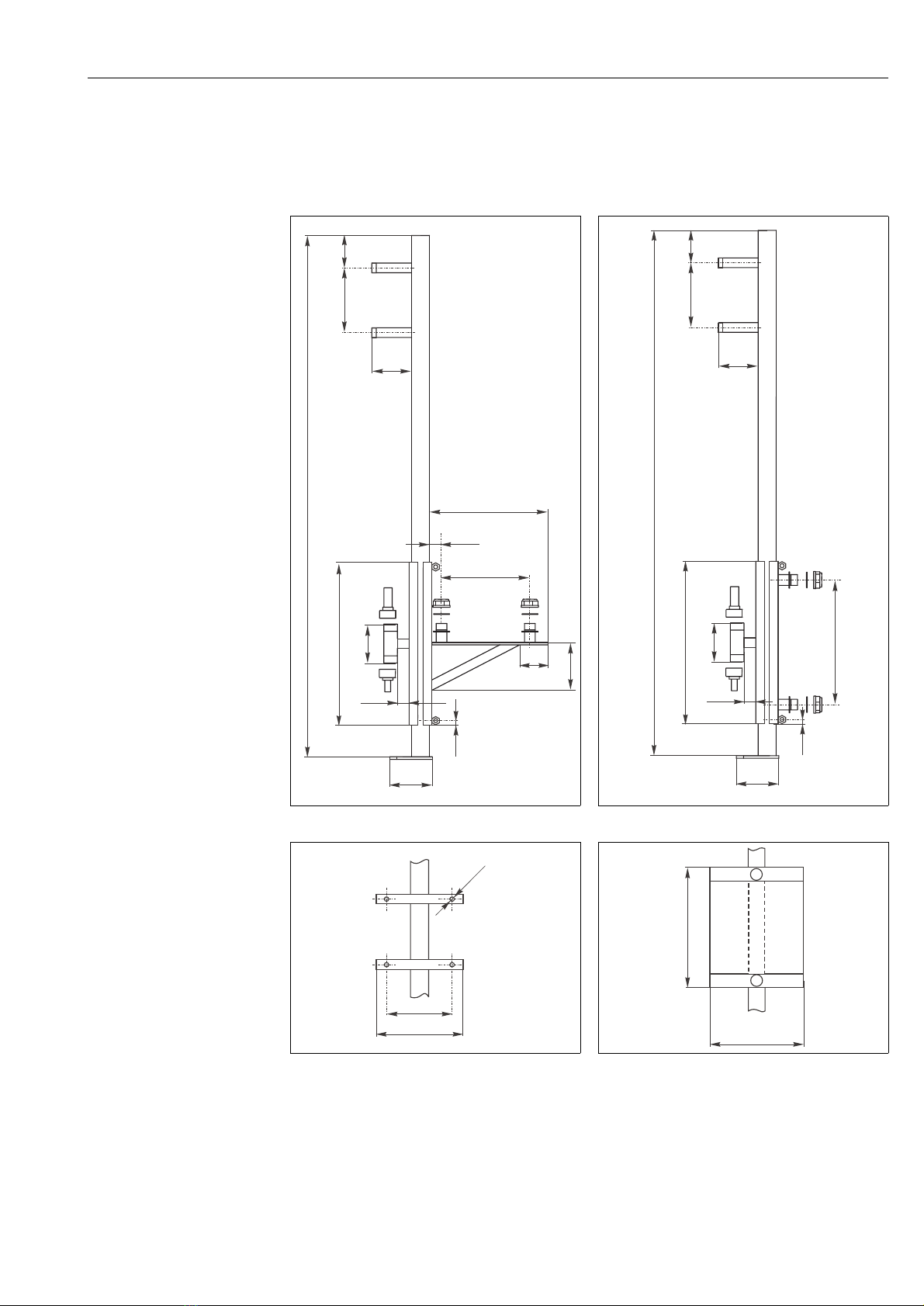

C07-CAT430xx-06-14-00-xx-006.EPS
Fig. 3: Holder for open channel, side view
C07-CAT430xx-06-14-00-xx-007.EPS
Fig. 4: Holder for basin, side view
C07-CAT430xx-06-14-00-xx-008.EPS
Fig. 5: Detail wall mounting, front view
C07-CAT430xx-06-14-00-xx-001.EPS
Fig. 6: Filter element
30
100
120
500
400
525
75
150
200 100
1500 / 1800
108
160
12
30
120
500
400
200 100
1500 / 1800
108
160
12
150
180
Ø12
350
450

Installation StamoClean CAT 430
10 Endress+Hauser
3.3.2 Control box dimensions
C07-CAT430xx-06-14-00-xx-003.EPS
Fig. 8: Control box dimensions, left front view, right side view
3.4 Installation instructions
To mount the individual modules, proceed as follows:
1. Mount the filter element holders.
2. Mount the guide tube, retaining slide and filtrate line.
3. Mount the filter elements.
4. Mount the control box.
5. Connect the filtrate lines to the measuring devices.
"
Caution!
•Before beginning installation, make sure that there are no pipes, stirrers or other
equipment up to approx. 1 m below the surface of the water at the intended point of
installation. This equipment can damage the filter elements.
•Check that there is sufficient space between the filter unit and the rim of the basin.
This applies especially to filter units with numerous filter elements.
If there is not sufficient space, a special holder must be used.
•The flow at the point of installation must not be > 2 m/s.
C07-CAT430xx-06-14-00-xx-009.EPS
Fig. 7: Adapter for mounting a 2nd filter plate
33
20 24
50
Ø40
G1
G1
400
327
420
4 x Ø 8.5
400
30 200

StamoClean CAT 430 Installation
Endress+Hauser 11
3.4.1 Mounting the filter element holders
!
Note!
You will need a hammer drill with a 12 mm drill bit.
1. Drill four holes with a diameter of 12 mm (0.47 inch) into the side of the wall facing
the basin. The distance from the upper end of the wall should be approx. 10 cm
(3.94 inch).
2. Screw the holders in.
Make sure, the basin holder is at least 60 cm (23.62 inch) below the water level
(resp. the open channel holder at least 35 cm (13.78 inch)).
3.4.2 Mounting the retaining slide and filtrate line
Perform the following steps outside the basin resp. the open channel:
1. Feed the filtrate hose (Fig. 9, pos. 3) of the filtrate line (pos. 1) through the T-piece
at the PVC retaining slide (pos. 5).
2. Screw the filtrate line in tight with the PVC hose gland of the T-piece.
3. Fasten the stainless steel chain at the retaining slide by directing it through the
heaxagon nut (pos. 8).
4. Remove the PVC screw caps (pos. 4) and place them so that they can be reached.
"
Caution!
•Secure the retaining slide, the stainless steel chain, the filtrate line and the PVC caps,
in order to prevent them falling into the basin.
•Do not push the retaining slide onto the mounting guide pipe before having mounted
the filter elements.

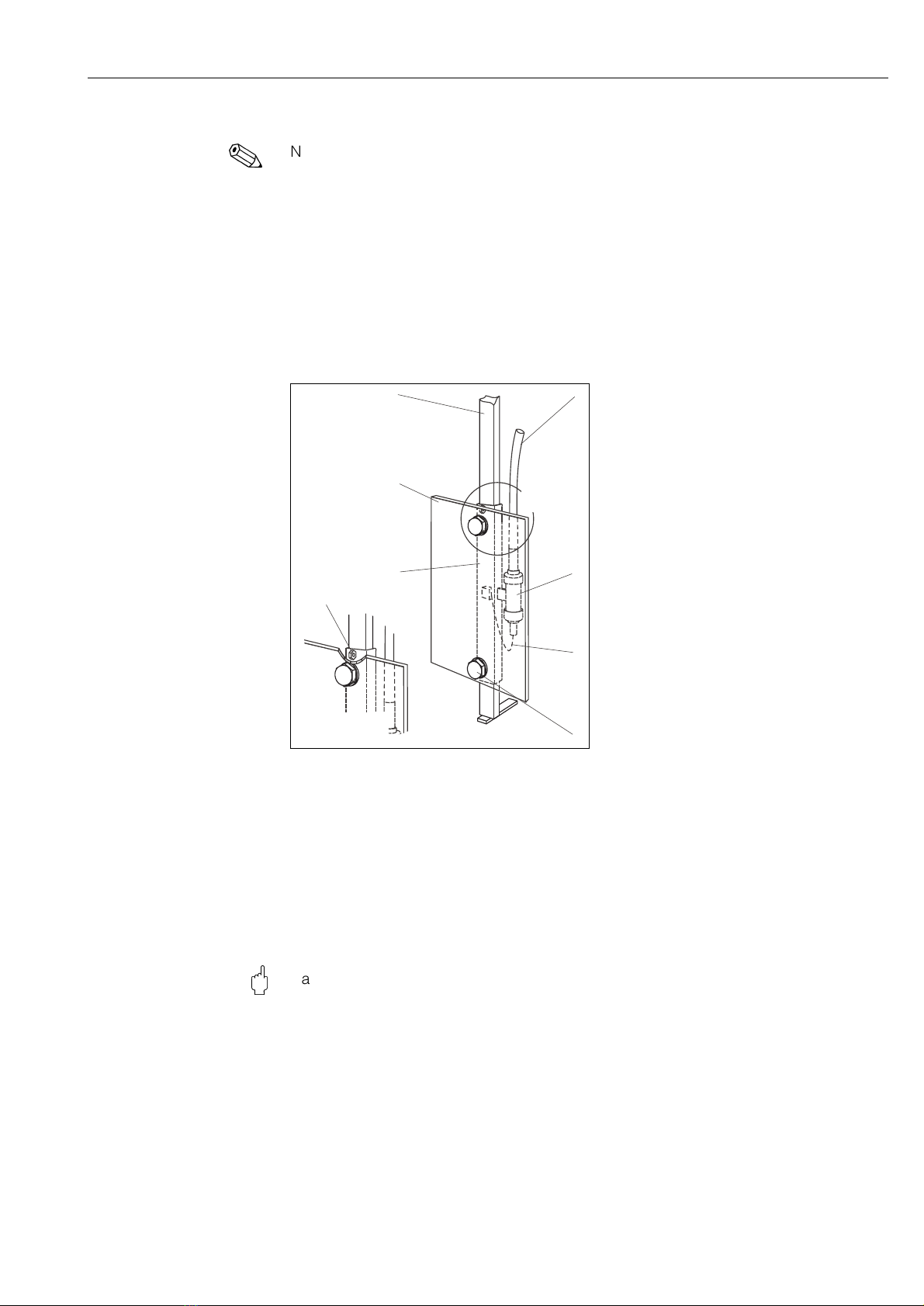

C07-CAT430xx-06-14-00-xx-002.eps
Fig. 9: Filterelement mit Halteschlitten
1
2
3
4
5
6
7
8
Filtrate line
T-piece
Filtrate hose
PVC thread cap
Retaining slide
Filter element
Mounting guide pipe
Hexagon nut
Detail A
8
1
3
2
4
5
6
7
Detail A

Installation StamoClean CAT 430
12 Endress+Hauser
3.4.3 Mounting the filter elements
The filter elements are delivered ready for use. They are heat-sealed in plastic
packaging. The packaging is filled with a preservative solution. The packaging is also
protected against mechanical damage through press boards.
"
Caution!
•The surface of the filter element membrane (bright surface) must not be touched or in
any way scratched with sharp objects or fingernails. Otherwise, the membrane is
irreparably damaged.
Therefore, always handle the filter element at the free-standing PVC ends.
•Always keep the membrane moist. Otherwise, it becomes brittle and breaks.
!
Note!
You will need an open-end wrench 14/15 a/f.
To mount the filter elements, proceed as follows:
1. Cut the adhesive strips on the packaging with a knife. Remove the press board.
2. Cut the upper end of the bag open and take the filter element out.
3. Remove the protective nonwoven from the filter plate.
4. Screw the supplied threaded elbow joint into the threaded hole on the reverse side
of the filter element. Carefully tighten the threaded elbow joint with the open-end
wrench, so that the O-ring on the threaded elbow joint seals cleanly to the PVC
carrier plate. Avoid over-tightening the thread.
5. Have the PVC screw caps ready.
6. Put the filter plate onto both threaded adapters at the retaining slide such that the
threaded elbow joint faces the retaining slide.
7. Screw the PVC cap on by hand.
8. Cut the filtrate hose to the right length, so that it runs in the bend.
!
Note!
When using numerous filter elements, ensure that the coloured identification sleeves on
the filtrate hoses do not fall off and are not cut off.
Used tubes should be shortened by approx. 10 mm because the lateral surface always
gets scratched somewhat when pulled out. This leads to leakages.
9. Slide the filtrate hose into the threaded elbow joint coupling and press it all the way
in. There is an O-ring in the coupling, so that the tube has to be pressed in until a
pressure point has been overcome.
10. Push the retaining slide with the filter element (pos. 5) onto the mounting guide
pipe.
11. Put the retaining slide with the filter element down by the chain until the limit stop.
Secure the chain end at the rail.
The complete filter unit has to be below the water level.

StamoClean CAT 430 Installation
Endress+Hauser 13
3.4.4 Mounting the control box
Depending on the version, the control box is delivered with two clips for rail mounting
or with four plastic brackets for wall mounting.
1. Mount the clips or the brackets at the holes intended for that purpose on the reverse
side of the control box. For this, the clips must be fixed to the upper holes.
2. Rail mounting:
Screw the clips on the highest, horizontally-running rail pipe, right by the filter
station. For the box to hang straight, the supplied rubber buffer must be attached
to the reverse side of the box. For this, drill a hole with a 4 mm diameter in the
middle of the box position, on which a lower horizontal rail pipe is situated. To
secure the rubber buffer, use the supplied Phillips screw.
3. Wall mounting:
Hold the box with the brackets screwed onto it against the wall and mark the holes.
Then drill the holes and use the supplied anchor pins to secure the box to the wall.
3.4.5 Connecting the filtrate lines to the measuring devices
For the connection of the filtrate lines please refer to the following figures.
C07-CAT430xx-06-14-00-xx-004.EPS
Fig. 10: Control box
1 Manometer 8 Pg hose gland for filtrate line from filter
2 Cable duct 9 Pipe socket with micro thermostat
3 Vent screw 10 Y fitting
4 Timer 11 Housing heater
5 Connection box (see “Electrical connection”) 12 Diaphragm pump
6 Pg cable gland for mains connection 13 Vent
7 Socket and filtrate line to the analyzer

Installation StamoClean CAT 430
14 Endress+Hauser
Filtrate line to the filter elements
If the filtrate pipe to the filter elements has not already been connected in the factory,
proceed as follows:
1. Slide the filtrate hoses protruding from the filtrate pipe (one to four, depending on
version) and the feed line of the heater cables through the Pg hose gland (Fig. 10,
pos. 8). Slide the spiral hose far enough into the Pg hose gland that it is flush inside
and then tighten the Pg hose gland.
2. Cut the filtrate hoses such that you can insert them comfortably into the Y fitting
plug-in connectors (pos. 10).
Filtrate line to the measuring device
The filtrate line to the measuring devices consists of a spiral jacket hose, a thin filtrate
hose and, depending on scope of order, an electric band heater.
In the spiral jacket hose are:
•PTFE hose 1.5/3 mm / 0.06/0.12 inch (standard)
•PE hose 2/4 mm / 0.08/0.16 inch (reserve).
"
Caution!
Lay hose lines such that they are protected against frost, where possible in
underground cable ducts. Make sure that you do not overstretch the hose.
Electric band heater up to 20 m and more (connection in the control box):
If the hoses and the electric band heater have not already been connected in the fac-
tory, proceed as follows:
1. Remove the plug from the thermal switch’s feeder cable with an edge-cutter.
2. Loosen the nut on the Pg hose gland from the end of the spiral hose.
3. Pull the thin filtrate hose first and then the thermal switch incl. its feeder cable
through the nut.
4. Guide all hose ends and the thermal switch through the hole into the control box.
5. Insert the Pg hose gland into the hole and screw the nut on tight.
6. Remove the foamed plastic pad from the pipe socket. Slide the thermal switch into
the pipe socket, such that the end of the electric band heater is at the top and the
feeder cable is at the bottom.
7. Push the foamed plastic pad over the thermal switch into the pipe socket.
"
Caution!
There is a micro thermostat for the housing heater in the pipe socket. Be careful when
inserting the thermal switch because there is not much space to work in.
C07-CAT430xx-11-14-00-xx-005.eps
Fig. 11: Pipe socket
1
2
3
4
5
6
7
Mains for band heater 230 V
Control box bottom
Cord 24 V
Micro thermostat 24 V
Band heater 230 V
Thermal switch (orange)
Pipe socket housing
1
2
3
4
5
6
7

StamoClean CAT 430 Installation
Endress+Hauser 15
8. Guide the feeder cable for the thermal switch through the cable duct (Fig. 10,
pos. 2) to the connection box (pos. 5). For electrical connection, please read the
chapter “Wiring”.
9. Cut the filtrate hose to the right length.
10. Insert the hose into the fitting on the pressure side (top) of the pump.
11. Now lay the filtrate line from the control box to the measuring devices. Where
possible, use available cable ducts or empty underground pipes. With the
corresponding order, the filtrate hose is protected by the electric band heater over
the entire area exposed to frost.
Electric band heater > 20 m (connection in the measuring device compartment):
Guide the filtrate line (opposite end from the thermal switch) and the electric band
heater from the measuring device compartment to the control box.
1. Guide the thermal switch near to the electrical connection (in the measuring device
compartment) into the open. Insert the thermal switch plug into an earth leakage
breaker protected socket.
2. Lay the filtrate line with the electric band heater to the control box. For this, use
available cable ducts or empty pipes.
3. Slide electric band heater, compressed air hose, filtrate hose and the spiral hose
far enough into the Pg gland that the spiral hose is flush inside.
4. Tighten the Pg gland.
5. Proceed as described above from item 8 for connection of the band heater in the
control box.
"
Caution!
In both cases, do not guide the band heater parallely to the thermal switch! Otherwise
the thermal switch reacts to the temperature of the heater instead of the ambient
temperature and therefore switches off the heater.
3.5 Post-installation check
•After installation, check that all connections are fitted tightly and are leakage resistant.
•Ensure that the hoses cannot be removed without effort.
•Check all hoses for damage.

Wiring StamoClean CAT 430
16 Endress+Hauser
4Wiring
4.1 Electrical connection
#
Warning!
•The electrical connection must only be carried out by authorised technical personnel.
•Technical personnel must have read and understood the instructions in this manual
and must adhere to them.
•Ensure that there is no voltage at the power cable before beginning the connection
work.

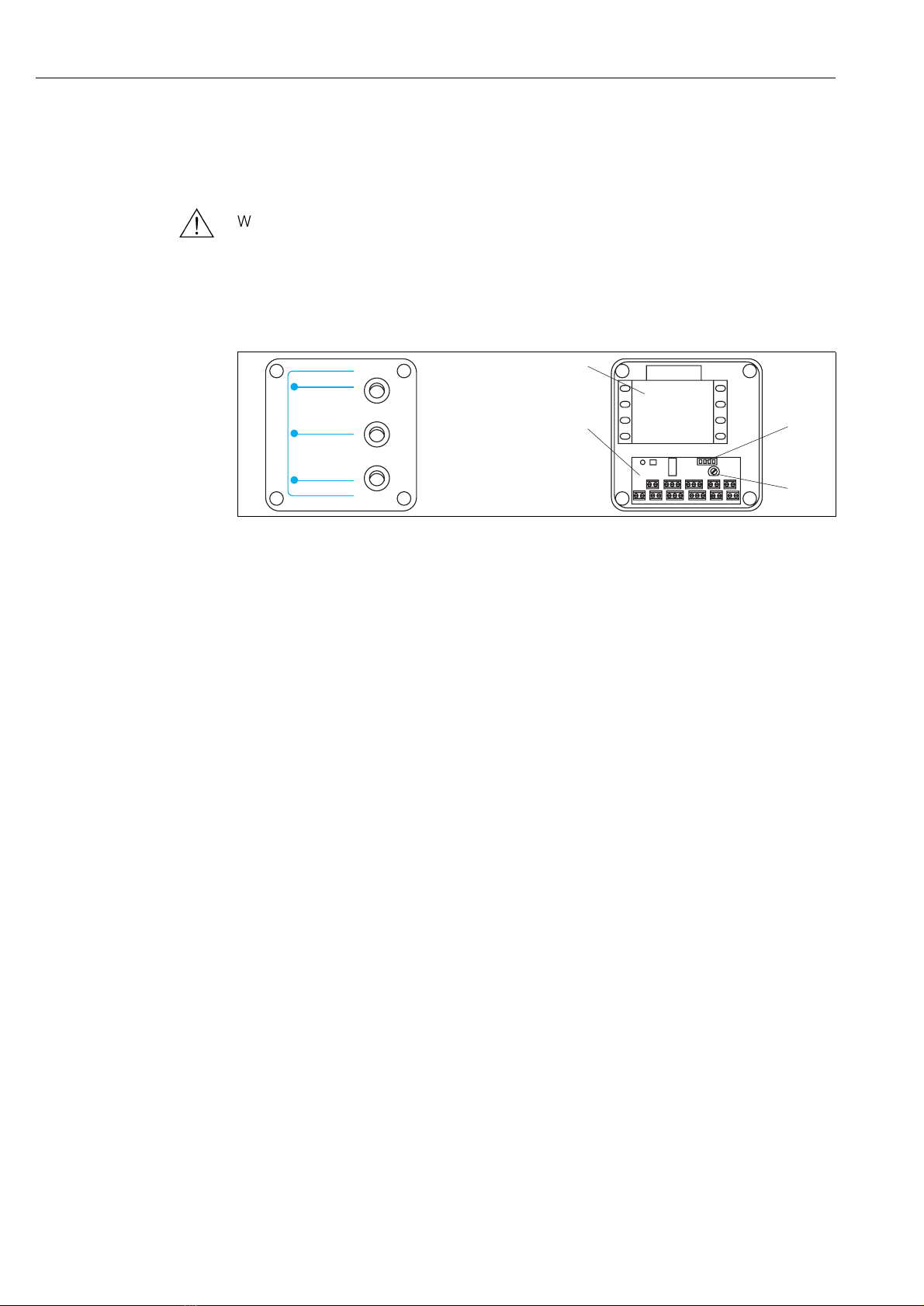

C07-CAT430xx-04-14-00-xx-003.eps
Fig. 12: Connection box: left cover, right inside the box
1 Transformer 24 V / 2A
2 Terminal block
3 4-pole connection
4 Fuse 1.6 A 5 x 20 mm
1. First of all, remove the covers on the cable ducts (→Fig. 12) and screw the
connection box on.
2. Disconnect the 4-pole connection between cover and terminal PCB (pos. 3) and
secure the cover.
3. Guide the power cable through the Pg cable gland into the pump box. Pull the
cable through the right-hand cable duct into the connection box.
4. Shorten the cable accordingly and connect the wires to terminals 15, 20 and 24.
5. Pull both wires for the supply lead of the 24 V - hose heater through the left-hand
cable duct to the connection box and clamp the wires to terminals 1 and 6.
6. Pull the supply lead of the orange thermal element on the electric band heater in
the left-hand cable duct up to the connection box.
7. Shorten the cable accordingly and connect the wires to terminals 8, 14 and 23.
1
2
4
3
Power
Netz
Control
Steuerung
Evacuate
Entlüften
23 24
789 13 14 1534
21 22
19 20
25 26
16 17 1810 11 1212 56

StamoClean CAT 430 Wiring
Endress+Hauser 17
4.2 Post-connection check

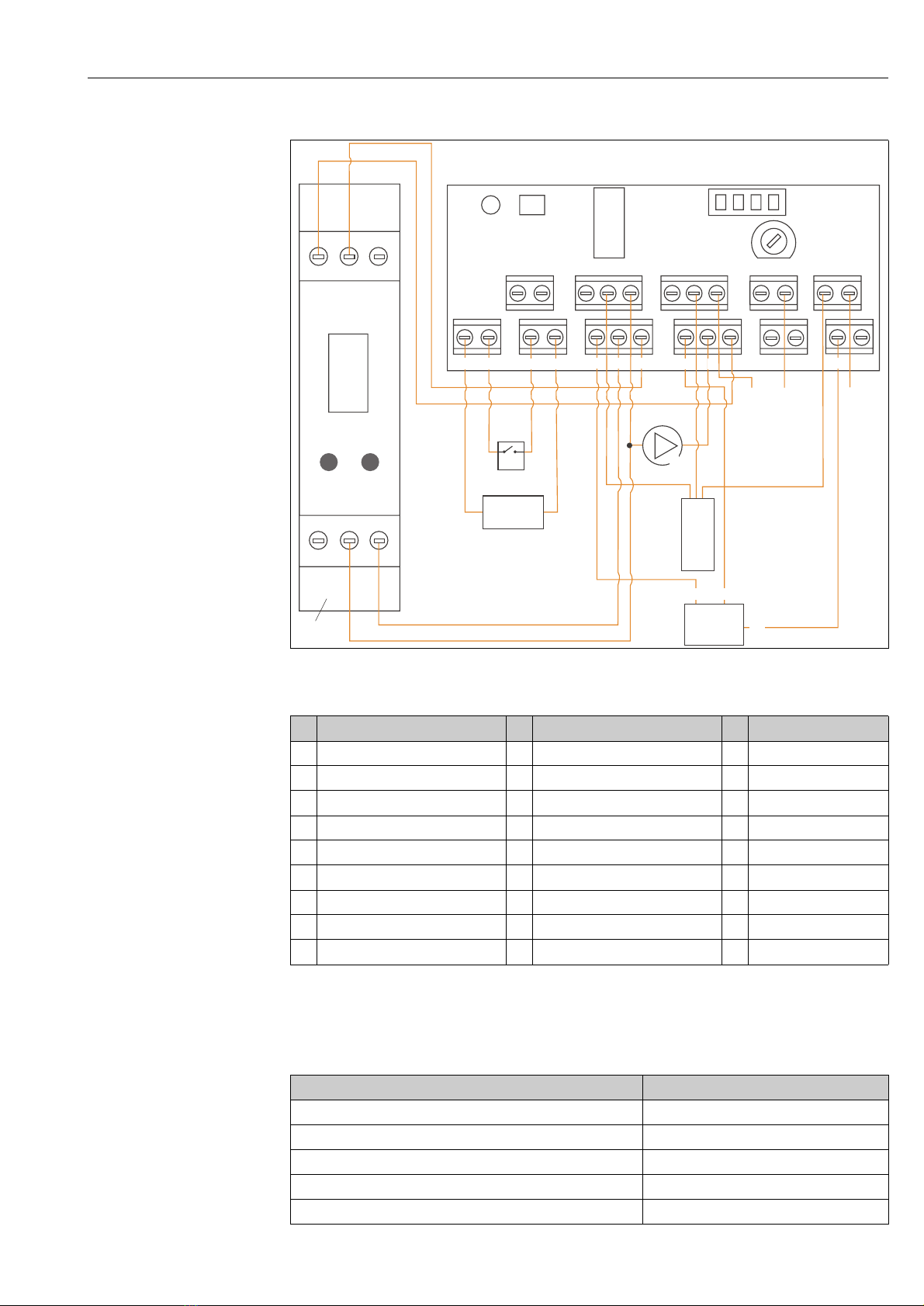

C07-CAT430xx-04-14-00-xx-004.EPS
Fig. 13: Control unit terminal block
a
b
Control
Thermal switch 24 V
c
d
Filtrate hose heater 24 V
Pump
e
f
Electric band heater
Housing heater
T1
1) T = terminal
Assignment T1Assignment T1Assignment
1 24 V to hose heater 10 Phase L housing heater 19 not connected
2 24 V from thermal switch 11 Phase L to control 6 20 Phase L mains supply
3 not connected 12 Phase L to control 2 21 not connected
4 not connected 13 Zero conductor (as required) 22 not connected
5 24 V to thermal switch 14 Electric band heater zero cond. 23 PE electric band heater
6 24 V to hose heater 15 Mains supply zero conductor 24 PE mains supply
7 Phase L from relay 16 Housing heater zero conductor 25 PE housing heater
8 Phase L electric band heater 17 Pump zero conductor 26 not connected
9 Phase L pump contin. operation 18 Control zero conductor
Checks Remarks
Supply voltage matches the specifications on nameplate? 230 V AC / 115 V AC
The mounted cables slack and not twisted?
Factory-set cable routing split properly? power cable/weak current cable
All the cable entries installed, tightened and sealed?
All cable entries mounted downwards or sideways? cable loops downwards: water drains off
23 24
7 8 9 13 14 153 4
21 22
19 20
123
456
PROG. RESET
NL PE
25 26
16 17 1810 11 121 2 5 6
a
b
c
f
e
d
LN
PE

Operation StamoClean CAT 430
18 Endress+Hauser
5Operation
5.1 Operation and commissioning
The following chapters provide you with information on the sample preparation unit’s
operating elements and explain how to make settings.
In Chap. 6, “Commissioning”, you will find the procedure for initial start-up and for daily
operation.
5.2 Display and operating elements
Main switch
Timer
The timer is a time relay of "Trumeter 7955 X" type. When CAT 430 is delivered, the timer
is ready to use installed and connected.
Please refer to the following figure for information only.
C07-CAT430xx-19-14-00-xx-002.eps
Fig. 14: Cover of connection box
1
2
3
Heating / Power on
Control
Suction hose evacuating (pump runs at
continuous operation)

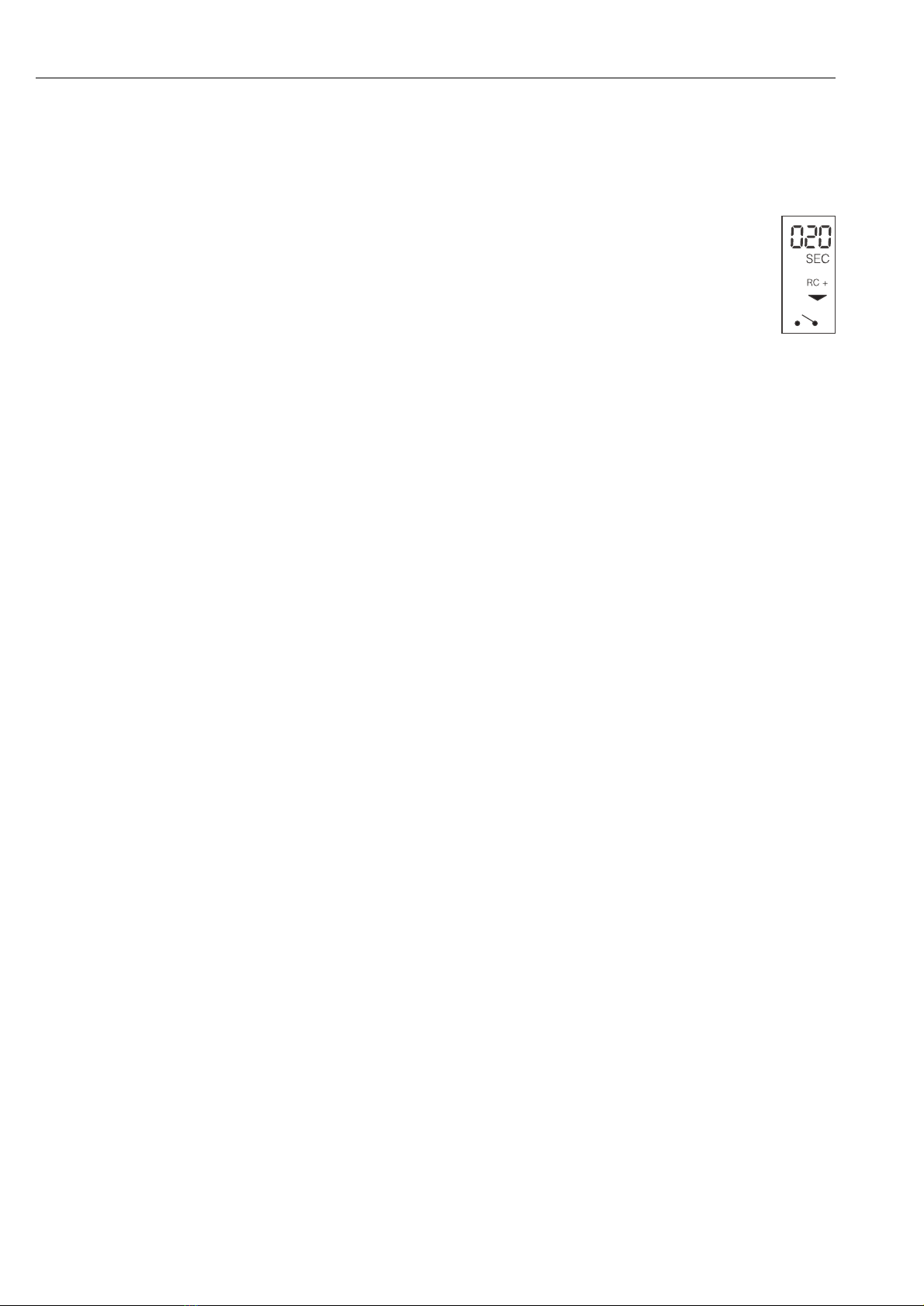

C07-CAT430xx-19-14-00-xx-0011.eps
Fig. 15: Trumeter 7955 X
1 terminal 18
2 terminal 12
5 pump and terminal 9
6 terminal 11
3,4 not connected
123
456
PROG. RESET

StamoClean CAT 430 Operation
Endress+Hauser 19
5.3 Local operation
5.3.1 Cycle times
For reliable operation and achievement of long rinsing intervals, sufficient pause times
between the pumping times are necessary.
The pause times depend on the number of filter elements and on the pumping
parameters for supply output and speed.
The factory-set values for pumping (On) and pause times (Off), as well as the fluid
quantities per pumping cycle are displayed in the following table.
5.3.2 Pump capacity
There are two rotary knobs on the right side of the pump to set the following:
1. Stroke length (large knob, front):
Depending on the number of filter elements, here you set:
– 50% (for one filter element)
– 100% (for two filter elements)
2. Clock pulse frequency (small knob, rear):
Always set 100% here (clockwise to the right limit stop).
!
Note!
In principle, you can make other settings for the cycle times.
Extending the pump time with constant pause times tends to result in shorter rinse
intervals. You should check whether this is acceptable for your application.
5.3.3 Timer setting
During operation of the CAT 430, the "Trumeter 7955 X" display shows the respective
operating status (On = pumping, Off = pause) and the remaining time until switching
over to the next operating status.
During programming, the current settings for pumping and pause are displayed.
This is how to program the time relay:
1. Hold down the "PROG" key until the countdown (3-2-1-0) is completed
and "RC" (without any additional symbols, i.e. not "RC=" or something
else) appears in the display.
If "RC" does not appear after the countdown, keep pressing "PROG"
until "RC" appears.
2. Press "RESET".
3. "0 SEC" (SEC under the number) appears on the right of the display.
4. Press "RESET" again.
5. A three-digit value for seconds now appears in the display. The last
figure flashes. Here, you can configure the Operating time of the pump
(pumping time).
6. Pressing "PROG" increases the flashing figure one at a time, with
"RESET" you can switch to setting the next figure.
7. Set the desired value for the pumping time.
8. After setting the value for the third figure, press "RESET" again.
Number of
filter elements
On / Off
[s]
Fluid quantity
per cycle [ml]
2 20 / 40 151
1) with stroke = 100%

Operation StamoClean CAT 430
20 Endress+Hauser
The setting for another three-digit value appears. Here, you can set the Pause time.
9. Proceed exactly as with the pumping time configuration.
10. Pressing "RESET" after setting the third figure, the "LEU" message appears in the
display. The time controller is activated as soon as voltage is supplied to the relay.
11. Keep pressing "RESET" until the relay icon appears in the display
again.
The programming procedure is completed.
12. Now switch the middle switch (controller) on the connection box off and
on again.
The controller starts.
