Manufacturer's Declaration Proline Promag 300 HART
4 Endress+Hauser

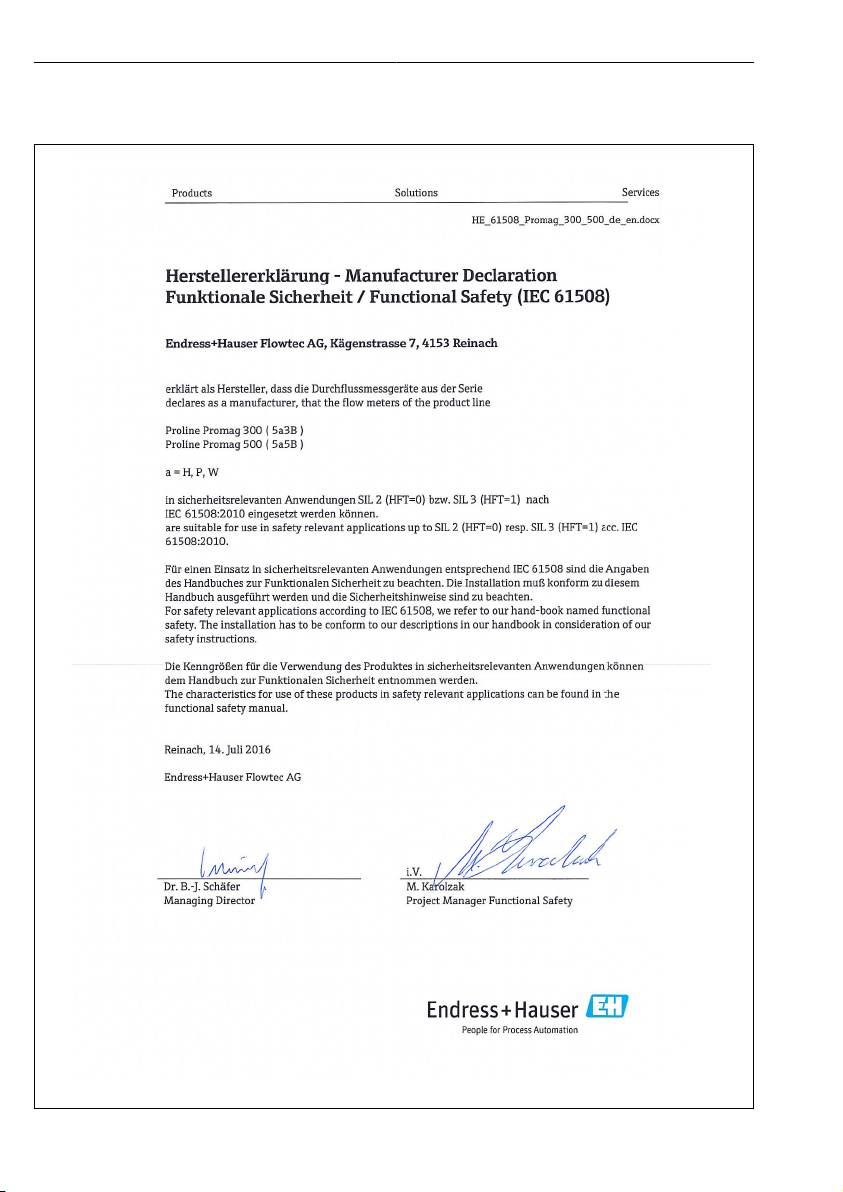

1 Manufacturer's Declaration
A0031601-EN

Proline Promag 300 HART Manufacturer's Declaration
Endress+Hauser 5
1.1 Safety-related characteristic values
General
Device designation and permitted
versions
5H3B (Promag H 300)
5P3B (Promag P 300)
5W3B (Promag W 300)
Order code for "Output; input 1":
• Option BA "4-20mA HART"
• Option BB "4-20mA + Wireless HART"
• Option CA "4-20mA HART Ex-i passive"
• Option CB "4-20mA Ex-i + Wireless HART"
• Option CC "4-20mA HART Ex-i active"
Order code for "Output; input 2":
All options
Order code for "Output; input 3":
All options
Order code for "Additional approval":
Option LA "SIL"
Safety-related output signal 4 to 20 mA (output; input 1)
Failure current ≤ 3.6 mA or ≥ 21 mA
Assessed measured variable/
function
Volume flow monitoring
Safety function(s) Min., Max., Range
Device type according to IEC
61508-2
 Type A  Type B
Operating mode  Low Demand Mode  High Demand Mode  Continuous Mode 1)
Valid hardware version (main
electronics)
From delivery date October 1, 2017
Valid firmware version 01.01.zz and higher (HART; from delivery date October 1, 2017)
Safety manual SD01740D
Type of assessment
(only 1 version can be selected)
 Complete HW/SW assessment in the context of development including
FMEDA and change process according to IEC 61508-2, 3
 Assessment of evidence for proven-in-use HW/SW including FMEDA and
change process according to IEC 61508-2, 3
 Analysis of HW/SW field data for evidence of "prior use" according to IEC
61511
 Assessment by FMEDA according to IEC 61508-2 for devices without software
Assessment by (including report
no. + FMEDA data source)
TÜV Rheinland Industrie Service GmbH – Certificate No. 968/FSP 1408.00/17
Test documents Development documents, test reports, data sheets
1) No continuous operation in accordance with IEC 61508: 2011 (Section 3.5.16).

Manufacturer's Declaration Proline Promag 300 HART
6 Endress+Hauser
SIL integrity
Systematic safety integrity  SIL 2 capable  SIL 3 capable
Hardware safety integrity Single-channel service
(HFT = 0)
 SIL 2 capable  SIL 3 capable
Multi-channel service
(HFT ≥ 1)
 SIL 2 capable  SIL 3 capable
FMEDA
Safety function(s) Min., Max., Range
Device model A1 A2
Option BA, BB Option CA, CB Option BA, BB Option CA, CB, CC
λDU 1) 132 FIT 128 FIT 152 FIT 148 FIT
λDD 1647 FIT 1627 FIT 2338 FIT 2317 FIT
λSU 1528 FIT 1724 FIT 1744 FIT 1940 FIT
λSD 1240 FIT 1226 FIT 2022 FIT 2009 FIT
SFF - Safe Failure Fraction 97 % 97 %
PFDavg for T1 = 1 year 2)
(single-channel architecture)
5.8 · 10-4 5.6 · 10-4 6.6 · 10-4 6.5 · 10-4
PFDavg for T1 = 4 years
(single-channel architecture)
2.3 · 10-3 2.6 · 10-3
PFH 6.6 · 10-8 6.4 · 10-8 7.6 · 10-4 7.4 · 10-4
PTC 3) Up to 99 % Up to 99 %
MTBFtot 4) 69 years 58 years 69 years 57 years
Diagnostic test interval 5) 30 min 30 min
Fault response time 6) 30 s 30 s
Process safety time 7) 50 h 50 h
Recommended test interval T14 years 3 years
MTTFd 8) 64 years 65 years 45 years 46 years
1) FIT = Failure In Time, number of failures per 109 h.
2) Valid for averaged ambient temperatures up to 40 °C (104 °F) in accordance with general standard for devices
with SIL capability.
3) PTC = Proof Test Coverage (diagnostic coverage achieved by device failure detection during manual proof testing).
4) This value takes into account all failure types of the electronic components as per Siemens SN29500.
5) All diagnostic functions are carried out at least once during this time.
6) Maximum time between fault detection and fault response.
7) The process safety time amounts to the diagnostic test interval * 100 (calculation as per IEC 61508).
8) MTTFd as per ISO 13849/IEC 62061 also includes soft errors (sporadic bit errors in data memories).

Proline Promag 300 HART Manufacturer's Declaration
Endress+Hauser 7
Note
The measuring device has been developed for use in "Low Demand" and "High Demand" mode.
Explanation
Our in-house quality management system saves information on safety-related systematic errors that will become
known in the future.

Certificate Proline Promag 300 HART
8 Endress+Hauser
2 Certificate
Certificate can be accessed at www.endress.com:
1. Downloads
2. Approvals
3. Type: Functional safety (SIL)
4. Product root: e.g. 5H3B
5. Press the "Search" button

Proline Promag 300 HART About this document
Endress+Hauser 9
3 About this document
3.1 Document function
This document is part of the Operating Instructions and serves as a reference for application-
specific parameters and notes.
General information about functional safety SIL is available in the Download Area of the
Endress+Hauser website: www.endress.com/SIL.
3.2 Using this document
3.2.1 Information on the document structure
For additional information regarding the arrangement of the parameters, along with a
short description, according to the Operation menu, Setup menu, Diagnostics menu and
the operating concept, see the Operating Instructions, "Supplementary device
documentation" section
3.3 Symbols
3.3.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
3.3.2 Symbols for certain types of Information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.

About this document Proline Promag 300 HART
10 Endress+Hauser
Symbol Meaning
Reference to documentation
A
Reference to page
Reference to graphic
Notice or individual step to be observed
1.
,
2.
,
3.
… Series of steps
Result of a step
A0028662
Operation via local display
A0028663
Operation via operating tool
A0028665
Write-protected parameter
3.3.3 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
3.4 Supplementary device documentation
For an overview of the scope of the associated Technical Documentation, refer to the
following:
•Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the
nameplate
•Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix
code on nameplate.
This Special Documentation and other documentation is available:
In the Download Area of the Endress+Hauser website: www.endress.com → Downloads
This documentation is an integral part of the following Operating Instructions:

Proline Promag 300 HART Design
Endress+Hauser 11
Measuring device Documentation code
Promag H 300 BA01392D
Promag P 300 BA01393D
Promag W 300 BA01918D
4 Design
4.1 Permitted device types
The information on functional safety contained in this manual relates to the device versions
listed below and are valid as of the specified software and hardware version.
Unless otherwise specified, all subsequent versions can also be used for safety functions.
A modification process according to IEC 61508 is applied for any device modifications.
Valid device versions for safety-related use:
4.1.1 Order codes
Feature Designation Option selected
– Order code 5H3B (Promag H 300)
5P3B (Promag P 300)
5W3B (Promag W 300)
000 Nominal diameter All
010 Approval; transmitter + sensor All
015 Power supply All
020 Output; input 1 1) • Option BA "4-20mA HART"
• Option BB "4-20mA + Wireless HART"
• Option CA "4-20mA HART Ex-i passive"
• Option CB "4-20mA Ex-i + Wireless HART"
• Option CC "4-20mA HART Ex-i active"
021 Output; input 2 All
022 Output; input 3 All
030 Display; operation All
040 Housing All
050 Electrical connection All
060 Liner All
070 Process connection All
075 Electrodes All
080 Calibration flow All

Design Proline Promag 300 HART
12 Endress+Hauser
Feature Designation Option selected
480 Device model All
500 Display operating language All
520 Sensor option All
530 Customer-specific configuration All
540 Application package • EA "Extended HistoROM"
• EB "Heartbeat Verification + Monitoring"
• EL "OPC-UA server"
550 2) Suitability for custody transfer measurement All
570 Service All
580 Test, certificate All
590 Additional approval LA (= SIL) 3)
610 Accessory mounted All
620 Accessory enclosed All
850 Firmware version Firmware with SIL capability, e.g. 01.01.zz (HART)
895 Marking All
1) In devices with several outputs, only current output 1 (terminals 26 and 27) is suitable for safety functions. The
other outputs can, if necessary, be connected for non-safety-oriented purposes.
2) Only for devices with approval for custody transfer
3) Additional selection of further approvals is possible.
4.1.2 Suitability of the measuring device
1. Carefully select the nominal diameter of the measuring device in accordance with the
application's expected flow rates.
 The maximum flow rate during operation must not exceed the specified maximum
value for the sensor.
For further information on selecting the nominal diameter, see the Technical
Information
2. In SIL mode: ensure that the measuring tube is filled.
 Empty pipe detection is switched to the Off option in the SIL mode.

Proline Promag 300 HART Design
Endress+Hauser 13
NOTICE
Use the measuring device according to the specifications.
‣Pay attention to the medium properties and the environmental conditions.
‣Carefully follow instructions pertaining to critical process situations and installation
conditions.
Detailed information on:
• Mounting
• Electrical connection
• Medium properties
• Environment
• Process
Operating Instructions →  10
LCAUTION
For liquids that readily boil or in the case of suction lines:
‣It is the responsibility of the user to assess the influence of the process conditions and the
medium on the measurement result in safety equipment, particularly the occurrence of
changes in the magnetic system due to external magnetic fields or deposit buildup.
‣Ensure that the vapor pressure is not undershot and that the liquid does not start to boil.
‣Please ensure that there is never any outgassing of the gases naturally contained in many
liquids. Sufficiently high system pressure prevents the occurrence of these effects.
‣In order to guarantee correct measurement, ensure that no cavitation occurs.
Further information on the suitability of the measuring device for safety-related
operation is available from your Endress+Hauser sales center.
4.2 Marking
SIL certified devices are marked with the SIL logo on the nameplate.

Design Proline Promag 300 HART
14 Endress+Hauser
Order code:
Ser. no.:
Ext. ord. cd.:
ii
Date:
1
A0031473

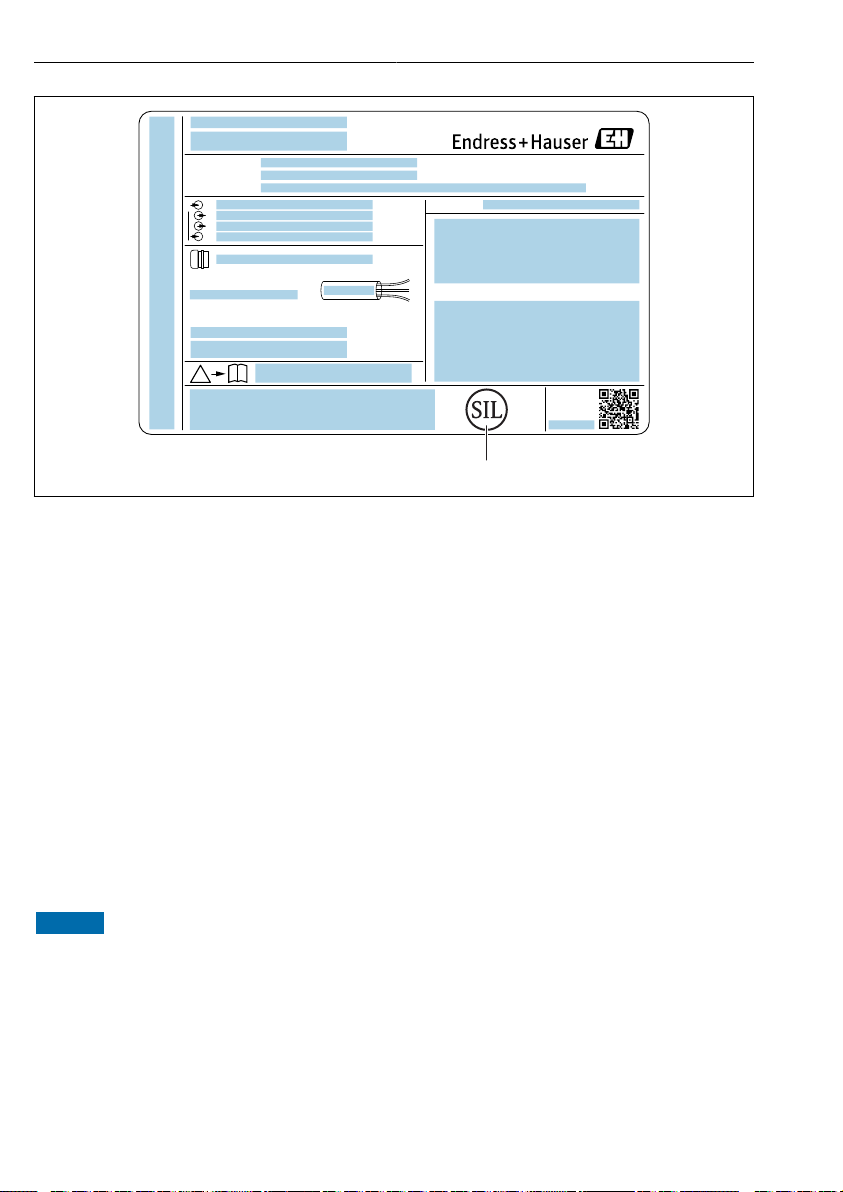

1 SIL logo
4.3 Notes on the redundant use of multiple sensors
This section provides additional information regarding the use of homogeneously redundant
sensors e.g. in 1oo2 or 2oo3 architectures.
The common cause factors β and βD indicated below are minimum values for the device. These
must be used when designing the sensor subsystem:
• Minimum value β for homogeneously redundant use: 2 %
• Minimum value βD for homogeneously redundant use: 1 %
The device meets the requirements for SIL 3 in homogeneously redundant applications.
If two sensors with an identical design (same type and same nominal diameter) are directly
connected to one another flange-to-flange, mutual acoustic interference cannot be entirely
ruled out. To fully rule out potential interference, it is recommended to install the sensors at
different points of the pipe or to insert a spacer between the two sensors. The spacer must be
at least half as long as the sensor.
NOTICE
Note the following if a fault is detected in one of the redundantly operated devices
during the proof test:
‣Check the other devices to see if the same fault occurs there.
4.3.1 Safety-related output signal
The device's safety-related signal is the 4 to 20 mA analog output signal as per NAMUR NE43.
All safety measures refer to this signal exclusively.

Proline Promag 300 HART Design
Endress+Hauser 15
The device additionally communicates for information only via HART and contains all HART
features with additional device information. HART communication is not part of the safety
function.
The safety-related output signal is fed to a downstream logic unit, e.g. a programmable logic
controller or a limit signal transmitter, where it is monitored for the following:
• Overshooting and/or undershooting of a specified limit value
• The occurrence of a fault: e.g. failure current (≤ 3.6 mA, ≥ 21 mA, signal cable open circuit
or short-circuit)
In the event of a fault, it must be ensured that the equipment under control achieves or
maintains a safe state.
The safety-related errors are broken down in accordance with IEC/EN 61508 into different
categories and implications for the safety-related output signal.
Safety-related
error
Explanation Item no →  1
Impact on measuring
uncertainty
Implication for safety-related
output signal
No device error Safe:
No error
1
Within specification
None
λSD Safe detected:
Safe, detectable failure present
3
No implications
Causes a failure current at the
output signal
λSU Safe undetected:
Safe, undetectable failure
present
2
May be outside specifications
Is within the defined error range
λDD Dangerous detected:
Dangerous but detectable failure
present (diagnosis in device)
3
No implications
Causes a failure current at the
output signal

Design Proline Promag 300 HART
16 Endress+Hauser
Safety-related
error
Explanation Item no →  1
Impact on measuring
uncertainty
Implication for safety-related
output signal
λDU Dangerous undetected:
Dangerous, undetectable failure
present
4
May be outside the defined
error range
May be outside the defined
error range
I [mA]
B
C
A
t
3
31
2
4
A0034924
 1 Safety-related output signal
A Failure current ≥ 21 mA
B Measuring uncertainty according to device's technical data
C Failure current ≤ 3.6 mA
4.4 Basic conditions for use in safety-related applications
1. The measuring device must be used correctly for the specific application, taking into
account the medium properties and ambient conditions.
2. Carefully follow safety instructions pertaining to critical process situations and
installation conditions, which can be found in the device documentation.
3. Observe application-specific limits.
4. Do not exceed technical specifications of measuring device.
Information on the safety-related signal
For detailed information on the technical specifications, see the device documentation
→  10.

Proline Promag 300 HART Design
Endress+Hauser 17
4.4.1 Additional restrictions for safety-related use
An incorrect output signal that deviates from the value specified in the Operating Instructions
but is still in the range of 4 to 20 mA, is considered a dangerous, undetected failure.
Information on measured error→  17
For detailed information on the maximum measured error, see the Operating
Instructions →  10
4.5 Safety measured error
When the measured value is transmitted via the 4–20 mA current output, the measuring
device's relative measured error is made up of the contribution of the digitally determined
measured value and the accuracy of the analog current output. These contributions, which are
listed in the device documentation, apply under reference operating conditions and can
depend on the sensor version ordered.
For further information on calculating the measured error, see the Technical
Information.
4.5.1 Power supply to the 4–20 mA current output
Overvoltages at the 4–20 mA current output (passive, output; input 1) - caused by a fault in
the supply unit, for example - can result in a leak current in the device's input protection unit.
This may lead to falsification of the output signal by more than the specified error or the
minimum failure current (3.6 mA) can no longer be set due to the leak current.
‣Use a 4–20 mA power supply unit with either voltage limitation or voltage monitoring.
NOTICE
The safety-related connection values depend on the Ex approval.
‣Pay attention to the safety-related connection values.
For detailed information on the connection values, see the Safety Instructions.
4.5.2 HART communication
The measuring device also communicates via HART or WirelessHART in the SIL mode. This
comprises all the HART features with additional device information.
NOTICE
The measuring device's safety-related signal is the 4–20 mA analog output signal
(output; input 1).
All safety measures refer to this signal exclusively.
‣Please note the following: →  14.

Design Proline Promag 300 HART
18 Endress+Hauser
NOTICE
When the SIL locking code is entered, the device parameters that affect the safety-
related output signal are locked and write-protected. It is still possible to read the
parameters.
When SIL locking is enabled, restrictions apply on all communication options, such as the
service interface (CDI-RJ45), HART protocol and WirelessHART protocol, local display and
WLAN.
‣Deactivation of the SIL mode →  28.

Proline Promag 300 HART Commissioning (installation and configuration)
Endress+Hauser 19
4.6 Useful lifetime of electrical components
The established failure rates of electric components apply for a useful lifetime of 12 years as
per IEC 61508-2: 2010, Section 7.4.9.5, Note 3. Once a device has exceeded its useful
lifetime, it should be replaced.
The device's year of manufacture is coded in the first character of the serial number (→ table
below).
Example: serial number L5ABBF02000 → year of manufacture 2016
ASCII character Meaning ASCII character Meaning ASCII character Meaning
D 2010 K 2015 R 2020
E 2011 L 2016 S 2021
F 2012 M 2017 T 2022
H 2013 N 2018 V 2023
J 2014 P 2019 W 2024
5 Commissioning (installation and configuration)
5.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill the
following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
The operating personnel must fulfill the following requirements:
‣Are instructed and authorized according to the requirements of the task by the facility's
owner-operator.
‣Follow the instructions in this manual.
5.2 Installation
The mounting and wiring of the device and the permitted orientations are described in the
Operating Instructions pertaining to the device.
5.3 Commissioning
For detailed information on commissioning, see the Operating Instructions.

Commissioning (installation and configuration) Proline Promag 300 HART
20 Endress+Hauser
5.4 Operation
For detailed information on the operating options, see the Operating Instructions.
5.5 Parameter configuration for safety-related applications
5.5.1 Adjustment of the measuring point
The measuring point is calibrated via the operating interfaces. A wizard guides you
systematically through all the submenus and parameters that have to be set for configuring
the measuring device.
For detailed information on the operating options, see the Operating Instructions.
For detailed information on configuring the measuring device, see the Operating
Instructions and Description of Device Parameters
Device protection
The devices can be protected against external influences as follows:
• Hardware write protection
• Software write protection
The application of these methods is described below.
5.5.2 Activation of SIL mode
To activate the SIL mode, the device must run through a confirmation sequence. While
running through this sequence, critical parameters are either set automatically by the device
to standard values or transferred to the local display/operating tool to enable verification of
the setting. On completion of parameter configuration, the SIL mode of the device must be
enabled with a SIL locking code.
Availability of the SIL mode function
NOTICE
The SIL confirmation sequence is only visible on the local display and in the operating
tools for devices with the order code for "Additional approval", option LA "SIL".
‣For this reason, the SIL mode can also only be activated on these measuring devices.
‣If the LA "SIL" option was ordered for the flowmeter ex works, this option is available when
the measuring device is delivered to the customer. Access is via the operating interfaces of
the measuring device.
‣If the order option cannot be accessed in the measuring device, the function cannot be
retrofitted during the life cycle of the device. If you have any questions please contact your
Endress+Hauser service or sales organization.
Ways to check function availability in the measuring device:
Using the serial number:
Device viewer 1) → Order code for "Additional approval", option LA "SIL"
1) www.endress.com/deviceviewer
