Endress+Hauser Cerabar S Series User manual

cerabar S
Foundation Fieldbus
Pressure Measurement
Operating Instructions
F
TM
TM
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
4...20mA
Test
123
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
4...20mA
Tes t
123
BA 211P/00/en/09.04
Software version 0.3
52006135
Hauser+Endress
The Power of Know How

Short Operating Instructions
– –
++
ZS
Remote operation
over configuration
tool
Local operation
Cerabar S
without/with display
– pressure only
Section 4.1
set MR
= required MR Pressure
yes
MR = measuring range
Chapter 5.1
Calibration with
and without
reference pressure
Chapter 6.2
Empty/full
calibration
Chapter 6.3
Dry
calibration
Level
or Pressure?
Level
Chapters 6.4 - 6.8
Locking and
other settings
Section 4.2, 5 and 6
Chapter 5.5
Locking/Unlocking
with keys
Chapter 5.2
Calibration via
configuration tool
Chapters 5.3 - 5.7
Locking and
other settings
no
yesno
Chapter 5.3
Damping
(only via
configuration tool)
Damping?
Short Operating Instructions Cerabar S FF
2Endress+Hauser

Table of Contents
Notes on Safety ........... 5
Safety Conventions and Symbols ... 6
1Introduction ............ 7
1.1 Measuring system . . . . . . . . 8
2Installation ............. 9
2.1 Mounting instructions without
diaphragm seal . . . . . . . . . 9
2.2 Mounting instructions with diaphragm
seal . . . . . . . . . . . . . . 11
2.3 Mounting accessories . . . . . . 12
2.4 Mounting position . . . . . . . . 13
2.5 Connection . . . . . . . . . . . 14
2.6 Wiring examples . . . . . . . . . 15
3Foundation Fieldbus Interface ..... 16
3.1 Synopsis . . . . . . . . . . . . 16
3.2 Hardware settings . . . . . . . . 17
3.3 Network configuration . . . . . . 18
3.4 Resource block . . . . . . . . . 19
3.5 Transducer block . . . . . . . . 20
3.6 Analog input block . . . . . . . . 24
3.7 Control loops . . . . . . . . . . 27
3.8 Methods . . . . . . . . . . . . 28
3.9 Checklist for commissioning . . . . 29
4Operation ............. 30
4.1 On-site operation . . . . . . . . 30
4.2 Calibration via a configuration tool . . 31
5Pressure Measurement ........ 32
5.1 Calibration with keys . . . . . . . 32
5.2 Calibration via a configuration tool . . 33
5.3 Damping . . . . . . . . . . . . 35
5.4 Maximum pointer function . . . . . 36
5.5 Locking/unlocking . . . . . . . . 36
5.6 Analog input block parameters . . . 37
5.7 Measuring point information . . . . 38
6Level Measurement ......... 39
6.1 Calibration via a configuration tool . . 39
6.2 Empty/full calibration . . . . . . . 41
6.3 Dry calibration . . . . . . . . . 42
6.4 Damping . . . . . . . . . . . . 43
6.5 Maximum pointer function . . . . . 43
6.6 Locking/unlocking . . . . . . . . 44
6.7 Analog input block parameters . . . 45
6.8 Measuring point information . . . . 46
7Diagnosis and Trouble-Shooting ....47
7.1 Diagnosis of errors and warnings . . 47
7.2 Simulation . . . . . . . . . . . 48
7.3 Reset . . . . . . . . . . . . . 48
8Maintenance and Repair .......49
8.1 Repair . . . . . . . . . . . . . 49
8.2 Mounting the display . . . . . . . 50
8.3 Changing the sensor module and
electronics . . . . . . . . . . . 51
8.4 Changing the seal . . . . . . . . 52
8.5 Replacement parts . . . . . . . . 52
9Technical Data ...........54
Index ...............57
Cerabar S FF Table of Contents
Endress+Hauser 3

Software History
Software Changes Significance
0.3
Software History Cerabar S FF
4Endress+Hauser

Notes on Safety
Approved usageThe pressure transmitter Cerabar S is a Foundation Fieldbus device which, depending
upon the version, is used for measuring gauge or absolute pressure. Level measurement
is also possible when a Foundation Fieldbus tool is used.
Installation,
commissioning,
operation
The Cerabar S has been designed to operate safely in accordance with current technical,
safety and EU standards. If installed incorrectly or used for applications for which it is
not intended, however, it is possible that application-related dangers may arise, e.g.
product overflow due to incorrect installation or calibration. For this reason, the instrument
must be installed, connected, operated and maintained to the instructions in this manual
personnel must be authorised and suitably qualiflied. The manual must have been read
and understood, and the instructions followed. Modifications and repairs to the device
are permissible only when they are expressly approved in the manual.
Explosion hazardous
area
If the device is to be installed in an explosion hazardous area, then the specifications in
the certificate as well as all national and local regulations must be observed. The
instrument can be delivered with the certificates listed in the table below. The certificate
can be identified from the first letter of the order code stamped on the nameplate.
•Ensure that all personnel are suitably qualified.
•Observe the specifications in the certificate as well as national and local regulations.
•Take special care with regard to the grounding of the bus cable screening.
Recommendations are to be found in the FF specification or IEC 79–14.
Code Certificate Protection
R Standard none
G CENELEC EEx ia IIC T4/T6
G ATEX 100 ATEX II 1/2 G EEx ia IIC T4/T6
I ATEX 100 PMP: ATEX II 2 G EEx d IIC T5/T6
PMC: ATEX II 2 G EEx d [ia] IIC T6
D PTB, Zone 0 EEx ia IIC T4/T6
Q FM Explosion proof Class I, II, III Div. 1, Groups A…G
O FM IS Class I, II, III, Div. 1, Groups A…G
S CSA IS Class I, II, III, Div.1, Groups A…G
U CSA Explosion proof Class I, II, III, Div. 1, Groups B…G (in preparation)
Certificates for applications in
explosion hazardous areas
ENDRESS+HAUSER
CERABAR S PMC/PMP
Order No. PMC xxx –
Order No. PMP xxx –
Cerabar S FF Notes on Safety
Endress+Hauser 5

Safety Conventions and Symbols
In order to highlight safety-relevant or alternative operating procedures in the manual,
the following conventions have been used, each indicated by a corresponding icon in
the margin.
Notes on safety
Ignition protection
Electrical symbols
Symbol Meaning
Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned.
Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to
personal injury or incorrect functioning of the instrument.
Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to
personal injury, a safety hazard or destruction of the instrument.
Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion
hazardous area.
Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas.
– Devices located in and wiring entering areas with the designation “explosion hazardous
areas” must conform with the stated type of protection.
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas.
– Devices located in safe areas still require a certificate if their outputs run into explosion
hazardous areas.
Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be
applied or supplied.
Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by
means of an earth grounding system.
Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to
the equipment.
Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice.
Note!
Caution!
Safety Conventions and Symbols Cerabar S FF
6Endress+Hauser

1 Introduction
ApplicationsThe Cerabar S pressure transmitter measures the pressure of gases, steam/vapour and
liquids and can be used in all areas of chemical and process engineering.
Operating principle
Ceramic sensor
The system pressure acts directly on the
rugged ceramic diaphragm of the pressure
sensor deflecting it by a maximum of
0.025 mm. A pressure-proportional change
in the capacitance is measured by the
electrodes on the ceramic substrate and
diaphragm. The measuring range is
determined by the thickness of the ceramic
diaphragm.
Metal sensor
The process pressure deflects the
separating diaphragm with a filling liquid
transmitting the pressure to a resistance
bridge. The bridge output voltage, which is
proportional to pressure, is then measured
and processed.
Level measurement
The hydrostatic pressure of a column of
liquid enables its level to be measured
continuously by a pressure transmitterif the
density ρof the liquid is known.
h = phydr/ρ·g
0 - 10 bar
0 - 10 bar 0 - 10 bar
Version with
thread Version with diaphragm seal
for flange mounting
Version with
diaphragm seal
for hygienic applications
BA211Y04
Figure 1.1
Examples of the Cerabar S
pressure transmitter
BA211Y05
Ceramic
support
Electrode
Resistance
bridge
Filling fluid
Diaphragm
Diaphragm
Ceramic measuring cell
Metallic measuring cell
Figure 1.2
Ceramic and metallic measuring cells
Cerabar S FF 1 Introduction
Endress+Hauser 7

1.1 Measuring system
Measuring point In the simplest case, the complete measuring point comprises:
•Cerabar S transmitter with Foundation Fieldbus protocol
•Network Configuration Tool, e.g. National Instruments Fieldmanager
Number of transmitters The maximum number of transmitters on a bus segment is determined by their current
consumption, the required bus length and if installed the power of the link.
Normally, however:
•10 Cerabar S for EEx ia applications
•max. 32 Cerabar S for non-hazardous application
can be operated on a bus segment. Cerabar S consumes max. 11.5 mA per device.
Refer also to the FF specification or IEC 61158-2 or to the Internet address
"http://www.fieldbus.org".
TT
0- 10 bar0- 10 bar
0- 10 bar0- 10 bar
0- 10 bar0- 10 bar
Personal
computer e.g.
with NI-FBUS
configurator
BA211Y06
Cerabar S with
FF protocol
power supply
power conditioner
Figure 1.3
Measuring point with Cerabar S
T: bus terminator
1 Introduction Cerabar S FF
8Endress+Hauser

2 Installation
This section describes the mechanical installation of Cerabar S with and without
diaphragm seals.
2.1 Mounting instructions without diaphragm seal
Cerabar S
without diaphragm seal
– PMC 731
– PMP 731
The Cerabar S without diaphragm seal is mounted in the same way as a manometer. The
use of shut-off valves and pigtails is recommended. Its position depends upon the
application.
•Measurement in gases:
Mount the shut-off valve above the
tapping point so that condensate can
run back into the process.
•Measurement in steam:
Mount with a pigtail above the tapping
point.
The pigtail reduces the temperature in
front of the diaphragm to almost
ambient temperature. The pigtail must
be filled with water before start-up.
0 - 10 bar
BA211Y07
Figure 2.1
Mounted on a shut-off valve for
measuring gases
0 - 10 bar
BA211Y08
Figure 2.2
Mounted with U-shaped pigtail
for measuring steam/vapour
0 - 10 bar
BA211Y09
Figure 2.3
Mounted with circular pigtail for
measuring steam/vapour
Cerabar S FF 2 Installation
Endress+Hauser 9

•Measurement in liquids:
Mount on the shut-off valve below the
tapping point or at the same height
PVDF adapter For instruments with PVC adapter, a maximum torque of 7 Nm is permitted. The thread
connection may become loose at high temperatures and pressures. This means that the
integrity of the thread must be checked regularly and may need to be tightened using
the torque given above. Teflon tape is recommended for sealing with the ½ NPT thread.
Mounting the PMP 731 The PMP 731 with metallic sensor is available in the following versions:
•with flush-mounted diaphragm or
•with adapter and internal diaphragm.
The adapter can be screwed on or welded in.
A seal is enclosed appropriate to the material used and version.
0 - 10 bar
BA211Y10
Figure 2.4
Mounted on a shut-off valve for measuring liquids
132
132 12
12
G/
12
G/
12
Ø26
Ø26
3
3
2.5
21
27
22
14
Thread
adapter
DIN 3852-E-G ½
Material: 1.4571 or
Hastelloy
G ½ external
Viton
elastomer seal
supplied
Thread adapter
DIN 3852-A-G ½
with Hastelloy only
Threaded hole
DIN 3852-X-G ½
BA211Y11
Figure 2.5
left:
An elastomer seal
to DIN 3852-E-G ½ is supplied
with the thread adapter
right:
With internal diaphragm and
welded or thread adapter
Process connection with
flush-mounted diaphragm
version 1F
With internal diaphragm and
thread adapter
Seal supplied
(with 1.4435 diaphragm only)
Welded
Welded adapter
– Material 1.4571
with 1.4435 diaphragm
– Material Hastelloy
with diaphragm in
Hastelloy
BA211Y12
2 Installation Cerabar S FF
10 Endress+Hauser

2.2 Mounting instructions with diaphragm seal
Cerabar S
with diaphragm seal
– PMC 635
– PMP 635
The Cerabar S with diaphragm seal is
screwed in, flanged or clamped,
depending on the type of diaphragm seal.
•The protective cap of the diaphragm
seal should only be removed just before
mounting in order to protect the
diaphragm.
•The diaphragm of the diaphragm seal of
the Cerabar S must not be pressed in or
cleaned with pointed or hard objects.
•The diaphragm seal and the pressure
sensor together form a closed and
calibrated system which is filled with
filling fluid through a hole in the upper
part. The following rules should be
observed:
–This hole is sealed and not to be
opened.
–The instrument should only be turned
by the diaphragm seal and not by the
housing.
Level measurementFor level measurement the Cerabar S must
always be installed below the lowest
measuring point.
•The instrument should not be installed
within the flow of material, in the outlet
of the tank or at a place in the tank
where pressure pulses from agitator
blades may occur.
•Calibration and function testing are
easier to carry out if the Cerabar S is
mounted downstream from a shut-off
valve.
Mounting with
temperature spacers
The use of temperature spacers is
recommended when the continuous
extreme product temperatures cause the
maximum permissible ambient
temperature to exceed +85 °C.
•Note when mounting that the
temperature spacer increases the
maximum height by 100 mm.
•Due to the hydrostatic column in the
temperature spacer, the increased
height also causes a zero point shift of
approx. 10 mbar.
0 - 10 bar
BA211Y13
Figure 2.6
When screwing in the Cerabar S
with diaphragm seals, turn by the
diaphragm seal only, not by the
housing.
0 - 10 bar
BA211Y14
0 - 10 bar
A + 100
100
BA211Y15
Figure 2.7
Temperature spacer
Cerabar S FF 2 Installation
Endress+Hauser 11

Mounting with capillary
tubing To protect from high temperatures, moisture or vibration, or where the mounting point is
not easily accessible, the housing of the Cerabar S can be mounted with capillary tubing
away from the measuring point.
A bracket for mounting on a wall or pipe is available for this.
2.3 Mounting accessories
Wall and pipe mounting
with accessories
0 - 10 bar
Mounting point away from
the measuring point
Measuring point:
•very moist
•hot
•strongly vibrating
•difficult to access
BA211Y16
0 - 10 bar
Ø 60.3
90
87
73
Ø 6
BA211Y17
183
81
A* 118
70
111
/ 60,3
0 - 10 bar
PMC 731 A = 19 mm
PMP 731
Flush-mounted diaphragm A = 18 mm
PMP 731
Internal diaphragm
A = 44 mm
BA211Y18
Figure 2.8
left:
• Mounted with bracket on
horizontal piping
right:
• Mounted with bracket on a wall
118
B*
3
94
166
0 - 10 bar
BA211Y19
ø60,3
90
ø6
73
87
0 - 10 bar
BA211Y20
Figure 2.9
• Mounted with bracket on
vertical piping
PMC 731 B = 19 mm
PMP 731
Flush-mounted diaphragm
B = 18 mm
PMP 731
Internal diaphragm B = 44 mm
2 Installation Cerabar S FF
12 Endress+Hauser

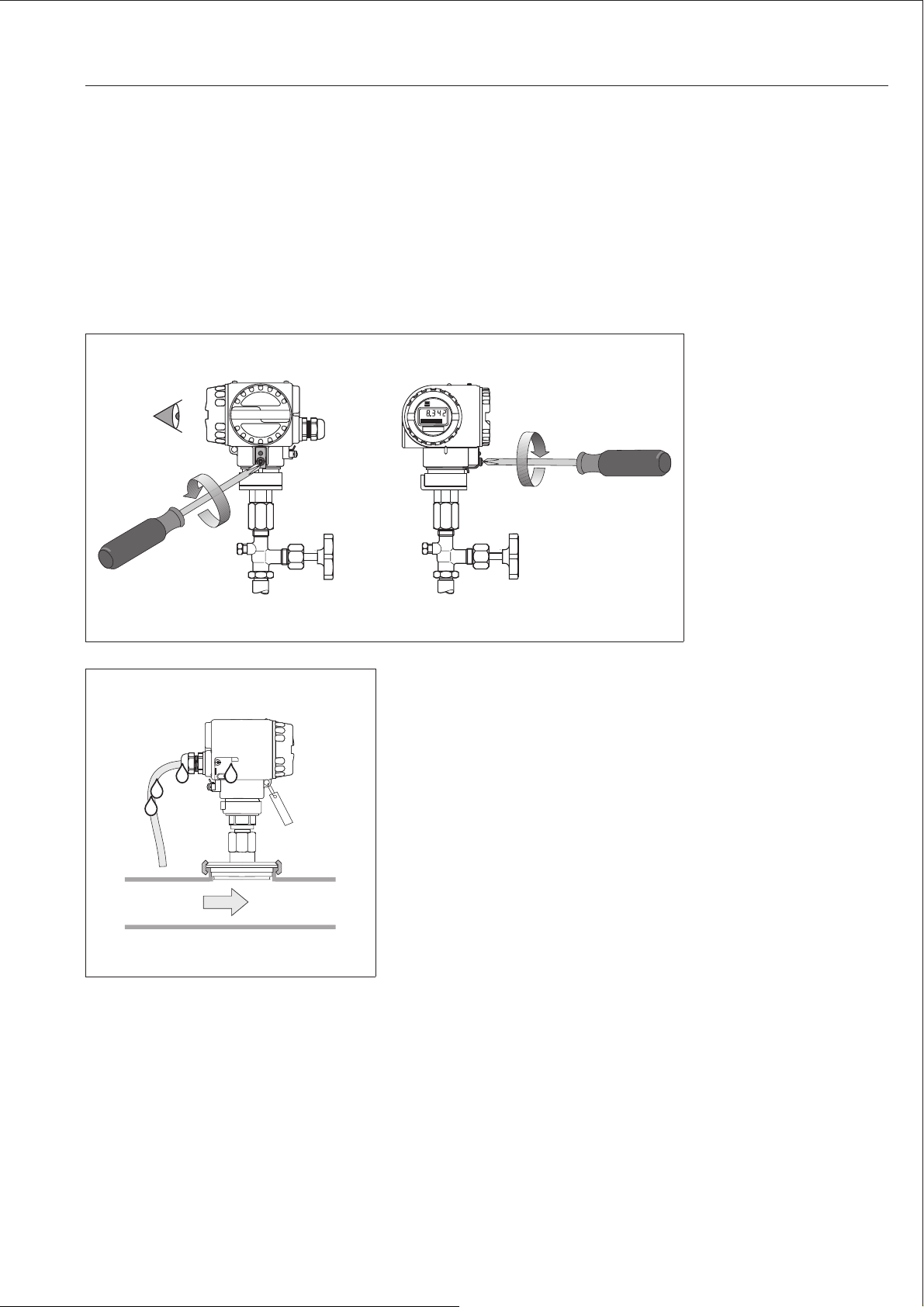

2.4 Mounting position
Positioning the housingAfter the Cerabar S has been mounted, the housing can be positioned so that:
•the terminal connection compartment can be accessed easily,
•the display can be seen optimally,
•the cable entry and cover of the Z/S keys are protected from water.
The housing can turned through 270°:
•To turn the housing undo the screw below the connection compartment
•Turn the housing
•Tighten the screw again
0 - 10 bar
BA211Y21
loosen
tighten
ZS
BA211Y22
Vertical mounting
Cable points
downwards
Figure 2.10
Mounting of the Cerabar S
• cable points downwards
• The cover for the Z/S keys is on the side of the
instrument
Cerabar S FF 2 Installation
Endress+Hauser 13

2.5 Connection
General notes Cerabar S is loop-powered transmitter (type 111) with Foundation Fieldbus output. Note
the following before connecting up:
•Turn off the power before connecting up.
•Connect the external ground terminal of the transmitter to the plant grounding
system before connecting up.
Power The Cerabar S has the following power requirements:
I = 10.5 mA ± 1 mA
Non-Ex: U = 9...32 VDC
Ex: U = 9…24 VDC
Cable Twisted, shielded pairs must be used. The cable specifications can be taken from the
FF specification or IEC 61158-2. The following have been found suitable:
Non-Ex-area: Siemens 6XV1 830-5BH10,
Belden 3076F,
Kerpen CEL-PE/OSCR/PVC/FRLA FB-02YS(ST)YFL.
Ex-area: Siemens 6XV1 830-5AH10,
Belden 3076F,
Kerpen CEL-PE/OSCR/PVC/FRLA FB-02YS(ST)YFL
Screening General information on wiring can be found at the Fieldbus Foundation website:
www.fieldbus.org. For maximum protection against electromagnetic interference, e.g.
when the bus is operating near frequency converters, it is recommened that high integrity
potential bonding be provided between the housing and the cable screening.
The external ground terminal on the transmitter must be connected to ground.
The continuity of the cable screening between tapping points must be ensured.
The screening must be grounded at each end of the cable.
If there are large differences in potential between grounding points, the grounding should
run via a capicitor that is suitable for high frequency use
(e.g. ceramic 10 nF/250 V~).
ENDRESS+HAUSER Made in Germany
Maulburg
CERABAR
Order Code PMC731-R11P1F11R1
Ser.-No. 4FY0832
Material AL203 CRN-STEEL VITON IP 65
P –1...10 bar
Pmin. 500 mbar
Pmax. 40 bar U = 9…32VDC
Foundation Fieldbus

123
+
0004
Foundation Fieldbus
FF FF
cable gland Nameplate
external
ground
connection
compartment
BA211Y23
ground
terminal
Figure 2.11
Cerabar S connection
compartment and nameplate
2 Installation Cerabar S FF
14 Endress+Hauser

2.6 Wiring examples
Cable connection
The bus line also carries power and is
connected as follows:
•Switch off power
•If necessary, connect external ground
terminal to plant grounding system.
•Unscrew the connection compartment
lid.
•Thread cable through cable entry.
•Connect cable cores to FF+ and FF–.
Reversed polarity has no effect on
operation.
•Connect the screen to the internal
ground terminal
•Screw down the connection
compartment lid.
7/8" plugThe Cerabar S Foundation Fieldbus version with 7/8" plug is supplied ready wired and
need only be connected to the FF H1 bus by means of a suitable cord set.
Note!
To protect the device against vibrations, always connect the Cerabar S to the T-piece or
to a FF junction box via cable. See Figure, bottom right.
•Push connector into the socket.
•Securely tighten the knurled screw.
•Ground the device and T-piece or FF junction box using the grounding system
selected.
FF–
FF+
123
+
0004
Foundation Fieldbus
FF FF
ground terminal
on housing:
to be grounded!
connection
compartent
BA211Y24
Note!
–+
123
123
Cerabar S
FF+
not
connected
Screen
7/8" plug
Foundation Fieldbus
FF–
BA211Y64
7/8" plug, view looking onto the pins
T-piece
cable with
7/8" plug
BA211Y65
e.g.T-piece
Cerabar S FF 2 Installation
Endress+Hauser 15

3 Foundation Fieldbus Interface
3.1 Synopsis
There are two possibilities of connecting up a foundation fieldbus:
•either with a direct connection to a FF/H1 card
•or with an indirect connection via a linking device
Figure 3.1 illustrates both possibilities.
CO
CO
I/O FC LD
H1
CN
AI
AI
AO
AO
DI
DI
FF/H1
FF/H1
ControlNet or HSE
BA211E26
Figure 3.1
Foundation Fieldbus
principle of operation
Above: Direct connection to
FF/H1 card
Below: Connection via a linking
device
CO: Controller
H1: H1 interface
AI: Analog input
AO: Analog output
DI: Digital input
I/O: Input/output
FC: Frequency converter
LD: Linking device
3 Foundation Fieldbus Interface Cerabar S FF
16 Endress+Hauser

3.2 Hardware settings
A DIP-switch in the connection compartment of the Cerabar S controls allows the
write protection and simulation functions to be set via hardware.
The default settings of the switches are as follows:
WP OFF: write protection via hardware is disabled
SIM ON: simulation is enabled (= allowed in configuration tool).
Device identification
Foundation Fieldbus identifies the device by its identification code and automatically
allocates an appropriate field address. There is no separate hardware switch for this
purpose.
When the device has been integrated into the network, see Chapter 3.3, it appears as
follows in the bus tree:
E+H_CERABAR_S_XXXXXXXX
A click on the name reveals the device tag, device ID and node address. The device
ID is made up of the following components:
Device_ID = 452B481007-XXXXXXXX
whereby: 452B48 = ID code for Endress+Hauser
1007 = ID code for Cerabar S
XXXXXXXX = Device serial number, as printed on the name plate
A right-hand mouse click on the name opens up a menu from which the PD_TAG and
NODE_ADDRESS can be changed.
WP
off on off on
SM
WP
off on off on
SM
WP
off on off on
SM
BA211Y27
Default settings:
Simulation on
Write protection on:
Figure 3.2
Cerabar S DIP-switch
Cerabar S FF 3 Foundation Fieldbus Interface
Endress+Hauser 17

3.3 Network configuration
During the configuration of the FF network, the device description (DD) of the
Cerabar S must be downloaded into the directory foreseen for it.
•Start the interface configuration tool.
•Configure the interface.
•Call the DD download routine
•Download the device descriptions (.ffo and .sym files) to the directory offered.
•When the configuration is complete, close the tool and the FF stack (if open).
The Cerabar S device descriptions can be ordered direct from Endress+Hauser or
downloaded from our website
www.endress.com . They contain all data necessary to
operate Endress+Hauser Foundation Fieldbus devices.
Start-up Start the bus configuration tool. After start-up, the tool shows the network configuration
in the form of an expandable tree. If the Cerabar S has been connected correctly, it
can now be identified:
—
—E+H_CERABAR_S_XXXXXXXX
—
A double click on the name reveals the device data, see also page 17:
PD_TAG the physical name of the device
DEVICE_ID the unique device identifier
NODE_ADDRESS the fieldbus node to which the device is connected
(is automatically allocated by the Configurator)
A click on the name expands the device tree to show the function blocks available for
it:
—
—E+H_CERABAR_S_XXXXXXXX
—RESOURCE_XXXXXXXX (RB)
—TRANSDUCER_XXXXXXXX (TBPR)
—ANALOG_INPUT_XXXXXXXX (AI)
The relationship between the blocks is shown in Fig. 3.3, the function of each block in
Chapters 3.4 to 3.6.
Transducer Block
Resource Block
Sensor
Analog Input Function Block
PRIMARY
VALUE OUT
OUT_SCALE
XD_SCALE 01
0
1
OR
SECONDARY
VALUE
Measured
variable
e.g.PCS
or other
Parameters that
describe the
physical unit, e.g.
Tag No.
Signal evaluation
Parameters that
describe the
device settings
Parameter that are important to the
process control system, e.g. scaling,
BA211Y28
Figure 3.3
Block model of device
3 Foundation Fieldbus Interface Cerabar S FF
18 Endress+Hauser

3.4 Resource block
The resource block contains the parameters used to describe physical resources of
the device. It has no linkable inputs or outputs. It is opened by a click on the
resource line.
—
—E+H_CERABAR_S_XXXXXXXX
—RESOURCE_XXXXXXXX (RB)
—TRANSDUCER_XXXXXXXX (TBPR)
—ANALOG_INPUT_XXXXXXXX (AI)
If the NI-FBUS Configurator is being used, a series of file tabs appears on the screen.
The files can be opened to view and/or edit the parameters in the following table. A
short description of the parameter function appears on the side of the screen. A
change in the parameter is stored by pressing the WRITE CHANGES button when the
block is out of service. Press the READ ALL button to check the values stored in the
device. The following are of particular interest.
The function of the resource block parameters not described here can can be taken
from the Foundation Fieldbus specification, see
"http://www.fieldbus.org" .
Parameter Description
TAG_DESC User description of the intended application of the block.
MODE_BLK Lists the actual, target, permitted and normal operating modes of the
block.
Target: changes the operating mode of the block
Actual: indicates the current operating mode of the block
Permitted: states which operating modes are allowed
Normal: indicates the normal operating mode of the block
The possible operating modes of the resources block are:
AUTO: the block is operating as normal
OOS: the block is out of service.
If the resource block is out of service, then all blocks within the device
(resource) are forced into the same status.
RS_STATE Indicates the state of the resource block application state machine
On-line: block in AUTO mode
Standby: block in OOS mode
WRITE_LOCK Indicates the status of DIP-switch WP.
RESTART Allows a manual restart:
UNINITIALISED: no status
RUN: normal operational status
RESOURCE: resets the resource block parameters
DEFAULTS: Resets all Foundation Fieldbus parameters within the device,
but not the manufacturer specific parameters.
PROCESSOR: make a warm start of the processor
BLOCK_ERROR Shows error status of software and hardware components
Out-of-Service: the block is in OOS mode
Simulation active: shows the setting of DIP-switch WP
BLOCK_ALM Shows any configuration, hardware, connection and system problems in
the block. The cause of the alert is to be seen in the subcode field.
Cerabar S FF 3 Foundation Fieldbus Interface
Endress+Hauser 19

3.5 Transducer block
The transducer block contains the parameters required to calibrate the device.
Operation The transducer block is opened by clicking on the transducer line.
—
—E+H_CERABAR_S_XXXXXXXX
—RESOURCE_XXXXXXXX (RB)
—TRANSDUCER_XXXXXXXX (TBPR)
—ANALOG_INPUT_XXXXXXXX (AI)
Parameters changes from the tool are made off-line while the device is operating. The
changes are downloaded by first setting MODE_BLK = OOS then pressing the WRITE
CHANGES button. Press the READ ALL button to check the values stored in the
device. Normally operation is resumed as soon as MODE-BLK is set to AUTO.
DAMPING
Sensor
pressure
PD
D
P'
PD
D
P' Unbiased
pressure
τ
LOW SENSOR CAL
HIGH SENSOR CAL
Flow
Level
linear
Level
cylinder
Primary
Value (PV)
p
1
0
1
p
0
1
p
0
Q
10
LOWER RANGE
VALUE
UPPER RANGE
VALUE
DENSITYFACTOR
START POINT
FULL SCALE
UNIT AFTER
LINEARIZATION
LINEARIZATION
Sensor
temperature Secondary
Value (SV)
Pressure
1
1
0
1
1
0
1
1
0
10
l
10
10
V
Output scaling
Input scaling
CREEP FLOW
SUPPRESSION
BA211Y29
Figure 3.4
Schematic diagram of transducer block:the parameters shown represent a typical calibration sequence for a standard application
3 Foundation Fieldbus Interface Cerabar S FF
20 Endress+Hauser
